Product type	Electric winch
Brand	Güde
Model	1200/12V
Power supply	12 V (suitable battery)
Maximum pulling power	900 kg
Max. pulling power with guide pulley	1800 kg
Cable length	9 m
Cable diameter	5.5 mm
Pulling speed	1 m/min
Mounting plate dimensions	230 x 125 mm
Net weight	11 kg
Protection class	III
Protection type	IP 55
Sound pressure level L_pA	83 dB(A)
Sound intensity level L_WA	90 dB(A)
Remote control cable length	3 m
Power cable length	3 m
Intended use	Pulling mobile loads (breakdowns, boat trailers)
Maximum continuous operation time	5 minutes
Cable material	Steel (estimated)
Recommended maintenance	Cleaning, light oiling of cable, visual check before use
Warranty	24 months for end consumer
Included accessories	Crank handle, remote control, power cable
Country of origin	Germany (brand)

Frequently Asked Questions - 1200/12V Güde

Can I use the winch to lift loads?

No, the winch is designed only for pulling mobile loads, not for lifting them. Never use it to lift loads.

What type of battery should I use?

Use a suitable 12 V battery, preferably a car or truck battery. Do not plug the winch into a car's cigarette lighter.

Can I use the winch continuously?

No, the winch is not designed for continuous operation. Do not use it for more than 5 minutes without interruption to avoid overheating.

How do I maintain the winch cable?

Keep the cable clean and lightly oiled. Check its condition before each use and replace it if damaged.

What safety precautions should I take?

Wear gloves, safety goggles, and safety shoes. Keep people at least 5 meters away. Do not wear loose clothing or jewelry.

Can I use the winch in the rain?

No, protect the winch from moisture. Do not expose it to rain and do not use it in bad weather or thunderstorms.

How do I install the winch on a vehicle?

Securely attach the mounting plate (230x125 mm) to a stable surface of the vehicle using suitable bolts. Ensure the attachment is safe before using the winch.

What to do if the winch does not work?

First check the battery connection and battery condition. If the problem persists, contact Güde customer service.

Can the winch be used on a moving vehicle?

No, do not use the winch when the vehicle engine is running. This could cause damage or injury.

What is the warranty for this winch?

The warranty is 24 months for the end consumer (12 months for industrial use). Keep the original proof of purchase.

USER MANUAL 1200/12V Güde

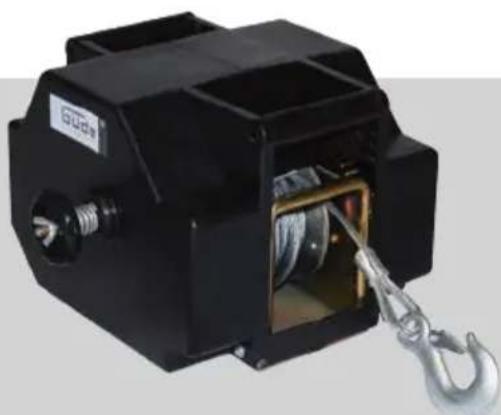

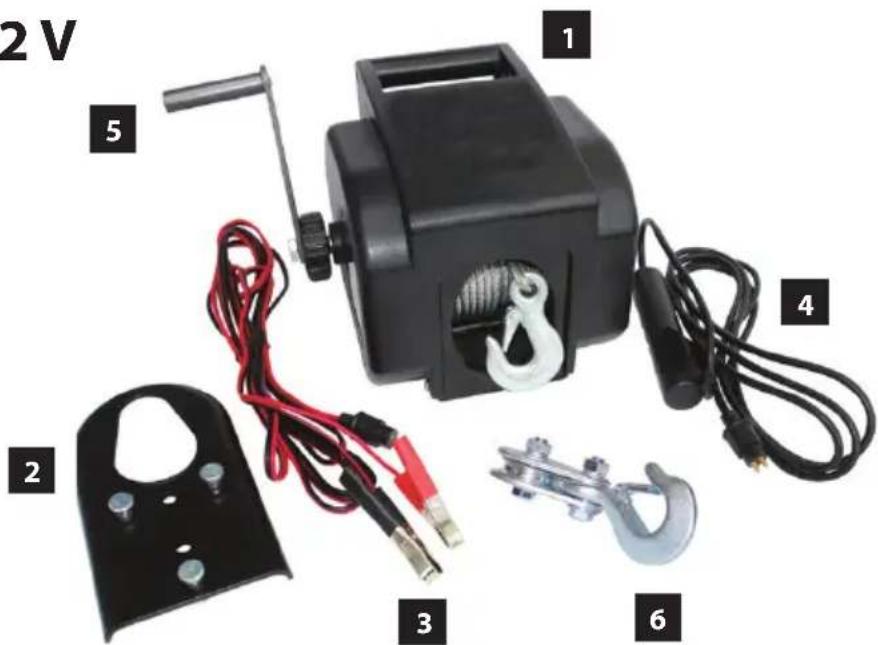

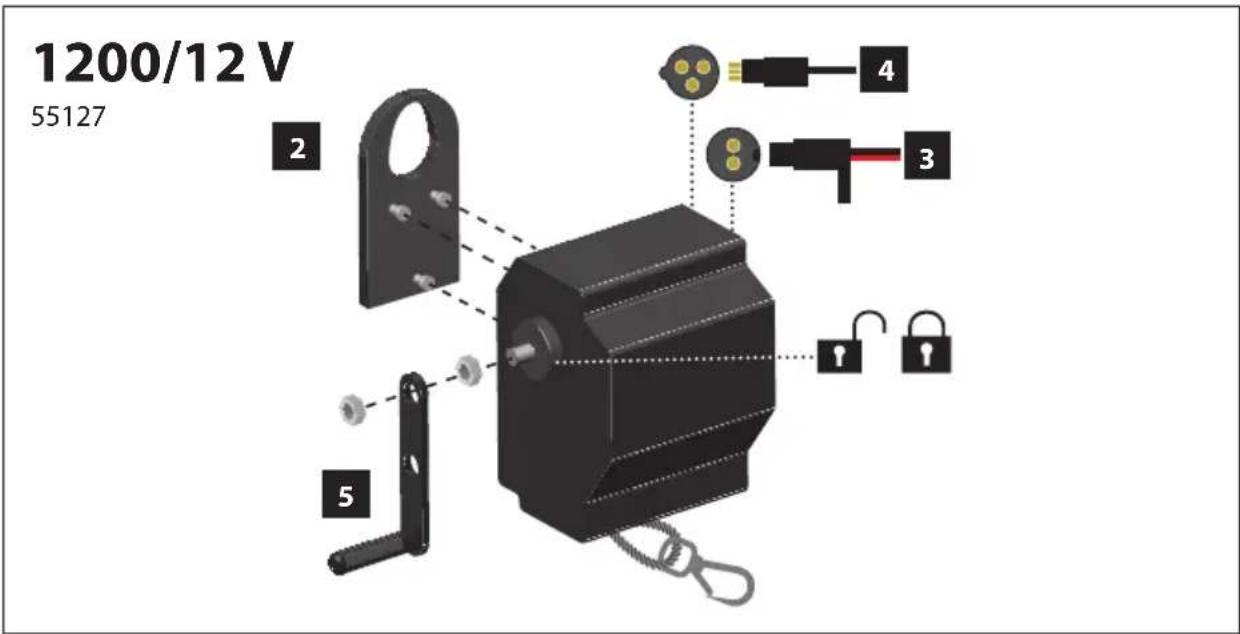

Black manual winch with a hook and handle, no visible text or symbols

1200/12 V
55127

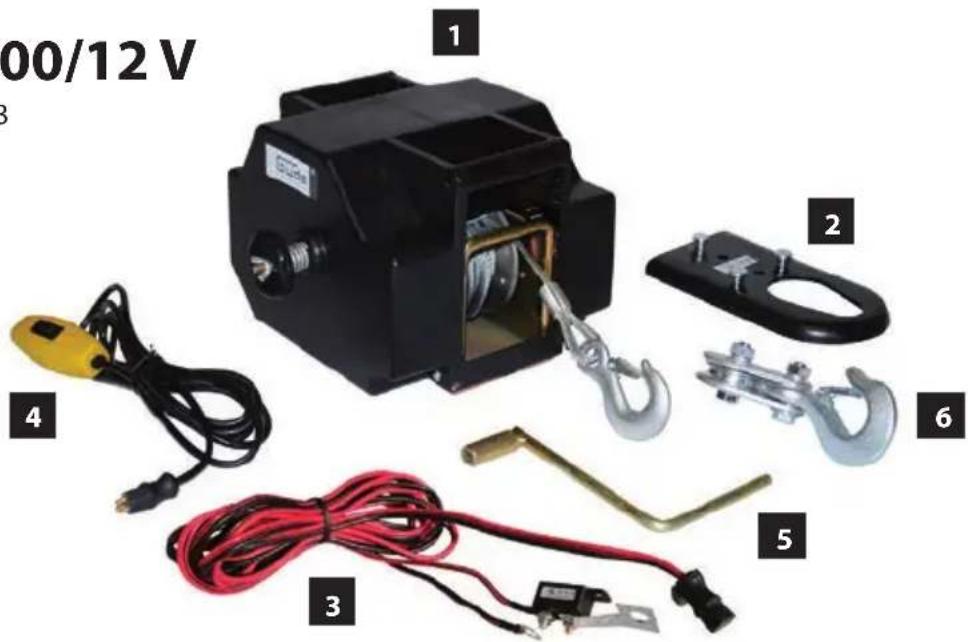

Black industrial crane with attached hook and internal components (no visible text or symbols)

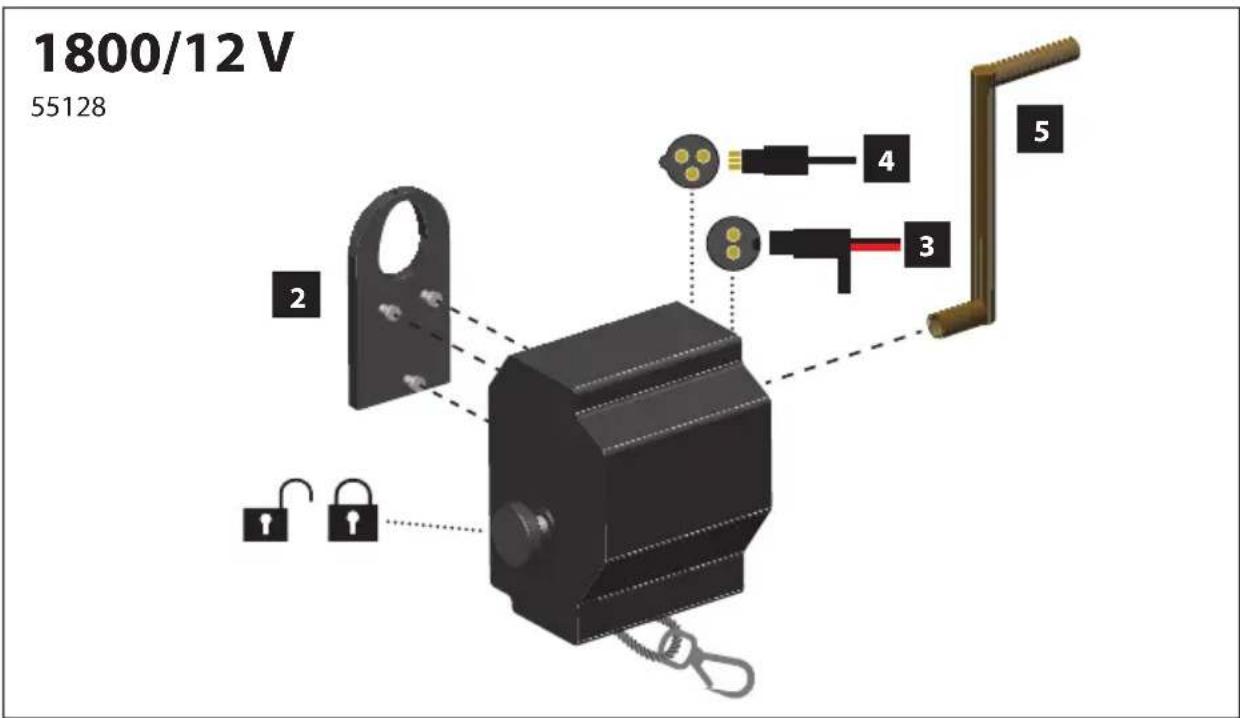

1800/12 V
55128

ENGLISH Please read the instructions carefully before starting the machine.

1200/12 V

55127

1800/12 V

55128

D	Inbetriebnahme	SLO	Uvedba v pogon
GB	Starting-up the machine	HR	Puštanje u rad
F	mise en service	BG	Пускане в действие
I	Messa in funzione	RO	Punerea în funcțiune
NL	Inbedrijfstelling
CZ	Uvedení do provozu
SK	Uvedenie do prevádzky
H	Üzembe helyezés

1

D	Betrieb	SLO	Delovanje
GB	Operation	HR	Rad
F	Fonctionnement	BG	Pábota
I	Esercizio	RO	Functionare
NL	Gebruik
CZ	Provoz
SK	Prevádzka
H	Üzemeltetés

2

1	D	Inbetriebnahme	SLO	Uvedba v pogon
	GB	Starting-up the machine	HR	Puštanje u rad
	F	mise en service	BG	Пускане в действие
	I	Messa in funzione	RO	Punerea în funcțiune
	NL	Inbedrijfstelling
	CZ	Uvedení do provozu
	SK	Uvedenie do prevádzky
	H	Üzembe helyezés

D Inbetriebnahme

GB Starting-up the machine

F mise en service

Messa in funzione

Side profile illustration of a car on a road (no text or symbols)

1

1	D	Inbetriebnahme	SLO	Uvedba v pogon
	GB	Starting-up the machine	HR	Puštanje u rad
	F	mise en service	BG	Пускане в действие
	I	Messa in funzione	RO	Punerea în funcțiune
	NL	Inbedrijfstelling
	CZ	Uvedení do provozu
	SK	Uvedenie do prevádzky
	H	Üzembe helyezés

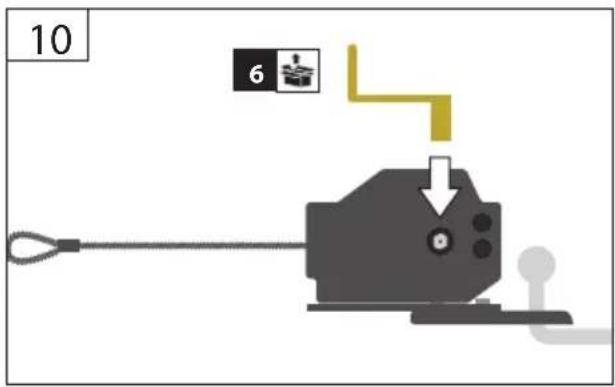

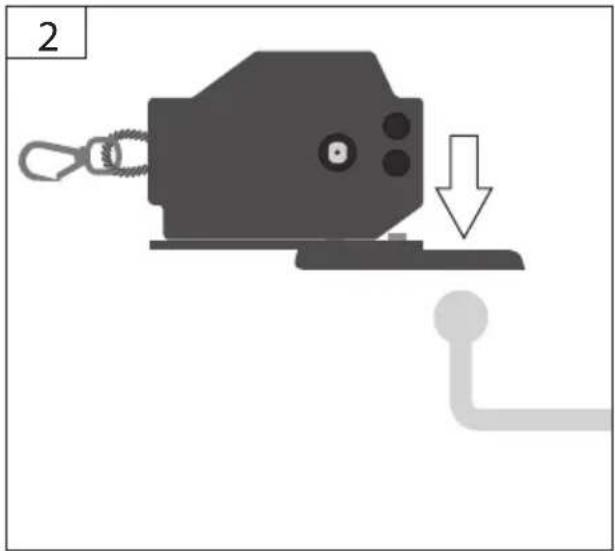

Diagram of a mechanical device with a hook and lever, showing a downward arrow and a pipe connection (no text or symbols)

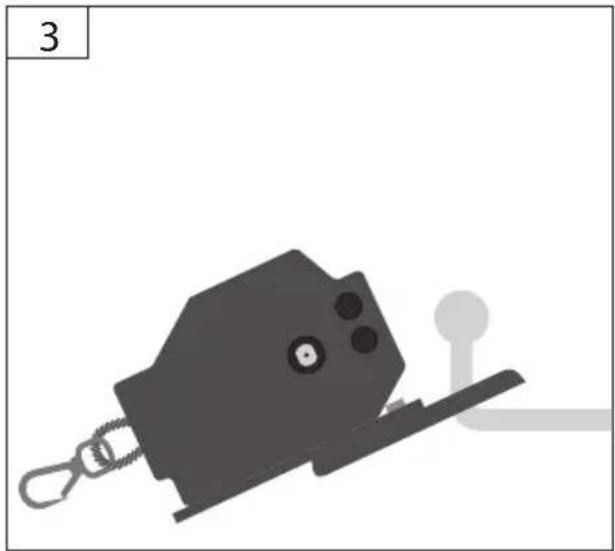

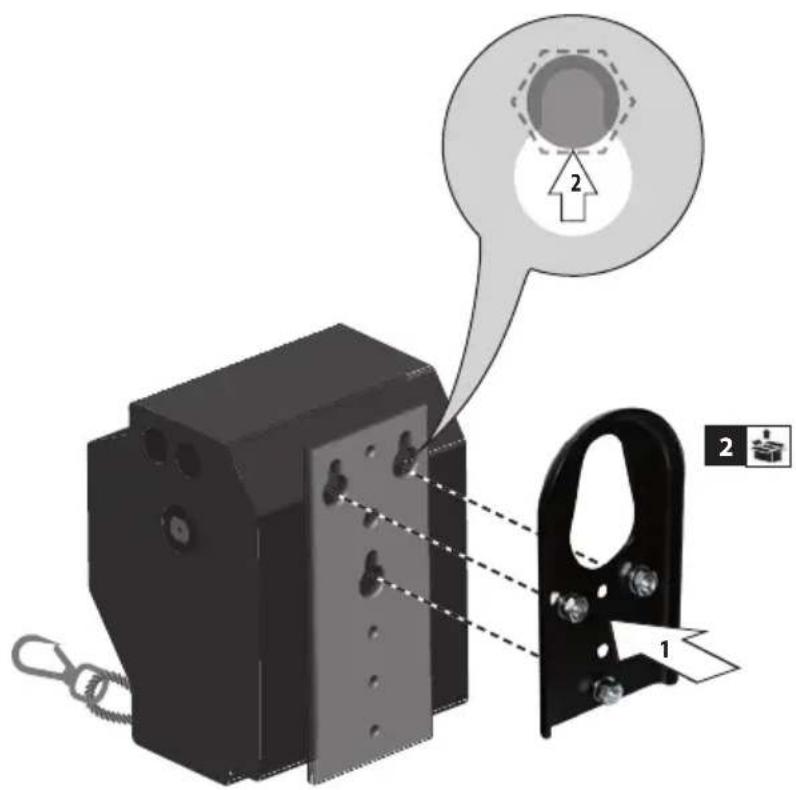

Simple illustration of a mechanical device with a handle and mounting bracket (no text or symbols)

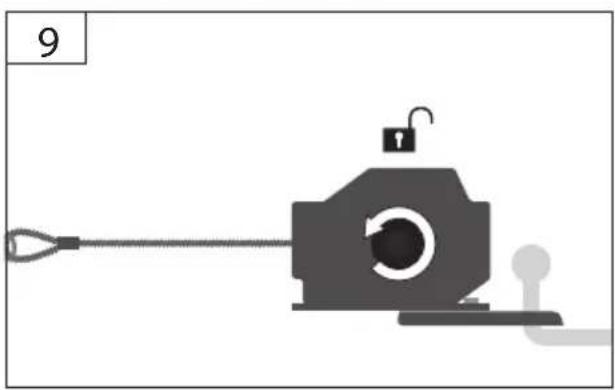

Diagram showing a vehicle with a circular component connected to a lock and a padlock, no text or symbols present

D Inbetriebnahme

GB Starting-up the machine

F mise en service

Messa in funzione

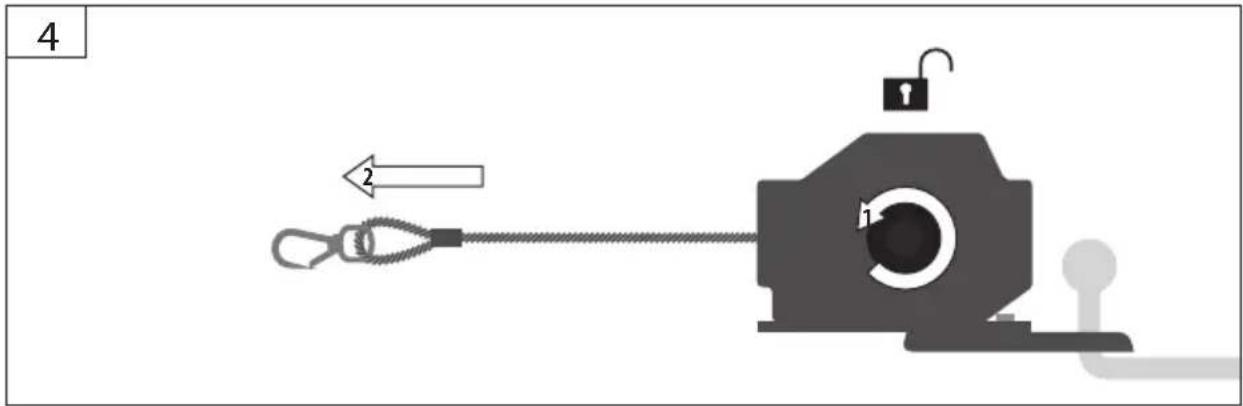

	D	Betrieb	SLO	Delovanje
	GB	Operation	HR	Rad
	F	Fonctionnement	BG	Pábota
	I	Esercizio	RO	Funcționare
	NL	Gebruik
	CZ	Provoz
	SK	Prevádzka
	H	Üzemeltetés

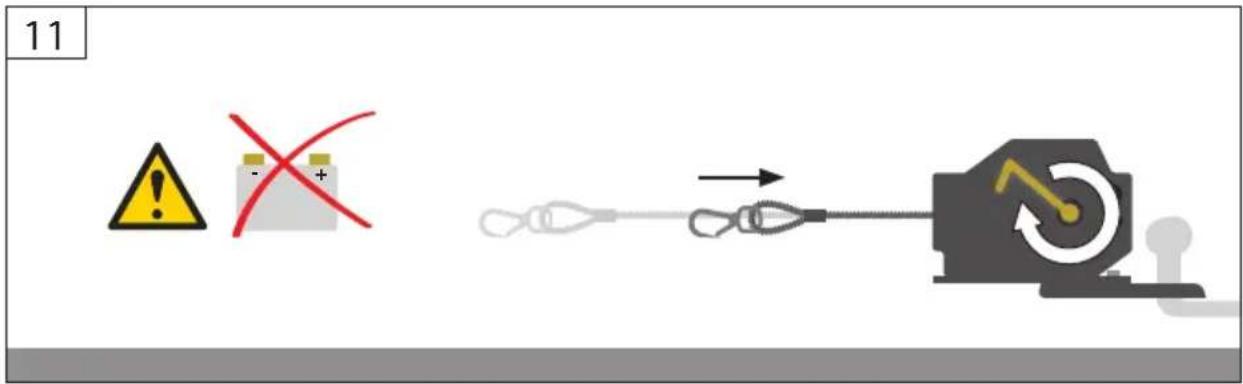

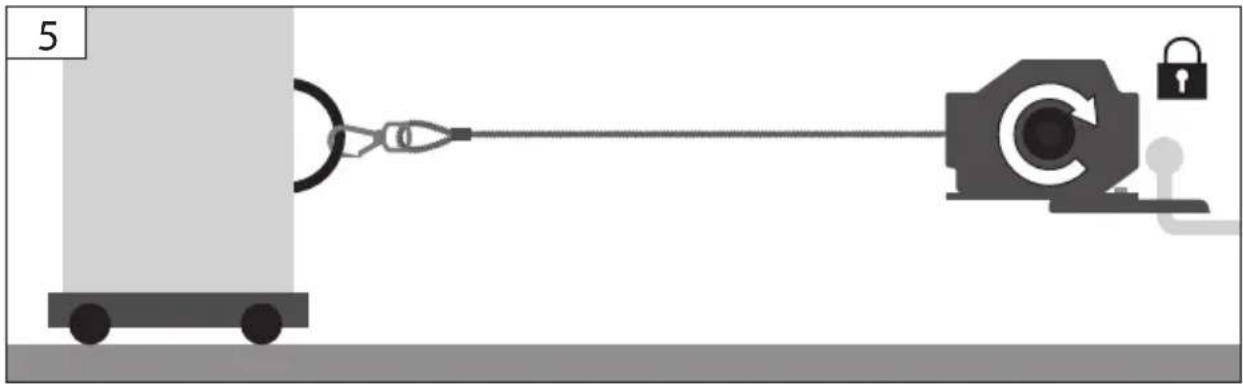

Diagram of a mechanical device with a lock and lever, no text or symbols present

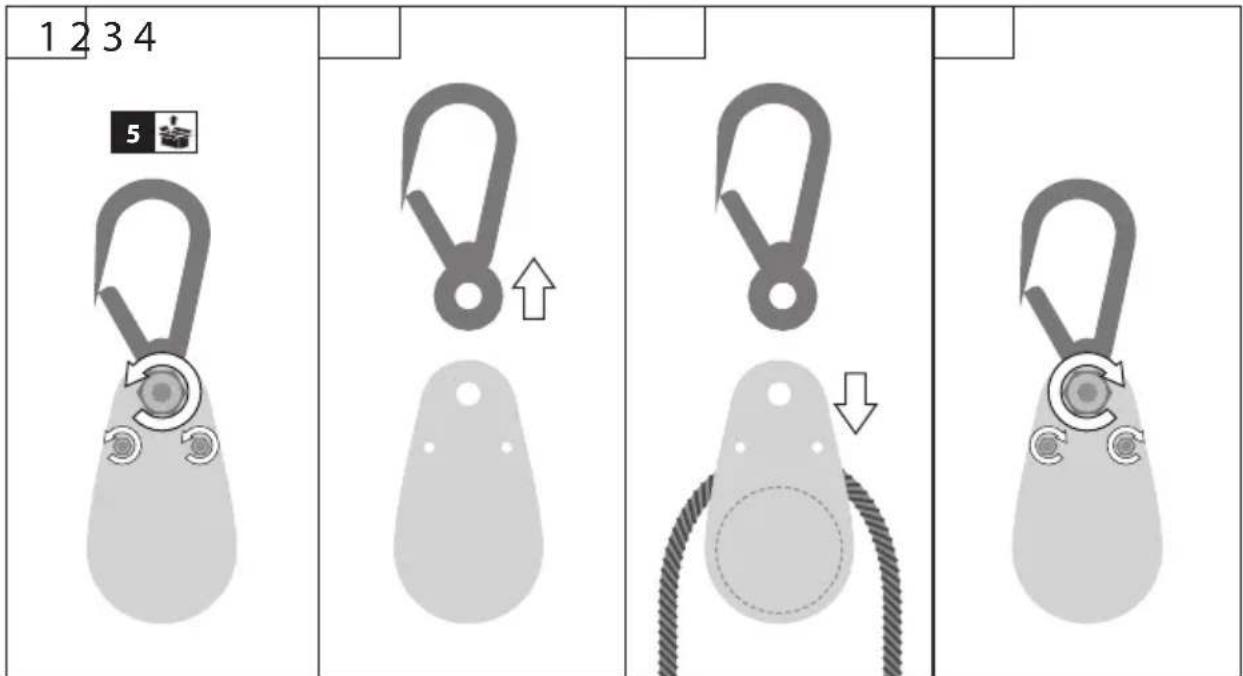

D	Betrieb	SLO	Delovanje
GB	Operation	HR	Rad
F	Fonctionnement	BG	Pabota
I	Esercizio	RO	Functionare
NL	Gebruik
CZ	Provoz
SK	Prevádzka
H	Üzemeltetés

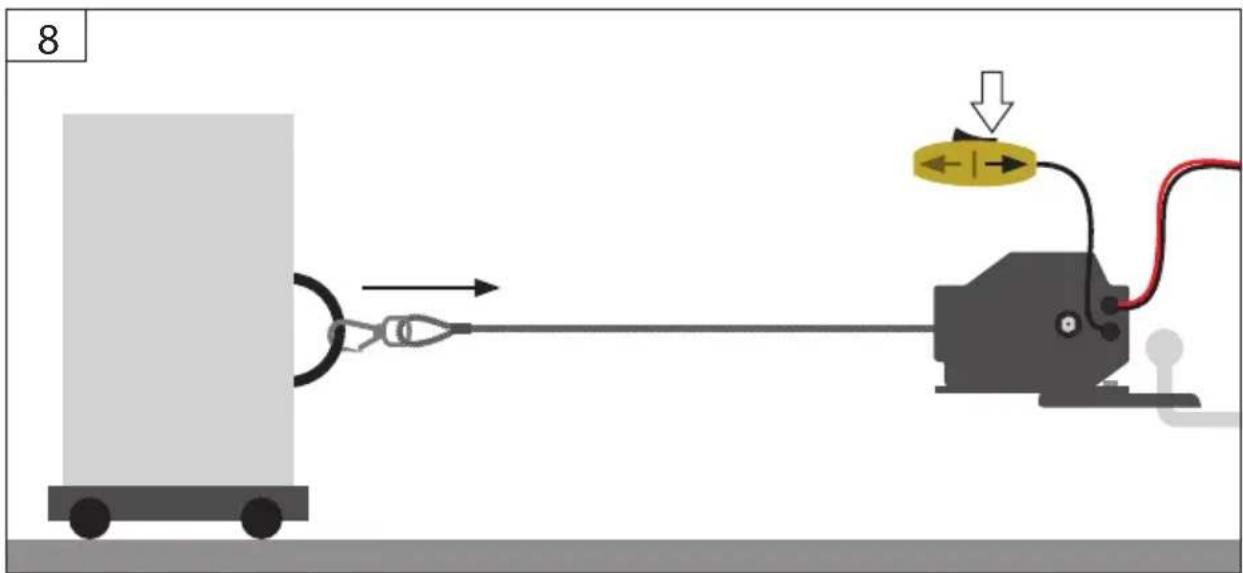

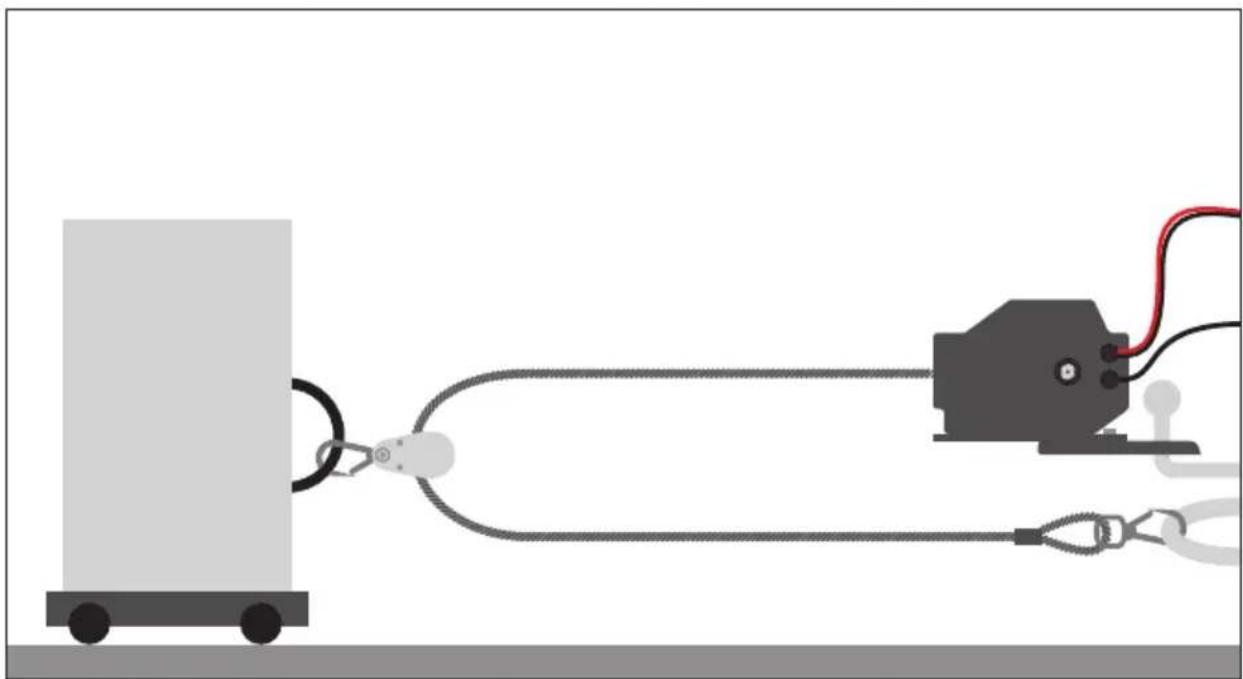

Simple diagram of a mechanical setup with a cart, connecting wires, and a connected device (no text or symbols)

Technische Daten

Read and understand the operating instructions before using the appliance. Familiarise with the

control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.

The operator is responsible for accidents or risks to third parties.

In case of any doubts about connection and operation refer please to our customer center

Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

This appliance has not been designed to be used by persons (including children) with reduced physical, sensory or mental capabilities or with a lack of knowledge or experience.

Children must be supervised in order not to play with the machine.

Specified Conditions Of Use

The winch is designed to move and pull heavy loads in accordance with the technical specifications.

The winch must not be used to move fixed or jammed loads or as a lifting device.

Loads may not be pulled diagonally using winches intended for lifting and lowering suspended weights.

The device is not approved for use in hazardous areas. The winch must be securely fixed and can only run off a 12V battery suitable for this type of work.

The device must not be powered from a vehicle. A rette lighter.

Avoid excessive inching (e.g. giving short pulses to the motor).

Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

The device is not approved for continuous iteration. It must never be run continuously for more than five minutes.

Residual risks

Even when the device is used properly and all safety regulations are complied with, there still may be some residual risks.

Emergency procedure

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. If you seek help, state the following pieces of information: 1. Accident site, 2. Accident type, 3. Number of injured persons, 4. Injury type(s)

Symbols

WARNING / Caution!

Keep bystanders out the dangerous area (5 m).

Entanglement hazard

Read the operating instructions to reduce the risk of injury.

Wear eye protective goggles!

Wear safety shoes with steel reinforcement!

Wear gloves!

Keep your hands in safe distance.

Keep dry at all times. Never expose tool to rain.

Forbidden operation for persons with long hair.

CE marking

Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centres.

Class III tool.

Safety Warnings Electric cable winch

Do not use the winch to lift loads! The winch must only be used for pulling loads, e.g. for recovering vehicles or for pulling/lowering boats onto trailers.

Do not overload the winch!

Before using the winch, check that the cable is in a good condition and ensure that the lifting accessories used to secure the load are approved for the load and in perfect condition.

Do not move loads that could roll or fall over by themselves. If necessary, take action to avoid this.

Keep children and bystanders away while operating a power tool.

People or animals must not be transported.

Wear suitable protective clothing such as sturdy shoes with non-slip sole, robust long trousers, gloves, safety glasses and hearing protection!

Do not wear loose clothing or jewels. Hear, clothing and gloves must be out of reach of moving parts as they could get caught by the rotating parts. Do not use the appliance when barefooted or in open sandals.

Do not overreach. Keep proper footing and balance at all times.

Do not use the appliance in bad weather, especially when there is a risk of storm.

Provide adequate lighting or good lighting conditions when working with the machine.

Do not touch any dangerous moving parts before the machine has been disconnected from the power supply and the moving parts have come to a complete standstill.

Turn the hand crank manually.

Never use the hand crank and motor drive at the same time. This can cause injury and damage to the winch.

⚠️ Check all screw and plug-in connections and protective equipment if firm and tightened properly and whether all moving parts are running smooth whenever the appliance is to be put into operation.

The protective equipment on the appliance is strictly prohibited to be disassembled, changed, used in conflict with the designation and it is prohibited to attach any protective equipment of other manufacturers.

The appliance must not be used if damaged or safety equipment is defective. Replace any worn-out and damaged parts.

Do not use the winch on a vehicle with the engine running.

The device should not be used when it is connected to a charger.

Do not use the device near flammable liquids or gases. Risk of fire and explosion in case of short circuit. Machine to be stored in a dry place.

Maintenance

Disconnect the battery before doing any work on the device.

Repairs and works specified in these Instructions may only be performed by qualified authorised staff.

Use only original accessories and original spare parts.

Carry out a visual inspection before switching the appliance on. Check especially the safety equipment, electrical control elements, power lines and screw couplings for any damage and if they are tightened appropriately.

Keep the cable clean and lightly oiled.

Keep the device, in particular the air vents, clean at all times. Never spray water on the device body! Do not clean the plastics with solvents, flammable or toxic fluids. For cleaning, use a damp cloth only.

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries

If necessary, a list of spare parts can be found at www.guede.com.

Guarantee

Warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device.

The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.

The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee.

Important information for the customer

Please be sure to know that returning the product in or after the warranty period must be made in the original packaging.

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label.

Tel.: [phone] / 700-360

Fax: [phone]

E-Mail: [e-mail]

WAARSCHUWING / Opgelet!

Translation of the EC-Declaration of Conformity

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives.

In case of any change to the appliance not discussed with us the Declaration expires.

Notified Body Name: No: Adress:

Type Ex. Cert.-No.:

97/68/EC

Emission No.:

2000/14/EC_2005/88/EC
