USER MANUAL XF 460 Trevi

7. Tasto/REPLAY, Play/Pausa- ripeti-

• Do not use power supply with a voltage higher than 9V 1,5A; cause damage unit.

• Listen at high volume for long periods of time, may damage your hearing.

• Avoid placing the player: - Near magnetic fields. - Near any heat sources such as heaters and stoves. - In very damp places like bathrooms, swimming pools, etc... - In very dusty places. - In places subject to strong vibrations.

• Place the appliance so that its sides there is always enough room for free air circulation (at least 5cm).

• If liquids penetrate into the appliance immediately disconnect the plug from the wall socket and set the appliance to your nearest authorised TREVI Service Centre.

• Always check before charging, power cables and connection are installed properly.

• No naked sources, such as lighted candles, should be placed on this.

• The apparatus shall not be exposed to dripping or splashing water and no object filled with water, such as vases, should be placed on the unit.

• Keep this manual for future reference.

CARE AND MAINTENANCE

For cleaning it is recommended to use a soft, slightly damp cloth. Avoid solvents or abrasive substances. IMPORTANT The construction of this device guarantees long flawless operation. However, if come some problem, you should consult your nearest authorized service center. TREVI pursues a policy of continuous research and development. Therefore, the products may show different characteristics from those described. WARNING FOR A CORRECT USE OF RECHARGEABLE BATTERY - Recharge the battery in an ambient temperature between 5°C and 35°C. - Don’t recharge more than the suitable period to prevent the risk of overheating and burst. - Don’t recharge the battery for more than 15 hours. - Recharging the battery over the suitable period or an extended period of inactivity may reduce battery duration. - Rechargeable battery is liable to wear and tear and its performance will reduce gradually. - To extend the duration of the battery use it when is completely charged up to the complete discharging, then recharge it fully before use it again. Recharge a battery not completely consumed, will result a reduced duration. In this case, repeat the full charging/discharging cycle many times. - Avoid recharge the battery for the whole night. ENGLISHXF 460

6. 9/MPRI button, prev track

7. /REPLAY button, Play/Pause -

Repeat Recorded track

13. :/REC button, next track

15. LED On/Off Switch (Led Disco light)

22. RPT button, repeated a song in audio mode

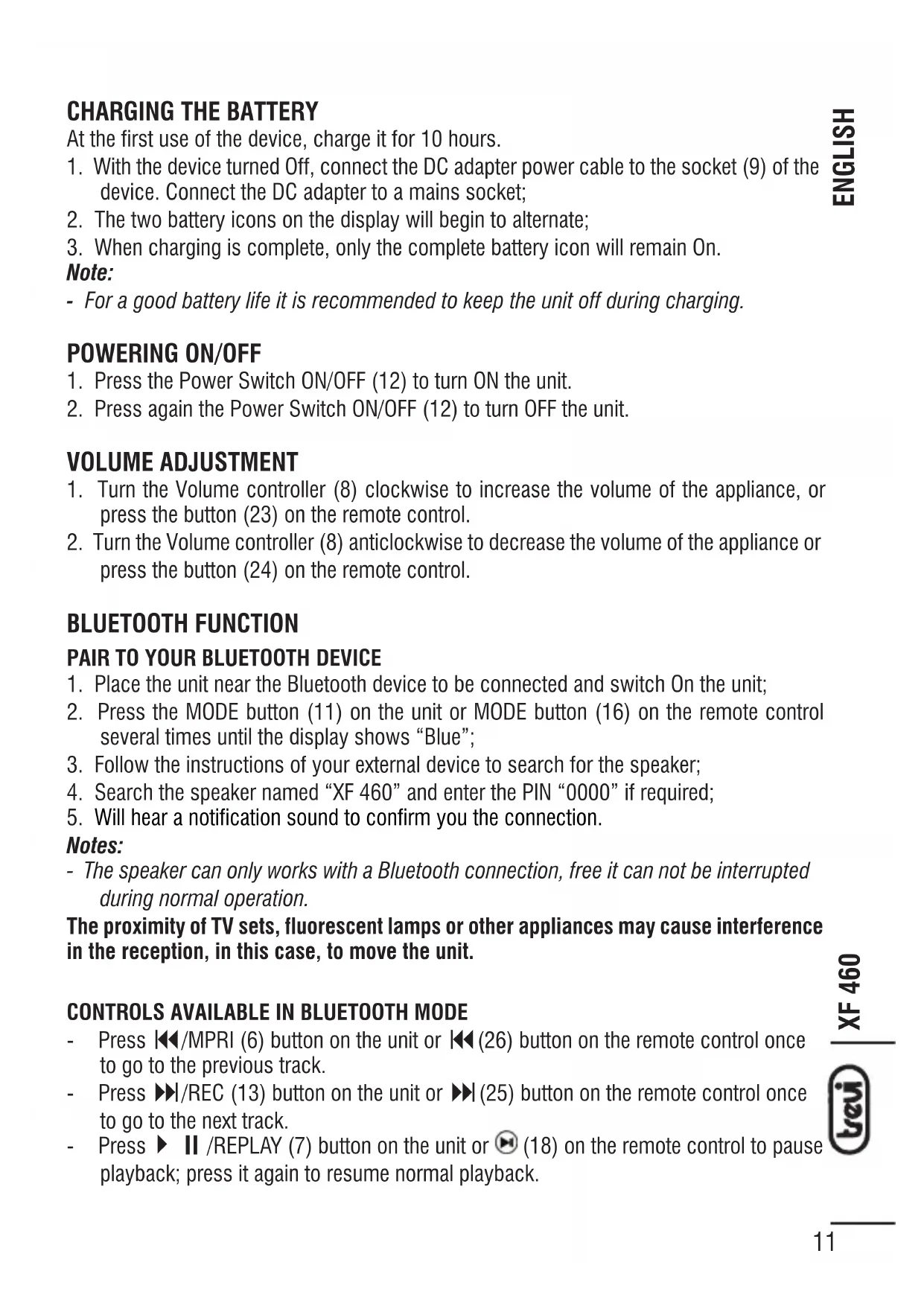

At the first use of the device, charge it for 10 hours.

1. With the device turned Off, connect the DC adapter power cable to the socket (9) of the

device. Connect the DC adapter to a mains socket;

2. The two battery icons on the display will begin to alternate;

3. When charging is complete, only the complete battery icon will remain On.

Note: - For a good battery life it is recommended to keep the unit off during charging.

1. Press the Power Switch ON/OFF (12) to turn ON the unit.

2. Press again the Power Switch ON/OFF (12) to turn OFF the unit.

1. Turn the Volume controller (8) clockwise to increase the volume of the appliance, or

press the button (23) on the remote control.

2. Turn the Volume controller (8) anticlockwise to decrease the volume of the appliance or

1. Place the unit near the Bluetooth device to be connected and switch On the unit;

2. Press the MODE button (11) on the unit or MODE button (16) on the remote control

several times until the display shows “Blue”;

3. Follow the instructions of your external device to search for the speaker;

4. Search the speaker named “XF 460” and enter the PIN “0000” if required;

5. Will hear a notification sound to confirm you the connection.

Notes: - The speaker can only works with a Bluetooth connection, free it can not be interrupted during normal operation. The proximity of TV sets, fluorescent lamps or other appliances may cause interference in the reception, in this case, to move the unit.

CONTROLS AVAILABLE IN BLUETOOTH MODE

- Press 9/MPRI (6) button on the unit or 9(26) button on the remote control once to go to the previous track. - Press :/REC (13) button on the unit or :(25) button on the remote control once to go to the next track. - Press/REPLAY (7) button on the unit or (18) on the remote control to pause playback; press it again to resume normal playback.XF 460

True wireless stereo (TWS) technology TWS technology enables user to make wireless connection between two speakers which are same model and compatible with TWS. In TWS connection, two speakers will be auto- matically grouped to be a Stereo- Speaker System which outputs the left and right channel.

Notice: Two speakers must be same model and both compatible with TWS.

1. Disable the bluetooth function on the phone or other bluetooth device;

2. Turn on both speakers and select the “Bluetooth” mode on both;

3. Press and hold the MODE/TWS button (11) of one of the speakers, after a few seconds

the two speakers will be paired (an acoustic sound will warn of pairing);

4. Activate Bluetooth on the phone or other device, search for and pair the external device

to the speaker. Once connected, you will be able to play music with the TWS stereo speaker system. TWS function operates in TWS mode, manipulations to the main speaker will be simul- taneously effected in another speaker. For example: previous and next song selection, play and pause. Note: - If the 2 loudspeakers are not paired, switch off both devices and repeat steps 1, 2 and 3. - The TWS function only works between equal speakers or with other speakers that use the same micro processor or solution.

MICRO SD CARD/USB FUNCTION

1. Insert a Micro SD card in the slot (4) or a USB stick in the socket (10) and turn on the

2. Playback will start automatically;

3. Press 9/MPRI (6) button on the unit or 9(26) button on the remote control once to

go to the previous track; press :/REC (13) button on the unit or :(25) button on the remote control once to go to the next track;

4. Press/REPLAY (7) button on the unit or (18) button on the remote control to

pause playback; press it again to resume normal playback;

5. Press the RPT button (22) on the remote control once to repeat the track you are listening

to, press it twice to repeat all the tracks on the connected device. ENGLISHXF 460

1. Connect any unit with audio output via a special 3.5mm Jack cable to the AUX input (14);

2. Press the MODE (11) button on the unit or the MODE (16) button on the remote control

several times until the display shows “AUX”;

3. Adjust the external device by your own controls.

RECORDING FROM MICROPHONE

1. Insert a Micro SD card into the slot (4) or a USB stick into the socket (10) and turn on

2. Connect the supplied wired microphone to the MIC IN socket (1);

3. Turn on the microphone;

4. Adjust the microphone input volume via the command (2) on the unit and adjust the

ECHO via the command (3);

5. Press and hold the :/REC button (13) for a few seconds, the word “REC” will appear

6. Al the recording is finished, press and hold the/REPLAY button (7) on the unit,

the recording just made will be automatically played. Note: - The recordings are present in the AB_REC folder present in the Micro SD or USB stick. - The function only records what is recorded by the microphone. LED DISCO-LIGHT To switch On the Disco-Light effects, press the LED button (15). To switch Off the Disco-Light effects, press the LED button (15) again.

MICROPHONE CONNECTION AND MICROPHONE PRIORITY FUNCTION

1. Connect the supplied wired microphone to the MIC IN socket (1);

2. Turn on the microphone;

3. Adjust the microphone input volume using the command (2) on the unit and adjust the

ECHO using the command (3);

4. Press and hold 9/MPRI (6) button for a few seconds to activate the “Microphone

Priority” function, the message “N-ON” will appear on the display. While using the microphone, the audio volume of the music being played is automatically lowered and then returned to normal volume when the microphone is no longer used;

5. Press and hold 9/MPRI (6) button for a few seconds to deactivate this function. The

Warning: the operation of removal and disposal is reserved exclusively to the specialized

technical personnel!

1. Remove the screws that secure the rear cabinet to the front cabinet;

3. Locate, disconnect and remove the battery.

Whatever type of battery, it must not be thrown into household waste, fire or water. Each type of battery must be recycled or disposed of at appropriate collection dedicated centres. Precautions for correct disposal of the product. The symbol shown on the equipment indicates that waste must be disposed of in “sepa- rate collection” and so the product must not be disposed of together with urban waste. The user must take the product to special “separate waste collection centres” provided by local government, or deliver it to the retailer against the purchase of a new product. Separate collection of waste and subsequent treatment, recycling and disposal operations promotes the production of equipment with recycled materials and limits negative effects on the environment and on health caused by improper handling of waste. Illegal disposal of the product leads to the enforcement of administrative penalties.XF 460

7. Bouton/REPLAY, Lecture/Pause

SIMPLIFIED EU DECLARATION OF CONFORMITY

Hereby TREVI Spa declares that the radio equipment type XF 460 is in compliance with directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address https://www.trevi.it/dms/zidi/TREVI/DOCXF460.pdf Strada Consolare Rimini-San Marino, 62, 47924 Rimini (RN) Italy Tel. 0541/756420 - Fax 0541/756430 - www.trevi.it - e-mail: info@trevi.it Made in CHINA EN If you will not find your language on the instruction manual, please go on our website www.trevi.it to find it
