Product type	Bluetooth portable speaker with FM radio, USB/TF player, AUX input, microphone and LED lighting
Total power	60 W
Frequency response	35 Hz - 20 kHz
FM frequency band	87.5 - 108 MHz
Signal-to-noise ratio	60 dB
Sensitivity	550 mV
Impedance	4 Ω
Power supply	Rechargeable lithium battery 7.4 V / 3600 mAh; charging via USB-C 5 V / 1 A
Battery life	Not specified (estimated: 4 to 6 hours depending on use)
Wireless connectivity	Bluetooth 2.4 GHz (max power 0.8 mW) with TWS function for pairing two speakers
Playback media	USB, micro SD (TF) card, 3.5 mm AUX input, FM radio
Microphone	Wired microphone with volume, echo and delay adjustment
Lighting	Disco LED lighting with 4 modes (Led1 to Led4)
Remote control	Infrared remote control with CR2025 lithium battery
Care and cleaning	Use a soft, slightly damp cloth; avoid solvents and abrasives
Safety	Do not expose to water, flames, magnetic fields, dust or vibrations; maintain at least 5 cm ventilation around the device
Spare parts and repairability	Battery replaceable only by a TREVI authorized service center; remote control: user-replaceable battery
General information	Non-professional domestic use; listening at high volume may damage hearing; follow recycling guidelines

Frequently Asked Questions - XF 150 KB Trevi

How to turn the speaker on and off?

To turn on, press and hold (2 seconds) the ⏻ button (2) on the unit or on the remote control. To turn off, repeat the same operation.

How to connect my phone via Bluetooth?

Turn on the speaker and press MODE (1) to switch to Bluetooth mode. On your phone, enable Bluetooth and search for "XF 470 KB". Select it to pair. Automatic connection will occur on subsequent uses.

How to use the TWS function for two speakers?

Turn on both speakers and switch to Bluetooth mode. Disable Bluetooth on your phone. On one of the speakers, press and hold PLAY (6) until "E-ON" is displayed. The two speakers will connect to each other. Then, enable Bluetooth on your phone and connect to "XF 470 KB" to stream music to both speakers simultaneously.

How to adjust the equalizer (EQ)?

Press the EQ button (17) on the remote control several times to choose from the presets: EQ00, EQ01, EQ02, EQ03, EQ04, EQ05.

How to listen to FM radio?

Press MODE (1) to select FM mode. Briefly press PLAY (6) to start automatic station search. Use PREV (7) or NEXT (5) to navigate between stations.

How to charge the speaker battery?

Turn off the device. Connect the USB-C cable (provided) to the charging port (13) and plug it into a 5V/1A power adapter (not provided). The red LED indicator (12) shows charging; it turns off when the battery is full. Recharge between 5°C and 35°C, and avoid charging overnight.

How to use the microphone?

Plug the microphone into the MIC jack (11). Use the Volume button (4) to adjust the microphone volume, echo and delay (press repeatedly to cycle through the settings).

How to clean the speaker?

Use a soft, slightly damp cloth to wipe the device. Never use solvents or abrasive products.

How to replace the remote control battery?

Slide the plastic latch of the battery compartment to the right, remove the tray, replace the battery with a 3V CR2025 lithium battery respecting polarity, then close.

What to do if the speaker no longer turns on?

Check that the battery is charged (plug it in for a few minutes). If nothing happens, the battery may be deeply discharged or defective. Contact a TREVI authorized service center.

USER MANUAL XF 150 KB Trevi

Black and orange gradient portable device labeled 'X FEST' with visible sound waves (no text beyond brand name)

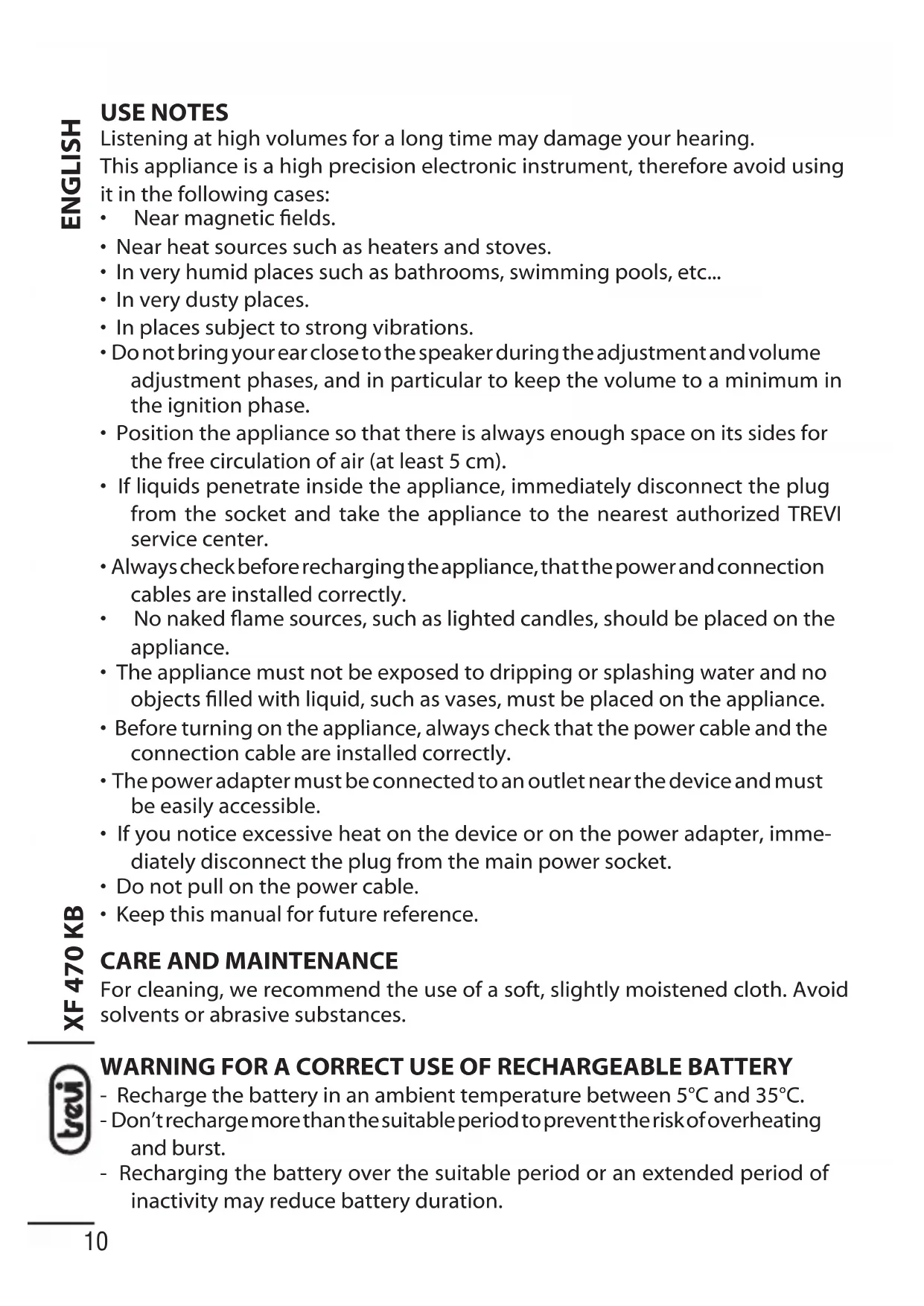

Listening at high volumes for a long time may damage your hearing.

This appliance is a high precision electronic instrument, therefore avoid using it in the following cases:

• Near magnetic fields.
- Near heat sources such as heaters and stoves.
- In very humid places such as bathrooms, swimming pools, etc...
• In very dusty places.
• In places subject to strong vibrations.
- Do not bring your ear close to the speaker during the adjustment and volume adjustment phases, and in particular to keep the volume to a minimum in the ignition phase.
- Position the appliance so that there is always enough space on its sides for the free circulation of air (at least 5 cm).
- If liquids penetrate inside the appliance, immediately disconnect the plug from the socket and take the appliance to the nearest authorized TREVI service center.
- Always check before recharging the appliance, that the power and connection cables are installed correctly.
- No naked flame sources, such as lighted candles, should be placed on the appliance.
- The appliance must not be exposed to dripping or splashing water and no objects filled with liquid, such as vases, must be placed on the appliance.
- Before turning on the appliance, always check that the power cable and the connection cable are installed correctly.
- The power adapter must be connected to an outlet near the device and must be easily accessible.
- If you notice excessive heat on the device or on the power adapter, immediately disconnect the plug from the main power socket.
- Do not pull on the power cable.
- Keep this manual for future reference.

CARE AND MAINTENANCE

For cleaning, we recommend the use of a soft, slightly moistened cloth. Avoid solvents or abrasive substances.

WARNING FOR A CORRECT USE OF RECHARGEABLE BATTERY

• Recharge the battery in an ambient temperature between 5°C and 35°C.
• Don't recharge more than the suitable period to prevent the risk of overheating and burst.
• Recharging the battery over the suitable period or an extended period of inactivity may reduce battery duration.

- Rechargeable battery is liable to wear and tear and its performance will reduce gradually.

- To extend the duration of the battery use it when is completely charged up to the complete discharging, then recharge it fully before use it again. Recharge a battery not completely consumed, will result a reduced duration. In this case, repeat the full charging/discharging cycle many times.

- Avoid recharge the battery for the whole night.

IMPORTANT

This device is designed for non-professional home use. The good construction of this appliance guarantees perfect operation for a long time. However, should any inconvenience arise, it is advisable to consult the nearest TREVI Authorized Service Center.

TREVI pursues a policy of continuous research and development. Therefore the products may have different characteristics from those described.

CONTROL PANEL

UNIT

1. MODE button, change to the different mode

2. ⏻ button, long press the button to Power ON/OFF

3. LED button, short press to select the Led light mode; long press tu torn off the light

4. Volume knob + short press to adjust treble/Bass/microphoneVolume/Echo/Delay

5. NEXT button, next song or next FM radio channel

6. PLAY button, short press to Play/Pause or auto searching FM channel; long press to connect TWS

7. PREV button, previous song or previous FM radio channel

8. USB socket

9. TF card slot

10. AUX input (3.5mm)

11. Microphone input

12. Led charging indicator

13. Charging port 5V -type-C

REMOTE CONTROL

1. MODE button, to switch between the modes

2. ⏻ button, ON/ OFF switch

3. / short press to Play/Pause or auto searching FM channel in FM mode

4. EQ button, to set equalizer variants

5. To select a song directly

6. U/SD button, switch between USB and SD at the same time

7. RPT button, to repeat the song

8. VOL+ button, to increase volume

9. VOL- button, to reduce volume

10. Button, to select the next song from USB/TF/BT

11. 🏠 button, to select the previous song from USB/TF/BT

12. button, to Mute

ACTIVATION AND REPLACEMENT OF REMOTE CONTROL BATTERY

The remote control has a cell battery already installed. To activate the battery, remove the transparent tab at the bottom of the remote control. The remote control is now ready to use.

How to replace battery:

1. Remove the battery compartment cover as per the illustration shown on the right;

2. Observe the correct polarity and install a 3V--- lithium battery (CR2025);

3. Close the cover.

IMPORTANT

• Dispose of used batteries in accordance with the recycling regulations in your area.
• Danger of explosion if battery is incorrectly replaced.
• Replace only with the same or equivalent type.
• If the remote control is not used for a long time, the battery may leak and damage the remote control, replace it with a new one if this occurs.
• DO NOT short-circuit the batteries or throw them into water, general garbage or fire.

CHARGING THE BATTERY

1. With the appliance off, connect the power supply cable to the charging port type-C(13) on the device. Connect the cable to a 5V-1A power supply (not supplied) and the latter to a mains socket;
2. The Led indicator(12) will light up Red;
3. When charging is complete, the LED indicator(12) will switch off;
4. With low battery, the last segment of the battery icon on the display will flash for a certain time, then the device will switch off automatically.

Note: For a good battery life, it is recommended to keep the device off during the charging.

Unless otherwise specified, the commands described below apply to both the unit and the remote control.

ON/ OFF

- Press and hold the button ⏻ (2) for 2 seconds to turn On the appliance; press and hold it again for 2 seconds to turn Off the device.

- Press the button ⏻(15) on the remote control to turn the appliance on/off.

VOLUME/ MUTE/ TONE/ ECHO/ EQ

1. Rotate the Volume knob (4) clockwise/counterclockwise to increase/decrease

the volume of the unit. Press the button (25) on the remote control to mute the device, press it again to return to normal listening;

1. Press the Volume knob (4) several times and rotate it to adjust: treble, bass, microphone volume, Echo, and Delay;

2. Press the EQ(17) button several times to choosing from the pre-set ones: EQ00, EQ01, EQ02, EQ03, EQ04, EQ05.

RADIO MODE

1. Press MODE button(1) on the speaker to switch to FM mode;
2. Short press PLAY(6) button to enter automatic search for FM channels;
3. Press PREV(7) or NEXT(5) button to go to the next or previous frequency.

Note:

• FM reception depends very much on where the device is located.
• The proximity of TV sets, neon lamps or other household appliances can cause disturbances in the reception of radio programs, in this case remove the appliance.

BLUETOOTH OPERATION

PAIRING TO DEVICES

1. Power on the product then press MODE button(1) to enter into BT mode;
2. Open mobile devices (Cell phone, computer, ec.) in BT mode, search for BT device, when it appears the item pairing name (XF 470 KB);
3. After the device has been paired successfully for the first time, it will connect automatically around 10 seconds to the devices which connected before when next time use. (Note: Each product could connect to one Bluetooth device only).

Note:

• The Bluetooth speaker only works with one connection at a time.
• The proximity of TV sets, neon lamps or other appliances can cause disturbances in reception, in this case move the appliance away.

CONTROLS AVAILABLE IN BLUETOOTH MODE

• Start sound playback from your device;
• Press the PREV(7) button once to go to the previous track, press the NEXT(5) button once to go to the next track;
• Press the PLAY(6) button to pause, press it again to resume playback.

TWS FUNCTION

TWS technology allows the user to make a wireless connection between two speakers of the same model and compatible with the TWS function.

1. Power On two speakers and enter Bluetooth mode;
2. Turn Off the Bluetooth function on your phone or other Bluetooth device;
3. Long press the PLAY button(6) of either speaker, the display will show "E-ON" and the "BLUE" will be flashing. A different beep will then be heard to signify that the two speakers have connected via Bluetooth;
4. Open Bluetooth on the mobile phone and search "XF 470 KB" and connect;
5. A beep will then be heard signifying that the mobile has connected to the speakers. You can now enjoy music from the two speakers.

Note:

• If the 2 speakers fail to pair, turn off both devices and repeat steps 1, 2 and 3.
• The TWS function only works between the same speakers or with other speakers using the same IC or solution.

TF CARD/USB

1. Insert a Micro SD card into the slot(9) or a USB stick into the socket(8) and switch On the device;
2. Playback will start automatically. Otherwise, press the MODE button(1) several times until the USB or SD appears on the display;
3. Press PREV button(7) to go to the previous track, press the NEXT button(5) once to skip to the next track;
4. Press the PLAY(6) button to pause, press it again to resume playback;
5. Press and hold PREV button(7) or NEXT button(5) to fast forward or rewind in listening to the track, release the key to return to normal listening;
6. Using the RPT button(20) it is possible to activate the track repeat function (ONE = repeats the single track, ALL = repeats all the tracks present);
7. Use the number buttons on the remote control(18) to select the track number.

AUX INPUT MODE

1. Connect a 3.5mm audio cable to the unit's AUX input(10);
2. Press MODE button(1) to switch to auxiliary input mode ("LINE" on display);
3. Use the controls of the connected device to select and play the audio.

DISCO-LIGHT

To change the Disco-Light effects, press the LED button(3) several times, the various lighting effects will be distinguished on the display with: To vary the Disco-Light effects, press the LED button(3) several times, the various light effects will be distinguished on the display with: Led1, Led2, Led3, Led4.

Press and hold the LED button(3) for a few seconds to completely deactivate the front and keyboard LED lighting; press it to reactivate the illumination.

USE OF THE MICROPHONE

1. Plug the supplied microphone into the MIC(11) socket;
2. Adjust the volume, the ECHO effect and the microphone delay using the Volume knob(4).

TECHNICAL FEATURES

Total power: 60W

FM frequency band: 87,5MHz - 108MHz

Frequency response: 35Hz - 20KHz

S/N ratio: 60dB

Sensibility: 550mV

Impedance: 4Ω

Max Bluetooth transmission power: .....0.8mW

Bluetooth transmission frequency: ......2.4GHz

Power supply: 7.4V = 3600mA lithium battery

Dimensions: 280 (L) x 280 (D) x 355 (H) mm

Weight: 3.4 kg

BATTERY REMOVAL AND DISPOSAL POLICY

Warning: the removal and disposal operation is reserved exclusively for specialized technical staff!

1. Remove the screws that secure the top control panel and back panel;
2. Pull out the back panel;
3. Locate and remove the battery from its compartment.

Regardless of the type of used battery, it must not be disposed of with household waste, fire or water. Each type of used battery must be recycled or disposed of at the appropriate dedicated collection centres.

Precautions for correct disposal of the product.

The symbol shown on the equipment indicates that waste must be disposed of in “separate collection” and so the product must not be disposed of together with urban waste.

The user must take the product to special “separate waste collection centres” provided by local government, or deliver it to the retailer against the purchase of a new product.

Separate collection of waste and subsequent treatment, recycling and disposal operations promotes the production of equipment with recycled materials and limits negative effects on the environment and on health caused by improper handling of waste.

Illegal disposal of the product leads to the enforcement of administrative penalties.

NOTES D'UTILISATION

Dimensions: 280 (L) x 280 (P) x 355 (H) mm

Poids: 3,4 kg

SIMPLIFIED EU DECLARATION OF CONFORMITY

Hereby TREVI Spa declares that the radio equipment type XF 470 KB is in compliance with directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address https://www.trevi.it/dms/zidi/TREVI/DOCXF470KB.pdf

If you will not find your language on the instruction manual, please go on our website www.trevi.it to find it
