USER MANUAL SDI543AS2 Schock

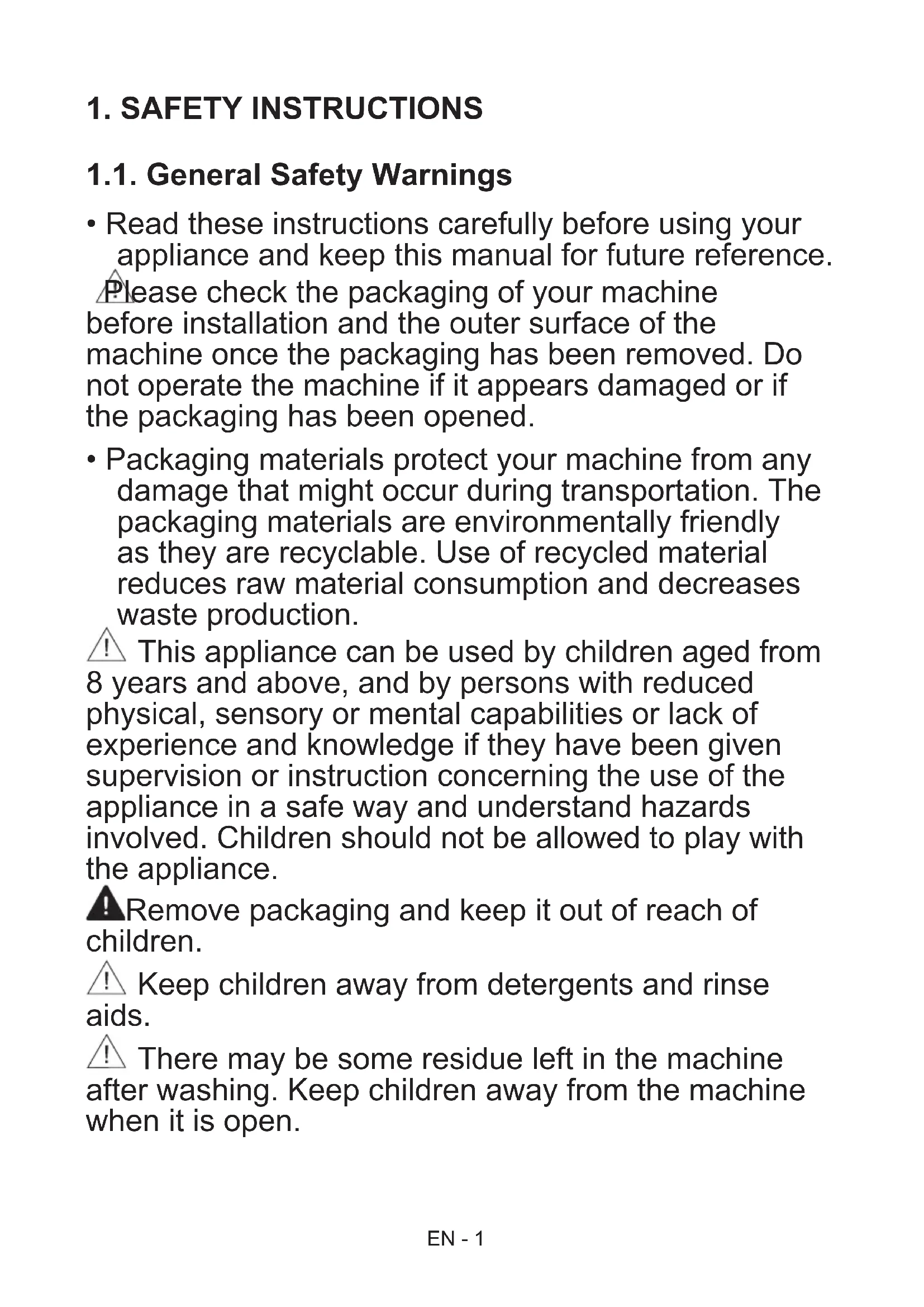

• Read these instructions carefully before using your appliance and keep this manual for future reference. Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened.

• Packaging materials protect your machine from any damage that might occur during transportation. The packaging materials are environmentally friendly as they are recyclable. Use of recycled material reduces raw material consumption and decreases waste production. This appliance can be used by children aged from 8 years and above, and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand hazards involved. Children should not be allowed to play with the appliance. Remove packaging and keep it out of reach of children. Keep children away from detergents and rinse aids. There may be some residue left in the machine after washing. Keep children away from the machine when it is open. EN - 1EN - 2 1.2. Installation Warnings

• Choose a suitable and safe place to install your machine.

• Only original spare parts should be used with the machine. Unplug the machine before installation. Your machine must only be installed by an authorised service agent. Installation by anyone other than an authorised agent may cause your warranty to be void. Check that the indoor electrical fuse system is connected in line with safety regulations. All electrical connections must match the values on the plate. Ensure the machine does not stand on the electrical supply cable. Never use an extension cord or a multiple socket connection. The plug should be accessible after the machine is installed.

• After installation, run your machine unloaded for the first time. The machine must not be plugged in during positioning. Always use the coated plug supplied with your machine. If the electrical cable is damaged, it should only be replaced by a qualified electrician. 1.3. During Usage

• This machine is for domestic use only; do not use• it for other purposes. Commercial use will void the guarantee. Do not stand, sit or place loads on the open door of the dishwasher. Only use detergents and rinse aids produced specifically for dishwashers. Our company is not responsible for any damage that may occur due to misuse. Do not drink water from the machine. Due to the danger of explosion, do not place any chemical dissolving agents into the machine’s washing section.

• Check the heat-resistance of plastic items before washing them in the machine. Only put items in the machine which are suitable for dishwashing, and take care not to overfill the baskets. Do not open the door while the machine is in operation, hot water may spill out. Safety devices ensure the machine stops if the door is opened. The machine door should not be left open. It may cause accidents. Place knives and other sharp objects in the cutlery basket in a blade-down position. For models with the automatic door-opening system, when the EnergySave option is active, the door will open at the end of a program. To prevent damage to your dishwasher, do not attempt to close the door for one minute after it has opened. For effective drying, keep the door open for 30 minutes after a programme has ended. Do not stand in front of the door after the auto-open signal sounds. In the case of a malfunction, repair should only EN - 3EN - 4 be performed by an authorised service company, otherwise the warranty will be void. Before repair work, the machine should be disconnected from the mains. Do not pull the cable to unplug the machine. Switch off the water tap. Operation at a low voltage will cause a decline in performance levels. For safety, disconnect the plug once a program has finished. To avoid an electric shock, do not unplug the machine with wet hands. Pull the plug to disconnect the machine from the mains, never pull on the cord. RECYCLING

• Some machine components and packaging consist of recyclable materials.

• Plastics are marked with the international abbreviations:(>PE<, >PP<, etc. )

• The cardboard parts consist of recycled paper. They can be put into waste paper containers for recycling.

• Material unsuitable for domestic waste must be disposed of at recycling centres.

• Contact a relevant recycling centre to obtain information about disposal of different materials.

PACKAGING AND THE ENVIRONMENT

• Packaging materials protect your machine from damage that may occur during transportation. The packaging materials are environmentally friendly as they are recyclable. The use of recycled material reduces raw material consumption and therefore decreases waste production.CE Declaration of Conformity We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced. Disposal of your old machine The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead, it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where the product was purchased. EN - 5EN - 6

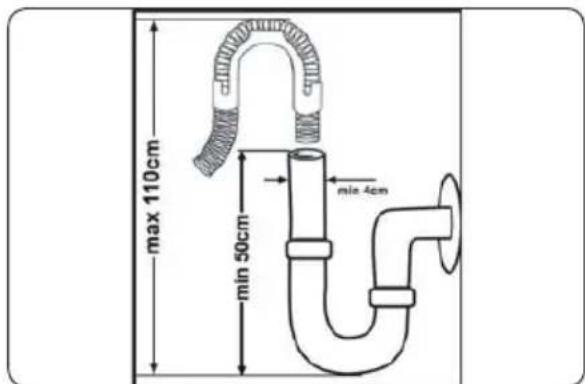

2.1. Machine positioning When positioning the machine, place it in an area where dishes can be easily loaded and unloaded. Do not put the machine in an area where the ambient temperature falls below 0°C. Read all warnings located on the packaging before removing the packaging and positioning the machine. Place the machine close to a water tap and drain. Take into consideration that the connections will not be altered once the machine is in position. Do not hold the machine by its door or panel. Leave an adequate distance around the machine to allow ease of movement when cleaning. Ensure the water inlet and outlet hoses are not squeezed or trapped and that the machine does not stand

WARNING: Use the new water inlet

hose supplied with your machine, do not use an old machine’s hose.

WARNING: Run water through the

new hose before connecting.

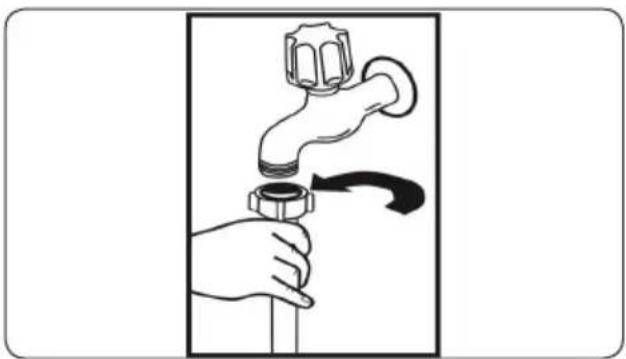

WARNING: Connect the hose

directly to the water inlet tap. The pressure supplied by the tap should be a minimum of 0.03 MPa and a maximum of 1 MPa. If the pressure exceeds 1 MPa, a pressure relief valve must be fitted between the connection.

WARNING: After the connections

are made, turn the tap on fully and check for water leaks. Always turn off the water inlet tap after a wash program has finished. An Aquastop water spout is available with some models. Do not damage it or allow it to become kinked or twisted. on the electrical cable while positioning. Adjust the feet so the machine is level and balanced. The machine should be placed on flat ground otherwise it will be unstable and the door of the machine will not close properly. 2.2. Water inlet hose We recommend fitting a filter to your water inlet supply in order to prevent damage to your machine due to contamination (sand, rust, etc.) from indoor plumbing. This will also help prevent yellowing and deposit formation after washing. Note printing on the water inlet hose! If models are marked with 25°, the water temperature may be max. 25 °C (cold water). For all other models: Cold water preferred; hot water max. temperature 60 °C. 2.3. Water inlet hose 2.4. Drain Hose Connect the water drain hose directly to water drain hole or to the sink outlet spigot. This connection should be minimum 50 cm and maximum 110 cm from floor that dishwasher is placed. IMPORTANT: Items will not wash properly if a drain hose longer than 4 m is used.EN - 7 In the absence of earthing installation, an authorised electrician should carry out an earthing installation. In the case of use without earthing installed, we will not be responsible for any loss of use that may occur. The plug on this appliance may incorporate 13A fuse depending on the target country. (For Example UK, Saudi Arabia) 2.5. Electrical connection

WARNING: Your machine is set to

operate at 220-240 V. If the mains voltage supply to your machine is 110 V, connect a transformer of 110/220 V and 3000 W between the electrical connection. Connect the product to a grounded outlet protected by a fuse complying with the values in the "Technical Specifications" table". The earthed plug of the machine must be connected to an earthed outlet supplied by suitable voltage and current.EN - 8

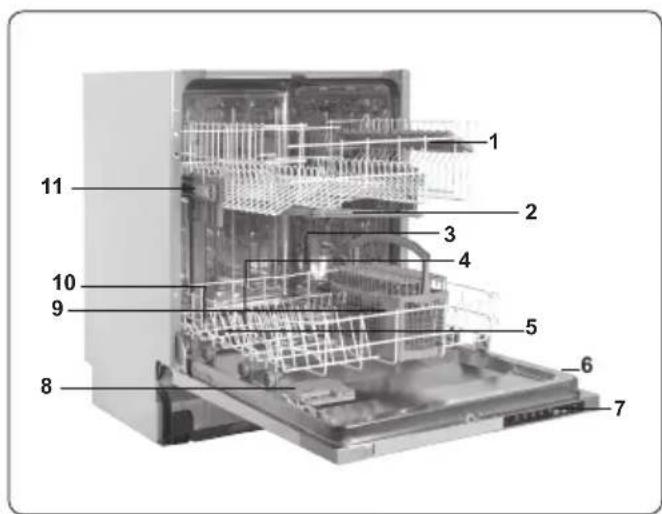

3.1. General appearance

1. Upper basket with racks

11. Upper basket track latch

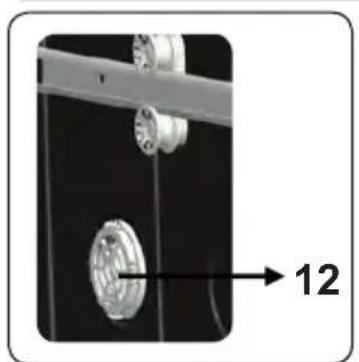

12. Super Active Drying Unit: This

system enhances the drying performance of your dishes.

THE APPLIANCE 4.1. Preparing your dishwasher for first use

• Make sure the electricity and supply water specifications match the values indicated in the installation instructions for the machine.

• Remove all packaging material inside the machine.

• Set the water softener level.

• Fill the rinse aid compartment.

4.2 Salt usage (IF AVAILABLE)

For a good washing function, the dishwasher needs soft, i.e. less calcareous water. Otherwise, White lime residues will remain on the dishes and the interior equipment. This will negatively affect your machine’s washing, drying and shining performance. When water flows through the softener system, the ions forming the hardness are removed from the water and the water reaches the softness required to obtain the best washing result. Depending on the level of hardness of the inflowing water, these ions that harden the water accumulate rapidly inside the softener system. Therefore, the softener system has to be refreshed so that it operates with the same performance also during the next wash. For this purpose, dishwasher salt is used. Machine can only be used by special dishwasher salt to soften the water. Do not use any small grained or powdered type of salts which can easily soluble. Using any other type of salt can damage your machine. 4.3. Fill the salt (IF AVAILABLE) To add softener salt, open the salt compartment cap by turning it counter clockwise. (1) (2) At first use, fill the compartment with 1 kg salt and water (3) until it is almost overflowing. If available, using a funnel (4) will make filling easier. Replace the cap and close it. After every 20-30 Cycles add salt into your machine until it fills up (approx. 1 kg).

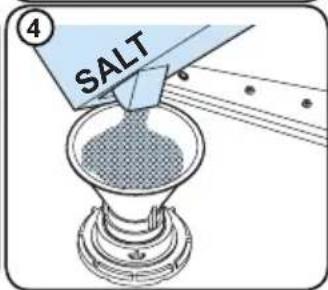

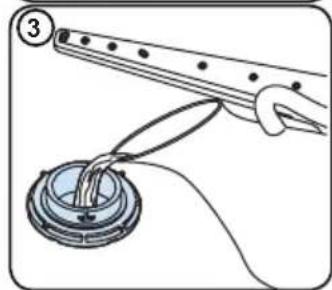

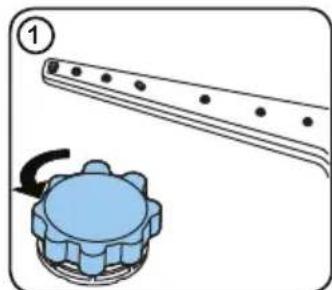

SALT Only add water to the salt compartment on first use. Use softener salt specifically produced for use in dishwashers. When you start your dishwasher, the salt compartment is filled with water, therefore put the softener salt in prior to starting your machine. If the softener salt has overflowed and you do not start the machine immediately, run a short washing program to protect your machine against corrosion.4.8. Detergent usage Only use detergents specifically designed for domestic dishwashers. Keep your detergents in cool, dry places out of reach of children. Add the proper detergent for the selected program to ensure the best performance. The amount of detergent needed depends on the cycle, load size, and soil level of dishes. Do not fill detergent into the detergent compartment more than required; otherwise you can see whitish streaks or bluish layers on glass and dishes and may cause glass corrosion. EN - 10 4.4. Test strip Run water through the tap (1min.) Keep the strip in the water (1sec) Shake the strip. Wait (1min.) Set the hardness level of your machine.

NOTE: The level is set to 3 as default. If the water is well water or has a hardness level above 90 dF, we recommend that you use filter and refinement devices. 4.5. Water Hardness Table Level German dH French

Indicator 1 0-5 0-9 0-6 L1 is shown on the display. 2 6-11 10-20 7-14 L2 is shown on the display. 3 12-17 21-30 15-21 L3 is shown on the display. 4 18-22 31-40 22-28 L4 is shown on the display. 5 23-34 41-60 29-42 L5 is shown on the display. 6 35-50 61-90 43-63 L6 is shown on the display. 4.6. Water Softener System The dishwasher is equipped with a water softener which reduces the hardness in the mains water supply. To find out the hardness level of your tap water, contact your water company or use a test strip (if available). 4.7. Setting

• Open the door of the machine.

• Turn on the machine, and press the Programme button as soon as the machine is turned on.

• Hold down the Programme button until “SL” disappears.

• The machine will display the last setting.

• Set the level by pressing the Programme button.

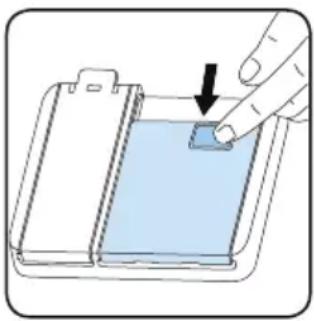

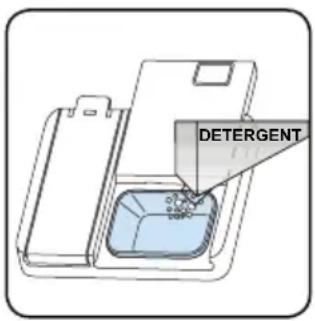

• Turn off the machine to save the setting.EN - 11 Continued use of too much detergent may cause machine damage. Using little detergent can result in poor cleaning and you can see whitish streaksin hard water. See the detergent manufacturer’s instructions for a further information. 4.9. Filling the detergent Push the latch to open the dispenser and pour in the detergent. Close the lid and press it until it locks in place. The dispenser should be refilled just before the start of each programme. If the dishes are heavily soiled, place additional detergent in the pre-wash detergent chamber. DETERGENT 4.10. Using combined detergents These products should be used according to the manufacturer’s instructions. Never put combined detergents into the interior section or the cutlery basket. Combined detergents contain not only the detergent but also rinse-aid, salt replacement substances and additional components depending on the combination. We recommend you do not use combined detergents in short programmes. Please use powder detergents in such programmes. If you encounter problems when using combined detergents, please contact the detergent manufacturer. When you stop using combined detergents, make sure that water hardness and rinse aid settings are set to the correct level. 4.11. Rinse-aid usage The rinse aid helps to dry the dishes without streaks and stains. Rinse-aid is required for stain-free utensils and clear glasses. The rinse aid is automatically released during the hot rinse phase. If rinse aid dosage setting set too low, whitish stains remains on dishes and dishes do not dry and washed clean. If rinse aid dosage setting set too height, you can see bluish layers on glass and dishes. 4.12. Filling the rinse-aid and setting To fill the rinse aid compartment, open the rinse-aid compartment cap. Fill the compartment with rinse aid to the MAX level and then close the cap. Be careful not to overfill the rinse aid compartment and wipe up any spills. In order to change the rinse aid level, follow the below steps before turning on the machine:

• Open the door of the machine.

• ·Turn on the machine, and press the Programme button as soon as the machine is turned on.

• Hold down the Programme button until “rA” disappears. Rinse aid setting follows water hardness setting.

The machine will display the last setting. Change the level by pressing the programme button.

• Turn off the machine to save the setting. The factory setting is “4”. If the dishes are not drying properly or are spotted, increase the level. If blue stains form on your dishes, decrease the level. Level Brightener Dose Indicator 1 Rinse-aid not dispensed r1 is shown on the display. 2 1 dose is dispensed r2 is shown on the display. 3 2 doses are dispensed r3 is shown on the display. 4 3 doses are dispensed r4 is shown on the display. 5 4 doses are dispensed r5 is shown on the display.EN - 12

WARNING: To avoid any possible

injuries, place long-handle and sharp- pointed knives with their sharp points facing down or horizontally on the baskets.

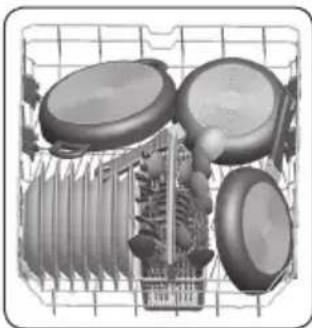

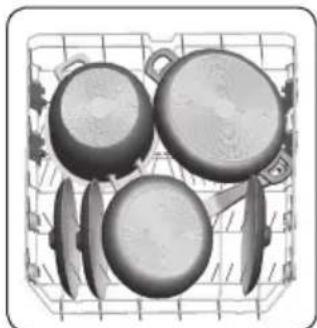

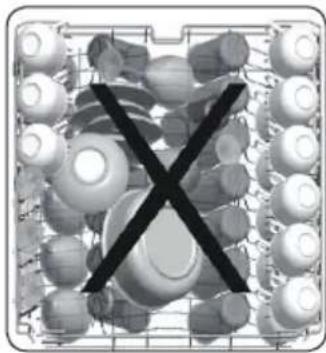

DISHWASHER For best results, follow these loading guidelines. Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings. Manual pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended You can place cups, glasses, stemware, small plates, bowls, etc. in upper basket. Do not lean long glasses against one another or they cannot remain steady and may receive damage. When placing long stem glasses and goblets, lean them against the basket edge or rack and not against other items. Place all containers such as cups, glasses and pots into the dishwasher with the opening facing downwards otherwise water can collect on items. If there is cutlery basket in machine, you are recommended to use the cutlery grid in order to obtain the best result. Place all large (pots, pans, lids, plates, bowls etc.) and very dirty items in the lower rack. Dishes and cutlery should not be placed above each other.

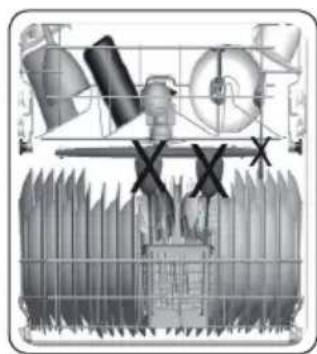

WARNING: Take care not to obstruct

the rotation of spray arms.

WARNING: Make sure after loading

the dishes do not prevent opening the detergent dispenser. 5.1. Recommendations Remove any coarse residue on dishes before placing the dishes in the machine. Start the machine with full load. Do not overload the drawers or place dishes in the wrong basket.EN - 13 Top basket Fixed Rack Upper basket racks have two positions: open (a) and closed (b). Y ou can place cups on the racks to be washed. You can also place long forks, knives and spoons on the racks laterally.

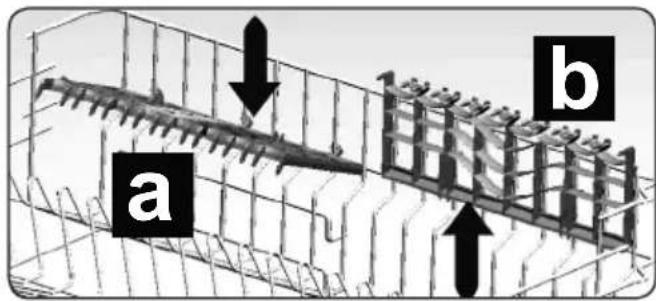

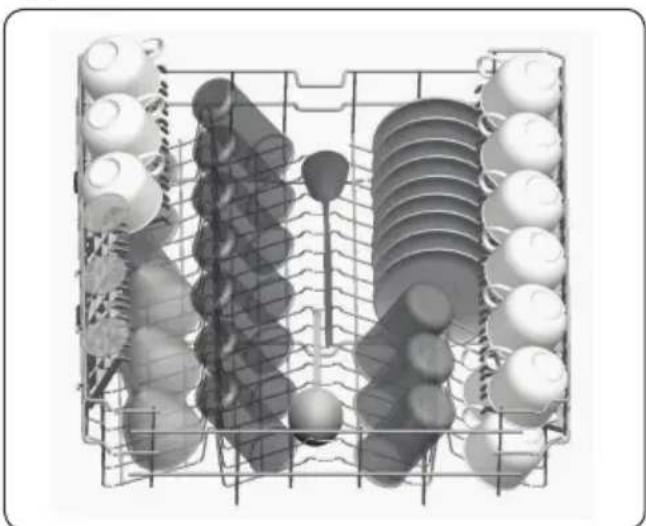

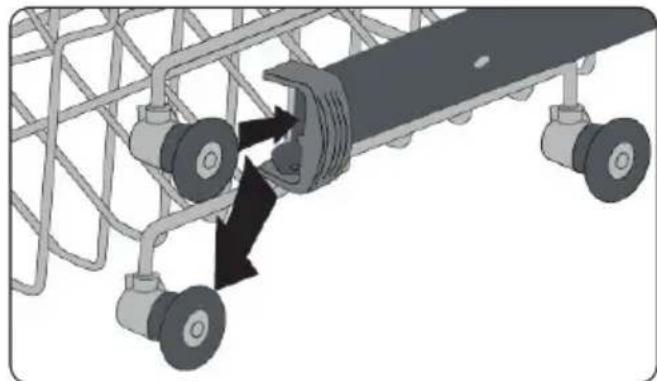

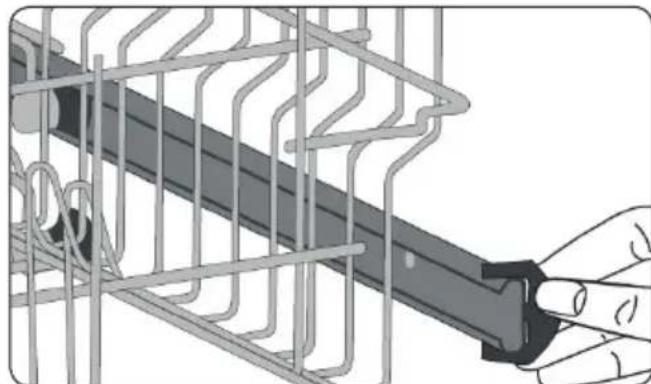

Upper Basket Height adjustment Turn the Rail Stop Clips, at the ends of the rails, to the sides to open them (as shown in the image below), then pull out and remove the basket. Change the position of the wheels, then reinstall the basket to the rail, making sure to close the Rail Stop Clips. When the upper basket is in the higher position, large items such as pans can be placed on the lower basket.EN - 14 5.2. Alternative Basket Loads loads Lower Basket Upper basket Unsuitable items for dishwashing

• Cigarette ashes, candle leftovers, polish, paint, chemical substances, iron- alloy materials.

Forks, spoons and knives with wooden, bone, ivory or nacrecoated handles; glued items, items soiled with abrasive, acidic or base chemicals. Temperature-sensitive plastics, copper or tincoated containers.

• Aluminium and silver objects.

• Some delicate glasses, ornamental printed porcelains; some crystal items, adhered cutlery, lead crystal glasses, cutting boards, synthetic fibred items.

• Absorbent items such as sponges or kitchen rugs. IMPORTANT: In future, purchase dishwasher-proof kitchenware. Important Note for Test Laboratories For detailed information required for tests according to EN normatives and a softcopy of the manual, please send the model name and serial number to the following address: [e-mail] Incorrect Loads Incorrect loading can cause poor washing and drying performance. Please follow the manufacturer's recommendations for a good performans result.EN - 15

P1 P2 P3 P4 P5 Program Name: Eco Intensive 65°C Auto Super 50’ Quick 30’ Prewash Type of Soil: Standard program for normally soiled daily using dishes with reduced energy and water consumptions. Suitable for heavily soiled dishes. Auto program for heavily soiled dishes. Suitable for normally soiled daily dishes with faster program. Suitable for lightly soiled dishes and quick wash. Suitable to rinse dishes that you plan to wash later. Level of Soil: Medium Heavy Heavy Medium Light Light Amount of Detergent: A: 25 cm3 B: 15 cm3” A A A A A - Program Duration (h:min) 03:25 01:57 01:25 - 01:57 00:50 00:30 00:15 Electiricity consumption (kWh/cycle)

Water consumption (l/cycle)

12.0 17.2 11.9 - 17.2 12.0 12.4 4.5

• The program duration may change according to the amount of dishes, the water temperature, the ambient temperature and selected additional functions.

• Values given for programmes other than the eco programme are indicative only

• If your model has turbidity sensor, it has Auto program instead of Intensive program.

• Eco programme is suitable to clean normally soiled tableware, that for this use, it is the most efficient programme in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU ecodesign legislation.

• Washing tableware in a household dishwasher usually consumes less energy and water in the use phase than hand dishwashing when the household dishwasher is used according to the manufacturer’s instructions.

• Only use powder detergent for short programs.

• Short programs do not include drying.

• To assist drying, we recommend slightly opening the door after a cycle is complete.

• You can access the product database where the model information is stored by reading the QR code on the energy label. NOTE: According to regulations 1016/2010 and 1059/2010, Eco program energy consumption values may differ. This table is in line with regulations 2019/2022 and 2017/2022.EN - I6

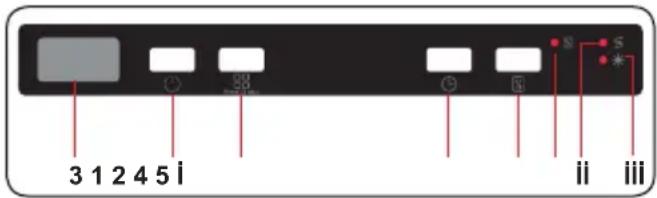

Switch the machine on by pressing On / Off button. When machine is on, "--" will be shown on the Display (3).

2. Program Selection Button

Select a suitable programme for your dishes by pressing Program Selection button. The programme will start automatically when the door is closed.

The Display shows the number and total time of the selected programme alternately and the remaining time during operation.

Press the Delay button to delay the start time of the selected programme for 1 hour up to 19 hours. Pressing the button once delays the start time for 1 hour, and continuing to press will increase the delay time. Press the Delay button to change or cancel the delayed start. If you switch off the machine while delay timer is active, the delayed time is cancelled.

Press the Half Load button to reduce the duration of the selected programme, and therefore decrease your energy and water consumption. When Half Load option is selected, Half Load led (i) will illuminate. NOTE: If you decide not to start the selected programme, please see the "Changing a Programme" and "Cancelling a Programme" sections. NOTE: When there is insufficient softening salt, the Salt Lack Warning Indicator (ii) will illuminate to indicate the salt chamber needs filling. NOTE: When there is insufficient rinse aid, the Rinse Aid Lack Warning Indicator (iii) will illuminate to indicate the rinse aid chamber needs filling.

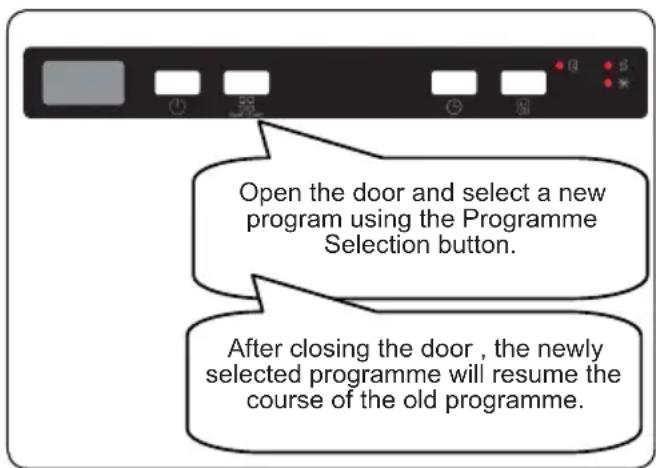

7.1 Changing a Programme

Follow the steps below if you would like to change the programme while in operation. Open the door and select a new program using the Programme Selection button. After closing the door , the newly selected programme will resume the course of the old programme. NOTE: Open the door slightly at first to avoid water spillage if you wish to stop the wash programme before it is completeEN - 17 Cancelling a Programme Follow the steps below if you would like to cancel a programme while in operation. Press and hold the Programme Selection button for 3 seconds. "1" will be shown on the

display. After closing the door of the machine, the water discharge process will start and continue for 30 seconds.When the programme is cancelled, a buzzer will sound 5 times and the. Open the door of your machine. The selected programme will appear on the display. Switching the Machine O󰀨 "00" will be shown on the display when the selected programme is complete. Buzzer will also sound 5 times. You can then switch your machine off using the Power On/Off button. Disconnect the plug and turn off the water tap. NOTE: Do not open the door before the programme is complete. NOTE: If the door of the machine is opened or the power is cut off while a programme is in operation, the programme will continue when the door is closed or the power returns. NOTE: If the power is cut or the machine door is opened during the drying process, the programme will terminate. Your machine will now be ready for a new programme selection. Buzzer Sound Control To change the buzzer sound level, follow the below steps: 1.. Open the door and press Programme ( and Delay (4) buttons simultaneously for 3 seconds. 2.. When sound setting is recognize buzzer gives a long sound and machine will display last set level, from “S0” to “S3”.

4. To save the selected sound level, turn off

the machine. ’’S0’’ level means all voices are off. Factory setting is “S3”. Save Power Mode To activate or deactivate save power mode, follow the below steps: 1.. Open the door and press Delay (4) a Half Load (5) buttons simultaneously for 3 seconds.

2. After 3 seconds, the machine will display

last Setting, “IL1” or “IL0”. 3.. When Save Power Mode is activate “IL1” will be displayed. On this mode, interior lights will turn off 4 minutes after the door is opened, and the machine will turn off after 15 minutes of no activity in order to save energy. 4.. When Save Power Mode is deactivat “IL0” will be displayed. If Save Power Mode is deactive, interior lights will be on as long as the door is open, and the machine will always be on unless it is turned off by user.

5. To save the selected setting, turn off the

machine. In factory setting, Save Power Mode is active. Infoled 2.1 (Model Dependent) LED Indicator State of the Machine Red, continuous The machine is running a program. Red, flashing A program is cancelled. Red, flashing rapidly The machine has a fault. Refer to section "Automatic fault warnings and what to do". Green, continuous A program is finished.EN - 18

MAINTENANCE Cleaning your dishwasher is important to maintain the machine’s service life Make sure that the water softening setting (If available) is done correctly and correct amount of detergent is used to prevent limescale accumulation. Refill the salt compartment when the salt sensor light comes on. Oil and limescale may build up in your Dishwasher over time. If this occurs:

• Fill the detergent compartment but do not load any dishes. Select a programme which runs at high temperature and run the Dishwasher empty. If this does not clean your Dishwasher sufficiently, use a cleaning agent designed for use with dishwashers.

• To extend the life of your dishwasher, clean the appliance regularly on each month

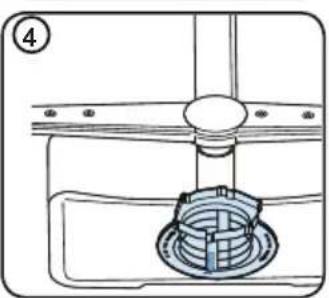

• Wipe the door seals regularly with a damp cloth to remove any accumulated residue or foreign objects. 8.1. Filters Clean the filters and spray arms at least once a week. If any food waste remains or foreign objects on the coarse and fine filters, remove them and clean them thoroughly with water.

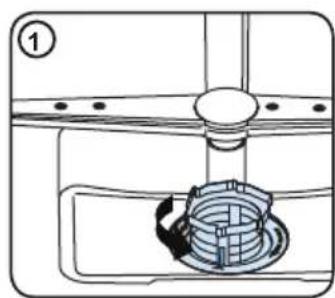

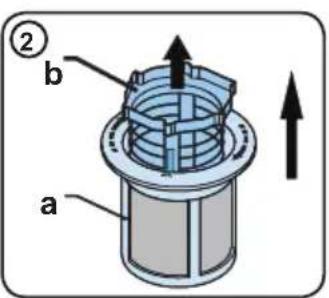

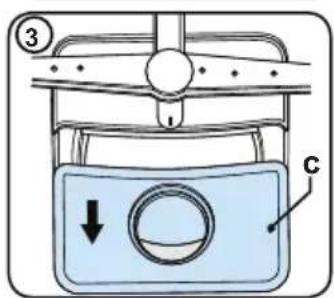

Micro Filter b) Coarse Filter c) Metal Filter To remove and clean the filter combination, turn it counter clockwise and remove it by lifting it upwards (1).Pull the coarse filter out of the micro filter (2).Then pull and remove the metal filter (3).Rinse the filter with lots of water until it is free of residue. Reassemble the filters. Replace the filter insert, and rotate it clockwise (4).

• Never use your dishwasher without a filter.

• Incorrect fitting of the filter will reduce the washing effectiveness.

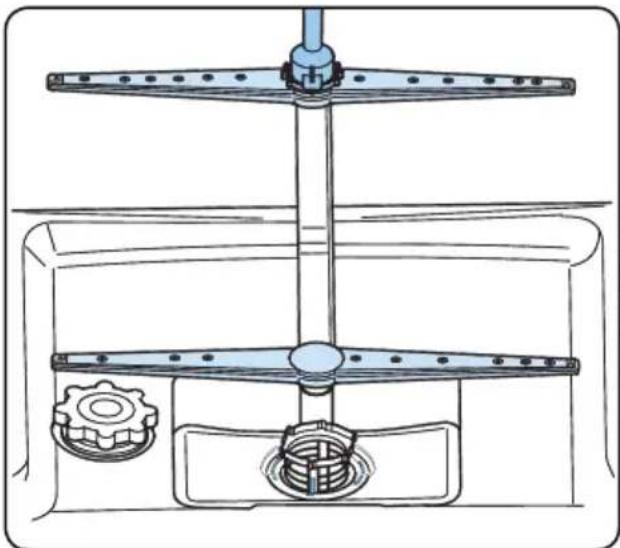

• Clean filters are necessary for proper running of the machine. 8.2. Spray arms Make sure that the spray holes are not clogged and that no food waste or foreign object is stuck to the spray arms. If there is any clogging,remove the spray arms and clean them under water. To remove the upper spray arm undo the nut holding it in position by turning it clockwise and pulling it downwards. Make sure that the nut is properly tightened when refitting the upper spray arm.

Large food residues or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will then be above the filter. Warning Risk of cuts! When cleaning the waste water pump, ensure that you do not injure yourself on pieces of broken glass or pointed implements. In this case:

1. First always disconnect the appliance

from the power supply.

2. Take out baskets.

3. Remove the filters.

4. Scoop out water, use a sponge if

required. 5.Check the area and remove any foreign objects.

FAULT POSSIBLE CAUSE TROUBLESHOOTING

The programme does not start. Your Dishwasher is not plugged in. Plug your Dishwasher in. Your Dishwasher is not switched on. Switch your Dishwasher on by pressing the On/Off button. Fuse blown. Check your indoor fuses. Water inlet tap is closed. Turn on the water inlet tap. Your Dishwasher door is open. Close the Dishwasher door. Water inlet hose and machine filters are clogged. Check the water inlet hose and machine filters and make sure they are not clogged. Water remains inside the machine. Water drain hose is clogged or twisted. Check the drain hose, then either clean or untwist it. The filters are clogged. Clean the filters. The programme is not finished yet. Wait until the programme is finished. Machine stops during washing. Power failure. Check mains power. Water inlet failure. Check water tap. Shaking and hitting noises are heard during a wash operation. The spray arm is hitting the dishes in the lower basket. Move or remove items blocking the spray arm. Partial food wastes remain on the dishes. Dishes placed incorrectly, sprayed water not reaching affected dishes. Do not overload baskets. Dishes leaning each another. Place dishes as instructed in the section on loading your dishwasher. Not enough detergent used. Use the correct amount of detergent, as instructed in the programme table. Wrong wash programme selected. Use the information in the programme table to select the most appropriate programme. Spray arms clogged with food waste. Clean the holes in the spray arms with thin objects. Filters or water drain pump clogged or filter misplaced. Check the drain hose and filters are correctly fitted.EN - 21

FAULT POSSIBLE CAUSE TROUBLESHOOTING

Whitish stains remains on dishes. Not enough detergent used. Use the correct amount of detergent, as instructed in the programme table. Rinse aid dosage and/or water softener setting set too low. Increase rinse aid and/or water softener level. High water hardness level. Increase water softerner level and add salt. Salt compartment cap not closed properly. Check that the salt compartment cap is closed properly. Dishes do not dry. Drying option is not selected. Select a programme with a drying option. Rinse aid dosage set too low. Increase rinse aid dosage setting. Rust stains form on the dishes. Stainless-steel quality of the dishes is insufficient. Use only dishwasher-proof sets. High level of salt in wash water. Adjust the water hardness level using water hardness table. Salt compartment cap not closed properly. Check that the salt compartment cap is closed properly. Too much salt spilled in the Dishwasher while filling it with salt. Use funnel while filling salt to the compartment to avoid spillage. A poor mains grounding. Consult a qualified electrician immediately. Detergent remains in the detergent compartment. Detergent was added when the detergent compartment was wet. Make sure detergent compartment is dry before use.EN - 22 AUTOMATIC FAULT WARNINGS AND WHAT TO DO TROUBLE CODE

POSSIBLE FAULT WHAT TO DO

F5 Insufficient water Make sure the water inlet tap is open and water is flowing. Separate the inlet hose from the tap and clean the filter of the hose. Contact for service if the error continues. F3 Continuous water input Close the tap and contact for service. F2 Inability to discharge water Water discharge hose and filters may be clogged. Cancel the program. If the error continues, contact for service. F8 Faulty heater Contact for service. F1 Overflow Unplug the machine and close the tap. Contact for service. F7 Overheating failure Contact for service. F6 Faulty temperature sensor Contact for service. FE Faulty electronic card Contact for service. The installation and repairing procedures should always carried out by the Authorised Service Agent in order to avoid possible risks. The manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorised persons. Repairs may be carried out by technicians only. If a component has to be replaced, ensure that only original spare parts are used. Improper repairs or use of non-original spare parts may cause considerable damage and put the user at considerable risk. Contact information for your customer service can be found on the back of this document. Function-relevant genuine spare parts according to the corresponding Ecodesign order can be obtained from Customer Service for a period of at least 10 years from the date on which your appliance was placed on the market within the European Economic Area.www.schock.itSDI543AS2
