USER MANUAL TC120 H.KOENIG

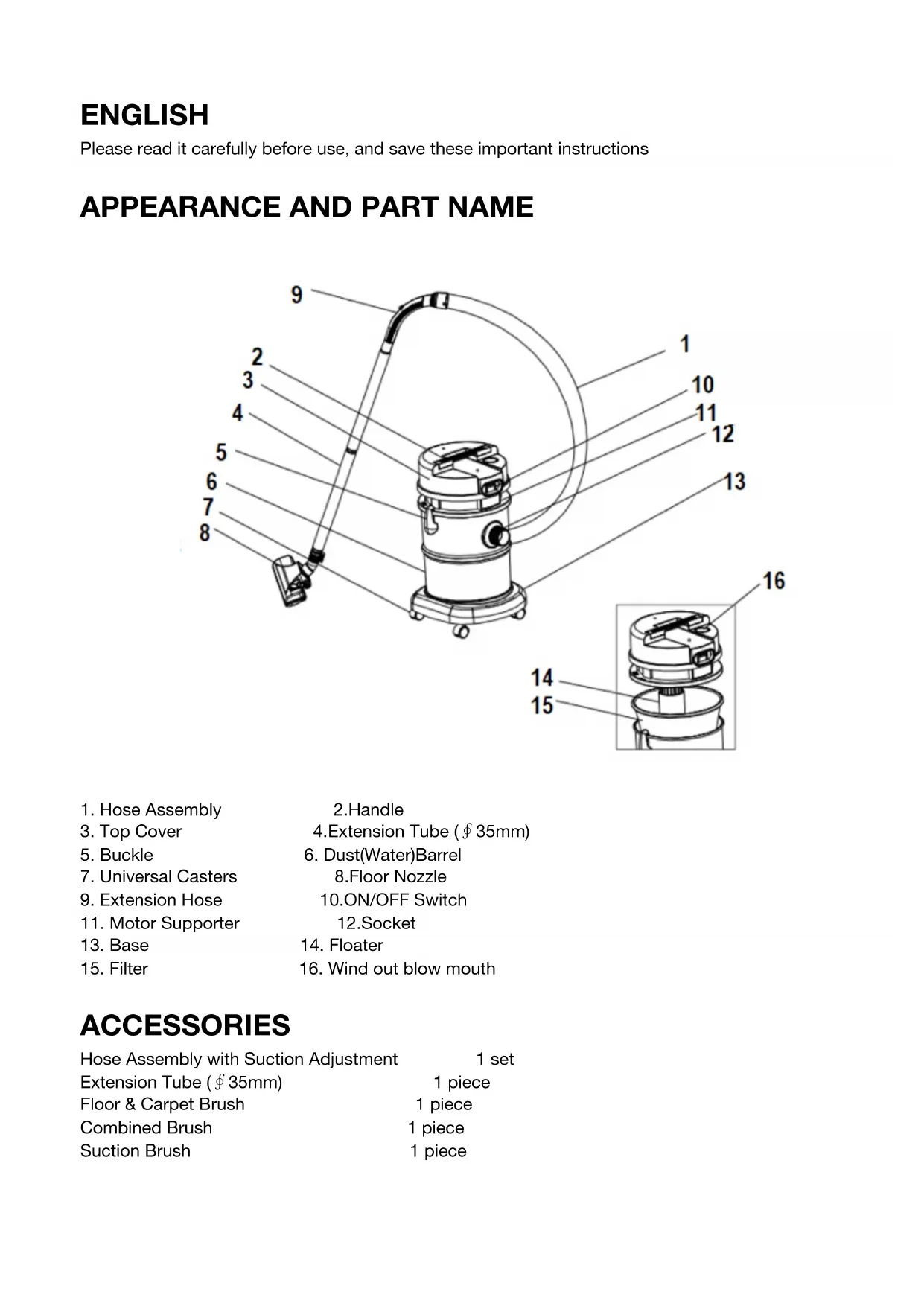

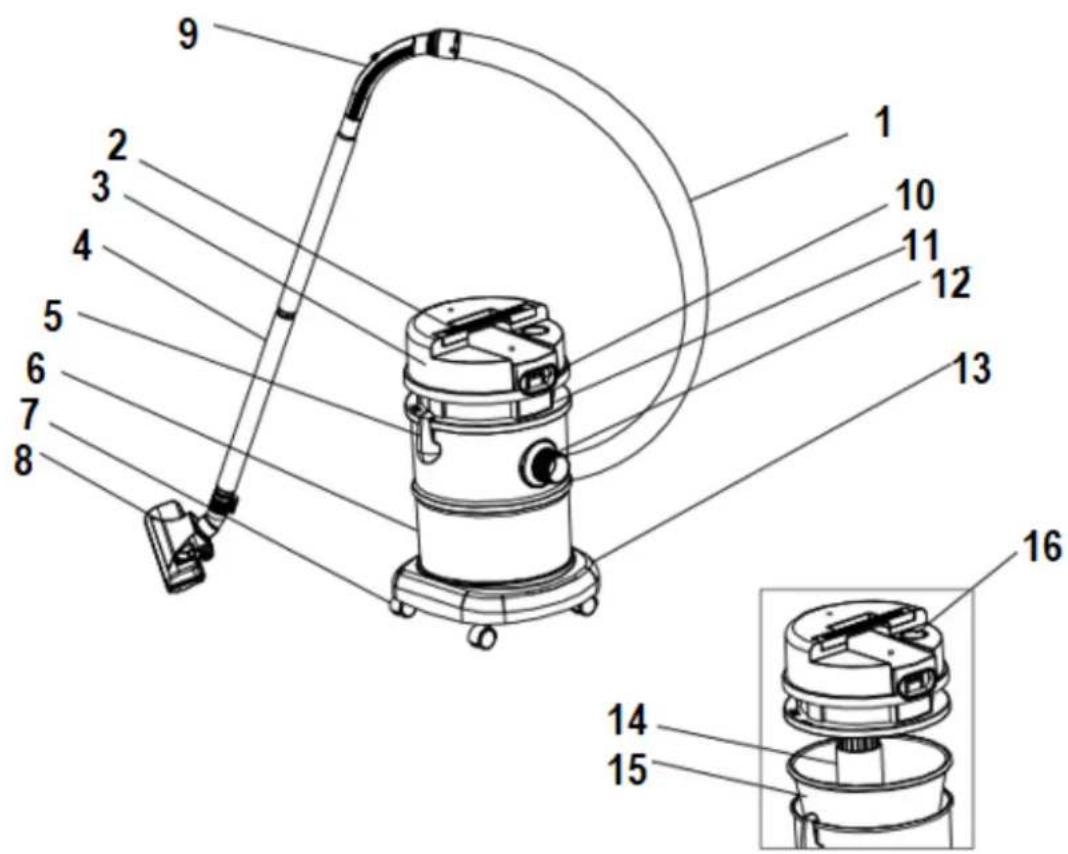

APPEARANCE AND PART NAME

ACCESSORIES Hose Assembly with Suction Adjustment 1 set Extension Tube (∮35mm) 1 piece Floor & Carpet Brush 1 piece Combined Brush 1 piece Suction Brush 1 pieceFEATURES

• Great capacity, strong suction

• Triple fliterting, high dust suction efficiency

• Able to eliminate dry sundries and dirty water

• Special plastic telescopic tube convenient for use

• Universal foot wheel, flexible and light

• Your vacuum cleaner is an electrical appliance and it must be put to use according to normal condition. Don’t make your children touch the vacuum cleaner when you use you or store it. And don’t make it working when no one care for it.

• Examine the power supply and confirm that it accord with the voltage announced on rating label.

• Don’t make the power cord gripped or touch sharp objects.

• Following objects are strictly banned ,otherwise the vacuum cleaner will be damaged or fire calamity will be caused ,which bring such accidents as human body injury: A. Heating objects such as firing coal, cifarette end: B. Big block of sharp broken pieces such as glasses; C. Harming objects (solvents, corrosive),erodent (aid gents, detergents) D. Inflammable and explosive cargo, such as gasoline or alcoholic cargo.

• Unplug the vacuum cleaner when: Use is completed Change the accessories Clean, store vacuum cleaner and change filter.

• Don’t place the vacuum cleaner in water or place it outdoors.

• Don't cut off the power by pulling the power cord.• Don’t use the vacuum cleaner when: Vacuum cleaner falls down and is damaged obviously or it works wrong. Power cord is damaged

• Don’t operate the vacuum cleaner when this happens, and send it to the nearest service department. Repair must be carried out by professionals, and original accessories should be used. Nonstandard repair by yourself will cause danger to you.

• The power cord connects to the motor by Y connection and it can only be changed with special tools. So if is damaged, you must go to the service department to change it.

• This appliance may be used by persons with reduced physical, sensory or mental capabilities or lack of experience or knowledge, provided that they are supervised or instructed in the safe use of the appliance and that they fully understand the potential hazards.

• If the power cord is damaged, it must be replaced with an after-sales service to avoid any danger.

• The company won’t be response for the aftereffects caused by the wrong operation than is not according to the instructions.

• The device must not be used if it has been dropped, it obvious signs of damage are visible or if it has leaks.

• This appliance may be used by children of at least 8 years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved.

• Cleaning and maintenance should not be carried out by children unless they are at least 8 years of age and are supervised by an adult.

• Keep the appliance and its power cord out of reach ofchildren under 8 years of age.

• When using electrical equipment, safety precautions must always be taken to prevent the risk of fire, electric shock and/or injury in the event of misuse.

• Make sure that the voltage rating on the typeplate corresponds to your main voltage of your installation. If this is not the case, contact the dealer and do not connect the unit.

• Never leave the unit unattended while in operation.

• Please keep this document at hand and give it to the future owner in case of transfer of your device.

• The device must not be used if it has been dropped, it obvious signs of damage are visible or if it has leaks.

• Your appliance has been designed for domestic use only. It is not intended for use in the following situations which are not covered by the warranty: - in staff kitchen areas in shops, offices and other professional environments, - in farm hostels, - by guests in hotels, motels and other residential environments, - in bed and breakfast type environments.NOTICE FOR OPERATION

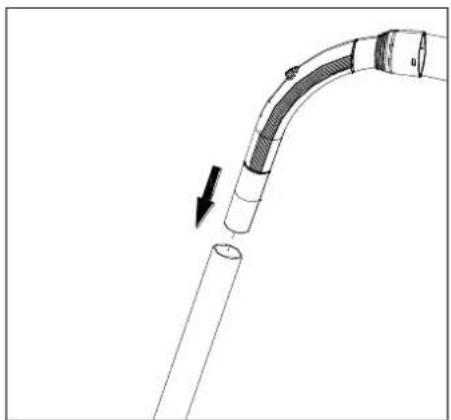

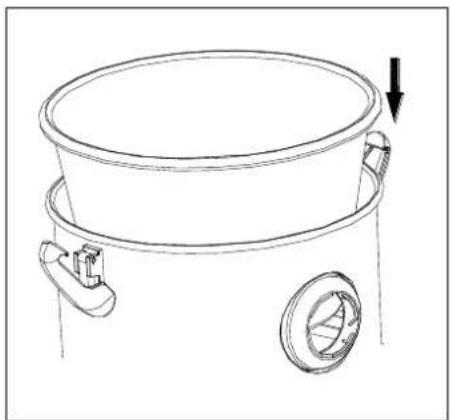

l Installation of Casters Plug in the universal casters at the foot of the base. l Connecting Hose Plug Insert the hose plug into the socket and turn it in the direction given by the left figure until it is locked tightly. l Connection of Hose Assembly and Tube l Installation of Dust bag Please put dust bag in the barrel.l Connect the Floor Nozzle in the Direction Given by the Left figure.

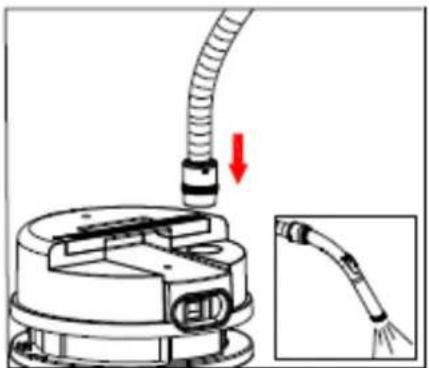

l Inset the hose into the wind out blow mouth in the direction by the left figure and you can use for wind blowing.

l Wind power Adjusting Adjust the wind power by adjusting the pusher When connection of hose is blocked up. Caution: Stop the cleaner and cut off the power spply before change the accessories. l Start the Vacuum clean Turn on the power switch. Caution: Before using the vacuum cleaner to Clear dust or other dry dirt, you must install dustbag and foam filter.

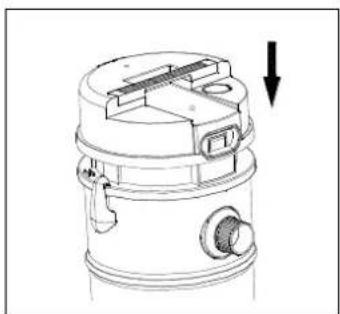

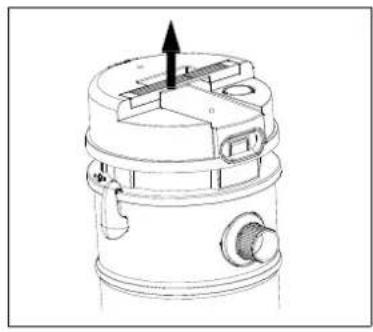

Move the Vacuum Cleaner You can move the vacuum cleaner by holding The handle when vacuum cleaner is working. Available accessories should be taken such as water suction nozzle or crevice nozzle according to the quantity of the water. caution: DO NOT USE THE DUATBAG when your vacuum cleaner. Take out the dust bag Open the buckle on the cask body and Take out the main unit. Uninstall the socket wing and dust bag, then re-load the socket wing and the main unit. Caution: If the cleaner fall down, the suction will stop and there will be abnormal noise. At this time you must turn off it right now, pose it and don’t use it until the floater gets down. Empty the cask body: If the cask body is full of water, the safety floater will cut off the suction. Then there is abnormal noise, and you must stop the vacuum cleaner. Unlock the buckle, take out the main unit and empty it. Caution: Before reuse the vacuum cleaner for dry dirt, please dry the cask body, filter and all other accessories.MAINTENANCE AND CLEANING

• Caution: Before maintenance and cleaning, please stop the machine and cut off the power supply.

• If the filter is dirty, you can use it after washing and drying it. Caution:

1. Don’t insert the filter into the vacuum cleaner and use

it before it is dry completely.

2. Don’t wash it with boiled water or dry it with fire.

• Clean the filter: Take out the filter, wash it to be clean with warm suda and dry it. Then re-install it into its original position. Caution: Before reuse the filter, you must check to see if it is in right position and if is damaged. You must change a new one in time if it is damaged. STORAGE

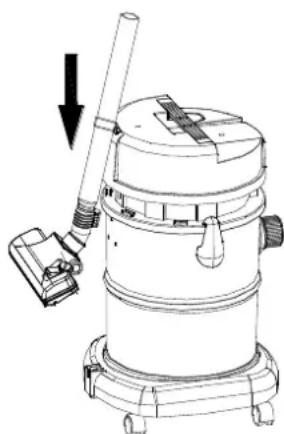

If the vacuum cleaner's suction power reduce, and there is abnormal noise, if it don't work or the motor beats up: Some accessory is blocked up ............ Clear the block; Barrel is full ....................................... …Empty the barrel. Cool down the motor. Filter is blocked up ............................. ..Clean or change it If the problem is still there, you’d better contact special service department of the company. Caution: Before any service you must cut off the power supply of the cleaner. Wind the power cord and make the plug fastened. Insert the extension tube with holder into the fixing skeleton in the direction given by the left figure. Do not let the vacuum cleaner insolated in the sunshine. Keep the vacuum cleaner away heat source.WARRANTY The warranty period for our products is 2 years, unless otherwise stated, starting from the date of initial purchase or the date of delivery. If you have any problems or questions, you can easily access our help pages, troubleshooting tips, FAQ, and user manuals on our service site: https://sav.hkoenig.com. By typing the reference name of your device in the search bar, you can access all available online support, designed to best meet your needs. If you still cannot find an answer to your question or problem, then click on “Did the answer solve your problem?”. This will direct you to the Customer Support Request Form, which you can fill out to validate your request and get help. WARRANTY CONDITIONS The warranty covers all failures occurring under normal use, in accordance with the usage and specifications in the user's manual. This warranty does not apply to packaging or transportation problems during shipment of the product by the owner. It also does not include normal wear and tear of the product, nor maintenance or replacement of consumable parts.

EXCLUSION OF WARRANTY

- Accessories and wearing parts (*). - Normal maintenance of the device. - All breakdowns resulting from improper use (shocks, failure to comply with power supply recommendations, poor conditions of use, etc.), insufficient maintenance or misuse of the device, as well as the use of unsuitable accessories. - Damage of external origin: fire, water damage, electrical surge, etc. - Any equipment that has been disassembled, even partially, by persons other than those authorized to do so (notably the user). - The products whose serial number would be missing, deteriorated or illegible that would not allow its identification. - The products subjected to leasing, demonstration, or exhibition. (*) Some parts of your device, called wear parts or consumables, deteriorate with time and frequency of use of your device. This wear and tear are normal but can be accentuated by poor conditions of use or maintenance of your device. These parts are therefore not covered by the warranty. The accessories supplied with the device are also excluded from the warranty. They cannot be exchanged or refunded. However, some accessories can be purchased directly through our website: https://sav.hkoenig.com/.ENVIRONMENT CAUTION: Do not dispose of this product as it has with other household products. There is a separation of this waste product into communities, you will need to inform your local authorities about the places where you can return this product. In fact, electrical and electronic products contain hazardous substances that have harmful effects on the environment or human health and should be recycled. The symbol here indicates that electrical and electronic equipment should be chosen carefully, a wheeled waste container is marked with a cross. Adeva SAS / H.Koenig Europe - 8 rue Marc Seguin - 77290 Mitry Mory - France www.hkoenig.com - sav@hkoenig.com - contact@hkoenig.com - Tél: +33 1 64 67 00 05FRANÇAIS Veuillez lire attentivement cette notice avant utilisation et conservez ces instructions importantes.

ENVIRONMENT CAUTION: Do not dispose of this product as it has with other household products. There is a separation of this waste product into communities, you will need to inform your local authorities about the places where you can return this product. In fact, electrical and electronic products contain hazardous substances that have harmful effects on the environment or human health and should be recycled. The symbol here indicates that electrical and electronic equipment should be chosen carefully, a wheeled waste container is marked with a cross. Adeva SAS / H.Koenig Europe - 8 rue Marc Seguin - 77290 Mitry Mory - France www.hkoenig.com - sav@hkoenig.com - contact@hkoenig.com - Tél: +33 1 64 67 00 05DEUTSCH Bitte lesen Sie vor dem ersten Gebrauch diese Anweisungen gut durch.
