USER MANUAL 4G180 Tenda

Quick Installation Guide

4G LTE Mobile Wi-Fi 4G180

Package contents

• Mobile Wi-Fi x 1

• Li-ion Battery × 1

• SIM Card Adapter × 1

USB Cable × 1

• User Manual × 1

Please read this guide before you start with the quick setup upon the first use. You can see the product name and model on the product label.

This guide instructs how to install and connect the device. For more information such as the description of symbols displayed on relevant materials, please visit www.tendacn.com.

01 / English
09 / Netherlands
15 / Melayu
21 / Pycckn
27 / Polski
33 / Čestina
39 / Deutsch
45 / Espanol
51 / François
57 / Italiano
63 / Româna
69 / nju
75 / Vietnamese

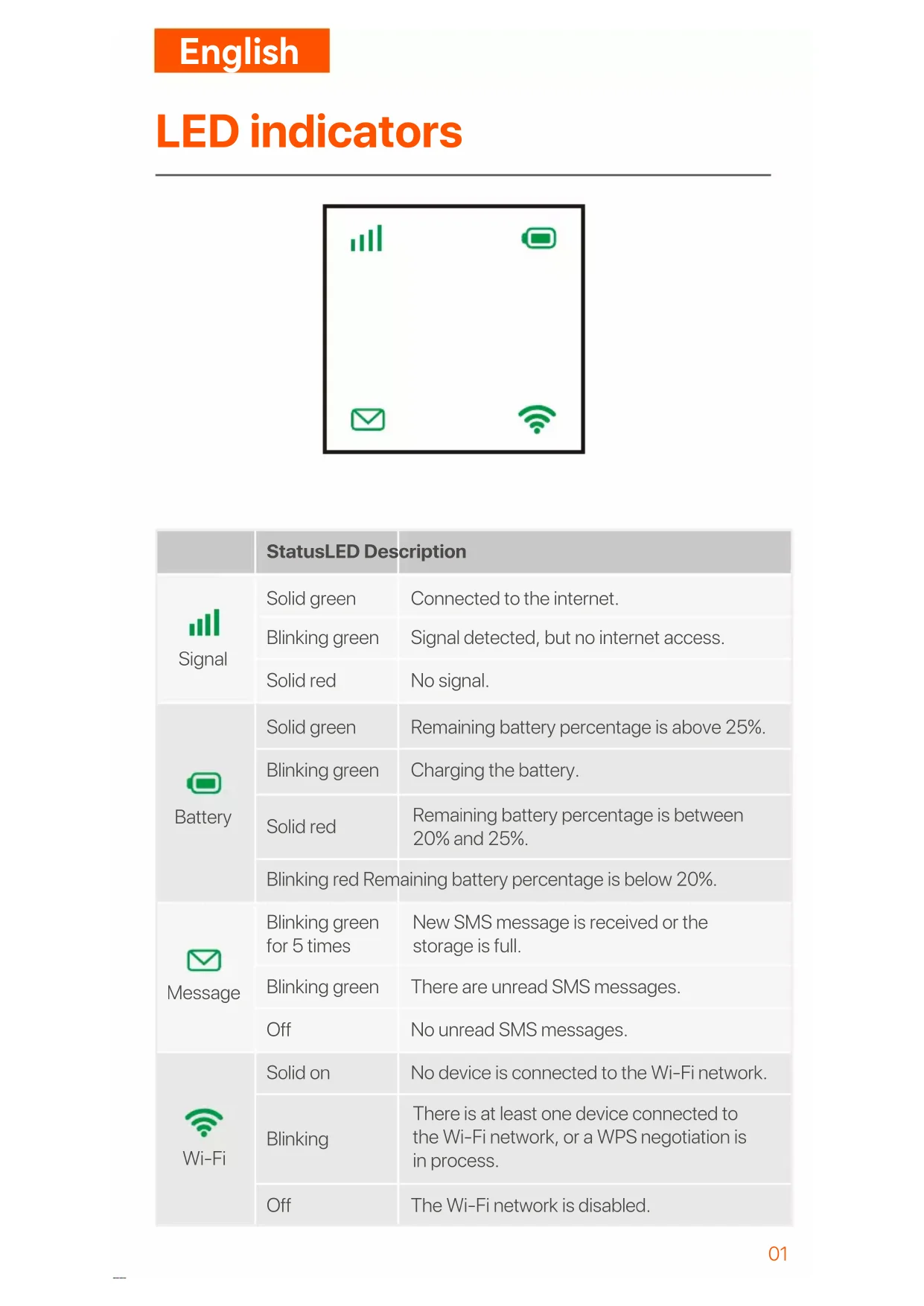

	StatusLED Description
Signal	Solid green	Connected to the internet.
	Blinking green	Signal detected, but no internet access.
	Solid red	No signal.
Battery	Solid green	Remaining battery percentage is above 25%.
	Blinking green	Charging the battery.
	Solid red	Remaining battery percentage is between 20% and 25%.
	Blinking red Remaining battery percentage is below 20%.
Message	Blinking green for 5 times	New SMS message is received or the storage is full.
	Blinking green	There are unread SMS messages.
	Off	No unread SMS messages.
Wi-Fi	Solid on	No device is connected to the Wi-Fi network.
	Blinking	There is at least one device connected to the Wi-Fi network, or a WPS negotiation is in process.
	Off	The Wi-Fi network is disabled.

Buttons/Ports/Slots

No.	Buttons/Port/Slot	Description
1		Power button. • Hold it for about 3 seconds to turn on/off the Hotspot. • Press it once to turn on its LED indicators.
2	WPS	WPS button. When the WPS function is enabled, the Wi-Fi LED indicator will blink. Hold the button down for about 3 seconds to enable the WPS function. Enable the WPS function on a WPS-supported device to establish a WPS negotiation.
	Reset3	Reset button. Hold the button using a sharp object for about 6 seconds to reset the Hotspot.
	SD card slot4	Insert your SD card here to increase storage space.
5	SIM card slot	Insert your SIM card here.
6	Micro USB input port	Used to charge the Hotspot, or to provide wired device internet access using the USB cable.

Install SIM card and battery

Open from the lower left corner

SSID: Tenda_xxxxxxxxx
Wi-Fi Key:xxxxxxxx

Slide and flip to open, and then insert a micro SIM (3FF) card into the slot.

Metal connectors

Turn on the Hotspot

Hold the button till all LED indicators flash once.

When the Hotspot is connected to the internet, you will find:

Tips

If the Hotspot is not connected to the internet after a long time, refer to Q1 in FAQ.

Access the internet

To access the internet through the Hotspot:

• Wireless: Connect your wireless device to the Wi-Fi network of the Hotspot with the SSID and Wi-Fi key at the top of the device after opening the back cover.
• Wired: Connect a PC or laptop to the Hotspot using the USB cable.

SSID: TendaXXXXXXXX
Wi-Fi Key:XXXXXXXX

You can log in to the web UI by visiting 192.168.0.1 to further configure the Hotspot.

Tips

• For the computer connected in a wired manner for the first time, you need to manually install the CD drive popped up on the computer before you can access the internet.
• If you cannot access the internet, refer to Q2 in FAQ.
  If you cannot log in to the web UI, refer to Q3 in FAQ.

Charge your Hotspot

Method 1: Connect to a power socket (5V --- 1A).

Method 2: Connect to a computer by using the USB cable.

Tips

• With no battery installed, 4G180 can still be powered on as long as it is connected to a power supply device (such as a power adapter, laptop or portable charger) with the USB cable.
• If you need to use 4G180 with a power supply device always connected, you can remove the battery for protection to extend its lifespan.
• After the battery is fully charged, you can remove the charger to avoid shorter battery lifespan caused by overcharge.

Q1: The Hotspot is not connected to the internet after a long time. What should I do?

A1: Try the following solutions:

• Ensure that your SIM card is pre-paid and has enough balance.
• Check if your SIM card is locked with a PIN code. If so, contact your ISP for the PIN code, visit the web UI (default: 192.168.0.1) on a connected device, and follow the instructions on the web UI to unlock the SIM card.
  Try another SIM card.
• Reset the Hotspot.

Q2: I cannot access the internet. What should I do?

A2: Try the following solutions:

• Ensure that the Hotspot is connected to the internet. If not, refer to Q1.
• Ensure that your wireless device is connected to the Wi-Fi network of the Hotspot.
• Try with your wireless device closer to the Hotspot.
• Ensure that your wired device is connected to the Hotspot properly and set to obtain an IP address automatically.

Q3: I cannot log in to the web UI. What should I do?

A3: Try the following solutions:

• For wireless devices:

• Ensure that you connect your device to the Wi-Fi network of the Hotspot.

• Ensure that you have disabled the mobile data (if any) of your wireless device.

• For wired devices: Ensure that the wired device, such as a computer, obtains an IP address automatically.

• Ensure that you entered 192.168.0.1 correctly in the address bar of a browser.
• Try another browser or with another device.

If the problem persists, reset the Hotspot and try again.

Q4: How to change the Wi-Fi name (SSID) and Wi-Fi key?

A4: Follow the steps below:

1 Start a web browser on a connected device and visit 192.168.0.1 to log in to the web UI.
Enter the login password (default: admin) and click Login.
3 Find Network Settings and choose Wi-Fi Settings.
Change Network Name (SSID) and Wi-Fi Key (or Pass Phrase) as required.

Q5: How to reset the Hotspot?

A5: Follow the steps below:

1 Remove the back cover.
2 Find the Reset hole in the lower part of the Hotspot.
Hold the button using a sharp object for about 6 seconds.

CbeToIIOHbIe NHdNkAToPbI

YdepxBaTe KHOpy Do Tex nop, Noka BCE CBeToOnoHbIe INdkaTOpbl He MmHyT OdnH pa3.

Korda Mapuytn3atop nodkloueta K INtepHeTy, BbyyBnnte:

Cobet

EcIn MapuTy3aTop He MoXeT NODKJIIOUHTbcra K INHTepHETdoJrOe BpeM, 6paTNTecb K Q1B FAQ.

Доступ в Иntерnet

YTo6bI noJyHtB doCTyn B INHTepHET uepe3 MapwpyTu3aTOp:

SSID: TendaXXXXXXXXWLAN-Schlüssel:XXXXXX

Botones/Puertos/Ranuras

	U V W O R S S E N
1
2	WPS
3
4	SD
5
6	Micro USB

国

SSID: Tenda_xxxxxxxxx Wi-Fi Key:xxxxxxxx

i Key:xxxxxxxxxx
iKey:xxxxxxxxxx

1
2
Wnnaa nwnw wnnn
an m micro
SIM(3FF) an uovv
3
4

#

nunu WLED

W

#

This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

This equipment should be installed and operated with a minimum distance 20cm between the device and your body.

NOTE: (1) The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. (2) To avoid unnecessary radiation interference, it is recommended to use a shielded USB cable.

Declaration of Conformity

Hereby, SHENZHEN TENDA TECHNOLOGY CO., LTD. declares that the device is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.tendacn.com/download/list-9.html

Operating Frequency/Max Output Power

This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.

User has the choice to give his product to a competent recycling organization or to the retailer when he buys a new electrical or electronic equipment.

Espanol

HactoI, SHENZHEN TENDA TECHNOLOGY CO., LTD. 3aaybIeT, yTo

yctpoiCTBO COOTBeTCTByeT DnpeKtIbe 2014/53/EU. IoHbI TeKcT

deknapauncootbctbna EC doctyneH no cneyuoueMy

intepnet-adpecy:https://www.tendacn.com/download/list-9.html

Nederlandse

VEREENVOIDIGDE EU-CONFORMITEITSVERKLARING

English: Safety Precautions

Before performing an operation, read the operation instructions and precautions to be taken, and follow them to prevent accidents. The warning and danger items in other documents do not cover all the safety precautions that must be followed. They are only supplementary information, and the installation and maintenance personnel need to understand the basic safety precautions to be taken.

• Do not use the device in a place where wireless devices are not allowed.
• Operating environment: Temperature: 0^ - 40^ ; Humidity: (10% - 90%) RH, non-condensing; Storage environment: Temperature: -40^ - 70^ ; Humidity: (5% - 90%) RH, non-condensing.
• Keep the device away from water, fire, high electric field, high magnetic field, and inflammable and explosive items.
• Do not use the USB cable if its plug or cord is damaged.
• If such phenomena as smoke, abnormal sound or smell appear when you use the device, immediately stop using it and disconnect its power supply, unplug all connected cables, and contact the after-sales service personnel.
• Disassembling or modifying the device or its accessories without authorization voids the warranty, and might cause safety hazards.
• CAUTION
  RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
  DISPOSE OF USED BATTERIES ACCORDING TO LOCAL REGULATIONS

Frequency bands and power

Some frequency bands in which the radio equipment operates may not be available in some countries or areas. Please contact your local ISP for more details.

The maximum radio-frequency power transmitted in the frequency bands in which the radio equipment operates is less than the highest limit value specified in the related Harmonized Standard.

The frequency bands and transmitting power (radiated and/or conducted) nominal limits applicable to this radio equipment are as follows:

Band:

4G LTE Band: B1/B3/B5/B7/B8/B20/B28/B38/B40/B41;

LTE Power: 23 ± 2 ~dBm

Caution:

Battery Model: 4G

Voltage: 3.8V

Capacity: 2100mAh 7.98Wh

Limited charge voltage: 4.35V

Manufacturer: Shenzhen Powercome Electronics Co., LTD

Technical Support

Shenzhen Tenda Technology Co., Ltd.

Floor 6-8, Tower E3, No.1001, Zhongshanyuan Road,

Nanshan District, Shenzhen, China. 518052

Website: www.tendacn.com

E-mail: [e-mail]

[e-mail] (United Kingdom)

[e-mail] (North America)

Copyright

© 2023 Shenzhen Tenda Technology Co., Ltd. All rights reserved.

Tenda is a registered trademark legally held by Shenzhen Tenda Technology Co., Ltd. Other brand and product names mentioned herein are trademarks or registered trademarks of their respective holders. Specifications are subject to change without notice.

V3.0 Keep for future reference.
