USER MANUAL GS 400M CATA

• Areas with corrosive, explosive or flammable liquids, gases or vapours.

• Areas with temperatures higher than 40 °C or lower than -5 °C.

• Areas exposed to the environment (rain, sun, snow, etc.)

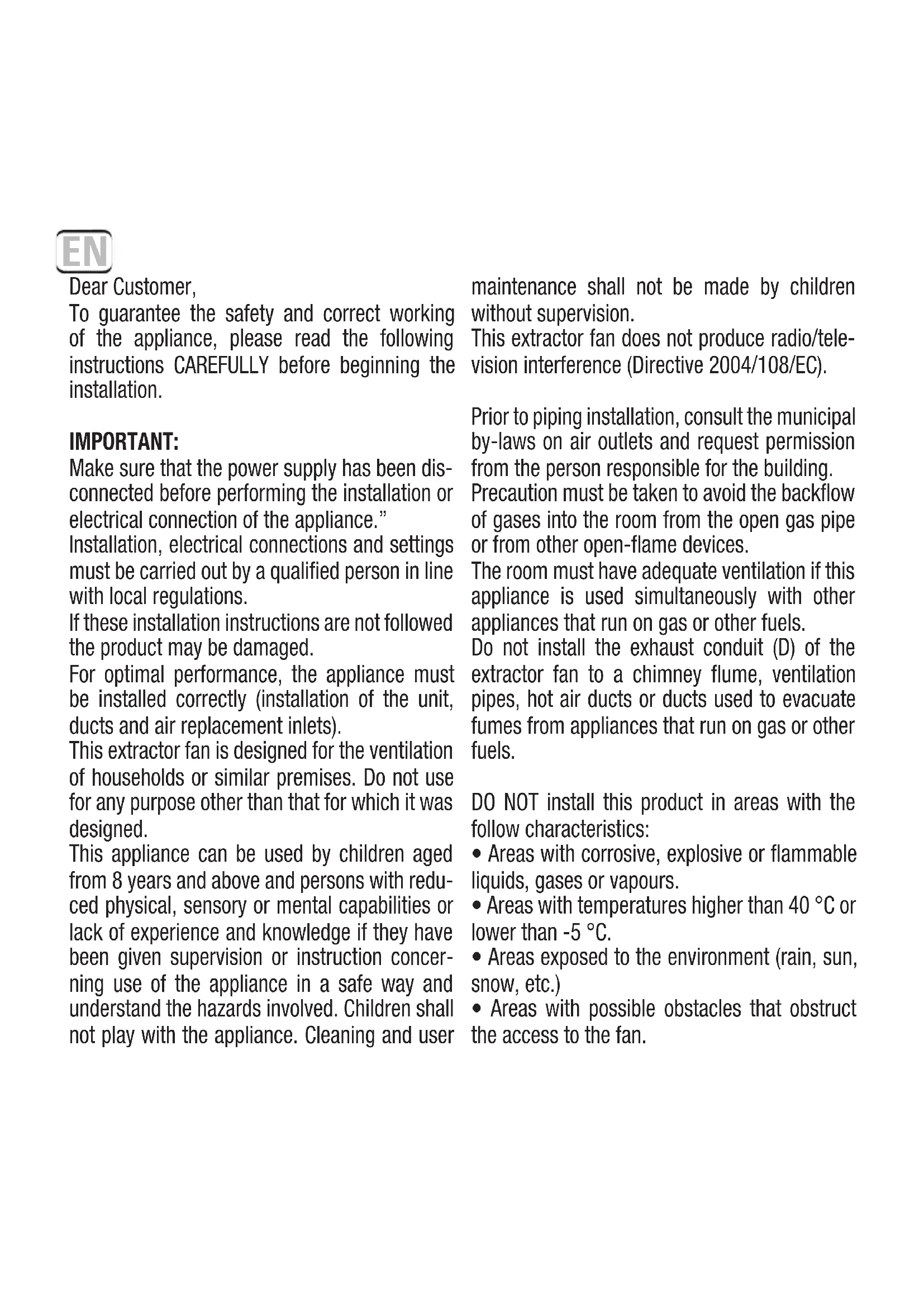

• Areas with possible obstacles that obstruct the access to the fan. Dear Customer, To guarantee the safety and correct working of the appliance, please read the following instructions CAREFULLY before beginning the installation. IMPORTANT: Make sure that the power supply has been dis- connected before performing the installation or electrical connection of the appliance.” Installation, electrical connections and settings must be carried out by a qualified person in line with local regulations. If these installation instructions are not followed the product may be damaged. For optimal performance, the appliance must be installed correctly (installation of the unit, ducts and air replacement inlets). This extractor fan is designed for the ventilation of households or similar premises. Do not use for any purpose other than that for which it was designed. This appliance can be used by children aged from 8 years and above and persons with redu- ced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concer- ning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user ENThe product and its parts must not be submer- ged in water or other liquids. The IP rating is only valid if the installation of the appliance complies with what is indicated in this manual. The manufacturer declines all responsibility for personal injury or damage to animals or objects caused by inappropriate use of the appliance according to the warnings for installation, use and maintenance described in this instruction manual. After finishing the installation these instruc- tions should be given to the owner/user of the appliance. The appliance must be able to be disconnected from the mains electricity supply after installa- tion. It can be disconnected by making the plug accessible or by incorporating a switch in the fixed wiring that meets electrical installation standards. INSTALLATION: Before starting the installation, check that the propeller is not deformed or damaged, that it can turn freely, and that no foreign body is lodged inside the outer casing.” The appliance shall be installed according to the attached graphic do- cumentation. Make sure that there is no obstacle blocking the flow of air. Fan is not intended for mounting in outside windows or walls. This kitchen extractor must be installed in the inner part of the kitchen chimney as shown in fig. 1. The kitchen extractor should be fixed on the wall by means of screws and fixing plugs supplied; they must be separa- ted by 200 mm. (GS-400M) / 140 mm. (GS-400P). The extractor must be fixed to the plugs by the rear part. Following, mark in the wall the exact point where plastic plug for the prop should be placed. Then make a hole of 6 mm. and put the plastic plug in. Finally, insert the screw in the prop for definitive fixation of the extractor. NOTE: Do not connect the extractor to a smoke chimney, ventilating or heating ducting. Before connecting with the tubing, consult the bylaws concerning air-ducting and ask permission to the person responsible for the building. Make sure that ventilation is the appropriate even when using simultaneously the extractor together with other appliances con- nected to a source other than electricity. ELECTRICAL CONNECTION: Make sure that the voltage (V) and frequency (Hz) of the power supply correspond to the values indicated on the nameplate.” APPLIANCE CLASS I, it must be connected to an efficient ground connec- tion. We decline any responsibility of any damage to people or things in case of improper use. The fan should be connected, in a permanent way, to a fixed duct by means of a double wire with a minimum section of The power supply cable must be placed so that no liquid or vapour can en- ter the appliance along it. If this were not possible, the cable entry should be sealed additionally, e.g. with silicone. Otherwise, the indicated IP rating would not be maintained. In the event that this appliance is not used, it is recommended that you disconnect it from the mains electricity supply. To finish the installation, verify that all the connections have been done correctly and make sure that the cables are placed correctly.Make sure that the blades turn freely. CLEANING AND MAINTENANCE:

• Before cleaning make sure that the appliance is not connected to the electric network and prevent it from being reconnected by accident.”

• Clean with a damp cloth regularly.

• The motor, propeller and all components should be inspected periodi- cally to ensure that they are not dirty and have not suffered any dama- ge. The frequency of inspections depends on the appliance’s operating conditions.
