IAN 313534 - Bubble machine Playtive - Free user manual and instructions

Product type	Soap bubble machine
Brand	Playtive
Model	IAN 313534
Recommended age	From 3 years
Power supply	4 AA batteries (1.5 V) included
Included liquid volume	100 ml
Maximum liquid capacity	150 ml
Dimensions (approx.)	20 × 15 × 15 cm (estimated)
Weight (approx.)	300 g (estimated)
Battery type	LR6, AA, 1.5 V
Main functions	Bubble generation by rotating wheel, stop by button press
Care and cleaning	Wipe with a damp cloth, do not use abrasive cleaners
Safety	Do not drink the liquid, avoid contact with eyes, use under adult supervision
Spare parts	Available during the warranty period
Warranty	3 years
After-sales service	Tel. [phone] (France) or 070 270 171 (Belgium, €0.15/min)

Frequently Asked Questions - IAN 313534 Playtive

How to insert the batteries into the Playtive bubble machine?

Unscrew the battery compartment cover with a screwdriver, insert 4 AA batteries respecting polarity (+/-), then close and screw back.

What type of liquid to use?

Use the included bubble liquid (100 ml) or any other suitable bubble liquid. Do not fill beyond 150 ml.

From what age is this toy recommended?

The Playtive bubble machine is recommended for children from 3 years, under adult supervision.

How to clean the machine?

Wipe the device with a damp cloth only. Never use abrasive cleaners and do not immerse in water.

What to do if the liquid comes into contact with eyes?

Rinse thoroughly with water and consult a doctor if necessary. Avoid any contact with eyes.

Are batteries included?

Yes, 4 AA batteries (1.5 V) are supplied with the device.

How does the bubble machine work?

Pour the liquid into the dolphin's mouth (up to 150 ml), press the button to activate the bubble wheel, and bubbles come out from the top. Press again to stop.

Where can I find spare parts?

Essential spare parts are available during the warranty period. Contact customer service at the indicated numbers.

How to store the machine when not in use?

Store it in a dry and temperate place, away from humidity. Remove batteries if the device remains unused for a long time.

Is the warranty international?

The 3-year warranty applies in the country of purchase. For France, contact 0800 919270; for Belgium, 070 270 171.

USER MANUAL IAN 313534 Playtive

PDF online www.lidl-service.com

SEIFENBLASENMASCHINE

BUBBLE MACHINE

MACHINE À BULLES DE SAVON

DE AT CH

SEIFENBLASENMASCHINE

Gebrauchsanleitung

FR BE

MACHINE À BULLES DE SAVON

Instructions for use

NL BE

ZEEPBELLENMACHINE

Gebruiksaanwijzing

CZ

STROJEK NA MÝDLOVÉ BUBLINY

Návod k použiti

CE

A 3 1a 1b 1 1c

B 1 2 1d

c 1e 1f

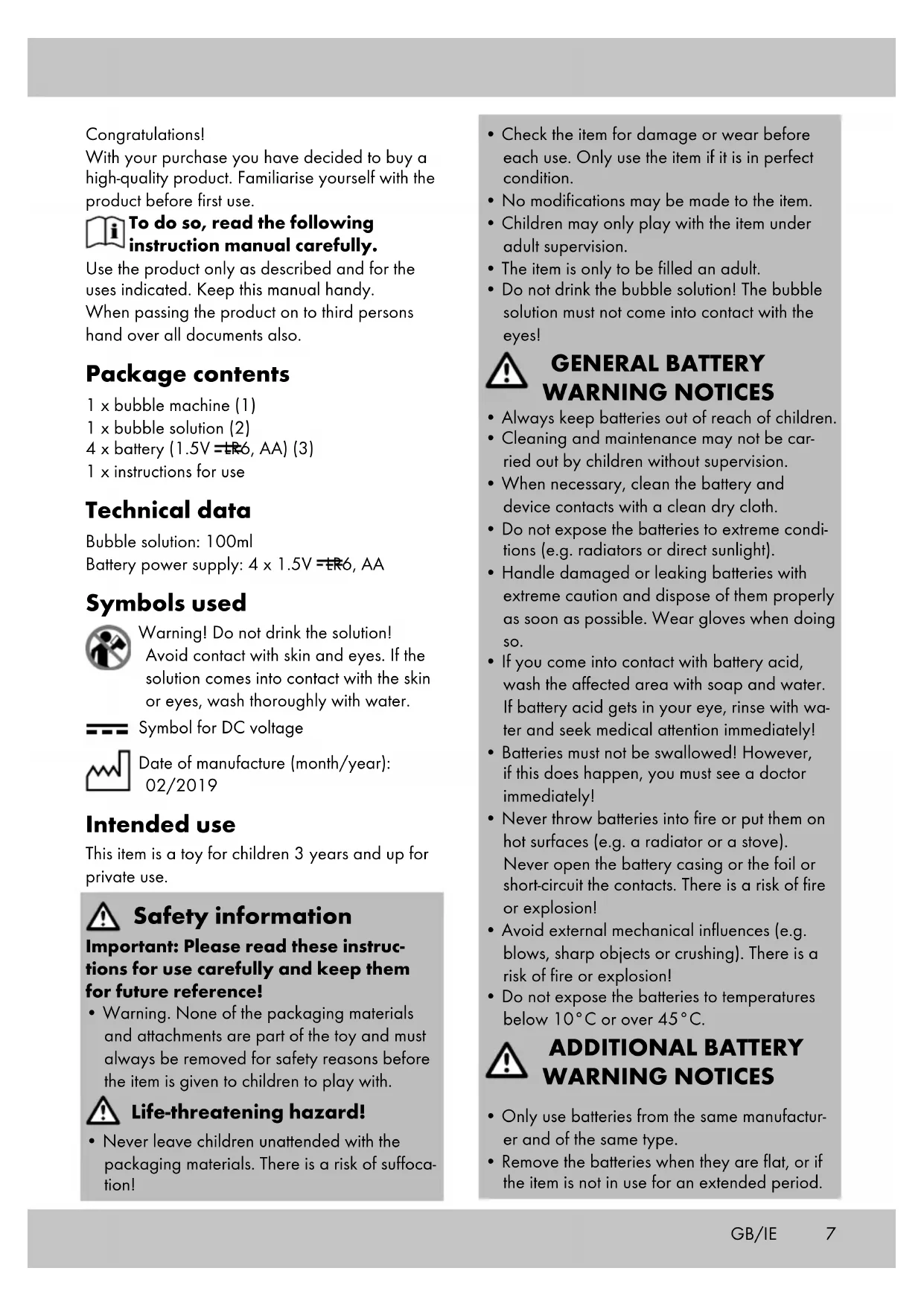

With your purchase you have decided to buy a high-quality product. Familiarise yourself with the product before first use.

To do so, read the following instruction manual carefully.

Use the product only as described and for the uses indicated. Keep this manual handy.

When passing the product on to third persons hand over all documents also.

Package contents

1 x bubble machine (1)
1 x bubble solution (2)
4 x battery (1.5V=LR6, AA) (3)
1 x instructions for use

Technical data

Bubble solution: 100ml

Battery power supply: 4 x 1.5V = ER6, AA

Symbols used

Warning! Do not drink the solution!

Avoid contact with skin and eyes. If the solution comes into contact with the skin or eyes, wash thoroughly with water.

Symbol for DC voltage

Date of manufacture (month/year):

02/2019

Intended use

This item is a toy for children 3 years and up for private use.

Safety information

Important: Please read these instructions for use carefully and keep them for future reference!

- Warning. None of the packaging materials and attachments are part of the toy and must always be removed for safety reasons before the item is given to children to play with.

Life-threatening hazard!

- Never leave children unattended with the packaging materials. There is a risk of suffocation!

• Check the item for damage or wear before each use. Only use the item if it is in perfect condition.
• No modifications may be made to the item.
• Children may only play with the item under adult supervision.
  • The item is only to be filled an adult.
• Do not drink the bubble solution! The bubble solution must not come into contact with the eyes!

GENERAL BATTERY WARNING NOTICES

• Always keep batteries out of reach of children.
- Cleaning and maintenance may not be carried out by children without supervision.
- When necessary, clean the battery and device contacts with a clean dry cloth.
- Do not expose the batteries to extreme conditions (e.g. radiators or direct sunlight).
- Handle damaged or leaking batteries with extreme caution and dispose of them properly as soon as possible. Wear gloves when doing so.
- If you come into contact with battery acid, wash the affected area with soap and water. If battery acid gets in your eye, rinse with water and seek medical attention immediately!
- Batteries must not be swallowed! However, if this does happen, you must see a doctor immediately!
- Never throw batteries into fire or put them on hot surfaces (e.g. a radiator or a stove). Never open the battery casing or the foil or short-circuit the contacts. There is a risk of fire or explosion!
- Avoid external mechanical influences (e.g. blows, sharp objects or crushing). There is a risk of fire or explosion!
- Do not expose the batteries to temperatures below 10^ or over 45^ .

ADDITIONAL BATTERY WARNING NOTICES

• Only use batteries from the same manufacturer and of the same type.

• Remove the batteries when they are flat, or if the item is not in use for an extended period.

• New and used batteries must not be used together.

• Replace all batteries at the same time.
  • Non-rechargeable batteries must not be charged.
• Warning: Batteries must not be charged or reactivated by other means, taken apart, thrown into fire, or short-circuited. There is a risk of fire or explosion!
• Pay attention to the correct polarity (+/-) when inserting the batteries.
• Dispose of used batteries properly at municipal collection points or in shops.

Inserting the batteries (Fig. A) WARNING! Observe the following instructions to avoid mechanical and electrical damage.

Before first use, insert the batteries (3) provided into the item as per the following instructions:

1. Loosen the screw (1a) in the battery cover (1b) using a suitable screwdriver (not included in package contents).
2. Remove the battery cover (1b) from the battery compartment (1c).
3. Carefully insert the batteries (3) into the battery compartment (1c). The batteries (3) must be fully inside the battery holder.

Note: Check the plus/minus poles of the batteries and insert them correctly.

1. Place the battery cover (1b) back onto the battery compartment (1c) and tighten the screw (1a).

Replacing the batteries

You can replace the batteries (3) when they are not working anymore by following the "Inserting the batteries" instructions.

Use

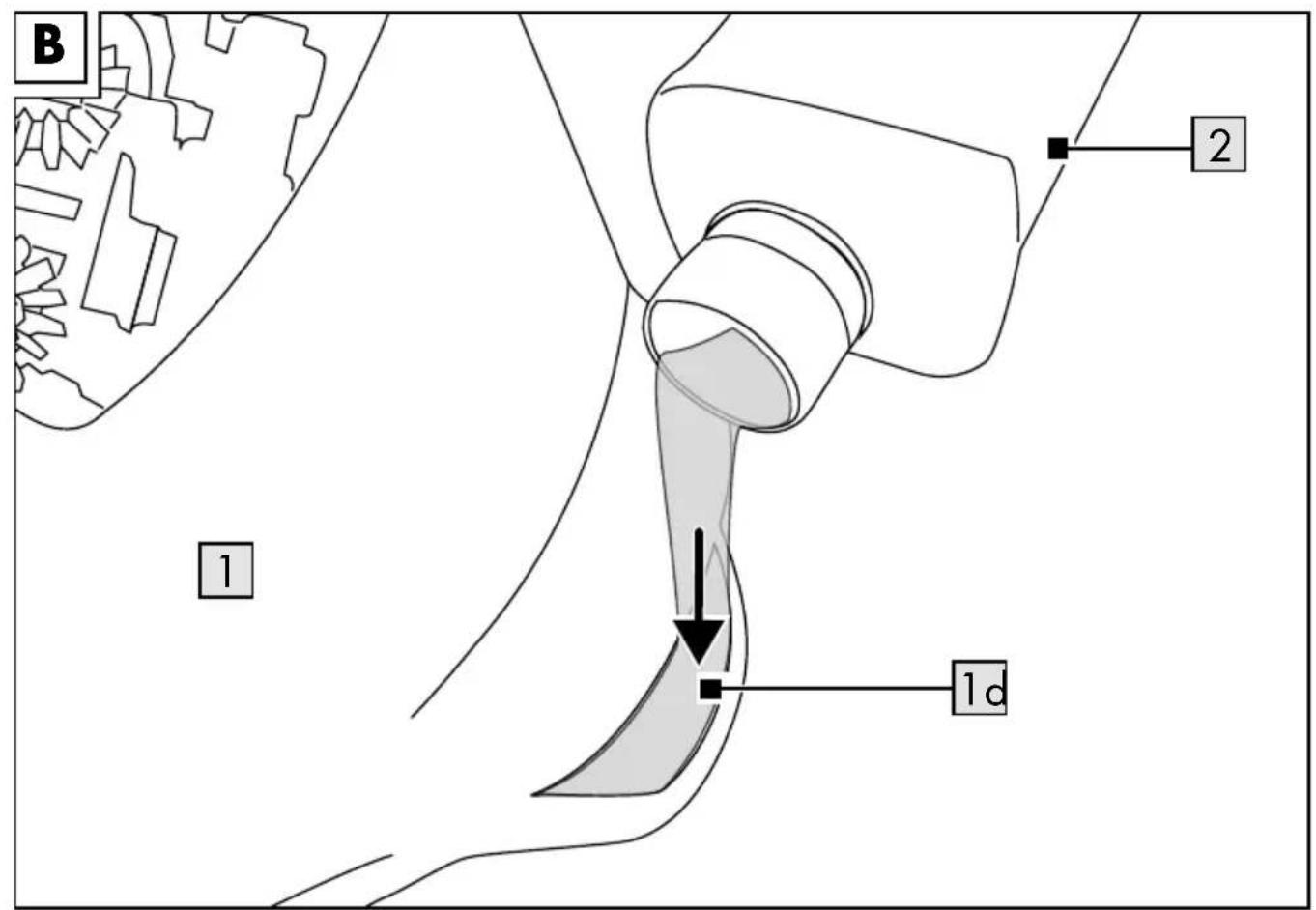

1. Pour a maximum of 150ml of bubble solution (2) into the mouth (1d) of the dolphin (1) (Fig. B).

Note: The item should only be filled by an adult.

1. Press the button (1e). The bubble wheel (1f) starts to rotate and the bubbles rise up out of the dolphin (1) (Fig. C).
2. Press the button (1e) again to stop the bubble wheel (1f).

Storage, cleaning

The item must always be stored clean and dry, and at room temperature.

Wipe the item clean using a damp cloth only. IMPORTANT! Never clean the item with harsh cleansing agents.

Disposal information

Dispose of the item and the packaging materials according to current local regulations. Packaging materials, such as plastic bags, must be kept away from children.

Keep the packaging materials out of reach of children.

Dispose of the products and the packaging in an environmentally friendly manner.

The recycling code is used to identify various materials for recycling. The code consists of the recycling symbol

- which is meant to reflect the recycling cycle - and a number which identifies the material.

Devices that are marked with the symbol shown here may not be disposed of with domestic waste. You are obliged to dispose of these kinds of used electrical

and electronic devices separately. Ask your local authority about possible methods for regulated disposal. Remove the batteries from the article before disposing of it.

Dispose of batteries carefully

Please note: Batteries are hazardous waste and may not be disposed of with domestic waste by law. You can hand over used batteries free of charge at local collection points or at retail outlets. Special containers are provided here for this purpose.

Notes on the guarantee and service handling

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail.

Our service employees will advise as to the subsequent procedure as quickly as possible.

We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

IAN: 313534

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]
