USER MANUAL CR 6311 CAMRY

CR 6311

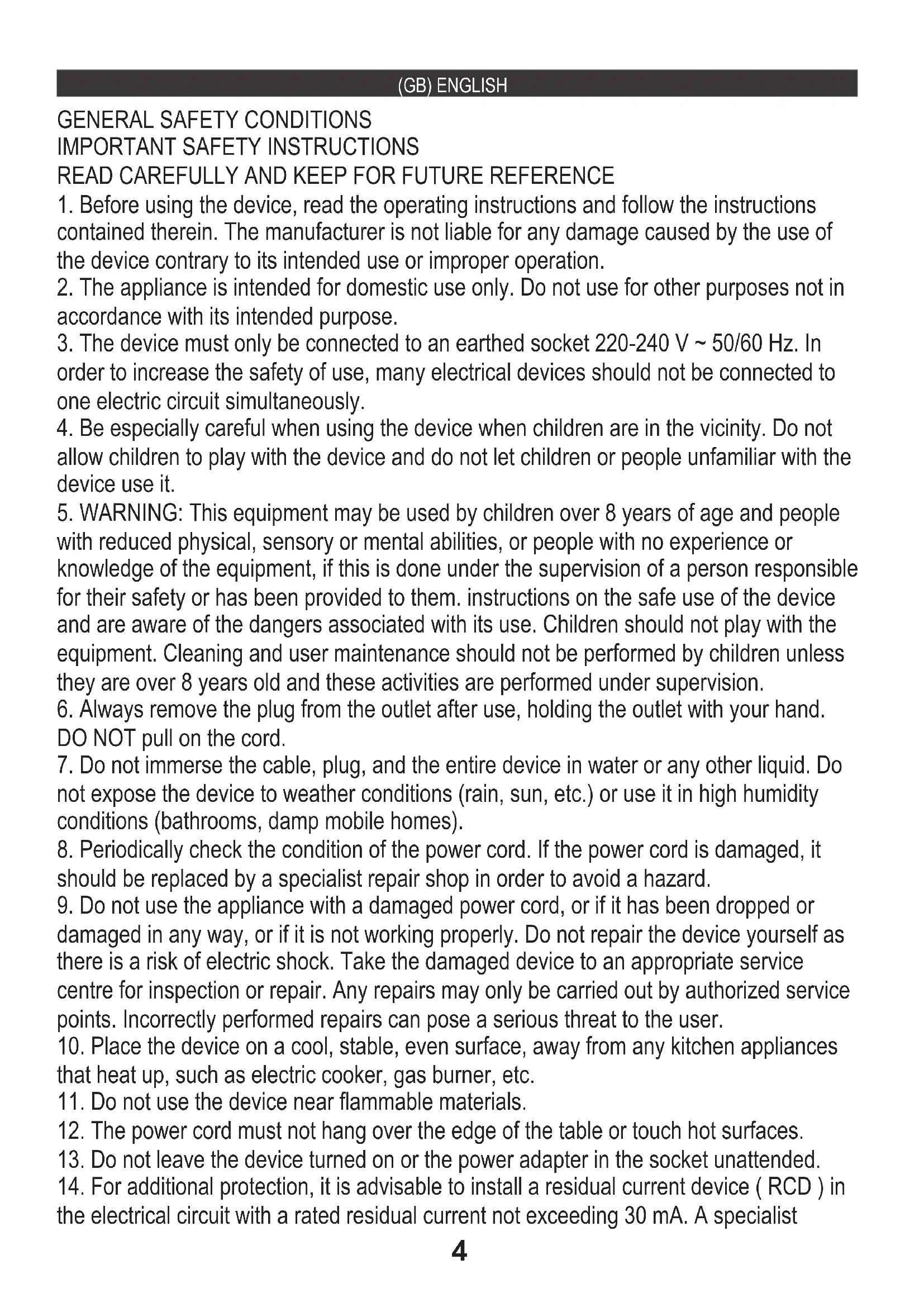

GENERAL SAFETY CONDITIONS

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

Before using the device, read the operating instructions and follow the instructions contained therein. The manufacturer is not liable for any damage caused by the use of the device contrary to its intended use or improper operation.
The appliance is intended for domestic use only. Do not use for other purposes not in accordance with its intended purpose.
The device must only be connected to an earthed socket 220-240 V \~ 50/60 Hz. In order to increase the safety of use, many electrical devices should not be connected to one electric circuit simultaneously.
Be especially careful when using the device when children are in the vicinity. Do not allow children to play with the device and do not let children or people unfamiliar with the device use it.
WARNING: This equipment may be used by children over 8 years of age and people with reduced physical, sensory or mental abilities, or people with no experience or knowledge of the equipment, if this is done under the supervision of a person responsible for their safety or has been provided to them. instructions on the safe use of the device and are aware of the dangers associated with its use. Children should not play with the equipment. Cleaning and user maintenance should not be performed by children unless they are over 8 years old and these activities are performed under supervision.
Always remove the plug from the outlet after use, holding the outlet with your hand. DO NOT pull on the cord.
Do not immerse the cable, plug, and the entire device in water or any other liquid. Do not expose the device to weather conditions (rain, sun, etc.) or use it in high humidity conditions (bathrooms, damp mobile homes).
Periodically check the condition of the power cord. If the power cord is damaged, it should be replaced by a specialist repair shop in order to avoid a hazard.
Do not use the appliance with a damaged power cord, or if it has been dropped or damaged in any way, or if it is not working properly. Do not repair the device yourself as there is a risk of electric shock. Take the damaged device to an appropriate service centre for inspection or repair. Any repairs may only be carried out by authorized service points. Incorrectly performed repairs can pose a serious threat to the user.
Place the device on a cool, stable, even surface, away from any kitchen appliances that heat up, such as electric cooker, gas burner, etc.
Do not use the device near flammable materials.
The power cord must not hang over the edge of the table or touch hot surfaces.
Do not leave the device turned on or the power adapter in the socket unattended.
For additional protection, it is advisable to install a residual current device (RCD) in the electrical circuit with a rated residual current not exceeding 30 mA. A specialist

electrician should be consulted in this regard.

Do not allow the motor part of the device to get wet.
If it is necessary to use an extension cord, use a model with a grounding pin only, suitable for a current of at least 10A. Extension cords that do not meet this requirement may overheat. Place the cord so that it is not accidentally pulled or tripped over it.
The device should be placed on an even, temperature-resistant surface, away from flammable materials (curtains, curtains, wallpaper, etc.). For proper air circulation, keep a free space of at least 10 cm on each side of the appliance and at least 30 cm above the oven. Do not cover the ventilation openings of the oven as this can overheat and damage the appliance.
Do not touch hot surfaces of the device (door, top or bottom wall, and side walls). Use protective gloves to remove or touch any hot parts.
The power cord must not be placed above the device, and it must not touch or lie near hot surfaces. Do not place the device under an electrical socket.
Do not insert the entire volume of the device into the device, as this may result in fire and destruction of the device.
Cardboard, paper, plastic, and other flammable and fusible objects must not be placed in the equipment.
Clean the device after each use.
For cleaning the housing, do not use aggressive detergents in the form of emulsions, lotions, pastes, etc., because they can, among other things, remove the applied graphic information symbols such as scales, markings, warning signs, etc.
Do not use metal wires for cleaning. Broken wire fragments may come into contact with electrical parts, posing a risk of an electric shock.
The equipment is not designed to be operated by means of external timers or a separate remote control system.
Due to the high temperature, particular care should be taken when removing the baked food, removing hot fat, or other hot liquids.

The temperature of accessible surfaces of the operating device may be high when the equipment is in operation.

Do not touch the hot surfaces of the device.

Never move the device when it is turned on or when it is hot.

Due to the spreading heat and steam, the device should not be placed under a kitchen cupboard.

CAMRY CR 6311 - READ CAREFULLY AND KEEP FOR FUTURE REFERENCE - 1

DESCRIPTION:

Control panel
Pot
Basket
Air outlet
Basket release button
Power cord
Basket handle
Safety button
Main body

Control panel:

A. Menu selection button

D. Time control regulation

G. Temperature / Time display

B. On / Off button

E. Fan operation indicator

H: Keep warm indicator

C Temperature control regulation

F. Thermostat operation indicator

Programs:

Steak 2. Chicken 3. Shrimp 4. Fish 5. Pizza 6. French fries 7. Cake 8. Dry Fruit 9. Manual

Before first use.

Remove the packaging, stickers and accessories that are outside and inside the device.
Thoroughly clean the basket (2) and pot (6) with hot water, a little washing-up liquid and a soft sponge, then wipe them with a clean, soft cloth.
(Do not clean the device with abrasive cloths or sponges, or use scouring powders, as they may damage the smooth, non-stick surfaces of the basket and the pot).
3 Place the main body (5) on a stable horizontal surface, connect the power cord (8) to a grounded power socket, select the first program (see the section on using the device) in order to remove factory odors from the device.
When the program is complete, unplug the power cord (8) and repeat step 2 to clean it again when it is completely cool.

Do not wash the basket (2) and the pot (6) in the dishwasher.

Using the device:

Holding the handle (4), pull the pot (6) together with the basket (2) from the main body (5) (fig.1) and place it on a stable surface. Note: Do not press the release button (3) while doing this.
The basket (2) can be removed from the pot (6) by pressing the button (3), previously sliding the safety button (fig. 4).
Place the previously prepared products in the basket (2) and put them in the main body (5) (fig. 3). When filling the basket, do not exceed the MAX level located inside it.
Connect the closed device to a grounded power socket.
Press the on / off button (B). The device turns on and sounds an alarm. If no program has been selected, the device will go into standby mode after 1 minute.
Use the menu selection button (A) to select the desired program (table 1). After selecting the program, you can change the temperature and time by pressing the temperature adjustment button (C) +/- and the time adjustment button (D) +/- . It is recommended to add 3 minutes to the cooking time, in relation to the programmed menu, if the device is cool.

It is possible to manually select the time and temperature, to do this must be set desired temperature and time without pressing button (A).

After selecting the appropriate program and adjusting the time, press the button (B), the device will start working. The indicator light (E) of the fan operation for the thermostat operation indicator (F) will light up. While the device is operating, the indicator light (F) will switch on and off for the device maintains the appropriate operating temperature of the thermostat.
When the backing operation is finished, the device will beep 6 times. The device will automatically enter to keep warm mode, the indicator (H) will light up. The device will operate for 30 minutes, maintaining a constant temperature of 70^ inside the basket (2).
To turn off the device, hold down the button (B) for 3 seconds.

Tips:

Arrange the food pieces in such a way that there is a free flow of hot air between them.

The device has got memory program. After removing the pot (6) during the program to check with food backing status, the device will stop. After reinserting the pot (6) again, the device will continue to work. The program can also be paused by pressing the On/Off button (B) once, pressing again will resume.
