USER MANUAL BDG4527WH Concept

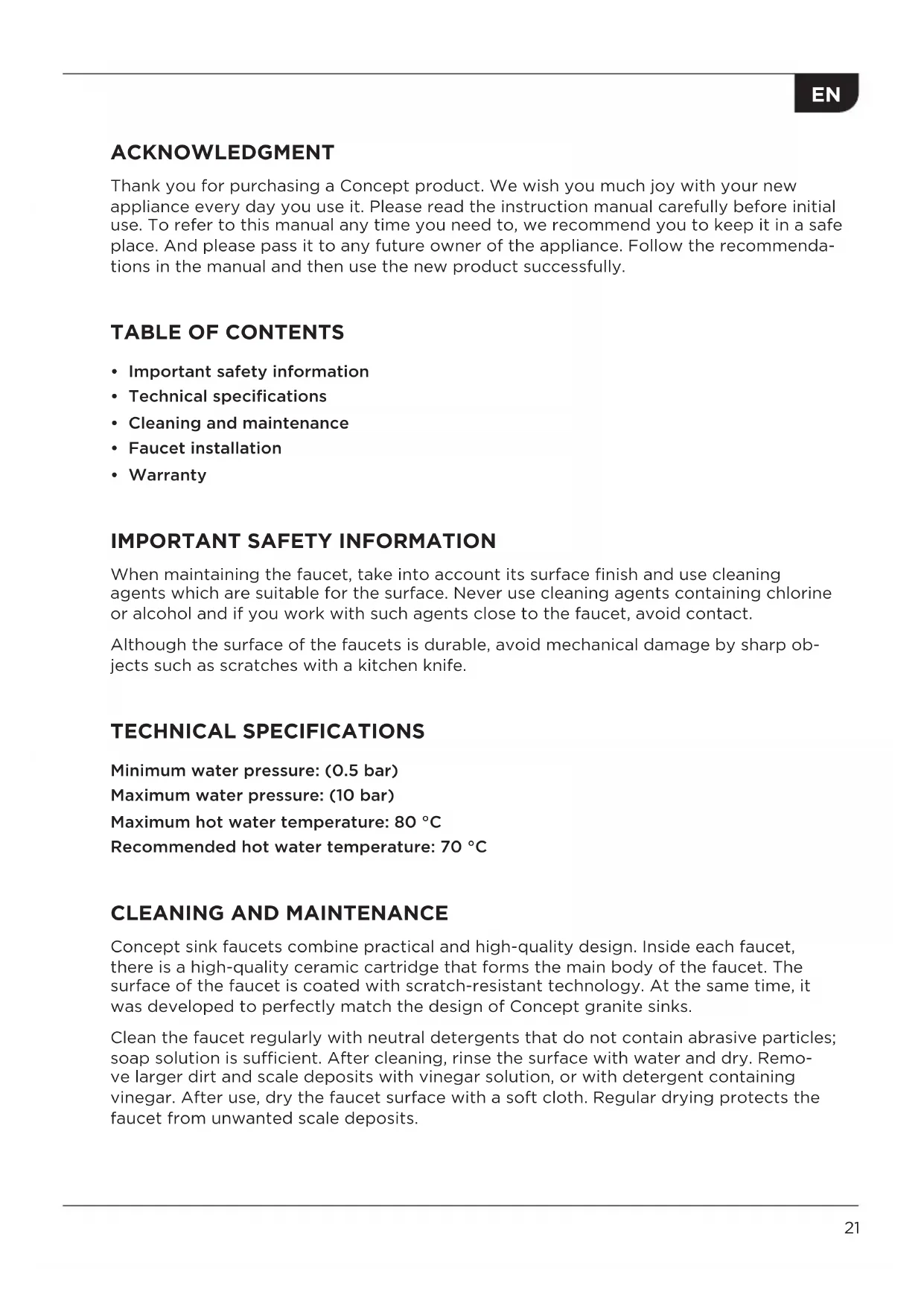

ACKNOWLEDGMENT Thank you for purchasing aConcept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in asafe place. And please pass it to any future owner of the appliance. Follow the recommenda- tions in the manual and then use the new product successfully.

• Cleaning and maintenance

When maintaining the faucet, take into account its surface finish and use cleaning agents which are suitable for the surface. Never use cleaning agents containing chlorine or alcohol and if you work with such agents close to the faucet, avoid contact. Although the surface of the faucets is durable, avoid mechanical damage by sharp ob- jects such as scratches with a kitchen knife. TECHNICAL SPECIFICATIONS Minimum water pressure: (0.5 bar) Maximum water pressure: (10 bar) Maximum hot water temperature: 80 °C Recommended hot water temperature: 70 °C

CLEANING AND MAINTENANCE

Concept sink faucets combine practical and high-quality design. Inside each faucet, there is a high-quality ceramic cartridge that forms the main body of the faucet. The surface of the faucet is coated with scratch-resistant technology. At the same time, it was developed to perfectly match the design of Concept granite sinks. Clean the faucet regularly with neutral detergents that do not contain abrasive particles; soap solution is sucient. After cleaning, rinse the surface with water and dry. Remo- ve larger dirt and scale deposits with vinegar solution, or with detergent containing vinegar. After use, dry the faucet surface with a soft cloth. Regular drying protects the faucet from unwanted scale deposits.22

Polish faucets with chrome finish from time to time with a special agent for stainless steel or chrome finish. That will remove stains and restore the chrome surface gloss. Treat faucets with granite surface once in a while with water and milk for granite sinks. Rinse the surface with warm water and dry with a soft cloth. Remove lime deposits around the strainer with vinegar solution or acetic cleaner. Daily and regular care extends their lifespan. FAUCET INSTALLATION Please follow the following instruction during product installation: The warranty does not cover damages caused by incorrect installation. Before product installation, make sure it is not damaged in any way. The product should be installed by a professional qualified to install faucets. Thanks to the fact that each faucet body can be rotated 360 °, you can install the handle on both the right and left side. Installation

• Shut o the hot and cold water supply.

• Unscrew the aerator to prevent it from clogging the first time you use the faucet.

• Position the faucet body on the sink with the fixing parts. Connect the water hoses and tighten by hand. Do not tighten with tools or brute force, the threads on valves or hoses could be damaged.

• If necessary, screw a 3/8“ threaded adapter onto both hoses.

• Screw the hoses to the water supply and open the water supply. Leave the faucet in a closed position where no water flows and check all connections for leaks. If you need to make additional tightening of joints, be sure to close the water supply.

• If all joints are tight, let hot and cold water run, first for a shorter period of time. Then install the aerator that you first dismantled and put the faucet back into operation.23

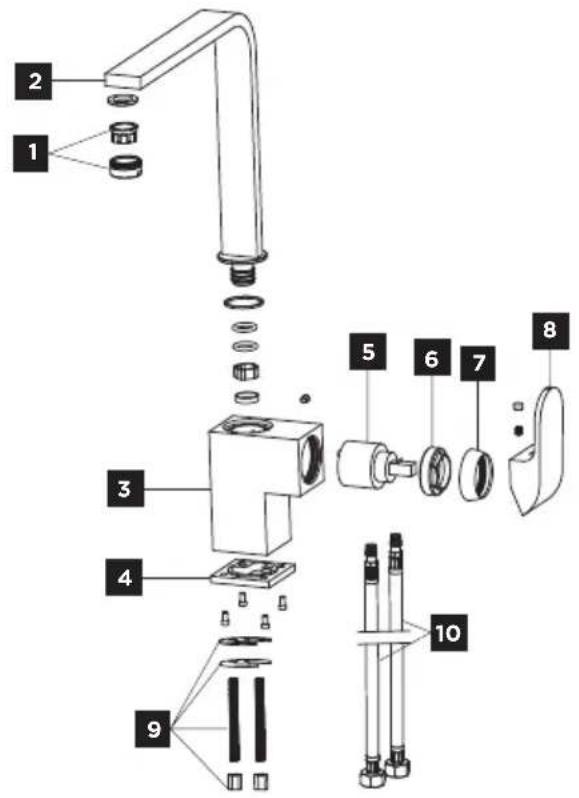

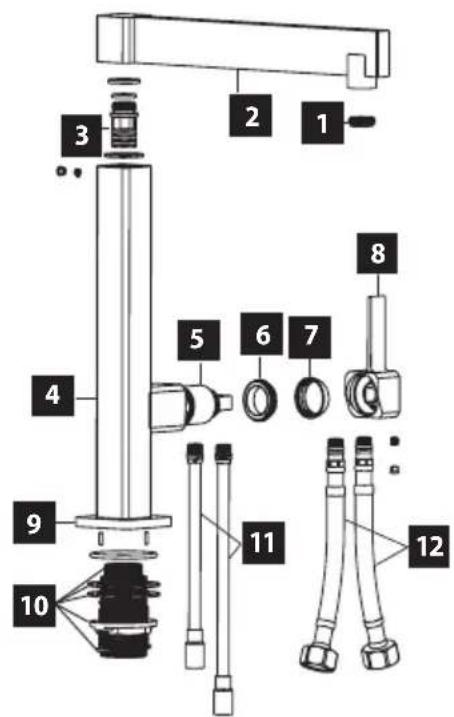

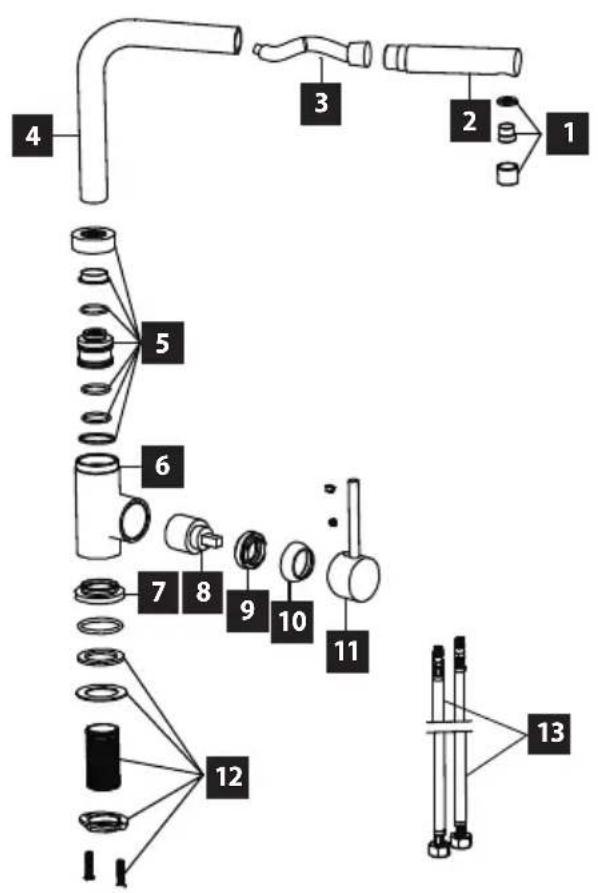

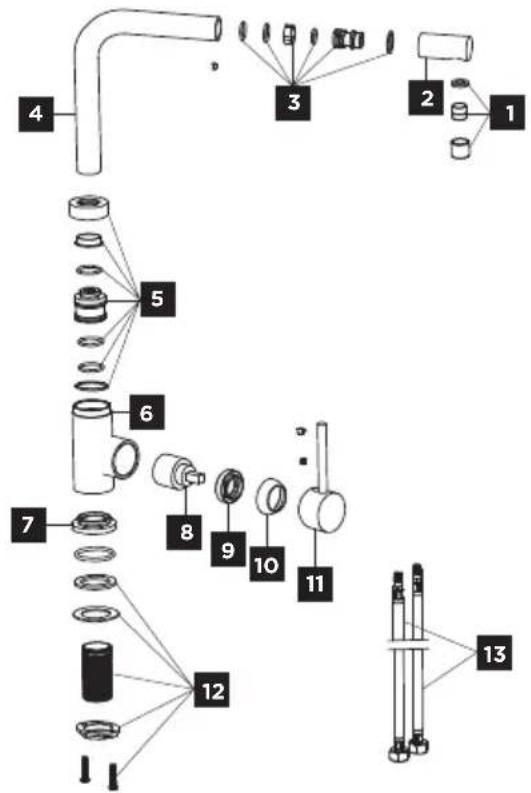

Description of individual parts of the product BDC6529, BDG6529BC Description of individual parts of the product BDC4327, BDG4327BC, BDG4327BE, BDG4327WH, BDG4327DS

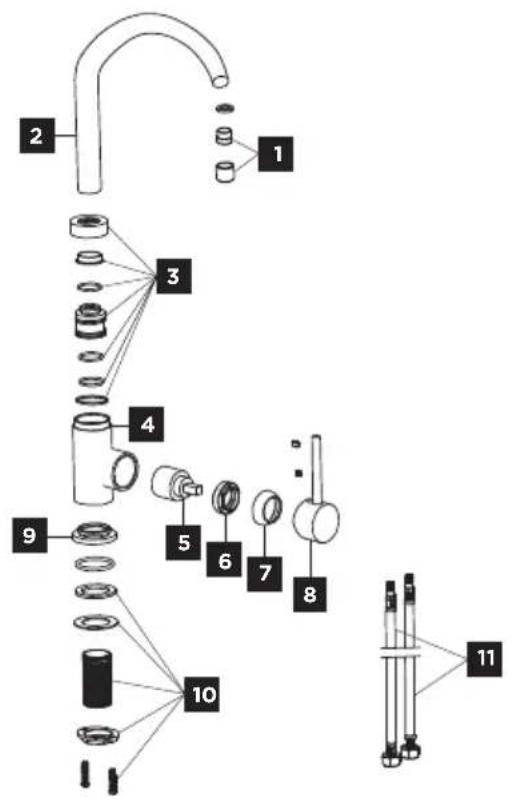

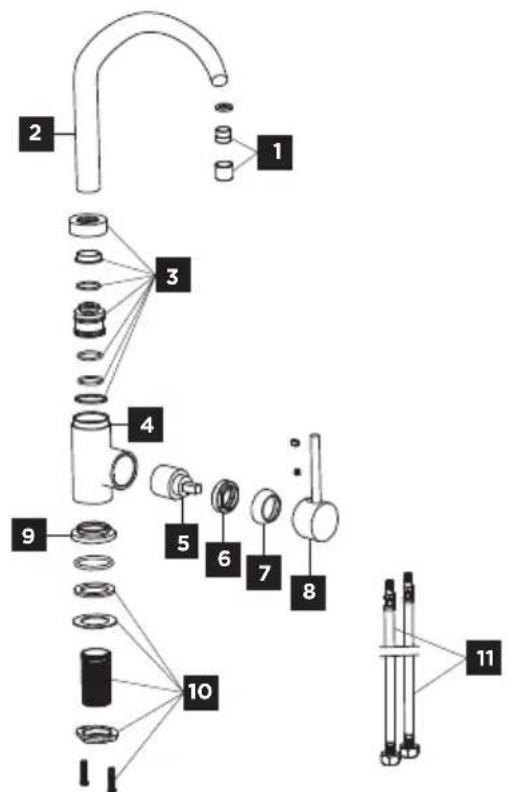

Description of individual parts of the product BDC3334, BDG3334BC, BDG3334BE, BDG3334WH Number Item 1 Aerator 2 Spout 3 Connecting parts 4 Body 5 Cartridge 6 Connect nut 7 Cap 8 Handle 9 Base 10 Fixing parts 11 Inlet hose Description of individual parts of the product

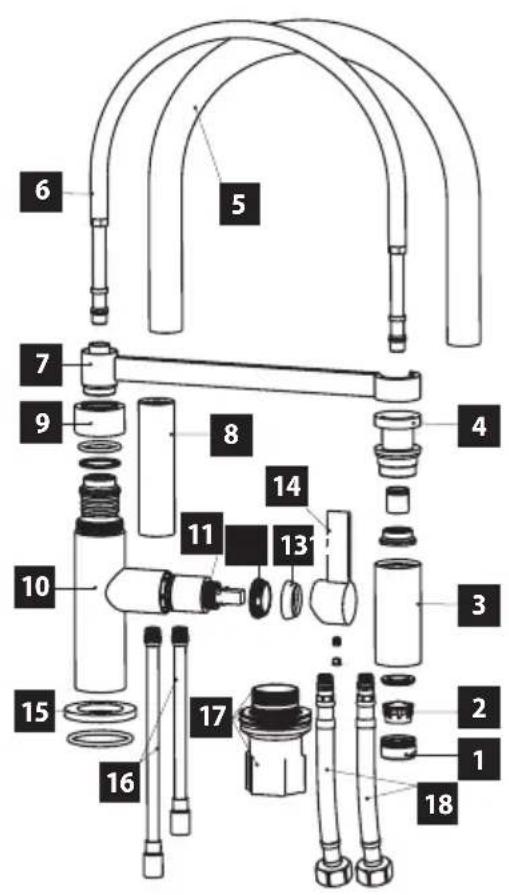

WARRANTY The manufacturer is responsible for manufacturing and material defects during the wa- rranty period specified by the manufacturer. In the event that such defects occur, please return the sink to the seller with enclosed documents of its acquisition. Keep these documents throughout the warranty period. The warranty does not cover defects caused by incorrect assembly or maintenance. Damages from failure to follow the manufacturer‘sinstructions are not covered by the warranty. Description of individual parts of the product BDC7547 Number Item 1 Aerator shell 2 Aerator 3 Pull out head 4 Hose connector 5 Silicone hose 6 Connecting hose
