Product type	Built-in electric hob
Brand	Atag
Model	HEK4535U
Dimensions (W x D x H)	58 x 52 x 6 cm (estimated)
Weight	8 kg (estimated)
Power supply	230 V~ 50 Hz, 6000 W
Connection type	Fixed or plug, cable H05RR-F 5G1.5 mm²
Number of cooking zones	4 (2 normal, 2 rapid)
Zone power ratings	Normal 18 cm: 1500 W, Rapid 14.5 cm: 1500 W, Rapid 18 cm: 2000 W, Normal 14.5 cm: 1000 W
Controls	Rotary knobs with positions 0 to 12
Operating indicator	Yes, indicates which zone is on
Surface material	Enamel and stainless steel
Care and cleaning	Clean with a damp cloth and paper towel. Use a special product or a drop of oil for the heating elements. Clean the tray with a mild liquid abrasive.
Safety	Installation by a professional, mandatory earthing, omnipolar switch recommended
Common faults	Check the plug and fuses. Contact the supplier if problem persists.
Spare parts and repairability	Contact Atag customer service. Always provide the appliance type number.
General information	Appliance compliant with EU directives. Can only be connected by a recognized installer.

Frequently Asked Questions - HEK4535U Atag

How to install the Atag HEK4535U hob?

Installation must be carried out by a recognized installer. Cut an opening to the specified dimensions (minimum worktop thickness: 28 mm). Insert the hob and secure it using the brackets. Connect to a 230 V~ 50 Hz power supply with an H05RR-F 5G1.5 mm² cable. Check the operation.

What types of pans to use?

Use pans with a solid, flat bottom, slightly larger than the cooking zone. The bottom must be dry. Avoid pans that are too small to prevent overheating and deformation of the hob.

How to clean the heating elements?

Wipe with a slightly damp cloth or paper towel. For burnt residues, use a blunt knife or a synthetic sponge (Scotch Brite). Occasionally grease with a special product (Collo Elektrol) or a drop of sewing machine oil.

What to do if a cooking zone does not heat up?

Check that the plug is properly connected and that the fuses in the panel are not defective. If the problem persists, contact the supplier or Atag customer service, providing the appliance type number.

How to use the control knobs?

The knobs turn left or right. Position 0 is off. 1 to 3: keep warm and simmer; 3-4: continue cooking; 4-6: boil; 6-8: sear and fry; 8-12: roast at high heat.

Why does the hob emit an odor during first use?

During first use, it is normal for an unpleasant odor to be emitted. To remove it, heat all zones at maximum power for 3 minutes without a pan. This burns off the protective anti-rust coating.

How to clean the stainless steel tray?

For stubborn stains, use a liquid abrasive or a non-abrasive scouring sponge (white). For stainless steel, a specific detergent (3M) is recommended. Do not scrub with abrasive green sponges to avoid scratches.

What is the total power of the appliance?

The total power of the Atag HEK4535U hob is 6000 W, distributed over 4 zones: two normal (1500 W and 1000 W) and two rapid (1500 W and 2000 W).

Can I use cast iron utensils?

Yes, provided the bottom is flat and solid. Avoid sliding utensils across the hob to prevent scratching the surface.

How to know which zone is on?

An indicator light on the control panel lights up to show which cooking zone is active. This allows you to visually check the zones in operation.

USER MANUAL HEK4535U Atag

NORMAAL-EN SNELKOOKPLAAT

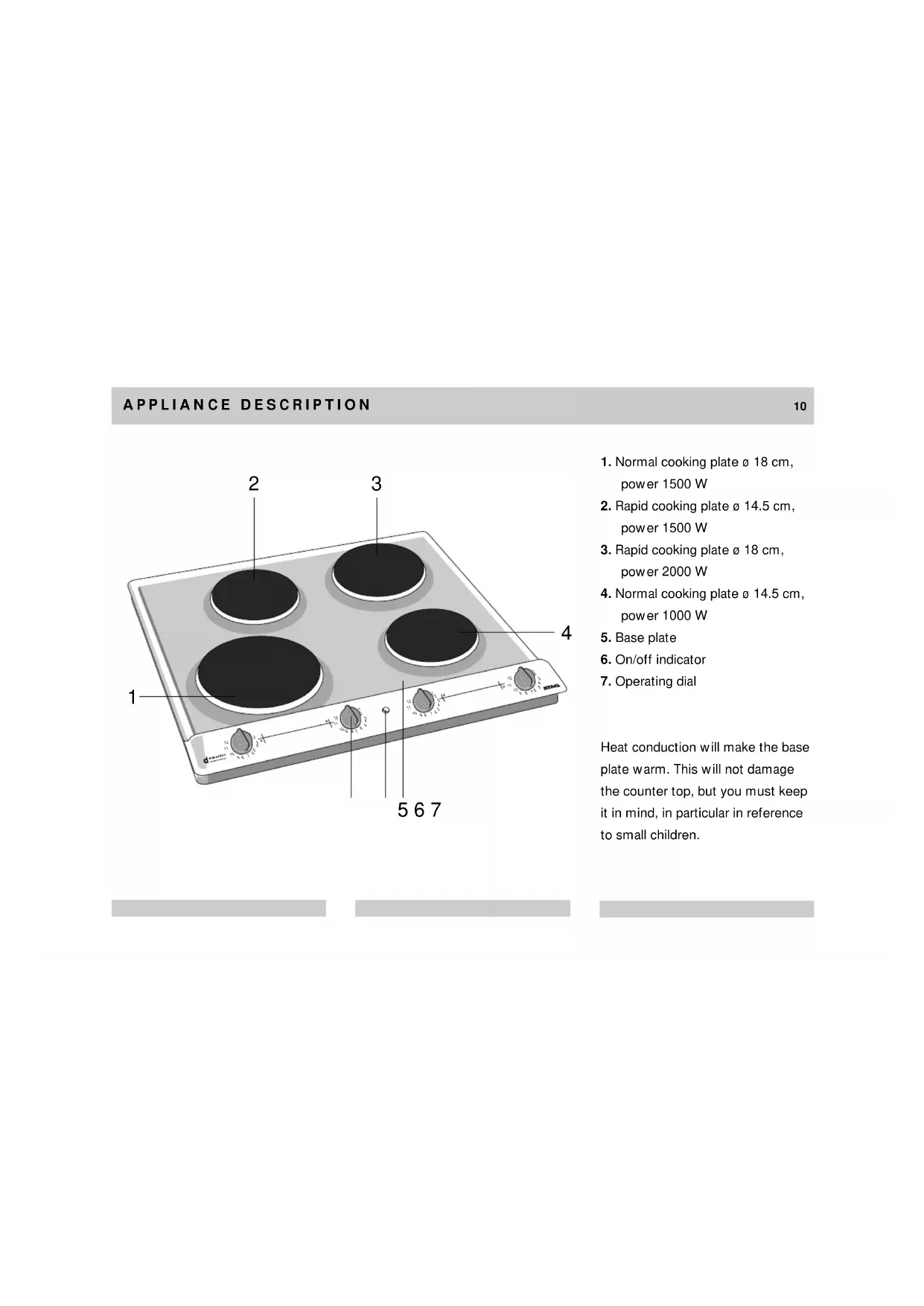

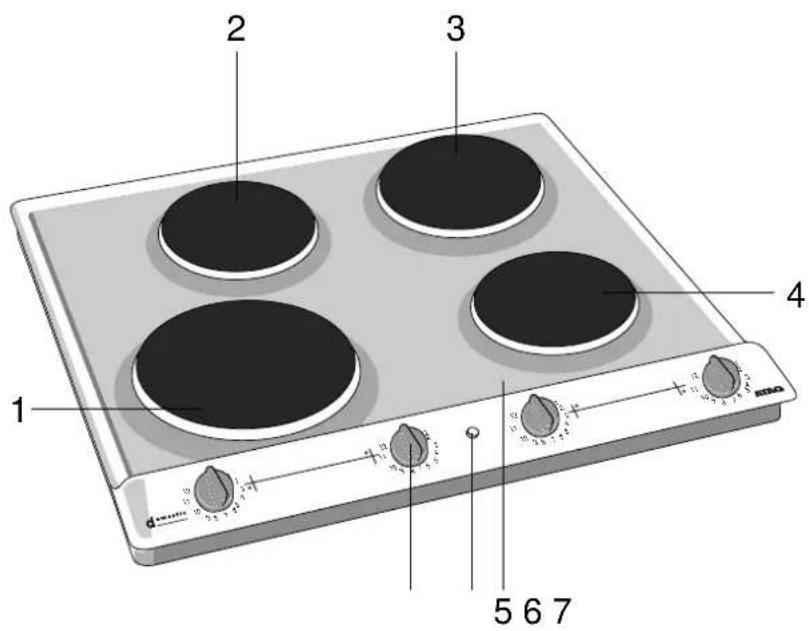

1. Normal cooking plate 18cm power 1500W
2. Rapid cooking plate 14.5cm power 1500 W
3. Rapid cooking plate 18cm power 2000 W
4. Normal cooking plate 014.5cm power 1000 W
5. Base plate
6. On/off indicator
7. Operating dial

Heat conduction will make the base plate warm. This will not damage the counter top, but you must keep it in mind, in particular in reference to small children.

OPERATION

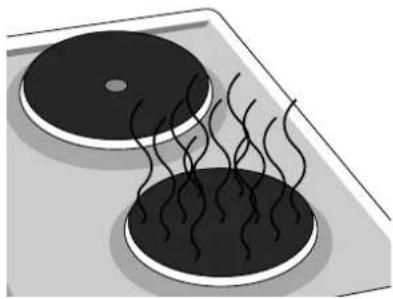

FIRSTUSE

1. Check whether the plug has been connected to the mains.
2. Switch on all of the elements in the highest setting for three minutes without pans.

A special rust-resistant coating will be burnt off. This may result in an unpleasant odour.

NORMAL AND RAPID COOKING PLATES

The operating dials for the normal and rapid cooking plates can be turned either clockwise or counterclockwise.

SETTINGS

0 Off

1-3 Simmering, warming
3-4 Cooking
4-6 Bringing to a boil
6-8 Browning and deep frying
8-12 Frying

OPERATION

12

INDICATOR

The indicator in the operating panel shows which cooking plate is switched on.

TIPS

Cook with covers on the pans: this is quicker and less expensive. The cooking plate remains warm for some time after it has been switched off. Make use of this extra heat in preparing your meals.

WRONG RIGHT

PANS

For proper heat conduction, it is important that:

• The pan has a solid, flat bottom.
• The bottom of the pan is dry.
  Moisture on the cooking plate may cause rust.
• The diameter of the pan is slightly larger than the diameter of the cooking plate.

Pans that are too small result in uneven distribution of the heat through the cooking plate. As a result, the plate may become distorted or may even break. What is more: if a pan boils over, it will spill onto the cooking plate.

MAINTENANCE

Remove spills as quickly as possible. Spills caused by boiling over of dishes such as red cabbage, rhubarb and apple sauce in particular must be removed immediately. If they remain on the enamel or stainless steel surface for too long, the surface may discolour.

ELEMENTS

Wiping clean with paper towelling or with a slightly damp cloth is normally sufficient. Spills and burned food can be removed with the dull edge of a knife or with a synthetic scouring pad (Scotch Brite).

Occasionally lubricate the element with a lubricant for electric hobs

(Collo Elektrol). Or use a drop of (sewing machine) oil. Do not over-lubricate the elements, as this will make them sticky and will result in unpleasant odours.

The stainless steel edge of the element must never be cleaned with a scouring agent. Use only a (liquid) cleanser. After cleaning remove all cleanser remnants, in particular from the space between the cast iron element and the stainless steel edge. After cleaning, always remove any cleanser remnants, then briefly switch on the element to allow all moisture to evaporate.

BASE PLATE

Tough spots on the enamel base plate can be removed with a liquid scouring agent or with a synthetic scouring pad.

Tough spots on stainless steel models can be removed with 3M stainless steel cleanser (available at hardware stores) or with a nonscouring sanitary sponge (these have a white scouring surface, e.g. Scotch Brite no. 373. Green scouring pads contain scouring agents that may cause scratches). The stainless steel has a specific structure. Scouring or polishing will cause (shiny) spots in the surface.

TROUBLESHOOTING

In case of a malfunction, check first whether you can remedy it yourself. If not, contact your supplier. If the supplier is unable to help, call or write us. We will be happy to assist you.

Always describe the complaint as completely as possible and always indicate the appliance type number.

	CAUSETROUBLE	REMEDY
Cooking zones do not get warm The mains power supply is not "On"		Turn on the mains power supply
The fuse in the fuse box is damaged		Check the fuse box

TECHNICAL DATA

Model number: HEK4. * (top operation)

Energy supply: 230 V / 50 Hz

Overall wattage: 6000 W

• The dots in the model number indicate the colour code, e.g.: a HEK455 is a hob HEK4.. in the colour 55 (white).

INSTALLATION INSTRUCTIONS

GENERAL

This appliance may only be installed by a certified technician.

ELECTRICAL CONNECTION

230 V AC - 50 Hz

The electrical connection must comply with national and local regulations.

The information plate explains the connection options. This plate is located at the bottom of the appliance. The appliance should always be earthed. It is recommended that cable type H0 5RR-F5G-1.5 mm² be used. If you want to make a fixed connection, make sure that a multi-polar switch with a contact separation

of at least 3mm is fitted in the supply line.

OVERALL WATTAGE

HEK4..6000W

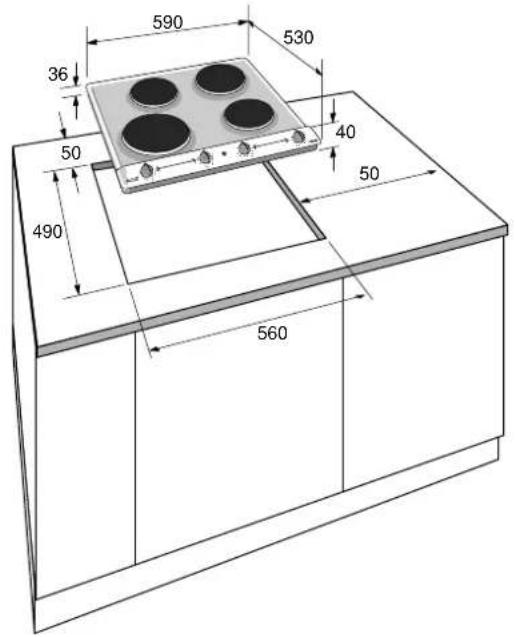

BUILDING-IN

1. Attach the connection cable.

2. Cut the hole in the counter top (see installation dimensions on page 16). The counter must be at least 28mm thick.

3. Lower the hob into the hole.

1. Fasten the hob. You can fasten the fixing clamps against the underside of the opening.

2. Make the electrical connection.

3. Check to ensure that the appliance functions properly.

This appliance conforms to current CE guidelines.
