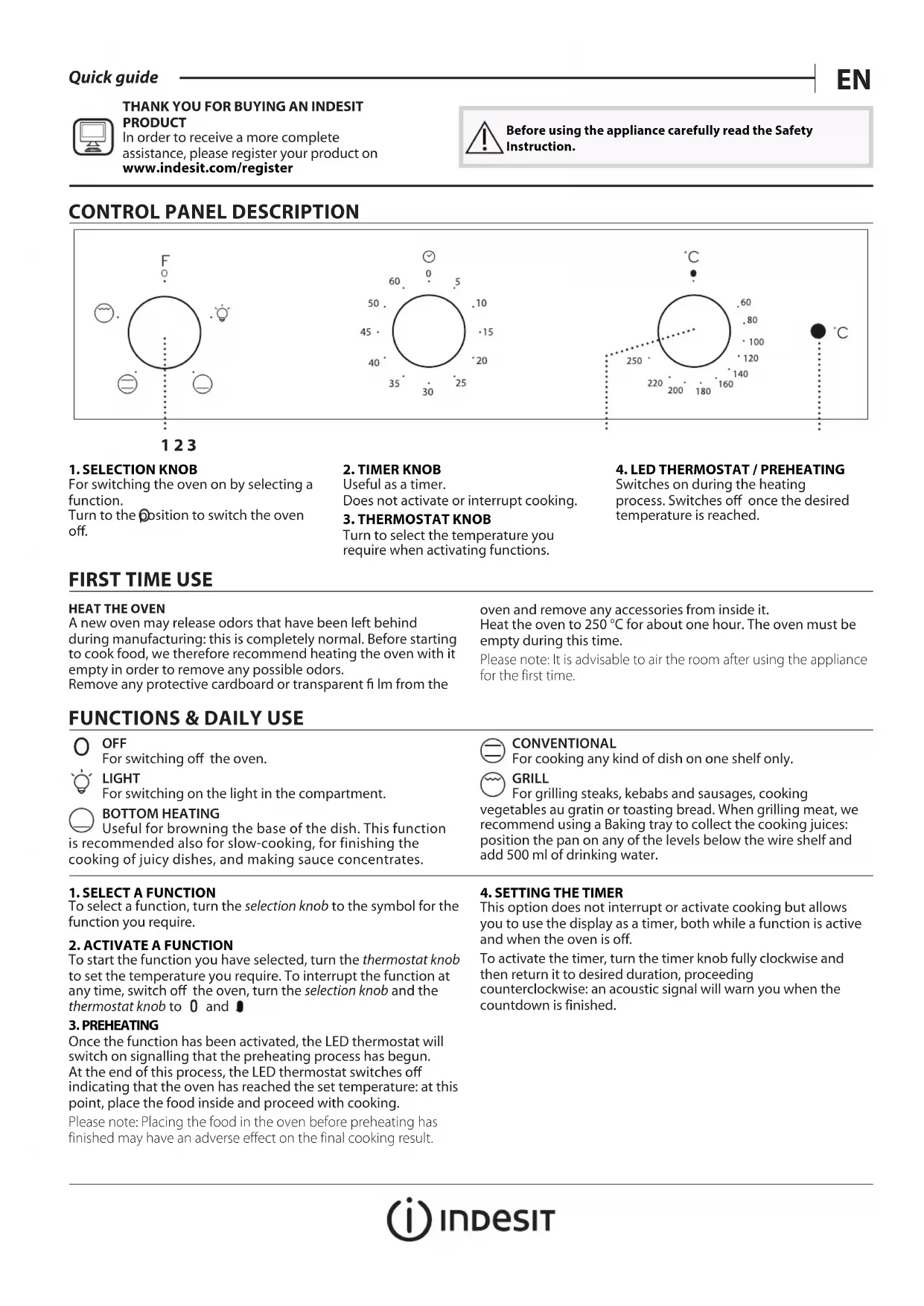

USER MANUAL IFW 6230 WH.1 INDESIT

For switching the oven on by selecting a function.

Turn to the position to switch the oven off.

2. TIMER KNOB

Useful as a timer.

Does not activate or interrupt cooking.

3. THERMOSTAT KNOB

Turn to select the temperature you require when activating functions.

4. LED THERMOSTAT / PREHEATING

Switches on during the heating process. Switches off once the desired temperature is reached.

FIRST TIME USE

HEAT THE OVEN

A new oven may release odors that have been left behind during manufacturing: this is completely normal. Before starting to cook food, we therefore recommend heating the oven with it empty in order to remove any possible odors.

Remove any protective cardboard or transparent fi lm from the

FUNCTIONS & DAILY USE

OFF

For switching off the oven.

LIGHT

For switching on the light in the compartment.

BOTTOM HEATING

Useful for browning the base of the dish. This function is recommended also for slow-cooking, for finishing the cooking of juicy dishes, and making sauce concentrates.

1. SELECT A FUNCTION

To select a function, turn the selection knob to the symbol for the function you require.

2. ACTIVATE A FUNCTION

To start the function you have selected, turn the thermostat knob to set the temperature you require. To interrupt the function at any time, switch off the oven, turn the selection knob and the thermostat knob to 0 and 1

3. PREHEATING

Once the function has been activated, the LED thermostat will switch on signalling that the preheating process has begun. At the end of this process, the LED thermostat switches off indicating that the oven has reached the set temperature: at this point, place the food inside and proceed with cooking.

Please note: Placing the food in the oven before preheating has finished may have an adverse effect on the final cooking result.

oven and remove any accessories from inside it.

Heat the oven to 250^ for about one hour. The oven must be empty during this time.

Please note: It is advisable to air the room after using the appliance for the first time.

CONVENTIONAL

For cooking any kind of dish on one shelf only.

GRILL

For grilling steaks, kebabs and sausages, cooking vegetables au gratin or toasting bread. When grilling meat, we recommend using a Baking tray to collect the cooking juices: position the pan on any of the levels below the wire shelf and add 500ml of drinking water.

4. SETTING THE TIMER

This option does not interrupt or activate cooking but allows you to use the display as a timer, both while a function is active and when the oven is off.

To activate the timer, turn the timer knob fully clockwise and then return it to desired duration, proceeding counterclockwise: an acoustic signal will warn you when the countdown is finished.

COOKING TABLE

RECIPE FUNCTION PREHEAT			TEMPERATURE (℃)	DURATION (MIN)	LEVEL AND ACCESSORIES
Leavened cakes Yes 150 - 170 30 - 90					2
Biscuits / tartlets Yes 160 - 180 15 - 35					2/3
Pizza / Bread Yes 220 - 250 10 - 25					1/2
Lasagne / baked pasta / cannelloni / flans		Yes	190 - 200	45 - 65	2
Lamb / veal / beef /pork 1 kg		Yes 190 - 200	80 - 110		2
Chicken/rabbit/duck 1 kg		Yes 200 - 230	50 - 100		2
Baked fish/en papillote 0,5 kg (fillets, whole)		Yes 170 - 190 30 - 45			2
Toasted bread		5'	250	2 - 6	5
Sausages / kebabs / spare ribs / hamburgers		5'	250	15 - 30*	5 4
Roast potatoes		Yes	220 - 240	40 - 60	2
ACCESORIES	Wire shelf Baking dish on the wire shelf Baking dish on the wire shelf Drip tray / Baking tray Drip tray / Baking tray with 200 ml of water

• Turn food halfway through cooking
  The level is indicated on the wall of the cooking compartment.

CLEANING AND MAINTENANCE

Make sure that the oven has cooled down before carrying out any maintenance or cleaning. Do not use steam cleaners.

Do not use wire wool, abrasive scourers or abrasive/corrosive cleaning agents, as these could damage the surfaces of the appliance.

Wear protective gloves. The oven must be disconnected from the mains before carrying out any kind of maintenance work.

REMOVING AND REFITTING THE DOOR

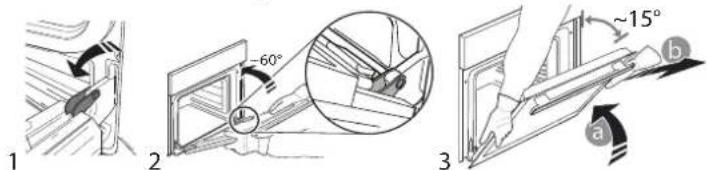

To remove the door, open it fully and lower the catches until they are in the unlock position (1). Close the door as much as you can (2). Take a firm hold of the door with both hands - do not hold it by the handle. Simply remove the door (3) by continuing to close it while pulling it upwards (a) at the same time until it is released from its seating (b).

Put the door to one side, resting it on a soft surface. Refit the door by moving it towards the oven, aligning the hooks of the hinges with their seating and securing the upper part onto its seating. Lower the door and then open it fully. Lower the catches into their original position: make sure that you lower them down completely. Try closing the door and check to make sure that it lines up with the control panel. If it does not, repeat the steps above.

CLICK & CLEAN - CLEANING THE GLASS

After removing the door and resting it on a soft surface with the handle downwards, simultaneously press the two retaining clips (1) and remove the upper edge of the door by pulling it towards you (2).

Lift and firmly hold the inner glass with both hands, remove it and place it on a soft surface before cleaning it (3).

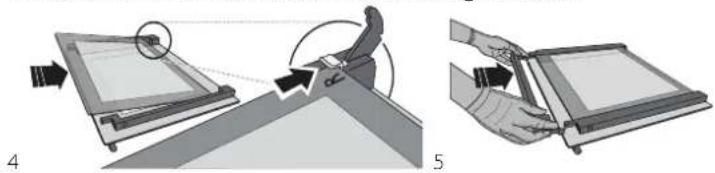

To correctly reposition the inner glass, make sure that the "R" is visible in the left-hand corner and the clear surface (not printed) is facing up. First insert the long side of the glass indicated by "R" into the support seats, then lower it into position (4).

Refit the upper edge (5): a click will indicate correct positioning.
Make sure the seal is secure before refitting the door.

TROUBLESHOOTING

Problem Possible cause Solution

The oven does not work. Power cut. Disconnection from the mains.

Check for the presence of mains electrical power and whether the oven is connected to the electricity supply. Turn off the oven and restart it to see if the fault persists.

Download the complete Use and Care Guide from docs.Indesit.eu for more informations about your product

Policies, standard documentation and additional product information can be found by:

• Visiting our website docs.Indesit.eu
• Using QR Code
• Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate.

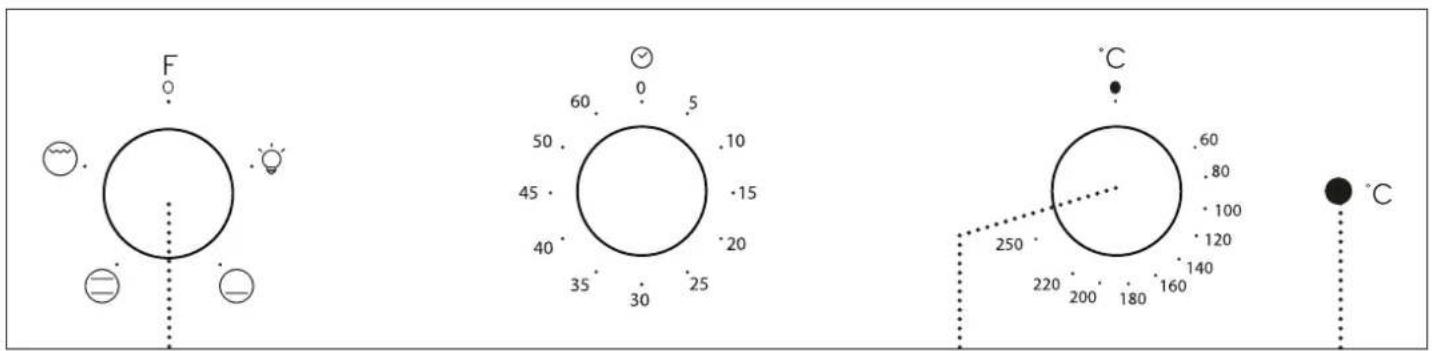

DESCRIPTION DU PANNEAU DE COMMANDE
