USER MANUAL IO 275P B INDESIT

THANK YOU FOR BUYING AN INDESIT PRODUCT
In order to receive a more complete assistance, please register your product on www.register10.eu

Before using the appliance carefully read the Safety Instruction.

PLEASE SCAN THE QR CODE ON YOUR APPLIANCE IN ORDER TO REACH MORE INFORMATION

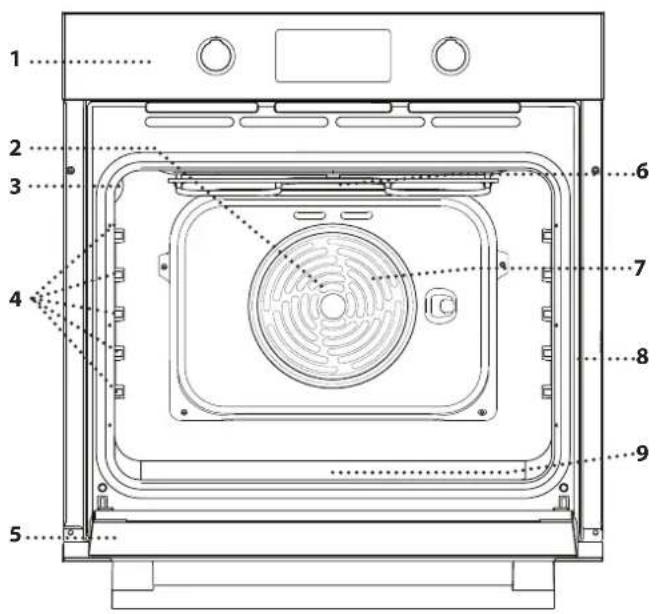

PRODUCT DESCRIPTION

1 2 3 4 5 6 7 8 9

1. Control panel
2. Fan (not visible)
3. Lamp
4. Shelf guides (the level is indicated on the wall of the cooking compartment)
5. Door
6. Upper heating element/grill
7. Circular heating element (not-visible)
8. Identification plate (do not remove)
9. Bottom heating element (not visible)

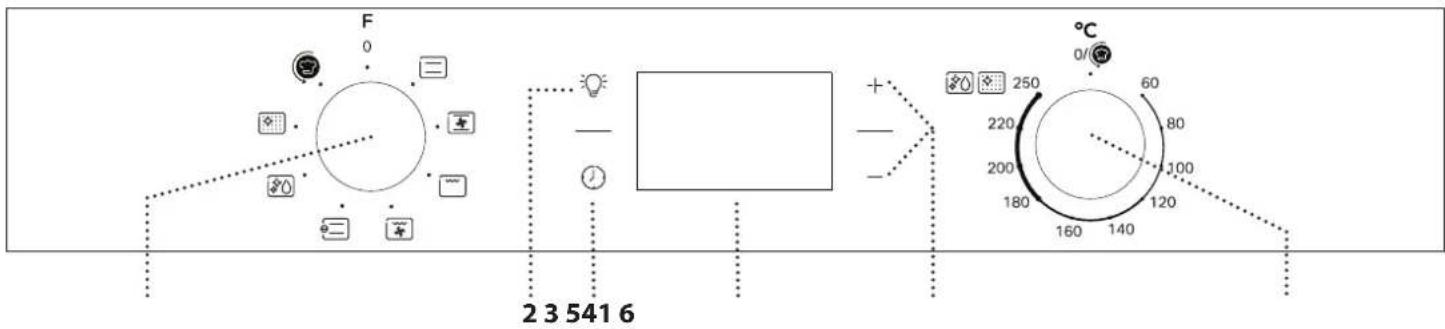

CONTROL PANEL DESCRIPTION

F 0 - 2 3 541 6 + - °C 0/°C 250 220 200 180 160 140 60 80 100 120 140

1. SELECTION KNOB

For switching the oven on by selecting a function. Turn to the 0 position to switch the oven off.

2. LIGHT

With the oven switched on, press 📋 to turn the oven compartment lamp on or off.

3. SETTING THE TIME

For accessing the cooking time settings, delayed start and timer. For displaying the time when the oven is off.

1. DISPLAY

5. ADJUSTMENT BUTTONS

For changing the cooking time settings.

6. THERMOSTAT KNOB

Turn to select the temperature you require when activating manual functions.

For Turn & Go function use 📋.

ACCESSORIES

Simple line drawing of a rectangular grid or panel with horizontal lines, no text or symbols present.

Use to cook food or as a support for pans, cake tins and other ovenproof items of cookware.

3D rendering of a rectangular tray with a gray inner area and a separate U-shaped outline on the right (no text or symbols)

Use as an oven tray for cooking meat, fish, vegetables, focaccia, etc. or position underneath the wire shelf to collect cooking juices.

Simple line drawing of a square frame with a small curved line on the right side (no text or symbols)

Use for cooking all bread and pastry products, but also for roasts, fish en papillotte, etc.

To facilitate inserting or removing accessories.

* Available only on certain models

The number and the type of accessories may vary depending on which model is purchased.

Other accessories can be purchased separately from the After-sales Service.

INSERTING THE WIRE SHELF AND OTHER ACCESSORIES

Insert the wire shelf onto the level you require by holding it tilted slightly upwards and resting the raised rear side (pointing upwards) down first.

Then slide it horizontally along the runners as far as possible.

Other accessories, like the baking tray, are to be inserted horizontally, letting them slide on the runners.

SLIDING SHELVES AND SHELF GUIDES

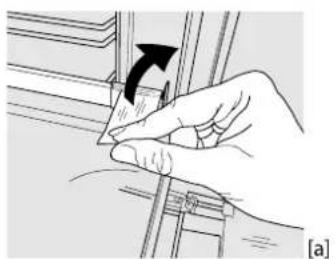

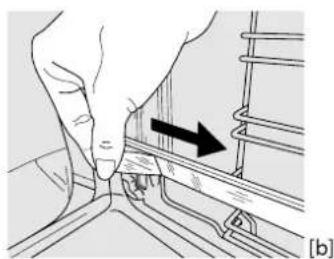

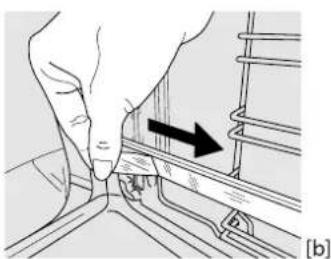

Before using the oven remove the protective tape [a] and then remove the protective foil [b] from the sliding runners.

Illustration of a hand holding a small object with an arrow indicating rotation (no text or symbols present)

Illustration of a hand pressing down on a rail track with an arrow indicating direction (no text or symbols)

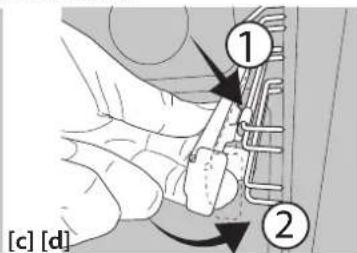

REMOVING THE SLIDING RUNNERS [c]

Pull the lower part of the sliding runner to uncouple the lower hooks (1) and pull the the sliding runners upwards, removing them from the upper hooks (2).

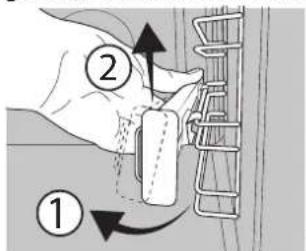

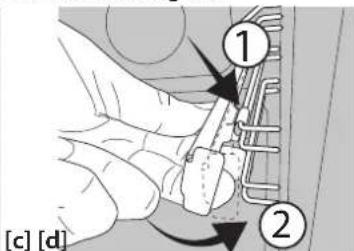

REFITTING THE SLIDING RUNNERS [d]

Hook the upper hooks on the shelf guides (1) then press the lower part of the sliding runners against the shelf guides, until the lower hooks are clicking (2).

Diagram showing a hand pressing a component into a rack, labeled with steps 1 and 2

[c] [d] ① ②

REMOVING AND REFITTING THE SHELF GUIDES

1. To remove the shelf guides, firmly grip the external part of the guide, and pull it towards you to extract the support and the two internal pins from the lodging.

2. To reposition the shelf guides, position them near the cavity and initially insert the two pins into their lodgings. Next, position the external part near its lodging, insert the support, and firmly press towards the wall of the cavity to make sure the shelf guide is properly secured.

FIRST TIME USE

1. SET THE TIME

You will need to set the time when you switch on the appliance for the first time: Press ⏻ until the icon and the two digits for the hour start flashing on the display.

①

Use + or - to set the hour and press ② to confirm. The two digits for the minutes will start flashing. Use + o -to set the minutes and press to confirm.

Please note: When the ⏻ icon is flashing, for example following lengthy power outages, you will need to reset the time.

2. SET THE POWER CONSUMPTION

The oven is programmed to work at a power of less than 2.9 kW ("Lo"): To operate the oven at a power that is compatible with a domestic power supply of greater than 3 kW ("Hi"), you will need to change the settings.

To go to the change menu, turn the selection knob to ☐, then turn it back to 0

Press and hold +and for five seconds immediately afterwards.

Use + or -to change the setting, then press and hold ⏻ for at least two seconds to confirm.

3. HEAT THE OVEN

A new oven may release odours that have been left behind during manufacturing: this is completely normal. Before starting to cook food, we therefore recommend heating the oven with it empty in order to remove any possible odours.

Remove any protective cardboard or transparent film from the oven and remove any accessories from inside it. Heat the oven to 250 °C for about one hour. The oven must be empty during this time. Follow the instructions for setting the function correctly.

Please note: It is advisable to air the room after using the appliance for the first time.

FUNCTIONS

CONVENTIONAL

For cooking any kind of dish on one shelf only.

CONVECTION BAKE

To cook on a maximum of two shelves at the same time. It is a good idea to swap the position of the baking trays halway though cooking.

GRILL

For grilling steaks, kebabs and sausages, cooking vegetables au gratin or toasting bread.

When grilling meat, we recommend using a Baking tray to collect the cooking juices: position the pan on any of the levels below the wire shelf and add 200 ml of drinking water.

TURBO GRILL

For roasting large joints of meat (legs, roast beef, chicken). We recommend using a Baking tray to collect the cooking juices: position the pan on any of the levels below the wire shelf and add 200 ml of drinking water.

ECO CONVENTIONAL\*

For cooking roasts and stuffed roasting joints on a single shelf. Food is prevented from drying out excessively by gentle, intermittent air circulation.

When this ECO function is in use, the light will remain switched off during cooking but can be switched on again by pressing 🌐.

ECOCLEAN

The action of the steam released during this special low-temperature cleaning cycle allows dirt and food residues to be removed with ease. To activate the "EcoClean" function pour 100-120ml of drinking water into the bottom of the oven then turn the selection knob and the thermostat knob to the icon. It is best to use the function for 35 minutes. The position of the icon does not correspond to the temperature reached during the cleaning.

AUTOMATIC CLEANING - PYRO

For eliminating cooking spatters using a cycle at very high temperature. To activate this function move thermostat knob to.

The position of the icon does not correspond to the real temperature reached during the cleaning cycle.

TURN & GO

This function automatically selects an ideal temperature and time for baking a wide range of recipes including meat, fish, pasta, sweets and vegetables. Activate the function when the oven is cold.

*Function used as reference for the energy efficiency declaration in accordance with Regulation (EU) No. 65/2014

DAILY USE

1. SELECT A FUNCTION

To select a function, turn the selection knob to the symbol for the function you require: the display will light up and an audible signal will sound.

2. ACTIVATE A FUNCTION

MANUAL

To start the function you have selected, turn the thermostat knob to set the temperature you require.

Please note: During cooking you can change the function by turning the selection knob or adjust the temperature by turning the thermostat knob.

The function will not start if the thermostat knob is on 0^ C. You can set the cooking time, cooking end time (only if you set a cooking time) and a timer.

TURN & GO

To start the "Turn & Go" function, select the function turning the selection knob on the relevant icon, keeping the thermostat knob on the 0/©on.

To end the cooking, turn the selection knob on "0".

Please note: To obtain the best cooking results using the "Turn & Go" function, follow the suggested weights for each kind of food in the following table.

Food Recipe Weight (kg)
Meat	Roast veal, Roast Beef rare 0.6 - 0.7
	Chicken / Leg of lamb in pieces	1.0 - 1.2
Fish	Salmon fillet / Baked fish (whole)	0.9 - 1.0
	Fish en papillote 0.8 - 1.0
Vegetables	Stuffed vegetables 1.8 - 2.5
	Vegetable pie 1.5 - 2.5
Salty cakes	Quiche lorraine / Flan	1.0 - 1.5
Pasta	Lasagne / Timbale of pasta or rice	1.5 - 2.0
Pastry	Leavened cake / Plum cake	0.9 - 1.2
	Baked apples	1.0 - 1.5
Bread	Bread loaf	0.5 - 0.6
	Baguettes	0.5 - 0.8

3. PREHEATING AND RESIDUAL HEAT

Once the function starts, an audible signal and a flashing icon Ⓜ on the display indicate that the preheating phase has been activated.

When the set temperature has been reached, the icon becomes fixed and a new audible signal will sound to indicate that the food can be placed inside and cooking can proceed.

Please note: Placing the food in the oven before preheating has finished may have an adverse effect on the final cooking result.

After cooking and with the function deactivated, the icon Ⓜ may continue to remain visible on the display even after the cooling fan has switched off to indicate that there is residual heat in the compartment.

Please note: The time after which the icon switches off varies because it depends on a series of factors such as ambient temperature and function used. In any case, the product should be considered to be off when the pointer on the selection knob is at "0".

4. PROGRAMMING COOKING

You will need to select a function before you can start programming cooking.

DURATION

Keep pressing ⏻ until the ⏻ icon and "00:00" start flashing on the display.

Use + or - to set the cooking time you require, then press ⏻ to confirm.

Activate the function by turning the thermostat knob to the temperature you require: an audible signal will sound and the display will indicate that cooking is complete.

Notes: To cancel the cooking time you have set, keep pressing ⏻ until the ⏻ icon starts flashing on the display, then use — to reset the cooking time to "00:00". This cooking time includes a preheating phase.

PROGRAMMING THE END COOKING TIME/DELAYED START

After a cooking time has been set, starting the function can be delayed by programming its end time: press ⏻ until the ⚙️ icon and the current time start flashing on the display.

Use + or — to set the time you want cooking to end and press ⏻ to confirm.

Activate the function by turning the thermostat knob to the temperature you require: the function will remain paused until it starts automatically after the period of time that has been calculated in order for cooking to finish at the time you have set.

Notes: To cancel the setting, switch the oven off by turning the selection knob to the 0 position.

Delay to start functionality is not available for Grill and Turbo Grill functions.

END OF COOKING

An audible signal will sound and the display will indicate that the function has finished.

Turn the selection knob to select a different function or to position "0" to switch the oven off.

Please note: If the timer is active, the display will show "END" alternately with the remaining time.

5. SETTING THE TIMER

This option does not interrupt or program cooking but allows you to use the display as a timer, either during while a function is active or when the oven is off.

Keep pressing ⏻ until the ⓣ on and "00:00" start flashing on the display.

Use for to set the time you require and press to confirm.

An audible signal will sound once the timer has finished counting down the selected time.

Notes: To cancel the timer, keep pressing until the icon starts flashing, then use—to reset the time to "00:00".

NOTES

• Do not cover the inside of the oven with aluminium foil.
• Never drag pots or pans across the bottom of the oven as this could damage the enamel coating.
• Do not place heavy weights on the door and do not hold on to the door.

6. AUTOMATIC CLEANING FUNCTION - PYRO

Do not touch the oven during the Pyro cycle. Keep children and animals away from the oven during and after (until the room has finished airing) running the Pyro cycle.

Remove all accessories - including shelf guides - from the oven before activating the function. If the oven is installed below a hob, make sure that all the burners or electric hotplates are switched off while running this cleaning cycle.

For optimum cleaning results, remove the worst soiling with a damp sponge before using the Pyro function.

Avoid activating the pyro cycle cleaning in the presence of limescale residues.

We recommend only running the Pyro function if the appliance contains heavy soiling or gives off bad odours during cooking.

To activate the automatic cleaning function, turn the selection knob and the thermostat knob to the icon. The function will be activated automatically, the door locked and the light inside the oven switched off:

The display will show the time remaining to the end, alternating with "Pyro".

Once the cycle has been completed, the door remain locked until the temperature inside the oven has returned to a safe level. Air the room during and after running the Pyro cycle.

COOKING TABLE

RECIPE FUNCTION PREHEAT			TEMPERATURE(°C)	DURATION(MIN)	LEVEL AND ACCESSORIES
Leavened cakes		Yes 160 - 180 30 - 90			2/3
		Yes 160 - 180 30 - 90			4 1
Filled cake(cheese cake, strudel, fruit pie)		Yes 160 - 200 35 - 90			2
		Yes 160 - 200 40 - 90			4 2
Biscuits/tartlets		Yes 160 - 180 20 - 45			3
		Yes 150 - 170 20 - 45			4 2
Choux buns		Yes 180 - 210 30 - 40			3
		Yes 180 - 200 35 - 45			4 2
Meringues		Yes 90 150 - 200			3
		Yes 90 140 - 200			4 2
Pizza / Bread		Yes 190 - 250 15 - 50			2
		Yes 190 - 250 20 - 50			4 2
Frozen pizza		Yes 250 10 - 25			3
		Yes 230 - 250 10 - 25			4 2
Salty cakes(vegetable pie,quiche)		Yes 180 - 200 40 - 55			3
		Yes 180 - 200 45 - 60			4 2
Vols-au-vents / puff pastry crackers		- 190 - 200 20 - 30			3
		- 180 - 190 20 - 40			4 2
Lasagne / baked pasta / canneloni / flans		Yes 190 - 200 45 - 65			2
Lamb / veal / beef /pork 1 kg		Yes 190 - 200 80 - 110			3
Chicken/rabbit/duck 1 kg		Yes 200 - 230 50 - 100			2
Turkey / goose 3 kg		- 190 - 200 100 - 160			2
Baked fish/en papillote (fillets, whole)		Yes 170 - 190 30 - 50			2

FUNCTIONS
	Conventional	Grill	Turbo grill	Convection bake	Eco convection bake

ACCESSORIES
	Wire shelf	Baking dish on the wire shelf	Baking tray/Drip tray or baking dish on the wire shelf	Drip tray / Baking tray	Drip tray / Baking tray with 200 ml of water

COOKING TABLE

RECIPE FUNCTION PREHEAT			TEMPERATURE(°C)	DURATION(MIN)	LEVEL AND ACCESSORIES
Stuffed vegetables(tomatoes, courgettes, aubergines)		Yes 180 - 200 50 - 70			2
Toasted bread - 250 2 - 6					5
Fish fillets/slices - 230 - 250 20 - 30*					4	3
Sausages/kebabs/spare ribs/hamburgers		- 250 15 - 30*			5	4
Roast chicken 1-1,3 kg		Yes	200 - 220	55 - 70**	2	1
Roast beef rare 1 kg		Yes	200 - 210	35 - 50**	3
Leg of lamb/knuckle		Yes	200 - 210	60 - 90**	3
Roast potatoes		Yes	200 - 210	35 - 55**	3
Vegetable gratin		-	200 - 210	25 - 55	3
Meat and potatoes		Yes	190 - 200	45 - 100***	4	1
Fish and vegetables		Yes	180	30 - 50***	4	1
Lasagne and meat		Yes	200	50 - 100***	4	1
Roast meat/stuffed roasting joints		-	170 - 180	100 - 150	2

* Turn food halfway through cooking
** Turn food two thirds of the way through cooking (if necessary).
*** Estimated length of time: dishes can be removed from the oven at different times depending on personal preference.
The time indicated does not include the preheating phase: we recommend placing the food in the oven and setting the cooking time only after the required temperature has been reached.

FUNCTIONS					[K36H]
	Conventional	Grill	Turbo grill	Convection bake	Eco convection bake

ACCESSORIES
	Wire shelf	Baking dish on the wire shelf	Baking tray/Drip tray or baking dish on the wire shelf	Drip tray / Baking tray	Drip tray / Baking tray with 200 ml of water

CLEANING AND MAINTENANCE

Make sure that the oven has cooled down before carrying out any maintenance or cleaning. Do not use steam cleaners.

Do not use wire wool, abrasive scourers or abrasive/corrosive cleaning agents, as these could damage the surfaces of the appliance.

Wear protective gloves. The oven must be disconnected from the mains before carrying out any kind of maintenance work.

EXTERIOR SURFACES

Clean the surfaces with a damp microfibre cloth. If they are very dirty, add a few drops of pH-neutral detergent. Finish off with a dry cloth.

Do not use corrosive or abrasive detergents. If any of these products inadvertently comes into contact with the surfaces of the appliance, clean immediately with a damp microfibre cloth.

INTERIOR SURFACES

- After every use, leave the oven to cool and then clean it, preferably while it is still warm, to remove any deposits or stains caused by food residues. To dry any condensation that has formed as a result of cooking foods with a high water content, leave the oven to cool completely and then wipe it with a cloth or sponge.

• If there is stubborn dirt on the interior surfaces, we recommend running the automatic cleaning function for optimal cleaning results. Avoid activating the pyrolitic cycle cleaning in the presence of limescale residues. Before activating, perform limescale cleaning as described above.

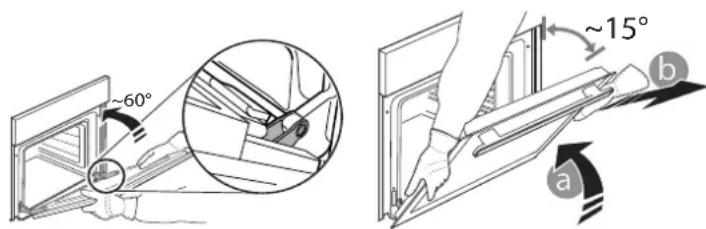

• The door can be easily removed and refitted to facilitate cleaning of the glass.

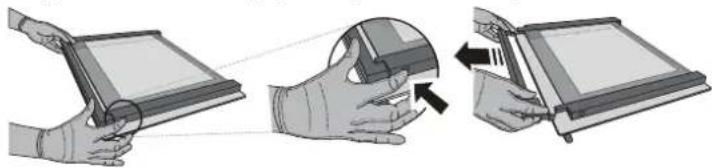

• Clean the glass in the door with a suitable liquid detergent.

ACCESSORIES

Soak the accessories in a washing-up liquid solution after use, handling them with oven gloves if they are still hot. Food residues can be removed using a washing-up brush or a sponge.

REMOVING AND REFITTING THE DOOR

1. To remove the door, open it fully and lower the catches until they are in the unlock position.

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

1. Close the door as much as you can.

Take a firm hold of the door with both hands – do not hold it by the handle. Simply remove the door by continuing to close it while pulling it upwards (a) at the same time until it is released from its seating (b). Put the door to one side, resting it on a soft surface.

~60° ~15° a b

1. Refit the door by moving it towards the oven, aligning the hooks of the hinges with their seating and securing the upper part onto its seating.

2. Lower the door and then open it fully.

Lower the catches into their original position: Make sure that you lower them down completely.

1. Try closing the door and check to make sure that it lines up with the control panel. If it does not, repeat the steps above.

CLICK & CLEAN - CLEANING THE GLASS

1. After removing the door and resting it on a soft surface with the handle downwards, simultaneously press the two retaining clips and remove the upper edge of the door by pulling it towards you.

Illustration of three-step hand manipulation process: holding a tablet, adjusting a device, and cutting the screen (no text or symbols)

1. Lift and firmly hold the inner glass with both hands, remove it and place it on a soft surface before cleaning it.

Diagram of a mechanical component with a directional arrow indicating movement (no text or symbols)

1. Refit the intermediate pane (marked with "1R") before refitting the inside pane: To position the panes of glass correctly, make sure that the "R" mark can be seen in the left-hand corner. First insert the long side of the glass marked "R" into the support seats, then lower it into position. Repeat this procedure for both panes of glass.

Diagram showing a mechanical device with an inset close-up of its component, no text or symbols present

1. Refit the upper edge: A click will indicate correct positioning. Make sure the seal is secure before refitting the door.

Illustration of hands using a tablet to interact with a screen (no text or symbols visible)

REPLACING THE LAMP

Disconnect the oven from the power supply, unscrew the cover from the light, replace the bulb and screw the cover back on the light.

Reconnect the oven to the power supply. Do not use the oven until the light cover has been refitted.

Please note: Use 25 W/230 V type G9, T300 °C halogen lamps.

The bulb used in the product is specifically designed for domestic appliances and is not suitable for general room lighting within the home (EC Regulation 244/2009).

Light bulbs are available from our After-sales Service. - Do not handle bulbs with your bare hands as your fingerprints could damage them. Do not use the oven until the light cover has been refitted.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
The oven does not work.	Power cut. Disconnection from the mains.	Check for the presence of mains electrical power and whether the oven is connected to the electricity supply.Turn off the oven and restart it to see if the fault persists.
The display shows the letter “F” followed by a number.	Software problem.	Contact you nearest After-sales Service Centre and state the letter or number that follows the letter “F”.
The display is showing the message “Hot” and the selected function will not start.	Temperature too high.	Allow the oven to cool down before activating the function.Select a different function.

Policies, standard documentation and additional product information can be found by:

• Using the QR code in your appliance
- Visiting our website docs.indesit.eu
• Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate.

MERCI D'AVOIR ACHETÉ UN PRODUIT INDESIT

Simple line drawing of a rectangular grid with horizontal lines, no text or symbols present.

3D rendering of a rectangular tray with a gray interior and a small curved bracket on the right side (no text or symbols)

Simple line drawing of a square frame with a small bracket on the right side (no text or symbols)

Illustration of a hand holding a small object with an arrow indicating rotation (no text or symbols present)

Illustration of a hand pressing down on a mechanical component with an arrow indicating direction (no text or symbols)

ENLÈVEMENT DES PATINS COULISSANTS [c]

Diagram showing a hand holding a device with two labeled arrows indicating rotation or adjustment steps.

[c] [d] ① ②

ENLEVER ET REPLACER LES SUPPORTS DE GRILLE

Diagram of a mechanical assembly with a black arrow indicating direction (no text or symbols present)

Illustration of three-step hand tool application: holding a tablet, adjusting a device, and cutting the screen (no text or symbols)

Diagram of a mechanical assembly with a rectangular component and directional arrow (no text or symbols)

Diagram showing a mechanical assembly with an inset close-up of a device, no text or symbols present

Illustration of hands using a tablet to interact with a screen (no text or symbols visible)

Simple line drawing of a rectangular grid with horizontal lines, no text or symbols present.

3D rendering of a rectangular tray with a gray interior and a small curved bracket on the right (no text or symbols)

Simple line drawing of a square frame with a small curved line on the right side (no text or symbols)

Illustration of a hand holding a small object with an arrow indicating rotation (no text or symbols present)

Illustration of a hand pressing down on a mechanical component with an arrow indicating motion (no text or symbols)

DEMONTAREA GHIDAJELOR CULISANTE [c]

Diagram showing a hand holding a device with two numbered steps indicating process flow

[c] [d] ① ②

DEMONTAREA ŞI REMONTAREA GHIDAJELOR PENTRU GRĂTAR

4. PROGRAMAREA PREPARĂRII

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

Illustration of three-step hand manipulation process: holding a tablet, adjusting a device, and cutting the screen (no text or symbols)

Diagram of a mechanical or electronic component with a rectangular frame and directional arrow (no text or symbols)

Diagram showing a mechanical device with an inset close-up of its internal components (no text or symbols present)

Illustration of hands using a tablet to interact with a screen (no text or symbols visible)
