USER MANUAL UI8 F1C W 1 INDESIT

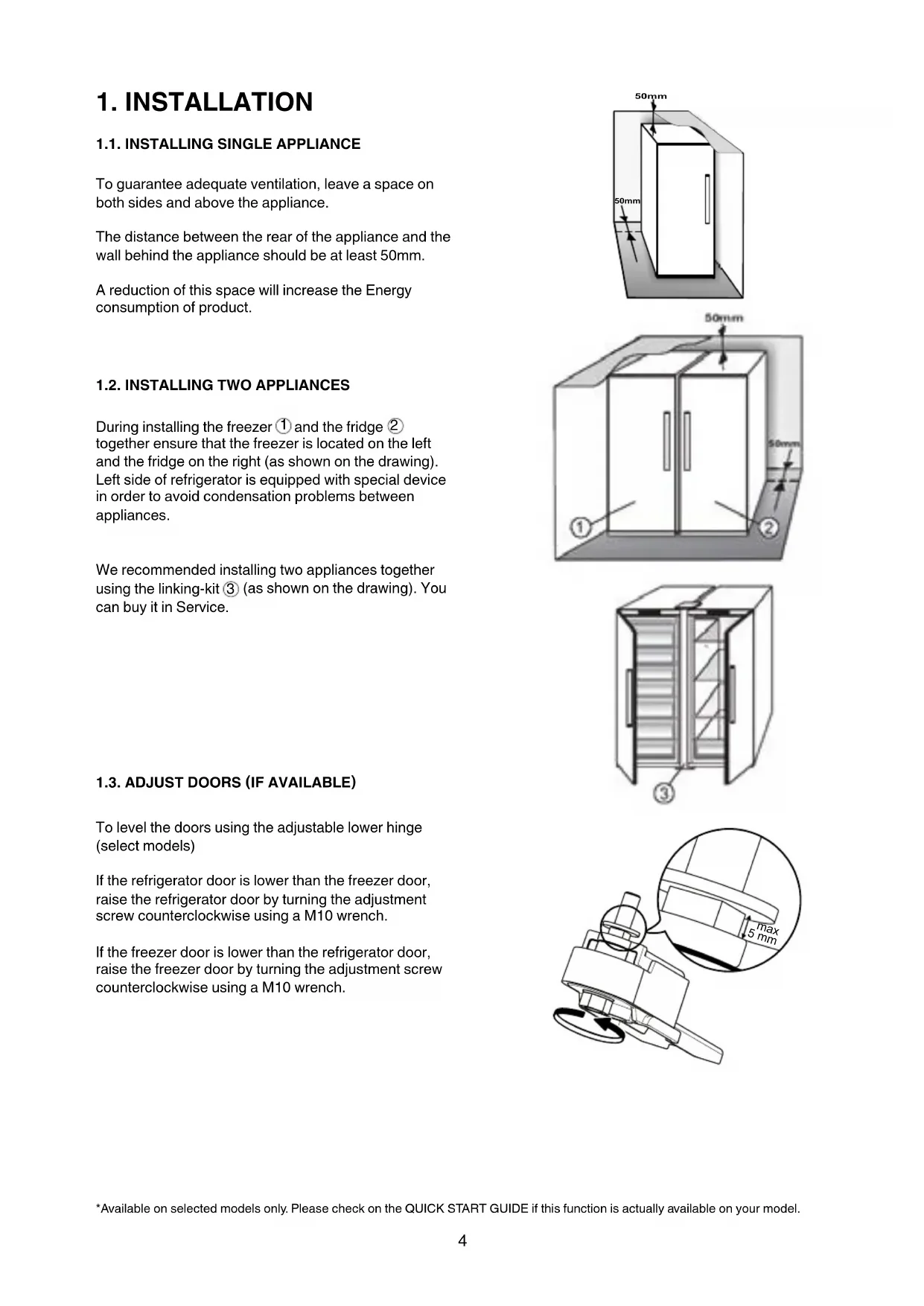

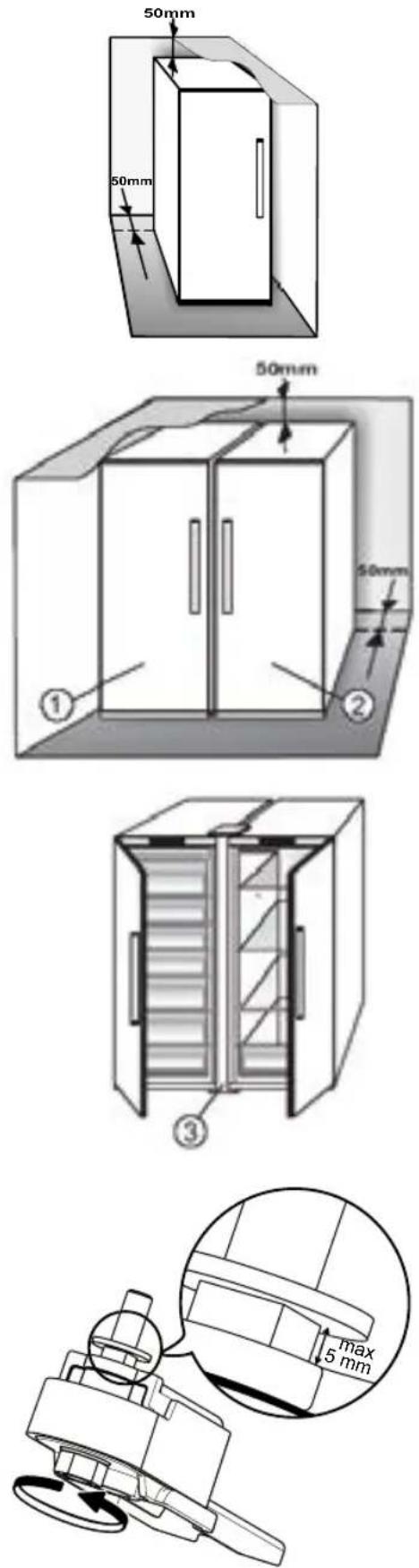

To guarantee adequate ventilation, leave a space on both sides and above the appliance. Thedistancebetweentherearoftheapplianceandthe wallbehindtheapplianceshouldbeatleast50mm. AreductionofthisspacewillincreasetheEnergy consumption of product.

1.2. INSTALLING TWO APPLIANCES

During installing the freezer

together ensure that the freezer is located on the left andthefridgeontheright(asshownonthedrawing). Leftsideofrefrigeratorisequippedwithspecialdevice inordertoavoidcondensationproblemsbetween appliances. Werecommendedinstallingtwoappliancestogether using the linking-kit

2.1. SMART DISPLAY* Thisfunctioncanbeusedtosaveenergy.Pleasefollow the instructions contained in the Quick Start Guide to activate/deactivatethefunction.Twosecondsafter activation of the Smart Display, the display goes off. To adjust the temperature or use other functions, it is necessary to activate the display by pressing any button.Afterabout15secondswithoutperformingany action, the display goes off again. When function is deactivated the normal display is restored. The Smart Displayisautomaticallydisabledafterapowerfailure. Remember that this function does not disconnect the appliancefromthepowersupply,butonlyreducethe energy consumed by external display. Note: The declared appliance energy consumption referstooperationwiththeSmartDisplayfunction activated. This function is available only on the model withUserInterfaceonthedoor.

This function turns On/Stand-by the freezer compartments. To put the product in Stand-by, press & hold the On/Stand-by button for 3 seconds. When the appliance is in Stand-by, the light inside the freezer compartmentdoesnotwork.Rememberthatthis operation does not disconnect the appliance from the powersupply.ToswitchtheapplianceOnagain,simply press the On/Stand-By button

• If the food in the freezer is unfrozen but still cold, all thefoodinthefreezershouldbeeatenwithinthe next24hours.

• If the food in the freezer is frozen, this indicates the foodwasthawedandthenrefrozenwhenelectricity wasre-suppliedwhichdegradestaste,quality and nutritional value and also could be unsafe. It is recommended to not consume the food but to dispose of the entire content of the freezer. The Black Out Alarm is designed to provide guidance on food quality in the freezer in the event of electricity black out. This system does not guarantee food quality or safety and consumers are advised to use theirownjudgmentinevaluatingfoodqualityin freezer compartment. 2.4. TEMPERATURE ALARM The acoustic alarm sounds and temperature indicator (°C)blinks.Thealarmisactivatedwhen:

• Theapplianceisconnectedtothepowersupply after prolonged disuse

• The freezer compartment temperature is too high

• The quantity of fresh foods loaded into the freezer exceeds that indicated on the rating plate

• The freezer door has been left open for a long time. To mute the alarm buzzer press Stop Alarm button just once. The Alarm indicator is automatically turned-off as soon as the freezer compartment reaches atemperaturebelow-10°Candthetemperatureset indicator(°C)stopblinkingandshowsthechosen setting.

2.5. DOOR OPEN ALARM

The Alarm icon lights up blinking and the acoustic alarmsounds.Thealarmisactivatedwhenthedoor is left open for more than 2 minutes. To disengage the door alarm close the door, or press once Stop Alarm button to mute the acoustic alarm. *Availableonselectedmodelsonly.PleasecheckontheQUICKSTARTGUIDEifthisfunctionisactuallyavailableonyourmodel.6 2.6. PARTY MODE* Use this function to chill drinks inside the freezer compartment.30minutesafterselection(the timerequiredtochilla0.75lbottlewithoutthe glassbreaking),thesymbolflashes,anacoustic alarmsounds:removethebottlefromthefreezer compartment and press the Stop Alarm button to disable the alarm. Important: do not leave the bottle inside the freezer compartment longer than the time necessary for chilling. 2.7. SHOCK FREEZE* The “Shock Freeze” compartment is specifically designed to freeze up to 2 kg of fresh food extremely quickly. The ultra-fast “Shock Freeze” function minimizes the formation of ice crystals inside the food as it freezes, thus ensuring it is of the best possible qualitywhendefrostedpriortoconsumption.Whenthe “Shock Freeze” function is not active, the compartment can be used as normal for traditional freezing or for the storage of already frozen foods. Note: When the Shock Freeze function is active you may hear a humming sound. This is absolutely normal andiscausedbyairflowthatpermitsoptimumcold distribution inside compartment. Activating and deactivating the “Shock Freeze” function:

active:“ShockFreeze”and“FastFreeze”functions cannot be active together at the same time. 3.Emptythe“ShockFreeze”compartment. 4.Activatethe“ShockFreeze”functionbybriefly touching the button onthecontrolpanel:the icon lights up and the fans on the bottom of the compartmentcomeon,increasingtheflowofcold air and accelerating the freezing process as a result.

5. Placethefoodtobefrozeninsidethecompartment,

afewcentimeters(min.2cm)awayfromthefanson the back of the compartment, so that cold air can circulate.

6. Toachievemaximumfreezingspeed,we

recommend not to deactivate the “Shock Freeze” function until its automatic deactivation, keeping closed the door.

7. The “Shock Freeze” function is automatically

deactivated4-5hoursafteritsactivation:the indicator switchesoffandthefansare deactivated. The “Shock Freeze” function may neverthelessbeswitchedoffatanytimeasdesired, by briefly pressing the button on the control panel:theindicator switchesoffandthefansare deactivated. Attention:

• Incompatibility with the “Fast Freeze” function To guarantee optimal performance, the “Shock Freeze” and “Fast Freeze” functions cannot be used at the same time. Therefore, if the “Fast Freeze” function has been already engaged, it has to be disengaged first to activatethe“ShockFreeze”function(andvice-versa).

• If the fans in the Shock Freeze compartment do not start working After the “Shock Freeze” function has been activated, it may happen that the indicator lights up as expected, butthefansdonotstartworking.Thisisnormaland means that freezer defrosting is in progress. At the end ofthedefrostingphase(maximumduration:1.5hours), thefanswillautomaticallystartworkingandthe“Shock Freeze”processwillbeginasnormal.

• If the indicator does not light up If, after the button is pressed, the icon lights up:inthiscasethe button has been pressed for too long. To activate the “Shock Freeze” function, first deactivate the Fast Freeze function (holding the button for 3 seconds, then briefly touch the button, withoutkeepingitpressedformorethan1second. 2.8. FAST FREEZE* The amount of fresh food (in kg) that can be frozen in 24 hours is indicated on the appliance rating plate. This function can be used for optimum appliance performance,24hoursbeforeplacingfreshfoodinthe freezerPleasefollowtheinstructionscontainedinthe Quick Start Guide to activate/deactivate the function. Afterplacingfreshfoodinthefreezer,24hoursonFast Freezefunctionisgenerallysufficient;After50hours the Fast Freeze function automatically deactivates. Attention: Inordertosaveenergy,whenfreezingsmallamounts of food, the fast freeze function can be deactivated afterafewhours.

TheEcoNightfunctionenablesapplianceenergy consumption to be concentrated in the reduced rate hours(generallyatnight),whenelectricityisreadily available and costs less than during the daytime (only in countries that utilise a time based multi-rate system - checkenergyrateswiththelocalelectricitycompany). To activate the function, press the button at the reduced rate start time (depending on the specific ratesplan).Forexample,ifthereducedratestartsat 8 p.m., press the button atthattime.WhentheEco Night indicator is ON, the function is ON. Once the function is activated, the appliance automatically adapts energy consumption according to the time selected, i.e. consuming less energy during the day than at night. IMPORTANT: To operate properly, the function must be on during the night and day. The function remains on until deactivated (or it is deactivated in case of a powerfailureorapplianceswitch-off).Todeactivate the function, press the button again. When the EcoNightindicator is OFF, the function is OFF. Note: The declared appliance energy consumption referstooperationwiththeEcoNightfunction deactivated. 2.10. FREEZE CONTROL* Freeze Control is an advanced technology that reducestemperaturefluctuationsinthewholefreezer compartment to minimum, thanks to an innovative air system, totally independent from the fridge. Freeze burns are significantly reduced and food preserves its original quality and color. To activate the Freeze Control choose the function from the menu, set to >ON< and press OK button to confirm the selection. To deactivate this function repeat the same procedure setting to >OFF<. Thefunctionworksproperlyinadefinedrangeof temperature:between-22°Cand-24°C. When the function is engaged and the current temperatureinthefreezerissettothewarmersetpoint than -22°C, the temperature is automatically set to -22°C tomatchtheworkingrange. If the function is engaged and the user modify the freezertemperatureoutoftheworkingrange,the functionisautomaticallyswitchedoff. In case of Fast freezing is engaged, the function “Freeze control” is inhibited until the Fast Freezing function switchedoff.

2.11. AUTOMATIC NO FROST

This product is designed to defrost automatically according to conditions of use and ambient humidity. No Frost freezers provide chilled air circulation around the storage areas and prevent the formation of ice, thereby completely eliminating the need for defrosting. Frozenitemsdon’tsticktothewalls,labelingstayslegible and storage space remains neat and clear.8 2.12. ICE MATE*

=2/3oftheoverallcapacity).

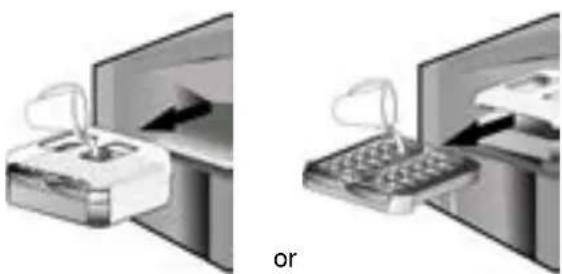

PlaceagaintheIceMateinfreezercompartment,or reinserttheicecubetraywithintheIceMate.Takecare nottospillwater. Wait until the ice cubes are formed (it is recommended towaitforabout4hours). NOTE:IceMateisremovable.Itcanbeplaced inhorizontalpositionanywhereinthefreezer compartmentortakenoutoftheappliancewhenice- making is not required.

HOW TO TAKE ICE CUBES

Makesurethatthestoragebinisinplaceundertheice tray. If not, slide into place. Twistoneofleversfirmlyintheclockwisedirection untilthetraytwistsslightly.Theicecubesfallintothe storage bin. Repeat Step 2 for the other half of the tray, if necessary. To get ice, slightly lift up the storage bin and pull it towardsyou. NOTE: if you prefer, you can remove the entire IceMatefromtheappliance,totaketheicecubes whereverisconvenientforyou(forexample:directlyon thetable).

The light system inside the freezer compartment uses LEDslight,allowingabetterlightningaswellasvery lowenergyconsumption.IftheLEDlightsystemdoes notwork,pleasecontacttheServicetoreplaceit.

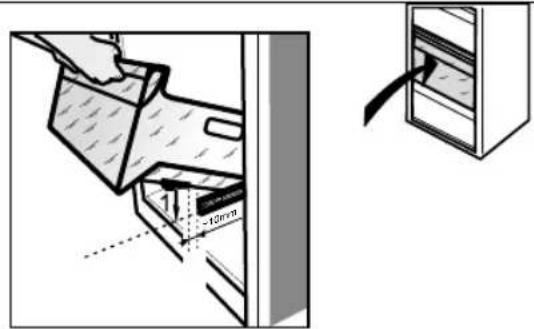

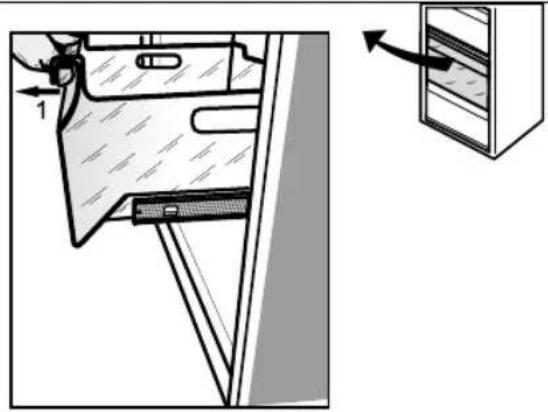

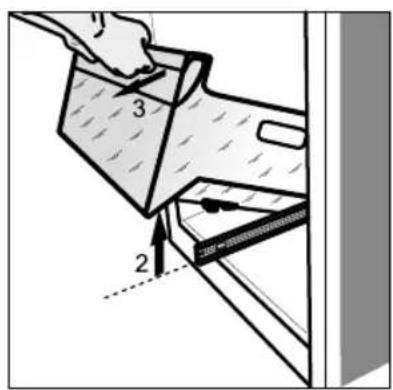

• removingthebaskets/flaps*toallowthestorageof big products.

• placing the food products directly on the freezer shelves.

• removingtheIceMate*.

• removing bottle rack*. 3.2. NOTES

• Donotblocktheairoutletarea(onthebackwall insidetheproduct)withfoodproducts.

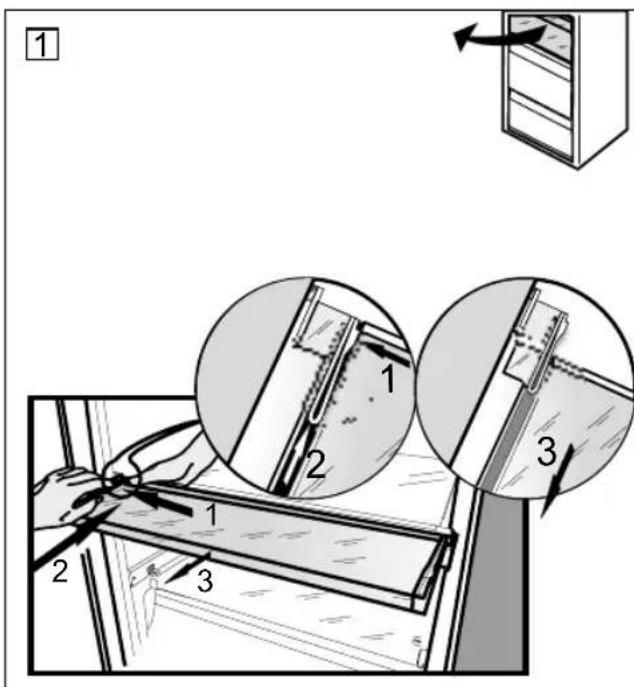

• Ifthefreezerisprovidedwithaflap,itispossibleto maximize the storage volume by removing the flap.

• All shelves, flaps and pull-out baskets are removable.

• The internal temperatures of the appliance may be affected by the ambient temperature, frequency of dooropening,aswellaslocationoftheappliance. Temperature setting should take into consideration these factors.

The freezer is the ideal storage location for store frozen food, make ice cubes and freeze fresh food in the freezer compartment. The maximum number of kilograms of fresh food that canbefrozenwithina24-hourperiodisindicatedon theratingplate(…kg/24h). If you have a little quantity of food to store in the freezer,werecommendtousethecoldestareasof your freezer compartment, corresponding to the upper or the middle area, depending on your model (see theproductsheettoknowwhichistheareawhereis suggestedtofreezefreshfood).

4.1. STORAGE TIME OF FROZEN FOODS

Thetableshowstherecommendedstoragetimefor frozen fresh foods. FOODS STORAGE TIME (months) Meat Beef 8–12 Pork, veal 6 – 9 Lamb 6 – 8 Rabbit 4–6 Mince/offal 2 – 3 Sausages 1–2 Poultry Chicken 5–7 Turkey 6 Giblets 2 – 3 Crustaceans Molluscscreab,lobster 1–2 Creab, lobster 1–2 Shellfish Oyster, shucked 1–2 Fish “fatty”(salmon,herring,mackerel) 2 – 3 “lean”(cod,sole) 3–4 Stews Meat,poultry 2 – 3 Dairy products Butter 6 Cheese 3 Double cream 1–2 Ice-cream 2 – 3 Eggs 8 Soups and sauces Soup 2 – 3 Meatsauce 2 – 3 Pate 1 Ratatouille 8 Pastry and bread Bread 1–2 Cakes(plain) 4 Gateaux(cakes) 2 – 3 Crepes 1–2 Uncooked pastry 2 – 3 Quiche 1–2 Pizza 1–2 *Availableonselectedmodelsonly.PleasecheckontheQUICKSTARTGUIDEifthisfunctionisactuallyavailableonyourmodel.10

FRUITS AND VEGETABLES

FOODS STORAGE TIME (months) Fruits Apples 12 Apricots 8 Blackberries 8–12 Blackcurrants / Redcurrants 8–12 Cherries 10 Peaches 10 Pears 8–12 Plum 10 Raspberries 8–12 Strawberries 10 Rhubarb 10 Fruit juices (orange, lemon, grapefruit) 4–6 Vegetables 8–10 Asparagus 6 – 8 Basil 12 Beans 8–10 Artichokes 8–10 Broccoli 8–10 Brussels sprout 8–10 Cauliflower 10–12 Carrots 6 – 8 Celery 8 Mushrooms(champignons) 6 – 8 Parsley 10–12 Peppers 12 Peas 12 Runner-beans 12 Spinach 8–10 Tomatoes 8–10 Zucchini We recommend to label and date all your frozen food. Addingalabelwillhelpyoutoidentifyfoodsandto knowwhentheyshouldbeusedbeforetheirquality deteriorates.Do not re-freeze defrosted food.

• Food must be fresh, mature and of prime quality in order to obtain high quality frozen food.

• Fresh vegetables and fruit should preferably be frozen as soon as they are picked to maintain the full original nutritional value, consistency, colour and flavor. Some meat, especially game, should be hung before it is frozen. Note:

• Alwaysleavehotfoodtocoolbeforeplacinginthe freezer.

• Eatfullyorpartiallydefrostedfoodsimmediately. Do not refreeze unless the food is cooked after it hasthawed.Oncecooked,thethawedfoodcanbe refrozen.

Ice packs helps in keeping frozen the foodstuffs in case ofpowerfailure.Forthebestusageofthem,place them above food stored in the top of compartment.

• Ensurethatthepackagingisnotdamaged(frozen foodindamagedpackagingmayhavedeteriorated). Ifthepackageisswollenorhasdamppatches,it may not have been stored under optimal conditions and defrosting may have already begun.

• When shopping, buy frozen foods at the end of your trip and transport them in a thermally insulated cool bag.

• Once at home, place the frozen foods immediately in the freezer.

• If food has defrosted even partially, do not re-freeze it.Consumewithin24hours.

• Avoid or reduce temperature variations to the minimum. Respect the best-before date on the package.

Sounds coming from your appliances are normal since it has a number of fans and engines to regulate performances that switch on and off automatically. Some of the functional sounds can be reduced through

• Leveling the appliance and installing it on an even surface

• Separatingandavoidingcontactbetweenthe appliance and furniture.

• Checking if the internal components are correctly placed.

• Checking if bottles and containers are not in contact witheachother. Some of the functional sounds you might hear: Ahissingsoundwhenswitching on the appliance for the first time or after a long pause. Agurglingsoundwhenrefrigerant fluid enters into the pipes. BRRR sound is from the compressor running. Buzzingsoundwhenwater valveorfanstartworking. Acrackingsoundwhen compressorstartsorwhenready ice drops into ice box abrupt clicks whencompressorswitchesonand off. The CLICK is from the thermostat whichadjustshowoftenthe compressor is running.12

6. RECOMMENDATION IN CASE OF NO USE OF THE

APPLIANCE 6.1. ABSENCE / VACATION In case longer absence its recommended to use up food and to disconnect the appliance to save energy. 6.2. MOVING

1. Takeoutallinternalparts.

2. Wrapthemwell,andfixthemtogetherwith

adhesive tape so that they do not bang together or get lost.

3. Screwtheadjustablefeetsothattheydonottouch

the support surface.

4. Closeandfixdoorwithadhesivetapeand,again

usingadhesivetape,fixthepowercabletothe appliance. 6.3. POWER FAILURE Intheeventofapowerfailure,callthelocalofficeof yourelectricitysupplycompanyandaskhowlongitis going to last. Note:Bearinmindthatafullappliancewillstaycold longer than a partially filled one. If ice crystals are still visible on the food, it may be frozen again, although flavour and aroma may be affected. If food is found to be in a poor condition, it is best to throwitaway. For power failures lasting up to 24 hours.

1. Keepthedooroftheapplianceclosed.Thiswill

allowthestoredfoodtostaycoldaslongas possible. For power failures lasting more than 24 hours.

Before any cleaning or maintenance operation, unplug the appliance from the mains or disconnect the electricalpowersupply. Periodicallycleantheappliancewithaclothanda solutionoflukewarmwaterandneutraldetergent specifically for refrigerator interiors. Never use abrasives.Nevercleanrefrigeratorpartswith flammable fluids. The fumes can create a fire hazard or explosion. Clean the outside of the appliance and the doorsealwithadampclothanddrywithasoftcloth. Do not use steam cleaners. Condenser placed in the rear of the appliance should be cleaned regularly using a vacuum cleaner. Important:

• The buttons and control panel display must not be cleanedwithalcoholoralcohol-derivedsubstances, butwithadrycloth.

• The refrigeration system pipes are located near the defrost pan and can become hot. Periodically clean themwithavacuumcleaner.

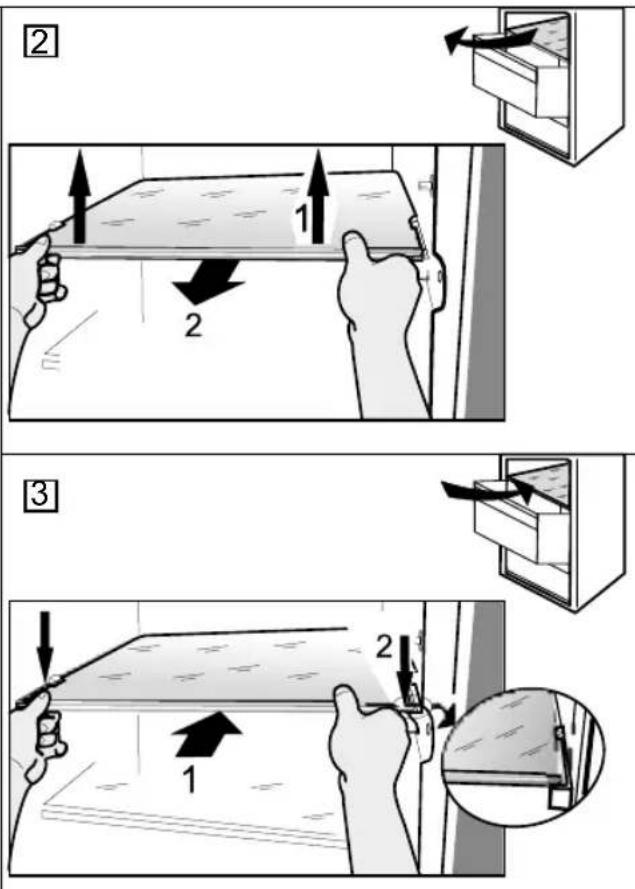

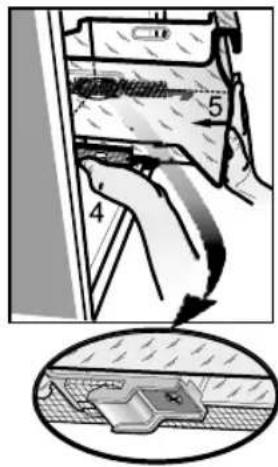

• To remove or insert the glass shelf, move up the front part of the shelf to pass the stopper.13

• Have you checked the protection devices and fuses of the electrical system in your home? If there is water in the defrost pan: • Thisisnormalinhot,dampweather.Thepancanevenbehalf full.Makesuretheapplianceislevelsothatthewaterdoesnot overflow. If the edges of the appliance cabinet, which come in contact with the door seal, are warm to the touch:

• Thisisnormalinhotweatherandwhenthecompressoris running. If the light does not work: • Have you checked the protection devices and fuses of the electrical system in your home?

• Isthepowercablepluggedintoalivesocketwiththeproper voltage?

• IncasetheLEDsarebrokentheusermustcalltheServicefor exchange of the same type available only at our After-sales Service Centers or authorized dealers. If the motor seems to run too much: • Motorrunningtimedependsondifferentthings:numberofdoor openings, amount of food stored, temperature of the room, setting of the temperature controls.

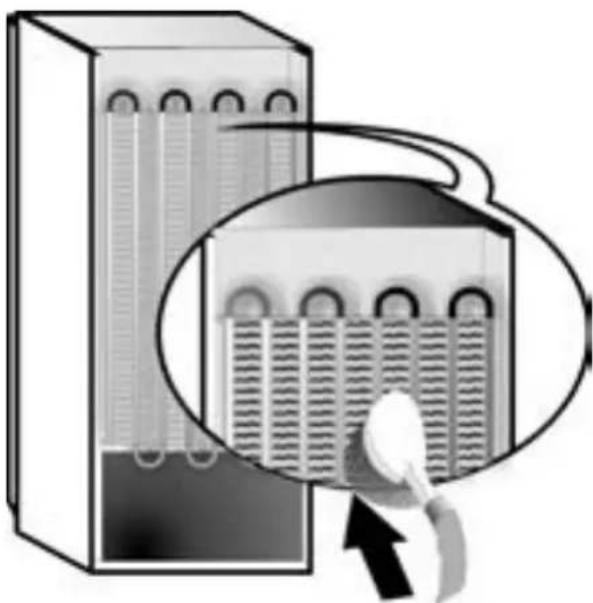

• Isthecondenser(backtheappliance)freeofdustandfluff?

• Are the door properly closed?

• Are the door seals properly fitted?

• Onhotdaysoriftheroomiswarm,themotornaturallyruns longer.

• Iftheappliancedoorhasbeenleftopenforawhileoriflarge amountsoffoodhavebeenstored,themotorwillrunlongerin ordertocooldowntheinterioroftheappliance. If the appliance temperature is too high:

• Are the appliance controls correctly set?

• Has a large amount of food been added to the appliance?

• Check that the door is not opened too often.

• Check that the door close properly. If the doors do not open and close properly:

• Check that food packages are not blocking the door.

• Check that the internal parts or automatic ice maker are not out of position.

• Check that the door seals are not dirty or sticky.

• the nature of the problem,

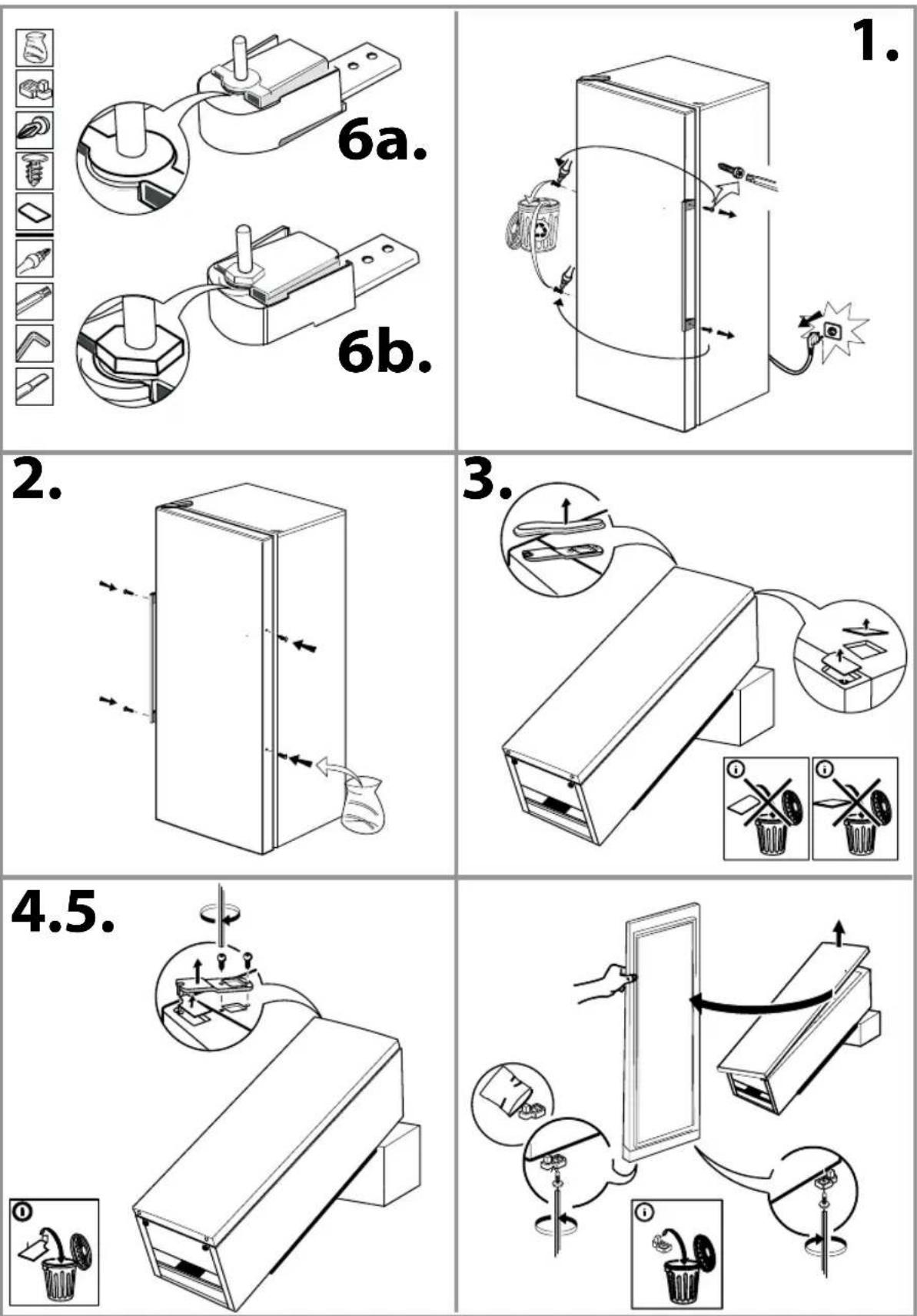

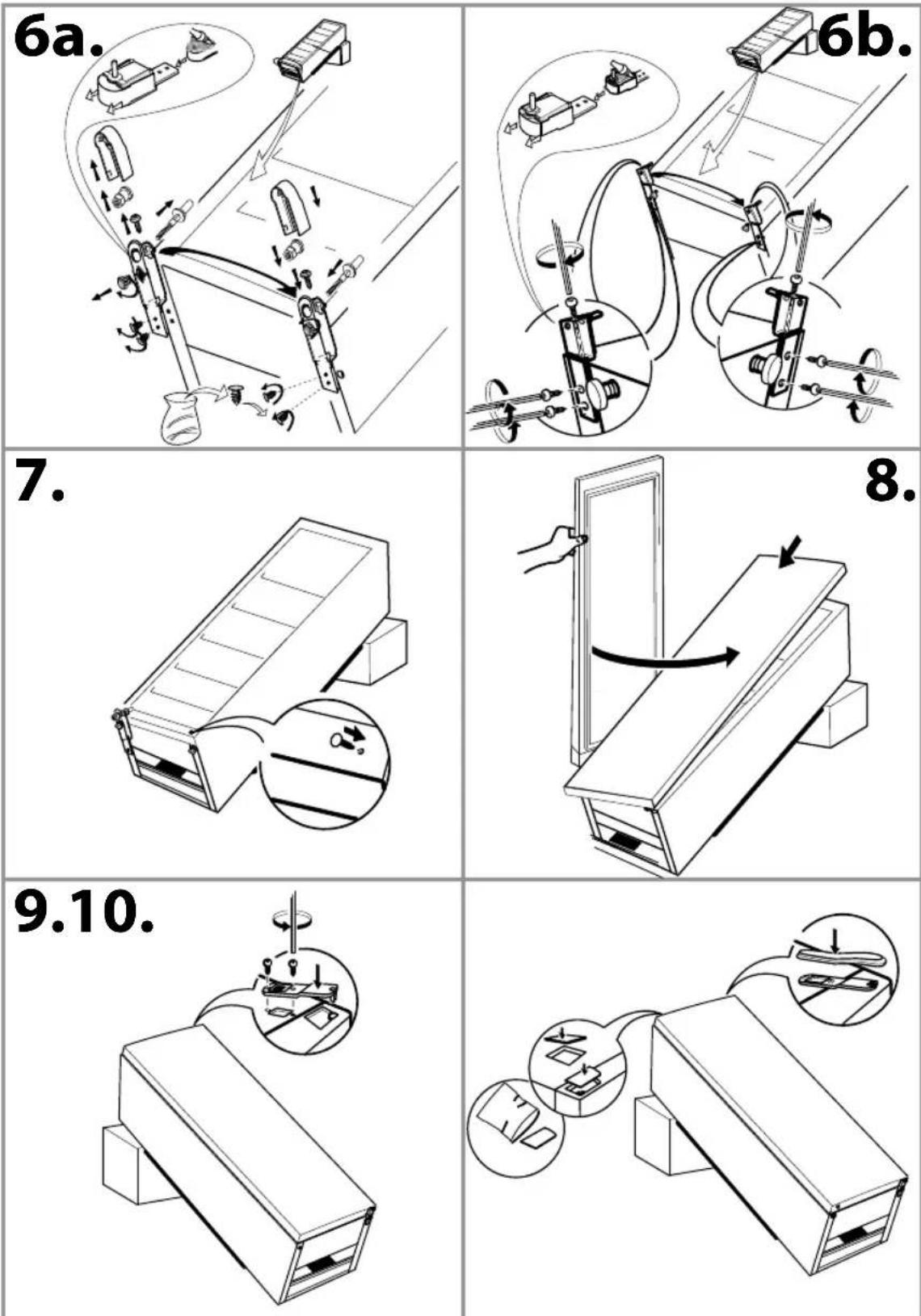

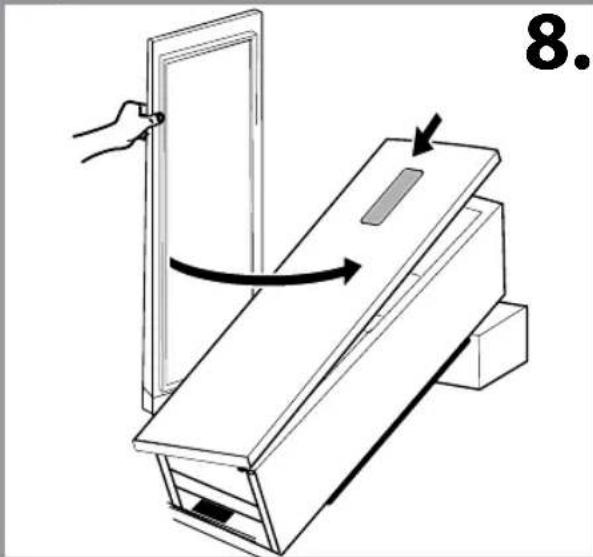

• your telephone number and area code. Note: The direction of door opening can be changed. If this operation is performed by After-sales Service it is not coveredbythewarranty.15
