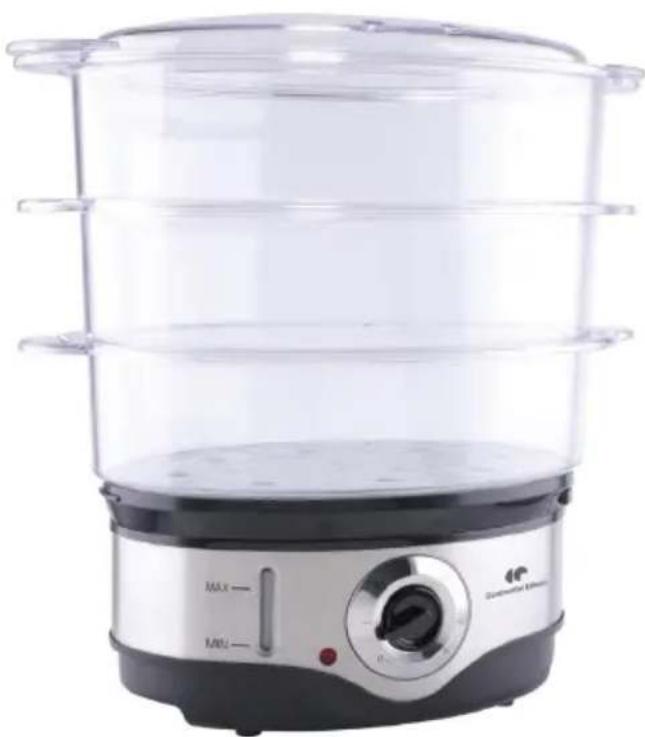

Modern kitchen steamer with clear glass lid and control panel (no visible text or symbols)

Thank you for choosing this steam cooker.

1. Please read these instructions carefully to get the best results from your appliance.
2. Before connecting the appliance, please check if the voltage indicated on the bottom of the appliance in accordance with the main voltage in your home.
3. Please locate the appliance accessible to the power socket.
4. Warning: This appliance must be earthed.
5. Keep the appliance away from Children.
6. The socket used should be in accordance with the plug of the appliance.
7. This appliance is for family use.
8. Make sure that the switch is on the position of "off" before plugging.
9. Do not open the lid when cooking.
10. The hull is hot when cooking. Never touch it before it's cooled down.
11. To reduce the risk of electric shock, cook only in removable container.
12. Before first use, please check carefully if all the parts of the appliance are in good condition. If not, please contact the supplier or manufacturer.
13. If the power cable is damaged, it must be replaced by the replaced by the manufacturer, its after-sales service or an equally qualified person in order to avoid danger
14. Never use this appliance if it is not in good condition.
15. This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance

shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

1. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. – WARNING: Do not remove the lid while the water is boiling.
4. – CAUTION: Position the lid so that steam is directed away from the handle.
5. The appliance must not be immersed.
6. Warning! In case of misuse, you will expose yourself to risk of injury.

7. The heating element surface is subject to residual heat after use. Cleaning:

8. Remove the plug from the wall socket before cleaning.

9. Allow the cooker to cool down.
10. To clean the upper lid or the steam bowl, use hot soapy water and soft cloth. Do not use abrasive products. Not dishwasher-safe.
11. To clean the base, remove any liquid still in the reservoir by tipping up the base over a sink. Clean the inside with a damp cloth and allow to dry. This process can be repeated for the outside of the base.
12. Clean the appliance with a damp cloth and never put it into water and flush it with water.

The appliance must not be immersed.

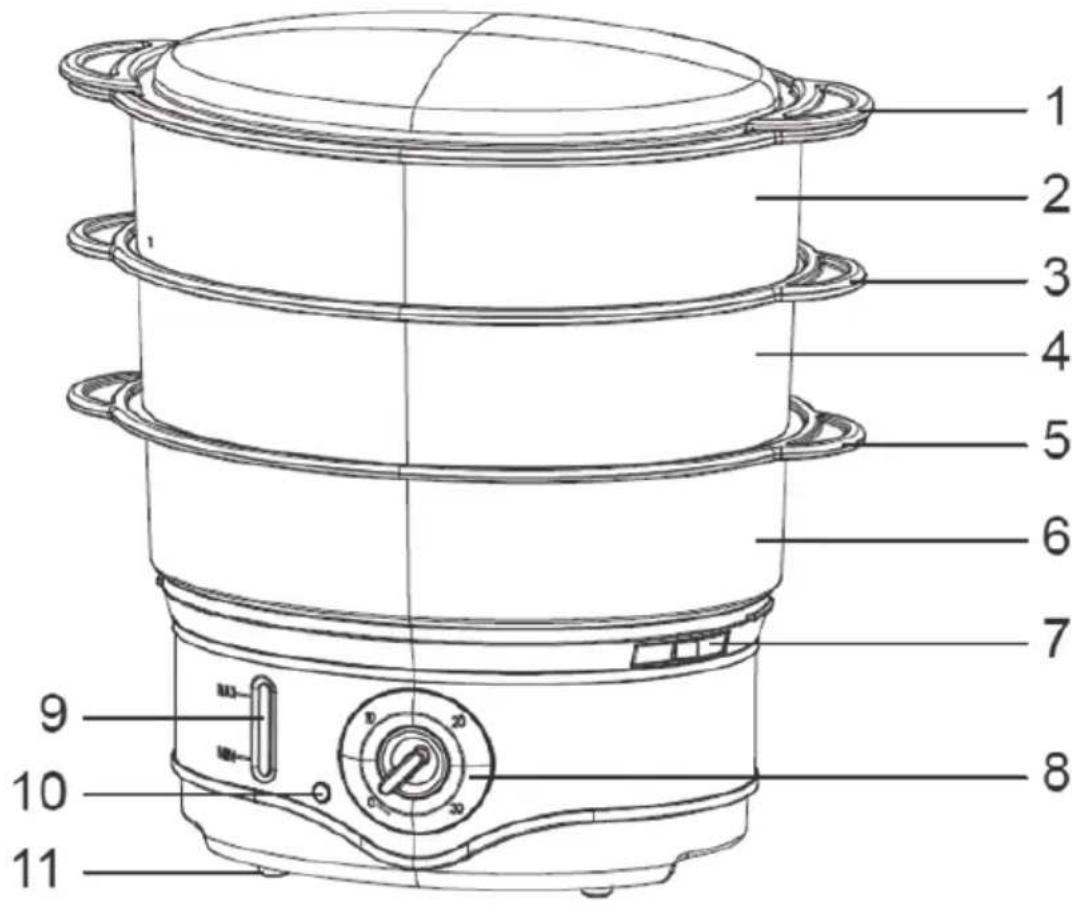

Description of the appliance

1 2 3 4 5 6 7 8 9 10 11

1. Lid
2. Steamer 3
3. Steamer bottom
4. Steamer 2
5. Steamer bottom

6. Steamer 1

7. Drawer

8. Timer
9. Water level window
10. Indicator light
11. Foot pad

First use

Before the first use, please check if all the parts of the appliance are in good condition. If not, please contact the supplier or manufacturer.

Instructions

1. Setting the cooking time according to the food by turning the timer. The red power light lights up for the duration chosen.

For information, we suggest the following cooking times:

1) Rice, set the time to 20-30 minutes
2) Chicken, set the time to 15-25minutes
3) Fish, set the time to 10-20 minutes
4) Egg, set the time to 8-12 minutes
5) Vegetable, set the time to 10-30 minutes

To turn the device off manually, turn the knob to "0".

1. When the cooking time is set, it will enter the countdown heating state. When it is heated, the indicator will be on. When the time is up, the heating will stop and the circuit will be closed.

(Note: It needs take 15 minutes to cool down after work is finished to clean the drip tray, hot caution)

1. The water level window shows the water level in the water tank at that time, Max represents the highest water level, Min represents the lowest water level, The added water should not exceed the maximum water level (MAX), nor should it be lower than the minimum water level (MIN), otherwise dangerous or damaged products may occur easily.

Cooking

1. Pour the required quantity of cold tap water into the reservoir (consult the cooking guide). Do not exceed the maximum level (refer to the markings on the inside of the reservoir). Do not put anything in the reservoir. Do not use wine, meat of vegetable stock or any other liquid.
2. Place the food in the steam bowl. Do not add herbs or spices before the end of cooking.
3. Place the lid on the steam bowl. Ensure that the handles of the lid are perfectly in line with the handles of the steam bowl. Do not overfill the steam bowl, thereby blocking the holes in the lid (the steam must be able to circulate and escape freely.)
4. Put the steam bowl on the base.
5. Plug the steam cooker in. The indicator lamp lights up.
6. In most cases, the water poured into the reservoir will be sufficient to cook the food.
7. If necessary due to personal taste or if some foods require a longer cooking time, water may be added to the reservoir and the vaporization process continued by following the instructions.
8. Once cooking is complete, unplug the cooker. Remove the steam bowl carefully. Gently lift off the lid to avoid burning yourself (steam can cause burns).
9. To serve, turn the lid over and slide under the steam bowl.

Caution:

1. The plug must be removed before cleaning the cooker and it must be dried before the cooker is used again.
2. Do not use the cooker if the lead is damaged.
3. If the power cable on the cooker is damaged, it may only be replaced by a repair center recognized by the manufacturer, since special tools are required.
4. The cooker must not be immersed in eater for cleaning purposes.
5. Do not use the cooker for purposes other than that for which it is intended.
6. Do not use the cooker without water. The heating element surface is subjected to residual heat after use.

Specification:

Item reference:

CECV1200IN

Model:

12818B0

230 V, 50 Hz, 1200 W, Class I

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU.

To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
