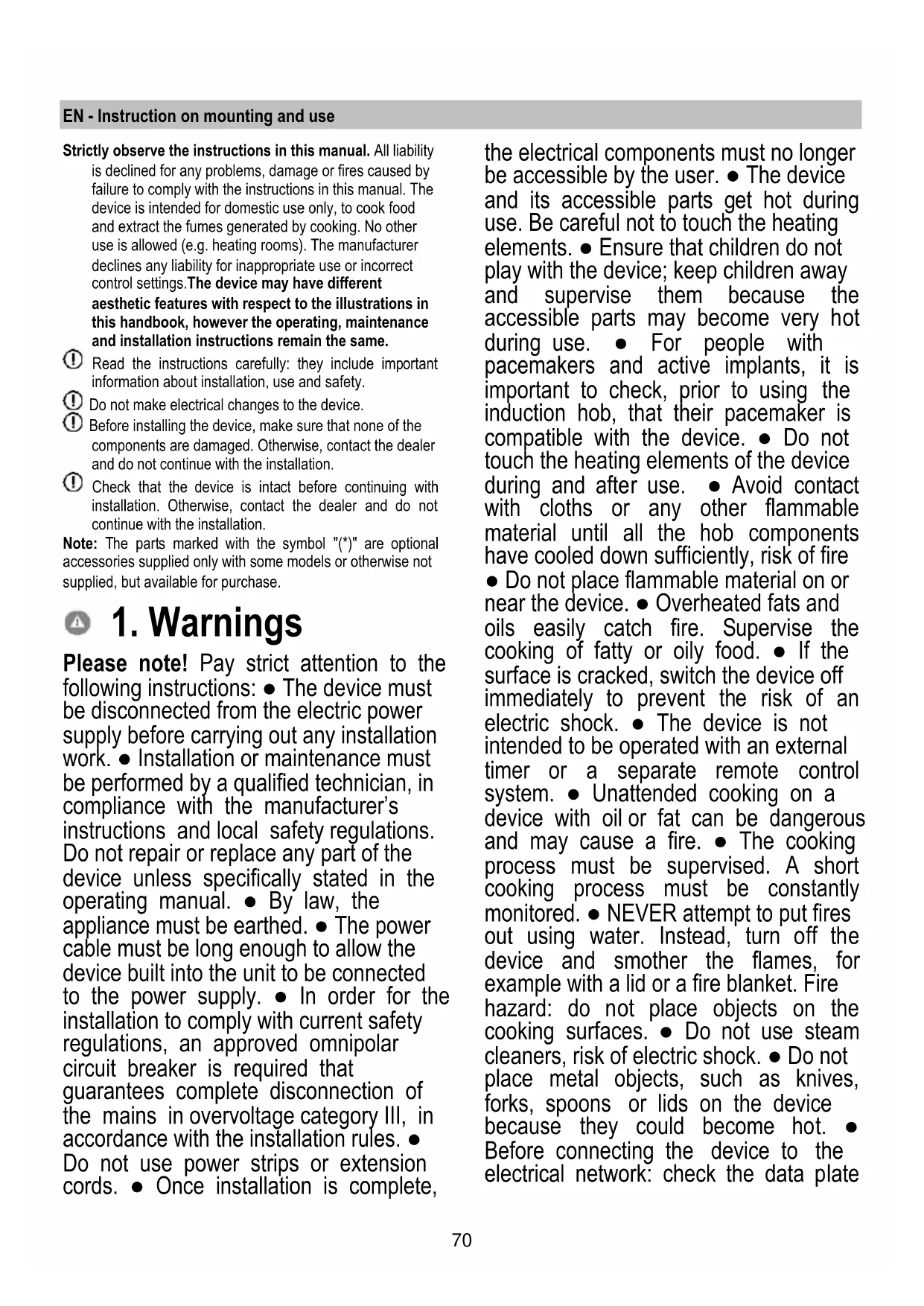

Please note! Pay strict attention to the following instructions: ● The device must be disconnected from the electric power supply before carrying out any installation work. ● Installation or maintenance must be performed by a qualified technician, in compliance with the manufacturer’s instructions and local safety regulations. Do not repair or replace any part of the device unless specifically stated in the operating manual. ● By law, the appliance must be earthed. ● The power cable must be long enough to allow the device built into the unit to be connected to the power supply. ● In order for the installation to comply with current safety regulations, an approved omnipolar circuit breaker is required that guarantees complete disconnection of the mains in overvoltage category III, in accordance with the installation rules. ● Do not use power strips or extension cords. ● Once installation is complete, the electrical components must no longer be accessible by the user. ● The device and its accessible parts get hot during use. Be careful not to touch the heating elements. ● Ensure that children do not play with the device; keep children away and supervise them because the accessible parts may become very hot during use. ● For people with pacemakers and active implants, it is important to check, prior to using the induction hob, that their pacemaker is compatible with the device. ● Do not touch the heating elements of the device during and after use. ● Avoid contact with cloths or any other flammable material until all the hob components have cooled down sufficiently, risk of fire ● Do not place flammable material on or near the device. ● Overheated fats and oils easily catch fire. Supervise the cooking of fatty or oily food. ● If the surface is cracked, switch the device off immediately to prevent the risk of an electric shock. ● The device is not intended to be operated with an external timer or a separate remote control system. ● Unattended cooking on a device with oil or fat can be dangerous and may cause a fire. ● The cooking process must be supervised. A short cooking process must be constantly monitored. ● NEVER attempt to put fires out using water. Instead, turn off the device and smother the flames, for example with a lid or a fire blanket. Fire hazard: do not place objects on the cooking surfaces. ● Do not use steam cleaners, risk of electric shock. ● Do not place metal objects, such as knives, forks, spoons or lids on the device because they could become hot. ● Before connecting the device to the electrical network: check the data plate71 (on the bottom of the device) to ensure that the voltage and power correspond to the mains supply and that the power socket is suitable. If in doubt, consult a qualified electrician. Important: ● After use, turn off the hob at the switch and do not rely on the pan detector. ● Prevent liquids from boiling over, so turn the heat down when boiling or heating liquids. ● Do not leave the heating elements turned on with empty pots and pans or with no pans. ● Switch off the relevant hot plate when you have finished cooking. ● Never use aluminium foil for cooking and never place products packaged in aluminium on the hob. The aluminium would melt and irreparably damage your device. ● Never heat a tin or can containing foods without opening it first: it might explode! ● This warning also applies to all other types of hobs. ● High power levels such as the Booster function should not be used to heat certain liquids, such as oil for frying. Excessive heat may be dangerous. In these cases, we recommend the use of a lower power level. ● Containers must be placed directly on the hob and in the centre. Under no circumstances may any other objects be placed between the pan and the hob. ● If the temperature becomes high, the device automatically decreases the power level of the cooking zones. ● Before doing any cleaning or maintenance work, disconnect the device from the mains power supply by removing the plug or turning off the mains switch. Wear protective gloves for all installation and maintenance operations. The device can be used by children over the age of eight and by people with impaired physical, sensory or mental abilities or lacking in experience or the necessary knowledge provided that they are supervised or after they have received instruction about how to safely use the device and understand the inherent dangers. Children must be supervised to ensure they do not play with the device. Cleaning and maintenance must never be performed by children unless they are properly supervised. The room must be properly ventilated when the device is used at the same time as other gas-powered devices, or powered by other fuel. The device must be regularly cleaned both internally and externally (AT LEAST ONCE A MONTH), in strict accordance with the maintenance instructions. Failure to follow the rules for device cleaning and filter replacement and cleaning may result in a fire hazard. Food must never be cooked flambè. Using a naked flame may damage the filters and cause a fire hazard; it must, therefore, be avoided under all circumstances. Extra care must be taken when frying to prevent the oil from overheating and catching fire. ● PLEASE NOTE: The accessible parts of the device may become hot when the hob is switched on. ● Please note! Do not connect the device to the electric power supply until installation has been fully completed. The regulations laid down by local authorities must be strictly followed with regard to the technical and safety measures to adopt for fume extraction. ● The extracted air must not be conveyed through the same ducts used to extract the fumes generated by gas combustion or other types of combustion devices. Never use the device without the grille properly installed! Only use the fastening screws supplied with the device for installation, or if not supplied, purchase the correct type of screws. Use screws of the right length, as indicated in the installation guide. ● When the device is used together with other devices powered with non-electrical energy, the negative72 pressure of the room must not exceed 4 Pa (4 x 10

bar). This manual must be stored for future consultation at any time. If sold, transferred or moved, it must remain with the device. This device is marked in compliance with the European Directive 2012/19/EC, Waste Electrical and Electronic Equipment (WEEE). By ensuring that this device is disposed of correctly, the user will help prevent potential negative impacts on the environment and human health. The symbol on the device or documentation provided indicates that this device must not be treated as domestic waste, but must be taken to a suitable waste collection site for the recycling of electrical and electronic appliances. Dispose of it in accordance with local regulations for waste disposal. For further information about the treatment, recovery and recycling of this device, please contact your local authority, the collection service for household waste or the shop from where the device was purchased. Device designed, tested and developed in compliance with regulations on:

• EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-3; EN/IEC 61000-3-12. Recommendations for correct use in order to reduce the impact on the environment: When you start cooking, turn the device on at minimum speed, leaving it on for a few minutes when you have finished cooking. Increase the speed only if there is a large quantity of fumes and steam, using the Booster function only in extreme cases. To keep the odour reduction system running efficiently, replace the carbon filter/s when necessary. To ensure the high performance of the grease filter, clean it when necessary. To improve efficiency and minimise noise, use the maximum duct diameter indicated in this manual.73

Using the hob The induction cooking system is based on the physical phenomenon of magnetic induction. The main characteristic of this system is the direct transfer of energy from the generator to the pot. Advantages: When compared to electric hobs, your induction hob is: - Safer: lower temperature on the glass surface. - Faster: shorter food heating times. - More accurate: the hob immediately reacts to your commands - More efficient: 90% of the absorbed energy is transformed into heat. Moreover, once the pot is removed from the hob, heat transmission is immediately interrupted, avoiding unnecessary heat losses.

2.1 Cooking containers

Use only pots bearing the symbol Important: to avoid permanent damage to the hob surface, do not use: - containers with less than perfectly flat bottoms. - metal containers with enamelled bottoms. - containers with a rough base, to avoid scratching the hob surface. - never place hot pots and pans on the surface of the hob's control panel

2.1.1 Pre-existing containers

Induction cooking uses magnetism to generate heat. Containers must therefore contain iron. Check if the pot material is magnetic using a magnet. Pots are not suitable if they are not magnetically detectable.

2.1.2 Recommended pan bottom diameters

IMPORTANT: if the pots are not correctly sized, the cooking zones will not turn on For details of the minimum pot diameter that needs to be used on each zone, see the illustrated part of this manual.

Recommendations for best results: - Use pots and pans with a bottom diameter equal to that of the cooking zone. - Use only pots and pans with flat bottoms. - Where possible, keep the lid on pots during cooking - Cook vegetables, potatoes, etc. with a minimal amount of water to reduce cooking time. - Use a pressure cooker, as it further reduces the energy consumption and cooking time - Place the pot in the centre of the cooking zone outlined on the hob. Using the extractor fan The extraction system can be used in two versions: external extraction and evacuation or as a filter with internal recirculation. Extraction version Fig.7 The fumes are evacuated towards the outside through a series of pipes (bought separately) fastened to the supplied connecting flange. The diameter of the exhaust pipe must be equivalent to the diameter of the connecting ring: - for rectangular outlets 222 x 89 mm - for circular outlets Ø 150 mm (*) For more information, see the page relative to the extraction version in the illustrated part of this manual. Fig.7c Connect the product to wall-mounted exhaust pipes and holes with a diameter equivalent to the air outlet (connecting flange). Using wall-mounted exhaust pipes and holes with a smaller diameter may reduce the efficiency of extraction and drastically increase noise levels. All responsibility in this regard is therefore denied. Keep duct as short as possible. Use ducting with the least possible number of curves (maximum angle: 90°). Avoid drastic changes in the ducting diameter. Filtration version Fig. 8 The extracted air will be filtered in special grease filters and odour filters before being sent back into the room. The product is supplied with all parts necessary for standard installation, with the air outlet positioned in the front part of the cabinet plinth. For more information, see the page relative to the filtration version (in the illustrated part of this manual). Fig. 13b Visit the websites www.elica.com and www.shop.elica.com to check the complete range of available kits for different types of filtration and extraction installations.74

● Both electric and mechanical installation must be carried out by specialised personnel. The electrical appliance is designed to be built into a work top with a thickness of 2- 6 cm in the case of TOP installation; 2.5- 6 cm in the case of FLUSH installation. The minimum distance between the hob and the wall must be at least 5 cm in front, at least 4 cm on the sides and at least 50 cm from overhead wall units. NB = The recommended distances are given as examples: when planning the spaces, the indications of the kitchen manufacturer must be observed.

3.1 Electrical connection

Fig. 3 ● Disconnect the device from the electric power supply. ● Installation must be carried out by professionally qualified personnel with knowledge of the regulations in force for installation and safety. ● The manufacturer denies all liability to persons, animals or property if the guidelines provided in this chapter are not followed. ● The power cable must be long enough to allow the hob to be removed from the worktop. ● Make sure that the voltage on the serial number data plate on the bottom of the device corresponds to that of the domestic environment where it will be installed. ● Do not use extension leads. ● The earth power cable must be 2cm longer than the other cables. ● If the electrical appliance is not supplied with a power cable, use one with a minimum conductor diameter of 2.5 mm2 for power up to 7200 Watt; for higher power levels, the diameter must be 4 mm2. ● The temperature must not reach 50°C above room temperature anywhere along the cable. ● The appliance is intended for permanent connection to the power supply. ● Please note! Before reconnecting the circuit to the mains power supply, make sure that it is working correctly, always check that the power cable is correctly installed. ● Please note! The interconnection cable must be replaced by the authorised technical support service or by a person with similar qualifications. Note : the product is equipped with a Power Limitator function, which allows a maximum power limit to be set The limit must be set at the time of the product's connection to the electrical network or when the electrical network itself is reconnected (within the following 2 minutes). For the Power Limitation setting sequence, see the Operation section of this manual.75

Before starting the installation:

• After unpacking the product, check that it has not been damaged during transport and in the event of problem, please contact the reseller or the Customer support service before installing it.

• Check that the product is the right size for the installation area.

• Check for accessories (e.g. bags containing screws, warranty certificates, etc.) inside the packaging (placed there for transport reasons). Remove and keep them safe, if present.

• Also check that there is a power socket near the installation area. Preparing the cabinet for installation: - The product cannot be installed above cooling appliances, dishwashers, heaters, ovens, washing machines and dryers. - Create the cut-outs in the cabinet before inserting the hob and carefully remove any shavings or sawdust. IMPORTANT: use a single-component adhesive sealant (S), which withstands temperatures up to 250°; before installation, thoroughly clean the surfaces to stick and eliminate any substance that may compromise adhesion, (e.g. release agents, preservatives, fats, oil, dust, traces of old adhesives, etc.); the adhesive should be uniformly spread all around the outside of the frame; after sticking, leave the adhesive to dry for about 24 hours. Fig. 1b Caution! Failure to install screws and fasteners in accordance with these instructions may result in electrical hazards. Note: to ensure the correct installation of the product, it is recommended to tape the pipes using an adhesive with the following characteristics: - soft elastic PVC film, with an acrylic-based adhesive - compliant with DIN EN 60454 regulations - flame retardant - excellent resistance to wear - resistant to temperature fluctuations - can be used at low temperatures76

3. Cooking zone selection

Increase/Decrease Power Level

Increase/Decrease extraction speed (power)

7. Activation of automatic functions

Reset filter saturation

Increase/Decrease Timer value

Before you begin, it is important to know: All functions of this hob are designed in order to comply with the most stringent safety regulations. For this reason:

• Some functions will not be activated, or will be automatically deactivated, in the absence of pots on the burners or when they are poorly positioned.

• In other cases the activated functions will be automatically deactivated after a few seconds when the specific function requires a further setting that has not been selected (e.g.: “Turn the hob on” without “Selecting the cooking zone” and the “Operating temperature”, or the “Lock Function” or the “Timer” function). Warning! In the case (for example) of prolonged use, the cooking zone may not immediately shut down because it is in the cooling phase; the "" symbol will appear on the cooking zone display “ ” to indicate the execution of this phase. Wait for the display to turn off before approaching the cooking zone. Cooking zone display the cooking area display indicates:

Residual Heat Indicator

Temperature Manager Function active

Child Lock Function active

Hob characteristics Safe Activation The product is activated only in the presence of pots on the cooking zone: the heating process does not start or is interrupted if there are no pots, or if these are removed. Pot Detector The product automatically detects the presence of pots on the cooking zones. Safety Shut Down For safety reasons, each cooking zone has a maximum operating time, which depends on the maximum power level set. Residual Heat Indicator When one or more cooking zones shut down, the presence of residual heat is indicated by a visual signal on the corresponding zone display, by way of the "" symbol. “ ” .

Operation Note: Before activating any functions, the desired zone must be activated Power-on Press (touch) ON/OFF hob/ extractor The indicator light will turn on to indicate that the hob/extractor is ready for use Press again to turn off Note: This function has priority over the others.

Selecting the cooking zone Touch (press the Selection bar (3) corresponding to the desired cooking zone. 9 Power Levels The hob features 9 power levels Touch and scroll along the Selection bar (3): to the right to increase the level of power; to the left to decrease the level of power.

Power Booster The product features a supplementary power level (after level ), which remains active for 10 minutes, after which the temperature returns to the previously set value. Touch and scroll along the Selection bar (3) (after level ) and activate the Power Booster The Power Booster level is shown on the display of the selected zone with the symbol" ”78 Bridge Zones Thanks to the Bridge function, the cooking zones are able to work in a combined manner, creating a single zone with the same power level. This function allows evenly distributed cooking with large-sized pots and pans. The front “Master” cooking zone can be used in combination with the corresponding “Secondary” cooking zone at the back (to check which zones are equipped with this function, see the illustrated part of this manual). To activate the Bridge Function: - simultaneously select the two cooking zones you want to use - the Bridge indicator (20) of the “Secondary” cooking zone lights up “ ” - by means of the Selection bar (3) of the “Master" cooking zone it will be possible to set the operating level (Power) - to deactivate the Bridge Function simply repeat the same activation procedure

Temperature Manager Temperature Manager is a function that allows to set the most suitable pre-set temperature to achieve the desired result (see the Temperature Manager table at the end of this chapter). Select the desired cooking zone.

• Press once or multiple times (4) to choose the most suitable level among the ones available:

• See the Temperature Manager at the end of this chapter.

• Press again to turn it off. The following symbol appears on the display of the zone working in Temperature Manager mode “ ” Key Lock The Key Lock allows to block the settings of the hob to prevent accidental tampering, leaving the functions that have already been set active. Activation:

• The LED over the button will turn on, to indicate that it has been activated Repeat the operation to deactivate.

Child Lock The Child Lock makes it possible to prevent children from accidentally accessing the cooking zone and extraction zone, preventing the activation of any functions. The Child Lock can only be activated when the product is on, but with the cooking zones (and extraction zone) off. Activation:

• simultaneously press and hold (9) and (10), an acoustic signal indicates that the function is active,and a " " appears on display (13) and (14). Repeat the operation to deactivate. Timer The Timer function is a countdown, which can be set for each cooking zone (and extraction zone), even simultaneously. At the end of the set period, the cooking zones (or extraction zone) will automatically shut down and the user will be informed by way of an acoustic signal. Activation/Regulation of hob Timer function

• Select the cooking zone (power ¹ 0).

• Press (8) to access the Timer function

• Regulate the duration of the Timer: press the selector , to increase the automatic shut- down time press the selector , to decrease the automatic shut- down time

If desired, repeat the operation for the other cooking zones. Note: Each cooking zone can have a different Timer set; on the display, (15), the countdown of the last selected hob will be shown for 10 seconds, after which the countdown with the least remaining time will be shown. When the timer has finished the countdown, there is an acoustic signal (for 2 minutes, or it will stop when one of the buttons on the hob is pressed), while the display (15) will flash, with the symbol “ . ".79 Note: on the side of the display of the cooking zone, the following symbol will appear (19)

• select the cooking zone

• set the value of the timer to " " , by means of Not: the function remains active if no other key is pressed in the meantime. Egg Timer The Egg Timer function is a countdown independent of the cooking zones (and the extraction zone). The Egg Timer is activated by pressing (8) . Note : to regulate the Egg Timer function, follow the same procedure as for the Timer function. When the timer has finished the countdown, there is an acoustic signal (for 2 minutes, or it will stop when one of the buttons on the hob is pressed), while the display (15) will flash, with the symbol “ . ".

• a " " is displayed (13). To deactivate the function: Note :this operation restores the hob settings to those prior to the pause.

• within 10 seconds scroll to the right along the Selection bar (3), relating to the cooking zone 2 (FIG.19); Note : if the operation is not performed within this time the pause function will remain active. Note: if after 10 minutes, the Pause Function is not deactivated, the hob will turn off automatically. Recall The Recall function allows to recover all the hob settings, in case of accidental shut-down. Activation:

• turn the hob back on within 6 seconds after shut-down

• press " " within the next 6 seconds

Automatic Heat UP The Automatic Heat UP function allows to reach the set power faster; with this function it is possible to cook food faster, but without the risk of burning it, because the temperature does not exceed the set level. This function is available for the levels of power 1 -8 . Activation:

• press and hold, on the Selection bar (3), the desired power

• a " " is displayed (13).

Power Limitation The Power Limitation function allows the product to be used while limiting its maximum absorption. Note : the limit must be set when the hob is off, without pressing , within 2 minutes from when the hob is connected to the electrical network, or from when the electrical network itself is reconnected. To set the Power Limitation: - press and hold keys , until an acoustic signal sounds - slide along sliders FL and RL at the same time, from left to right, and press down at the letters P, until a short acoustic signal sounds - the Timer display (15) shows the symbols “CF6”, to indicate that it can be set - the FL zone display shows the current setting** 0 = 7.4 KW 1 = 4.5 KW ** by default, the limit is set to 7.4 KW - to change the Power Limitation setting slide on the FL slider - from left to right to increase the Kw - from right to left to decrease the Kw - to save the selection, press the keys , for 1 second; an acoustic signal will sound to confirm the setting and the function will close.80

USING THE EXTRACTOR FAN

Power-on Press (touch) ON/OFF hob/ extractor The indicator light will turn on to indicate that the hob/extractor is ready for use Press again to turn off Note: This function has priority over the others.

Switching on the extractor fan: Touch (press) the Selection bar (6) to activate the extractor fan Extraction speed (power): Touch and scroll along the Selection bar (6): to the right to increase the speed (power) of the extractor fan (0-10); to the left to decrease the speed (power) of the extractor fan (10-0); Timer Activation/Regulation of Timer function for the extractor fan

• Select the extractor fan (speed ¹ 0).

• Press (8) to access the Timer function (from any speed)

• Regulate the duration of the Timer: press the selector , to increase the automatic shut- down time press the selector , to decrease the automatic shut-down time the display (15) will show the countdown, Note: on the side of the display of the extractor fan, with the Timer in use, the following symbol will appear (19) When the timer has finished the countdown, there is an acoustic signal (for 2 minutes, or it will stop when one of the buttons on the hob is pressed), while the display (15) will flash, with the symbol “ . ". To switch off the Timer:

• select the cooking zone

• set the value of the timer to " " , by means of Not: the function remains active if no other key is pressed in the meantime.

Filter saturation indicator The hood indicates when filter maintenance is needed: Grease filter the “ ”(17) LED lights up Activated carbon odour filter the “ ”(17) LED flashes

Reset filter saturation After carrying out maintenance on the filters (grease and/or activated carbon) hold down the key; the “ ” LED turns off and the count restarts. Activation of activated carbon odour filter saturation indicator This indicator is normally deactivated. To activate it, proceed as follows: - turn on the aspiration hob by pressing ; - with the aspiration motor and cooking zones off, press and hold ; - “ ” turns on, then off to indicate successful activation. Deactivation of activated carbon odour filter saturation indicator repeat the activation steps described above “ ” flashes, then turns off to indicate successful deactivation.

Automatic mode The hood will turn on at the most suitable speed, adapting the extraction capacity to the maximum cooking level used in the cooking zone. Once the hob is turned off, the hood adapts its aspiration speed, gradually decreasing it, so as to eliminate residual vapours and odours To activate this function: Briefly press (7), the LED " " (18) will light up to indicate that the hood is working in this mode.81 Automatic hood mode with SNAP® For information on how to make the connection between the hood and SNAP®, see the manual supplied with SNAP® or visit www.elica.com. Note: SNAP® is an auxiliary extraction unit able to operate at the same time as the hood. To activate this function: Briefly press (7) , the LED " " (18) and the LED “SNAP” (21) will light up to indicate that the hood is working in this mode. The device can also be used in combination with a Window sensor KIT (not supplied by the manufacturer). If the Window sensor KIT is installed (only in the case of use in EXTRACTOR mode), air extraction will halt every time the window in the room, on which the KIT is applied, is closed. - The KIT must be electrically connected to the device by qualified and specialised technical personnel. - The KIT must be certified separately in accordance with the safety standards for the component and its use with the device. Installation must be carried out in accordance with current regulations for domestic systems. PLEASE NOTE: - the wiring of the KIT to be connected to the device must be part of a certified safety extra-low voltage (SELV) circuit. - the manufacturer of this device declines all liability for any inconvenience, damage or fires caused by defects and/or problems associated with the malfunction and/or incorrect installation of the KIT.82 Temperature Manager Description

Melting It identifies a suitable cooking level to slowly melt delicate products without compromising their sensory characteristics (chocolate, butter, etc.).

Warming It identifies a suitable cooking level to allow to delicately keep the food at the same temperature, without letting it boil.

Simmer It identifies a suitable cooking level to simmer food for prolonged periods. Suitable to cook tomato sauces, meat sauces, soups, minestrone, maintaining a controlled cooking level (ideal for bain-marie). It prevents the food from spilling or sticking at the bottom of the pan, typical of these preparations. Use this function after bringing the food to a boil.83

Cooking type Use of level (display combines the experience and cooking habits) Max power Boost Heat quickly Ideal to quickly increase the temperature of the food up to fast boiling in the case of water or quickly heat cooking liquids

8-9 Fry - boil Ideal for browning, starting to cook, frying frozen products, boiling rapidly

7-8 Brown - fry - boil - grill Ideal for frying, keeping the boil, cooking and grilling (for short times, 5-10 minutes) High power 6-7 Brown - cook - stew - fry - grill Ideal for frying, maintaining a simmer, cooking and grilling (for average times, 10-20 minutes), preheating accessories

4-5 Cook - stew - fry - grill Ideal for stewing, maintaining a light boil, cooking (for longer times). Stir pasta Medium power 3-4 Cook - simmer - thicken - stir Ideal for slow cooking (rice, sauces, roasts, fish) in the presence of liquid (e.g. water, wine, broth, milk), stirring pasta

2-3 Cook - simmer - thicken - stir Ideal for slow cooking (volume less than one litre: rice, sauces, roasts, fish) in the presence of liquid (e.g. water, wine, broth, milk)

1-2 Melt - thaw - keep warm - stir Ideal for softening butter, gently melting chocolate, thawing small products Low power

Melt - thaw - keep warm - stir Ideal for keeping small portions of freshly cooked food warm or keeping the temperature of serving dishes and stirring risotto OFF Zero power Support surface Hob in stand-by or off (possible presence of residual heat from the end of cooking, signalled by H-L-O)84

Category of foods Dishes or type of cooking Power level and cooking pattern First stage Powers Second stage Powers

Pasta, rice Fresh pasta Heating water Booster-9 Cooking pasta and maintaining the boil 7-8 Fresh pasta Heating water Booster-9 Cooking pasta and maintaining the boil 7-8 Boiled rice Heating water Booster-9 Cooking pasta and maintaining the boil 5-6 Risotto Frying and roasting 7-8 Cooking 4-5

Vegetables, legumes Boiled Heating water Booster-9 Boiling 6-7 Fried Heating oil

Frying 8-9 Sauté Heating accessory 7-8 Cooking 6-7 Stewed Heating accessory 7-8 Cooking 3-4 Fried Heating accessory 7-8 Browning fried 7-8

Meats Roast Meat browning with oil (if with butter, power 6) 7-8 Cooking 3-4 Grilled Pre-heating pan 7-8 Grilling on both sides 7-8 Browning Browning with oil (if with butter, power 6) 7-8 Cooking 4-5 Stew Browning with oil (if with butter, power 6) 7-8 Cooking 3-4

Fish Grilled Pre-heating pan 7-8 Cooking 7-8 Stew Browning with oil (if with butter, power 6) 7-8 Cooking 3-4 Fried Heating oil or fat 8-9 Frying 7-8

Eggs Omelettes Heating pan with butter or fat

Cooking 6-7 Omelettes Heating pan with butter or fat

Cooking 5-6 Soft boiled/boiled Heating water Booster-9 Cooking 5-6 Pancakes Heating pan with butter

Sauces Tomato Browning with oil (if with butter, power 6) 6-7 Cooking 3-4 Meat sauce Browning with oil (if with butter, power 6) 6-7 Cooking 3-4 Béchamel Preparing the base (melt butter and flour) 5-6 Bring to simmering point 3-4

Desserts, creams Custard Boil the milk 4-5 Keep simmering 4-5 Puddings Boil the milk 4-5 Keep simmering 2-3 Rice pudding Heat the milk 5-6 Keep simmering 2-385

Hob maintenance Caution! Before any cleaning or maintenance, make sure the cooking zones are switched off and the heat indicator has turned off.

The hob must be cleaned after each use. Important: Do not use abrasive sponges, scouring pads. Their use, over time, may ruin the glass. Do not use chemical irritants, such as oven sprays or stain removers. After each use, leave the hob to cool and clean it to remove deposits and stains caused by food residue. Sugar or food with a high sugar content damages the hob and must be immediately removed. Salt, sugar and sand may scratch the glass surface. Use a soft cloth, paper towel or specific products to clean the hob (follow the Manufacturer's instructions). DO NOT USE STEAM JET CLEANERS!!! Important: If liquids accidentally or excessively leak out of the pots, the drain valve located on the lower part of the product can be opened so as to remove any residue and be able to clean in conditions of maximum hygiene. Fig. 16

For a more complete and in-depth clean, the lower tray can be completely removed. Fig. 18a - 18b Cleaning the metal grille: The grille must be washed by hand with hot water and neutral detergent, then dried thoroughly to prevent oxidation.

Extractor fan maintenance Cleaning For cleaning, use ONLY a cloth moistened with neutral liquid detergents. DO NOT USE CLEANING UTENSILS OR TOOLS! Avoid the use of products containing abrasives. DO NOT USE ALCOHOL! Grease filter Traps grease particles generated by cooking. Must be cleaned once per month (or when the filter saturation indication system indicates this need), with non-aggressive detergents, either manually or in the dishwasher at a low temperature and in a short cycle. When cleaned in the dishwasher, the metal grease filter may discolour, but its filtering characteristics remain unchanged. Fig. 15 Activated Carbon Filter - Ceramic (Only for Filtration Version) Traps unpleasant odours generated by cooking. The product comes with a set of odour filters. The saturation of the odour filters can occur after somewhat prolonged use depending on the type of cooking and how regularly the grease filter is cleaned. The odour filters can be thermally regenerated every 2/3 months in an oven pre-heated to 200°C for 45 minutes. The correct regeneration of the filter ensures that it can constantly filter efficiently for 5 years. Fig. 17 – 17a – 17b – 17c86

The command zone switches off due to an excessively high temperature The temperature inside the electronic parts is too high

Wait for the hob to cool before reusing it

Continuous (permanent) key activation is detected. The interface switches off after 10 seconds.

Water, pots or kitchen tools are on top of the user interface. Clean the surface, remove any objects from the surface.

For all other error signals ( E … U … ) Call customer service and report the error code
