USER MANUAL IAN 103857 CRIVIT

www.lidl-service.com

PROTEKTOREN-SET

DE AT CH

PROTEKTOREN-SET

Gebrauchsanweisung

FR CH

PROTECTIONS

Instructions for use

CE

IAN 103857

DE AT CH

FR IT GB

DE AT CH

Protectors for normal roller-skating 23

How to put on the knee and elbow pads....23

How to put on the palm/hand pads....24

Maintenance and care 25

Storage and transportation....25

3 Years Warranty 26

Illustration of a knee joint with two views (front and side), no text or symbols present

Diagram showing two views of a mechanical device with no visible text or symbols

Technical illustration of a knee joint with two views (A and B) showing different grip configurations (no text or symbols present)

With your purchase you have decided on a high-quality product. Get to know the product before you start to use it. Carefully read the following operating instructions. Use the product only as described and only for the given areas of application. Keep these instructions safe. When passing the product on to a third party, always make sure that the documentation is included.

Protectors for normal roller-skating

CE The European standard EN 14120 defines two protector performance classes: level 1: protectors for normal roller sports and level 2: protectors for acrobatic roller sports. You have decided on performance level 1 protectors.

Knee pads, elbow pads, palm/hand pads and helmet are part of the complete outfit.

Even the best equipment does not give total protection. The risk can be minimised but injuries are always possible as experienced skaters know only too well. Therefore always skate carefully and within your limits. You should preferably attend a skater training school. There you can learn skating technique, which includes how to "fall correctly".

Please note that the efficiency of the protectors can be reduced when subjected to high or low temperatures.

To obtain the best possible protection, first select the right size of protectors. Try them on to check how they match your knee, arm and hand size.

The protectors may not fit too loosely. They should be snug and difficult to move back and forth or out of position.

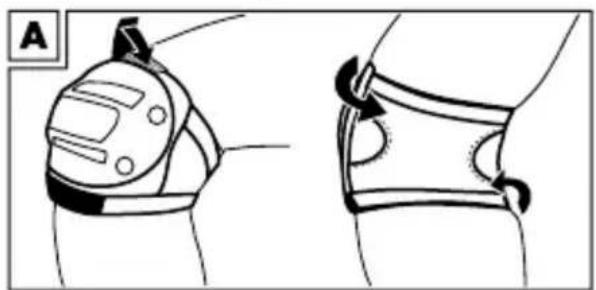

How to put on the knee and elbow pads

1. First open the hook & loop fastenings.

2. Now put the guards on. Please make sure that your knees or elbows are completely covered by the plastic caps. Pull the "stocking" over your arm or your leg.

Technical illustration of a knee joint with two views (front and side), no text or symbols present

1. Now put the elastic fastening straps around your legs or arms. After this push the ends at the front of your protector on to the respective hook & loop areas.

2. The knee and elbow pads must be fastened tightly so that they cannot shift out of place. They are only able to offer the best possible protection when worn in this way. However, do not fix the fastening straps so tightly that blood circulation is restricted.

How to put on the palm/hand pads

1. First open the hook & loop fasteners.

2. Left guard marked with "left"; right guard marked with "right".

3. Run your thumbs through the corresponding openings of the respective protector so that the palm lies on the upholstered inside.

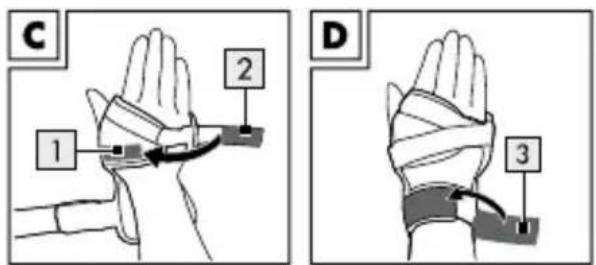

4. Now take hold of the fastening strap labelled 2 in fig. C and

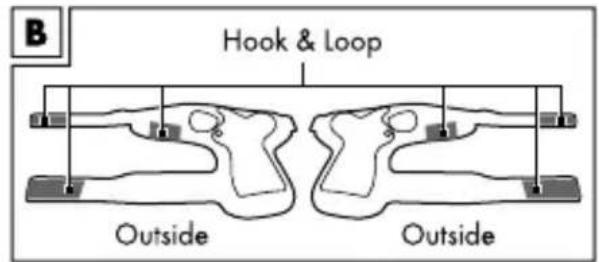

B Hook & Loop Outside Outside

C 1 2 D 3

insert it through the loop provided as shown. In order to fasten it, press the fastening strap 2 against the hook & loop area 1 provided.

1. Stabilise the wrist as shown in fig. D. Wrap the fastening strap around your wrist as shown with the arrow and press the end against the hook & loop area.

2. As you see, the bent protection track is now located on the inside of the hand.

3. The palm/hand pads must be fastened tightly to the wrist so that they cannot shift out of place. They are only able to offer the best possible protection when worn in this way. However, do not fix the fastening straps so tightly that blood circulation is restricted.

4. To take off the palm/hand pads, proceed the other way round.

Maintenance and care General information

Material:

outer material: polyester;

protectors: polypropylene;

padding: PE foam

Check your protectors before every use, and particularly thoroughly after falls, for signs of damage.

If the protectors are defective, for example due to rips, cracks or loose parts, they are no longer in working order. They may, therefore, no longer be used.

Please keep the hook & loop free of dirt to maintain adhesive strength.

Replace the hook & loop areas as soon as adhesive strength deteriorates.

Please do not make any changes to the protectors as the protective function can then no longer be guaranteed.

Cleaning

Dirt can be removed from your protectors by brushing. Ground in dirt can be removed by washing in lukewarm water or with a neutral detergent solution. Rinse afterwards with clean water. Avoid cleaning the protectors with strong cleaning agents or cleaning agents containing solvent.

Never clean them in the washing machine and with a dryer or iron.

Storage and transportation

The protectors should not be stored or transported in direct sunlight or in a warm place to avoid the risk of formation of cracks or decomposition, which can shorten the life of the protectors and limit their usability considerably.

Important: Only protectors in a perfect condition can offer adequate corresponding protection.

3 Years Warranty

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail. Our service employees will advise as to the subsequent procedure as quickly as possible. We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts.

Repairs after the warranty are subject to a charge.

IAN: 103857

GB Service Great Britain

Tel.: [phone]

(£ 0.10/Min.)

E-Mail: [e-mail]

You can also find spare parts for your product at:

www.delta-sport.com, category Service – Lidl Spare Parts Service

Production year: 2015

EU design check according to EN 14120:2003 + A1:2007

Size S/M (160 - 174cm)

Size L/XL (175 - 190cm)

Level 1 (protectors for normal roller-skating)

Range C (protectors for users over 50kg in weight)

Checked with

TÜV Rheinland LGA Products GmbH

Tillystr. 2, D-90431 Nürnberg, Germany

Notified body no. 0197
