IAN 323267 - Light Decoration MELINERA - Free user manual and instructions

USER MANUAL IAN 323267 MELINERA

LED-DEKOFIGUR LED LIGHT-UP CHRISTMAS FIGURINE FIGURINE DÉCORATIVE LED

DE AT CH

LED-DEKOFIGUR

Gebrauchsanweisung

FR BE

FIGURINE DÉCORATIVE LED

FIGURKA DEKORACYJNA LED

LED LIGHT-UP CHRISTMAS FIGURINE

Instructions for use

NL BE

LED-DECORATIEFIGUUR

Gebruiksaanwijzing

C

LED DEKORATIVNI FIGURKA

Návod k použití

CE

IAN 323267_1901

DE AT CH GB IE FR

BE NL PL CZ SK

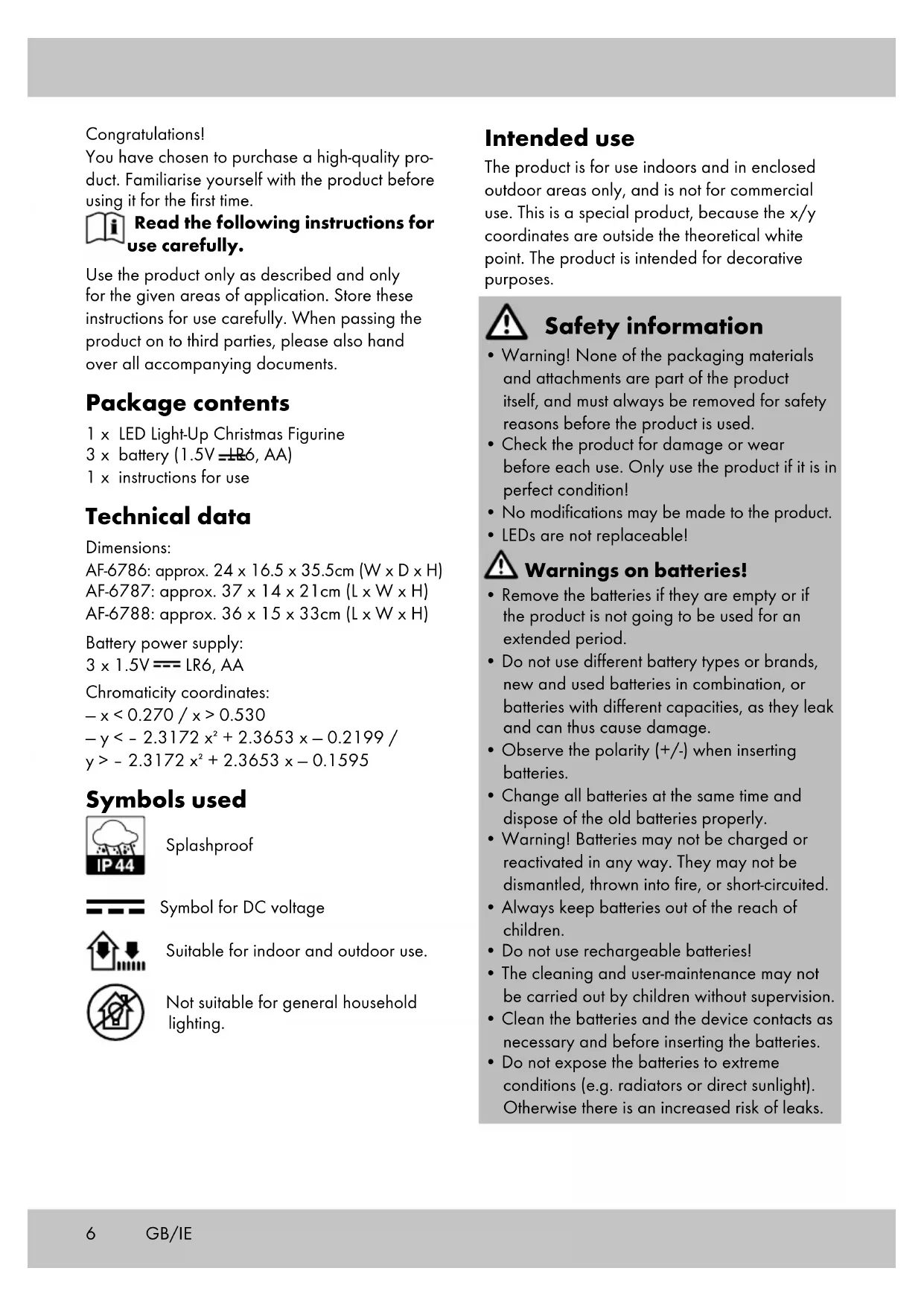

You have chosen to purchase a high-quality product. Familiarise yourself with the product before using it for the first time.

Read the following instructions for use carefully.

Use the product only as described and only for the given areas of application. Store these instructions for use carefully. When passing the product on to third parties, please also hand over all accompanying documents.

Package contents

1 x LED Light-Up Christmas Figurine
3xbattery(1.5V=±R6,AA)
1x instructions for use

Technical data

Dimensions:

AF-6786: approx. 24 × 16.5 × 35.5 ~cm ( W × D × H )

AF-6787: approx. 37 × 14 × 21 ~cm (L × W × H)

AF-6788: approx. 36 × 15 × 33cm (L × W × H)

Battery power supply:

$$ 3 \times 1. 5 \mathrm {V} = = \mathrm {L R} 6, \mathrm {A A} $$

Chromaticity coordinates:

$$ - x < 0. 2 7 0 / x > 0. 5 3 0 $$

-y < -2.3172x^2 + 2.3653x - 0.2199/

$$ y > - 2. 3 1 7 2 x ^ {2} + 2. 3 6 5 3 x - 0. 1 5 9 5 $$

Symbols used

Splashproof

Symbol for DC voltage

Suitable for indoor and outdoor use.

Not suitable for general household lighting.

Intended use

The product is for use indoors and in enclosed outdoor areas only, and is not for commercial use. This is a special product, because the x/y coordinates are outside the theoretical white point. The product is intended for decorative purposes.

Safety information

• Warning! None of the packaging materials and attachments are part of the product itself, and must always be removed for safety reasons before the product is used.
• Check the product for damage or wear before each use. Only use the product if it is in perfect condition!
• No modifications may be made to the product.
• LEDs are not replaceable!

Warnings on batteries!

• Remove the batteries if they are empty or if the product is not going to be used for an extended period.
• Do not use different battery types or brands, new and used batteries in combination, or batteries with different capacities, as they leak and can thus cause damage.
• Observe the polarity (+/-) when inserting batteries.
• Change all batteries at the same time and dispose of the old batteries properly.
• Warning! Batteries may not be charged or reactivated in any way. They may not be dismantled, thrown into fire, or short-circuited.
• Always keep batteries out of the reach of children.
• Do not use rechargeable batteries!
• The cleaning and user-maintenance may not be carried out by children without supervision.
• Clean the batteries and the device contacts as necessary and before inserting the batteries.

• Do not expose the batteries to extreme conditions (e.g. radiators or direct sunlight). Otherwise there is an increased risk of leaks.

• Batteries can endanger life if swallowed. Keep batteries out of the reach of small children for this reason. Seek medical help immediately if a battery is swallowed.

Danger!

• Handle a damaged or leaking battery with extreme care and dispose of it properly and immediately. Wear gloves to handle the battery.
  If you come into contact with battery acid then wash the affected area with soap and water. If battery acid gets in your eye rinse it out with water and seek medical help immediately!
• Do not short-circuit the terminals.

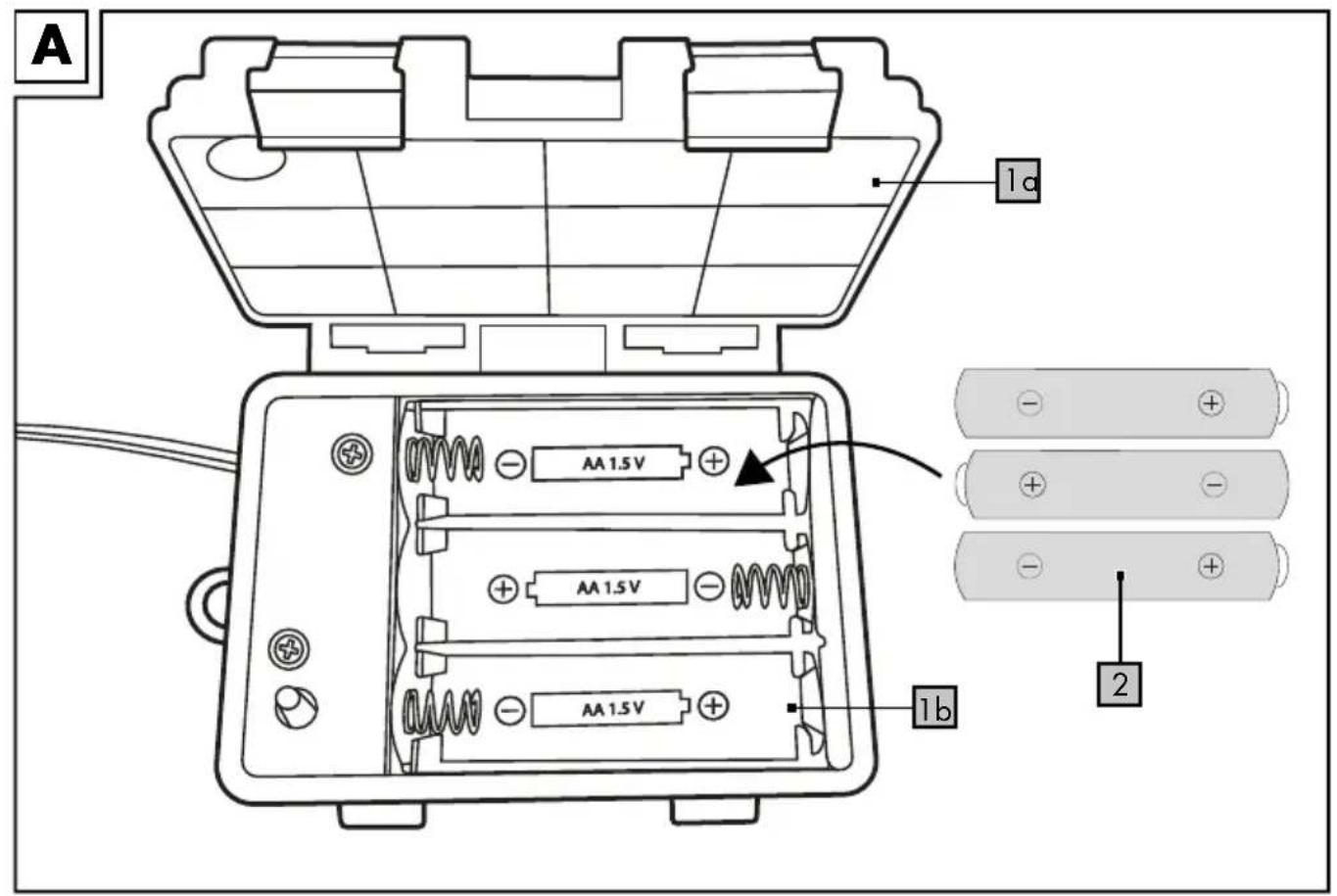

Inserting the batteries (fig. A)

WARNING! Observe the following instructions to avoid mechanical and electrical damage.

Three batteries come with the product, which must be taken out of their packaging before inserting.

1. Remove the battery cover (1a) from the battery compartment (1b).
2. Place the batteries (2) in the battery compartment.

Note: Check the plus/minus poles of the batteries and insert them correctly.

The batteries must be completely inside the battery compartment.

1. Close the battery compartment lid (1a) again.

Replacing the batteries

When the batteries (2) are flat, you can replace them.

Follow the instruction in the section "Inserting the batteries". Before inserting new batteries, remove the old batteries from the battery compartment.

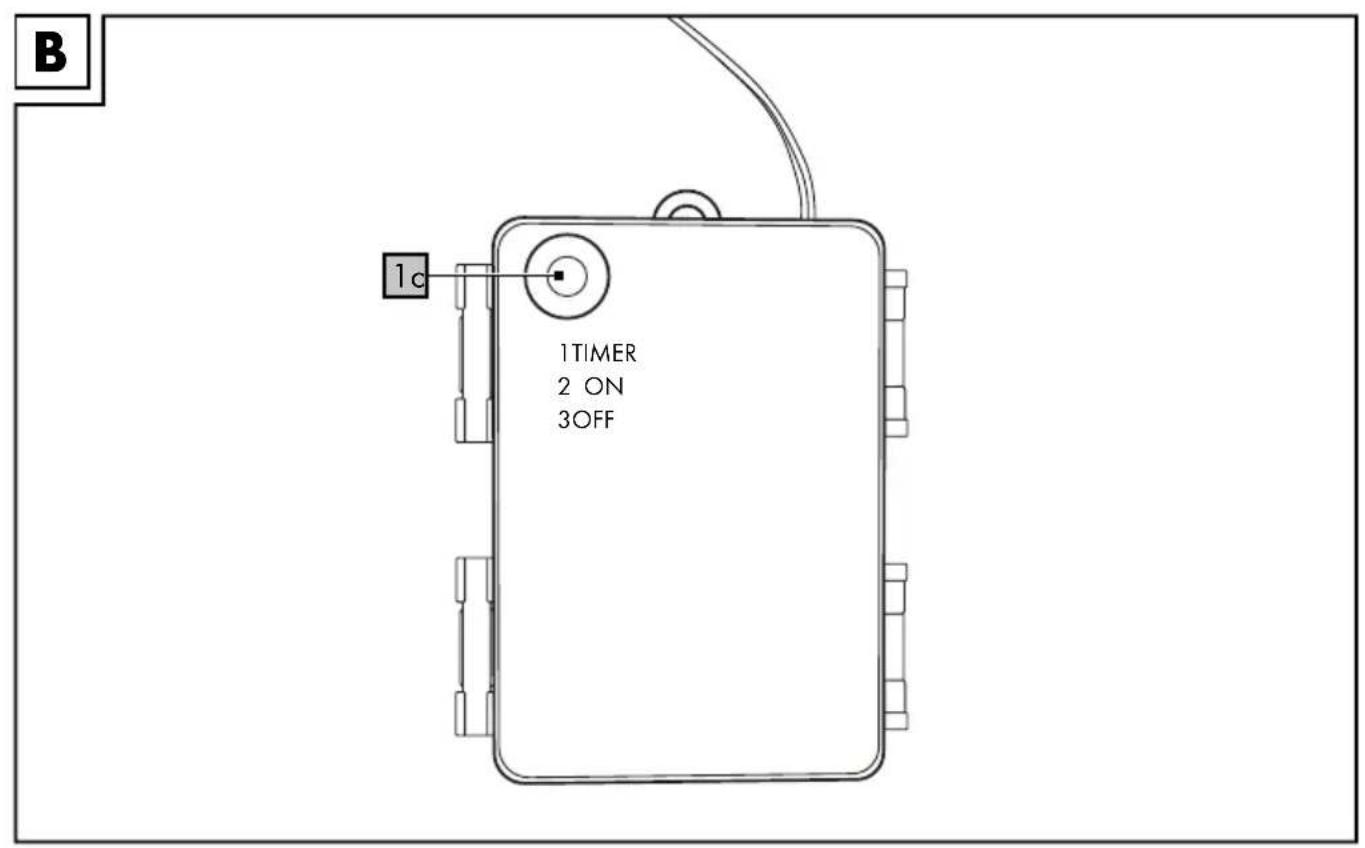

Turning the light on and off (fig. B)

Push the button (1c) once to activate the product's timer function.

Note: When the timer function is activated the light will turn on for 6 hours and off for 18 hours. This rhythm repeats daily.

Push the button (1c) twice to turn the product on.
Push the button (1c) three times to turn the product off.

Note: Within each activated mode, you must only push the button once to switch to the next mode.

Use

The product can be placed indoors or in an enclosed outdoor area.

Note: Do not place the product on delicate surfaces. This can lead to scratches.

Storage, cleaning

When not in use, always store the product dry, clean, without batteries and at room temperature. Only clean the product with a damp cloth and wipe dry afterwards.

IMPORTANT! Never clean the product with harsh cleaning agents.

Disposal

In the interest of protecting the environment, do not throw your product into the household waste once you are finished with it, but rather take it to a

specialty disposal facility. Find out about collection sites and their hours of operation from your local authority.

Defective or used batteries must be recycled pursuant to Directive 2006/66/EC and changes to it. Return batteries and/or the product via the collecting sites provided. Packaging materials, such as plastic bags, must be kept away from children. Keep the packaging materials out of reach of children.

Environmental damage caused by improper disposal of batteries! Batteries may not be disposed of with household

waste. They may contain toxic heavy metals and are subject to hazardous waste treatment. The chemical symbols of the heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. Disposc of used batteries at a municipal collection site.

Dispose of the product and packaging in an environmentally friendly manner.

Note the label on the packaging materials when separating waste, as these are labelled with abbreviations (a)

and numbers (b) with the following meaning: 1-7: plastics/20-22: paper and cardboard/80-98: composite materials. The product and the packaging materials can be recycled, dispose of them separately for better treatment of waste. The Triman logo only applies to France. Find out how to dispose of the used product from your municipal or city administration.

Notes on the guarantee and service handling

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty. With regard to complaints, please contact the following service hotline or contact us by e-mail. Our service employees will advise as to the subsequent procedure as quickly as possible. We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

IAN:323267_1901

GB Service Great Britain Tel.:[phone] E-Mail:[e-mail]

IE Service Ireland Tel.: [phone] (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: [e-mail]

Felicitations!

3× 1,5V = = = LR6, AA
