USER MANUAL TechniRadio Solar TECHNISAT

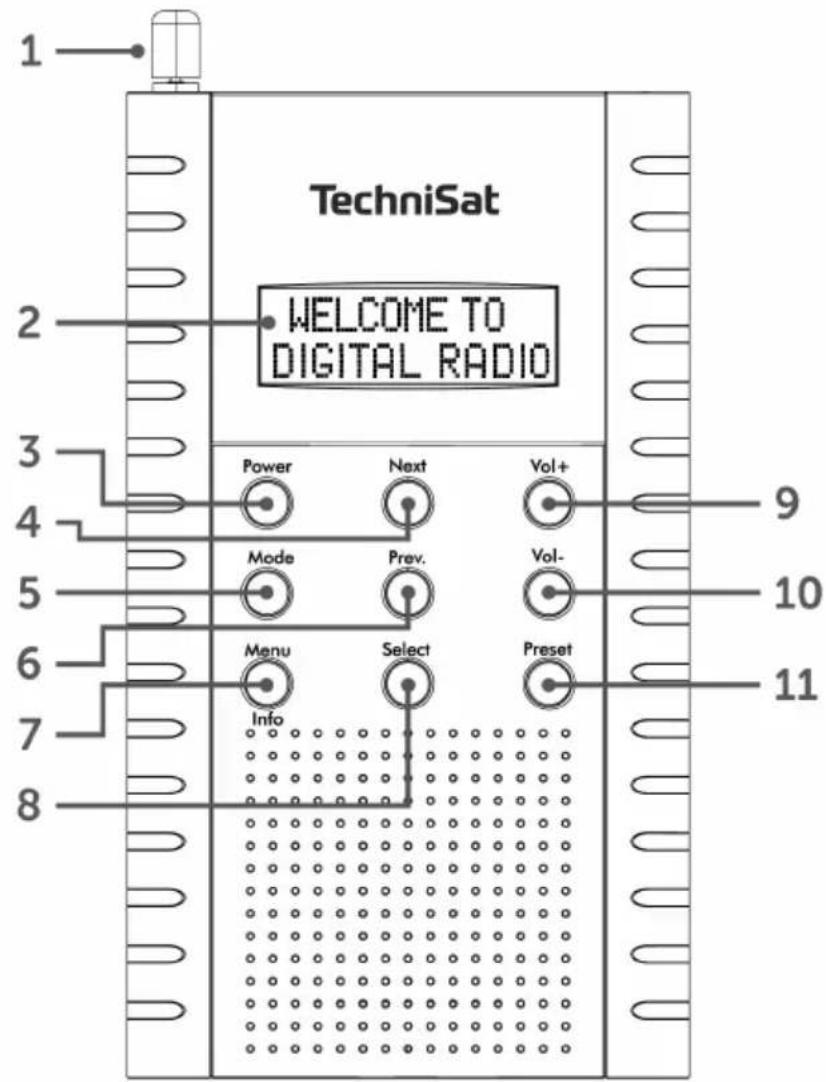

1 Telescopic antenna
2 Display
3 On/Standby Press briefly: turn on Press briefly: turn off

4 Next Press briefly in DAB mode: next station In FM mode: adjust frequency by 0.05MHz Keep pressed in FM mode: search stations In the menu: navigate through the menu options.

5 Mode Press several times: source selection DAB+, FM.
6 Prev. Press briefly in DAB mode: previous station Press briefly in FM mode: reduce frequency by 0.05MHz Press briefly in menu: navigate through the menu options Keep pressed in FM mode: reverse station search

7 Menu/Info Press briefly: view status information Keep pressed: open menu Press briefly in menu: step back, leave menu

8

Select

Confirm selection / option

9 Vol+ Increase volume 10 Vol- 11 Preset

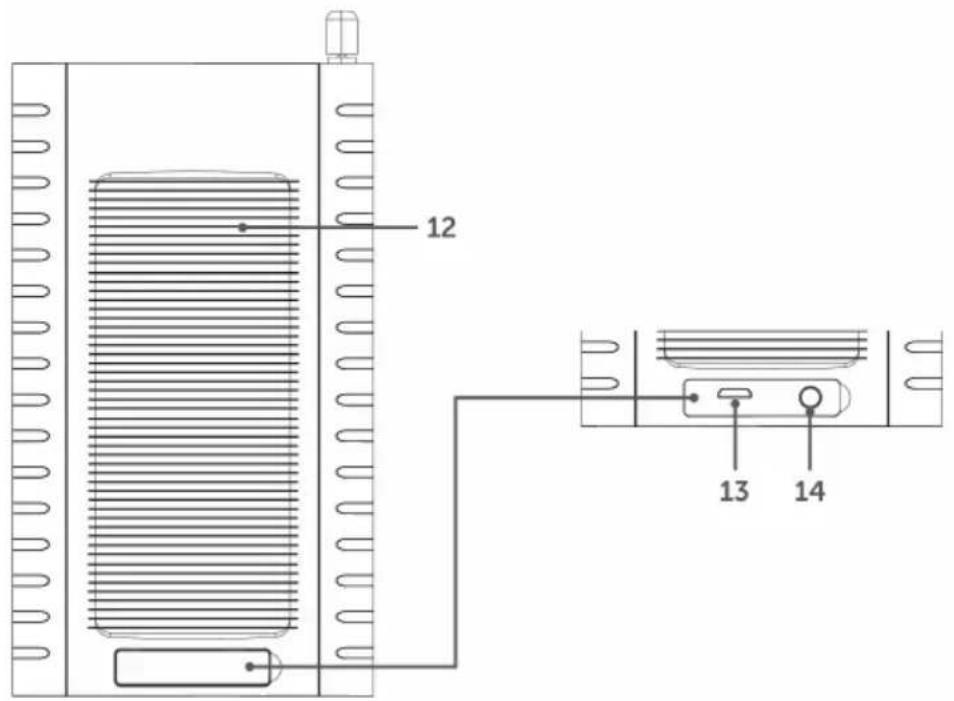

12 Solar panel
13 DC-IN 5V micro USB charging port
14 Headphone jack 3.5mm stereo jack

2 Contents

1 Illustrations 30

1.1 Description 31

2 Contents 32

3 Preface 34

3.1 Target group for this instruction manual 34

3.1.1 Intended use 34

3.2 Important information 34

3.2.1 Safety 34

3.2.2 Disposal 36

3.2.3 Legal notices 38

3.2.4 Service instructions 39

4 Setting up the device 39

5 Description of the TECHNIRADIO SOLAR 40

5.1 Scope of delivery 40

5.2 Special features of the TECHNIRADIO SOLAR 40

5.3 Preparing the TECHNIRADIO SOLAR for operation 40

5.3.1 Aligning the telescopic antenna 40

5.3.2 Charging the battery 41

5.3.3 Using headphones 41

5.4 General device functions 41

5.4.1 Switching on the device 41

5.4.2 Switching off the device 42

5.4.3 Source selection 42

5.4.4 Adjusting the volume 42

5.4.5 Display 42

5.4.6 Retrieving displays 42

6 Menu operation 43

7 DAB+ (digital radio) function 43

7.1 What is DAB+? 43
7.1.1 Data compression 43
7.1.2 Audio stream 44
7.2 DAB+ (digital radio) reception 44
7.2.1 Performing a complete scan 44
7.2.2 Selecting stations 44
7.2.3 Storing DAB+ stations on a memory slot 44
7.2.4 Retrieving DAB+ stations from a memory slot 45
7.2.5 Overwriting/deleting a station memory slot 45
7.2.6 Manual setting 45
7.2.7 Volume adjustment (DRC) 45
7.2.8 删除 inactive stations 46

8 FM mode 46
8.1 Switching on FM radio mode 46
8.2 FM reception with RDS information 46
8.3 Automatic station scan 46
8.4 Manual station scan 46
8.5 Scan setting 47
8.6 Saving FM stations to a memory slot 47
8.7 Retrieving FM stations from a memory slot 47
8.8 Overwriting/deleting a station memory slot 47

9 System settings and other features. 48

9.1 Sleep timer 48
9.2 Time and date settings 48
9.2.1 Manually setting the time/date 48
9.2.2 Time update 49
9.2.3 Setting the time format 49
9.2.4 Setting the date format 49
9.3 Display brightness 50
9.4 Language 50
9.5 Factory settings 50
9.6 Software version 51

10 Cleaning 51
11 Troubleshooting 52
12 Technical specifications / manufacturer's instructions 52
13 Notes 53

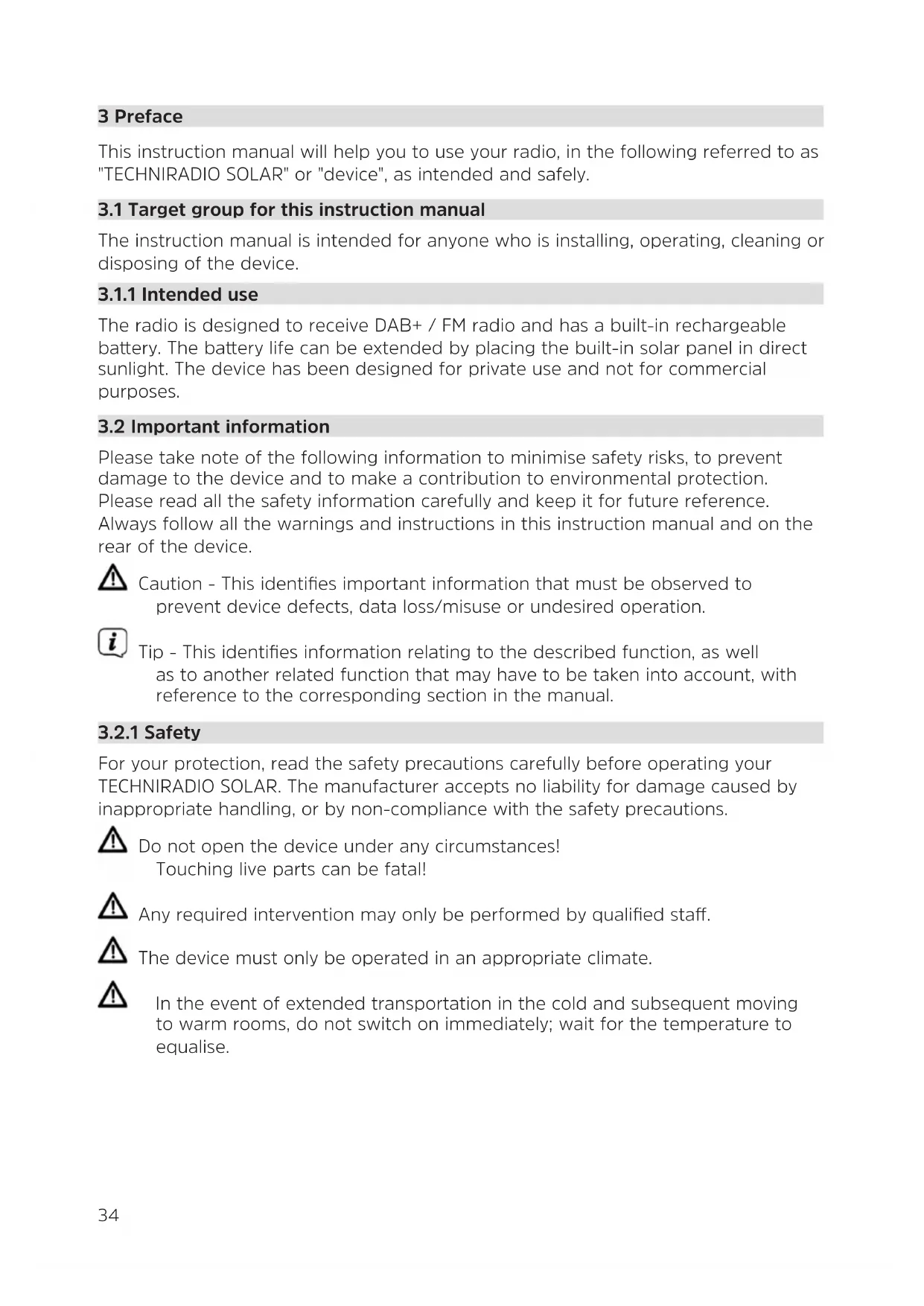

3 Preface

This instruction manual will help you to use your radio, in the following referred to as "TECHNIRADIO SOLAR" or "device", as intended and safely.

3.1 Target group for this instruction manual

The instruction manual is intended for anyone who is installing, operating, cleaning or disposing of the device.

3.1.1 Intended use

The radio is designed to receive DAB+ / FM radio and has a built-in rechargeable battery. The battery life can be extended by placing the built-in solar panel in direct sunlight. The device has been designed for private use and not for commercial purposes.

3.2 Important information

Please take note of the following information to minimise safety risks, to prevent damage to the device and to make a contribution to environmental protection. Please read all the safety information carefully and keep it for future reference. Always follow all the warnings and instructions in this instruction manual and on the rear of the device.

Caution - This identifies important information that must be observed to prevent device defects, data loss/misuse or undesired operation.

Tip - This identifies information relating to the described function, as well as to another related function that may have to be taken into account, with reference to the corresponding section in the manual.

3.2.1 Safety

For your protection, read the safety precautions carefully before operating your TECHNIRADIO SOLAR. The manufacturer accepts no liability for damage caused by inappropriate handling, or by non-compliance with the safety precautions.

Do not open the device under any circumstances! Touching live parts can be fatal!

Any required intervention may only be performed by qualified staff.

The device must only be operated in an appropriate climate.

In the event of extended transportation in the cold and subsequent moving to warm rooms, do not switch on immediately; wait for the temperature to equalise.

Do not expose the device to heat sources which could heat it up more than normal use will.
In the case of a thunderstorm, unplug the device from the mains. Overvoltage can damage the device.
If you detect a device defect, odour or smoke, considerable malfunctions, or damage to the housing, switch off the device and inform the Service Department.
The device may only be operated with the voltage specified on the power adapter. Never try to operate the device with another voltage.
If the device shows signs of damage, it may not be put into operation.
Do not use the device in the vicinity of baths, swimming pools or splashing water.
Never try to repair faulty device yourself. Always contact one of our customer service locations.
Foreign bodies, e.g. nails, coins, etc. must not be allowed to fall inside the device. Do not touch the connection contacts with metal objects or fingers. This could lead to short-circuits.
Do not place any open flames on the device, such as burning candles.
Never allow children to use the device unsupervised.
Do not listen to music or the radio at high volume. Doing so can cause permanent hearing impairment.
This device is not intended to be used by people (including children) with limited physical, sensory or mental capacities or lack of experience and/or knowledge, unless they are supervised by a person responsible for their safety or they have been instructed by them as to how to use the device.
Children must be supervised to ensure that they do not play with the device.
It is forbidden to carry out modifications to the device.
Damaged devices or damaged accessories must not continue to be used.

Using Batteries/Rechargeable Batteries

The TECHNIRADIO SOLAR is equipped with a built-in rechargeable battery. Fully charge the battery before using it for the first time.

If you have not used the TECHNIRADIO SOLAR for a long time, first charge the battery completely. An empty battery can cause damage during prolonged storage.

When disposing of the device, observe the local regulations for the disposal of devices with built-in batteries.

3.2.2 Disposal

The device packaging is exclusively comprised of recyclable materials. Please sort the components appropriately, and dispose of them in line with your local waste disposal regulations. At the end of its service life, this device must not be disposed of with your regular household waste. It must be taken to a recycling collection point for electrical and electronic equipment.

This is indicated by the symbol on the product, the instruction manual or the packaging.

The materials are recyclable according to their identification.

An important contribution is made to our environment by recycling, recovery of materials or other kinds of recycling for old devices.

Please ask local authorities for the location of the relevant disposal point. Please ensure that electronic waste is not disposed of in your regular household refuse, but is correctly disposed of either in special bins for problem waste, or at collection points in the retail trade.

Batteries/rechargeable batteries may contain poisonous substances which cause harm to health and the environment. Batteries/rechargeable batteries are subject to European Directive 2006/66/EC. They must not be disposed of with normal household waste.

Disposal instructions:

Disposal of packaging:

Your new device was protected by packaging on its way to you. All materials used are environmentally-friendly and recyclable. Please collaborate and dispose of the packaging in an environmentally-friendly way. Ask for information from your dealer regarding current disposal means or your local disposal facility.

Risk of suffocation! Do not give packaging and parts thereof to children. Risk of suffocation by films and other packaging materials.

Device disposal:

Old devices constitute valuable waste. Valuable raw materials can be recovered through environmentally-friendly disposal. Consult your town or local authority as to the possibilities for environmentally-friendly and proper disposal of the device. Prior to disposal of the device, remove the batteries/rechargeable batteries contained therein.

This device is identified in accordance with the Waste Electrical and Electronic Equipment (WEEE) Directive 2012/19/EU.

At the end of its service life, this device must not be disposed of with your regular household waste. It must be taken to a recycling collection point for electrical and electronic equipment. The symbol on the product, the operating manual or the packaging indicates this. The materials are recyclable according to their identification. An important contribution is made to our environment by recycling, recovery of materials or other kinds of recycling for old devices.

Important information for the disposal of batteries/rechargeable batteries: batteries/rechargeable batteries may contain poisonous substances that harm the environment. Therefore you must always comply with applicable statutory provisions when you dispose of batteries/rechargeable batteries. Never dispose of batteries in normal household waste. Used batteries/rechargeable batteries can be disposed of at your specialist retailer or at special disposal sites free of charge.

3.2.3 Legal notices

TechniSat hereby declares that the radio system model TECHNIRADIO SOLAR complies with Directive 2014/53/EU. The complete text of the EU Declaration of Conformity is available at the following web address:

TechniSat accepts no liability for product damage as a result of external influences, wear or improper handling, unauthorised repairs, modifications or accidents.

Changes and printing errors reserved. Version 07/19. Copying and reproduction are subject to the publisher's consent. The respective current version of the manual can be obtained in PDF format in the download area of the TechniSat homepage at www.technisat.de.

TECHNIRADIO SOLAR and TechniSat are registered trademarks of:

D-54550 Daun/Eifel, Germany

www.technisat.de

3.2.4 Service instructions

This product is quality-tested and provided with the legal warranty period of 24 months as from the date of purchase. Please keep your receipt as proof of purchase. In the event of warranty claims please contact the product dealer.

Note!

Should you experience a problem with this device, or for queries and information, our Technical Hotline is available:

Mon. - Fri. 8:00 am - 6:00 pm at tel.:

[phone].

Repair orders can also be ordered directly online at www.technisat.de/reparatur.

If the device needs to be returned, please use the following address only:

39418 Stassfurt, Germany

The names of the companies, institutions or makes referred to are trademarks or registered trademarks of the respective owners.

4 Setting up the device

Place the device on a firm, secure base. Make sure the area is well ventilated.

Caution!

Do not place the radio on soft surfaces such as carpets and blankets, or near to curtains and wall hangings. These could obstruct the ventilation openings. The necessary flow of air could be interrupted as a result. This could potentially lead to fire in the device.
Do not place the device near to sources of heat, such as radiators. Avoid direct sunlight and very dusty environments.
Please note that the device footings could leave coloured marks on some types of furniture surfaces in certain situations. Place a protective layer between your furniture and the device.
Keep the TECHNIRADIO SOLAR away from devices which emit intense magnetic fields.

Do not place any heavy objects on the device.
If you move the device from a cold environment to a hot environment, moisture could accumulate inside the device. In this case, wait approximately one hour before putting it into operation.
Lay the USB cable in such a way that nobody can trip over it.
Make sure that the USB cable is always easily accessible so you can quickly disconnect the device from the power supply!
In the event of a malfunction or the detection of smoke or odour from the housing, remove the plug from the power outlet immediately.
Excessive volume, in particular when using headphones, can damage hearing.
To extend the battery life, place the device with the solar panel in the sun and watch out for direct sunlight.

5 Description of the TECHNIRADIO SOLAR

5.1 Scope of delivery

Before start-up, please check whether everything has been delivered.

1 x TECHNIRADIO SOLAR
1 x micro USB cable
1 x instruction manual

5.2 Special features of the TECHNIRADIO SOLAR

The TECHNIRADIO SOLAR is comprised of a DAB+/FM receiver with the following functions:

• You can store up to 20 DAB+ and 20 FM stations.
• The radio receives on the FM 87.5-108 MHz (analogue) frequencies and DAB+ 174.9-239.2 MHz (digital).
• Internal battery that can be charged using any 5V USB port.
• The battery life can be extended via the built-in solar panel.

5.3 Preparing the TECHNIRADIO SOLAR for operation

5.3.1 Aligning the telescopic antenna

The number and quality of the stations to be received depend on the reception conditions at the installation location. Excellent reception can be achieved with the telescopic antenna.

Pull out the telescopic antenna.

The exact alignment of the telescopic antenna is often important, in particular on the outskirts of the DAB+ reception area. On the Internet you can quickly locate the location of the nearest transmission tower by visiting "www.dabplus.de".

Start the first scan at a window in the direction of the transmission mast.

If the weather conditions are poor, DAB+ reception may be limited.
i Do not touch the telescopic antenna during station playback. This could reduce the reception and lead to sound dropouts.

5.3.2 Charging the battery

Connect the supplied micro USB cable to the DC-IN 5V socket (13) on the back of the TECHNIRADIO SOLAR.
Connect the USB port to a commercially available 5V, 1A USB power adapter, or a USB port on a PC.
Depending on the USB connection, the first charge of the battery takes about 6 hours.

The display shows the state of charge using a battery symbol.

0-10%

11-25%

26-50%

51-75%

76-100%

5.3.3 Using headphones

Hearing impairment!

Do not listen to the radio at high volume with headphones. Doing so can cause permanent hearing impairment. Turn down the radio volume to the lowest volume before using headphones.

i Only use headphones with a 3.5mm stereo jack plug.

Insert the headphone plug into the headphone jack (14) on the device. Sound will now only be heard via the headphones, the speaker is switched to mute.
If you would like to use the speakers again, unplug the headphones from the headphone jack on the radio.

5.4 General device functions

5.4.1 Switching on the device

To ensure good DAB+ / FM reception, unplug the antenna completely. To do so, please refer to Section 5.3.1.
First prepare the TECHNIRADIO SOLAR for use as described in Sections 5.3.1 and 5.3.2.
Switch on the TECHNIRADIO SOLAR by pressing the Power(3) button.

5.4.2 Switching off the device

To switch off the TECHNIRADIO SOLAR press the Power(3) button once again.

5.4.3 Source selection

Using the Mode button, it is possible to switch between DAB+ (digital radio) and FM.

5.4.4 Adjusting the volume

Adjust the volume by pressing VOL+/VOL- on the unit.

VOL+ - louder
VOL- - softer.

The set volume is shown on the display by way of a bar chart. Also refer to Section 5.3.3 for operation when headphones are connected.

5.4.5 Display

Depending on the selected function or option, the display will show the following information:

Station name, Frequency, Menu name

Display, Menu options, Volume

5.4.6 Retrieving displays

Press the Menu/Info (7) button several times. You have the choice of viewing the following information:

In DAB+ mode (the selected function is identified with an *)):

[Running text] (continuous text with additional information provided by broadcasters etc.), [Signal intensity], [Channel type], [Ensemble], [Frequency], [Signal quality], [Bit rate and Codec], [Time] and [Date].

In FM mode (the selected function is identified with an *):

[Radio text] (if transmitted), [Channel type] (PTY), [Ps] (Programme Service Name or Station Name or Frequency), [Audio Information], [Time] and [Date].

6 Menu operation

You can access all functions and settings for the TECHNIRADIO SOLAR via the menu. Menu navigation takes place using the Menu, Next, Prev. and Select buttons. The menu is divided into submenus and, depending on the selected source (DAB+ or FM), contains different menu items or functions which can be enabled.

To open the menu, simply keep the Menu/Info (7) button briefly pressed. To move to submenus, first press the Next (4) or Prev. (6) buttons to display a submenu and then press the Select (8) button to retrieve the submenu. An asterisk (*) highlights the current selection. To go back one step, briefly press the Menu/Info button.

To close the menu: Press the Menu/Info button several times (depending on which submenu you are in) until the current radio channel is displayed again.
i Settings are not saved until the Select button is pressed. If the Menu/Info key is briefly pressed instead, the settings will not be accepted and saved.
The functions and buttons to be pressed are shown in bold in this instruction manual. Displays in [square brackets].
Some text (e.g. menu items, station information) may be too long to show on the display. These will be then shown as running text shortly thereafter.

7 DAB+ (digital radio) function

7.1 What is DAB+?

DAB+ is a new digital format through which crystal clear sound with no noise can be heard. In contrast to conventional analogue radio stations, DAB+ can be used to broadcast multiple stations on one and the same frequency. This is referred to as an ensemble or multiplex. An ensemble is comprised of the radio station, as well as several service components or data services, which are broadcast individually by the radio stations. For further information go to www.dabplus.de or www.dabplus.ch.

7.1.1 Data compression

By doing so, digital radio takes advantage of the properties of human hearing. The human ear does not perceive sounds which are found under a specific minimum volume. Data which are found under the so-called audibility threshold can, therefore, be filtered out. This is possible because, in a digital data stream, the relevant relative volume for other units is saved for every unit of information. Moreover, in an audio signal, the quieter parts are superimposed by louder ones at a specific limit value. All the sound information below the threshold of hearing in a piece of music can be filtered out of the signal to be broadcast.

This leads to a reduction of data in the data stream to be transmitted, with no perceptible difference in sound for the listener (HE AAC v2 process as a supplementary codification process for DAB+).

7.1.2 Audio stream

With digital radio, audio streams are continuous data streams which contain the MPEG 1 audio layer 2 frames and thereby represent acoustic information. This enables standard radio channels to be broadcast and listened to on the receiver side. Digital radio provides you not only with excellent sound quality radio but also additional information. This may refer to the programme being broadcast or be independent information (e.g. news, weather, traffic, tips).

7.2 DAB+ (digital radio) reception

Press the MODE button until [DAB] is shown on the display.

7.2.1 Performing a complete scan

The automatic scan (Complete scan) scans all DAB+ band III channels and thereby finds all stations being broadcast within the reception area.
i After the scan is complete, the first station is played back in alphanumeric order.

In order to perform a complete scan, open the menu by keeping the Menu button depressed and use the Next/Prev. button to select the menu item [Complete Scan]. Press Select.
[Scanning...] appears on the display.
During the scan a progress bar and the number of stations found is displayed.
If no station is detected, check the telescopic antenna and, if required, change the installation location (Section 5.3.1).

7.2.2 Selecting the station

By pressing the Next/Prev. button, the station list can be called up and you can switch between the available stations.

7.2.3 Storing DAB+ stations on a memory slot

The programme memory can save up to 10 stations in the DAB+ range.

First select the desired station (see Section 7.2.2).
In order to store this station on a memory slot, hold down the Preset button during playback until [Save station]. Then use the Next/Prev. button to select a station memory slot (1 - 10). Press Select to save.
Repeat this process to save additional stations.

7.2.4 Retrieving DAB+ stations from a memory slot

To retrieve a station that you have stored in the FAV memory, briefly press the Preset button and select a station slot (1-10) using the Next/Prev. button. Press Select to play the station.

If no station is saved on the selected station slot, [(empty)] appears on the display.

7.2.5 Overwriting/deleting a station memory slot

Simply save a new station on a favourite memory slot as described.

When retrieving the factory settings all memory slots are deleted.

7.2.6 Manual setting

This menu item is used to check the reception channels and can be used to align the antenna. Furthermore, stations can be added manually.

Keep the Menu button pressed, use the Next/Prev. button to select the [Manual setting] item and press Select.

Select a channel (5A to 13F) with Next/Prev. and press Select. The signal strength will now be shown on the display. If a DAB+ station is being received on a channel, the station ensemble name is displayed. The antenna can now be aligned to the maximum signal intensity.

Stations with a signal strength below the required minimum signal intensity are not transmitting a strong enough signal. Align the telescopic antenna as described in section 5.3.1 if required.

If there are stations on the set frequency or channel that have not yet been stored in the station list, they will now also be saved.

7.2.7 Volume adjustment (DRC)

With the Volume Adjustment menu item, the compression rate is set which balances the dynamic variations and thereby the accompanying volume variations.

Keep the Menu button depressed and use the Next/Prev. button to select the item [Volume Adjustment].
Press Select.
Select the compression rate using Next/Prev..

DRC high - High compression

DRC low - Low compression

DRC off - Compression switched off.

Confirm by pressing the Select button.

7.2.8 Deleting inactive stations

This menu item is for removing old stations and those no longer being received from the station list.

Keep the Menu button depressed and use the Next/Prev. button to select the item [Delete inactive stations].
Press Select.

This is followed by the [Delete?] prompt asking if the inactive stations are to be deleted.

With Next/Prev. select the entry [Yes] and confirm by pressing the Select button.

8 FM mode

8.1 Switching on FM radio mode

Switch to FM mode by pressing the Mode button.
[FM] is shown on the display.

When switching on for the first time, the frequency is set to 87.5 MHz.
If you have already set or saved a station, the radio plays the last station set.
In the case of RDS stations, the station name appears.
Align the telescopic antenna to improve reception (Section 5.3.1).

8.2 FM reception with RDS information

RDS is a procedure for broadcasting additional information via FM stations. Broadcasters with RDS broadcast their station name or the programme type, for example. This is shown on the display. The device can show the RDS information RT (Radio text), PS (Station name), PTY (Programme type).

8.3 Automatic station scan

Hold down the Next button to automatically search for the next station with sufficient signal intensity.
If a FM station with sufficient signal intensity is found, the scan stops and the station is played. If an RDS station is being received, the station name appears and, possibly, radio text.
i Please use the manual station scan for setting weaker stations.

8.4 Manual station scan

Turn the Next/Prev. button repeatedly to set the desired stations or frequency.

The display shows the frequency in steps of 0,05 MHz. Next increases the transmission frequency, Prev reduces it.

8.5 Scan setting

In this menu item it is possible to set the sensitivity of the scan.

Keep the Menu button pressed and use the Next/Prev. button to select the item [Search settings]. Press Select.
Select whether the scan should only stop for stations with a strong signal [Strong Stations Only] or for all stations (including stations with a weak signal) [All Stations].

With the All Stations setting, the scan stops automatically upon detecting each available station. This can result in weak stations being played with background noise.

Select an option with Next/Prev. and press the Select button to save the setting

8.6 Saving FM stations to a memory slot

The station memory can save up to 10 stations in the FM range.

First set the desired station frequency (Section 8.3, 8.4).
In order to store this station on a memory slot, hold down the Preset button during playback until [Save station]. Then use the Next/Prev. button to select a station memory slot (1 - 10). Press Select to save.
Repeat this process to save additional stations.

8.7 Retrieving FM stations from a memory slot

To retrieve a station that you have stored in the FAV memory, briefly press the Preset button and select a station slot (1-10) using the Next/Prev. button. Press Select to play the station.

If no station is saved on the selected station slot, [(empty)] appears on the display.

8.8 Overwriting/deleting a station memory slot

Simply save a new station on the respective memory slot as described.

When retrieving the factory settings all memory slots are deleted.

9 System settings and other features

All settings explained in this section apply equally to all sources.

9.1 Sleep timer

The sleep timer automatically switches the TECHNIRADIO SOLAR OFF after the set time.

Keep the Menu button pressed and use the Next/Prev. button to select the item [System]. Press Select.
Select the entry [Sleep] with Next/Prev. and press Select.
Use Next/Prev. to select a period after which the TECHNIRADIO SOLAR should switch off. You can choose between Off, 15, 30, 45, 60 and 90 minutes.
Press the Select button to apply the setting.

When the sleep timer is active, an "S" appears in the display with the remaining time until it is switched off. If you want to switch off an active sleep timer, select Menu > System > Sleep > Off.

9.2 Time and date settings

9.2.1 Manually setting the time/date

Depending on the setting for time updates (Section 9.2.2), the time and date have to be set manually.

Keep the Menu button pressed and use the Next/Prev. button to select the item [System]. Press Select.
Select the entry [Time] with Next/Prev. and press Select.
Select the entry [Set date/time] with Next/Prev. and press Select.
The first digits (hours) flash and can be changed using the Next/Prev. button. Next increases the value, Prev. reduces the value.
Press the Select button to apply the setting.
The next time digits (minutes) start to flash and can again be changed as described above.
Press Select after every other setting in order to go to the next setting.
To set the date, proceed in the same way as described above.
After all settings have been done and the Select button pressed, [Time Saved] appears on the display.

9.2.2 Time update

In this submenu, you can determine whether the time update should be done automatically via DAB+ or FM, or whether you wish to enter it manually (Section 9.2.1).

Keep the Menu button pressed and use the Next/Prev. button to select the item [System]. Press Select.
Select the entry [Time] with Next/Prev. and press Select.
Select [Time Update] and press Select.
Select one of the following options with Next/Prev.:

[All sources] (Update via DAB+ and FM)

[Update from DAB] (Update via DAB+ only)

[Update from FM] (Update via FM only)

[No update] (Time/date must be entered manually, see Section 9.2.1).

Press the Select button to apply the setting.

9.2.3 Setting the time format

In the Set 12/24 hrs. submenu you can activate the 12 or 24-hour format.

Keep the Menu button pressed and use the Next/Prev. button to select the item [System]. Press Select.
Select the entry [Time] with Next/Prev. and press Select.
Select the item [12/24 hr. format] and press Select.
Choose one of the following options:

[Set 24 hrs.]

[Set 12 hrs.]

Press the Select button to apply the setting.

9.2.4 Setting the date format

In the Set Date Format submenu you can determine the format for displaying the date.

Keep the Menu button pressed and use the Next/Prev. button to select the item [System]. Press Select.
Select the entry [Time] with Next/Prev. and press Select.
Select [Set date format] and press Select.
Select one of the following options with Next/Prev.:

[DD-MM-YYYY] (day, month, year)

[MM-DD-YYYY] (month, day, year)

Press the Select button to apply the setting.

9.3 Display brightness

It is possible to set the display brightness both for operation and standby.

Keep the Menu button pressed and use the Next/Prev. button to select the item [System]. Press Select.
Select the entry [Backlighting] with Next/Prev. and press Select.
Select one of the following options with Next/Prev.:

[Operation] regulates brightness in normal operating status. You can choose from the [High], [Middle] and [Low] brightness intensities. Select the brightness level with Next/Prev. and press the Select button to save the setting.

[Standby] regulates the brightness in standby mode. You can choose from the [High], [Middle] and [Low] brightness intensities. Select the brightness level with Next/Prev. and press the Select button to save the setting.

[Switch off] dims the display automatically after the set time to the brightness value Low without the radio being used.

When the [On] option is selected, the display will be permanently lit with the brightness selected under [Operation]. Press the Select button to apply the setting.

9.4 Language

Keep the Menu button pressed and use the Next/Prev. button to select the item [System]. Press Select.
Select the entry [Language] with Next/Prev. and press Select.
Using the Next/Prev. button, select one of the available languages and confirm by pressing the Select button.

9.5 Factory settings

If you change the location of the device, e.g. when moving house, it is possible that the saved stations can no longer be received. In this case you can reset the device to factory settings to delete all the saved stations and then launch a new scan.

Connect the TECHNIRADIO SOLAR to the USB power supply.
Keep the Menu button pressed and use the Next/Prev. button to select the item [System]. Press Select.
Select the entry [Factory settings] with Next/Prev. and press Select.
Use the Next/Prev. button to select [Yes] to reset to the factory settings.

All previously stored stations and settings will now be deleted. The device is now in the same status as when delivered.

The display will show [Restart ...] and the device will start with the language selection [Language]. Using the Next/Prev. button, select one of the available languages and confirm by pressing the Select button. Following this, the device automatically performs a complete scan in DAB mode. While scanning, the display information shows the progress, as well as the number of digital radio stations detected. After completing the station scan the first DAB+ channel is played.

9.6 Software version

Under SW Version you can retrieve the currently installed software version.

Keep the Menu button pressed and use the Next/Prev. button to select the item [System]. Press Select.
Select the item [SW version] with Next/Prev..
Press Select. The current software version is displayed.

10 Cleaning

To prevent the risk of an electric shock, you may not clean the device using a wet cloth or under running water. Switch off the device before cleaning!

You may not use scouring pads, scouring powder and solvents such as alcohol or petrol.

Do not use any of the following substances: saltwater, insecticide, chlorine-based or acidic solvents (ammonium chloride).

Clean the housing using a soft, moist cloth. Do not use spirit, thinners, etc.; you could damage the surface of the device.

Only clean the display with a soft, cotton cloth. If required, use a cotton cloth with small amounts of non-alkaline, diluted, water or alcohol-based soap solution.

Gently clean the surface using the cotton cloth.

11 Troubleshooting

If the device does not operate as intended, check the following table for information.

Symptom Possible cause/remedy
The device cannot be switched on.	The device is not being supplied with power. Connect to the power supply correctly or charge the battery.
No sound can be heard. Increase the volume.
The display does not switch on. Disconnect the device from the power supply and then reconnect it.
Poor reception via DAB+/FM. Extend the antenna. Change the position of the antenna or the TECHNIRADIO SOLAR.
The device cannot be operated. Disconnect the device from the power supply and then reconnect it.

If the malfunction has not been resolved, even after performing the checks described, please contact the Technical Hotline.

12 Technical specifications / manufacturer's instructions

Subject to technical changes and errors.

Reception channels DAB/DAB+, FM
power supply DC input: 5 V, 1 A
Battery Li-ion 2000 mAh
Frequencies FM: 87.5-108 MHz	DAB/DAB+: Band III 174-240 MHz
Audio output performance 1x3 W RMS
Housing IPX5 (splash-proof)
Weight (g) 340
Dimensions (LXH*xD) mm 100 x 175x 41

*without antenna

Mode d'emploi

TECHNIRADIO SOLAR

Radio solaire FM/DAB+ portative

1.1 Description

3.2.3 Mentions legales 64

Risque de léssions auditives!

7.2.7 Volume regelen (DRC)
