Product type	Kitchen hood
Brand	Continental Edison
Model	CEH90BSS
Width	90 cm
Material	Stainless steel
Power supply	220-240 V ~ 50 Hz
Number of speeds	3 (low, medium, high)
Lighting	Integrated LED, 1.5 W, 12 V (not user replaceable)
Maximum airflow	477 m³/h
Maximum noise level	61 dB
Energy efficiency class	C
Fluid dynamic efficiency class	E
Grease filtration class	D
Minimum installation distance (electric)	700 mm
Minimum installation distance (gas)	800 mm
Exhaust diameter	150 mm (120 mm adapter supplied)
Operating mode	Extraction or recirculation
Filters	Metal grease filter (monthly cleaning) + Optional charcoal filter (annual replacement)
Control	Push buttons
Net weight	Not specified

Frequently Asked Questions - CEH90BSS CONTINENTAL EDISON

What is the minimum installation height between the hood and the hob?

For electric hobs, the minimum distance is 700 mm; for gas hobs, it is 800 mm.

How to clean the metal grease filters?

Grease filters should be cleaned every month with a household detergent or in the dishwasher. Regular cleaning prevents fire hazards.

Can I use the hood in recirculation mode without external exhaust?

Yes, you can use the hood in recirculation mode by installing the supplied charcoal filters. This mode is recommended if there is no air outlet to the outside.

How to replace the LED bulb of the hood?

The LED bulb is not user replaceable. In case of failure, contact after-sales service or a qualified repairer.

What to do if the hood does not turn on or does not work?

First check that the hood is properly plugged in and that the circuit breaker has not tripped. If the problem persists, turn off the appliance, unplug it for one minute, then plug it back in. If the malfunction persists, contact after-sales service.

How often should I replace the charcoal filter?

The charcoal filter should be replaced at least once a year, or more often depending on the use of the hood.

Can I install the hood myself?

It is recommended to have the hood installed by a qualified professional to ensure safety and proper operation. Follow the installation instructions provided.

What is the maximum airflow of the hood?

The maximum airflow (highest setting) is 477 m³/h.

Does the hood have a timer or automatic shut-off?

No, the CEH90BSS model does not have a timer. Shut-off must be done manually via the On/Off button.

How to clean the exterior of the hood?

Use a soft cloth dampened with warm soapy water. Never use metallic sponges, abrasive products, or steam cleaners.

USER MANUAL CEH90BSS CONTINENTAL EDISON

Installation (Mode extraction). 12

Installation (Mode extraction)

Read this guide carefully before installing and using this proc and keep it for future reference.

Thank you for choosing Oceanic. This Use and Maintenance Guide is designed to provide you with all the necessary information regarding the installation, use and maintenance of the appliance.

In order to operate the unit properly and securely, read this user guide carefully before installing and using the product.

Contents

Find some informations. 31

Important safety instructions 32

Lamp. 38

Description of the pieces 39

Installing the hood 41

Preparation before installation. 41

Installation (Mode extraction). 41

Recommendations for mounting. 42

Installation 43

Carbon filter installation 48

Cleaning. 49

Control Panel Functions 51

Technical informations. 54

Further information 56

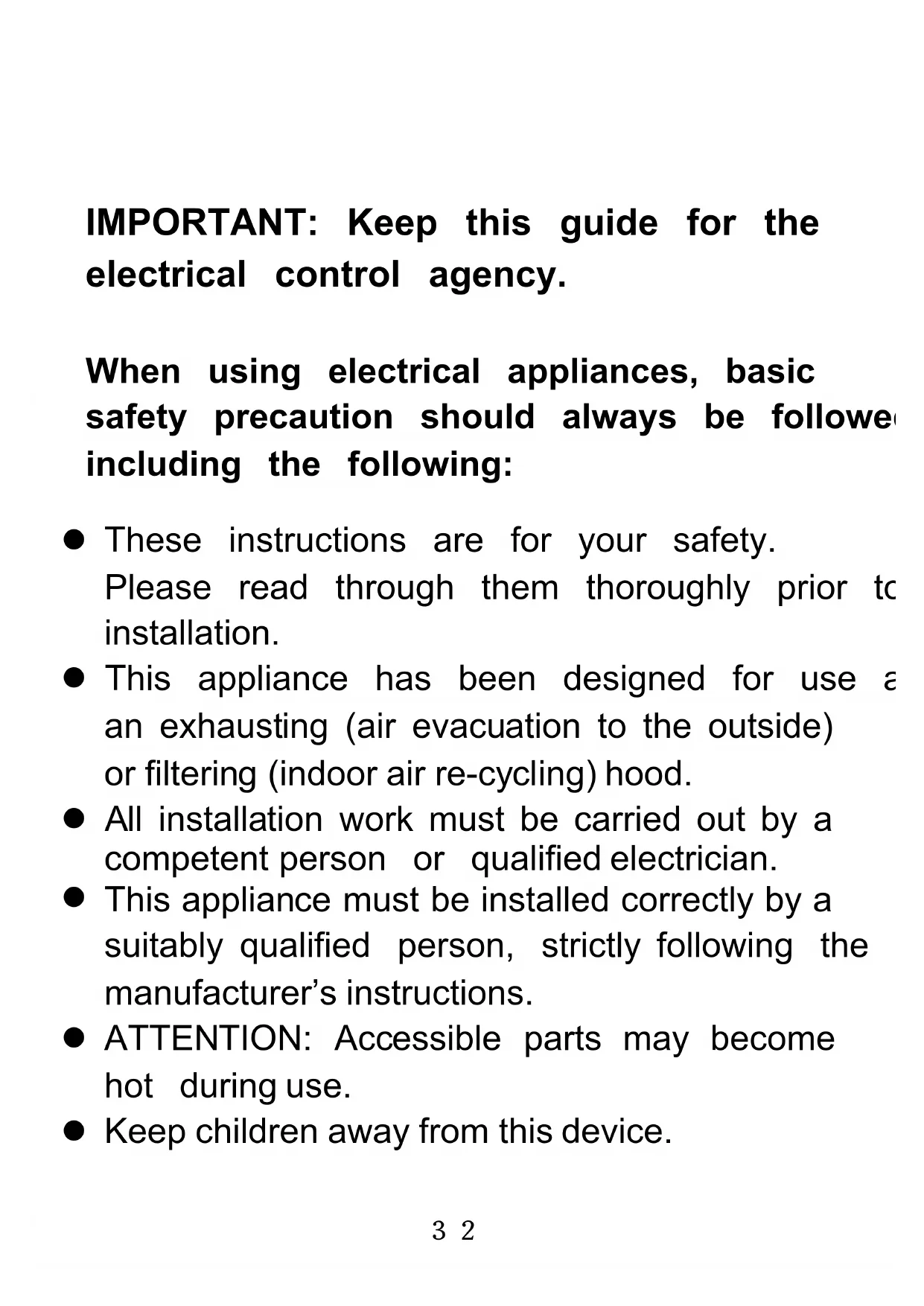

IMPORTANT: Keep this guide for the electrical control agency.

When using electrical appliances, basic safety precaution should always be followed including the following:

• These instructions are for your safety. Please read through them thoroughly prior to installation.
• This appliance has been designed for use as an exhausting (air evacuation to the outside) or filtering (indoor air re-cycling) hood.
• All installation work must be carried out by a competent person or qualified electrician.
• This appliance must be installed correctly by a suitably qualified person, strictly following the manufacturer's instructions.
• ATTENTION: Accessible parts may become hot during use.

• Keep children away from this device.

• The Manufacturer highly recommends that this appliance be kept out of the reach of babies and small children.

• This appliance can be used by children age from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Regularly check the power plug and power cord for signs of damage. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Do not allow the electric cables to touch the hot parts of the appliance.

• Make sure that the power cord is not caug under or in the appliance and avoid damage the power cable.

• Do not use flammable sprays in close vicinity to the appliance.
• Please dispose of the packing material carefully.
• We also recommend that you pay special attention during use and during cleaning. Refer to the instructions in the "CLEANING" section.
• A steam cleaner is not to be used.

• The appliance is not intended to be operated by means of external timer or separated remote-control system.

• Warning: When using for extraction, refer to the national regulations for building ventilation systems. Do not connect the exhaust pipe to VMC type ventilation system, to a flue (chimney, boiler, ...). Also check the absence of disturbance with the ventilation of the roof when there are gas appliances (water heater, gas stove, ...). If in doubt, use the hood in recycling mode.

• Proper ventilation of the room must be provided when the hood is used simultaneously with appliances using gas or other fuel.

• Air must not be discharged intoa flue that is used for exhaustingfumes from appliances burning gas or other fuels. The rules concerning the evacuation of the air must be respected.

• Warning: The hood may stop working during electrostatic discharge (e.g.lightning). This involves no risk of damage. Switch off the electricity supply to the hood and reconnect after one minute.

• To avoid the risk of fire, clean the metal fi regularly and closely watch and regulate pan containing hot oil.
• Do not flame under the range hood.
• Do not use the hood if it shows signs of or imperfection. Contact customer services.
• When installing the appliance, make sure that the following distances between the top of cooker or hob and the lowest part of the cooker hood must be observed:

Gas hobs: 800mm

Electric hobs: 700mm

• Warning:There is a risk of electric shock and fireif cleaning is not carried out in accordance with the instructions.
• Warning: For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.
• Warning: Failure to install the screws or fixi device in accordance with these instructions may result in electrical hazards.
• Warning: Before connecting the hood: switch off the electricity supply and check that the supplied voltage and frequency coincide with that indicated on the appliance nameplate.

Electrical Shock Hazard

Failure to follow these instructions can result in death, fire, or electric shock.

The available lamps and the correspondenceILCOS D codes and lamp pictures:Use type lamp (or use in alternative type lamp)DSR-1.5-S-68 (ILCOS D code in according to standardIEC 61231).

• Non-replaceable LED lamp
• Max wattage: 1.5 W
• Voltage range: 12 ~V

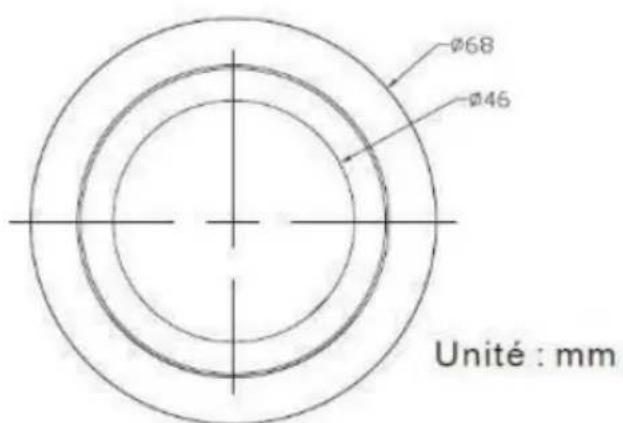

• Dimensions:

Note: If the supply LED bulb is damaged, it may be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

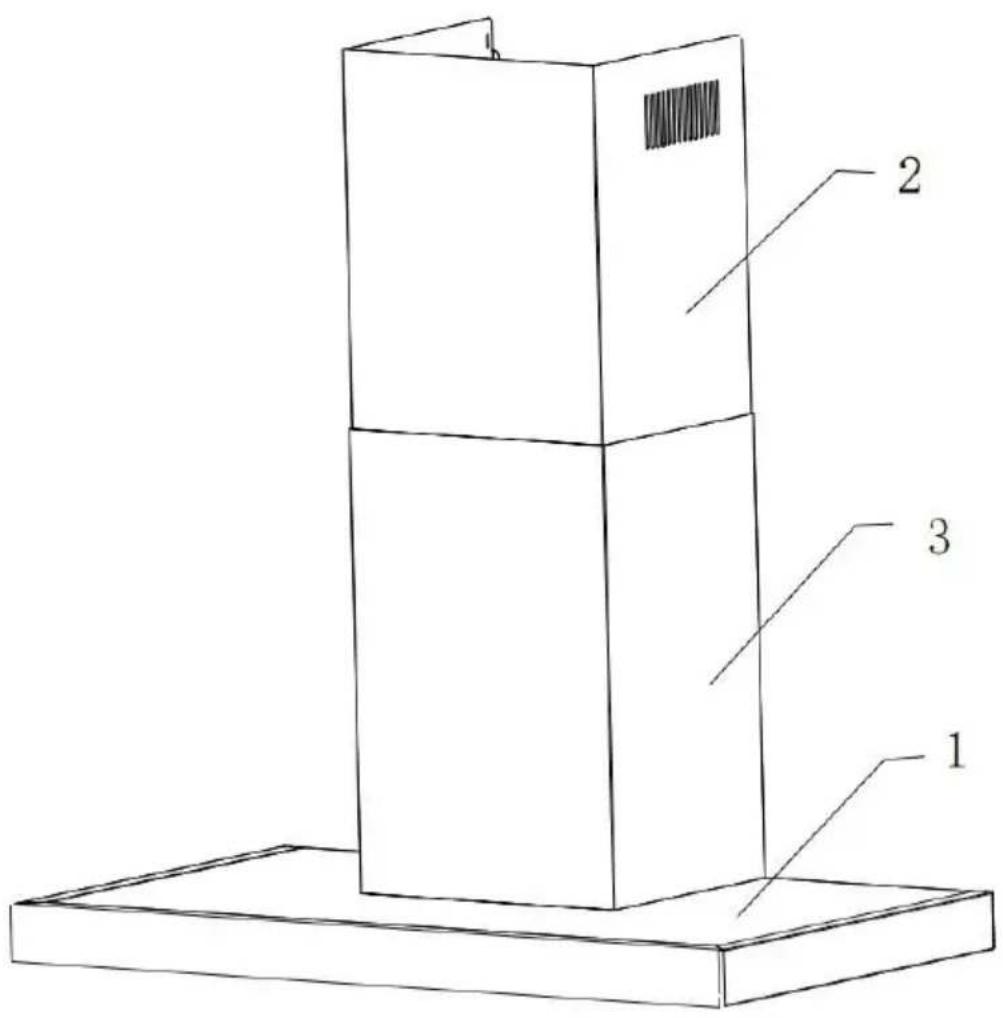

1.Hood body
2. Upper chimney
3. Lower chimney

Index	Description	Illustration	Quantity
PL-1	Hood body		1
PL-2	Upper chimney (300mm)		1
PL-3	Lower chimney (300mm)		1
PL-4	Upper chimney bracket		1
PL-5	Lower chimney bracket		1
PL-6	Cooker hood bracket		1
PL-7	Screw (ST4 x 8 mm)		2
PL-8	Screw (ST4 x 30 mm)		7
PL-9	φ8×φ6 (Not include)		7
PL-10	Carbon filter		2
PL-11	Plastic pipe(Φ 150-153mm; 2 meter flexible tube)		1
PL-12	Non-return valve		1

Preparation before installation

ATTENTION

Carefully remove the carton. Wear gloves to protect your hands from sharp edges.

ATTENTION

Remove the protective film from the product before putting it into service.

Installation (Mode extraction)

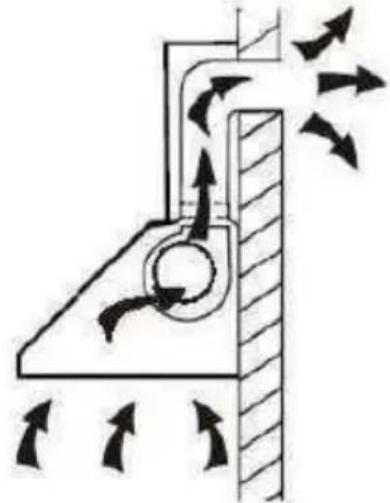

If the wall has an opening to the outside, your hood may be connected as shown in the diagram below using the suitable

exhaust pipe (not supplied), such as ductwork, flexible aluminum or other nonflammable material with an inside diameter of less than 150mm.

Recommendations for wall mounting

Do not make any changes to the unit or its mounting bracket on the wall!

Before installing the device, check the condition of the wall on which it will be fixed: the wall must be in good condition, it must not show any damage (cracks, sagging humidity, ...).

Do not drill a hole near old holes, even plugged It is imperative that you consult a building professional to use the anchoring system (screws, dowels, etc.) appropriate to the material that constitutes your wall, as well as to the weight of the appliance. Observe the diameter of the fixing screws indicated in this manual. Do not modify the holes for securing the unit or its mounting bracket to the wall.

Drill the wall with a drill of the appropriate size for the anchoring system. Remove debris and dust.

Regularly check the mounting points of the device on the wall. Tighten them if necessary.

INSTALLATION

Before installing, make sure the unit is not plugged into an electrical outlet.

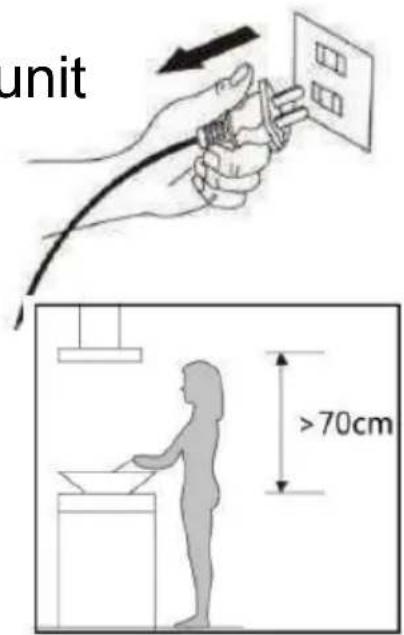

The hood must be placed at least 70 cm above the hob.

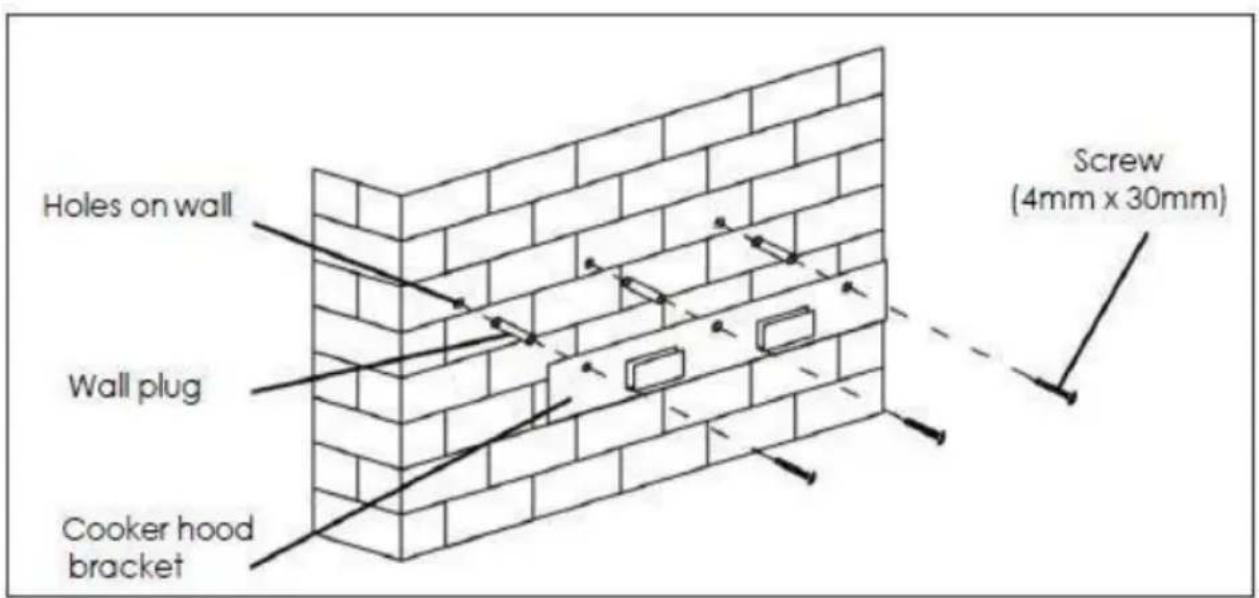

Step1.Drill 3 holes (Φ8mm to adapt your wall pl to place the bracket. Screw and tighten the brac to the wall with the screws 3 Screws (ST4x30m and 3 wall plugs (not supplied).

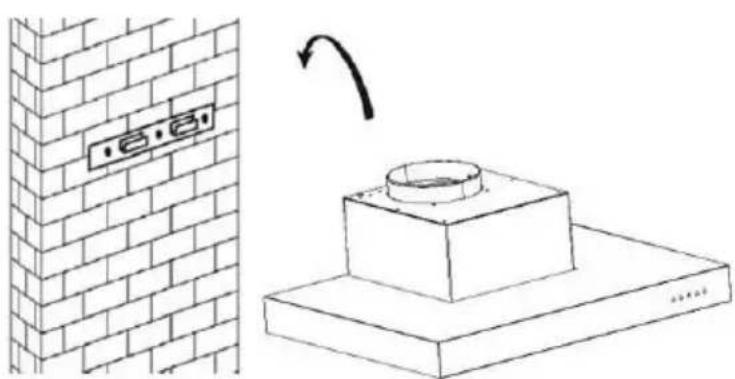

Step2. Place the range hood and hook it by using the two notches on the wall bracket.

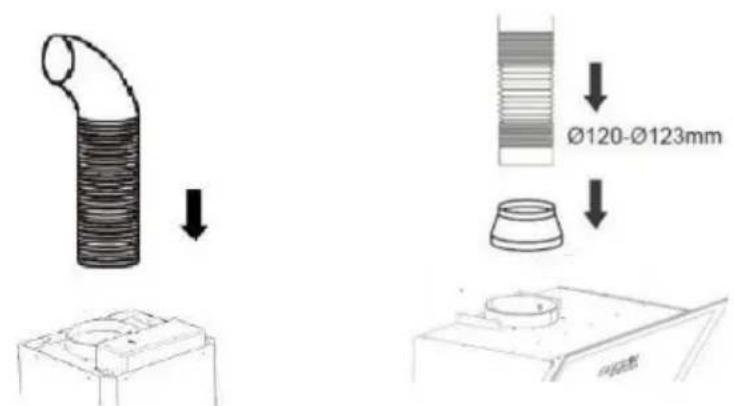

Step 3. (If the extraction installation mode is chosen) Place the 150 - 153mm plastic pipe (supplied) on the air outlet as shown below. If the size of your plastic pipe is 120 - 123mm , you must firstly assemble the adapter to the air outlet, shown below.

Step 4.Insert the lower chimney bracket into to lower chimney as below image.

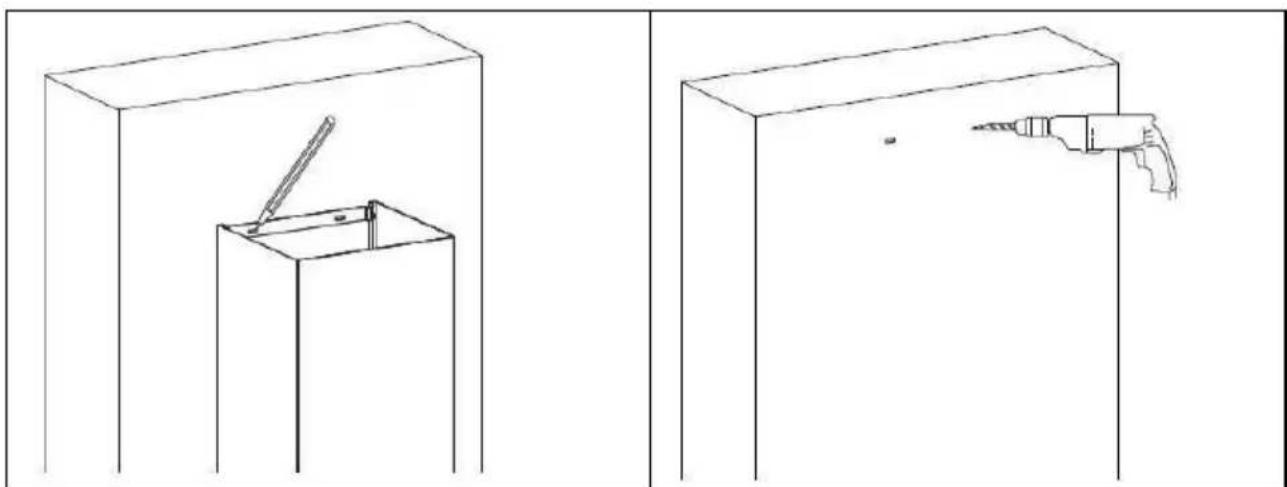

Step 5.Install the lower chimney on the applianc and mark the holes position on the wall.

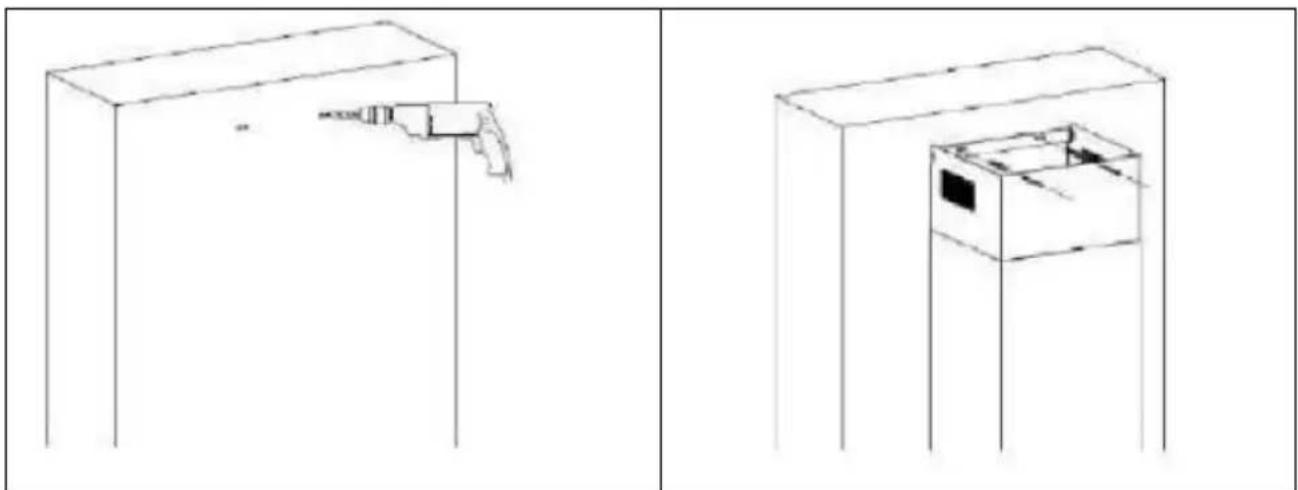

Step 6.Remove the lower chimney, then drill hole in the wall: hole with diameter 4 mm screw.

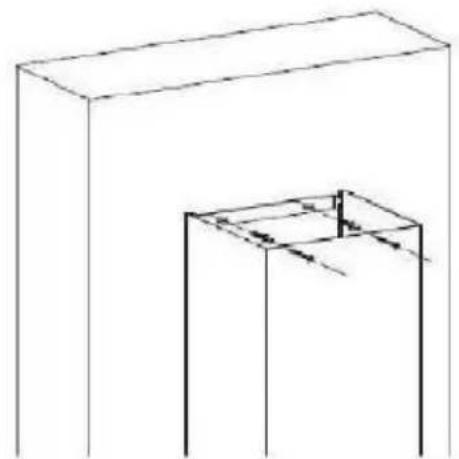

Step7.Install the lower chimney on appliance again, then screw it to the wall with 2 screws diameter 4 mm and the corresponding wall plugs (not supplied).Also screw the chimney and the hood with 2 screws(ST4x8mm)

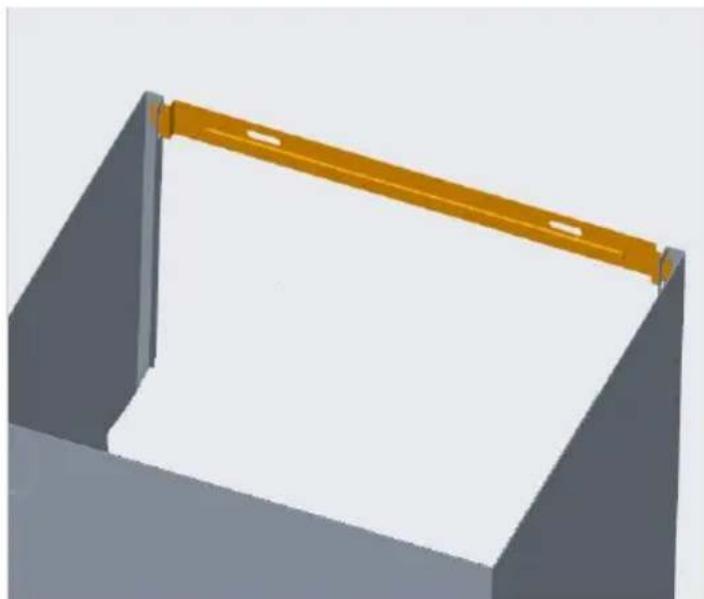

Step 8.Fix the upper chimney bracket on the upper chimney by 2 screws .ST4 x 8 mm Step 9.Pull the upper chimney upwards to the target height and mark the holes on the wall.

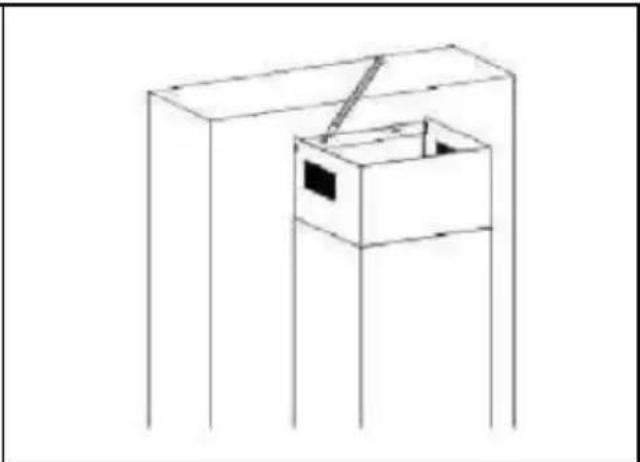

Step 10. Release the upper chimney and then drill holes on the wall.

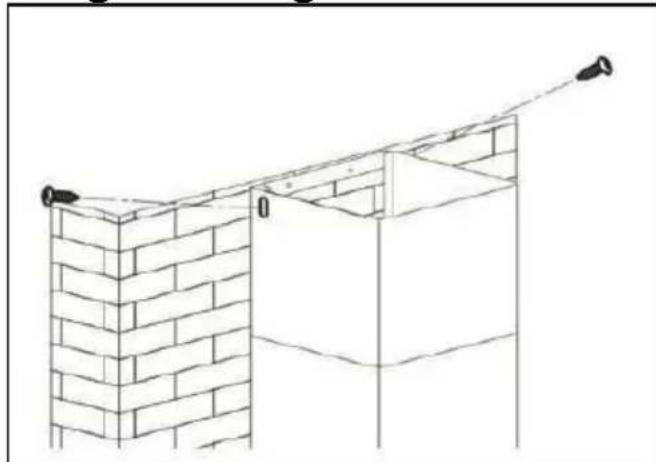

Step 11.Pull out the upper chimney again, then it to the wall with 2 screws ST4x30mm.

Recycling Mode:

If you do not have an outlet to the outside, plastic pipe is not required and the installation is similar to above. And you need to assemble the carbon filters which are used to trap odors.

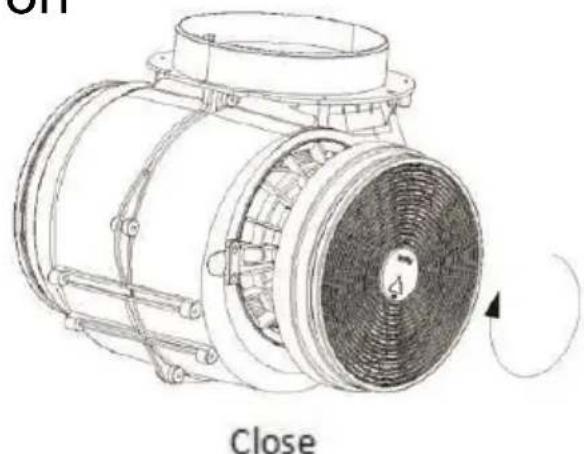

Place the carbon filter into the unit and turn it clockwise. Repeat the same on the other side.

NOTE:

Make sure the filter is securely locked. Otherwise it can fall and cause danger.

When charcoal filters are used, the suction power is decreased.

The carbon filter must be replaced at least once a year depending on how frequent the cooker hood used.

Regarding the instructions for the cleaning and maintenance of the appliance, please refer to below paragraphs of this manual.

Attention! Before cleaning switch the unit off and pull the plug.

Regular Cleaning

Use a soft cloth moistened with hand-warm mildly soap water or household cleaning detergent. Never use metapads, chemical, abrasive material or stiff brush to clean the unit.

Monthly Cleaning for Grease Filter

ESSENTIAL: Clean the filter every month can prevent any risk of fire.

The filter collects grease, smoke and dust. It is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

CAUTION! The lamp must not be covered by thermal insulation or other materials.

NOTICE! Only switch on the lights while the appliance is operating. Do not switch on the to lighten the room.

Do not touch the illuminant within 30 minutes using the appliance.

1. For model No.:CEH60BSS&CEH90BSS

Never press more than one key at the sam

ON/OFF

Light on/off.

Low motor speed, suitable for cooking which uses little cooking steam.

Medium motor speed, suitable for standard/

daily cooking.

High motor speed, suitable for cooking which

produces much cooking steam.

2.For model No.:CEH60CFC&CEH90CFC

On/Off key

For turning on/off the fan ,In working mode,short press this key to turn off the fan, long press this key to turn off all functions including light function.

Speed plus&decrease key

For increasing and decreasing the speed of the fan, from 1st-3rd speed, and from 3rd-1st speed.

Light key

Smoke and Smell sensor key

1. In standby/working state, long press the button of 'smoke and heat sense' for 1 second to enter the smoke and heat sense mode, the digital tube displays '8', and the l y flashes (monitoring);The motor stops working in the monitoring state, but the light switch is not restricted;In this state, press the key to return to standby state;

2. After 30 seconds of detection, 1 beep will be heard, the digital screen "8" will be extinguish, and the automa mode will be officially entered. The key indicator light or will keep breathing flashing.

3. Automatic state, smoke and heat sense real-time monitoring, monitoring to start the state, only start the motor in low speed, the display display "1", the light to maintain the current state.

4. After entering the automatic mode, press the key to return to standby state; 'Light' button works normally;

5. In working state, long press the key to turn off all functions and return to standby state.

Quick timer: Press & simultaneously for 2

second. The digital display flashes & the countdown starts for 5 minutes. After 5 minutes, the motor & light will turn off automatic & Buzzer sound for 1 second. During countdown, Press&

simultaneously for 2 second again can stop countdown function.

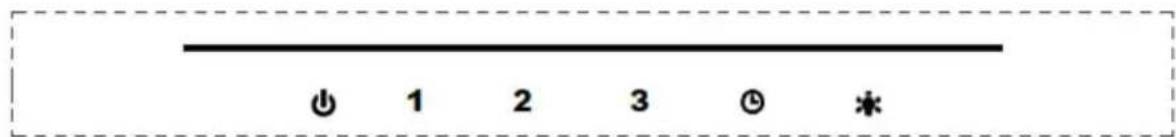

3.For model No.:CEH60477B&CEH90477B

On/Off key

It's used for turning on/off the fan.

1 Low motor speed, suitable for cooking which produces little cooking steam.
2 Medium motor speed, suitable for standard/ daily cooking.
3 High motor speed, suitable for cooking which produces much cooking steam.

Light key

Timer (automatic switch-off):

• Pressing the key during operation causes the hood to switch off automatically after 5 min (with a beep). The flashing of the indicator li indicates stherunningcountdown.

To deactivate the timer, press the key again.

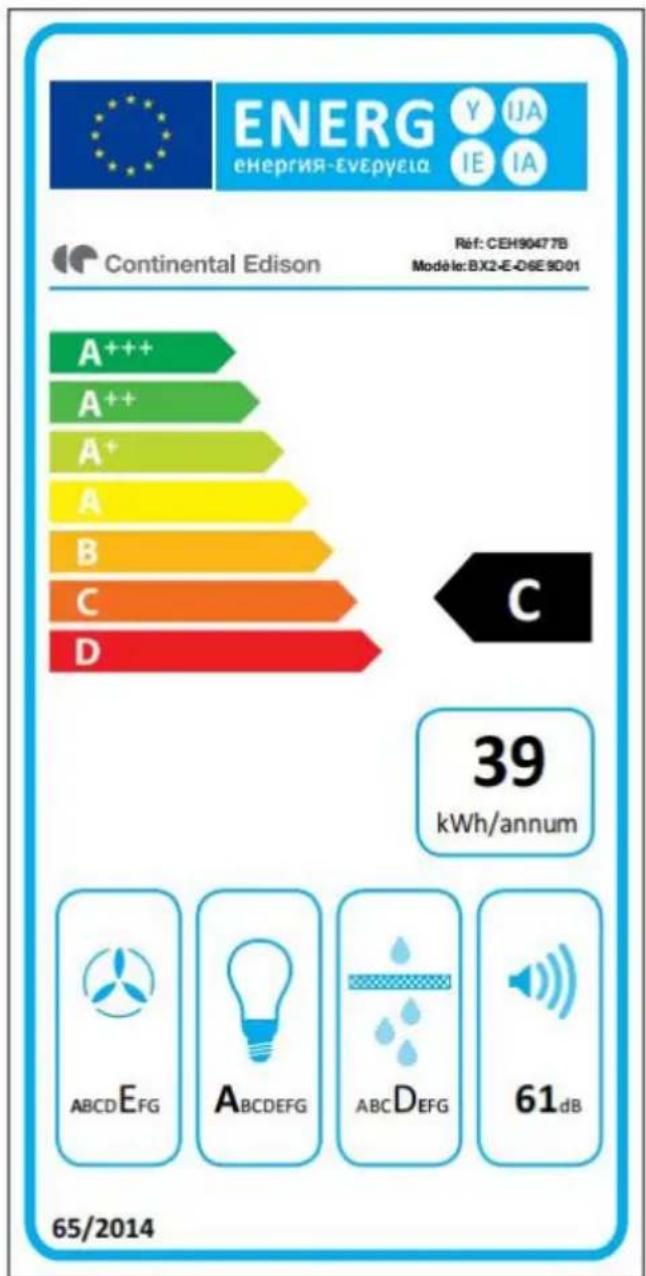

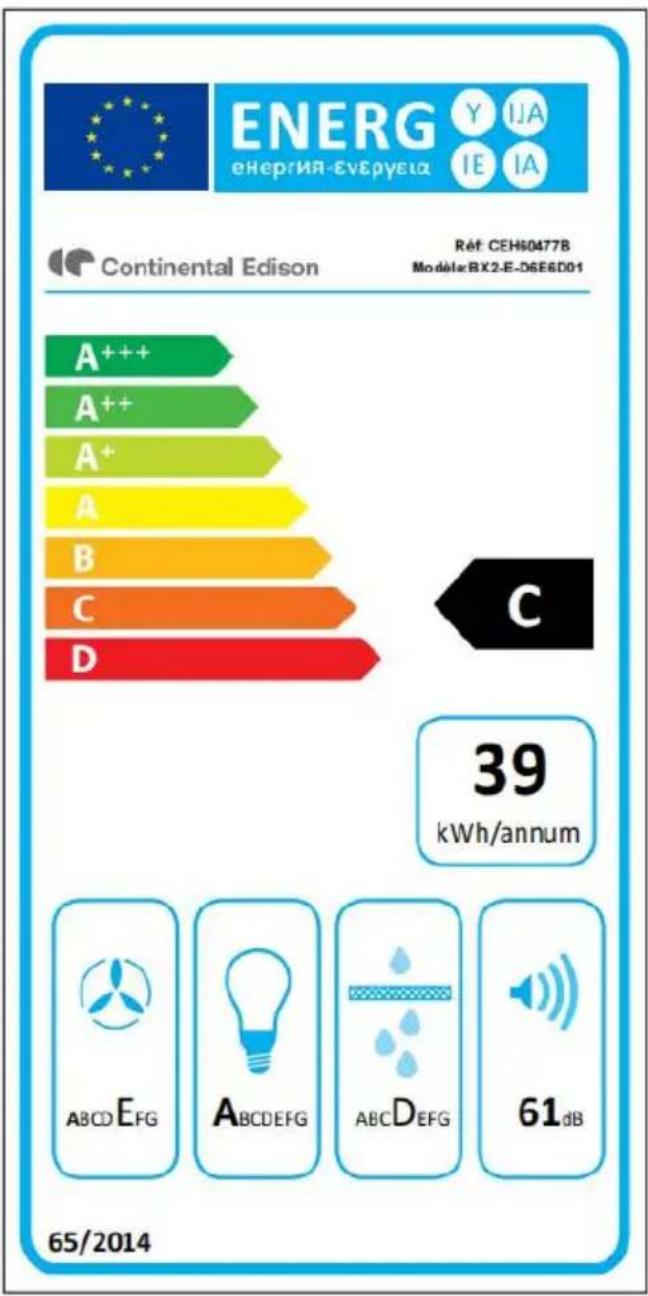

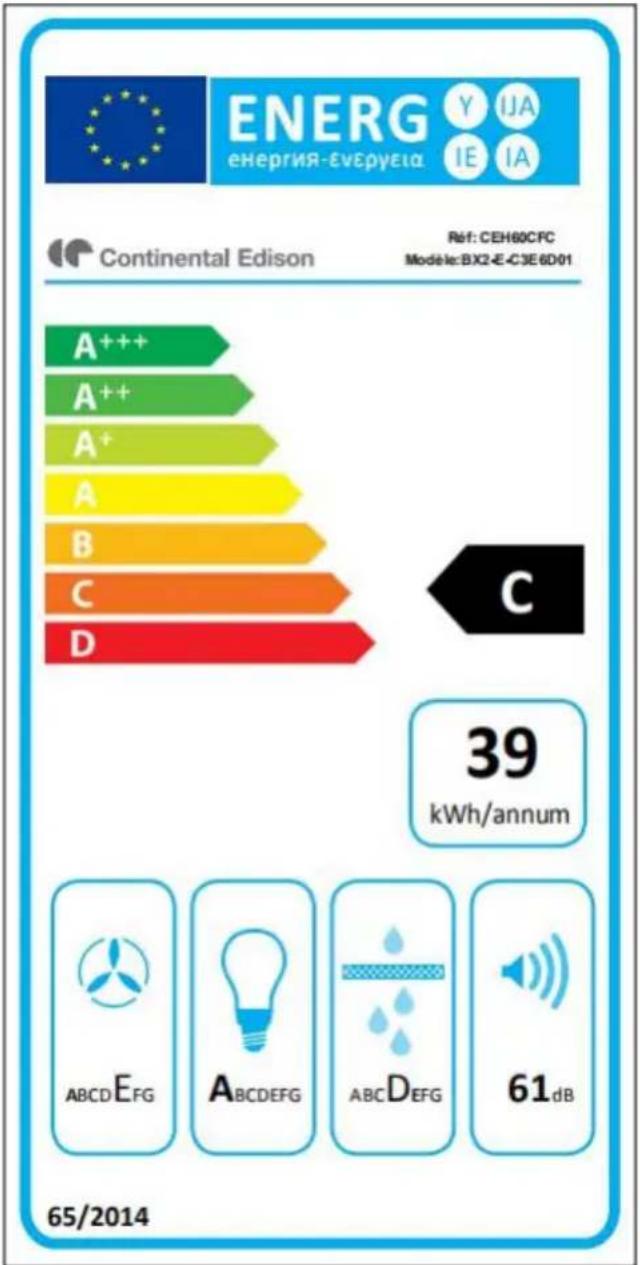

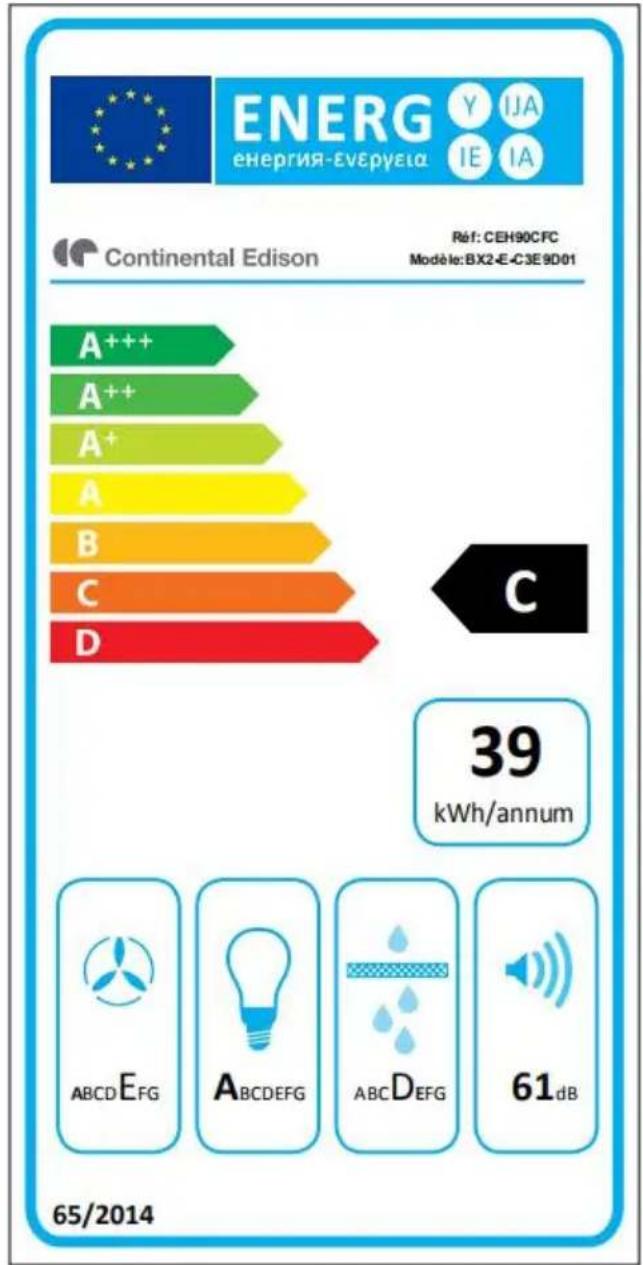

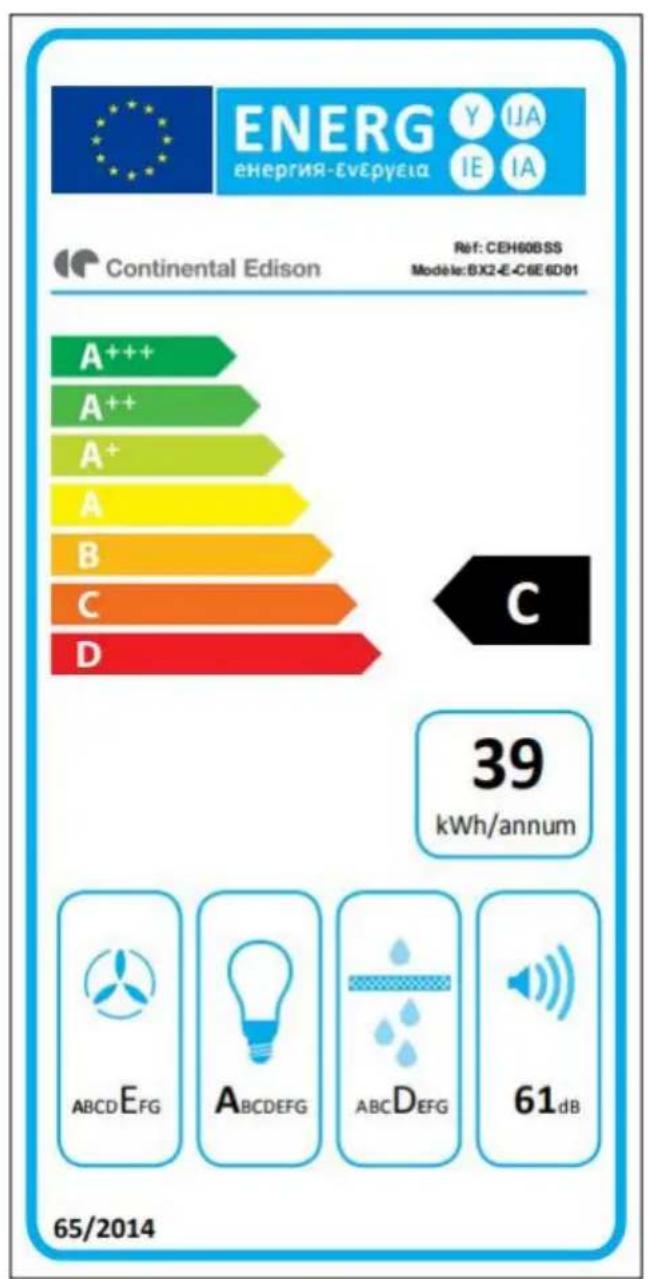

	Symbol	Value Unit
Model identification	Ref.:CEH60477B & CEH90477B CEH60BSS & CEH90BSS CEH60CFC & CEH90CFC
	Models:BX2-E-C6E6D01 & BX2-E-C6E9D01 BX2-E-C3E6D01 & BX2-E-C3E9D01&BX2-E- D6E9D01&BX2-E-D6E6D01
Annual Energy Consumption	AEChotte 3	9.0	kWh/a
Energy Efficiency class		C
Time increase factor f		1.6
Fluid Dynamic Efficiency	FDEhotte	10.3
Fluid Dynamic Efficiency class		E
Energy Efficiency Index	EEIhotte	75.4
Measured air flow rat at best efficiency poin	QBEP	277.9 m	3/h
Measured air pressure at best efficiency poin	PBEP	84	Pa
Maximum air flow(Boost setting)	Qmax	--	m³/h
Maximum air flow(highest setting)		477.0	m³/h
Air flow at working point(highest setting)		433 m	3/h
Air flow at working point(lowest setting)		320 m	3/h
Measured electric power input at best efficiency point	WBEP	63.1	W
Nominal power of the lighting system	WL	3	W
Average illumination of the lighting system on the cooking surface	Emiddle	600mm:103>600mm:102	lux
Lighting Efficiency	LEhood	600mm:34.3>600mm:34.0	lux/W
Lighting efficiency class		600mm:A>600mm:A
Grease Filtering Efficiency	GFEhood	73.1(for 2 filters)72.4(for 3 filters)
Grease Filtering Efficiency class		D(for 2 filters)D(for 3 filters)
Measured power consumption in standby mode	Ps	/	W
Measured power consumption off mode	Po	C3:0.44WC6:	W
Sound power level	LWA	Boost setting:-Highest setting:61Lowest setting:55	dB

The method of measurement and calculation of the above table is in accordance with Commission Regulation (EU) No 65/2014 and 66/2014

CONTINENTALEDISON

120-126 quai de Bacalan

CS11584

33000 Bordeaux

Importé par A.M.C.

The following recommendations specify how to reduce the overall environmental impact of the cooking process.

(1) Install the range hood in a suitable location with good ventilation.
(2) Clean the cooker hood regularly so that nothing blocks the air.
(3) Do not forget to turn off the hood lamp once cooking is complete.
(4) Do not forget to turn off the range hood once cooking is complete.

Disassembly Information

Do not disassemble the unit in a manner that is not indicated in the op instructions. This device must not be disassembled by the user. At the e life cycle, the appliance must not be disposed of with household waste. recycling tips, please contact your local administration or dealer.

ENVIRONMENTAL PROTECTION

Electrical and electronic equipment is subject to selective collection. Do not dispose of used electrical and electronic equipment with unsorted household waste; instead, take part in their selective collection.

It is for this reason that your appliance, as indicated by the symbol on its nameplate or on the packaging, must never be thrown in a public or bin intended for household waste.

The user has the right to deposit the device in public collection places selectively dispose of the waste to be recycled or reused for other applications. The packaging is recyclable..

Continental Edison
