USER MANUAL CELEDHP30W20B3 CONTINENTAL EDISON

UTILISATION ET MANIPULATION DES PILES (non fournies):

Please read and follow the instruction below to ensure that you can use this safely and in a correct method. Please keep this manual for future reference.

SAFETY INSTRUCTION

CAUTION: TO PREVENT SHOCK HAZARDS, DO NOT OPEN THE UNIT.

THIS DEVICE DOES NOT CONTAIN ANY SPARE PARTS THAT CAN BE REPAIRED OR REPLACED BY THE END USER.

DO NOT TRY TO REPAIR THIS UNIT BY YOURSELF OR YOU MAY CAUSE DAMAGE THAT IS NOT COVERED BY THE PRODUCT WARRANTY.

ONLY A QUALIFIED TECHICIAN SHOULD SERIVCE THIS PRODUCT

WARNING! To prevent any fire or electrical hazards:

• The apparatus shall not be exposed to dripping or splashing.
• No objects filled with liquids, such as vases, shall be placed on the apparatus.

• Minimum distance around the apparatus for sufficient ventilation is 10 ~cm

• The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc....

• No naked flame sources, such as lighted candles, should be placed on the apparatus.
• The apparatus shall be used in moderate climates only.
• The plug shall remain readily operable.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

WARNING: To avoid possible hearing damage, do not listen at high volume levels for a long time.

General precautions

• Do not let children to play with this unit and its accessories alone without adult supervision.

• Do not hit or slam this product. Don't walk on the unit. Don't let the unit fall.

• Keep the device away from liquids, humid and dusty environment; put it away from excessive hot or cold temperature. It's recommended to use the device only with temperature indicated on the technical specification.

This device is not adapted to a tropical climate.

• Keep the device away from all metallic objects (coins, keys...). Don't let it close to magnetic field which could damage the device.

• Do not block the area above the speaker mesh

• This device is intended for domestic use and should not be used for any purpose or any other application.
• Respect the instruction of use of external devices that you connect to the tower (USB charging port connection and USB playing port connection)

Avoid electric shock, fire and explosions

• Do not use any damage power cords and cables or loose electrical outlets.
• Place cable in such a manner that it cannot be walked on, especially the ends connected to the device and the AC adapter.
• Do not twist or bend the power cord.
• Do not pull the power cord when removing it from the outlet
• Do not operate this appliance with wet hand, especially during charging.
• Do not touch the cord or plug if your hands are wet.

• Do not cover or block any ventilation openings.

• Do not overload the electrical outlet. Plug the product into a proper power source as described on the operating instructions.

• In order to prevent any overheating, when the device is on, do not let it in a place without ventilation like a bag for example.

• Do not short circuit in any way.

• Do not drop the device or the AC adapter and avoid jolting shocks.

• Unplug this apparatus during lightning storms or when unused for long periods of time.

• To ensure normal operation of the equipment and your personal safety, we recommend you to choose a power adapter whose characteristics correspond to those provided by the manufacturer (see technical specification). Make sure that the adapter receives certification, as this could result in overheating and cause a fire, endangering your own life. Charging can cause interference that will disappear immediately after you have disconnected the device.

• The unit must not be installed at sites with gas / flammable sources or explosives (in a petrol station for example).

• Protect the unit from rain and excessive moisture. If water (or any liquids) is introduced into the apparatus, it must be turned off immediately and wipe it.

• Avoid exposing the device to high external pressure, which can lead to an internal short circuit and overheating
• Never put the device in or close to heating appliances such as microwave ovens, stoves, cooking tables, heaters or other (including audio amplifiers).
• Install away from electric or magnetic fields.

Protect the device and the battery for any damage.

• Do not use harsh chemicals, cleaning solvents or strong detergents to clean the unit otherwise promote corrosion. Clean it with soft and dry tissue.
• Avoid the battery getting in contact with metallic objects, as this could cause a short circuit between the (+) and (-) terminals of the battery and the administrator, temporarily or permanently
• Never dispose the device in fire.
• Batteries :

Meaning of the main symbols on the charger :

Never dispose the device in fire.

Li-Ion	The device is supplied with a 7.4V 2200mah rechargeable lithium battery which cannot be repaired. Remove the battery from the device when disposing of the device. The battery should not be thrown in the trash, but deposited in an approved collection center so that it can be recycled.
	WARNING! Never short-circuit the battery. Do not disassemble the battery. Do not reverse the polarity. Do not throw the battery into fire. Use only the power cable supplied with the device.

USING AND HANDLING OF BATTERIES:

• WARNING: Danger of explosion if the batteries are not inserted correctly or if they are replaced by non-like or no similar model.
• Replaced the batteries only by same type of batteries or equivalent.
• Batteries must not be exposed to excessive heat like

sun or fire.

• Never throw batteries into fire or expose them to sources of heat.
• Different types of batteries, or new and used batteries must not be mixed.
• Batteries have to be inserted with the correct polarity like indicated on the remote control.
• Exhausted batteries have to be removed from the remote control.
• Only dispose of batteries in specific collection containers (contact your retailer for more information) in order to protect the environment.
• Don't ingest the battery, danger of chemical burn
• Keep news and used batteries out of reach of children and animals.
• Do not short-circuit the battery.
• If the battery is swallowed, it can cause serious intern burn in 2 hours only and cause the death.
• If the battery compartment doesn't close properly, stop using the product and keep away from children.
• In case of doubt concerning that the batteries may have been swallowed or introduced into any part of the body, call immediately a doctor.

Information on the markings on the remote control:

The marking indicates that this point requires special attention when using the remote control, a device or equipment when this symbol is affixed.

The marking indicates that the user manual should be read carefully when using the remote control or the equipment in which this symbol is affixed.

About the using, manipulation, cleaning and disposal, please see the chapters below of this notice

This instruction manual can be modified without prior notice

Information on the signification of CE marking C€

Marking C indicates that this product meets the quality requirements set by the European Directives 2014/53/UE (RED), 2011/65/UE (restriction of the use of certain hazardous substances in electrical and electronic equipment RoHS).

SOMMAIRE

SAFETYINSTRUCTION Page 22

I - PRODUCT DESCRIPTION

a. Front panel

Page 31

b. Rear panel

Page 32

c. Remote control

Page 33

II- Technical specification Page 34

III- INSTALLATION Page 34

IV- USING

1. Standby

Page 35

1. Bluetooth setting

Page 36

1. AUX Mode

Page 36

1. USB Mode

Page 36

V-GARANTY

VI- DISPOSAL

I. PRODUCT SPECIFICATION

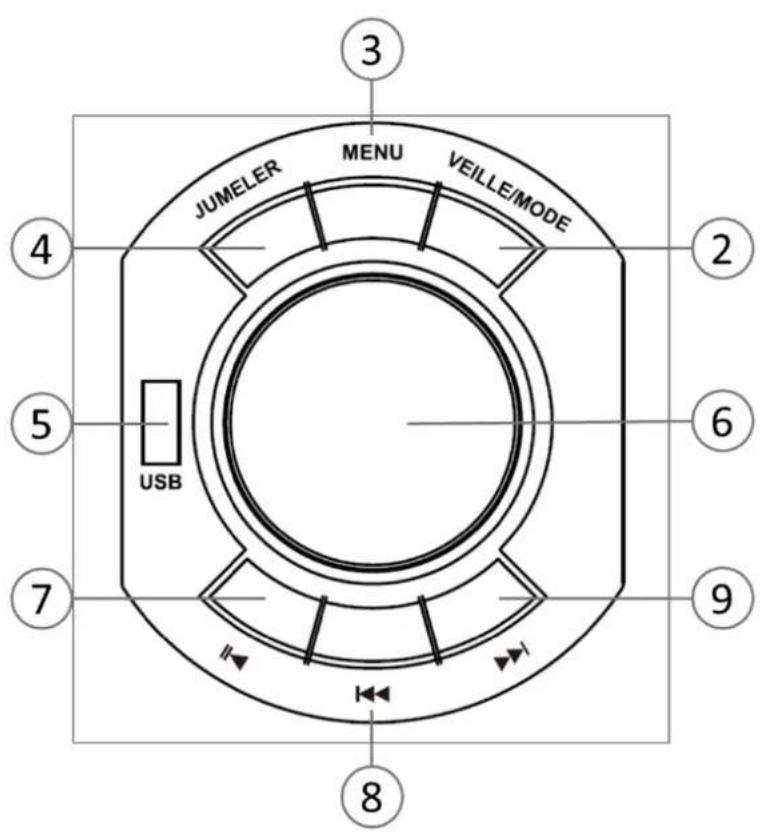

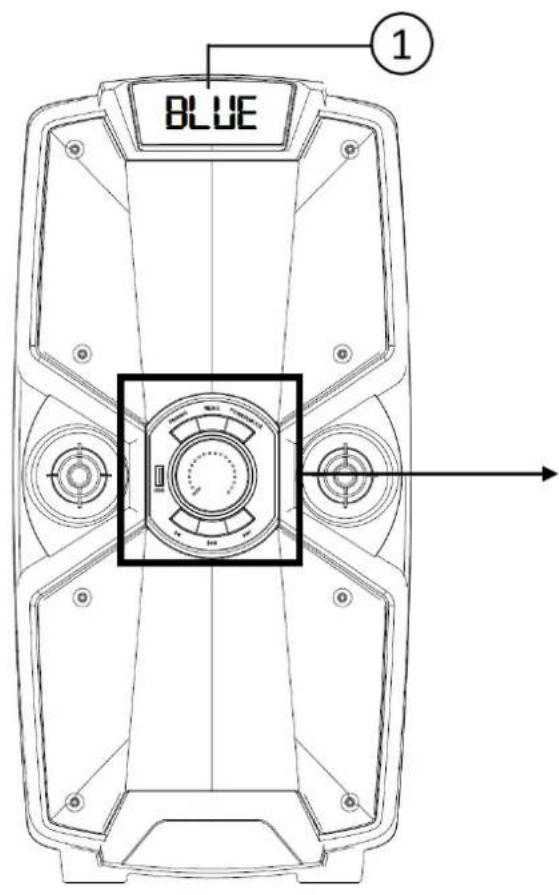

a) Front panel :

1. LED SCREEN

1. Standby/MODE : press this button once to turn on the speaker. Press this button again to change the mode: AUX / BLUETOOTH / USB. Long press this button to turn off the device.

2. MENU: Press this button to display on the screen: T-Treble / B-Bass / EC-ECHO / CV-Mic volume / V-Main volume; then turn the knob to adjust the effects you want. Note: The Echo & Volume effects of the microphone only work when the supplied microphone is connected.

3. PAIR: Long press this button to pair a device with your speaker or to connect or disconnect Bluetooth.

5. USB Port

1. VOLUME : Main volume control ;

7. Play/Pause

1. Previous track / fast track :

2. USB mode: press and hold the button/fast track - press once/previous playback

3. Bluetooth mode: press once/previous track:

4. AUX mode: no function

9. Next track / fast track :

• USB mode: press and hold the button/fast track - press once/next playback
• Bluetooth mode: press once/next track:
• AUX mode: no function

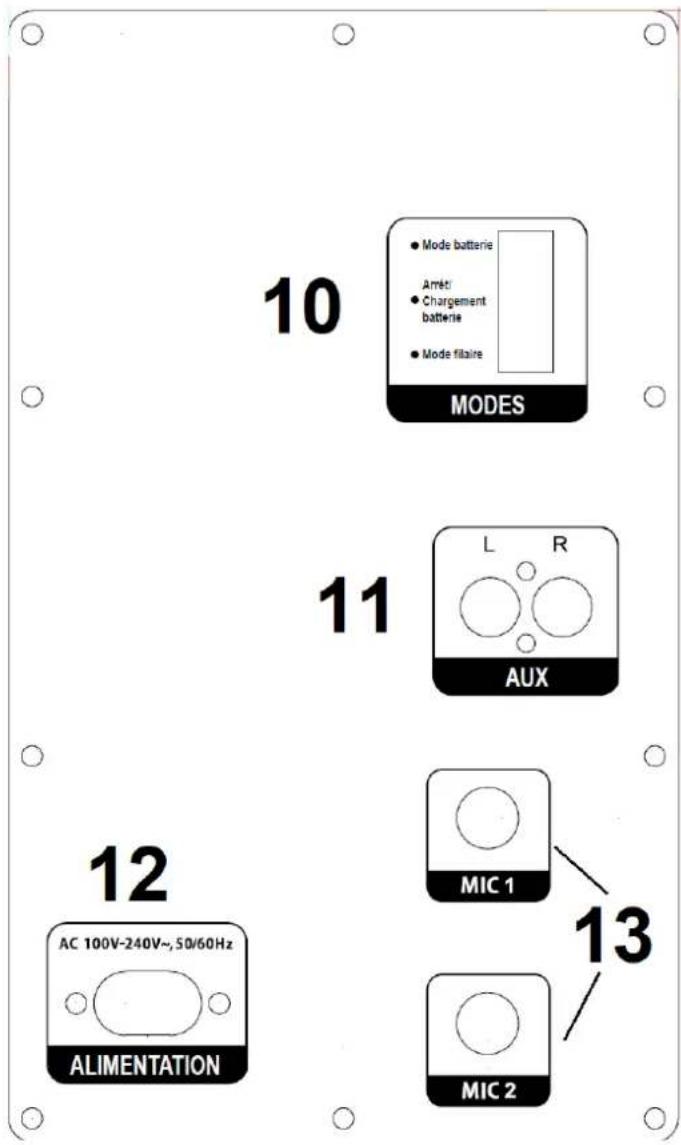

b) Rear panel :

1. Wired mode : operation on power cable :

Shutdown / Battery charging : switch off the device and recharge

Battery mode : battery operation

1. AUX In
2. AC IN : power cable supplied 100-240V / 50-60Hz
3. Micro inputs (x2)

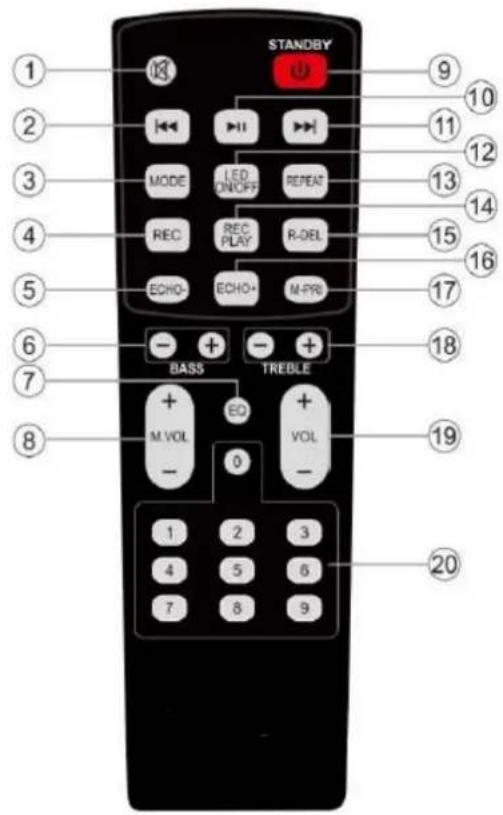

1. Mute

2. Previous track / fast track :

3. USB mode: press and hold the button/fast track - press once/previous playback

4. Bluetooth mode: press once/previous track:

5. AUX mode: no function

6. Mode - Press once to change the mode : BLUETOOTH - AUX - USB

7. REC - insert a USB key then press REC to start recording. To stop recording press the REC button again. Press REC PLAY to listen to the recording

8. ECHO -

9. Bass +/-
10. Equalizer - Pop / Rock / Jazz / Classique / Custom / normal
11. M.VOL : Setting the microphone volume

12. Standby Switch on/Witch off

13. Play/ Pause

14. next track / fast track :

15. USB mode: press and hold the button/fast track - press once/next playback

16. Bluetooth mode: press once/next track:

17. AUX mode: no function

18. LED On/Off Turn on or off the LED lighting

19. Repeat - USB Mode, press to repeat the song
20. REc Play Listen to your recordings
21. R-DEL To delete recorded files (only works in recording mode)
22. ECHO +
    17.M-PRO When the microphone is connected, the microphone volume has priority over that of music. Only works when the microphone is connected.
23. Treble +/-
24. Volume +/-
25. Touches 0-9

II. TECHNICAL SPECIFICATION

Name of the product	Enceinte High Power 50W
Brand	Continental Edison
Référence	CELEDHP30W20B3
Modèle	HC-605M
Output power	20W RMS
Electric class	II
Alimentation électrique	110-240 V ~ 50/60 Hz
battery reference	Li18650 2000mAh
Battery type	Li-ion
Battery specification	DC 7.4V=2200mA
Output power by hour	16,28 Wh
Frequency in response of the product	40Hz-18KHz
Signal to noise ratio	≥65dB
Bluetooth	Version 5.0 Frequency band : 2.4-2.483.5GHz Maximum power emitted : <90mW
Entrance ports	1× USB port for music and recordings 1× RCA LR : auxiliary input 2× Micro Jack
Batteries remote	2X battereds type LR6 (AA) not supplied

This device is intended for domestic (indoor) use in all countries of the European Community without restriction.

Restriction: For France, the frequency bands from 2454 to 2483.5 MHz must be used only indoors.

III. INSTALLATION

1. Package contents :

From the opening of the gift box, please check the content of the list below:

1x High Power Speaker

1x Remote control (2x batteries AAA not supplied)
1x AC cable
1x Micro
1x Notice

2. Unpaking the product and disposal

Packaging materials

• The carton is recyclable.
• The materials marked with the symbol are recyclable:

  PE < = polyethylene; > PS < = polystyrene; > PP < = polypropylene; ...

This means that they can be recycled by getting rid of them in appropriate collection containers.

• Other packaging materials (adhesive, fasteners, etc.) must be disposed of with household waste.

For more information: www.quefairedemesdechets.fr

IV. USING

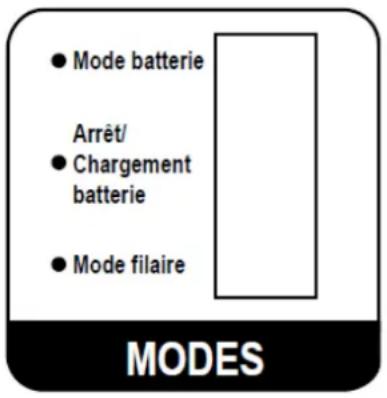

1. Modes On/Off :

For any intervention on the device or replacement of the battery, contact a professional. Never replace the battery by yourself.

2. Bluetooth Mode :

Turn on the speaker, then press the MODE button on the remote control or on the speaker to select BLUETOOTH:
Keep the Bluetooth device within 3 ~ 6 meters from the speaker during the pairing process.
Note: Interference may occur during the pairing process or during playback when the Bluetooth function is used near other wireless devices.
Set your Bluetooth enabled mobile phone or device to search for Bluetooth devices.
When the Bluetooth speaker is available on your external device, select « CELEDHP30W20B3 » from the list of devices found; If requested, enter the password "0000". Select "OK" or "YES" to pair the two devices.

3. Mode AUX

Turn on the speaker. Connect one end of the jack cord to the headphone jack of your device (audio player, etc.), Plug the other end of the cord into the RCA input of the speaker.
Press the MODE button on the remote control or on the speaker to select AUX mode.
Use the controls on your audio player connected to the speaker for music playback.

4. Mode USB :

Turn on the speaker. Insert the USB memory stick containing music files into the USB port located on the front panel of the speaker.
The speaker will switch to USB Mode and play music automatically.
USB mode only works with a USB stick

V. GUARANTY

The warranty does not cover product wear parts, neither problems or damage resulting from:

(1) superficial damage due to normal wear of the product
(2) defects or damage due to contact of the product with food or liquids, and due to corrosion caused by rust;
(3) any incident, abuse, misuse, modification, unauthorized removal or repair;
(4) any improper maintenance operation not in accordance with product instructions or connection to improper voltage use;
(5) any use of accessories not supplied or approved by CONTINENTAL EDISON.

The warranty will be cancel in case of elimination of the rating label and/or the serial number product.

VI. DISPOSAL

The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the

recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

As a responsible retailer, we care about the environment

As such we urge you to follow the correct disposal procedure for the product, packaging materials and if applicable, accessories and batteries. This will help conserve natural resources and ensure that the materials are recycled in a manner that protects health and the environment.

You must follow laws and regulations about disposal. Waste electrical products and batteries must be disposed of separately from household waste when the product reaches the end of its life.

Contact the store where you bought the product and your local authority to learn about disposal and recycling.

EU declaration of conformity

Nous, societe :

Hereby, we

VESTEL France

17 RUE DE LA COUTURE - PARC D'AFFAIRES SILIC

94563 RUNGIS-FRANCE

Declare that the product(s) here below

Complies (comply) to the essential provisions of the EC directive(s)

Directive basse tension Low voltage directive	2014/35/EU	×
Directive CEM EMC directive	2014/30/EU	×
RED Directive	2014/53/EU	×
Directive ErP ErP directive	EC regulation n° 1275/2008 EC regulation n° 801/2013 EN 50564:2011	×
RoHS	2011/65/EU	×
Directive batterie	IEC 62133-2 :2017 2006/66/EC

The essential provisions of the following harmonized standards

EN62368-1:2014/A11:2017

EN 50663:2017

EN300328V2.2.2

EN301489-1V2.2.3

EN301489-17V3.2.2

IEC 62321-3-1:2013

IEC 62321-4:2013+A1:2017

IEC62321-5:2013

IEC62321-6:2015

IEC62321-7-1:2015

IEC 62321-7-2:2017

IEC 62321-8:2017

Date and place of issue

15/04/2020 - Rungis

Fonction: Responsible qualite

Position

Continental Edison

www.continentaledison.fr

Continental Edison - 120-126 Quai de Bacalan - CS 11584 - 33000 Bordeaux
