USER MANUAL HBC564QW GORENJE

Product photo of a gorenje kitchen appliance including a whisk, clear glass bowl, and two transparent kitchen utensils (no visible text or symbols)

HBC564QW

Instructions for use GB

Exploded view diagram of a kitchen appliance with numbered parts for identification

Diagram illustrating a four-step chemical process: adding liquid, mixing, and stirring steps with labeled arrows and warning symbol.

Diagram illustrating four stages of a mechanical assembly or component processing process, with labeled parts and directional arrows indicating motion.

Three-step illustration showing a mixing bowl, whisk, and container with arrows indicating process flow (no text or symbols)

Diagram of a faucet spraying water with a tool, showing spray and residue (no text or symbols)

OKOLJE

Exploded view diagram of a kitchen appliance with numbered parts for identification

Diagram illustrating a laboratory procedure for mixing a small stick with a plastic bottle, showing step-by-step steps from adding to stirring.

• Potpuno odmotajte priključni kabel.
• Priključite nastavak za miješanje (4) na aparat (1).
• U priloženu posudu, ili u neku drugu prikladnu posudu stavite hranu.
• Uhvatite mikser i posudu. Da hrana ne prska naokolo, najprije potopite mikser u hranu, a zatim pritisnite tipku za uključenje (2, 3).

Diagram illustrating four stages of a mechanical assembly or assembly process, showing step-by-step transformation from a cylindrical component to a conical component with directional arrows.

Three-step illustration showing a mixing bowl, whisk, and container with arrows indicating process flow (no text or symbols)

• Umetnite metlicu (9) u jedinicu za miješanje i okrenite je u smjeru kazaljki na satu do kraja.
  • Stavite namirnice u posudu.
• Uhvatite aparat i posudu, te pritisnite tipku za uključenje (2). Možete koristiti gumb za podešavanje brzine (4), ili gumb za brzo djelovanje (3).

Illustration of a faucet spraying water with a tool, no text or symbols present

Okolina

Simbol na proizvodu ili na njegovoj ambalaži označuje, da se s tim proizvodom ne smije postupiti kao s otpadom iz domaćinstva. Umjesto toga treba biti uručen prikladnim sabirnim točkama za recikliranje elektroničkih i električkih aparata. Ispravnim odvoženjem ovog proizvoda spriječit ćete potencijalne negativne posljedice na okoliš i zdravlje ljudi, koje bi inače mogli ugroziti neodgovarajućim rukovanjem otpada ovog proizvoda. Za detaljnije informacije o recikliranju ovog proizvoda molimo Vas da kontaktirate Vaš lokalni gradski ured, uslugu za odvoženje otpada iz domaćinstva ili trgovinu u kojoj ste kupili proizvod.

Garancija i servis

Za informacije ili u slučaju problema obratite se Centru Gorenja za pomoć korisnicima u vašoj državi (telefonski broj naći ćete u međunarodnom garancijskom listu). Ako u vašoj državi nema takvog centra, obratite se lokalnom trgovcu Gorenja, ili odjelu Gorenja za male kućanske aparate.

Nije za profesionalnu uporabu!

GORENJE VAM ŽELI OBILJE ZADOVOLJSTVA PRI UPORABI VAŠOG ŠTAPNOG MIKSERA!

Exploded view diagram of a kitchen appliance with numbered parts for identification

1. Pogonska jedinica
2. Dugme za uključenje /isključenje brzina I
3. Dugme za uključenje /isključenje brzina II
4. Noga za mešanje iz nerđajućeg čelika
5. Jedinica za seckanje
6. Nož za seckanje
7. Posuda za seckanje
8. Jedinica za mešanje
9. Metlica
10. Čaša

Kako ga koristiti

Aparat je namenjen korištenju u kućanstvu i nije predviđen za korištenje u komercijalne svrhe. Koristite ga za obradu količina hrane koje su uobičajene za domaćinstvo. Uputstva spremite i priložite aparatu u slučaju. Pre prve upotrebe obrišite mikser i nastavke vlažnom krpom. Propisno sastavite aparat pre nego što utikač uključite u zidnu utičnicu. Isecite velike sastojke na male delove veličine oko 2 cm pre obrade. Pustite da se sastojci ohlade pre nego što ih iseckate ili sipate u posudu (maks. Temperature (80° C).

Važna upozorenja

Diagram illustrating four steps of a laboratory procedure involving a pipette, stirring dish, and whisking with warning symbols.

• Potpuno odmotajte priključni gajtan.
• Priključite nastavak za mešanje (4) na aparat (1).
• U priložen sud, ili u neku drugu prikladnu posudu stavite hranu.
• Pridržite mikser i posudu. Da hrana ne prska naokolo, najpre potopite mikser u hranu, a zatim pritisnite tipku za paljenje (2,3).

Napomena: Kad završite, najpre isključite mikser, a tek zatim ga izvucite iz hrane.

Diagram illustrating four stages of a mechanical assembly or assembly process, showing step-by-step transformation from cylindrical to conical component with warning symbol.

• Seckalicu (7) postavite na glatku, čistu radnu površinu i pritisnite nadole.
• Umetnite nož (6).
  • U posudu stavite hranu.
• Na univerzalnu seckalicu stavite nastavak (5) i okrenite ga u smeru kazaljki na časovniku do kraja.
• Priključite aparat (1) na nastavak (5) i tokom rezanja ga čvrsto pritiskajte nadole.
• Uhvatite aparat i seckalicu i pritisnite tipku za paljenje (2,3).

Napomena: Ako se sastojci zalepe na zid posude, otpustite dugme da biste isključili aparat i lopaticom ihodlepite ili dodajte malo tečnosti.

Diagram illustrating a three-step cooking process: mixing a bowl, adding a whisk, and pouring liquid into a container.

• Umetnite metlicu (9) u jedinicu za mešanje i okrenite je u smeru kazaljki na časovniku do kraja.
  • Stavite namirnice u posudu.
• Uvatite aparat i posudu, te pritisnite tipku za uključenje (2,3). Možete da koristite dugme za regulisanje brzine (4), ili dugme za brzo delovanje (3).
• Za mešanje koristite čašu ili neku drugu prikladnu posudu.

Illustration of a faucet with a showerhead and a spray bottle, showing liquid splashing around it (no text or symbols)

Zaščita okoline

Simbol na proizvodu ili na njegovoj ambalaži označava, da se sa tim proizvodom ne sme postupati kao sa otpadom iz domaćinstva. Umesto toga, proizvod treba predati odgovarajućim sabirnim centrima za reciklažu elektronskih I električnih aparata. Ispravnim odvoženjem ovog proizvoda sprečićete potencijalne negativne posledice na životnu sredine I zdravlje ljudi, koji bi inače mogli biti ugroženi neodgovarajućim rukovanjem otpadom ovog proizvoda. Za dobijanje detaljnih informacija o tretmanu, odbacivanju I ponovnom korišćenju ovog proizvoda, stupite u kontakt sa prikladnim lokalnim ustanovama, službom za sakupljanje kućnog otpada ili sa prodavnicom u kojoj ste kupili ovaj proizvod.

Garancija i servis

Za informacije ili u slučaju problema obratite se Centru Gorenja za pomoć korisnicima u vašoj državi (telefonski broj naći ćete u međunarodnom garantnom listu). Ako u vašoj državi nema takvog centra, obratite se lokalnom prodavcu Gorenja, ili odelu Gorenja za male kućanske aparate.

Nije za komercialnu upotrebu!

GORENJE VAM ŽELI MNOGO ZADOVOLJSTVA U KORIŠĆENJU VAŠEG ŠTAPNOG MIKSERA!

Exploded view diagram of a kitchen appliance with numbered parts for identification

Diagram illustrating a four-step chemical process: adding liquid, mixing, and stirring steps with labeled arrows and warning symbol.

Diagram illustrating four stages of a mechanical assembly or component deformation, showing step-by-step states with directional arrows and warning symbols.

Diagram illustrating a three-step cooking process: mixing a bowl, pouring liquid into a whisk, and adding a bottle to form a container.

3D illustration of a faucet spraying water with a falling object (no text or symbols)

ЖИВОТНА СРЕДИНА

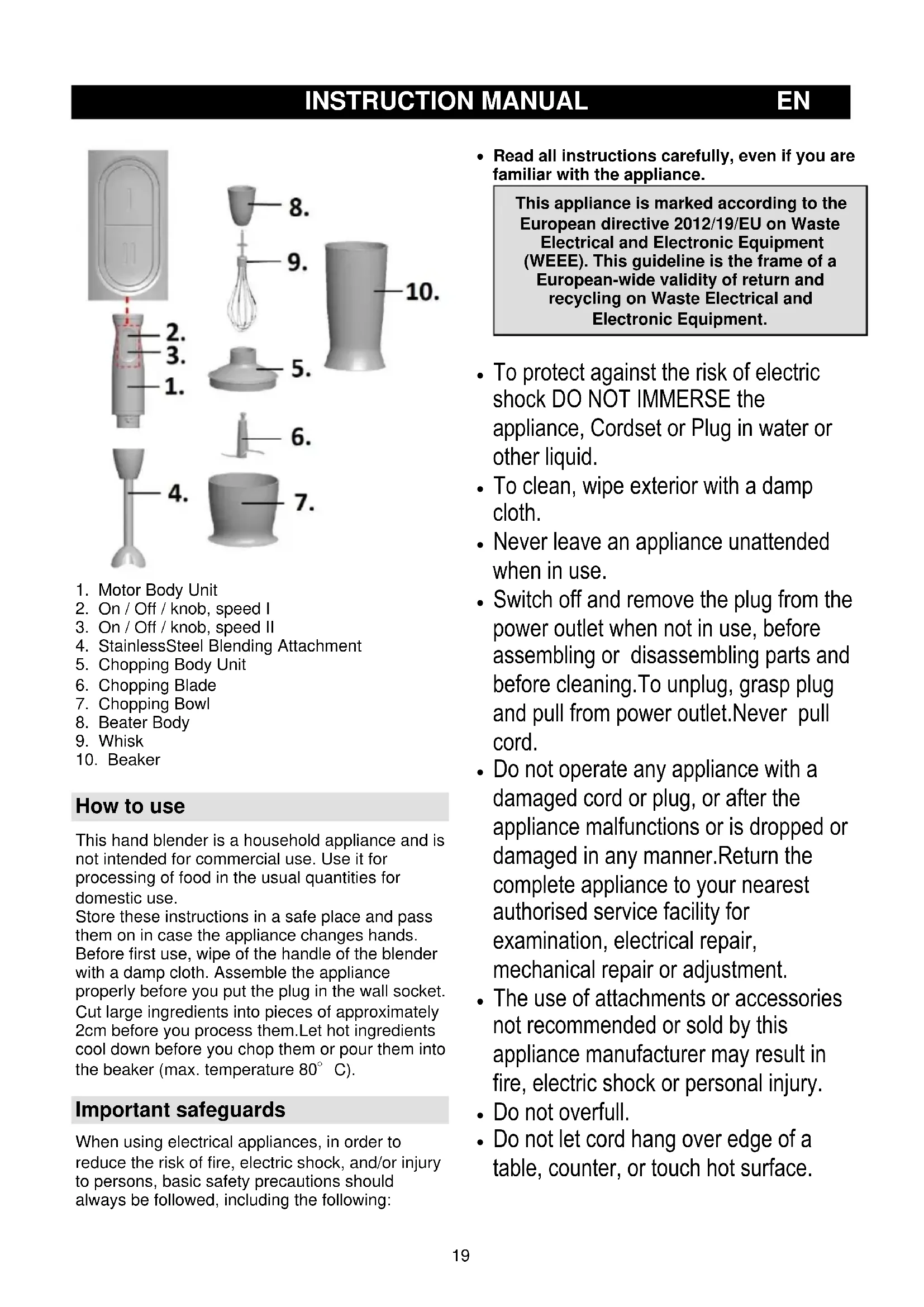

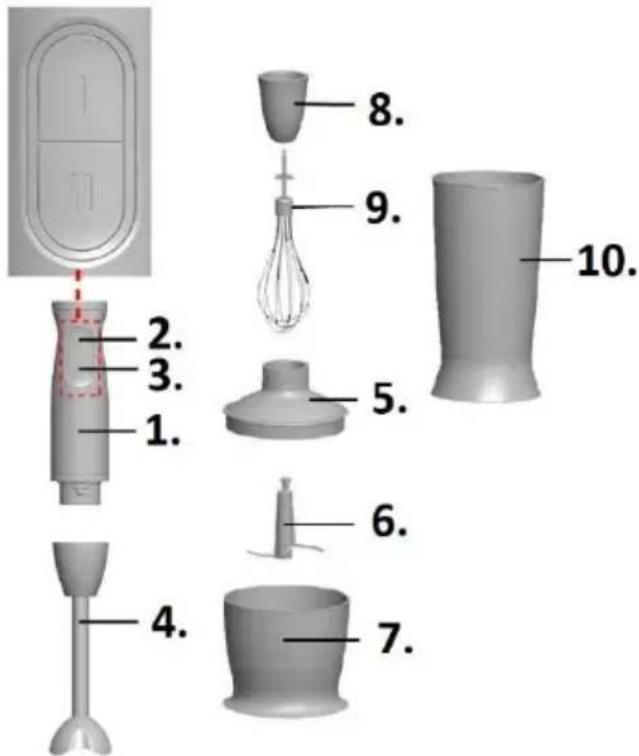

Exploded view diagram of a kitchen appliance with numbered parts for identification

1. Motor Body Unit
2. On / Off / knob, speed I
3. On / Off / knob, speed II
4. StainlessSteel Blending Attachment
5. Chopping Body Unit
6. Chopping Blade
7. Chopping Bowl
8. Beater Body
9. Whisk
10. Beaker

How to use

This hand blender is a household appliance and is not intended for commercial use. Use it for processing of food in the usual quantities for domestic use.

Store these instructions in a safe place and pass them on in case the appliance changes hands. Before first use, wipe of the handle of the blender with a damp cloth. Assemble the appliance properly before you put the plug in the wall socket. Cut large ingredients into pieces of approximately 2cm before you process them. Let hot ingredients cool down before you chop them or pour them into the beaker (max. temperature 80°C).

Important safeguards

When using electrical appliances, in order to reduce the risk of fire, electric shock, and/or injury to persons, basic safety precautions should always be followed, including the following:

- Read all instructions carefully, even if you are familiar with the appliance.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.

• To protect against the risk of electric shock DO NOT IMMERSE the appliance, Cordset or Plug in water or other liquid.
• To clean, wipe exterior with a damp cloth.
• Never leave an appliance unattended when in use.
• Switch off and remove the plug from the power outlet when not in use, before assembling or disassembling parts and before cleaning. To unplug, grasp plug and pull from power outlet. Never pull cord.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or is dropped or damaged in any manner. Return the complete appliance to your nearest authorised service facility for examination, electrical repair, mechanical repair or adjustment.
• The use of attachments or accessories not recommended or sold by this appliance manufacturer may result in fire, electric shock or personal injury.
• Do not overfull.

• Do not let cord hang over edge of a table, counter, or touch hot surface.

• Avoid touching hot surfaces, use handles and knobs.

• Do not operate or place any part of this appliance on or near any hot surface (such as a gas or electric burner, or in a heated oven).
• Do not abuse the cord. Never carry the appliance by the cord or yank it to disconnect it from the outlet; instead, grasp the plug and pull to disconnect.
• When using the extension cord with your appliance make sure the extension cord is correctly wired and rated for its use.
• This product is intended for household use only.
• Do not attempt to repair the appliance yourself; instead, take it your nearest Service Centre or Authorised Service Agent for repair.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Cleaning and maintenance shall not be made by children unless they are older than 8 and supervised.

• Handle carefully the sharp blades especially during removing and emptying the container and during cleaning.

• Do not touch the blades of the blender bar, especially when the appliance is plugged in. The blades are very sharp.

• If the blades get stuck, unplug the appliance before you remove the ingredients that block the blades.
• Be very careful when you handle or clean the blade unit or the combination disc. Their cutting edges are very sharp. Be especially careful when you clean them and when you empty the bowl.
• The bowl is not suitable for use in microwave ovens.
• Noise level: Lc < 72 dB(A)

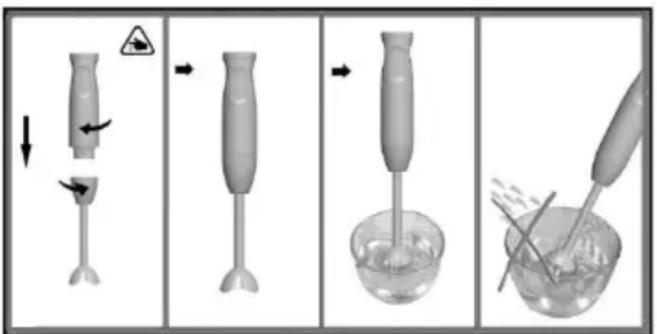

Handling the appliance

The appliance is used for mixing mayonnaise, gravy, shakes, baby food, and for chopping onions, ice, cooked fruit and vegetables.

Caution! Hand blender is not suitable for the preparation of mashed potatoes.

Diagram illustrating a laboratory procedure for mixing a plastic bottle, showing step-by-step steps with warning symbols and labeled components.

• Attach the blending device (4) to the appliance (1).
• Insert food into the beaker or any other suitable bowl.
• Grip both the blender and the bowl. To prevent splashing first dip the blender blade into the food and then press the ON button (2,3).
• Caution! When finished first switch the blender off and then lift it from the bowl.

Warning: Do not process more than 30 seconds without interruption. Let the appliance cool down to room temperature before you continue processing.

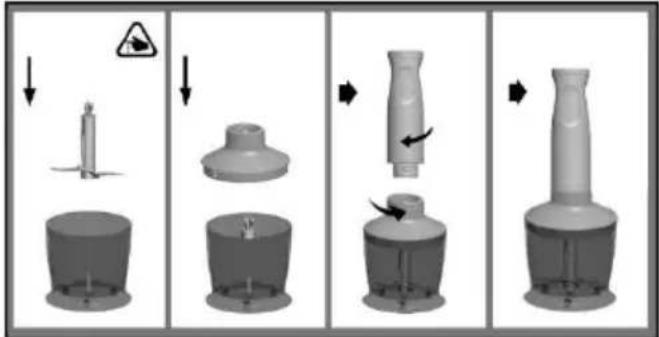

Universal chopper

It is used for chopping herbs, onions, fruit, vegetables, ice, hard cheese and meat.

Caution! Before chopping meat remove tendon, gristle and bone tissue. Universal chopper is not suitable for chopping coffee beans or horse radish.

Diagram illustrating four stages of a mechanical assembly or assembly process, showing step-by-step transformation from cylindrical to conical component with warning symbol.

• Place the chopper bowl (7) on flat, solid worktop and press the body unit (1) downwards.
• Insert the chopping blade (6).
• Put food in the chopping bowl (7).
• Place the chopping bowl unit (5) on the chopper bowl (6).
• Turn the motor unit (1 on the chopper bowl unit (5) until it looks.
• Hold the appliance and the chopper bowl and push the start button (2, 3).

Note: If the ingredients stick to the wall of the bowl, release the button to switch off the appliance and loosen the ingredients with a spatula or add some liquid.

Warning: Do not process more than 30 seconds without interruption. Let the appliance cool down to room temperature before you continue processing.

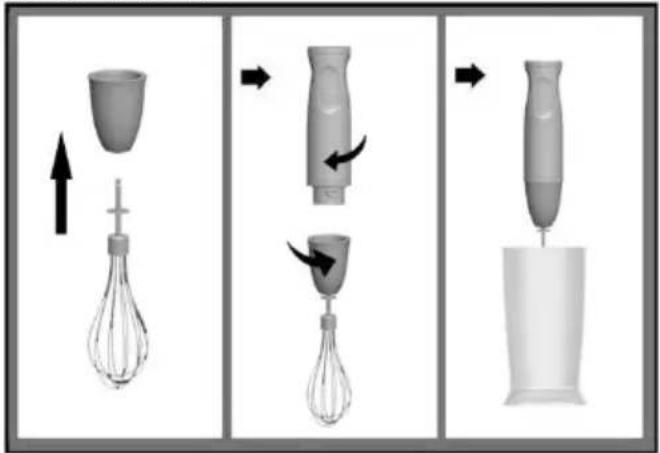

Using the beater

Before connecting the beater onto the motor unit make sure the blender is disconnected from the electrical outlet.

Three-step illustration showing a mixing bowl, whisk, and container with arrows indicating process flow (no text or symbols)

• Insert the whisk (9) by grasping into the beater body (8). Screw the beating attachment to the main unit by turning counter clockwise.
• Place the ingredients to be mixed in the bowl/beaker.
• Hold the appliance and the bowl and push the start button (2,3). Use speed control knob (4) to select a speed or press the turbo button (3).

Warning: Do not process more than 30 seconds without interruption. Let the appliance cool down to room temperature before you continue processing.

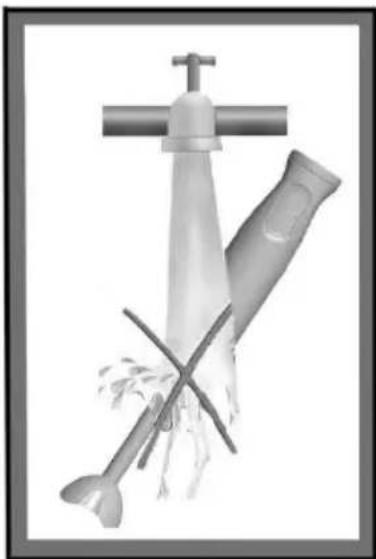

Cleaning and Maintenance

Caution! Do not immerse the appliance in water and do not wash it in the dishwasher.

• Wipe the appliance first with damp and then with dry cloth.
• Chopping bowl (7), Chopping blade (6) you can used in the dishwasher.
• Chopping Body Unit (5), Blending Attachment (4) wipe first with damp and then with dry cloth.

Remark: During the processing of vegetables with aggressive coloring, e.g. red cabbage, plastic parts may be subject to discoloration. This may be removed by rubbing such surfaces with a few drops of cooking oil.

Illustration of a faucet with a showerhead and a spray bottle, showing water splashing around it (no text or symbols)

Environment

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Guarantee & service

If you need information or if you have a problem, please contact the Gorenje Customer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Gorenje dealer or contact the Service department of Gorenje domestic appliances.

For personal use only!

GORENJE WISHES YOU A LOT OF PLEASURE WHILE USING YOUR APPLIANCE

We reserve the right to any modifications!

Exploded view diagram of a kitchen appliance with numbered parts for identification

Diagram illustrating a four-step chemical process involving a stirrer, mixing bowl, and whisking steps with warning symbols.

Diagram illustrating four stages of a mechanical assembly or assembly process, showing progressive deformation from cylindrical to conical components with directional arrows and warning symbols.

Three-step illustration showing a mixing bowl, whisk, and plastic container with arrows indicating process flow (no text or symbols)

Illustration of a faucet with a showerhead and a falling object, no text or symbols present

Mediul înconjurător

Exploded view diagram of a kitchen appliance with numbered parts for identification

Diagram illustrating a laboratory procedure for mixing liquid, showing step-by-step steps with labeled arrows and warning symbols.

Diagram illustrating four stages of a mechanical assembly or assembly process, showing progressive deformation from cylindrical to conical components with directional arrows and warning symbols.

Three-step illustration showing a mixing bowl, whisk, and plastic container with arrows indicating process flow (no text or symbols)

Illustration of a faucet with a spray bottle and a tool, showing liquid droplets around it (no text or symbols)

Životní prostředí

Exploded view diagram of a kitchen appliance with numbered parts for identification

Diagram illustrating four steps of a laboratory procedure involving a pipette, stirring dish, and whisking with warning symbols.

Diagram illustrating four stages of a mechanical assembly or assembly process, showing step-by-step transformation from cylindrical to conical component with warning symbol.

Three-step illustration showing a mixing bowl, whisk, and container with arrows indicating process flow (no text or symbols)

Illustration of a faucet with a pipe and a spray bottle pouring liquid (no text or symbols)

Životné prostredie

Exploded view diagram of a kitchen appliance with numbered parts for identification

Diagram illustrating a laboratory procedure for mixing liquid, showing step-by-step steps from mixing to stirring.

Diagram illustrating four stages of a mechanical assembly or assembly process, showing step-by-step transformation from cylindrical to conical component with warning symbol.

Three-step illustration showing a mixing bowl, whisk, and plastic container with arrows indicating process flow (no text or symbols)

Illustration of a faucet with a funnel and a spray bottle, showing liquid droplets (no text or symbols)

Környezetvédelem

Exploded view diagram of a 3D kitchen appliance with numbered parts for identification

Diagram illustrating a multi-step chemical process involving a stirrer, mixing bowl, and whisking steps with labeled arrows and warning symbols.

Diagram illustrating four stages of a mechanical assembly or assembly process, showing progressive deformation from top to bottom states with directional arrows and warning symbols.

Three-step illustration showing a mixing bowl, whisk, and container with arrows indicating process flow (no text or symbols)

Illustration of a faucet spraying water with a tool partially visible (no text or symbols)

Exploded view diagram of a kitchen appliance with numbered parts for identification

Diagram illustrating a four-step chemical process: adding liquid, mixing with a plastic cup, and adding a whisk over a bowl.

Diagram illustrating four stages of a mechanical assembly or assembly process, showing step-by-step transformation from a cylindrical component to a conical component with directional arrows.

Diagram illustrating a three-step cooking process: mixing a bowl, adding a whisk, and pouring liquid into a container.

Illustration of a faucet with a showerhead and a pipe with water splashing (no text or symbols)

Środowisko

Exploded view diagram of a kitchen appliance with numbered parts for identification

Diagram illustrating four steps of a laboratory procedure involving a pipette, stirring dish, and mixing bowl with chopsticks.

Diagram illustrating a mechanical assembly process with labeled steps and warning symbols

Three-step illustration showing a mixing bowl, whisk, and container with arrows indicating process flow (no text or symbols)

Diagram illustrating a three-step cooking process: mixing a bowl, adding a whisk, and adding a container with a brush.

Exploded view diagram of a kitchen appliance with numbered parts for identification

Diagram illustrating four stages of a laboratory procedure involving a test tube, stirring bowl, and mixing bowl with a tool.

Diagram illustrating a mechanical assembly process with labeled steps and warning symbols

Three-step illustration showing a mixing bowl, whisk, and container with arrows indicating process flow (no text or symbols)

Illustration of a faucet with a knife and a tool, no text or symbols present

AMBIENTE

Exploded view diagram of a kitchen appliance with numbered parts for identification

Diagram illustrating four steps of a laboratory procedure involving a test tube, mixing bowl, and stirring dish with warning symbols.

Diagram illustrating four stages of a mechanical assembly or assembly process, showing step-by-step transformation from cylindrical to conical component with warning symbol.

Three-step illustration showing a mixing bowl, whisk, and plastic container with arrows indicating process flow (no text or symbols)

Illustration of a faucet with a bucket and a bag pouring liquid, no text or symbols present

Exploded view diagram of a kitchen appliance with numbered parts for identification

Diagram illustrating a laboratory procedure for using a pipette and stirring liquid, with labeled steps and warning symbols.

Diagram illustrating four stages of a mechanical assembly or component deformation, showing progressive states from top to bottom with directional arrows and warning symbols.

Three-step illustration showing a mixing bowl, whisk, and container with arrows indicating process flow (no text or symbols)

Illustration of a faucet with a showerhead and a tool partially submerged in water, showing spray or dust (no text or symbols)

GARANTIE UND KUNDENDIENST

Exploded view diagram of a kitchen appliance with numbered parts for identification

Diagram illustrating a laboratory procedure for using a pipette and stirring liquid, with labeled steps and warning symbols.

Diagram illustrating four stages of a mechanical assembly or assembly process, showing progressive deformation from cylindrical to conical components with directional arrows and warning symbols.

Illustration of a faucet with a showerhead and a pipe with water splashing (no text or symbols)

Environnement
