M360CW - Hand blender GORENJE - Free user manual and instructions

Product type	Hand mixer
Brand	Gorenje
Model	M360CW
Intended use	Mixing, beating, kneading and creaming
Number of speeds	4 (1 to 4) + Turbo function
Included accessories	2 beaters and 2 dough hooks
Ejection system	Ejection button for removing accessories
Max operating time (beaters)	10 minutes
Max operating time (dough hooks)	2 minutes
Required cooling time	Minimum 10 minutes
Sound level	72 dB(A)
Power supply	Mains (power cord)
Cleaning the motor unit	Wipe with a damp cloth
Cleaning accessories	Washable in warm soapy water
Safety	Unplug before removing accessories; do not immerse the motor unit
Target audience	Domestic use
Warranty	Gorenje customer service (see warranty card)
Recycling	WEEE compliant (do not dispose of with household waste)
Power cord length	Not specified
Weight	Not specified

Frequently Asked Questions - M360CW GORENJE

How to attach the beaters or dough hooks?

Make sure the appliance is in the Off position and unplugged. Insert the stem of an accessory into one of the motor unit openings, push and twist until locked. Repeat for the second.

How to remove the beaters or dough hooks?

Set the appliance to Off and unplug it. Press the Ejection button, then pull the accessories out of the openings.

What speeds are available and how to use them?

The speed selector goes from 1 (slowest) to 4 (fastest). It is recommended to start at low speed. A Turbo button allows reaching maximum speed instantly.

How long can I use the appliance continuously?

With beaters, do not exceed 10 minutes. With dough hooks, maximum 2 minutes. After use, let the appliance cool down for at least 10 minutes before reusing.

How to clean the motor unit?

Never immerse the motor unit in water. Wipe it with a damp cloth. Do not use abrasive detergent or solvent.

Can I wash the beaters and hooks in the dishwasher?

The instructions recommend washing them in hot water with detergent, then drying thoroughly. The dishwasher is not mentioned; as a precaution, wash them by hand.

What to do if the appliance does not work?

Check that it is properly plugged in and that the speed selector is not on 0. If the problem persists, contact Gorenje customer service. Do not attempt to repair it yourself.

Is the appliance suitable for kneading heavy dough?

Yes, use the dough hooks to knead the dough. Adhere to the maximum usage time of 2 minutes and let the appliance cool down before repeating the operation.

How to use the Turbo function?

The Turbo button allows reaching maximum speed instantly, useful for quick mixing or to dislodge stuck ingredients. Press and hold the button to activate it.

What is the power of the appliance?

The instructions do not specify the power in watts, but the appliance is designed for standard domestic use. For any technical information, contact Gorenje customer service.

USER MANUAL M360CW GORENJE

White hand mixer with metal handle and coiled spring, no visible text or symbols on the device itself.

M360CW

M420CW

M460CBK

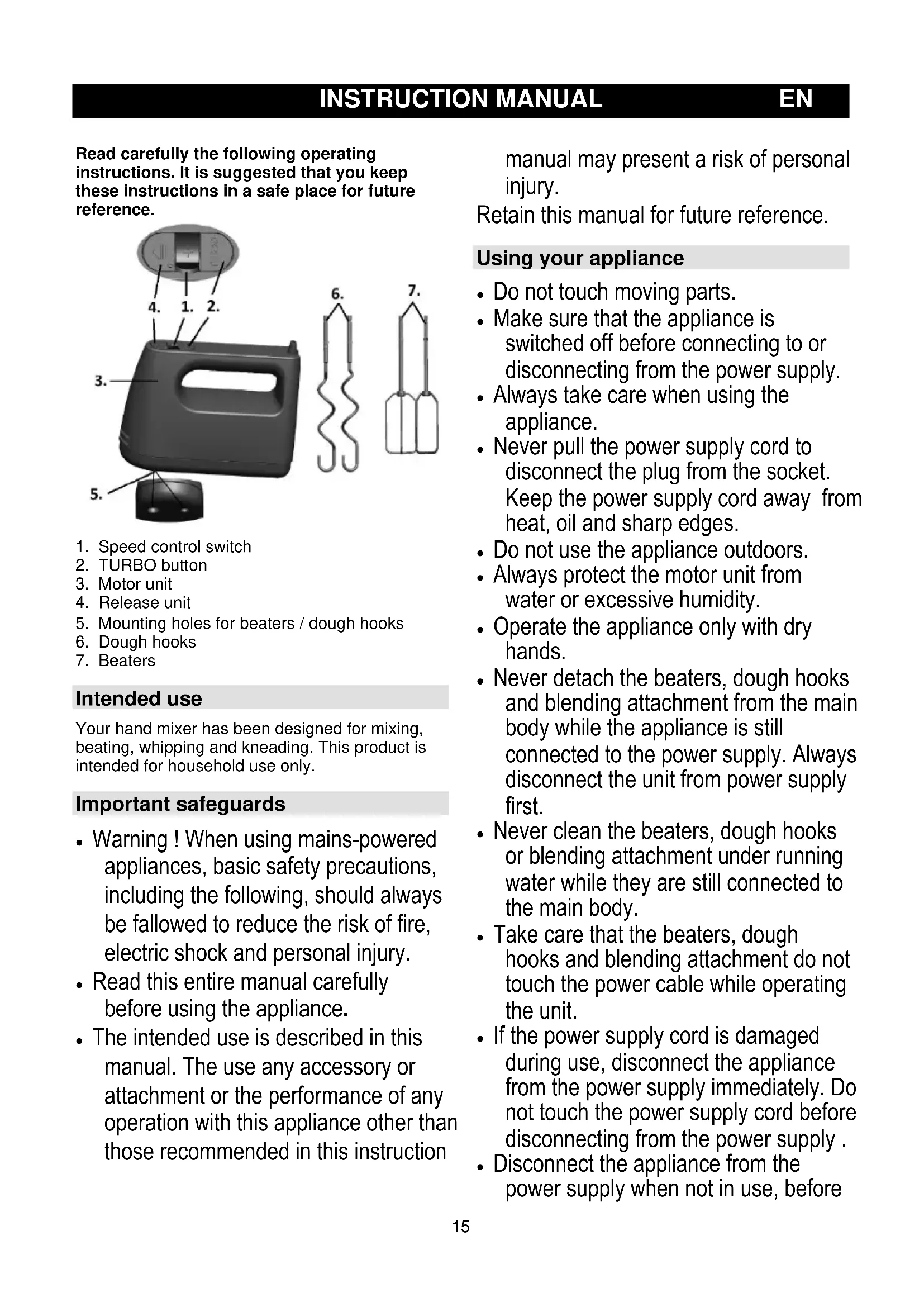

Instructions for use GB

Read carefully the following operating instructions. It is suggested that you keep these instructions in a safe place for future reference.

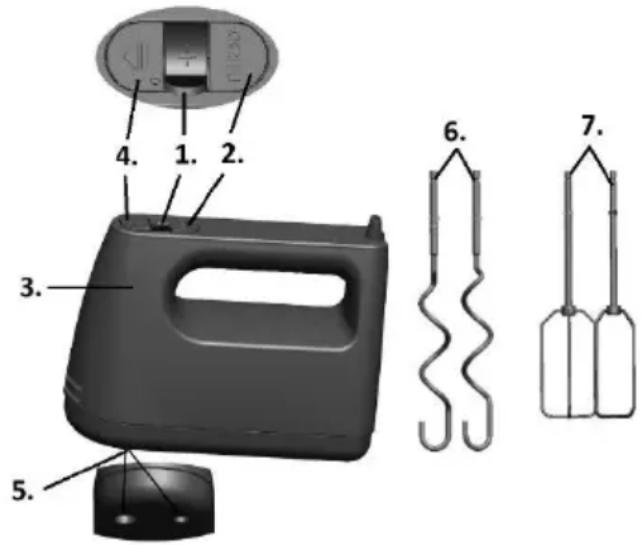

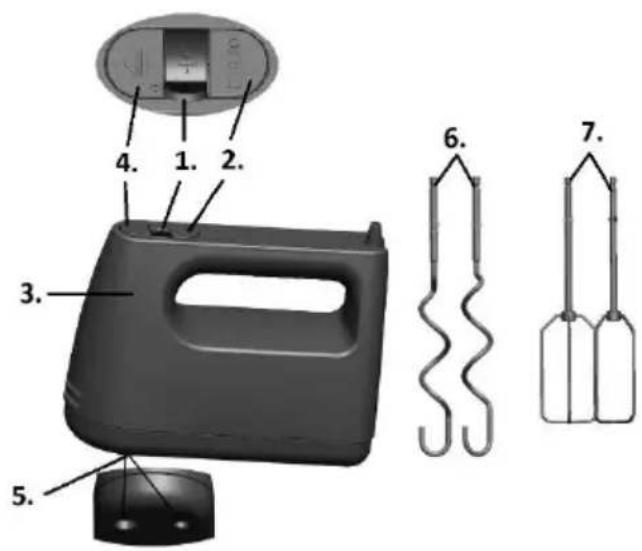

1. Speed control switch
2. TURBO button
3. Motor unit
4. Release unit
5. Mounting holes for beaters / dough hooks
6. Dough hooks
7. Beaters

Intended use

Your hand mixer has been designed for mixing, beating, whipping and kneading. This product is intended for household use only.

Important safeguards

• Warning ! When using mains-powered appliances, basic safety precautions, including the following, should always be fallowed to reduce the risk of fire, electric shock and personal injury.
• Read this entire manual carefully before using the appliance.
• The intended use is described in this manual. The use any accessory or attachment or the performance of any operation with this appliance other than those recommended in this instruction

manual may present a risk of personal injury.

Retain this manual for future reference.

Using your appliance

• Do not touch moving parts.
• Make sure that the appliance is switched off before connecting to or disconnecting from the power supply.
  • Always take care when using the appliance.
• Never pull the power supply cord to disconnect the plug from the socket. Keep the power supply cord away from heat, oil and sharp edges.
• Do not use the appliance outdoors.
  • Always protect the motor unit from water or excessive humidity.
• Operate the appliance only with dry hands.
• Never detach the beaters, dough hooks and blending attachment from the main body while the appliance is still connected to the power supply. Always disconnect the unit from power supply first.
• Never clean the beaters, dough hooks or blending attachment under running water while they are still connected to the main body.
• Take care that the beaters, dough hooks and blending attachment do not touch the power cable while operating the unit.
• If the power supply cord is damaged during use, disconnect the appliance from the power supply immediately. Do not touch the power supply cord before disconnecting from the power supply.
• Disconnect the appliance from the power supply when not in use, before

fitting or removing parts and before cleaning.

• All repairs of electrical appliances must only be performed by skilled personnel. Improper repairs can result in Considerable hazards for the user.
• In case of damages, the power cord must be changed only by the skilled service - personnel.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Cleaning and maintenance shall not be made by children unless they are older than 8 and supervised.
• Noise level: Lc = 72 dB(A)

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.

After use

• Switch off and remove the plug from the socket before leaving the appliance unattended and before changing, cleaning or inspecting any parts of the appliance.
• When not in use, the appliance should be stored in a dry place. Children should not have access to stored appliances.

Inspection and repairs

- Before use, check the appliance for damaged or defective parts. Check for breakage of parts, damage to switches and any other conditions that may affect its operation.

• Do not use the appliance if any part is damaged or defective.
• Before use, check the power supply cord for signs of damage, ageing and wear.
• Do not use the appliance if the power supply cord or mains plug is damaged or defective.
• Never attempt to remove or replace any parts other than those specified in this manual.

ASSEMBLY

Before assembly, make sure that the appliance is switched off and unplugged.

Choosing beaters, dough hooks or blending attachment

• Use beaters for mixing, beating, whipping and creaming liquids and mixtures.
• Use dough hooks for mixing and kneading dough.
• Use blending attachment for blending.

Fitting the beaters or dough kneaders

• Switch the appliance off.
• Insert the stem of beater into one of the mounting holes in the motor unit.
• Push and turn the beater until in locks into place.
• Repeat for the other beater.

Removing the beaters or dough hooks

• Switch the appliance off.
• Keep the release button depressed.
• Pull the beaters or dough hooks out of the motor unit.

USE

• To switch on, slide the speed control switch to one of the positions “1” (lowest speed) to “4” (highest speed). It is recommended to start at a low speed, then change to a higher speed if necessary.
  • To switch off, slide the switch to position "0".
• Do not operate the appliance continuously for more than 5 minutes (with beaters) of 2 minutes (with dough speed)! After working with appliance continuously for this period of time, let it cool down for at least 10 minutes before operating it again.
• When working with liquids, use a low speed in order to avoid splashing liquid onto the appliance.
• Firmly hold the container that you are using with the mixer.

CLEANING AND MAINTENANCE

!!!Before cleaning and maintenance, switch the appliance off and unplug it.

• Wash the beaters, dough hooks or blending attachment in warm soapy water and dry well.
• Wipe the motor unit with a damp cloth. Do not use any abrasive or solvent-based cleaner.

Do not immerse the motor unit in water or any other liquid.

Environment

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Guarantee & service

If you need information or if you have a problem, please contact the Gorenje Customer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Gorenje dealer or contact the Service department of Gorenje domestic appliances.

For personal use only!

GORENJE WISHES YOU A LOT OF PLEASURE WHEN USING YOUR APPLIANCE

We reserve the right to any modifications!
