Product type	Drill stand with screw vise
Brand	Powerfix
Model	HG02905
Dimensions (L × H × D)	155 × 505 × 225 mm
Weight	Approx. 2.5 kg
Power supply	None (mechanical accessory)
Clamping diameter of the collar	43 mm
Maximum drilling depth	60 mm
Jaw width	65 mm
Clamping width	65 mm
Materials	Steel and plastic
Color	Black and silver
Main functions	Precise workpiece holding, vertical drilling, drilling depth adjustment
Included items	Drill stand, screw vise, hex key, instruction manual
Safety	Use on a stable surface, keep away from children, check before use
Maintenance and cleaning	Wipe with a damp cloth, lightly lubricate moving parts
Warranty	3 years
Intended use	Precise drilling in wood, metal, and ceramic tiles
Repairability	Spare parts not specified; contact the seller in case of defects

Frequently Asked Questions - HG02905 POWERFIX

How to assemble the Powerfix HG02905 drill stand?

First attach the column to the base plate, then mount the lever head and the arm. Next, install the screw vise by aligning the screws in the guide slots. Use the supplied hex key and 10 mm and 14 mm open-end wrenches.

How to clamp a workpiece in the vise?

Hold down the quick-tension button, pull the stopper back, insert the workpiece, then release the button and turn the stopper clockwise to tighten.

How to set the drilling depth?

Loosen the stop and the locking screw, lower the lever arm to the desired depth, then tighten the locking screw by turning it to the right. The depth indicator helps you adjust it precisely.

What type of drill can I use with this stand?

This stand is suitable for standard drills with a collar (neck) diameter of up to 43 mm. Make sure your drill is securely fastened in the housing.

Can I use this stand for angled drilling?

No, this stand is designed for vertical drilling only. The vise can be oriented horizontally, but the column remains vertical.

How to maintain the drill stand?

Wipe it with a damp cloth. For bare metal parts, apply a little oil to prevent rust. Lightly grease moving parts. Store the hex key in the lever head.

What are the important safety instructions?

Always use the stand on a stable surface. Keep children away. Before each use, check for damage and tighten all screws. Disconnect the drill before making any adjustments.

What to do if a part is missing or damaged?

If you notice a defect, return the product to the seller within the warranty period (3 years). Keep the receipt as proof of purchase.

How to orient the workpiece to be drilled?

Loosen the retaining screws of the screw vise, slide the vise to position the workpiece, then retighten the screws. Mark the drilling point before clamping.

Is this stand suitable for professional use?

No, according to the manual, this product is not designed for commercial use. It is intended for domestic and DIY use.

USER MANUAL HG02905 POWERFIX

Assembly, operating and safety instructions

FR BE

SUPPORT DE PERCAGE

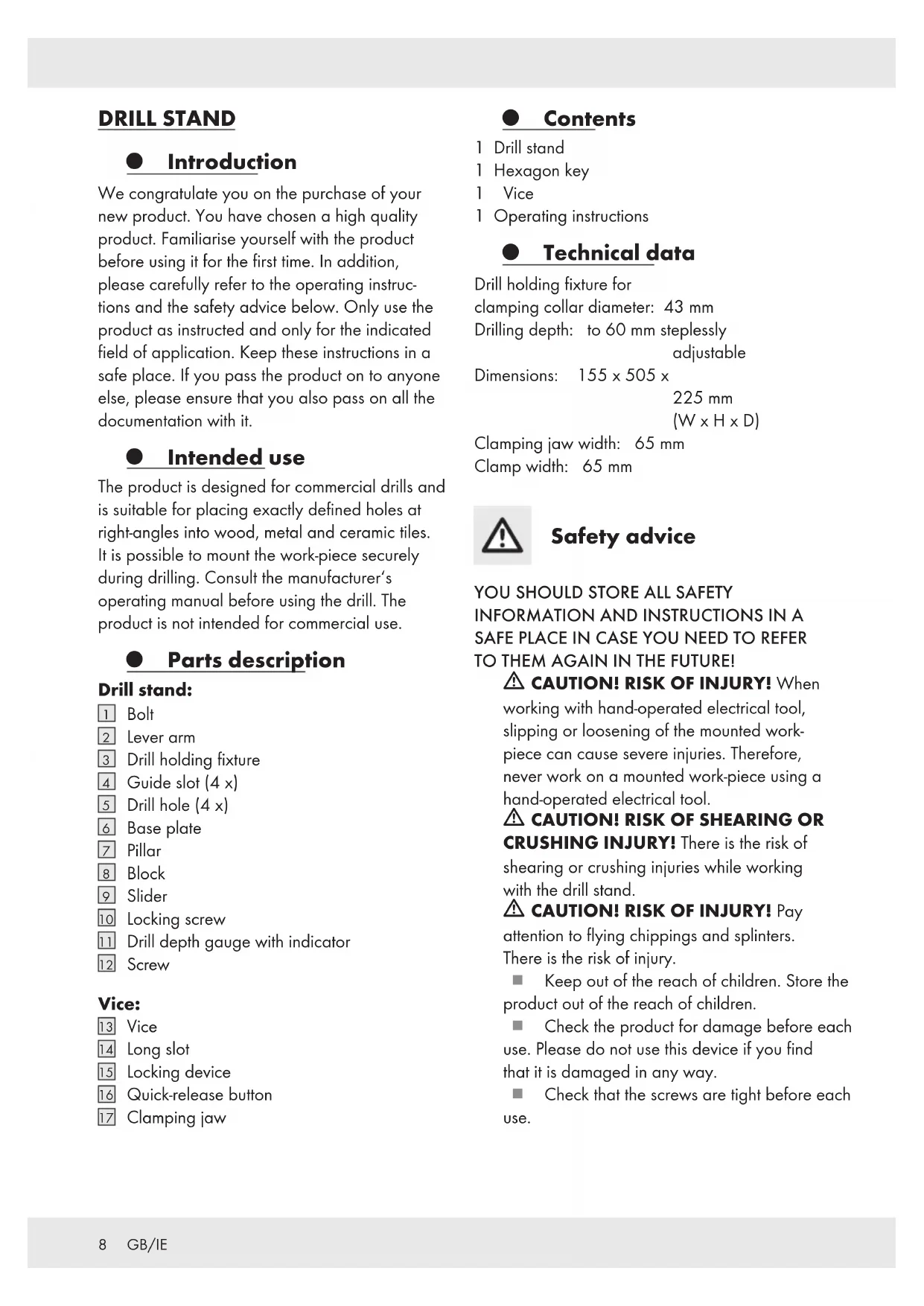

GB/IE Assembly, operating and safety instructions Page 8

We congratulate you on the purchase of your new product. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

The product is designed for commercial drills and is suitable for placing exactly defined holes at right-angles into wood, metal and ceramic tiles. It is possible to mount the work-piece securely during drilling. Consult the manufacturer's operating manual before using the drill. The product is not intended for commercial use.

Parts description

Drill stand:

1 Bolt
2 Lever arm
3 Drill holding fixture
Guide slot (4 x)
Drill hole (4 x)
6 Base plate
7 Pillar
8 Block
9 Slider
Locking screw
1 Drill depth gauge with indicator
Screw

Vice:

Vice
14 Long slot
Locking device
Quick-release button
Clamping jaw

- Contents

1 Drill stand
1 Hexagon key
1 Vice
1 Operating instructions

Technical data

Drill holding fixture for

clamping collar diameter: 43mm

Drilling depth: to 60mm steplessly

adjustable

Dimensions: 155 × 505 ×

225 mm

(W× H× D)

Clamping jaw width: 65 mm

Clamp width: 65 mm

Safety advice

INFORMATION AND INSTRUCTIONS IN A

SAFE PLACE IN CASE YOU NEED TO REFER

TO THEM AGAIN IN THE FUTURE!

CAUTION! RISK OF INJURY! When

working with hand-operated electrical tool, slipping or loosening of the mounted workpiece can cause severe injuries. Therefore, never work on a mounted work-piece using a hand-operated electrical tool.

CAUTION! RISK OF SHEARING OR

CRUSHING INJURY! There is the risk of

shearing or crushing injuries while working with the drill stand.

CAUTION! RISK OF INJURY! Pay

attention to flying chippings and splinters.

There is the risk of injury.

• Keep out of the reach of children. Store the product out of the reach of children.
  Check the product for damage before each use. Please do not use this device if you find that it is damaged in any way.
  Check that the screws are tight before each use.

Use the product on a solid, level and intact surface (e.g. a workbench).
Always disconnect the drill from the power supply before making adjustments or work breaks.
The drill stand must be mounted on a workbench or a stable, tilt-free table, to ensure a safe work. Use the drill holes in the base plate 6.

Assembly

Note: You need a 5 mm hexagon key (provided), two open-ended spanners (10 mm & 14 mm) and a slot screwdriver (1.0 x 6.0 mm) for assembly and adjustment.
Connect the the base plate 6 and tighen the screw to fix the pillar (see Fig. A).

Then fix the slider on the pillar.

Mount the lever into the slider (see Fig. B). Tighten the screws and nuts as tight as possible.
Mount the to the base plate. To do this connect the screws with the guide slots 4 in the base plate through the two long slots 14 (see Fig.C).

Note: The vice can be positioned exactly by moving the guide slots and long slots.

- Mounting the work piece

Hold the quick-release pressed and pull the locking device back as far as it goes (see Fig. D).
Place the work-piece into the slice
Press the quick-release button and push the locking device with the clamping jaw against the work-piece.
- Tighten the work-piece by turning the locking device 15 clockwise (see Fig. E).

- Clamping in and adjusting the drill

Fit the drill with its clamping collar into the drill holding fixture 3 and tighten securely (see Fig. F).

Insert a suitable drill bit into the chuck.
Unscvee Fig. G).
Move the stidewith the clamped in drill on the pillar 7, until the drill nearly touches the work-piece.

Retighten screw securely.

Adjusting the drill depth

Loosen the and slide it up to the slider (see Fig. H).
Loosen the locking stowy turning it to the left (see Fig. H).
Make sure that thebowill be released doing this and slides down to the lowest position.
Move the lever down and read off the desired drill depth on the drill gauge with indicator 1.
Fix the locking block with a right turn (see Fig. 1).

Adjusting the work piece

Loosen the fixing screws of the slice
Adjust the vice with the work piece by sliding it into position.
Mark the exact position and punch a drilling point on the work-piece. Retighten the vice (see Fig. J).

Storage and care

Store the hexagon key in the fixture on the slider.
Store the product in a dry place, out of the reach of children.
Clean the product with a damp cloth.

Lightly grease the moving parts, rub the plaiway by our warranty detailed below.

metal parts with an oily cloth to protect them from rust.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined
before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any
away by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
