CEH6052FULLB1 - Basket CONTINENTAL EDISON - Free user manual and instructions

Product type	Extractor hood / recirculation hood
Brand	Continental Edison
Model	CEH6052FULLB1
Width	60 cm (estimated from reference)
Power supply	220-240 V ~ 50 Hz
Annual energy consumption	40.7 kWh/year
Energy class	C
Maximum airflow rate	483.9 m³/h
Maximum noise level	58 dB
Lighting	LED, 1.5 W (not user-replaceable)
Number of motor speeds	3 speeds + timer
Filters	Metal grease filter (washable) + charcoal filter (replaceable)
Minimum distance above cooking surface	700 mm (electric) / 800 mm (gas)
Exhaust duct diameter	150 mm (adapter for 120 mm included)
Timer function	Yes, automatic shut-off after 5 minutes
Weight	Approximately 12 kg (estimate)
Installation type	Wall-mounted, external exhaust or recirculation
Cleaning	Grease filter: monthly; exterior: soft cloth and soapy water
Charcoal filter replacement	At least once a year
Safety	Automatic shut-off in case of electrostatic discharge; protection against electric shocks

Frequently Asked Questions - CEH6052FULLB1 CONTINENTAL EDISON

How to install the CEH6052FULLB1 hood?

Installation must be carried out by a qualified professional. Fix the wall bracket at least 70 cm above the hob. Use the supplied plugs and screws. For exhaust, connect the 150 mm (or 120 mm with adapter) duct to the outside. Follow the steps in the installation manual.

How to clean the grease filters?

Grease filters must be cleaned monthly. Remove them and wash them in soapy water or in the dishwasher. Dry them completely before reinstalling. Never use abrasive products or metal scouring pads.

When to replace the charcoal filter?

The charcoal filter must be replaced at least once a year, or more often if the hood is used intensively. It is attached by turning clockwise. Note that the charcoal filter slightly reduces suction power.

What to do if the hood does not turn on?

First check the power supply and the fuse. Make sure the plug is properly inserted. If the problem persists, replacement of the cable or the LED lamp must be carried out by an authorized professional.

How to use the timer?

Simultaneously press the + and - buttons (or on the TC-2 model) for 1 second. The display flashes, and the hood automatically stops after 5 minutes. A beep sounds at the end.

What distance to maintain between the hood and the hob?

For an electric hob, the minimum distance is 700 mm. For a gas hob, it is 800 mm. Respect these distances to ensure safe and efficient operation.

Can I use the hood in recirculation mode?

Yes, the hood can operate in recirculation mode. In this case, you must install the charcoal filters (supplied) and do not connect the exhaust duct. The air is filtered and then returned to the room.

How to adjust the motor speeds?

The control panel offers 3 speeds: low (light cooking), medium (standard cooking), high (heavy steam). Use the corresponding buttons. Do not press multiple buttons simultaneously.

What to do if the hood makes abnormal noise?

Abnormal noise may come from incorrect installation, clogged filters, or an object stuck. Check the wall fixings, clean the grease filters, and ensure the exhaust duct is not blocked.

How to maintain the exterior of the hood?

Use a soft cloth soaked in warm soapy water. Never use a steam cleaner, abrasive products, or hard brushes. Dry with a clean cloth. Before any cleaning, unplug the hood.

USER MANUAL CEH6052FULLB1 CONTINENTAL EDISON

Abstract geometric shapes resembling partial crescent and angular form (no text or symbols)

Continental Edison

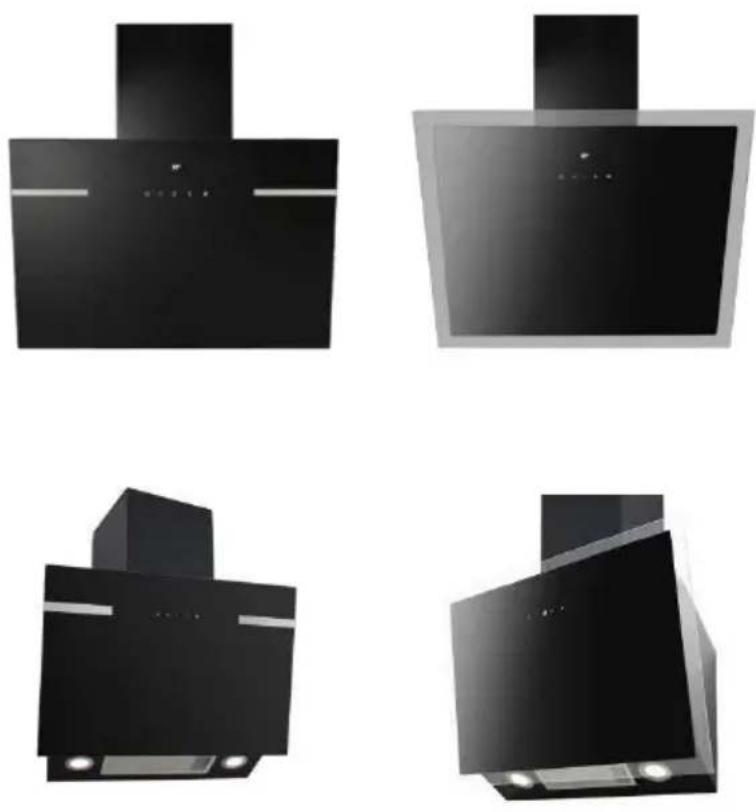

CEH6052BVB & CEH6052FULLB

CEH6052BVB1 & CEH6052FULLB1

Hotte Décorative En Verre Noir - Decorative Black Glass Hood

Installation (Mode extraction).... 12

Installation (Mode extraction)

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Hand holding a plug with a black arrow indicating direction, next to an open electrical outlet (no text or symbols)

Diagram showing a brick wall with electrical outlets and a water tank labeled '污水' (wastewater), with an arrow indicating flow direction.

Line drawing of a simple metal frame with two screws attached (no text or symbols)

Two technical line drawings showing a tool inside a box and a drill bit emerging from a hole, both without any text or symbols.

Technical line drawing showing two orthographic views of a structural component with dimension lines (no text or symbols)

Technical line drawing showing two views of a brick wall structure with a chimney and a cabinet opening (no text or symbols)

Technical line drawing showing two views of a mechanical device with a tool inserted into a housing (no text or symbols)

Mode recyclage:

Simple line drawing of a mechanical or electrical component with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical fan or motor with a rotating button (no text or symbols)

Fermer

Read this guide carefully before installing and using this process and keep it for future reference.

Thank you for choosing Oceanic. This Use and Maintenance Gu is designed to provide you with all the necessary information regarding the installation, use and maintenance of the appliance.

In order to operate the unit properly and securely, read this user guidecarefully before installing and using the product.

Contents

Find some informations....28

Important safety instructions....29

Lamp....35

Description of the pieces....36

Installing the hood....38

Preparation before installation....38

Installation (Mode extraction).... 38

Recommendations for mounting....39

Installation....40

Carbon filter installation....45

Cleaning....46

Control Panel Functions....47

Technical informations.... 49

Further information....51

IMPORTANT: Keep this guide for the electrical control agency.

When using electrical appliances, basic safety precaution should always be followed including the following:

• These instructions are for your safety. Please read through them thoroughly prior to installation.
• This appliance has been designed for use at an exhausting (air evacuation to the outside) or filtering (indoor air re-cycling) hood.
• All installation work must be carried out by competent person or qualified electrician.
• This appliance must be installed correctly by a suitably qualified person, strictly following the manufacturer's instructions.
• ATTENTION: Accessible parts may become hot during use.

• Keep children away from this device.

• The Manufacturer highly recommends that this appliance be kept out of the reach of babies and small children.

• This appliance can be used by children age from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Regularly check the power plug and power cord for signs of damage. If the supply cord is damaged, it must be replaced by themanufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Do not allow the electric cables to touch the hot parts of the appliance.

• Make sure that the power cord is not caug under or in the appliance and avoid damage the power cable.

• Do not use flammable sprays in close vicini to the appliance.
• Please dispose of the packing material carefully.
• We also recommend that you pay special attention during use and during cleaning. Refer to the instructions in the "CLEANING" section.
  ● A steam cleaner is not to be used.
• The appliance is not intended to be operated by means of external timeror separated remote-control system.

- Warning: When using for extraction, refer to the national regulations for building ventilation systems. Do not connect the exhaust pipe to VMC type ventilation system, to a flue (chimney, boiler, ...). Also check the absence of disturbance with the ventilation of the roof when there are gas appliances (water heater gas stove, ...). If in doubt, use the hood in recycling mode.

- Proper ventilation of the room must be provided when the hood is used simultaneously with appliances using gas or other fuel.

- Air must not be discharged into a flue that is used for exhaustingfumes from appliances burning gas or other fuels. The rules concerning the evacuation of the air must be respected.

• Warning: The hood may stop working during electrostatic discharge (e.g.lightning). This involves no risk of damage. Switch off the electricity supply to the hood and reconnect after one minute.
• To avoid the risk of fire, clean the metal fi regularly and closely watch and regulate pan containing hot oil.
• Do not flame under the range hood.
• Do not use the hood if it shows signs of or imperfection. Contact customer services.
• When installing the appliance, make sure that the following distances between the top of cooker or hob and the lowest part of the cooker hood must be observed:

Gas hobs: 800mm

Electric hobs: 700mm

• Warning: There is a risk of electric shock an fire if cleaning is not carried out in accord and with the instructions.
• Warning: For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.
• Warning: Failure to install the screws or fixi device in accordance with these instructions may result in electrical hazards.
• Warning: Before connecting the hood: switch off the electricity supply and check that the supplied voltage and frequency coincide with that indicated on the appliance nameplate.

Electrical Shock Hazard

Failure to follow these instructions can rest in death, fire, or electric shock.

The available lamps and the correspondenceILCOS D codes and lamp pictures:Use type lamp (or use in alternative type lamp)DSR-1.5-S-68 (ILCOS D code in according to standardIEC 61231).

• Non-replaceable LED lamp
• Max wattage: 1.5 W
• Voltage range: 12V
• Dimensions:

φ68 φ46 Unité : mm

Note: If the supply LED bulb is damaged, it may be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

1. Hood body
2. Upper chimney
3. Lower chimney

2 3 1

Index	Description	Illustration	Quantity
PL-1	Hood body		1
PL-2	Upper chimney (300mm)		1
PL-3	Lower chimney (300mm)		1
PL-4	Upper chimney bracket		1
PL-5	Lower chimney bracket		1
PL-6	Cooker hood bracket		1
PL-7	Screw (ST4 x 8 mm)		6
PL-8	Screw (ST4 x 30 mm)		7
PL-9	φ8×φ6 (Not include)		7
PL-10	Carbon filter		2
PL-11	Plastic pipe(Φ 150-153mm; 1.5 meter flexible tube)		1
PL-12	Non-return valve		1

Preparation before installation

ATTENTION

Carefully remove the carton. Wear gloves to protect your hands from sharp edges.

ATTENTION

Remove the protective film from the product before putting it into service.

Installation (Mode extraction)

If the wall has an opening to the outside, your hood may be connected as shown in the diagram below using the suitable

exhaust pipe (not supplied), such as ductwork, flexible aluminum or other non-flammable material with an inside diameter of less than 150mm.

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Recommendations for wall mounting

Do not make any changes to the unit or its mounting bracket on the wall!

Before installing the device, check the condition of the wall on which it will be fixed: the wall must be in good condition, it must not show any damage (cracks, sagging humidity, ...).

Do not drill a hole near old holes, even plugged It is imperative that you consult a building professional to use the anchoring system (screws, dowels, etc.)

appropriate to the material that constitutes your wall, as well as to the weight of the appliance. Observe the diameter of the fixing screws indicated in this manual.

Do not modify the holes for securing the unit or its mounting bracket to the wall.

Drill the wall with a drill of the appropriate size for the anchoring system. Remove debris and dust.

Regularly check the mounting points of the device on the wall. Tighten them if necessary.

INSTALLATION

Before installing, make sure the unit is not plugged into an electrical outlet.

The hood must be placed at least 70 cm above the hob.

unit >70cm

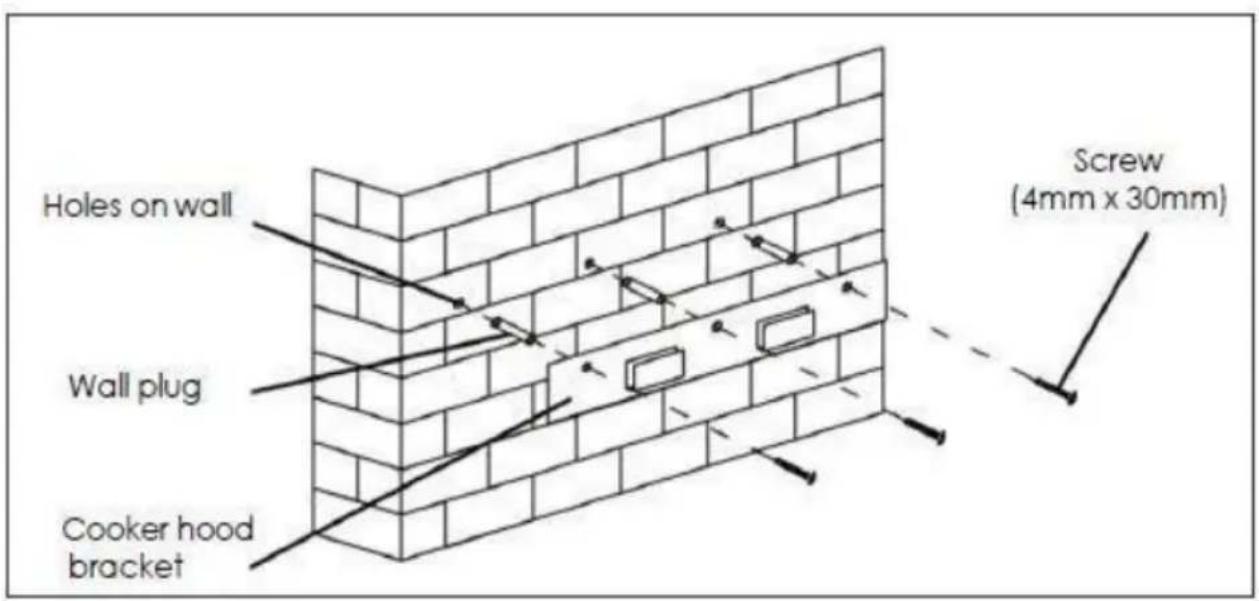

Step1.Drill 3 holes (Φ8mm to adapt your wall pl to place the bracket. Screw and tighten the brac to the wall with the screws 3 Screws (ST4x30m and 3 wall plugs (not supplied).

Holes on wall Wall plug Cooker hood bracket Screw (4mm x 30mm)

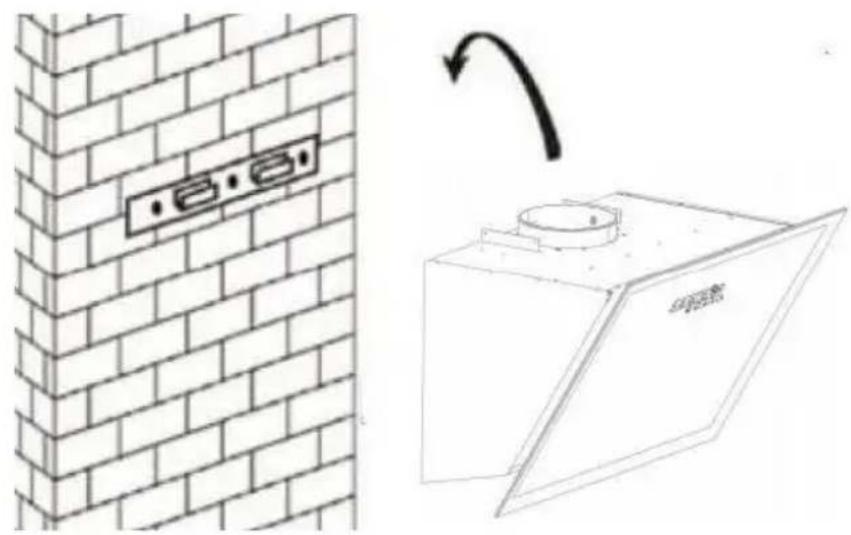

Step2. Place the range hood and hook it by using the two notches on the wall bracket.

Diagram showing brick wall connections with a switch and a 3D box labeled '可返热' (refrigerating)

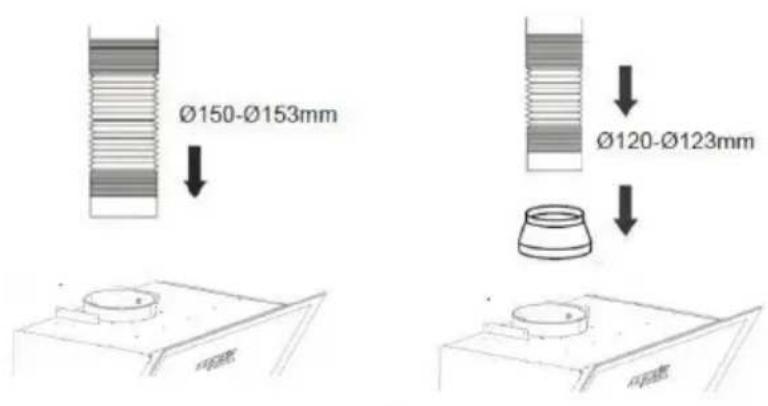

Step 3. (If the extraction installation mode is chosen) Place the ∅150-∅153mm plastic pipe (supplied) on the air outlet as shown below. If the size of your plastic pipe is ∅120 - ∅123mm, you must firstly assemble the adapter to the air outlet, shown below.

Ø150-Ø153mm Ø120-Ø123mm

Step 4. Screw the lower chimney bracket on the lower chimney by using 2 screws(ST4x8mm).

Line drawing of a rectangular metal frame with two screw holes and a horizontal bar (no text or symbols)

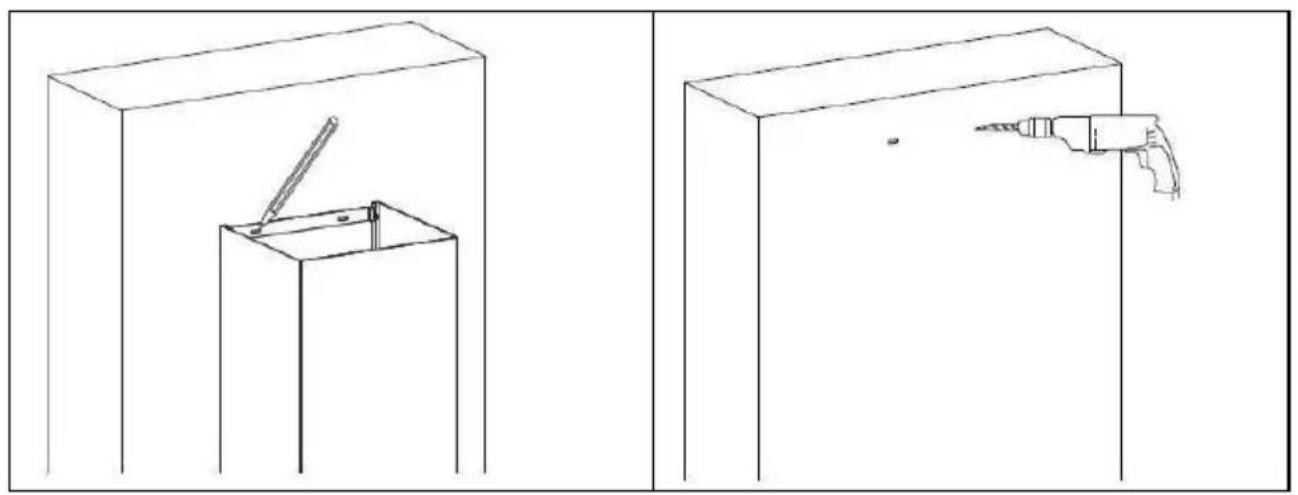

Step 5. Install the lower chimney on the appliance and mark the holes position on the wall.

Step 6. Remove the lower chimney, then drill hol in the wall: hole with diameter 4 mm screw.

Two technical line drawings showing a mechanical assembly: one with a lever inside a box, the other with a tool inserted into a housing (no text or symbols)

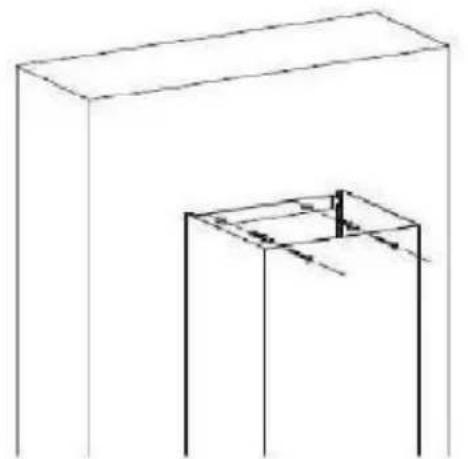

Step7. Install the lower chimney on appliance again, then screw it to the wall with 2 screws diameter 4 mm and the corresponding wall plugs (not supplied). Also screw the chimney and the hood with 2 screws(ST4x8mm)

Simple line drawing of a rectangular box and a cube with internal lines, no text or symbols present

Pure geometric diagram showing a circle intersected by two lines and a right angle, without any text, numbers, or symbols.

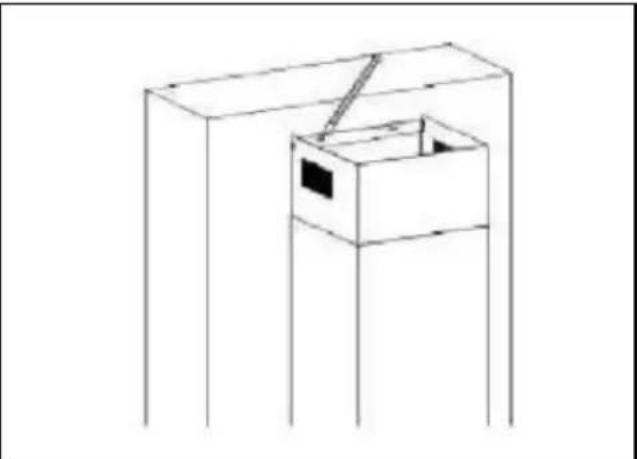

Step 8.Fix the upper chimney bracket on the upper chimney by 2 screws .ST4 x 8 mm Step 9.Pull the upper chimney upwards to the target height and mark the holes on the wall.

Line drawing of a brick wall structure with diagonal braces and support posts (no text or symbols)

Simple line drawing of a box with a diagonal line and a small square inside, placed on a stand (no text or symbols)

Step 10. Release the upper chimney and then dr holes on the wall.

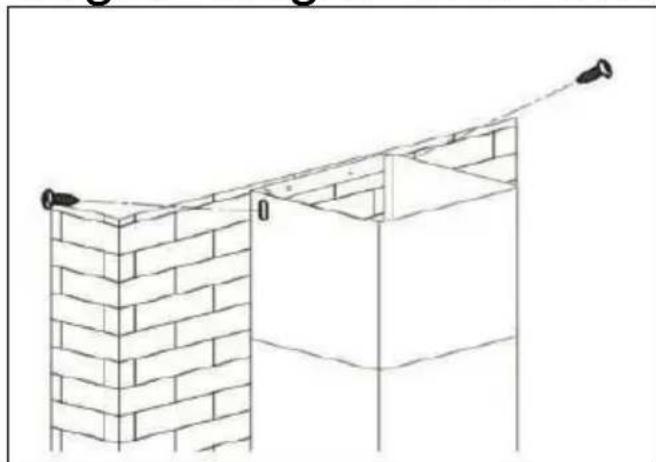

Step 11.Pull out the upper chimney again, then it to the wall with 2 screws ST4x30mm.

Two technical line drawings of a mechanical or electrical component, one with a handle and the other with a box (no text or symbols)

Recycling Mode:

If you do not have an outlet to the outside, plastic pipe is not required and the installation is similar to above. And you need to assemble the carbon filters which are used to trap odors.

the ed e to

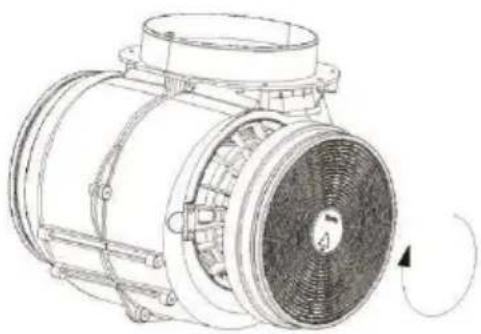

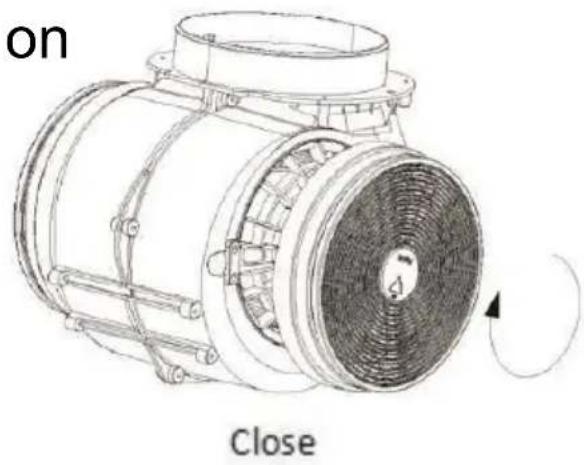

Place the carbon filter into the unit and turn it clockwise. Repeat the same on the other side.

on Close

NOTE:

Make sure the filter is securely locked. Otherwise it can fall and cause danger.

When charcoal filters are used, the suction power is decreased.

The carbon filter must be replaced at least once a year depending on how frequent the cooker hood used.

Regarding the instructions for the cleaning and maintenance of the appliance, please refer to below paragraphs of this manual.

Attention! Before cleaning switch the unit off and pull the plug.

Regular Cleaning

Use a soft cloth moistened with hand-warm mildly soap water or household cleaning detergent. Never use meta pads, chemical, abrasive material or stiff brush to clean the unit.

Monthly Cleaning for Grease Filter

ESSENTIAL: Clean the filter every month can prevent any risk of fire.

The filter collects grease, smoke and dust. It is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

CAUTION! The lamp must not be covered by thermal insulation or other materials.

NOTICE! Only switch on the lights while the appliance is operating. Do not switch on the to lighten the room.

Do not touch the illuminant within 30 minutes using the appliance.

1. Model with TC1 control panel

1 2 3

Never press more than one key at the sam

ON/OFF

Light on/off.

1 Low motor speed, suitable for cooking which produces little cooking steam.

2 Medium motor speed, suitable for standard/daily cooking.

3 High motor speed, suitable for cooking which produces much cooking steam.

2. Model with TC2 control panel

- 8 + *

On/Off key

It's used for turning on/off the fan.

+ Speed plus key

For increasing the speed of the fan

- Speed decrease key

For decreasing the speed of the fan.

Light key

8 Digital display

Fan speed display:"1" for Low speed, "2" for Medium speed, "3" for High speed.

Quick timer: Press+ & simultaneously for 1 second. The digital display flashes & the countdown starts for 5 minutes. After 5 minutes, the motor & light will turn off automatic & Buzz sound for 1 second

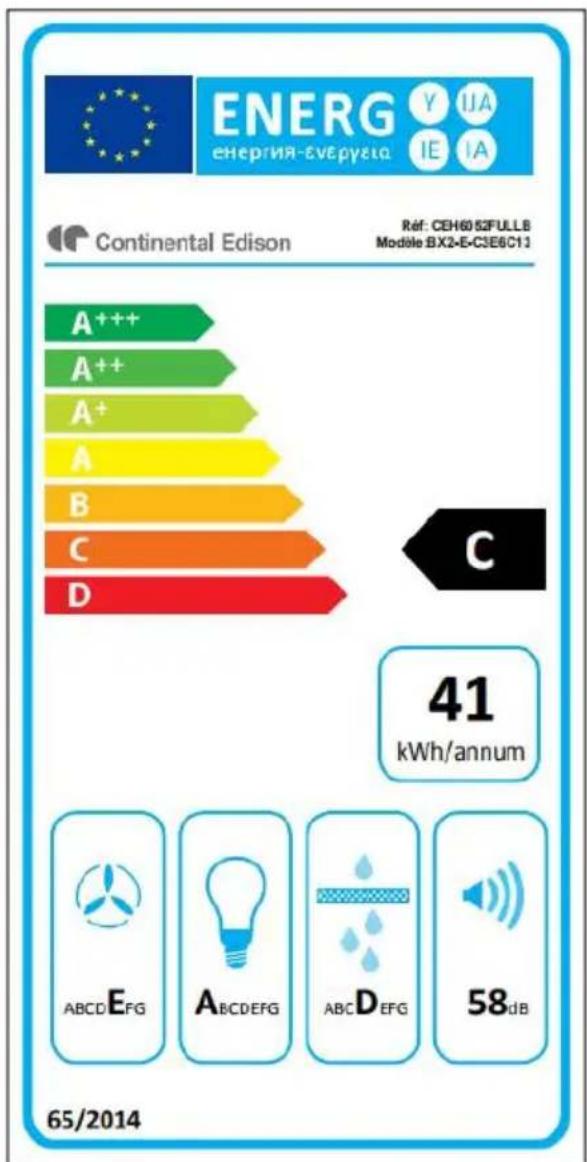

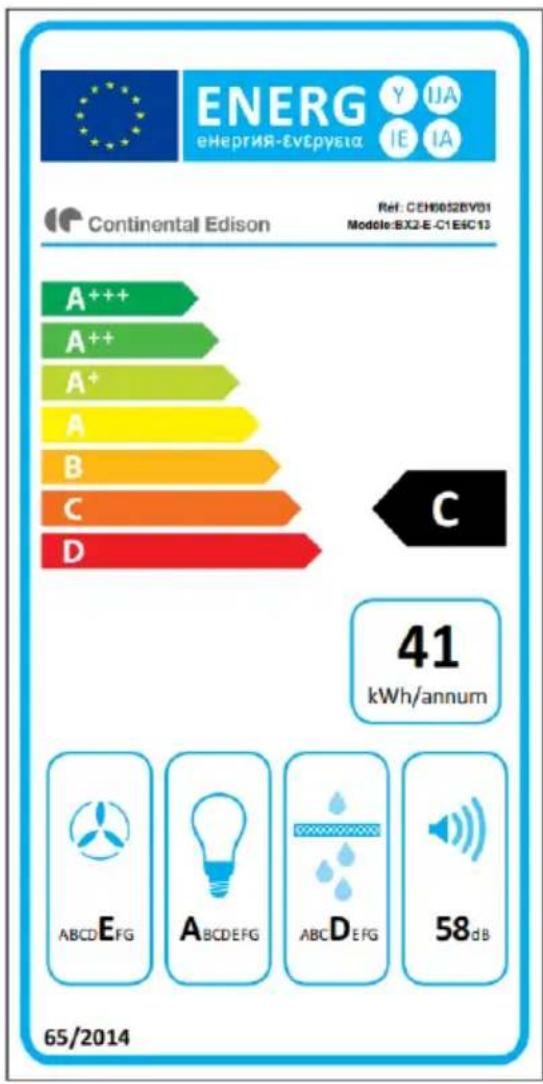

	Symbol	Value	Unit
Model identification	Ref.:CEH6052BVB&CEH6052FULLBRef.:CEH6052BVB1&CEH6052FULLB1
	Models:BX2-E-C1E6C13 & BX2-E-C3E6C13
Annual Energy Consumption	AEC_hotte	40, 7	kWh/a
Energy Efficiency class		C
Time increase factor	f	1,6
Fluid Dynamic Efficiency	FDE_hotte	10,1
Fluid Dynamic Efficiency class		C
Energy Efficiency Index	EEI_hotte	76,5
Measured air flow rate at best efficiency point	Q_BEP	282	m3/h
Measured air pressure at best efficiency point	P_BEP	85	Pa
Maximum air flow(Boost setting)	Q_max	--	m3/h
Maximum air flow(highest setting)		483,9	m3/h
Air flow at working point(highest setting)		438,0	m3/h
Air flow at working point(lowest setting)		321,5	m3/h
Measured electric power input at best efficiency point	W_BEP	65.9	W
Nominal power of the lighting system	W_L	3	W
Average illumination of the lighting system on the cooking surface	E_moyen	600mm:101>600mm:92	lux
Lighting Efficiency	LE_hotte	600mm:33,6>600mm:30,6	lux/W
Lighting efficiency class		A
Grease Filtering Efficiency	GFE_hotte	73,8(pour avec un filtre 74,7(pour avec deux filtres))
Grease Filtering Efficiency class		D
Measured power consumption off mode	P_O	0,48	W
Sound power level	L_WA	Boost setting:--Highest setting:58Lowest setting:54	dB

The method of measurement and calculation of the above table is in accordance with Commission Regulation (EU) No 65/2014 and 66/2014

ENERG Y IJA ENERG ENEPINA-EVEPYTA IE IA Continental Edison RÉF: CEH60 S2FULLB Module BX2-E-CSE6C13 A+++ A++ A+ A B C D 41 kWh/annum ABCD EFG ABCDEFG ABCD EFG 58dB 65/2014

ENERG Y IJA eHerpria-Energy Energrine Continental Edison Ref: CEH0052BV01 Modela: BX2-E-C1ESC13 A+++ A++ A+ A B C D C 41 kWh/annum ABCD EFG ABCDEFG ABCD EFG 58dB 65/2014

CONTINENTALEDISON

120-126 quai de Bacalan

CS11584

33000 Bordeaux

Importé par A.M.C.

The following recommendations specify how to reduce the overall environmental impact of the cooking process.

(1) Install the range hood in a suitable location with good ventilation.
(2) Clean the cooker hood regularly so that nothing blocks the air.
(3) Do not forget to turn off the hood lamp once cooking is complet
(4) Do not forget to turn off the range hood once cooking is complete

Disassembly Information

Do not disassemble the unit in a manner that is not indicated in the operating instructions. This device must not be disassembled by the user. At the end of its life cycle, the appliance must not be dispose with household waste. For recycling tips, please contact your local administration or dealer.

ENVIRONMENTAL PROTECTION

Electrical and electronic equipment is subject to selective collection. Do not dispose of used electrical and electronic equipment with unsorted household waste; instead, take part in their selective collection.

It is for this reason that your appliance, as indicated by the symbol its nameplate or on the packaging, must never be thrown in a public or private bin intended for household waste.

The user has the right to deposit the device in public collection place that selectively dispose of the waste to be recycled or reused for other applications.

The packaging is recyclable..

Pure electrical circuit lines without any symbols

Two overlapping gray semicircles of different shapes, no text or symbols present

Continental Edison
