PUTK 50 A1 - Furniture transport set POWERFIX - Free user manual and instructions

Product type	Furniture transport set
Brand	Powerfix
Model	PUTK 50 A1
Intended use	Domestic transport of loads on flat surfaces
Maximum load capacity	50 kg
Support surface dimensions	Approx. 23 x 25 cm
Weight empty	Approx. 1.65 kg
Tie-down strap	Permissible tensile force: 300 N, total length: 130 cm
Items supplied	Hand truck, instruction manual
Main functions	Moving furniture on casters, foldable, telescopic rod, retaining strap
Maintenance	Regularly check screws, clean with a damp cloth and mild detergent
Cleaning	Unfold the product, use a slightly damp cloth and household cleaner
Safety instructions	Do not use on stairs or slopes, do not lift, do not exceed 50 kg, do not use for lashing
Disposal	Via an authorised waste treatment company or the municipal recycling service
After-sales service France	Phone: [phone], Email: [e-mail]
After-sales service Belgium	Contact the aforementioned service first
Warranty	Void in case of improper or abusive use

Frequently Asked Questions - PUTK 50 A1 POWERFIX

What is the maximum load capacity of the PUTK 50 A1 transport set?

The maximum load capacity is 50 kg. Never exceed this limit to avoid any risk of damage or injury.

Can I use this transport set on stairs?

No, the product is designed only for use on smooth and level surfaces. Using it on stairs or sloping terrain is dangerous and may damage the appliance.

How do I properly secure a load with the strap?

Place the load centered on the support surface. Tighten the elastic tie-down strap until it firmly holds the load. Make sure the strap does not rub against sharp edges and does not exceed 130 cm in length.

Can the strap be used for lashing loads on a vehicle?

No, the strap is not designed for lashing on vehicles. It is only used to secure light items on the hand truck. Use special straps for car transport.

What if the tie-down strap is damaged?

If the strap is damaged, stop using it. It may tear and snap back violently, causing injury. Replace it with an original part from the after-sales service.

How to fold and store the hand truck after use?

First remove any load. Press the button on the retaining handle to push the telescopic rod downwards. Fold the product by pressing the middle of the button. Store it flat, in a clean and dry place, away from sunlight.

What regular maintenance is required?

Periodically check that all screws are tight. If necessary, tighten them by hand. Have damaged screws replaced by a specialist. Clean the product with a damp cloth and mild detergent.

Can I use this product to transport people or animals?

No, the product is exclusively intended for transporting inert loads. Using it for people or animals is dangerous and voids the warranty.

What if the product is unintentionally overloaded?

Immediately stop using the product. Overloading may cause invisible internal damage. Have it checked by the after-sales service before using again.

How to contact after-sales service in France?

In France, call 0800 919270 or send an email to [e-mail]. For Belgium, contact this service first.

USER MANUAL PUTK 50 A1 POWERFIX

TRANSPORTKARRE / FOLDING LOAD CARRIER /DIABLE PUTK 50 A1

DE AT CH

TRANSPORTKARRE

Bedienungsanleitung

FR BE

DIABLE

Mode d'emploi

PL

WOZEK TRANSPORTOWY

Instrukcja obstugi

SK

TRANSPORTN' VOZÍK

Návod na obsluhu

GB IE

FOLDING LOAD CARRIER

Operating instructions

NL BE

STEEKWAGEN

Gebruksaanwijzing

CZ

RUDL

Návod k obsluze

IAN 321614_1901

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Information about these operating instructions 10

Proper use 10

Technical details. 10

Safety. 10

Package contents 11

Use 12

Dismantling/storage 13

Maintenance 14

Cleaning 14

Disposal 14

Service 15

Importer 15

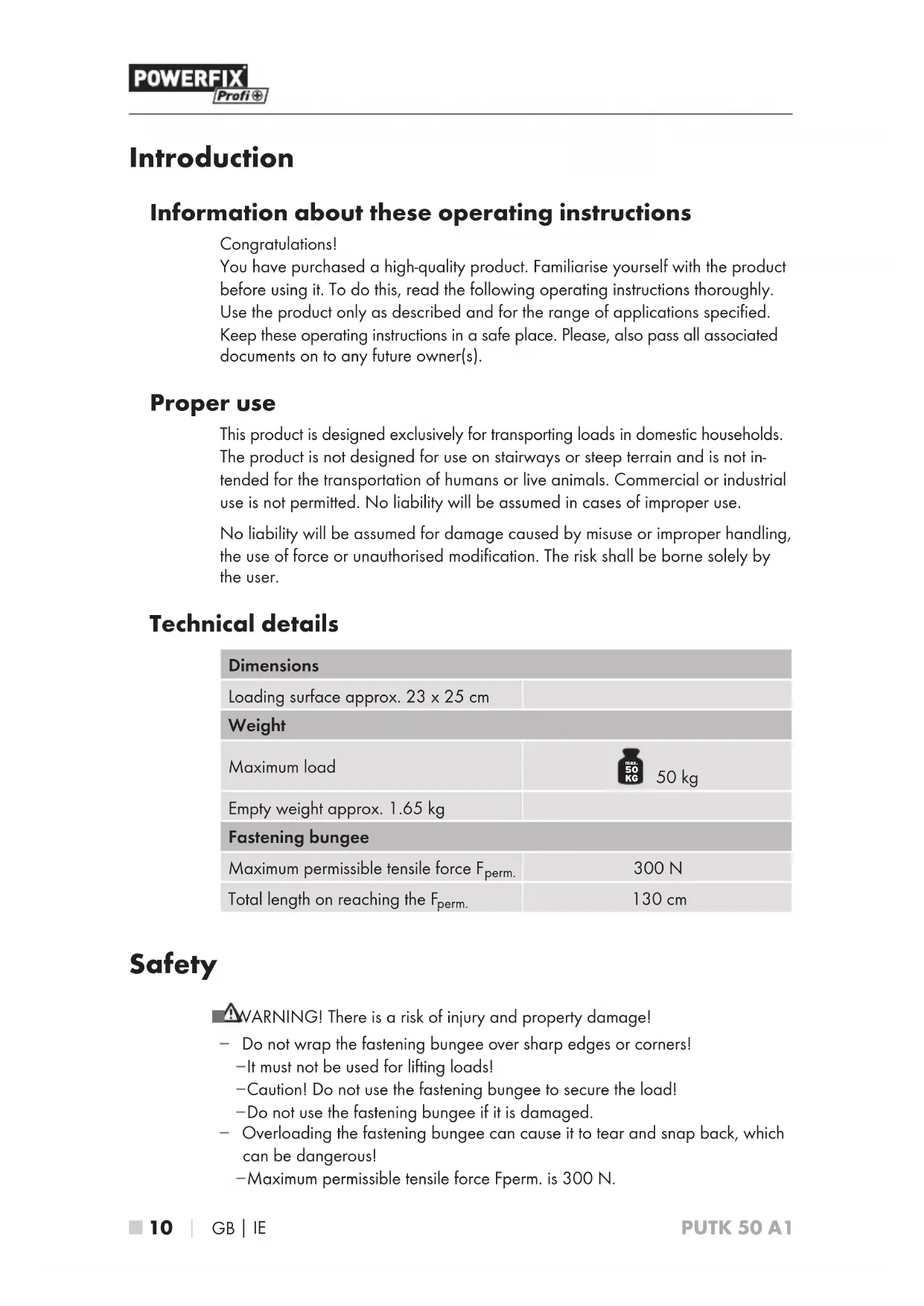

Introduction

Information about these operating instructions

Congratulations!

You have purchased a high-quality product. Familiarise yourself with the product before using it. To do this, read the following operating instructions thoroughly. Use the product only as described and for the range of applications specified. Keep these operating instructions in a safe place. Please, also pass all associated documents on to any future owner(s).

Proper use

This product is designed exclusively for transporting loads in domestic households. The product is not designed for use on stairways or steep terrain and is not intended for the transportation of humans or live animals. Commercial or industrial use is not permitted. No liability will be assumed in cases of improper use.

No liability will be assumed for damage caused by misuse or improper handling, the use of force or unauthorised modification. The risk shall be borne solely by the user.

Technical details

Dimensions
Loading surface approx. 23 x 25 cm
Weight
Maximum load	max 50 KG 50 kg
Empty weight approx. 1.65 kg
Fastening bungee
Maximum permissible tensile force Fperm.	300 N
Total length on reaching the Fperm.	130 cm

Safety

WARNING! There is a risk of injury and property damage!

• Do not wrap the fastening bungee over sharp edges or corners!

• It must not be used for lifting loads!

• Caution! Do not use the fastening bungee to secure the load!

-Do not use the fastening bungee if it is damaged.

Overloading the fastening bungee can cause it to tear and snap back, which can be dangerous!

Maximum permissible tensile force Fperm, is 300 N.

• Do not stretch the fastening bungee longer than the maximum usable length of 130~cm
• Keep out of reach of children!
• Keep your eyes, face and unprotected body parts out of the way of any possible spring-back paths!
• The fastening bungee may not be used for securing heavy or large (wind-resistant) loads! Provide additional anchoring for parts with a large surface area that are susceptible to the wind.
  Spider bungees and luggage straps are particularly suitable for fastening fluttering tarpaulins. Do not use for securing loads!
  Take additional forces into account (wind, braking, lifting forces).
• The fastening bungee alone is not sufficient for attaching and securing loads to vehicles!
  -Use it only for attaching light loads.
  Check the product before every use to make sure it is in perfect condition. Do not use the product if it is damaged in any way.
  If it does not work properly or has been damaged, the product should be checked immediately and repaired by customer service.
  This product is not a toy. Keep it out of the hands of children.
  Do not tie several fastening bungees together.
  ■ Do not modify the end attachment of the elastic fastening bungee.
  Never apply a load of more than 50kg
  Do not continue to use the product if it is overloaded. This could lead to damage that is not immediately visible.
  Use the product only on smooth, even surfaces, and not on stairways or steep slopes.
  ■ Be careful when folding the product. Avoid getting your fingers or hands caught.
  Check each screw connection at regular intervals.
  Never use the product for purposes other than those described in these instructions.

Package contents

• Folding load carrier
  These operating instructions

NOTE

Check the package for completeness and signs of visible damage.

Use

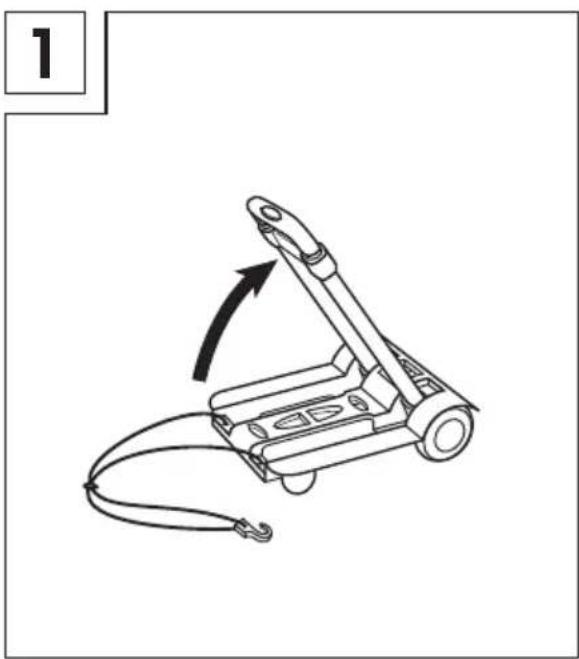

Undo the elastic fastening bungee and unfold the product until it audibly clicks into place (see fig. 1).

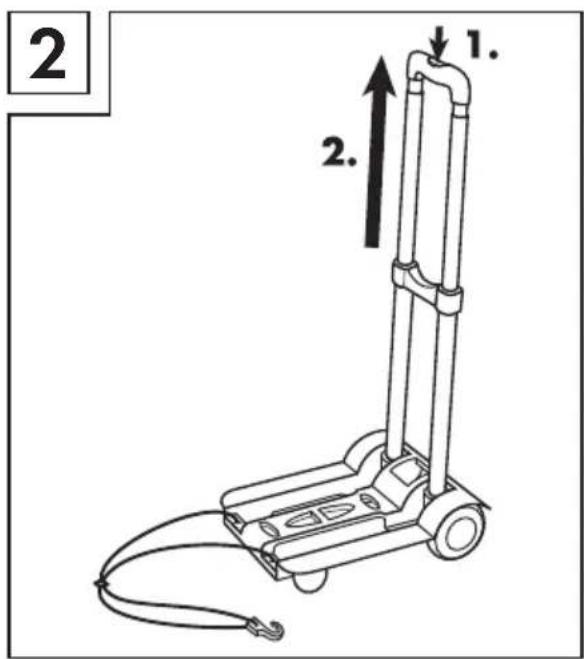

Press the knob on the handle and pull the telescopic bar out until it clicks into place (see fig. 2).

WARNING! RISK OF INJURY!

Do not stretch the fastening bungee more than the maximum usable length of 130~cm . Keep your eyes, face and unprotected body parts out of range of a possible springback.

NOTE

The fastening bungee must be under tension to ensure that the load is held in place. Observe the size of the load.
Never apply a load of more than 50kg

Place a load onto the load area. Do not stack multiple loads.
Place the load centrally on the load area.

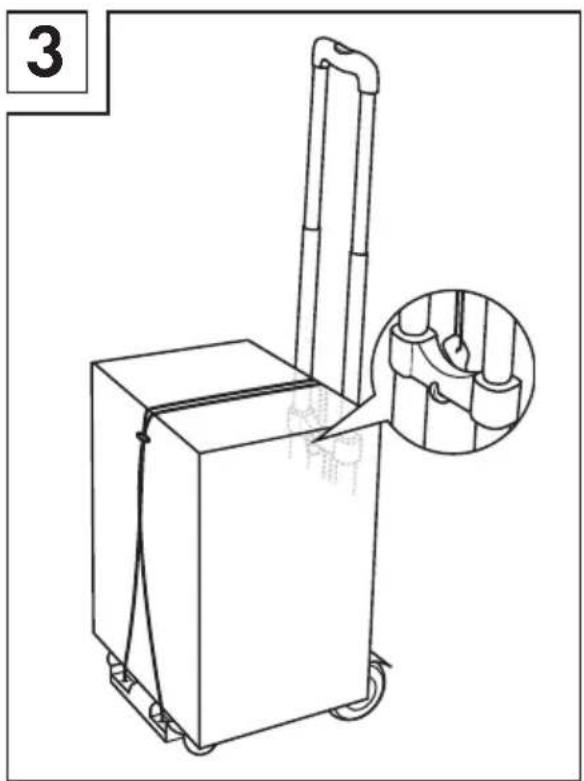

Secure the load with the fastening bungee (see fig. 3).
Make sure that the fastening bungee is sufficiently tightened so that the load is firmly held in place.

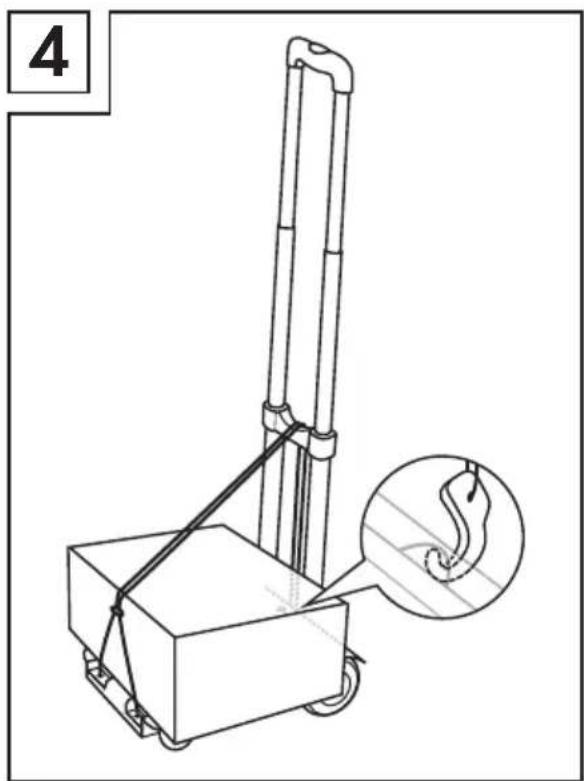

Also make sure that the fastening bungee is sufficiently tightened even for small loads (see fig. 4). The arrow symbol shows where the fastening bungee can be hooked on.
Move the product by pulling it behind you on both wheels.

Dismantling/storage

WARNING! RISK OF INJURY!

Remove any load before converting the product.
Risk of crushing! A lot of force is required for folding the product. Make sure that you do not injure yourself. Do not fold the appliance in a jerky fashion.
Fold the product in reverse order as described in the section Use.

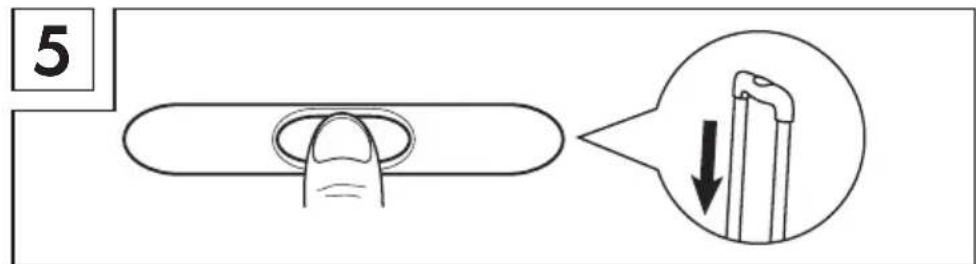

Please make sure that you push the middle of the knob at the center of the telescopic bar to push it down (see fig. 5).

Store the product lying down so that it cannot tip over. Place the product in a clean, dry place away from direct sunlight.

Maintenance

Check that all the screw connections are sufficiently tightened at regular intervals.
If necessary, tighten all screw connections manually.
All damaged screw joints should be replaced by a specialist.

Cleaning

WARNING!

• Do not use aggressive or abrasive cleaning agents, as these can damage the outer surfaces of the product.

Unfold the product to clean it (see section Use).
Clean the product using a moistened cloth and a standard commercial household detergent.

Disposal

Dispos of the product via an approved waste disposal company or your municipal waste disposal facility. Observe the currently applicable regulations. Please contact your waste disposal facility if you are in any doubt.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings:

1-7:Plastics,
20-22:Paper and cardboard,
80-98:Composites

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN321614_1901

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com

Date of manufacture: 2019-05
