Product type	Mobile jump starter with external battery (power bank)
Model	UMAP 12000 A1
Brand	Ultimate Speed
Battery type	LiFePO4
Battery capacity	12000 mAh / 3.2 V (38.4 Wh)
Number of charge cycles	1500
Peak current	300 A
Starting current	120 A
Charging time	Max. 13.5 hours
Input voltage (charging)	5 V ⎓ / 1 A
USB outputs	5 V ⎓ / 1 A (x1), 5 V ⎓ / 2 A (x1)
12 V output	12 V ⎓ / 8 A (via cigarette lighter adapter)
LED light	White, modes: constant, flashing, SOS
Operating temperature	0 °C to 60 °C
Compatible engines	Gasoline ≤ 3 L, Diesel ≤ 2 L
Integrated protections	Protection against undervoltage, reverse polarity, overload and short circuit
Included accessories	USB cable, jump start cable, mains adapter, 12 V/8 A cigarette lighter adapter, storage bag, instruction manual
Protection class	IP20

Frequently Asked Questions - UMAP 12000 A1 ULTIMATE SPEED

How do I charge the jump starter battery?

Connect the supplied USB cable to the charging port (5 V / 1 A) and plug it into a mains adapter. Full charging takes max. 13.5 hours. During charging, the control LEDs flash.

How do I use the jump starter?

Make sure at least 3 control LEDs are lit. Connect the jump start cable: first the red clamp (+) to the positive terminal of the battery, then the black clamp (-) to the negative terminal. The green LED lights up. Start the vehicle (max. 3-5 attempts). Disconnect the cable within 30 seconds after starting.

What should I do if the red error LED flashes?

If the red LED flashes with an alarm, it may indicate: temperature too high (wait and reconnect), reversed clamps (correct immediately), or device battery too low (recharge the device). Refer to the troubleshooting table in the manual.

How long does the device charge last?

The charge lasts 3 to 6 months. It is recommended to recharge the device every 1 to 2 months to preserve the battery.

Can I charge my phone with this device?

Yes, the device has two USB outputs (5 V / 1 A and 5 V / 2 A) for charging phones, tablets or other USB devices. Charging is not possible while the device is charging itself.

How do I turn on the LED light?

Press and hold the power button for 3 seconds to turn on the LED in constant mode. Press briefly again to switch to flashing mode, then once more for SOS mode. Press again for 3 seconds to turn off.

What types of engine can I start?

This device is suitable for gasoline engines with a maximum displacement of 3 liters and diesel engines with a maximum displacement of 2 liters. It is not suitable for 6 V batteries.

How do I turn off the device?

The device turns off automatically after 20 seconds of inactivity. There is no manual off button.

How do I maintain and store the device?

Clean the housing with a damp cloth; do not use solvents. Store the device in a dry place, away from heat and moisture, ideally in the supplied storage bag. Do not leave it in a car in summer.

What is the warranty period?

The warranty is 3 years from the date of purchase. Keep the receipt and the reference number (IAN 322269_1901). If problems occur, contact customer service at the details provided in the manual.

USER MANUAL UMAP 12000 A1 ULTIMATE SPEED

PDF ONLINE www.lidl-service.com

MOBILE AUTOSTARTHILFE MIT POWERBANK UMAP 12000 A1 PORTABLE JUMP STARTER WITH POWER BANK UMAP 12000 A1 AIDE AU DÉMARRAGE MOBILE POUR VOITURES AVEC BATTE- RIE EXTERNE POWERBANK UMAP 12000 A1

DE AT CH

MOBILE AUTOSTARTHILFE MIT POWERBANK

Operation and Safety Notes Translation of the original instructions

NL BE

MOBIELE AUTOSTARTHULP MET POWERBANK

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB / IE Operation and Safety Notes Page 19

(Ladeanschluss): 5 V = / 1 A

[e-mail]

[e-mail]

Telefon: [phone]

Intended use....Page 21

Equipment Page 21

Technical specifications....Page 22

Package contents....Page 22

General safety instructions ......Page 22

Product-specific safety instructions......Page 24

Using the device....Page 25

Check the capacity of the portable jump starter with power bank......Page 25

Charge portable jump starter with power bank......Page 25

Using the jumpstart feature....Page 26

Charging mobile phones and tablets......Page 27

Using the 12 VDC output 8A with the cigarette lighter adapter....Page 27

Switch on lighting....Page 27

FAQs Page 28

Troubleshooting......Page 28

Cleaning Page 28

Storage Page 28

Warranty and service information......Page 29

Warranty conditions....Page 29

Warranty period and statutory claims for defects......Page 29

Extent of warranty ......Page 29

Processing of warranty claims....Page 29

Information about recycling and disposal......Page 30

EU Declaration of Conformity Page 31

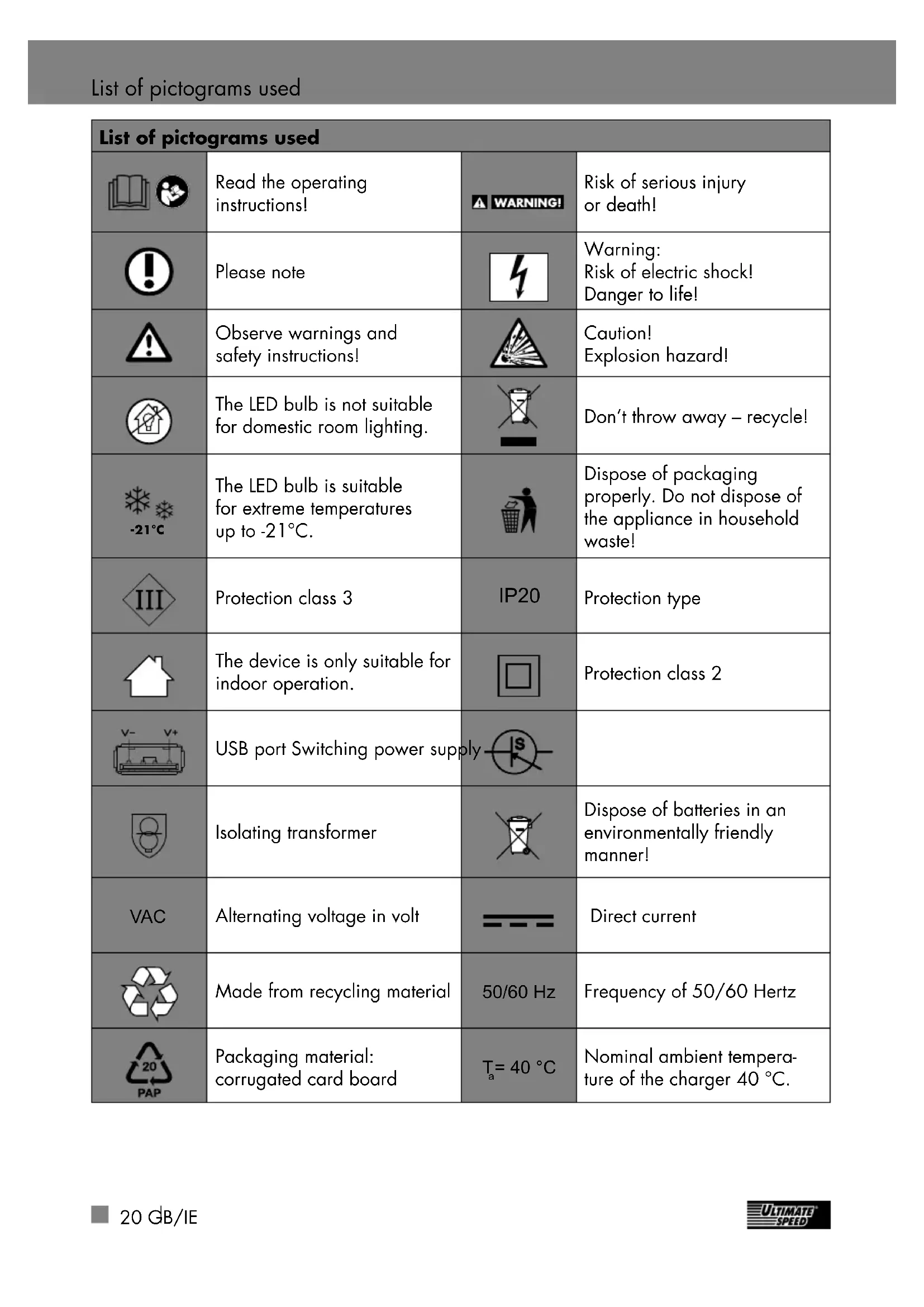

List of pictograms used
	Read the operating instructions!	WARNING!	Risk of serious injury or death!
	Please note		Warning: Risk of electric shock! Danger to life!
	Observe warnings and safety instructions!		Caution! Explosion hazard!
	The LED bulb is not suitable for domestic room lighting.		Don't throw away - recycle!
	The LED bulb is suitable for extreme temperatures up to -21°C.		Dispose of packaging properly. Do not dispose of the appliance in household waste!
	Protection class 3	IP20	Protection type
	The device is only suitable for indoor operation.		Protection class 2
	USB port Switching power supply
	Isolating transformer		Dispose of batteries in an environmentally friendly manner!
VAC	Alternating voltage in volt		Direct current
	Made from recycling material	50/60 Hz	Frequency of 50/60 Hertz
	Packaging material: corrugated card board		Nominal ambient temperature of the charger 40 °C.

Portable jump starter with power bank UMAP 12000 A1

- Introduction

Congratulations! You have purchased one of our high-quality products. Please familiarise yourself with the product before setup or first use. To do so, please read through the following operating and safety instructions carefully. This product must only be set up or used by people who have been trained to do so.

KEEP OUT OF THE REACH OF CHILDREN!

Only for petrol motors with a max. 3 litre engine and for diesel motors with a max. 2 litre engine.

- Intended use

This portable jump starter with power bank serves as additional support for 12-V vehicle battery systems during starting problems in diesel and petrol vehicles, which are caused by weak or faulty starter batteries. However, the portable jump starter with power bank cannot replace the vehicle battery. If no more than 300 A are needed for starting (max. peak current), the power bank lets the user single-handedly start the vehicle when necessary, without additional help from a third party.

This portable jump starter with power bank does not serve as additional support for 6-V batteries.

The portable jump starter with power bank is also fitted with 2 USB ports. This means that mobile phones, satnavs or other USB-enabled devices can also be charged if needed.

Any other use may cause damage to the portable jump starter with power bank and expose the user to a risk of serious injury.

The manufacturer is not liable for any injury or damage resulting from improper use or incorrect operation.

This portable jump starter with power bank is not suitable for commercial use.

Commercial use will void the guarantee.

The LED bulb is not suitable for domestic room lighting.

The LED bulb is suitable for extreme temperatures up to -21 °C.

Equipment

After unpacking the product, please check that all of the package contents are present

and that the device is in perfect condition. Do not use the device if it is defective.

1 Portable jump starter with power bank
2 LED light
3 12 VDC output 8 A
4 Charging port 5 V = /1 A
5 Output USB 5 V --- /1 A
6 Output USB 5 V --- /2 A
7 Power button
8 Charge status indicator lights
9 Vehicle jumpstart outlet
10 Jumper cable
11 Button LED box
12 Start LED
13 Error LED
14 12V/8Acigarette lighter adapter
15 AC adapter
16 USB power cable
17 Storage bag

Note: The use of the term "product" or "device" in the following text refers to the

portable jump starter with power bank named in these operating instructions.

• Technical specifications

The four individual cells used to construct the rechargeable battery are connected in series to produce a total voltage of 4 × 3.2 V ≈ 12 V and a capacity of 3000 mAh. The battery output produced in this way is the same as the output from a rechargeable battery with a total capacity of 12000 mAh at 3.2 V.

Model: UMAP 12000 A1

Battery type: LiFePO4

Battery capacity: 12000 mAh / 3.2 V = /38.4 Wh

Charge cycles: 1500

Charging time: max. 13.5 hours

Peak current: 300 A

Starting current: 120 A

Operating

temperature: 0 to 60 °C

Voltage: 12 V—

Input voltage

(charging port): 5 V = / 1A

Capacity: 7000 mAh / 5 V

Output voltage

(USB port): 5 V = / 1 A / 2 A

Only for petrol motors with a max. 3 litre engine and for diesel motors with a max. 2 litre engine.

Changes to technical and visual aspects of the product may be made as part of future developments without notice.

Accordingly, no warranty is offered for the physical dimensions, information and specifications in these operating instructions. The operating instructions cannot therefore be used as the basis for asserting a legal claim.

• Package contents

1 portable jump starter with power bank
1 USB power cable
1 jumper cable
1 AC adapter
1 12-V cigarette lighter adapter
1 set of operating instructions
1 storage bag

General safety instructions

This section covers the basic safety instructions applicable when working with the device.

Safety of persons:

This device may be used by children aged 8 years and older, and by persons with reduced physical, sensory or mental capacities, or a lack of experience and knowledge, if they are supervised or have been instructed in how to use the device safely and understand the dangers that may arise when using it. Do not allow children to play with the device. Cleaning and day-to-day maintenance must not be performed by children without supervision.
■ Children must be supervised to ensure that they do not play with the device.

- Keep the device away from people – especially children – and household pets.

■ Within the working area, the user is responsible for any damage or injury to third parties that was caused by the use of the device.

- Keep the device in a dry location and out of the reach of children.

CAUTION: How to avoid damage to the device and any harm to persons that may result from such damage:

Working with the device:

■ Do not use the device while driving the vehicle.
In hot weather, do not leave the device in a car. This could permanently damage the device. Before setup or first use, check the device for any damage and do not use unless in perfect working order.

■ Do not expose the device to rain or wet weather and do not allow it to come into contact with water or to be submerged in water. There is a risk of electric shock!

- Keep all openings of the device free during operation.

Do not block the openings with your hands or fingers, and do not cover the device. There is a risk of overheating!

■ Switch the device off and remove the plug from the socket in the following cases:

- When you are not using the device;

- If you are leaving the device unsupervised;

- When you are carrying out cleaning or maintenance work;

- If the connection cable is damaged;

- If foreign objects have got into the device or you notice unusual noises.

■ Only use the accessories supplied and recommended by the manufacturer.

■ Do not dismantle or modify the portable jump starter with power bank. This device must only be repaired by a maintenance technician.

■ Do not use the device in areas with a risk of explosion, e.g. near flammable liquids, gases or powders.

■ Do not expose the device to any source of heat.

■ Do not store in places where the temperature can exceed 70^ C.

■ Only charge in an ambient temperature of 0 °C to 40 °C .
■ Only use the power adapter as supplied 15 with the device.

CAUTION: How to avoid accidents and injuries resulting from electric shock: Electrical safety:

- Do not carry the device by the cable. Do not unplug the plug from the socket by pulling on the cable. Protect the cable from heat, oil and sharp edges.

■ Do not short-circuit the two crocodile clips. This can lead to a hazardous situation!
■ Do not use the device if the switch cannot be switched on and off. Arrange for damaged switches to be replaced.
■ If the cable is damaged, unplug the plug immediately from the socket.

Batteries:

AUTION: RISK OF EXPLOSION!

Do not short-circuit the rechargeable battery and/or open it. This could cause the device to overheat, ignite or explode.

■ Do not expose the rechargeable battery to high temperatures. It can explode.
■ Regularly check the rechargeable battery for leakage.
Leaking or damaged rechargeable batteries may cause burns to the skin if touched; therefore, always wear suitable safety gloves! Carefully wipe up the liquid with a cloth and avoid contact with skin and eyes. In the event of contact with skin or eyes, rinse immediately with clean water and seek medical attention.

● Product-specific safety instructions

■ We recommend charging the portable jump starter with power bank 1 once a month.
■ A slightly higher temperature during charging is absolutely normal and not a malfunction. However, we do recommend leaving the portable jump starter with power bank 1 to rest for 15 minutes before using it.
■ Protect the portable jump starter with power bank 1 from moisture and high temperatures, including fires.

■ Store the portable jump starter with power bank 1 in a dry place and protect the device from moisture and corrosion.
If you notice the portable jump starter with power bank 1 is leaking, producing an unusual odour or looks deformed in any way, stop using the device immediately and contact the manufacturer.
- Do not drop the portable jump starter with power bank 1 while it is being used.
■ When using the jumper cable 10, ensure that the blue plug is securely plugged into the vehicle jumpstart outlet 8.
■ When using the jumpstart, make sure that all 3 indicator lights 13 are lit.
■ If the indicator lights for the charging status 8 go out during the start attempt, charge the portable jump starter with power bank 1.
If the vehicle does not start after the 3rd – 5th start attempt, stop the start process and check the other causes that may be preventing the vehicle from starting.

- Using the device

- Check the capacity of the portable jump starter with power bank

Note: Once the portable jump starter with power bank has been switched on 1 using the power button 7, the device switches off automatically after approximately 20 seconds if no consumables are connected.

■ To monitor the capacity of the portable jump starter with power bank, press the power button 7.
During charge, the indicator lights will flash 8.
- The number of permanently lit indicator lights 8 shows the charge level of the portable jump starter with power bank.
- When the portable jump starter with power bank is fully charged, all indicator lights 8 will be permanently lit.

Indicator lights Charge	level
None permanently lit 0	%
1 permanently lit 25 %
2 permanently lit 50 %
3 permanently lit 75 %
4 permanently lit 100 %

- Charge portable jump starter with power bank

■ Connect the USB power cable of the power supply adaptor 15 to the charging port (5 V === /1 A) 4 of the portable jump starter with power bank 1.
- Plug the power supply adaptor into a mains socket.

Note: An undervoltage protection circuit is installed in the portable jump starter with power bank 1 to protect the device from damages. This prevents a deep discharge of the portable jump starter with power bank 1 and automatically switches the device off once the battery is fully discharged. Shortly before the undervoltage protection circuit becomes active, the last blue indicator light 8 starts flashing. As soon as the undervoltage protection circuit is active, the last

blue indicator light 8 flashes and no more energy can be obtained. Please re-charge the portable jump starter with power bank 1.

• Using the jumpstart feature

■ When using the jumpstart, make sure that at least 3 indicator lights 8 are permanently illuminated.

Step LEDs Meaning / Error	Solution
1. Connect the jumper cable 10 of the portable jump starter with power bank to the vehicle jumpstart outlet 9 of the portable jump starter with power bank 1.	Red Error LED 13 is continuously lit on the jumper cable 10.	The voltage determined in the portable jump starter with power bank is not enough to start the car.	Charge the portable jump starter with power bank.
	Green Start LED 12 and the red Error LED 13 flash alternately.	Portable jump starter with power bank ready for operation.	Carry on with step 2.
2. First connect the red battery clamp (A) to the positive pole of the vehicle battery and then connect the black battery clamp B to the negative pole (see picture 1).	The red Error LED 13 flashes, a short alarm signal sounds.	The temperature is too high, possibly due to several jump start attempts.	First disconnect the black battery clamp (B) and then the red clamp (A) from the battery poles. Start again with step 1.
	The red Error LED 13 flashes, a continuous alarm signal sounds.	Battery clamps (A) and (B) are the wrong way round. It is caused by a short circuit or the battery is leaking.
	The red Error LED 13 flashes once, a continuous alarm is sounded and then followed by two short alarm sounds.	The connection is correct	Carry on with step 3.
	Green Start LED 12 and the red Error LED 13 flash alternately. After 1–2 seconds only the green LED 12 glows.
3. Starting up the vehicle.

1 B A 2. 1. - +

⚠ WARNING! As soon as the vehicle starts, remove the jumper cable 10 from the portable jump starter with power bank within 30 seconds and firstly disconnect the black battery clamp and then the red battery clamp from the battery poles. Otherwise, it could result in dangerous situations!

■ Leave the vehicle engine running.

Note: The button on the LED box 11 of the jumper cable has no effect and must not be used. It is only used for troubleshooting purposes during the manufacture of the device.

● Charging mobile phones and tablets

■ Press the power button
- Connect your mobile phone or tablet's USB power cable to the USB output (5 V —/1A 5 /2A 6) and then to your mobile phone or tablet.

Note: Charging is not possible if the portable jump starter with power bank is already fully charged.

● Using the 12 VDC output 8 A with the cigarette lighteradapter

■ Press the power button
■ Connect the 12V/8A cigarette lighter adapter 14 to the 12 VDC output 8 A 3

of your portable jump starter with power bank and then to your end device.

Note: Usage is not possible if the portable jump starter with power bank is already fully charged.

⚠ Attention: Only use the supplied 12V/8A cigarette lighter adapter. There is a risk of short-circuiting if external adapters are used.

- Switch on lighting

Light mode

■ When switching on the LED light, hold down the power button 7 for 3 seconds.
■ Press and hold the power button for another 3 seconds to turn the LED light 2 off again.

Flash mode

■ To switch on the LED light in the flash or SOS mode, first press the power button 7 for 3 seconds. Then the LED light 2 will be permanently lit.
- Briefly press the power button once again and the LED light will switch to flash mode.
- Briefly press the power button once again and the LED light 2 will switch to SOS mode. There will be 3 short flashes, 3 long flashes and another 3 short flashes.
- Briefly press the power button once again to switch off the LED light 2.

CAUTION! Do not look directly at the LED lights 2 as this can damage your eyes.

Please note: It is not possible to turn on the light while the portable jump starter with power bank is charging.

- FAQs

Q: How can I switch the device off?

A: The device automatically switches off after 20 seconds of none use. A manual switching off is not provided for.

Q: How long does it take to fully charge a mobile phone with the device?

A: With a battery power of 2500 mAh: Approx. 2-3 hours if connected to the USB port 5V === / 1A 5. Approx. 1-2 hours if connected to the USB port 5 V === / 2A 6. Please note that if the device is switched on, it will continually use battery power while actually charging and this can extend the charging time.

Q: How long does the device's batterylast?

A: 3–6 months. However, we recommend charging the battery every 1–2 months.

- Troubleshooting

● = problem
◎ = cause
O = remedy
● The portable jump starter with power bank is not fully charged, even though all 4 indicator lights are permanently lit.
- It is 60% charged after a long period out of use or in storage.
○ Recharge the portable jump starter with power bank 1 as described in the "Charge portable jump starter with power bank" section.
- There is no response to pressing the power button 7.
- Check that the low voltage protection of the portable jump starter with power bank is activated.

○ Recharge the portable jump starter with power bank 1 as described in the "Charge portable jump starter with power bank" section.
- One indicator light 8 flashes, however, the portable jump starter with power bank 1 cannot be used.
- Check that the low voltage protection of the mobile vehicle jumpstart with power bank 1 is activated.
○ Recharge the portable jump starter with power bank 1 as described in the "Charge portable jump starter with power bank" section.

- Cleaning

⚠ WARNING! The device must not come into contact with water or placed in water. There is a risk of injury due to electric shock if moisture enters the device.

• Do not use any detergents or solvents. These could damage the device beyond repair.
• Keep the housing and device accessories clean.
  ■ Use a damp cloth or a soft brush to clean the device and the accessories.

- Storage

• Keep the device in a dry location and out of the reach of children.
  ■ Store the device including accessories in the storage bag 17 provided.

● Warranty and service information

Warranty from Creative Marketing & Consulting GmbH

Dear Customer,

The warranty for this equipment is 3 years from the date of purchase. In the event of product defects, you have legal rights against the retailer of this product. Your statutory rights are not affected in any way by our warranty conditions, which are described below.

- Warranty conditions

The warranty period begins on the date of purchase. Please retain the original sales receipt. This document is required as your proof of purchase.

Should this product show any defect in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our discretion – free of charge. This warranty service requires that you retain proof of purchase (sales receipt) for the defective device for the three year period and that you briefly explain in writing what the fault entails and when it occurred. If the defect is covered by our warranty, we will repair and return your product or send you a replacement. The original warranty period is not extended when a device is repair or replaced.

• Warranty period and statutory claims for defects

The warranty period is not extended by the guarantee. This also applies to replaced and repaired parts. Any damages or defects detected at the time of purchase must be reported immediately after unpacking.

Any incidental repairs after the warranty period are subject to a fee.

• Extent of warranty

This device has been manufactured according to strict quality guidelines and carefully inspected before delivery.

The warranty applies to material and manufacturing defects only. This warranty does not extend to product parts, which are subject to normal wear and tear and can thus be regarded as consumable parts, or for damages to fragile parts, e.g. switches, rechargeable batteries or parts made from glass.

This warranty is voided if the product becomes damaged or is improperly used or maintained. For proper use of the product, all of the instructions given in the operating instructions must be followed precisely. If the operating instructions advise you or warn you against certain uses or actions, these must be avoided in all circumstances.

The product is for consumer use only and is not intended for commercial or trade use. The warranty becomes void in the event of misuse and improper use, use of force, and any work on the device that has not been carried out by our authorised service branch.

- Processing of warranty claims

To ensure prompt processing of your claim, please follow the instructions given below.

Please retain proof of purchase and the article number (e.g. IAN) for all inquiries. The product number can be found on the type plate, an engraving, the cover page of your instructions (bottom left), or the sticker

on the back or underside of the device. In the event of malfunctions or other defects, please first contact our service department below by phone or email. If your product is found to be defective, you can then send your product with proof of purchase (till receipt) and a statement describing what the fault involves and when it occurred free of charge to the service address given.

Note:

If you visit www.lidl-service.com, you can download this manual and many other manuals, product videos and software.

With this QR code you can gain immediate access to the Lidl Service page (www.lidl-service.com) and you can open your operating instructions by entering the article number (IAN) 322269_1901.

PDF ONLINE www.lidl-service.com

How to contact us:

GB, IE

Name: C. M. C. GmbH

Website: www.cmc-creative.de

E-mail: [e-mail]

Phone: [phone]

Registered office: Germany

IAN 322269_1901

Please note that the following address is not a service address. Please first contact the service point given above.

Address:

C. M. C. GmbH

Katharina-Loth-Str. 15

66386 St. Ingbert

Germany

Ordering spare parts:

● Information about recycling and disposal

Don't throw away - recycle!

Please return this device, accessories and packaging to your local recycling depot.

Do not dispose of the product

in household waste, in fire or in water.

Devices that are no longer functional should be recycled wherever possible.

Ask your local stockist for advice.

As the consumer you are legally obliged (by the German Battery Ordinance) to return any and all

used batteries. Batteries containing harmful substances are labelled with the adjacent symbol, which indicates the prohibition on disposal in household waste. The abbreviations for the relevant heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead.

Take used batteries to a waste management company in your city, community, or return them to your dealer. This satisfies your legal obligations and you are greatly contributing to protecting the environment.

THE INSTALLED BATTERY CANNOT BE SEPARATELY REMOVED FOR DISPOSAL.

• EU Declaration of Conformity

We,

C. M. C. GmbH

Responsible for documentation:

Alexander Hoffmann

Katharina-Loth-Str. 15

66386 St. Ingbert

Germany

hereby take sole responsibility for declaring that the product

Portable jump starter with power bank

Model: UMAP 12000 A1

Year of manufacture: 2019 / 40

IAN: 322269_1901

Art. no.: 2199

meets the basic safety requirements as specified in the European Directives

Electromagnetic Compatibility:

(2014/30/EU)

Low Voltage Directive:

(2014/35/EU)

RoHS Directive:

(2011/65/EU), (2015/863/EU)

Ecodesign Directive:

(2009/125/EU)

and the amendments to these Directives. The object of the declaration described above meets the requirements of Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

This conformity assessment is based on the following harmonised standards:

EN 55032:2015

EN 55024:2010+A1:2015

EN 61000-3-2:2014

EN 61000-3-3:2013

EN 50498:2010

EN 60335-1:2012+A11:2014+A13:2017

EN 62233:2008

EN 60950-1:2006+A11:2009+A1:2010

+A12:2011+A2:2013

EU 1194/2012

EN 62471:2008

St. Ingbert, 10/05/2019

C.M.C. GmbH Katharina-Loth-St. 15 06386 St. Ingham Telefon: [phone] Telefax: [phone]

Alexander Hoffmann

- Quality Assurance -

Notes

recharge): 5 V = / 1A

Cd = cadmium, Hg = mercure, Pb = plomb.
