| Brand | Melinera |
| Model | IAN 311050 |
| Product type | LED light garland XXL |
| Use | Indoor and outdoor (IP44) |
| Power supply (primary) | 220-240 V~, 50/60 Hz |
| Output voltage of power supply | 30 V= |
| Total power consumption | 0.85 W |
| Power supply power | 3.6 W |
| Number of bulbs | 30 |
| Bulb voltage | 3 V= |
| Bulb type | Non-replaceable LED |
| Protection class | II |
| Protection rating (IP) | IP44 (protection against water splashes) |
| Functions | Continuous lighting, timer 6h/18h, off |
| Contents of delivery | 1 LED garland, 15 lanterns, 1 power supply, 1 instruction manual |
| Safety | Short-circuit-proof safety transformer, overload protection |
| Maintenance | Clean with a dry, lint-free cloth; do not use water or solvent |
| Repairability | Non-replaceable bulbs; non-replaceable external cable; in case of defect, replace the entire unit |
| Certifications | TÜV SÜD/GS (garland), SGS/GS (power supply) |
| Warranty | 3 years from the date of purchase |
Frequently Asked Questions - IAN 311050 MELINERA
User questions about IAN 311050 MELINERA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your String lights in PDF format for free! Find your manual IAN 311050 - MELINERA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. IAN 311050 by MELINERA.
USER MANUAL IAN 311050 MELINERA
LED-SOMMERLICHTERKETTE XXL / LED SUMMER FAIRY LIGHTS XXL / GUIRLANDE À LED XXL
DE AT CH
LED-SOMMERLIGHTERKETTEXXL
LED SVETELNY RETEZ XXL
Pokyny pro obshluhu a bezpećnostné poukyny
PT
Operation and Safety Notes
NL BE
ZOMERSE LED-LAMPKETTING XXL
GB/IE Operation and Safety Notes Page 9

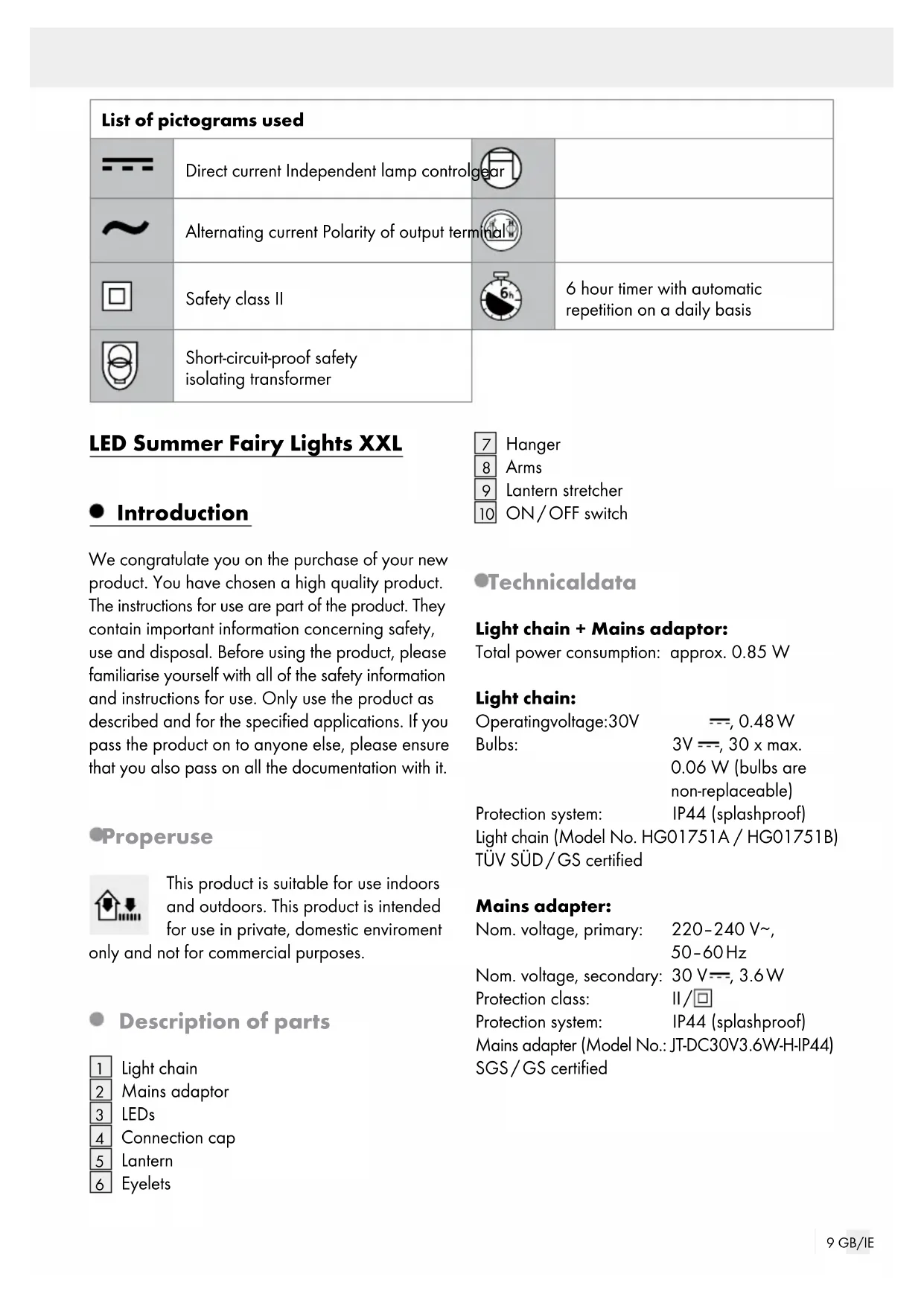

| List of pictograms used | |||
| Direct current Independent lamp controlgear | |||
| ~ | Alternating current Polarity of output terminal | ||
| Safety class II | 6 hour timer with automatic repetition on a daily basis | ||
| Short-circuit-proof safety isolating transformer | |||
LED Summer Fairy Lights XXL
Introduction
We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.
Properuse
This product is suitable for use indoors and outdoors. This product is intended for use in private, domestic enviroment
only and not for commercial purposes.
Description of parts
1 Light chain
2 Mains adaptor
3 LEDs
4 Connection cap
5]Lantern
6 Eyelets
7 Hanger
8Arms
9Lantern stretcher
10 ON/OFF switch
-Technicaldata
Light chain + Mains adaptor:
Total power consumption: approx. 0.85 W
Light chain:
Operatingvoltage:30V
$$ = =, 0. 4 8 W $$
Bulbs:
$$ 3 V = \text {=} 3 0 \times \max . $$
$$ 0. 0 6 \mathrm {W} (\text {b u l b s a r e}) $$
$$ \text {n o n - r e p l a c e a b l e}) $$
Protection system:
$$ I P 4 4 (s p l a s h p r o o f) $$
Light chain (Model No.
$$ 0 1 7 5 1 A / H G 0 1 7 5 1 B) $$
TÜV SÜD/GS certified
Mains adapter:
Nom. voltage, primary:
$$ 2 2 0 - 2 4 0 \mathrm {V} \sim , $$
$$ 5 0 - 6 0 \mathrm {H z} $$
Nom. voltage, seconds
$$ 3 0 \mathrm {V} =, 3. 6 \mathrm {W} $$
Protection class:
$$ | / \square $$
$$ I P 4 4 (s p l a s h p r o o f) $$
Protection system:
$$ J T - D C 3 0 V 3. 6 W - H I P 4 4 J $$
Mains adapter (M)
SGS/GS certified
IncludedItems
1 LED Summer Fairy Lights XXL
15 lanterns
1 mains adapter
1 operating instructions
Safety information
YOU SHOULD STORE ALL SAFETY INFORMATION AND INSTRUCTIONS IN A SAFE PLACE IN CASE YOU NEED TO REFER TO THEM AGAIN IN THE FUTURE!
Always keep children away from the product.
This product is not a toy and should not be played by children. Children are not able to understand the dangers that can occur when handling this product.
This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision.
Ensure that the product is installed by suitably experienced or qualified persons only.
CAUTION! RISK OF OVERHEATING!
Do not operate the product inside the packaging.
After use, keep the product in the packaging to prevent unwanted damage.
Do not pull the product cable and make sure it is laid down properly so that no one walks or trips over it.
Do not attach any other objects to the product.
The illuminant is not replaceable.
If the illuminant fails at the end of its life, the entire product must be replaced.
WARNING! This product must not be used without all gaskets being properly installed.
Avoid the danger of death from electric shock!
Before use, ensure that the mains voltage available is the same as the required operating voltage for the product (220-240 V~).
Before connecting the product to the mains you should always check the light chain and the mains adapter for any damage.
Never use the product if you discover that it is damaged in any way.
This products external flexible wiring is nonreplaceable. Hence if it becomes damaged you must dispose of the entire product.
- Never open any of the electrical parts or insert any kind of object into them.
- Protect the mains cable from sharp edges, mechanical loads and hot surfaces.
Do not install with sharp fasteners or nails.
Always unplug the power pack from the socket before installation, dismantling or cleaning.
- Never touch the product plug or the product itself with wet hands.
The product must not be electrically connected to another lighth chains.
If the product is not in use for any length of time (e.g. holidays), disconnect it from the power supply.
If you have any questions about the product or are unsure about any of its aspects, please seek the advice of an electrical equipment specialist.
Only use the product with the supplied power pack for the type Model No.: JT-DC30V3.6W-H-IP44; all warranty claims will otherwise expire.
The light chain is protected against splashes of water (IP44) as long as the socket meets the minimum protection standard.
- Mounting the lampions (see Fig. B)
Lay down the lanterns with the eyelets 6 (big-ger openings) facing upwards.
Insert the cordless end of the lantern stretcher into the lampion's upper and lower opening. While doing so place the the lantern stretcher's two arms centrally onto the rim of the lower opening.
Hold on to the lantern stretcher. Pull the eyelets 6 upwards and hang them onto the hangers 7.
Use
Insert the plug on end of the light chain 1 into the socket of the mains adapter 2.
Turn the connecting cap 4 of the mains lead clockwise to fix the connection.
Insert the mains adapter 2 into the mains socket.
Please note that the power adapter continues to draw a small amount of power even if the product is turned off as long as the power adapter is plugged into a power outlet. To switch the product off completely, unplug the power adapter from the socket.
- Timer function
The ON/OFF switch 10 has three functions:
Press once
The product glows permanently.
Press twice
The product lights glow permanently for 6 hours and will be followed by a subsequent pause of 18 hours. Afterwards, the product will light up again at its designated turn on time for 6 hours followed by a subsequent pause of 18 hours. Note: The ON/OFF switch lights up when the timer function is activated.
Press three times
The product is switched off.
Note: The bulbs are connected in series. If one bulb is defective, up to 10 bulbs may not light up.
- Cleaning and care
CAUTION! DANGER OF ELECTRIC SHOCK!
First pull the mains adapter out of the mains socket.
CAUTION! DANGER OF ELECTRIC SHOCK!
For reasons of electrical safety the product must never be cleaned with water or other liquids or immersed in water.
- Do not use any solvents, petrol or similar items. This would damage the product.
Only a dry, lint-free cloth should be used for cleaning.
Disposal
The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities. The Green Dot is not valid for Germany.
Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard/80-98: composite materials.
The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.
Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.
To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.
Warranty
The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.
The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.
The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.
The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
CE IP44
SGS/GS gecertificated
