USER MANUAL Tepor G60021 G3 Ferrari

ENGLISH: SAFETY INSTRUCTIONS

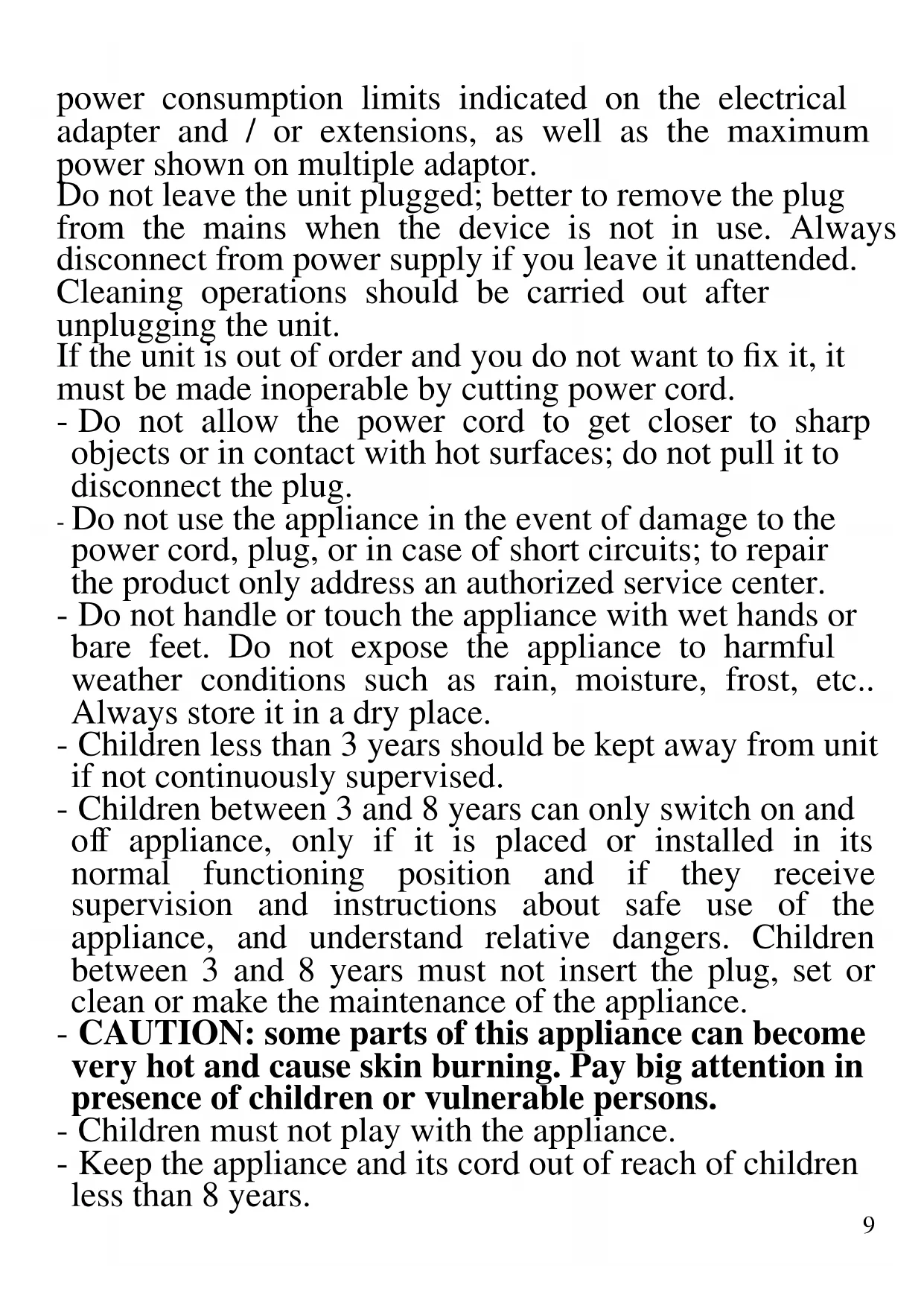

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use. Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof. If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the9 power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor. Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended. Cleaning operations should be carried out after unplugging the unit. If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord. - Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug. - Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center. - Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place. - Children less than 3 years should be kept away from unit if not continuously supervised. - Children between 3 and 8 years can only switch on and off appliance, only if it is placed or installed in its normal functioning position and if they receive supervision and instructions about safe use of the appliance, and understand relative dangers. Children between 3 and 8 years must not insert the plug, set or clean or make the maintenance of the appliance. - CAUTION: some parts of this appliance can become very hot and cause skin burning. Pay big attention in presence of children or vulnerable persons. - Children must not play with the appliance. - Keep the appliance and its cord out of reach of children less than 8 years.10 If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.

WARNING: This appliance includes heating function.

Do not cover. Keep space on sides when using. Surfaces, other than functional surfaces may develop high temperatures. Since temperatures are perceived differently by different people, this device should be used with CAUTION. Hold the appliance exclusively to grip surfaces intended to be touched. - This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments. - The appliance is not intended to be operated by means of an external timer or separate remote-control system. - Before every use, unroll the power cord. - Use original spare parts and accessories only. - Do not subject the product to strong impacts, serious damages may result. - Do not use near or under flammable materials (like curtains), heat, cold spots and steam. GENERAL INFORMATION - Never leave the appliance unattended while it is running. Unplug it after each use. - To unplug the unit, do not pull the power cord. - Do not immerse the product in water or other liquids and avoid any splashing of liquids reaching the unit. - Store the product only when it is completely cold. - Before carrying out any cleaning operation, disconnect11 the plug from the electrical outlet and wait for the complete cooling of each part of the unit. - Before each use, unroll the power cord completely. - Do not insert anything in the protective grid. Not to obstruct it and place the unit half a meter from the surrounding objects. Pay attention: the protection grid becomes very hot during use. - Place the unit on solid and stable surfaces. During use, place leave at least half a meter on each side of the unit. - Do not use the unit near steam or water (sink, shower, toilet ...). Do not use as a shelf support for objects. - Do not cover for any reason, subject to overheating. - Do not use in rooms smaller than 4 square meters. The product is equipped with an automatic switch-off that comes into play in case of overheating. If the product fails during use, check that the ventilation openings are not blocked, unplug the unit and allow to cool down for 15 minutes before operating.

WARNING: Do not use this heater in small rooms

when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided. The appliance must not be placed immediately below a power outlet. DESCRIPTION G60021

1. Working light 2. Handle (in the back)

3. Function and temperature control knob 4. Swing button (in the back)

5. Air outlet grid 6. Main body 7. Resting base

CONTROL KNOBS The function knob (3) has the following modes: - "O" means the product is off - : fan without heating - "1": low heating power (1000W) - "2": highest heating power (2000W) Turning the knob (3) to the left, heating remains at the high power and is possible to set the ambient temperature.12 OPERATING Install the product as described in the safety information paragraph. Turn the knob (3) to the desired position. At this point the heater starts running and the working lamp (1) lights up.

ADJUSTING THE TEMPERATURE

Operate the unit by using the temperature control knob (3) set to high (2) until it reaches the desired temperature in the room. Turn the knob (4) counterclockwise until you turn off the product, then it will turn on periodically to maintain this temperature. OSCILLATION If you want to activate the oscillating movement, press swing button (4) on the back of appliance.

SAFETY DEVICE AGAINST OVERHEATING

If you cover the appliance or there is a malfunction, the unit may overheat. A safety device will shut down the unit to prevent overheating. Remove anything blocking the ventilation slots and wait for the complete cooling of the item before operating. CLEANING Unplug the unit from the electrical outlet and let it cool down before starting any cleaning operation. Do not immerse in water. In any case prevent splashes of water or other liquids reaching the appliance. Regularly clean the ventilation slot located on the back of the product and the air outlet grid (5) to prevent dirt from obstructing the airflow. Do not clean with sponges or abrasive detergents. TECHNICAL FEATURES

• Power supply: AC 230V~50Hz - 2000W power.

• Ceramic heating element

• Oscillating movement of the base

• Safety switch-off in case of accidental overturn.
