USER MANUAL YOG8571 Easy SUNTEC

1L H-Milch, 3.5% Fett

1 Becher Naturjoghurt (ca. 150ml), 3,5%

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised.

Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

• Before connecting the appliance to the power supply, check that the voltage indicated on the appliance corresponds with the voltage at your home.
• Please refrain from further usage if the power cord, power plug or the appliance are damaged and contact your seller.
• Please do not use the appliance for other than its intended use. Other uses may cause fire. The appliance is not suitable for commercial use. For

domestic indoor use only.

• Only operate the appliance on a flat and stable surface.
• Please remove the appliance from the wall socket when it is not in use, before cleaning and in case of malfunctions. Do not pull on the cord but on the power plug. Make sure that your hands are dry.
• Please do not insert any foreign objects into the appliance as this may cause electric shocks, fire or damages to the appliance.
• Please keep the unit away from water and heat sources. There must be no alcohol, petrol or other flammable materials in the container of the unit.
• Please do not leave the appliance unattended.
• Do not attempt to repair, disassemble or change the appliance by yourself.
• The usage of accessories not provided by SUNTEC may cause harm.
• Please keep the power cord from table edges, working surfaces or any hot surfaces.
• Never immerse the appliance, its power cord and plug in water or other liquids to prevent electric shocks.
• Do not use extension cords and multiple plugs.
• External control units such as timers must not be used.

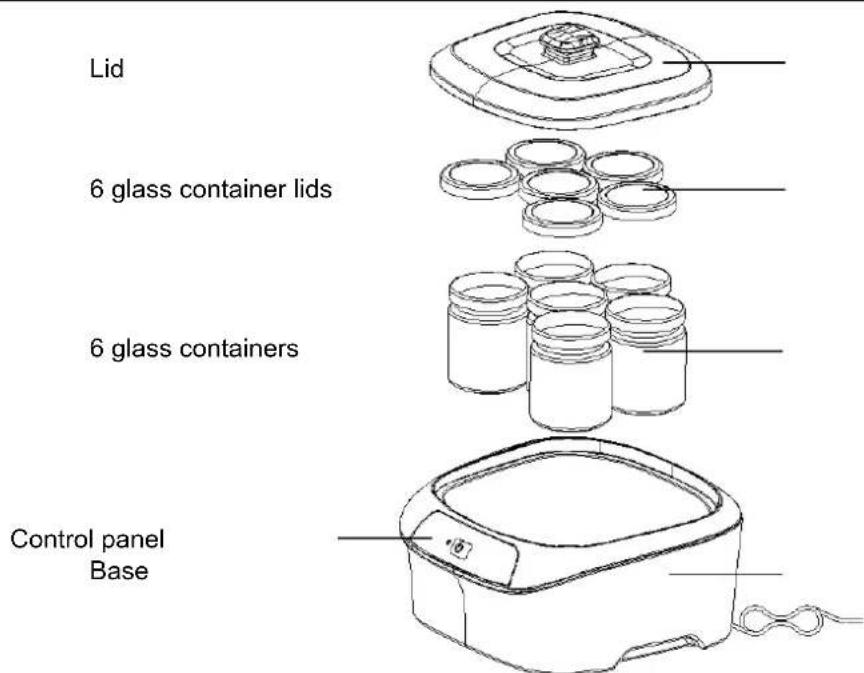

Components

Preparation

• Please disinfect the glass containers before initial operation by filling them with boiling water. Please rinse them out after one minute. The glass container lids can be cleaned with warm water and detergent. Please dry the glass containers and lids.
• The glass containers have a capacity of 170ml each (total 1020ml). For the yoghurt preparation we recommend the following ingredients at room temperature:

1L UHT milk, 3.5% fat

1 cup natural yoghurt (approx. 150ml), 3.5%

• You can use yoghurt cultures instead of natural yoghurt. Please follow the respective manufacturer's instructions for the dosage of your yoghurt cultures. The following steps are based on the preparation with natural yoghurt and can also be used for the preparation with yoghurt cultures. Please note that low-fat ingredients are less suitable for yoghurt preparation.
• Please make sure that both the glasses and the ingredients are at room temperature. Please rinse the glasses with warm water and dry them. The ingredients should be taken out of the fridge at least half an hour before preparation. This step is important so that the yoghurt cultures in the yoghurt can convert the milk into yoghurt.
• Please spread the natural yoghurt evenly over the six glasses (approx. 2 teaspoons per glass) and fill the glasses with the milk up to the bend in the glass, below the lid thread. Please do not fill the jars completely to the edge of the jar, otherwise the yoghurt may overflow.
• Stir the mixture slowly with a teaspoon until the natural yoghurt is evenly distributed in the jars.
• Please screw the corresponding lids onto the glasses and continue with the section "Operation".

Operation

Operating voltage: 220-240V\~, 50/60Hz, 20W

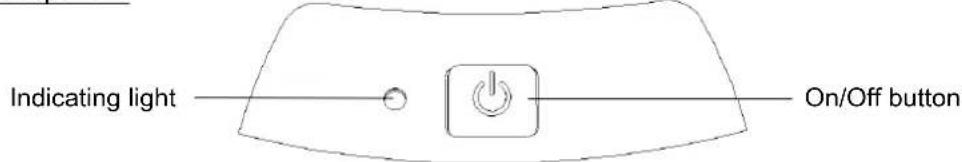

Control panel:

• During operation, place the device in a place where room temperature (approx. 20^ ) and no draughts prevail. Please make sure that the filled jars and the yoghurt maker filled with the jars are not moved too much during the entire preparation time. Shocks can affect the result so that the yoghurt does not solidify.
• Carefully place your filled and screwed jars in the yoghurt maker and place the lid on the machine. The unit must never be used without a lid, otherwise the heat will escape.
• Connect the device to the power supply and press the on/off button. When switched on, the yoghurt maker starts to heat up the glasses and their contents and keeps them at a constant temperature of approx. 45^ . Yoghurt cultures need the heat for a long time to convert the milk into yoghurt. This takes about 11 hours. To shorten the time, you can add warm water, which surrounds the glasses with max. 1-2cm height.
  After about 11 hours the yoghurt maker can be switched off. Please press the on/off button again and

disconnect the power plug from the power socket.

• Please remove the jars from the yoghurt maker and place them directly in the fridge for at least 3-4 hours to increase the firmness of the yoghurt. Please do not allow the yoghurt to cool at room temperature, otherwise the yoghurt may become sour.

Cleaning

• Always disconnect the appliance from the power outlet and let it cool before cleaning. Never immerse the appliance in water to prevent electric shocks.
• Wipe over the exterior of the appliance with a soft wet cloth and then wipe dry with a dry cloth.
• The glasses and their lids are dishwasher-safe and must be cleaned after each use. Alternatively, you can clean them with warm water and detergent.
• Please do not use any aggressive or chemical cleaning agents or abrasive cleaning agents, such as steel wool.

• You can purchase the glasses as a set from your seller:

• Item number.: 28687
  Item description: YOG-CUP-6-SET-8687
  Brand: Suntec

In case of complaint

• You can claim the device within 24 months from date of purchase (receipt).
• A free replacement or repair will be excluded from prior improper product handling.
• Defects in wear parts, consumables, as well as cleaning, maintenance or replacement of said parts are therefore with costs.
• If you want to make a complaint, please bring the entire device in its original packaging and with proof of purchase to your dealer. For a timely and convenient service register, visit our website www.suntec-wellness.de and learn more.
• Without a proof of purchase, generally there will be no repair or replacement.
• In the event that the complaint case is analogous to our terms of service, all defects of the device or its accessories due to material or manufacturing defects will be eliminated by repair or, at our discretion, replacing the unit.
• The damage of accessories does not automatically lead to a free exchange of the whole device. In these cases, please contact your dealer. Glass breakage, or breakage of plastic parts are always to charge.
  The dealer or repair service can perform the repair after the expiration of warranty against charge.

Note concerning protection of environment

This product must not be disposed of via normal household waste after its service life, but must be taken to a collection station for the recycling of electrical and electronic devices. The symbol on the product, the operating instructions or the packaging indicates such disposal procedures. The materials are recyclable in accordance with their respective symbols. By means of re-use, material recycling or any other form of recycling old appliances you are making an important contribution to the protection of our environment.

Please ask your local council where your nearest disposal station is located.

As part of our extended producer responsibility, this product is indicated in accordance to the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). The aim is to avoid, reduce, and environmentally friendly disposal of electronic waste. Please help actively to protect the environment and dispose electronic waste through local collection points. The packaging and this manual can be recycled.

EC declaration of conformity

The device meets the essential health and safety requirements of the European Union. The EC declaration of conformity is the basis for CE marking this unit.

With publication of this manual supersedes all previous their validity. SUNTEC, SUNTEC Wellness, KLIMATRONIC and the Sun-Logo are registered trademarks. © 2018/02 SUNTEC WELLNESS GMBH

Liability is excluded for all printing errors and omissions.

For this appliance we assure 24 months warranty.

During the 24 months warranty we guarantee to repair your appliance free of charge or to provide your seller the spare parts free of charge if the appliance fails to work due to production failure.

Other claims are excluded from this warranty. We will not be liable for any defects caused by acts of nature, improper use, negligence of the instruction manual, damage from continuous use and damages during transportation.

This warranty card is only applicable with the according invoice.

In case of service please bring your purchased product to your seller.

Product name:

Serial number:

Name of buyer:

Date of purchase:

Stamp and signature of seller:

Manufacturer:

Suntec Wellness GmbH

Holzstraße 2

40221 Dusseldorf

Germany
