USER MANUAL Maestro G50029 G3 Ferrari

ENGLISH: SAFETY INSTRUCTIONS

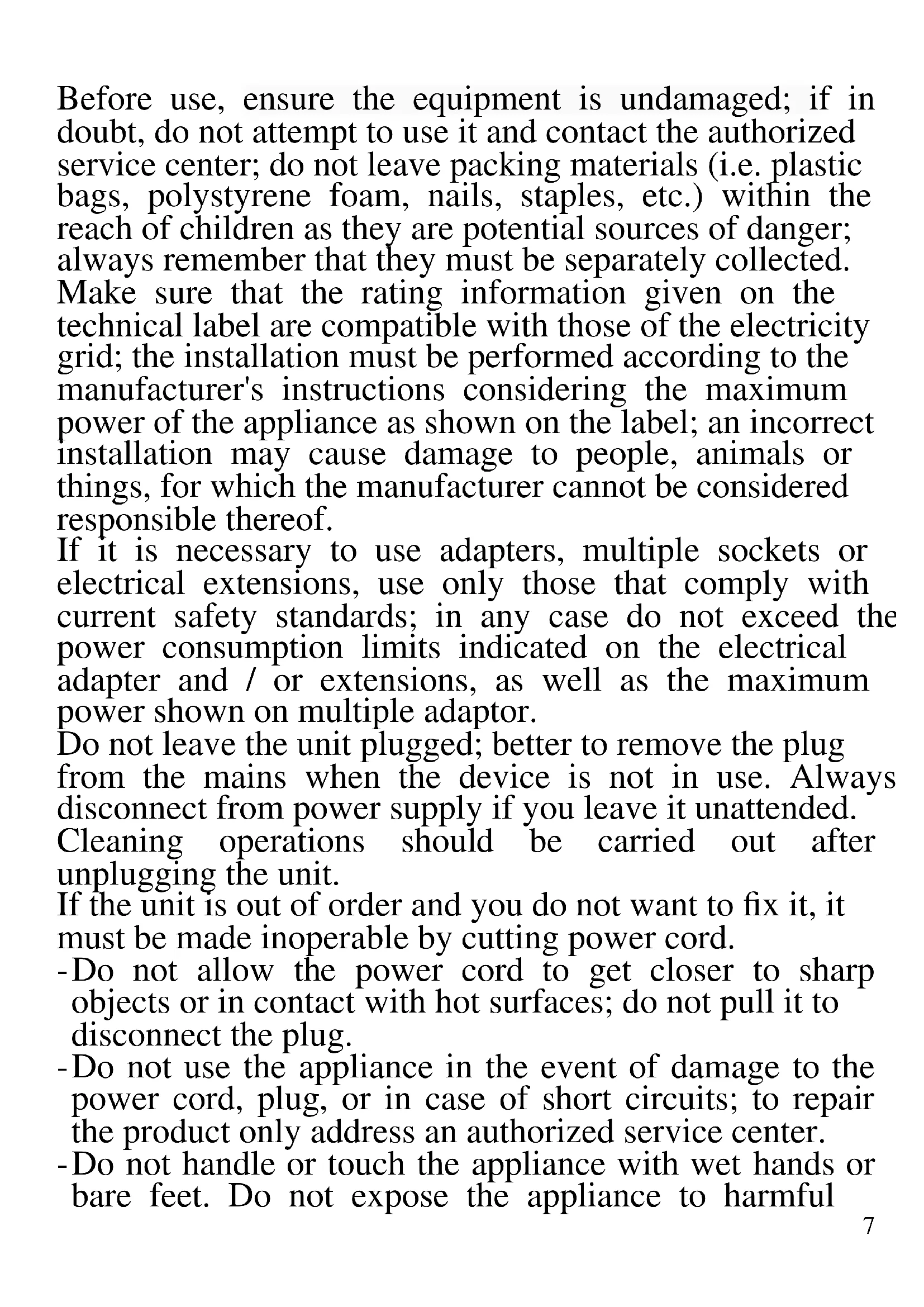

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.7 Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof. If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor. Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended. Cleaning operations should be carried out after unplugging the unit. If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord. - Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug. - Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center. - Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful8 weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place. - This appliance can be used by children of 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning use of the appliance in a safe way and understand hazards involved; children shall not play with the appliance; cleaning and user maintenance shall not be made by children without supervision. - Children must not play with the appliance. - Keep the appliance and its cord out of reach of children less than 8 years. If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty. - This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments. - The appliance is not intended to be operated by means of an external timer or separate remote-control system. - Before every use, unroll the power cord. - Use original spare parts and accessories only. - Do not subject the product to strong impacts, serious damages may result. GENERAL INFORMATION - Do not connect the electric plug since the installation is not complete. - Do not leave the appliance unattended while it is running. Unplug after each use. - Unplug the unit by pulling the plug and not the power cord. - Do not immerse product in water or other liquids and avoid splashing liquids reach the unit. - Before carrying out any cleaning, disconnect the unit from the electrical outlet.9 - Before each use, unroll the power cord. Do not insert anything through the protection grids. - Do not obstruct in any way the protection grids. - Place on solid and stable surfaces and away from windows or drafts. DESCRIPTION G50029 1 Front protection grid 2 Fan stopper 3 Fan 4 Rear fan stopper 5 Rear protection grid 6 Drive shaft 7 Oscillation pin 8 Main body 9 Inclination pin 10 Control panel 11 Detachable base 12 Screws for the base 13 Power cord 14 Base 15 Motor protection 16 Front grid fixing screw ASSEMBLING The fan motor can work even if the protective grids have not yet been assembled and fixed. To ensure the maximum safety, perform the installation completely before operating.

1) Insert the base (14) in the detachable base (11), as shown in the figure.

2) Joint the appropriate clips and stop the two sides with the supplied screws (12).

3) Place the rear grid (5) near the plastic motor protection (15) with the metal handle facing

upwards. Fit the holes present in the central part of the grid with the pins in the plastic protection (15) and lock the two parts with the stopper (4).

4) Insert the fan (3) into the shaft (6) and screw the cover of the fan (2) to the threaded end of the drive shaft.

Remove the fixing screw (16).

5) Place the front grid (1) in front of the rear grid (5) matching the holes on the grids. Close the locking pins

and fasten the two grids tightening the securing screw (16) previously removed. The fan installation is now complete. OPERATING Once finished assembling the unit, place the fan following the safety instructions, then plug it to the electrical outlet. By using control panel (10) the rotation power can be adjusted on different speeds. - 0: fan is OFF - 1: low speed - 2: medium speed - 3: high speed OSCILLATION The oscillation of the head is only possible when the fan is turned on and it can be activated by pressing the pin (7) downwards until it locks. Lifting the pin (7) until the locking function is disabled. It is recommended to enable or disable oscillation of the fan only when the unit is off. CLEANING Disconnect the plug from the electrical outlet before attempting any cleaning operation. Do not immerse the unit in water. In any case prevent splashes of water or other liquids reaching the motor body. Do not clean the unit with metallic sponges or abrasive cleaners, only use neutral detergents and a soft cloth moistened with water to clean the outer parts. Dry the product completely before operating the unit. TECHNICAL FEATURES

• 3 operation speeds - Oscillation10
