BTSW001BK - Sports Watch NEDIS - Free user manual and instructions

Product Type	Smartwatch / Smart Activity Tracker
Brand	Nedis
Model	BTSW001BK
Dimensions (L x W x H)	43 x 20 x 12 mm
Weight	Approx. 30 g
Power Supply	5.0 VDC; 0.5 A (charges via USB port)
Connectivity	Bluetooth 4.2 (2,402 - 2,480 MHz)
Maximum Transmission Power	2.0 dBm
Standby Battery Life	Up to 15 days
Connected Use Battery Life	Up to 5 days
Water Resistance Rating	IP67 (water and dust resistant)
Integrated Sensors	Heart rate, body temperature, accelerometer (steps and distance)
Main Functions	Step counter, distance, calories burned, sleep monitor, heart rate measurement, body temperature measurement, sports modes (walking, running, cycling, hiking), phone notifications, settings (brightness, temperature unit, vibration, reset)
Compatible App	Nedis SmartLife (iOS and Android)
Compatible Operating Systems	Android 4.4+ or iOS 8.0+
Color	Black
Package Contents	Smartwatch with integrated strap, quick start guide
Care and Cleaning	Clean with a soft, dry cloth. Avoid harsh chemicals.
Safety	Do not use if damaged. Do not expose to excessive water (IP67 allows temporary immersion). Do not repair yourself. Use only a 5 V / 0.5 A charger.
Spare Parts and Reparability	Built-in battery not replaceable. No spare parts available. Repair only by a qualified technician.
General Information	Manufacturer: Nedis B.V., de Tweeling 28, 5215 MC 's-Hertogenbosch, Netherlands. Customer service: [e-mail]

Frequently Asked Questions - BTSW001BK NEDIS

How to charge the Nedis BTSW001BK watch?

Remove the strap to expose the built-in USB connector (mark A②). Plug it into a standard USB port (5 V / 0.5 A). The display shows the charging status. A full charge takes about 2 hours.

How to install the Nedis SmartLife app?

Download the Nedis SmartLife app from Google Play Store (Android) or App Store (iOS). Create an account with your email, verify it via the received code, then create a password. Add your home and follow the instructions to connect the watch.

Is the watch waterproof?

Yes, it has an IP67 rating, meaning it is dust resistant and can withstand temporary immersion in water up to 1 meter for 30 minutes. However, avoid using it in the shower or while swimming.

What is the battery life?

Battery life varies by use: up to 15 days on standby and up to 5 days with connected use (Bluetooth active and notifications). The battery is built-in lithium-ion and not replaceable.

How to measure heart rate?

From the home screen, navigate to the heart rate icon using the function button. Press and hold the button to start the measurement. Make sure the watch is snug on your wrist for optimal sensor contact.

Does the watch work with an iPhone?

Yes, it is compatible with iPhones running iOS 8.0 or later. Download the Nedis SmartLife app from the App Store, enable Bluetooth on your iPhone, and follow the pairing instructions.

How to reset the watch to factory settings?

In the Settings menu, scroll down to the 'Reset' option. Press and hold the function button to confirm. The watch will restart and erase all data.

Can the watch display WhatsApp or SMS notifications?

Yes, once connected to the app, the watch receives notifications from your phone (calls, SMS, apps like WhatsApp). Press and hold the function button to view them.

How to change the watch face?

From the home screen, press and hold the function button to access the layout options. Press to cycle through the 3 available watch faces, then press and hold to confirm your selection.

What sports modes are available?

The watch offers 4 sports modes: walking, running, cycling, and hiking. Activate sports mode from the menu, select your activity, then press and hold the button to start recording.

USER MANUAL BTSW001BK NEDIS

Smart Activity Tracker

Measures steps, calories, heart rate and body temperature

BTSW001BK

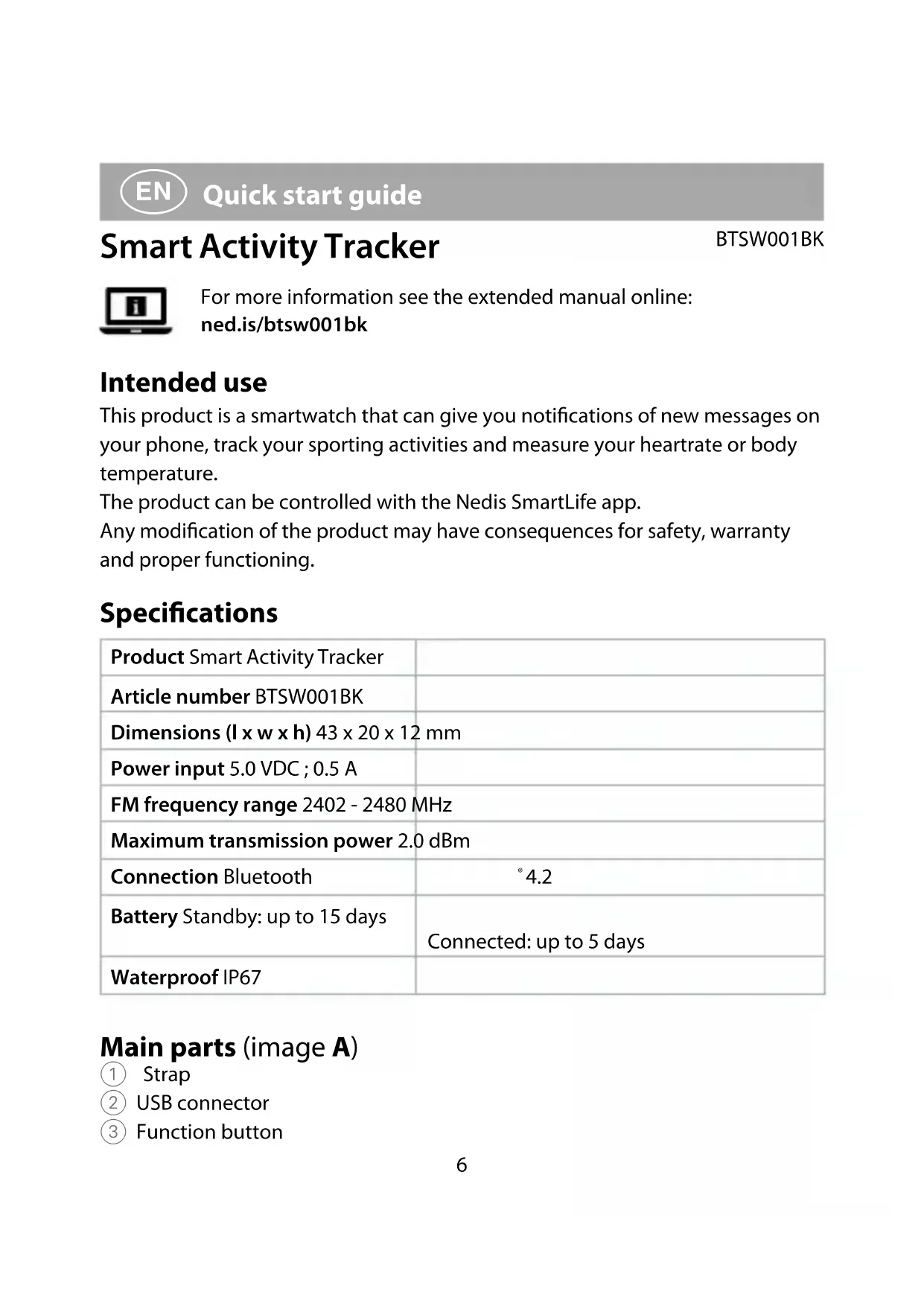

EN Quick start guide 6
DE Kurzanleitung 10
FR Guide de démarrage rapide 15
NL Snelstartgids 20
IT Guida rapida all'avvio 25
ES Guia de inicio=rápido 30
PT Guia de iniciação<rapida 35
SV Snabbstartsguide 40
FI Pika-aloitusopas 45
NO Hurtiguide 50
DA Vejledning til hurtig start 54
HU Gyors beüzemelési utmutató 59
PL Przewodnik Szybki start 64
EL O8nyoc yrhoopnc EKKivnoon69
SK Rychly námod 74

A

B

C

Smart Activity Tracker

BTSW001BK

For more information see the extended manual online:ned.is/btsw001bk

Intended use

This product is a smartwatch that can give you notifications of new messages on your phone, track your sporting activities and measure your heartrate or body temperature.

The product can be controlled with the Nedis SmartLife app.

Any modification of the product may have consequences for safety, warranty and proper functioning.

Specifications

Product Smart Activity Tracker
Article number BTSW001BK
Dimensions (I x w x h) 43 x 20 x 12 mm
Power input 5.0 VDC; 0.5 A
FM frequency range 2402 - 2480 MHz
Maximum transmission power 2.0 dBm
Connection Bluetooth	*4.2
Battery Standby: up to 15 days	Connected: up to 5 days
Waterproof IP67

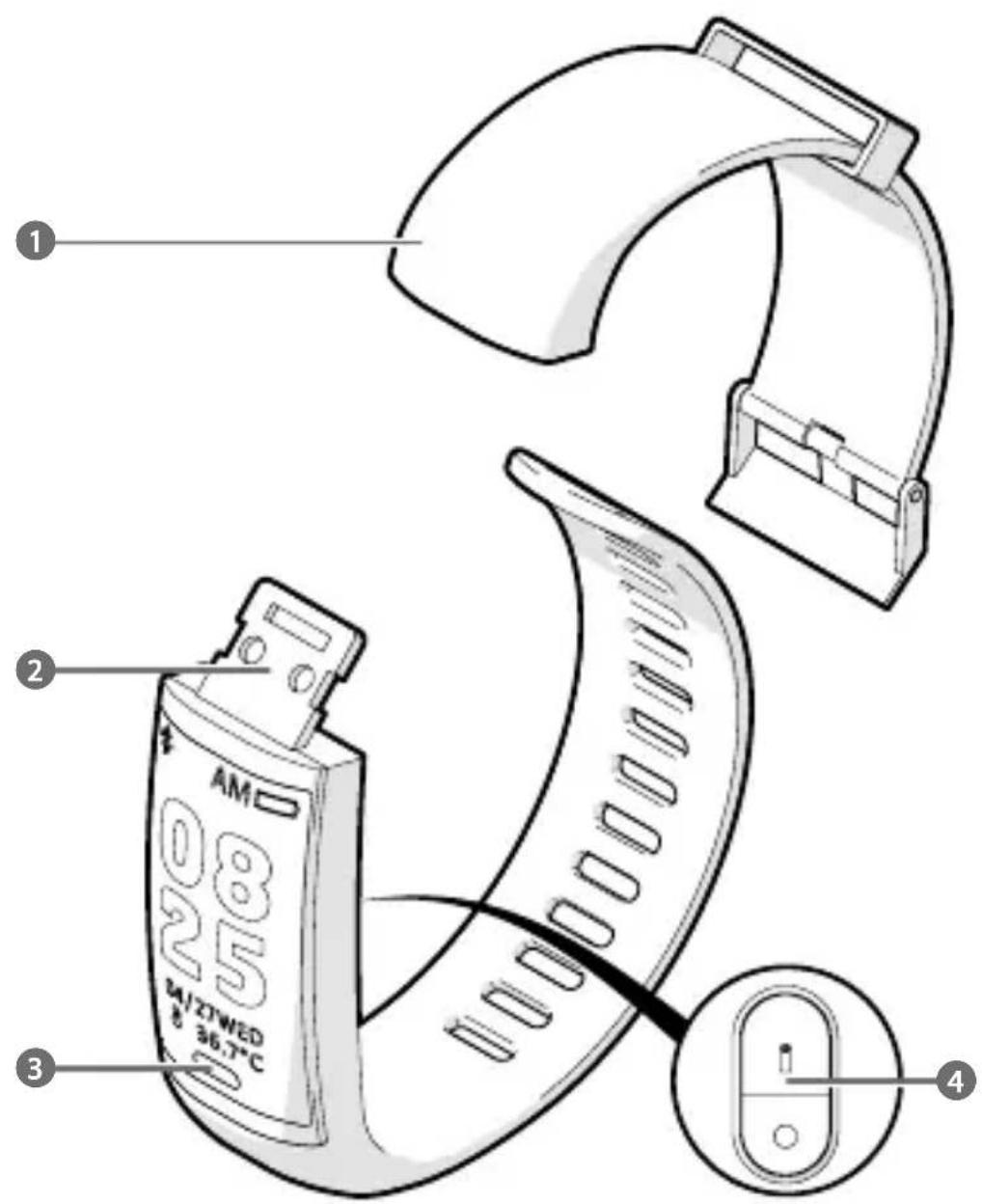

Main parts (image A)

① Strap
② USB connector
③ Function button

Safety instructions

WARNING

• Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep the packaging and this document for future reference.
• Only use the product as described in this document.
• Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.
• Do not drop the product and avoid bumping.
• This product may only be serviced by a qualified technician for maintenance to reduce the risk of electric shock.
• Do not expose the product to water or moisture.
• The product is delivered with a partially charged battery. For optimal battery life, fully charge the battery before first use.
• Retain the original product literature for future reference.
• Do not leave a battery on prolonged charge when not in use.

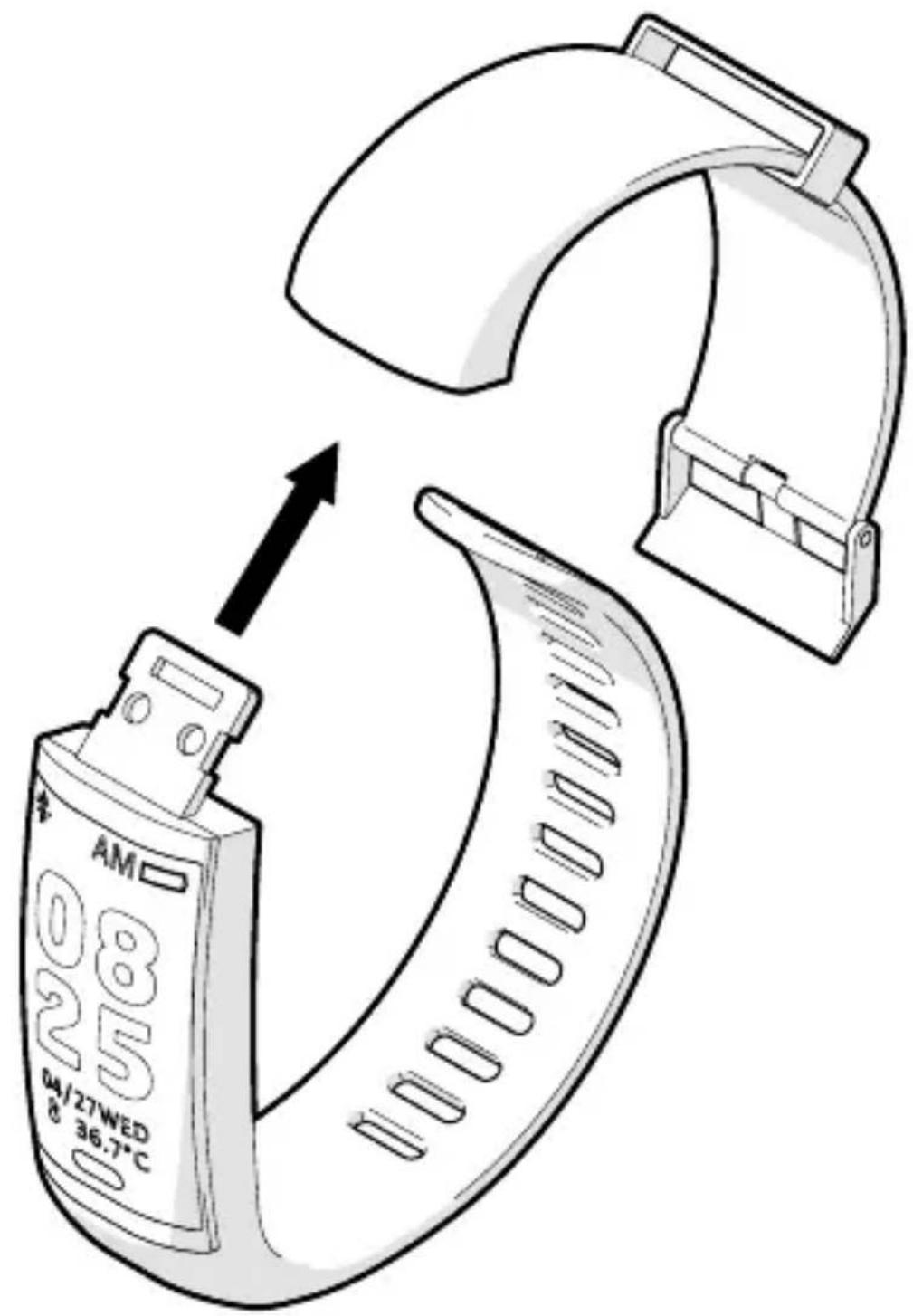

Charging the product

1. Remove the strap A① to reveal the USB plug A②.
2. Insert A into a 5.0 V - 0.5 A USB charging port.

Installing the Nedis SmartLife app

1. Download the Nedis Smartlife app for Android or iOS on your phone via Google Play or the Apple App Store.
2. Open the Nedis Smartlife app on your phone.
3. Create an account with your e-mail address and tap Continue.
4. You will receive a verification code on your e-mail address.
5. Enter the received verification code.
6. Create a password and tap Done.
7. Tap Add Home to create a SmartLife Home.
8. Set your location, choose the rooms you want to connect with and tap Done.

Connecting the app

1. Make sure Bluetooth is enabled on your smartphone.
2. Open the Nedis Smartlife app on your phone.
3. Register or login to your account.
4. Tap + in the top right corner.
5. Select "Smartwatch"
6. Follow the instructions in the app.

Disconnecting the app

1. Open the Nedis Smartlife app on your phone.
2. Open "Smartwatch" by tapping the corresponding tile in the app.
3. Tap the pencil icon in the top right corner.
4. Tap "Remove Device" at the bottom and confirm.

Switching on the product

Press and hold the function button A③ for 1 second.

The product vibrates to indicate that it is switched on.

Do not fit the watch too loose or tight for the sensors to work correctly.

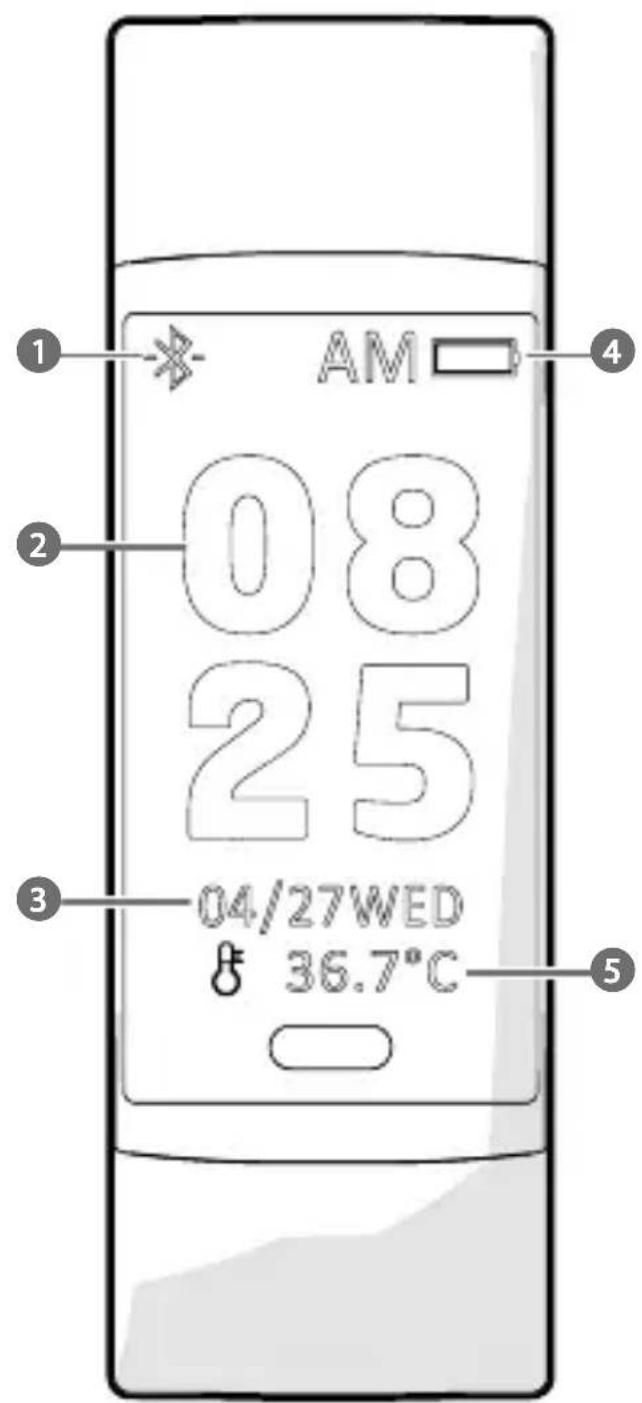

Navigating the menu (image C)

① Bluetooth connection indicator
(2) Current time
③ Current date and day
④ Current battery level
(5) Last measured body temperature

The home screen is the starting point from where you gain access to other functions of the smartwatch.

• Hold A 3 to change the layout. There are 3 layouts to choose from.
• Tap A③ to switch to the next screen.
• Hold A③ to confirm your choice.

Steps taken Shows the current

amount of steps taken

and the progress towards your step goal in percentages.

Distance walked Shows the total distance walked today.
Kcalss burned Shows the amount of calories burned today.
Sleep monitor Shows the amount of time slept today.
Measure body temperature Shows your current body temperature when activated.Hold down the function button to start a measurement.
Measure heart rate Shows your current heart rate when activated.Hold down the function button to start a measurement.
Sport mode	In sport mode, press A③to cycle between walking, running, cycling or hiking.Hold A③to confirm.A timer appears on screen showing information about your current workout.Tap the function button to switch between showing Kcal, BMP or steps taken.Hold the function button to save and stop.
Messages Hold down the function button to read incoming notifications from your phone.
Settings In the settings menu you can:Make your connected phone vibrate and ring to find your phone.Switch between display of body temperature or skin measurement.Switch between Celsius (°C) / Fahrenheit (°F).-Set the brightness of the screen.-Reset the product to factory settings.-Switch off the product.

Declaration of Conformity

We, Nedis B.V. declare as manufacturer that the product BTSW001BK from our brand Nedis*, produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation.

The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via:

nedis.com/btsw001bk#support

For additional information regarding the compliance, contact the customer service:

Web: www.nedis.com

E-mail: [e-mail]

Nedis B.V., de Tweeling 28

5215 MC's-Hertogenbosch, the Netherlands
