USER MANUAL BTSW002BK NEDIS

Measures steps, calories, heart rate and body temperature

BTSW002BK

EN Quick start guide 5

DE Kurzanleitung 9

FR Guide de démarriage rapide 14

NL Snelstartgids 18

IT Guía rapida all'avvio 23

ES Guía de inicio=rápido 27

PT Guía de iniciação=rápida 32

SV Snabbstartsguide 36

FI Pika-aloitusopas 41

NO Hurtigguide 45

DA Vejledning til hurtig start 49

HU Gyors beüzemelési útmutató 53

PL Przewodnik Szybki start 58

EL Oδŋyóc yρήγορης εκκίνησης 62

SK Rychly námod 67

Rychly námod 71

Ghid rapid de initiiere 76

A

B

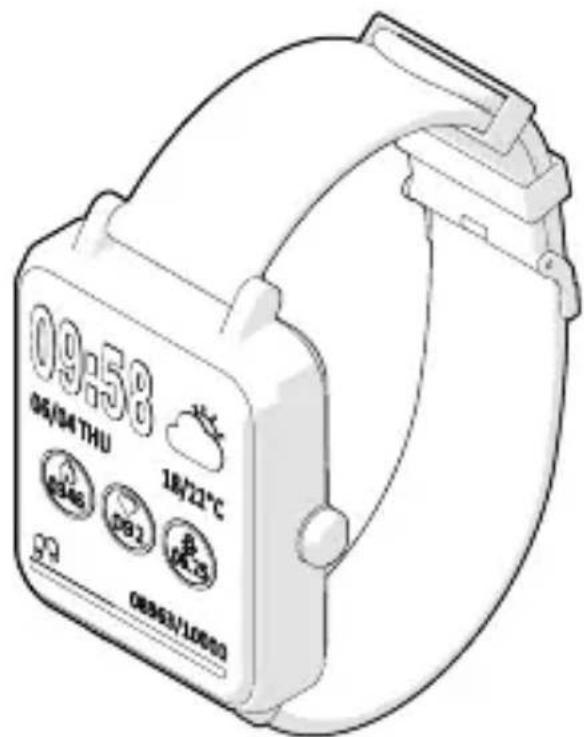

Smart Health Watch

BTSW002BK

For more information see the extended manual online:ned.is/btsw002bk

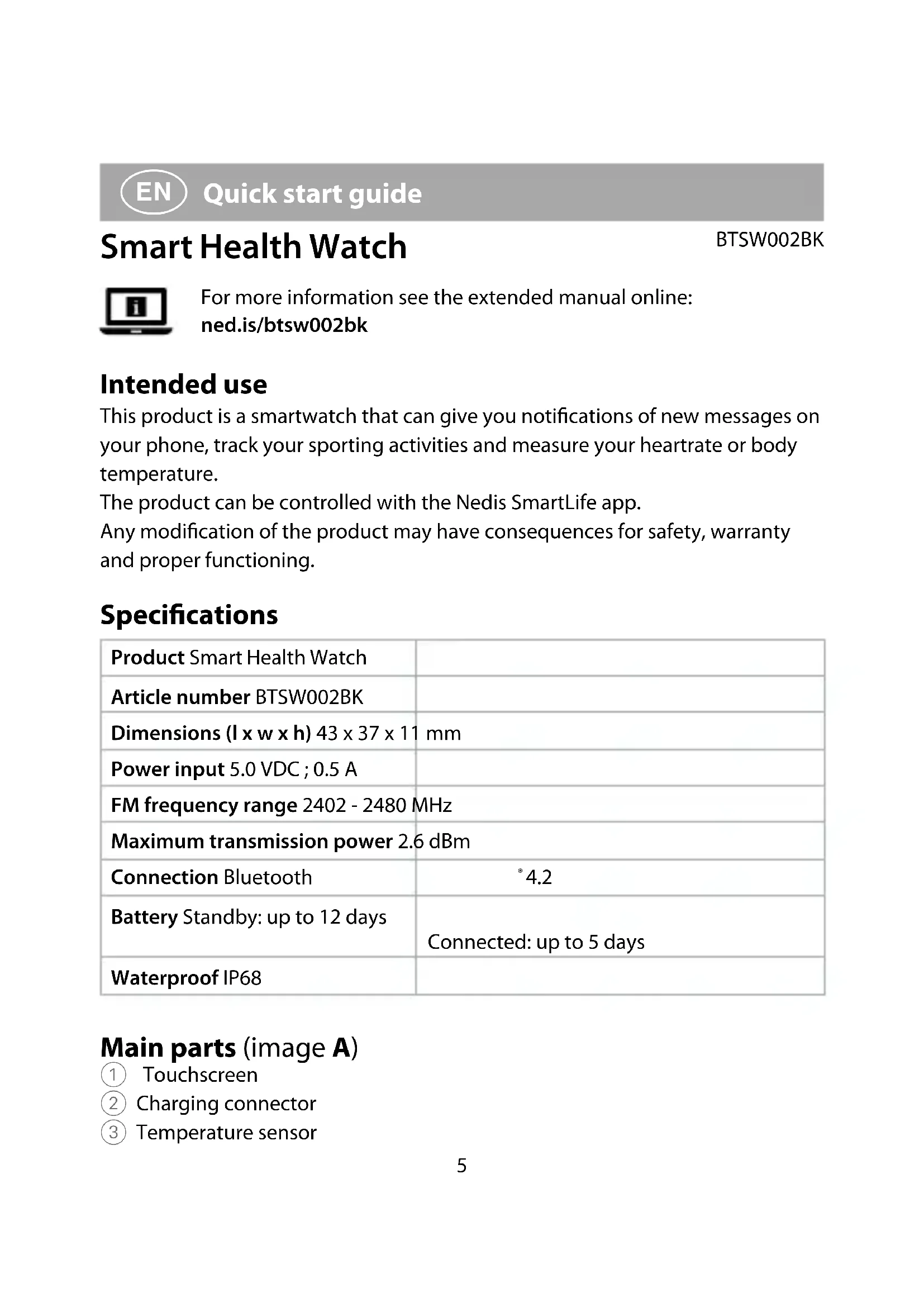

Intended use

This product is a smartwatch that can give you notifications of new messages on your phone, track your sporting activities and measure your heartrate or body temperature.

The product can be controlled with the Nedis SmartLife app.

Any modification of the product may have consequences for safety, warranty and proper functioning.

Specifications

Product Smart Health Watch
Article number BTSW002BK
Dimensions (I x w x h) 43 x 37 x 11 mm
Power input 5.0 VDC; 0.5 A
FM frequency range 2402 - 2480 MHz
Maximum transmission power 2.6 dBm
Connection Bluetooth	* 4.2
Battery Standby: up to 12 days	Connected: up to 5 days
Waterproof IP68

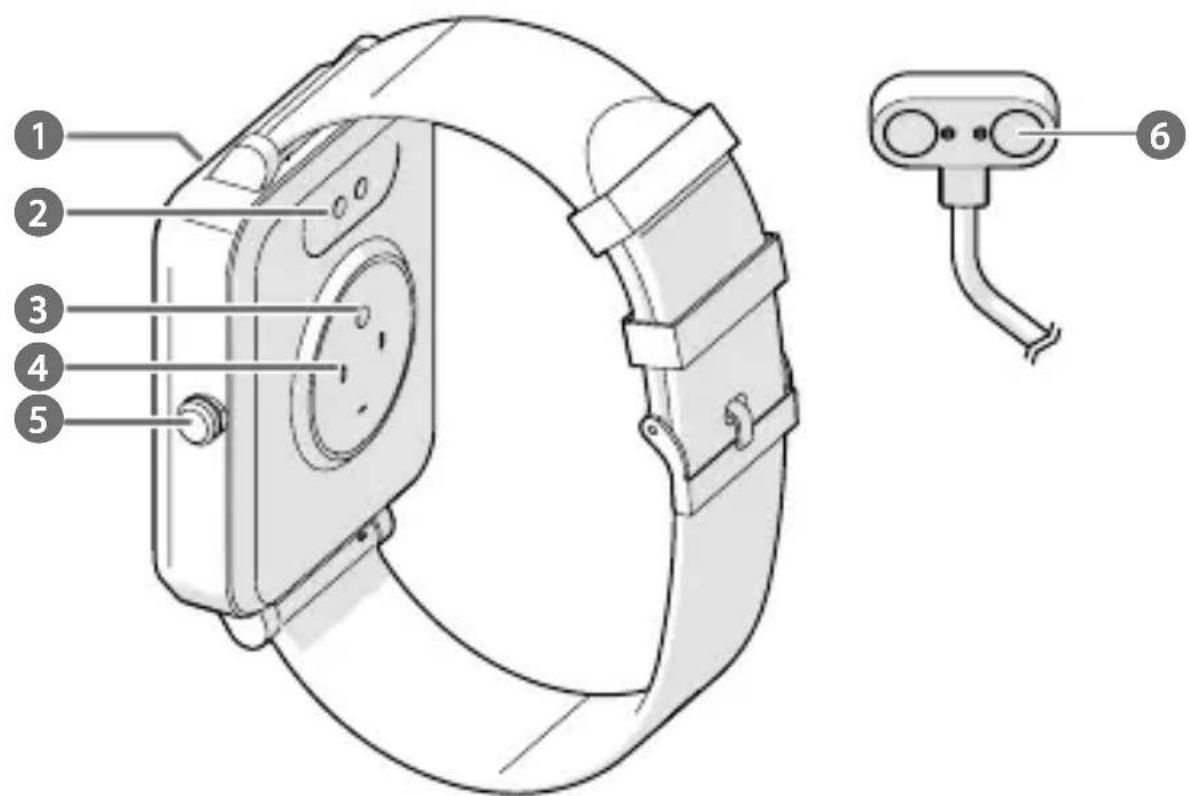

Main parts (image A)

① Touchscreen
(2) Charging connector
③ Temperature sensor

Heart rate sensor
⑤ Function button
Charging cable

Safety instructions

WARNING

• Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep the packaging and this document for future reference.
• Only use the product as described in this document.
• Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.
• Do not drop the product and avoid bumping.
• This product may only be serviced by a qualified technician for maintenance to reduce the risk of electric shock.
• Do not expose the product to water or moisture.
• The product is delivered with a partially charged battery. For optimal battery life, fully charge the battery before first use.
• Only use the provided USB charging cable.
• Retain the original product literature for future reference.
• Do not leave a battery on prolonged charge when not in use.

Charging the product

Any use the provided USB charging cable.

1. Connect the charging cable A 6 to the charging connector A 2 on the back of the smart watch.
2. Insert A into a 5.0V - 0.5A USB charging port.

When the charger is connected, a charging icon appears on the touch screen A①.

Installing the Nedis SmartLife app

1. Download the Nedis Smartlife app for Android or iOS on your phone via Google Play or the Apple App Store.

2. Open the Nedis Smartlife app on your phone.

3. Create an account with your e-mail address and tap Continue.

You will receive a verification code on your e-mail address.

1. Enter the received verification code.
2. Create a password and tap Done.
3. Tap Add Home to create a SmartLife Home.
4. Set your location, choose the rooms you want to connect with and tap Done.

Connecting the app

1. Make sure Bluetooth is enabled on your smartphone.
2. Open the Nedis Smartlife app on your phone.
3. Register or login to your account.
4. Tap + in the top right corner.
5. Select "Smartwatch"
6. Follow the instructions in the app.

Switching on the product

Press and hold the function button A5 for 3 seconds.

Do not fit the watch too loose or tight for the sensors to work correctly.

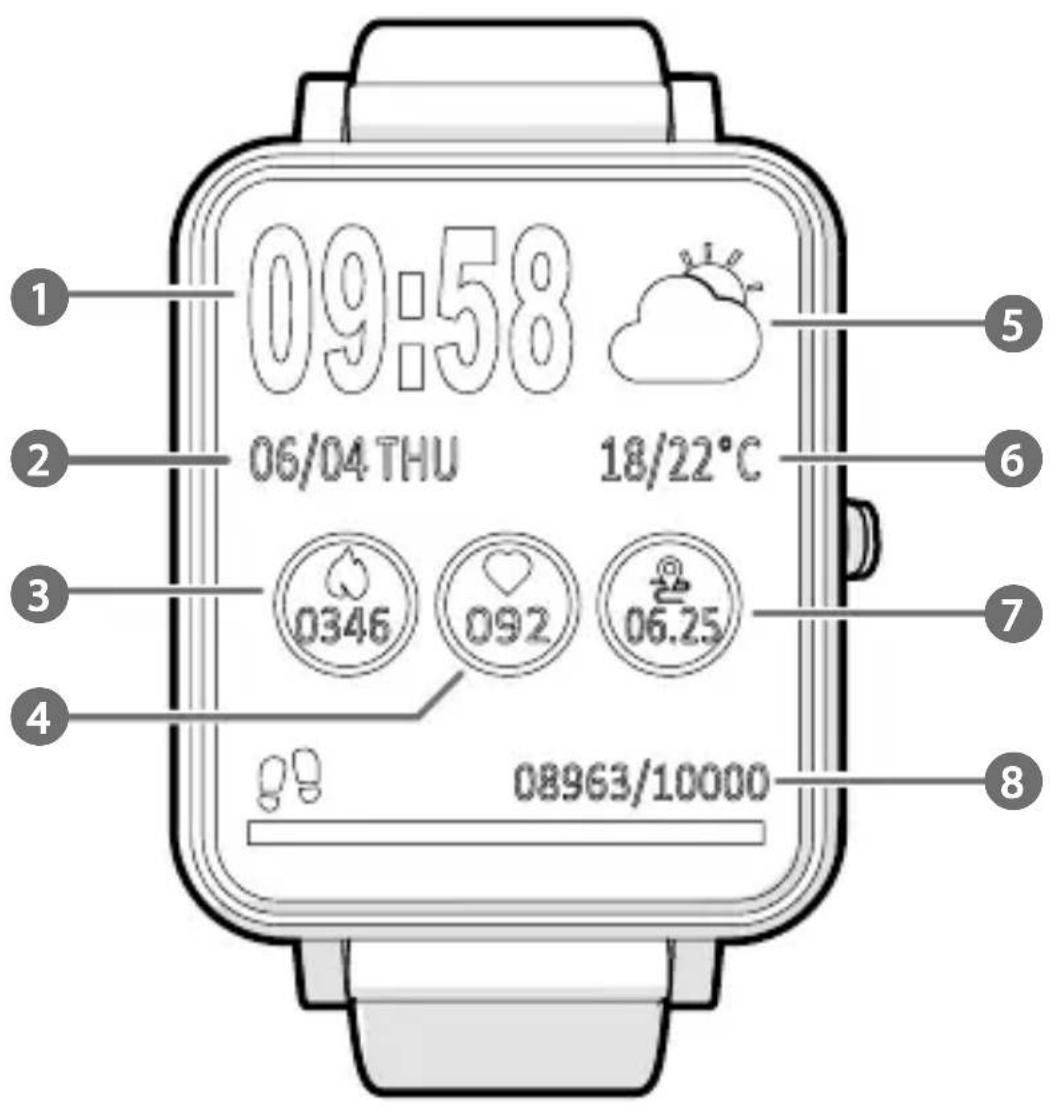

Navigating the home screen (image B)

(1) Current time
② Current date and day
(3) Calories burned today
(4) Last measured heartrate
⑤ Current weather
⑥ Environmental temperature
⑦ Distance traveled today
Steps taken today

The home screen is the starting point from where you gain access to other functions of the smartwatch.

It shows the current time, date and other information.

Hold the home screen to change it. There are 6 different layouts to choose from.

Operating the product

• Navigate by swiping horizontal and vertical
• Tap on an icon to select a function
• Swipe from left to right to go to the previous menu
• Press the function button to return to the home screen

Menu screen

1. Swipe from right to left to enter.
2. Swipe up or down to navigate.
3. Tap an icon to enter the submenu of the chosen function.
4. Swipe right to left to exit.

Messages screen

Swipe from left to right to enter.

Shows notifications from the connected phone.

Activity screen

Swipe from bottom to top to enter.

Shows an overview of the measured activities.

Swipe from bottom to top in the activity screen to switch to other functionalities.

Option screen

Swipe from top to bottom to enter.

Declaration of Conformity

We, Nedis B.V. declare as manufacturer that the product BTSW002BK from our brand Nedis, produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation.

The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via: nedis.com/btsw002bk#support

For additional information regarding the compliance, contact the customer service:

Web: www.nedis.com

E-mail: [e-mail]

Nedis B.V., de Tweeling 28

5215 MC's-Hertogenbosch, the Netherlands
