USER MANUAL NC 452 OLYMPIA

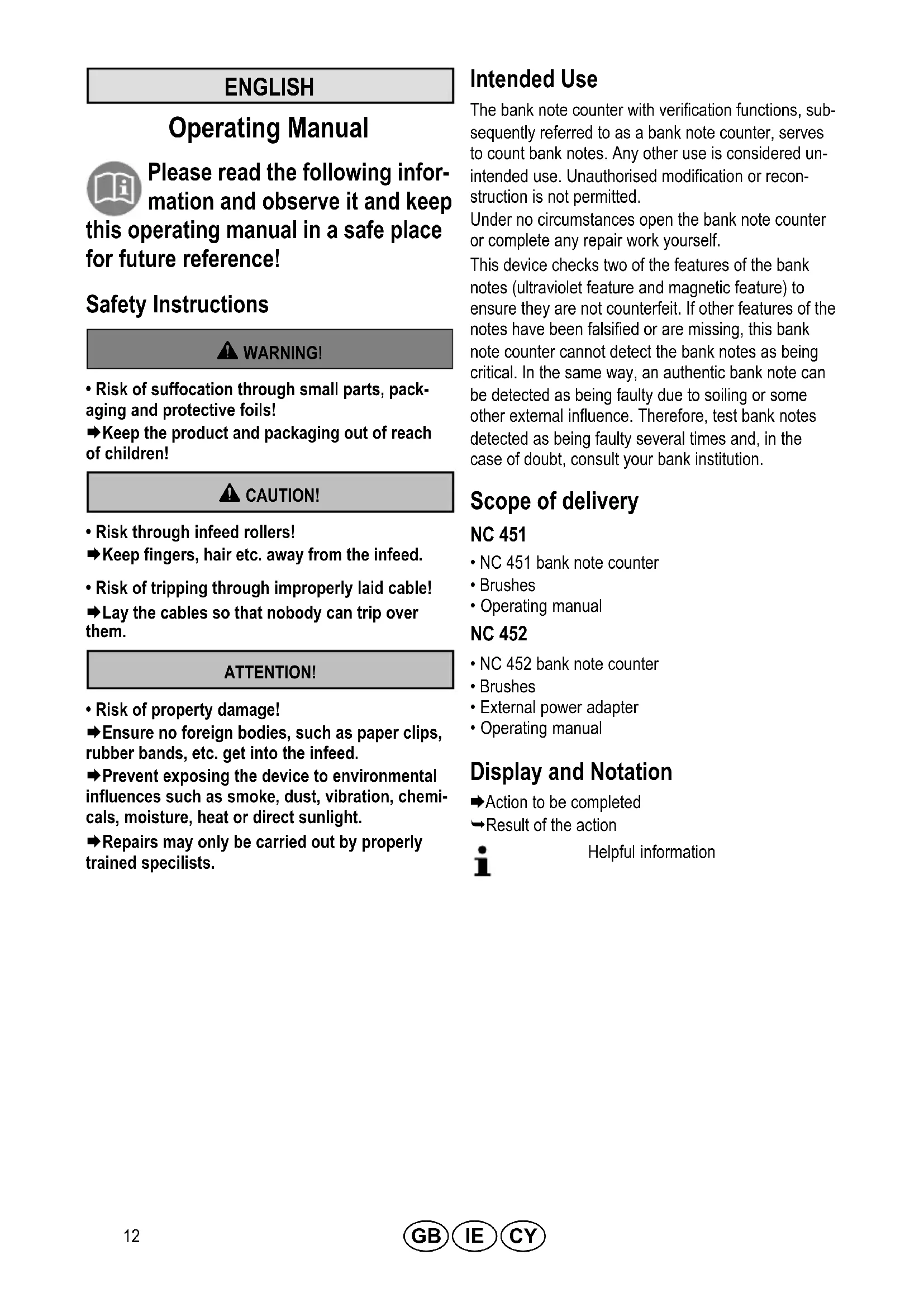

• Risk of suffocation through small parts, pack aging and protective foils! Æ Keep the product and packaging out of reach of children! CAUTION!

• Risk through infeed rollers! Æ Keep fingers, hair etc. away from the infeed.

• Risk of tripping through improperly laid cable! Æ Lay the cables so that nobody can trip over them. ATTENTION!

• Risk of property damage! Æ Ensure no foreign bodies, such as paper clips, rubber bands, etc. get into the infeed. Æ Prevent exposing the device to environmental influences such as smoke, dust, vibration, chemi cals, moisture, heat or direct sunlight. Æ Repairs may only be carried out by properly trained specilists. Intended Use The bank note counter with verification functions, sub sequently referred to as a bank note counter, serves to count bank notes. Any other use is considered un intended use. Unauthorised modification or recon struction is not permitted. Under no circumstances open the bank note counter or complete any repair work yourself. This device checks two of the features of the bank notes (ultraviolet feature and magnetic feature) to ensure they are not counterfeit. If other features of the notes have been falsified or are missing, this bank note counter cannot detect the bank notes as being critical. In the same way, an authentic bank note can be detected as being faulty due to soiling or some other external influence. Therefore, test bank notes detected as being faulty several times and, in the case of doubt, consult your bank institution. Scope of delivery NC 451

• External power adapter

• Operating manual Display and Notation Action to be completed Result of the action Helpful information13 Giu Operating Elements

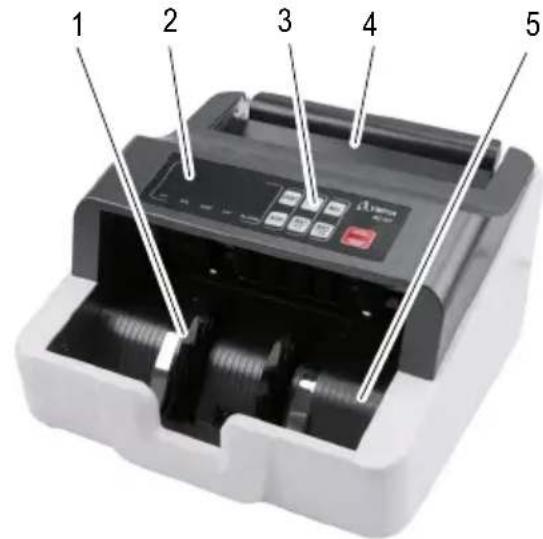

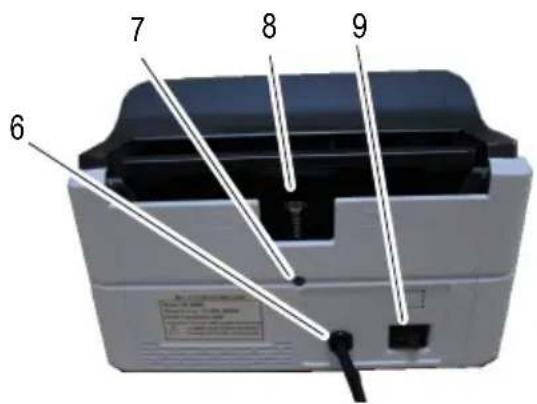

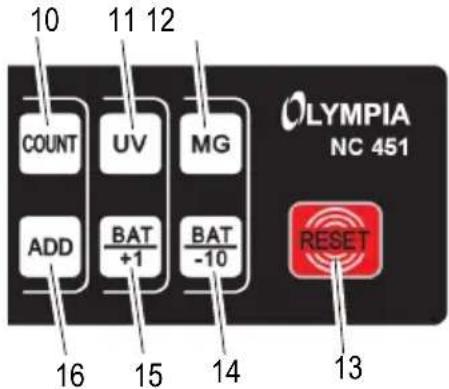

1 Separating wheel 2 Display (left and right-hand side of the display) 3 Keypad 4 Infeed tray 5 Output tray 6 NC 451 power plug NC 452 power supply port for external power adapter (not illustrated) 7 Locking screw 8 Adjusting screw 9 On/Off switch Keypad The illustration depicts the keypad [3] of the bank note counter.

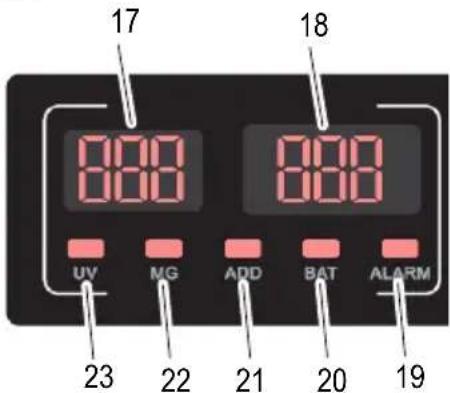

10 COUNT = Counting without activating/deactivating sensors 11 UV = Activate/Deactivate the ultraviolet test 12 MG = Activate/Deactivate the magnetic strip test 13 RESET = Clear the current result 14 BAT -10 = Function for batches (reduce the num ber by 10) 15 BAT +1 = Function for batches (increase the num ber by 1) 16 ADD = Activate/Deactivate the Add function Display The illustration depicts the display [2] during the self- diagnosis.

17 Result of the previous count function or preset quantity for bank note batches 18 Number of bank notes 19 ALARM = Error detected 20 BAT = Batch function is activated 21 ADD = Add function is activated 22 MG = Magnetic strip sensor is activated 23 UV = Ultraviolet sensor is activated14 Giu Operation Connecting the Bank Note Counter If the bank note counter will not be used for a longer period, disconnect it from the power out let. NC 451 Æ Connect the power plug [6] to a properly installed power socket. NC 452 Æ Connect the external power adapter to the power supply port [6] of the bank note counter. Æ Connect the power plug to a properly installed power socket. Switching the Bank Note Counter On/Off The bank note counter is switched on and off using a switch [9] on the rear of the machine. After switching the bank note counter on, it completes a self-diagnosis. During the self-diagnosis, 888 and 888 appear in the displays [17, 18]. When the self- diagnosis has finished without any errors, X0 appears in the displays [17, 18]. If an error is detected, it is indicated in the right-hand display [18] (refer to Clearing Errors). Battery Operation NC 452 The bank note counter can be operated either using the mains power or a rechargeable battery. Before the device can be operated via the battery for the first time, the battery must be fully charged. Æ Connect the external power adapter to the power supply port [6] of the bank note counter. Æ Connect the power plug to a properly installed power socket. The charging time required is about 8 hours. Æ When the charging process has finished, discon nect the power adapter from the power supply port [6] of the bank note counter. Æ Disconnect the power plug from the power socket. ÊThe bank note counter can now be used as a por table device.15 Giu Validation Tests Selecting the Features to be Tested Before inserting the bank notes, select which features (magnetic and/or ultraviolet) you want to test. Æ Press the MG button [12]. ÊThe magnet sensor used to detect the magnetic ink is activated/deactivated. When activated, the sensor is indicated in the display. MG [22] appears in the display. Æ Press the UV button [11]. ÊThe ultraviolet sensor for detecting UV components is activated/deactivated. UV [23] appears in the dis play. Preparing Bank Notes The best results are achieved after a warm-up phase of 3 minutes. Bright ambient light can affect the sensor and falsify results. Pay attention to the following points to prevent mal functions.

Æ Check the batch of bank notes for paper clippings, paper clips, rubber bands and other foreign bodies and remove them before inserting the bundle in the machine (Figure A). Æ Do not insert any damaged bank notes (Figure B). Æ Smoothen any creased and folded bank notes before inserting them (Figure C/D). Æ Do not insert any bank notes which are stuck together in the bank note counter. Æ Fan out the bank notes to separate them prior to insertion. Inserting Bank Notes

Æ Slide and fan the bank notes in the batch so that the top bank note is somewhat lower than the one following. Insert the bank notes in the infeed tray [4] (Figure A).

Æ Insert the bank note bundle vertically in the infeed tray [4] and push the bank note bundle to the rear so that the bank notes shift against each other (Figure B). Ê Counting starts automatically. Bank notes which have been inserted incorrectly, as illustrated in Figures C and D, lead to an im proper count or a malfunction. Since the security features of bank notes are provided on both sides, the process for detecting counterfeit bank notes is performed reliably on both sides.16 Giu Functions Æ Select the required function. Counting This function counts the number of bank notes and, depending on the sensor setting, their validity. During the counting process, the quantity of bank notes appears in the right-hand display [18]. If the bank notes counted are left in the output tray [5], counting resumes from the last number. If the bank notes counted are removed from the output tray [5] and a new batch of bank notes is placed in the infeed tray, counting begins from X0. Æ Press the COUNT button [10]. Ê The bank notes are counted without any verifica tion tests (UV, MG) and discharged in the output tray [5]. Adding When this function is activated, counting is continued even if the bank notes counted are removed from the output tray [5] and a new bundle of bank notes laid in the infeed tray [4]. This function is particularly useful in the case of large stacks of bank notes and for heavily used and creased bank notes. Smaller stacks of bank notes can then be counted in succession. The display con tinues with the count of the bank notes. Æ Press the ADD button [16]. Ê The Add function is activated/deactivated. ADD [21] appears in the display. Batch This function causes counting to stop when a preset quantity of bank notes has been counted. If the batch of bank notes counted is removed from output tray[5], the display [18] skips back to X0 and the next batch of bank notes is counted. Æ Press the BAT +1 button [15] or BAT -10 but ton [14]. ÊBAT [20] appears in the display. The preset num ber 100 appears in the left-hand display [17]. Æ Use the BAT +1 button [15] or BAT -10 button [14] to set the number of notes you require. The number can be increased by 1 using the BAT +1 button [15] and reduced by 10 using the BAT -10 button [14]. ÊThe number entered appears in the left-hand dis play [17]. The bank note counter is ready for the batch function. Press the RESET button [13] to deactivate the function.17 Giu Clearing Errors Error Indicators Error are indicated in the right-hand display [18] by means of code numbers. A frequent source of errors is soiling of the sen sors (see Cleaning the Sensors).Following the instructions provided under "Solution". Code No. Cause Solution E01 The left-hand sensor for counting the bank notes is soiled or damaged. Clean the sensor. If the error continues to occur, refer to the informa tion in Chapter "Warranty". E02 The right-hand sensor for counting the bank notes is soiled or damaged. E03 The code disk sensor is dirty or damaged E04 The sensor in the infeed tray [4] is soiled or damaged. E05 The stacker sensor is dirty or damaged.

The infeed rollers [24] rotate for more than 10 seconds but do not draw any bank notes in. Press the RESET button [13] and repeat the count ing function. If the error continues to occur, refer to the informa tion in Chapter "Adjusting the Pressure of the Infeed Plate".18 Giu Alarm Indicators Alarms are indicated in the right-hand display [18] by means of code numbers. ALARM [19] appears in the display. Code No. Cause Solution EE1 Critical bank note has been detected. Too little or no ultraviolet reaction from the bank note. Remove the critical bank note from the output tray [5]. Press the RESET button [13] to continue counting. EE2 Critical bank note has been detected. Too little or no magnetic reaction from the bank note. EE4 Bank notes detected as half bank notes. Remove the critical bank note from the output tray [5] and check the bank notes for signs of damage. Press the RESET button [13] to continue counting. The left/right-hand sensor for counting the bank notes is soiled or damaged. Clean the sensor. If the error continues to occur, refer to the informa tion in Chapter "Warranty". EE5 Doubled bank notes have been detect ed. Adjust the pressure exerted by the infeed plate. Check whether the bank notes stick together. Start the counting function again. EE7 Bank note was drawn in askew. Lay the bank note in the infeed tray [4] again. Press the RESET button [13] to continue counting. EE9 The width of the bank note is more than 85 mm. Remove the critical bank note from the output tray [5]. Press the RESET button [13] to continue counting. EEA Chained bank notes19 Giu Maintenance Cleaning the Sensors Bank notes are often soiled, particularly by dust. The dirt deposits on the sensors during the counting process. Soiled sensors are the most frequent cause of malfunctions. Clean the sensors with the brush supplied. Open the bank note counter to clean the sensors. How to open the bank note counter is described in the following steps. Æ Switch the bank note counter off using the switch [9]. Æ Disconnect the power plug [6] from the power socket. Æ Pivot the keypad to the front.

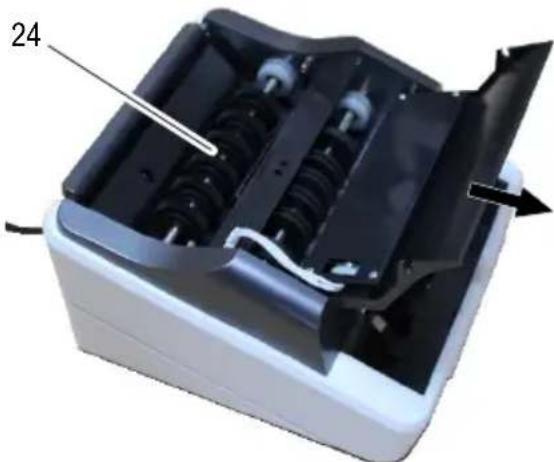

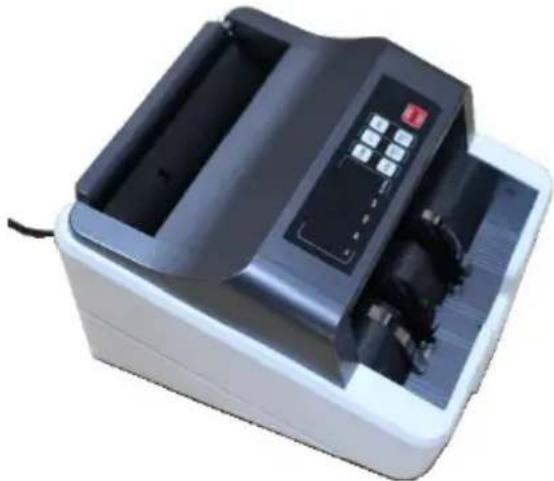

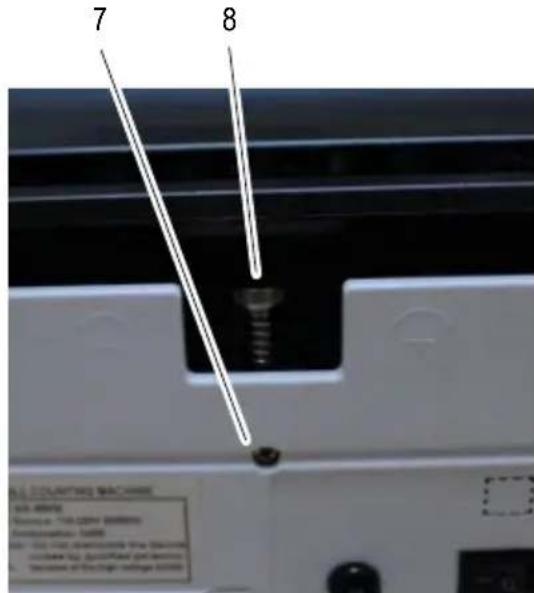

24 Infeed rollers Clean areas which cannot be accessed using compressed air, if necessary. Compressed air can be obtained in small aerosol cans. Æ Clean the sensors with the brush supplied. Æ Pivot the keypad to the rear. Adjusting the Pressure of the Infeed Plate The bank note counter is set-up at the factory to draw the bank notes in properly. If bank notes are no longer drawn in properly, adjust the pressure exerted by the infeed plate. The adjusting screw [8] to alter the pressure exerted by the infeed plate is located at the rear.

The adjusting screw [8] is secured against being ad justed inadvertently by means of a locking screw [7]. Æ Switch the bank note counter off. Æ Disconnect the power plug [6] rom the power sock et. Æ Loosen the locking screw [7] with a screwdriver. Æ Adjust the pressure of the infeed plate with the adjusting screw [8] so that the bank notes can slide under the infeed rollers with a little force . Æ Tighten the locking screw [7] with a screwdriver.20 Giu Technical Data Model NC 451 / NC 452 Functions Free counting mode (without validation test) Automatic start Batch function, up to 100 bank notes can be selected Add function Validation test Ultraviolet and magnetic features test UV and magnetic sensors can be deactivated Capacities: infeed and output trays 100 old bank notes, 200 new bank notes Size of countable bank notes 50 mm × 110 mm bis 85 mm × 180 mm Counting speed 1,000 bank notes / minute Power supply NC 451 NC 452

110 - 240 V (AC), 50/60 Hz, 40 W

External power adapter: Input voltage 110 - 240 V (AC), 50/60 Hz / Out put voltage 12.6 V (DC), 4 A Power consumption 75 W Integrated rechargeable battery NC 451 NC 452

Dimensions 250 mm × 230 mm × 135 mm Weight 3.2 kg Care Instructions Æ Clean the housing surface with a soft, lint-free cloth. Æ Clean the sensors with the brush supplied each time after use. Æ Do not use any solvents or cleaning agents. Disposal In order to dispose of your device, take it to a collection point provided by your local public waste authorities (e.g. recycling centre). According to laws on the disposal of electronic and electrical devices, owners are obliged to dispose of old electronic and electrical devices in a separate waste container. The adjacent symbol indicates that the device must not be disposed of in normal domestic waste! Packaging materials must be disposed of according to local regulations. Warranty Dear customer, we are delighted that you have chosen this equip ment. In the case of a defect, please return the device to gether with the receipt and original packing material to the point of sale.21 FBc FRANÇAIS Mode d'emploi Veuillez lire et observer les informations suivantes et conserver ce mode d'emploi afin de pouvoir le consulter en cas de besoin ! Consignes de sécurité AVERTISSEMENT !

Giu Declaration of conformity To view the complete Declaration of Conformity, please refer to the free download available on our website www.go-europe.com
