USER MANUAL PS 57 CC Plus OLYMPIA

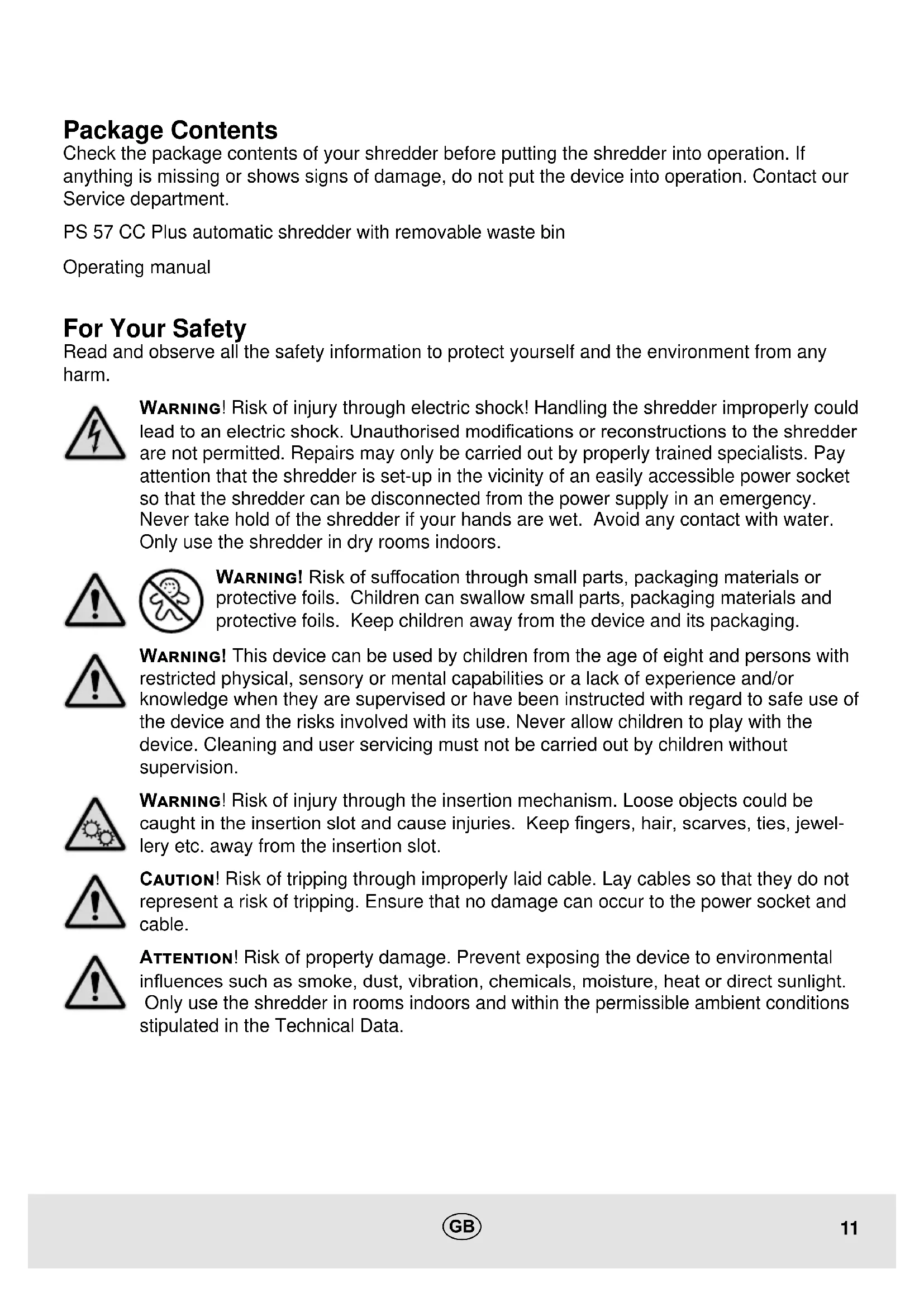

Package Contents 11
For Your Safety 11
General View 12
Intended Use 13
Before You Start 13
Positioning the Shredder Safely 13
Operating the Shredder 14
If Something Does Not Work. 14
Disposal 16
Technical Data 16
Declaration of Conformity 17
Guarantee 17

Contenu

Check the package contents of your shredder before putting the shredder into operation. If anything is missing or shows signs of damage, do not put the device into operation. Contact our Service department.

PS 57 CC Plus automatic shredder with removable waste bin

Operating manual

For Your Safety

Read and observe all the safety information to protect yourself and the environment from any harm.

WARNING! Risk of injury through electric shock! Handling the shredder improperly could lead to an electric shock. Unauthorized modifications or reconstructions to the shredder are not permitted. Repairs may only be carried out by properly trained specialists. Pay attention that the shredder is set-up in the vicinity of an easily accessible power socket so that the shredder can be disconnected from the power supply in an emergency. Never take hold of the shredder if your hands are wet. Avoid any contact with water. Only use the shredder in dry rooms indoors.

WARNING! Risk of suffocation through small parts, packaging materials or protective foils. Children can swallow small parts, packaging materials and protective foils. Keep children away from the device and its packaging.

WARNING! This device can be used by children from the age of eight and persons with restricted physical, sensory or mental capabilities or a lack of experience and/or knowledge when they are supervised or have been instructed with regard to safe use of the device and the risks involved with its use. Never allow children to play with the device. Cleaning and user servicing must not be carried out by children without supervision.

WARNING! Risk of injury through the insertion mechanism. Loose objects could be caught in the insertion slot and cause injuries. Keep fingers, hair, scarves, ties, jewellery etc. away from the insertion slot.

CAUTION! Risk of tripping through improperly laid cable. Lay cables so that they do not represent a risk of tripping. Ensure that no damage can occur to the power socket and cable.

ATTENTION! Risk of property damage. Prevent exposing the device to environmental influences such as smoke, dust, vibration, chemicals, moisture, heat or direct sunlight. Only use the shredder in rooms indoors and within the permissible ambient conditions stipulated in the Technical Data.

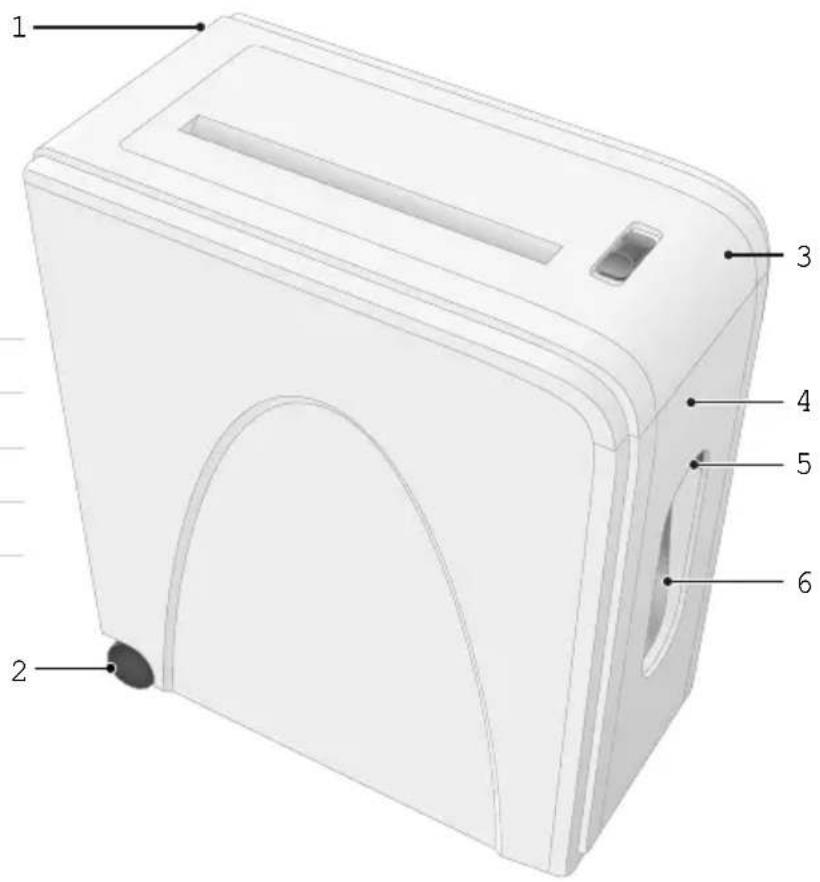

General View

The following diagrams illustrate the shredder in detail.

1 Power cable (not illustrated here)
2 Castors
3 Paper shredder
4 Waste bin
5 Carrying handle for the waste bin
6 Window to waste bin

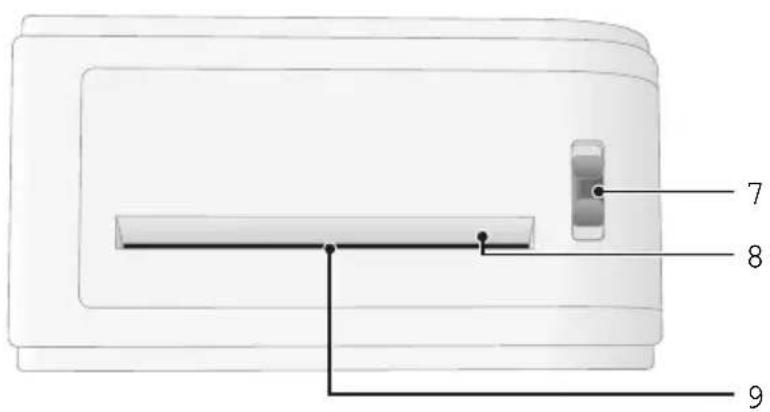

7 Operating mode switch
8 Paper infeed with cutting mechanism
9 Optical sensor

Intended Use

The automatic shredder can be used to shred paper and credit cards by inserting them in the insertion slot. The material to be shred must comply with the requirements stipulated in Technical Data.

The automatic shredder is not intended for shredding material which does not comply with the requirements stipulated in the Technical Data (e.g. cardboard). Any other use is considered unintended use.

Before You Start

Read this operating manual through carefully, observing all the information contained regarding handling and using the shredder. Keep the operating manual in a safe place for future reference.

The following information should help to ensure that the shredder always functions as you expect it to.

Never reach into the insertion slot. Before starting to shred material, remove any staples, paper clips, rubber bands or other foreign bodies from the material concerned. Keep all loose pieces of clothing, jewellery, long hair or other loose items away from the device.

Positioning the Shredder Safely

The shredder only operates when the waste bin supplied is fitted.

CAUTION! Risk of injury through sharp edges on the cutting mechanism. The underside of the cutting mechanism has sharp edges and corners. Do not take hold of the shredder from the underside.

1 Remove the machine carefully from the packaging.
2 Insert the waste bin in the body of the device under the cutting mechanism. Ensure that you push the waste bin fully into the shredder. The waste bin latches audibly in place.
3 Set the shredder down on a stable, level, horizontal surface and in the vicinity of an easily accessible power socket.
4 Pay attention that the switch is set to its OFF position and then connect the power adapter plug to an easily accessible power socket.

Operating the Shredder

The shredder works using an automatic shredding mechanism. The optical sensor for the material in the automatic insertion is positioned in the centre of the slot.

CAUTION! Risk of injury through sharp edges on the cutting mechanism. NEVER take hold of the shredder by the underside when the shredder is in operation.

1 Set the switch to its Auto position. The shredder is now ready to operate.

WARNING! Risk of injury through automatic insertion. The infeed starts automatically when material is inserted. Keep all loose pieces of clothing, jewellery, long hair or other loose items away from the shredder's insertion slot.

ATTENTION! Risk of property damage through material jam! Observe the maximum cutting output of the insertion slot.

2 Feed the material to be shred in the centre of the insertion slot. The insertion slot draws the material in and stops 2 - 4 seconds after shredding has been completed and no further material is fed in.
3 If you want to shred a credit card, insert the credit card in the centre of the slot with a short edge to the front.

Switching the Shredder Off

Switch the shredder off when you no longer need to use it. This saves electricity and prevents third parties inadvertently injuring themselves with the shredder.

1 Set the switch to its OFF position.
2 Disconnect the power plug from the power socket.

Transporting the Shredder

If you want to transport the shredder for use elsewhere, use the practical castors provided on the underside of the shredder.

1 Ensure that the shredder is switched off and disconnected from the power supply.
2 Use the handles to raise the shredder slightly. The shredder is now standing on the castors and can be simply pushed to the new location.

If Something Does Not Work

The following information should help if something does not work as you expect it to.

Overheating Protection

The motor switches off automatically in the event of overheating and overloading. When the cool down phase has elapsed, the shredder is ready to operate again. Pay attention to the intermittent operation value.

Lubricating the Cutting Mechanism

If you want to increase the working life of the shredder, you should oil the shredder's cutting mechanism at regular intervals. GO Europe GmbH offers a special oil for shredders. For more information, please contact our hotline:

ATTENTION! Risk of property damage through using the wrong oil! Do not use spray oils. Only use a special oil intended for shredders.

1 Apply the special oil for shredders in several lines square to the sheet of paper.
2 Set the switch to its Auto position.
3 Insert the oiled sheet of paper in the paper infeed. The paper with oil applied is inserted and oils the cutting mechanism.

Emptying the Waste Bin

Empty the waste bin regularly. This prevents shred material jamming and causing malfunctions as a result.

1 Set the switch to its OFF position.
2 Disconnect the power plug from the power socket.
3 Use the handle to pull the waste bin fully out of the device.
4 Empty the waste bin.
5 Insert the waste bin back in the body of the device under the cutting mechanism. Ensure that you push the waste bin fully into the shredder. The waste bin latches audibly in place.

Clearing Residual Material

If the shredder no longer shreds material as you expect, remove any residual material from the cutting mechanism.

1 Set the switch to its Rev position. The cutting mechanism runs in reverse and releases any material remaining in the cutting mechanism.
2 Set the switch to its OFF position.
3 Disconnect the power plug from the power socket.
4 Remove any residual material carefully from the cutting mechanism using an appropriate pointed object.

Regular Cleaning

Clean the shredder at regular intervals.

1 Disconnect the power plug from the power socket.
2 Use a slightly damp, lint-free cloth to clean the surface of the shredder housing. Do not use any solvents or cleaning agents.

Disposal

In order to dispose of your device, take it to a collection point provided by your local public waste authorities (e.g. recycling centre). According to laws on the disposal of electronic and electrical devices, owners are obliged to dispose of old electronic and electrical devices in a separate waste container. The symbol indicates that the device must not be disposed of in normal domestic waste!

Packaging materials must be disposed of according to local regulations.

The device and packaging materials can be recycled; sort them for disposal to simplify waste management. The Triman logo is only relevant for France.

Technical Data

Subject to change without prior notice.

Cutting capacity Max. 10 sheets of A4 (80 g/m2), 1 credit card

Cutting method/width Particle-cut (4× 40mm) 220~mm max.)

Shredding speed 2.0m / min

Security level P4 compliant with DIN 66399-2

Intermittent operation 2.0 mins. on / 30 mins. off

Noise level 73 - 75 dB

Operating modes Automatic mode (Start-Stop function)

Reverse running

Overheating protection

Waste bin 15-litre volume, pull-out, with window

Power supply 220 - 240 V, 50 Hz, 1.6 A

Power consumption 350 W

Dimensions 365× 205× 402mm standing on 2 castors

Weight Approx. 5.6kg

Declaration of Conformity

The CE Mark on the device confirms conform- ity.

The Declaration of Conformity can be viewed at www.go-europe.com.

Declaration of conformity with security level according to DIN 66399-2

We declare that, regarding shredding documents, this shredder complies with the requirements of security level P-2 according to DIN 66399-2.

Guarantee

Dear Customer,

we are pleased that you have chosen this equipment.

In the case of a defect, please return the device together with the receipt and original packing material to the point-of-sale.
