Brand	Suntec
Model	CoolBreeze 9500 TriVario Tv+
Product type	Stand fan with 3 independent fans
Rated voltage	220-240 V ~
Frequency	50-60 Hz
Rated power	105 W
Number of speeds	3 per fan (Low, Medium, High)
Operating modes	Normal, Natural, Sleep
Timer	1 to 7 hours
Oscillation	Automatic left-right + manual up-down tilt
Remote control	Yes (infrared)
Safety	Integrated safety grille
Cleaning	Removable blades, clean with damp cloth
Storage	Unplug, store in a dry and cool place
Warranty	24 months
Power supply	Mains
Use	Indoor only
Material	Plastic and metal
Independent adjustment	Each fan controlled separately
Certifications	CE marking
Included accessories	Remote control, user manual

Frequently Asked Questions - CoolBreeze 9500 TriVario Tv+ SUNTEC

How to use the timer?

Press the TIMER button on the control panel or remote control. Each press increases the duration by one hour, from 1 to 7 hours. The timer activates immediately and the fan stops automatically after the set delay.

How to clean the fan?

Unplug the appliance. Remove the 3 screws at the back, rotate the front cover to the left and remove the blades. Clean with a damp cloth without chemical solvent (gasoline, alcohol). Dry all parts before reassembling. Recommended once a month.

Can I use the fan outdoors?

No, the appliance should only be used indoors. It must not be exposed to water, high humidity, or temperatures above 40°C.

How to adjust the fan speed?

Press the FAN1, FAN2 or FAN3 buttons to select the desired fan. Each press increases the speed by one step: low, medium, high. The default speed is low.

What to do if the remote control does not work?

Make sure the remote is pointed towards the receiver on the appliance. Replace the batteries if necessary. Ensure no obstacles block the signal. If the problem persists, contact your retailer.

How to activate oscillation?

Press the OSC button on the control panel or remote control to activate or deactivate automatic left-right oscillation. You can also manually tilt each fan up or down.

What are the available modes?

Three modes: Normal (independent control of each fan), Natural (automatic speed variation to simulate natural wind), and Sleep (reduced speeds for quiet operation). Press the MODE button to cycle through them.

Is the fan guaranteed?

Yes, the appliance comes with a 24-month warranty from the date of purchase. It covers manufacturing and material defects. For any claim, return the appliance with the proof of purchase to your point of sale.

Can I replace the blades?

The blades are removable for cleaning, but if damaged, contact your retailer. Replacement of wear parts (including blades) may be chargeable after the warranty period.

How to store the fan in winter?

Unplug the appliance, clean it according to instructions, then store it in a dry, cool and safe place. Avoid dust and humidity.

USER MANUAL CoolBreeze 9500 TriVario Tv+ SUNTEC

White rectangular stand fan with three circular blades, no visible text or symbols

Sicherheitshinweise

Circular diagram with concentric rings and internal grid pattern, no visible text or symbols

Circular diagram of a three-blade fan with a black arrow indicating the center (no text or symbols)

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision.

Children of less than 3 years should be kept away unless continuously supervised.

Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

• Use the unit only for its intended purpose as described in this manual.
• Insert the power cord only into a grounded 220-240V\~, 50-60Hz socket.
• Do not cover the power cord. Do not let the cord hang over the edge of a table or a counter.
• Do not place the appliance on an unsteady or cloth covered surface.
• Unplug the unit from the socket when you do not use it. Please do not pull on the cord.
• Do not insert the fingers or other objects into the fan

during operation. Especially take care of the children.

- Do not operate the appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.

- If the supply cord is damaged, please contact your seller.

- The appliance is for household use only. Do not use at outdoors or for any commercial or industrial purpose.

- To avoid electric shock, do not place the cord, the plug or the appliance in water or other liquids.

- Do not operate the fan in the presence of explosive and/or flammable fumes. Do not place the fan or any parts near an open flame, cooking or other heating appliance.

- Unplug the plug outlet when not in use and before cleaning.

- Do not operate if the fan housing is damaged.

- You should never repair your fan by yourself. Please contact your dealer if the unit needs to be repaired.

- Do not use the fan in the area at high humility, temperature higher than 40°C or dusty area.

- Do not hang or mount fan on a wall or ceiling.

- Please do not use multiple plugs or extension cords.

- Do not leave the appliance unattended.

- The use of external accessories not recommended by the manufacturer, such as timers, can lead to injuries.

- Please make sure that the ventilation slots are not blocked and free of dust or foreign objects.

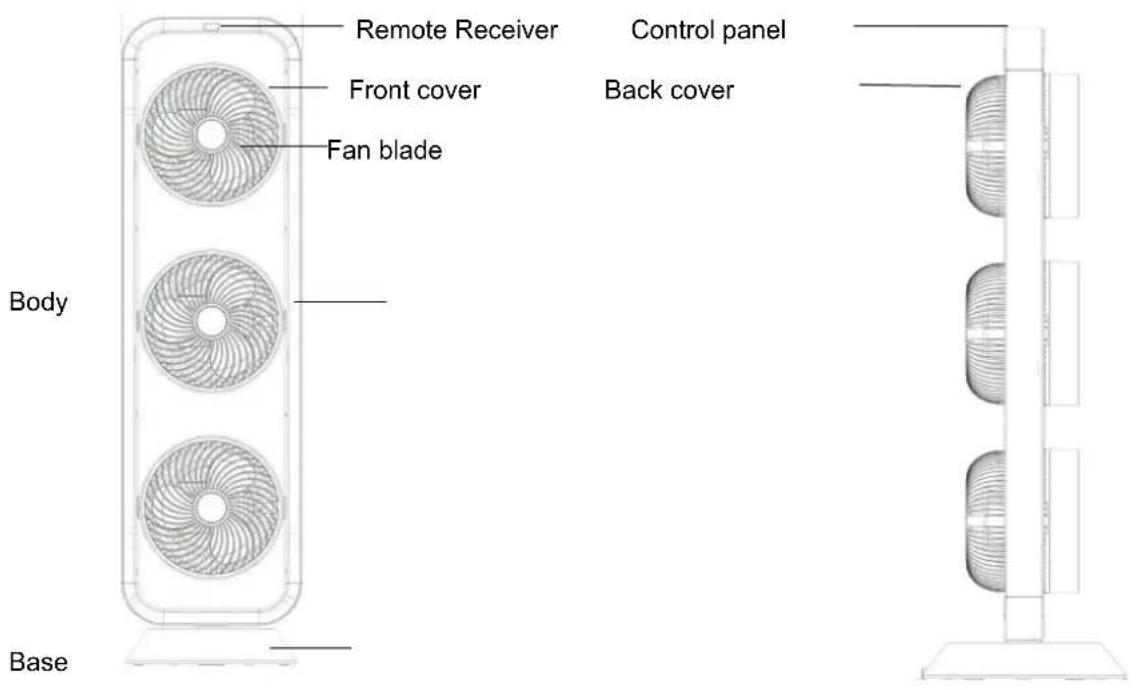

Parts description

Remote Receiver Front cover Fan blade Control panel Back cover Body Base

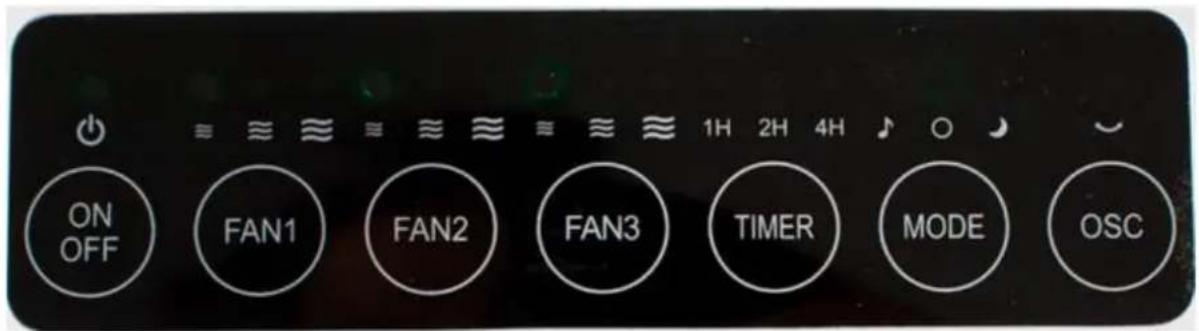

Control panel

ON OFF FAN1 FAN2 FAN3 TIMER MODE OSC

Operation

1. Please unpack the unit.
2. Plug the unit into a 220-240V\~, 50-60Hz outlet.
3. You can use the following functions on the control panel, as described below:

ON/OFF: To start the appliance, please press ON/OFF button.

SPEED: The appliance has three fans. Please press "FAN1", "FAN2" and/or "FAN3" and choose for every fan the desired speed level (low/mid/high). By pressing every time "FAN1", "FAN2" and/or "FAN3", the speed will increase to one level.

TIMER: Please press this button to set the timer (1-7h). Choose, in how many hours you want the appliance to turn off. Press one time and add one hour.

MODE: Please press this button to choose between normal, nature or sleep mode. The indicator will light on.

Normal mode: All three fans can be controlled independently.

Nature mode: The speed of all 3 fans will change automatically in small intervals. The natural wind will be stated.

Sleep mode: The speed of all 3 fans will change automatically in small intervals. The device works mostly wer speed levels, where the noise level is reduced.

OSC: Please press this button one time. The product will oscillate left and right automatically. If you press the button again, the oscillation will stop. Meanwhile you can adjust the 3 fans up and down manually.

Cleaning and storage

• Before you clean the fan, please turn off the appliance, wait a few seconds and pull out the plug from the socket.
  • Take the three screws out, which are on the back cover, then twist the front cover to the left. screws

• Please take out the fan blades.
• Clean the unit using a damp cloth, and then wipe it using a dry cloth.
• Do not use chemical solvents (such as gasoline, alcohol). The surface and the entire housing could be damaged.
  • Before installing the fan, please insure that all parts are dry.
  • We recommend cleaning the unit once a month.
• If you don't use the unit for a longer time period, please turn it off, unplug the power cord and take the unit to a dry, cool and safe place.

Specifications

Model	CoolBreeze 9500 Tri-Vario TV+
Rated voltage	220-240V~
Rated frequency	50-60Hz
Rated power	105W

In case of complaint

• You can claim the device within 24 months from date of purchase (receipt).
• A free replacement or repair will be excluded from prior improper product handling.
- Defects in wear parts, consumables, as well as cleaning, maintenance or replacement of said parts are therefore with costs.
- If you want to make a complaint, please bring the entire device in its original packaging and with proof of purchase to your dealer. For a timely and convenient service register, visit our website www.suntec-wellness.de and learn more.
• Without a proof of purchase, generally there will be no repair or replacement.
- In the event that the complaint case is analogous to our terms of service, all defects of the device or its accessories due to material or manufacturing defects will be eliminated by repair or, at our discretion, replacing the unit.
- The damage of accessories does not automatically lead to a free exchange of the whole device. In these cases, please contact your dealer. Glass breakage, or breakage of plastic parts are always to charge.
- The dealer or repair service can perform the repair after the expiration of warranty against charge.

Note concerning protection of environment

This product must not be disposed of via normal household waste after its service life, but must be taken to a collection station for the recycling of electrical and electronic devices. The symbol on the product, the operating instructions or the packaging indicates such disposal procedures. The materials are recyclable in accordance with their respective symbols. By means of re-use, material recycling or any other form of recycling old appliances you are making an important contribution to the protection of our environment.

Please ask your local council where your nearest disposal station is located.

As part of our extended producer responsibility, this product is indicated in accordance to the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). The aim is to avoid, reduce, and environmentally friendly disposal of electronic waste. Please help actively to protect the environment and dispose electronic waste through local collection points. The packaging and this manual can be recycled.

EC declaration of conformity

The device meets the essential health and safety requirements of the European Union. The EC declaration of conformity is the basis for CE marking this unit.

With publication of this manual supersedes all previous their validity. SUNTEC, SUNTEC Wellness, KLIMATRONIC and the Sun-Logo are registered trademarks. © 2020/01 SUNTEC WELLNESS GMBH

Liability is excluded for all printing errors and omissions.

© 2020 KLIMATRONIC® CoolBreeze

Circular diagram of a four-blade fan or propeller with a central hub and radial blades, no text or symbols present.

Circular mechanical or electrical component diagram with concentric rings and internal structure (no visible text or symbols)

Circular diagram of a three-blade fan with internal blades and a black arrow indicating direction (no text or symbols)

Cross-sectional diagram of a circular mechanical or electrical component with internal grid structure (no text or symbols)

Circular diagram of a three-blade fan with a central hub and radial blades, no text or symbols present.

Circular mechanical or architectural diagram with concentric rings and radial connections (no visible text or symbols)

Circular diagram of a three-blade fan with a central hub and radial blades, no text or symbols present.

Circular diagram with concentric rings and internal grid pattern, no visible text or symbols

Circular diagram of a three-blade fan with internal blades and a small arrow pointing to the center (no text or symbols)

Two circular diagrams showing internal fan structures with no text or symbols

Circular diagram of a fan with four blades, no text or symbols present

Circular diagram with concentric rings and internal lines, no visible text or symbols

Circular diagram of a three-blade fan with a central hub and radial blades, no text or symbols present.

Cross-sectional diagram of a circular mechanical or electrical component with internal grid structure (no text or symbols)

Circular diagram of a three-blade fan or propeller with a central hub and an arrow pointing to one (no text or symbols)

Circular diagram of a three-blade fan with a central hub and radial blades, no text or symbols present.

For this appliance we assure 24 months warranty.

During the 24 months warranty we guarantee to repair your appliance free of charge or to provide your seller the spare parts free of charge if the appliance fails to work due to production failure.

Other claims are excluded from this warranty. We will not be liable for any defects caused by acts of nature, improper use, neglection of the instruction manual, damage from continuous use and damages during transportation.

This warranty card is only applicable with the according invoice.

In case of service please bring your purchased product to your seller.

Product name:

Serial number:

Name of buyer:

Date of purchase:

Stamp and signature of seller:
