Product Type	Pedestal fan with remote control
Model	CoolBreeze 4000 SVRC
Brand	Suntec Wellness
Power supply	220-240 V ~ 50 Hz
Power consumption	45 W
Speeds	3 (Low, Medium, High)
Modes	Normal, Nature, Sleep
Timer	7.5 hours (adjustable in 0.5 h increments)
Oscillation	Yes, OSC button
Remote control	Yes, CR2025 battery (not included)
Height adjustment	Telescopic pole with knob
Tilt	Yes, manual (up or down)
Blade diameter	Not specified, but front/rear safety grilles
Weight	Not specified
Dimensions (W x D x H)	Not specified, adjustable height
Materials	Plastic, metal (motor)
Safety	Front and rear safety grilles, automatic shut-off not mentioned
Maintenance and cleaning	Soft damp cloth, do not immerse
Warranty	24 months
Manufacturer	Suntec Wellness GmbH, Holzstraße 2, 40221 Düsseldorf, Germany

Frequently Asked Questions - CoolBreeze 4000 SVRC SUNTEC

How to assemble the CoolBreeze 4000 SVRC fan?

Insert the telescopic pole into the base, attach the control box, then mount the fan unit: rear grille, blade, cap, then front grille by snapping the two grilles together and screwing the clamp.

How to adjust the fan speed?

Press the 'O' button to turn on, then use the '+' or '-' buttons to switch between Low, Medium and High speeds.

How to use the timer?

Press the TIMER button. Each press increases the time by 0.5 hours up to a maximum of 7.5 hours. The indicator light turns on.

How to activate oscillation?

Push the 'OSC' button to activate the fan's rotating movement.

How to clean the fan?

Unplug it. Use a soft damp cloth for the exterior surfaces and a dry cloth to dry. Never immerse the appliance in water.

What operating modes are available?

Press the 'Mode' button to switch from Normal mode to Nature mode then to Sleep mode.

How to adjust the fan tilt?

Turn off the appliance, then manually tilt the protective grille in the desired direction (up or down).

Which battery to use for the remote control?

The remote control requires a CR2025 battery (not included).

What to do in case of failure or claim?

Within 24 months of purchase, return the complete appliance with the original packaging and proof of purchase to your retailer. The warranty covers manufacturing defects.

Where to find spare parts?

Contact your retailer or the after-sales service via the website www.suntec-wellness.de. Wear parts (blades, grilles) can be replaced for a fee after the warranty period.

USER MANUAL CoolBreeze 4000 SVRC SUNTEC

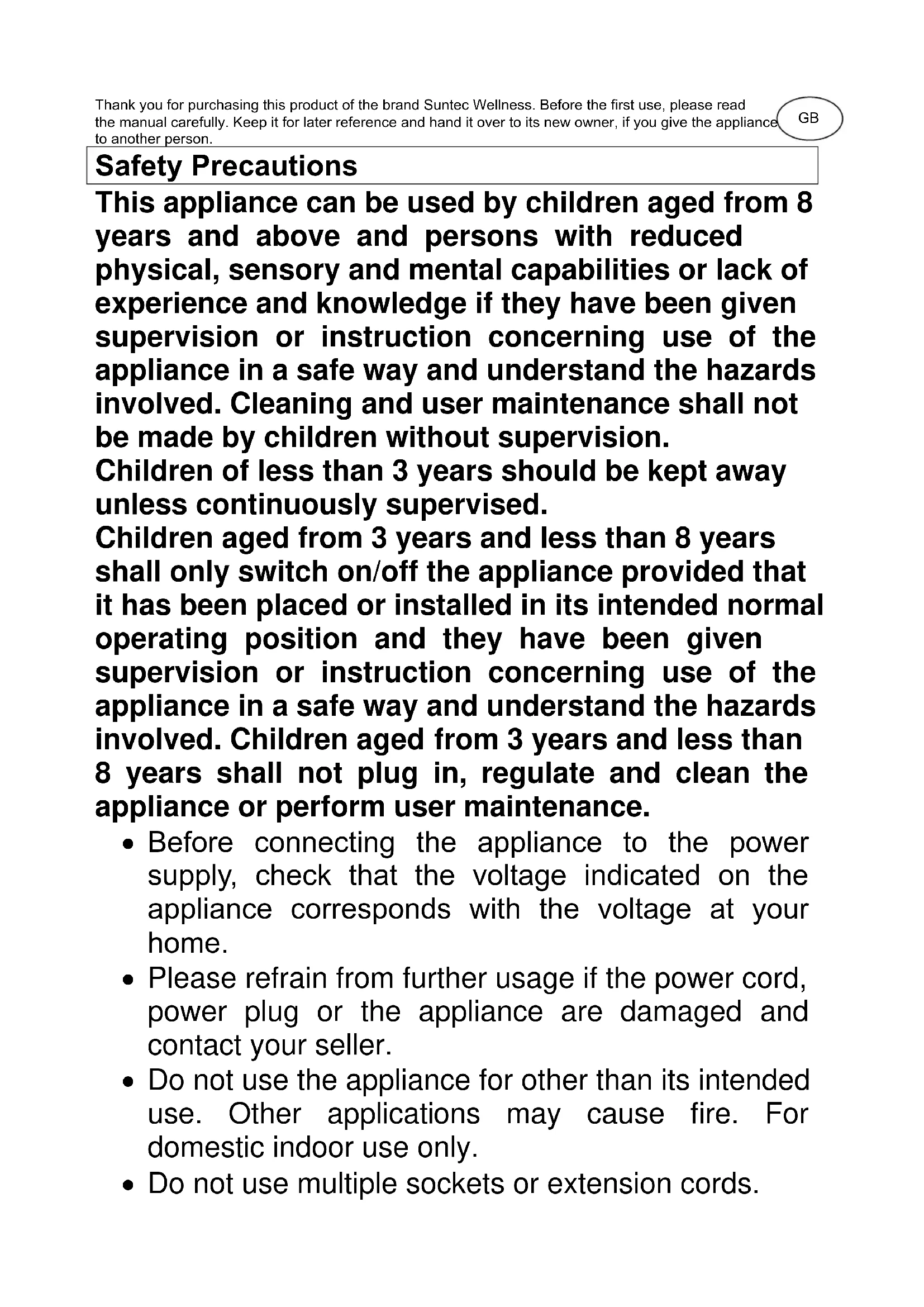

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision.

Children of less than 3 years should be kept away unless continuously supervised.

Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

• Before connecting the appliance to the power supply, check that the voltage indicated on the appliance corresponds with the voltage at your home.
• Please refrain from further usage if the power cord, power plug or the appliance are damaged and contact your seller.
• Do not use the appliance for other than its intended use. Other applications may cause fire. For domestic indoor use only.

• Do not use multiple sockets or extension cords.

• Please do not leave the appliance unattended.

• Do not attempt to repair, disassemble or change the appliance by yourself.
• The use of accessory not recommended by the manufacturer, e.g. time switches, may cause harm.
• Remove the appliance from the wall socket when it is not in use, before cleaning and in case of malfunctions. Pull on the power plug, not on the power cord.
• Never use the appliance with wet hands.
• Do not insert any objects into the appliance as this may cause electric shocks, fire or damages to the appliance.
• Never immerse the appliance, it's cord and plug into water or other liquids.
• To avoid overheating, the power cord should be pulled out completely.
• The power cord must be laid in such a way that nobody can trip over it.
• The fan must not be placed near heat sources or combustible materials (curtains, upholstered furniture, etc.).
• The front and rear part of the cover grille must be firmly put together.
• Please make sure that the ventilation parts are not blocked and free from dust or foreign objects.

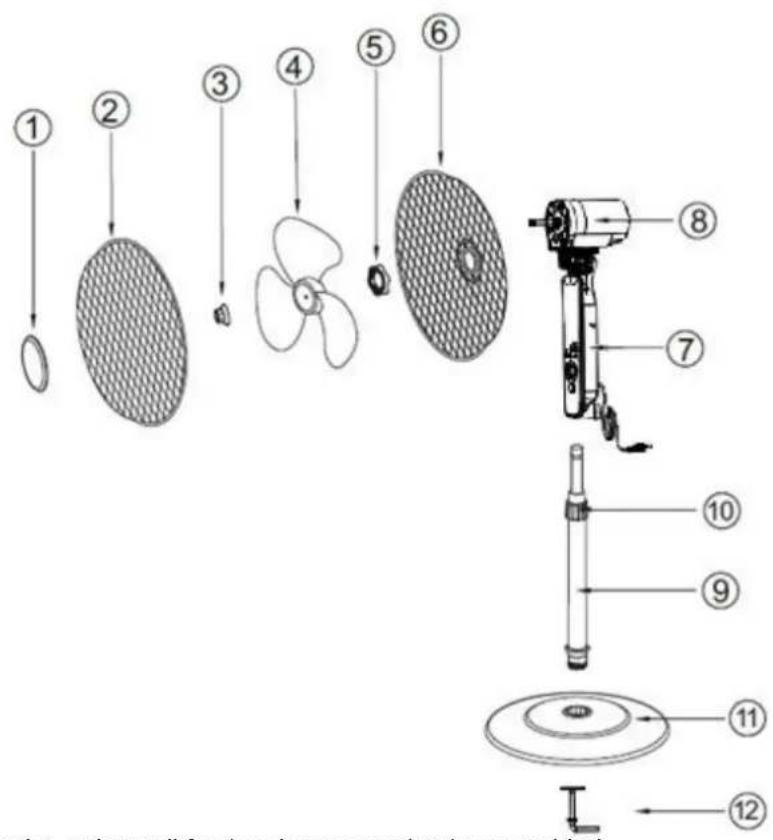

Parts name

1. Grille Cover
2. Front Grille
3. Blade Cap
4. Blätter
5. Guard Lock
6. Rear Grille
7. Switch Box
8. Motor Housing
9. Outer pipe
10. Height Adjustment
11. Round Base
12. Base Screw

CAUTION

1. Do not plug the AC cord into the wall outlet outlet until fan has been completely assembled.
2. Use power source of the fan according to electric nameplate at the back of switch box.

How to assemble

1. Mounting the Base:

Pass the Outer Pipe (9) through the round base (11).

1. Mounting the switch box:

Caution! never remove the inner pipe.

Release the height adjustment (10) and carefully pull the inner pipe out of the Outer pipe (9).

If you remove the tube, you may need the services of a specialist.

(1) loosen the switch box (7) set screw by turning it to the left
(2) now place the hole in the bottom of the switch box over the inner pipe.
(3) turn the switch box set screw clockwise and tighten it firmly

Mounting the fan head

1. Parts identification of the fan head

1. motor
2. rear guard
3. guard lock nut
   4.blade
   5.blade cap
4. front guard
5. screw

2. Mounting the rear guard

Mount the rear guard on the Motor and secure it with the Guard lock nut.

3. Mounting the blade

insert the blade onto the motor shaft. Tighten the blade with the blade cap.

4. Mounting the front guard

Fix the front grille in place by attaching the hook on the top of the front protective grille above the rear protective grille. Now connect the two grilles by pressing them together laterally so that the two protective grilles are attached to the external plastic ring.

Close the clamp and secure it with a screw.

How to use

Speed control

The fan speed can be set as follows:

Function of the pushbuttons

To switch on the unit, simply press the push button "O". Please press the + / - button several times to switch between the "Low, Medium, High" speeds. Please press the "MODE" button to switch between normal, nature and sleep mode. Press to turn off the unit.

Oscillation

Push down the oscillation "OSC" button and the Fan will oscillate.

Tilting adjustment

Always switch the fan off before Making a tilt adjustment, the air Flow can be adjusted upward or Downward by simply moving the guard up or down.

Height adjustment

Loosen the height adjustment knob, then adjust the pipe to the desired. Height and the tighten the adjustment knob.

Timer

The fan is equipped with a 7.5 hour timer. Press the TIMER button to start up the timer. Each time the button is pressed, the time is increased by 0.5 hours. As soon as the timer is set, the function light lights up.

Remote control

The model CoolBreeze 4000 SV-RC is equipped with a remote control.

Please use 1 x CR2025 battery (not included).

Technical information

	CoolBreeze 4000 SV-RC
Operating voltage:	220-240V~ / 50Hz
Power consumption	45W

Cleaning

• Always disconnect the appliance from the power outlet before cleaning. Never immerse the appliance in water to prevent electric shocks.
• Wipe over the exterior of the appliance with a soft wet cloth and then wipe dry with a dry cloth.
• Please do not use any aggressive or chemical cleaning agents or abrasive cleaning agents such as steel wool.
• If you do not use the appliance for a long period of time, please store it in a dry place protected from dust.

In case of complaint

• You can claim the device within 24 months from date of purchase (receipt).
• A free replacement or repair will be excluded from prior improper product handling.
• Defects in wear parts, consumables, as well as cleaning, maintenance or replacement of said parts are therefore with costs.
  If you want to make a complaint, please bring the entire device in its original packaging and with proof of purchase to your dealer. For a timely and convenient service register, visit our website www.suntec-wellness.de and learn more.
• Without a proof of purchase, generally there will be no repair or replacement.
• In the event that the complaint case is analogous to our terms of service, all defects of the device or its accessories due to material or manufacturing defects will be eliminated by repair or, at our discretion, replacing the unit.
• The damage of accessories does not automatically lead to a free exchange of the whole device. In these cases, please contact your dealer. Glass breakage, or breakage of plastic parts are always to charge.
  The dealer or repair service can perform the repair after the expiration of warranty against charge.

Note concerning protection of environment

This product must not be disposed of via normal household waste after its service life, but must be taken to a collection station for the recycling of electrical and electronic devices. The symbol on the product, the operating instructions or the packaging indicates such disposal procedures. The materials are recyclable in accordance with their respective symbols. By means of re-use, material recycling or any other form of recycling old appliances you are making an important contribution to the protection of our environment.

Please ask your local council where your nearest disposal station is located.

As part of our extended producer responsibility, this product is indicated in accordance to the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). The aim is to avoid, reduce, and environmentally friendly disposal of electronic waste. Please help actively to protect the environment and dispose electronic waste through local collection points. The packaging and this manual can be recycled.

EC declaration of conformity

The device meets the essential health and safety requirements of the European Union. The EC declaration of conformity is the basis for CE marking this unit.

With publication of this manual supersedes all previous their validity. SUNTEC, SUNTEC Wellness, KLIMATRONIC and the Sun-Logo are registered trademarks. © 2021/01 SUNTEC WELLNESS GMBH

Liability is excluded for all printing errors and omissions.

© 2021/01 SUNTEC WELLNESS GMBH

For this appliance we assure 24 months warranty.

During the 24 months warranty we guarantee to repair your appliance free of charge or to provide your seller the spare parts free of charge if the appliance fails to work due to production failure.

Other claims are excluded from this warranty. We will not be liable for any defects caused by acts of nature, improper use, negligence of the instruction manual, damage from continuous use and damages during transportation.

This warranty card is only applicable with the according invoice.

In case of service please bring your purchased product to your seller.

Product name:

Serial number:

Name of buyer:

Date of purchase:

Stamp and signature of seller:

Manufacturer:

Suntec Wellness GmbH

Holzstraße 2

40221 Dusseldorf

Germany
