USER MANUAL DryAged Master 125 CASO

CQSO® DESIGN

Front view of a large stainless steel appliance with digital display and internal storage unit (no visible text or symbols)

CE

(Garantiegeber)

CASO GmbH

Raiffeisenstraße 9

D-59757 Arnsberg

Service-Hotline International:

Tel.: [phone] / 80 55 4 - 99

Fax: [phone] / 80 55 4 - 77

eMail: [e-mail]

Homepage: www.caso-design.de

61.2 Reiniging....128

- DryAged Master 125

- Auffangblech

UV *% △ ▽ ①

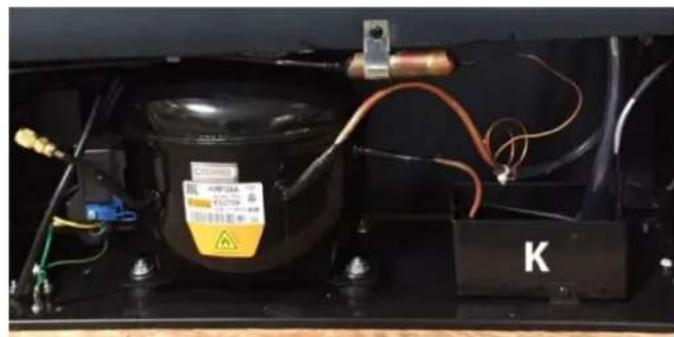

Interior view of an industrial appliance showing a black enclosure with visible wiring, components, and a labeled component 'K' (no readable text or symbols beyond labels)

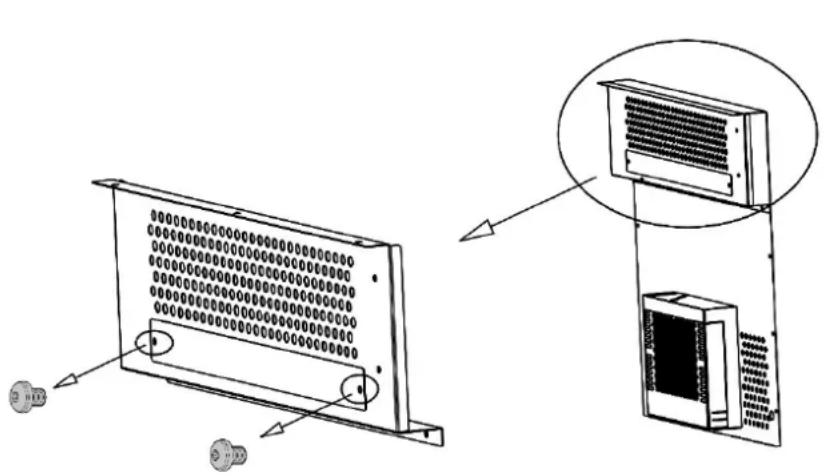

Technical diagram showing installation of a rack-mounted device with labeled ports and a magnified inset view of its internal structure.

Original Operating Manual

DryAged Master 125 (690)

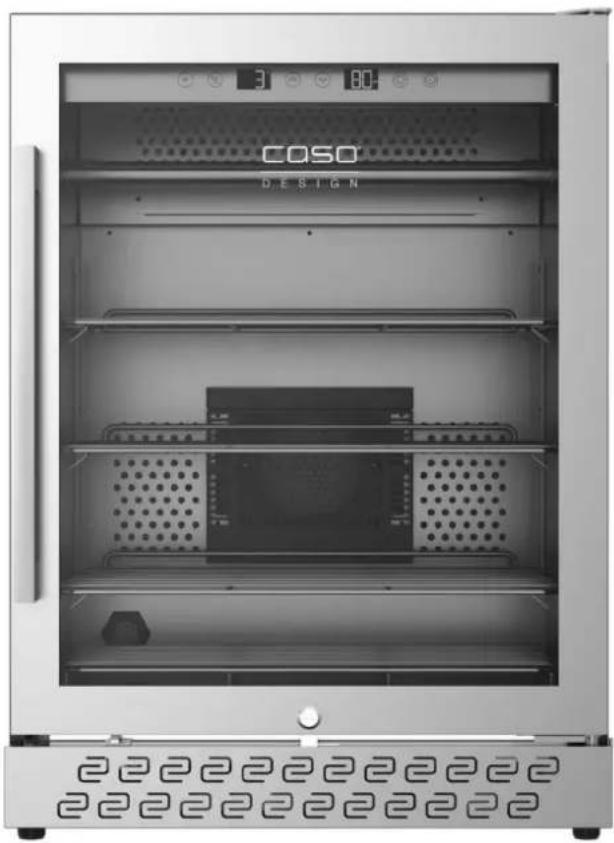

Front view of a stainless steel design appliance with open doors and control panel (no visible text or symbols)

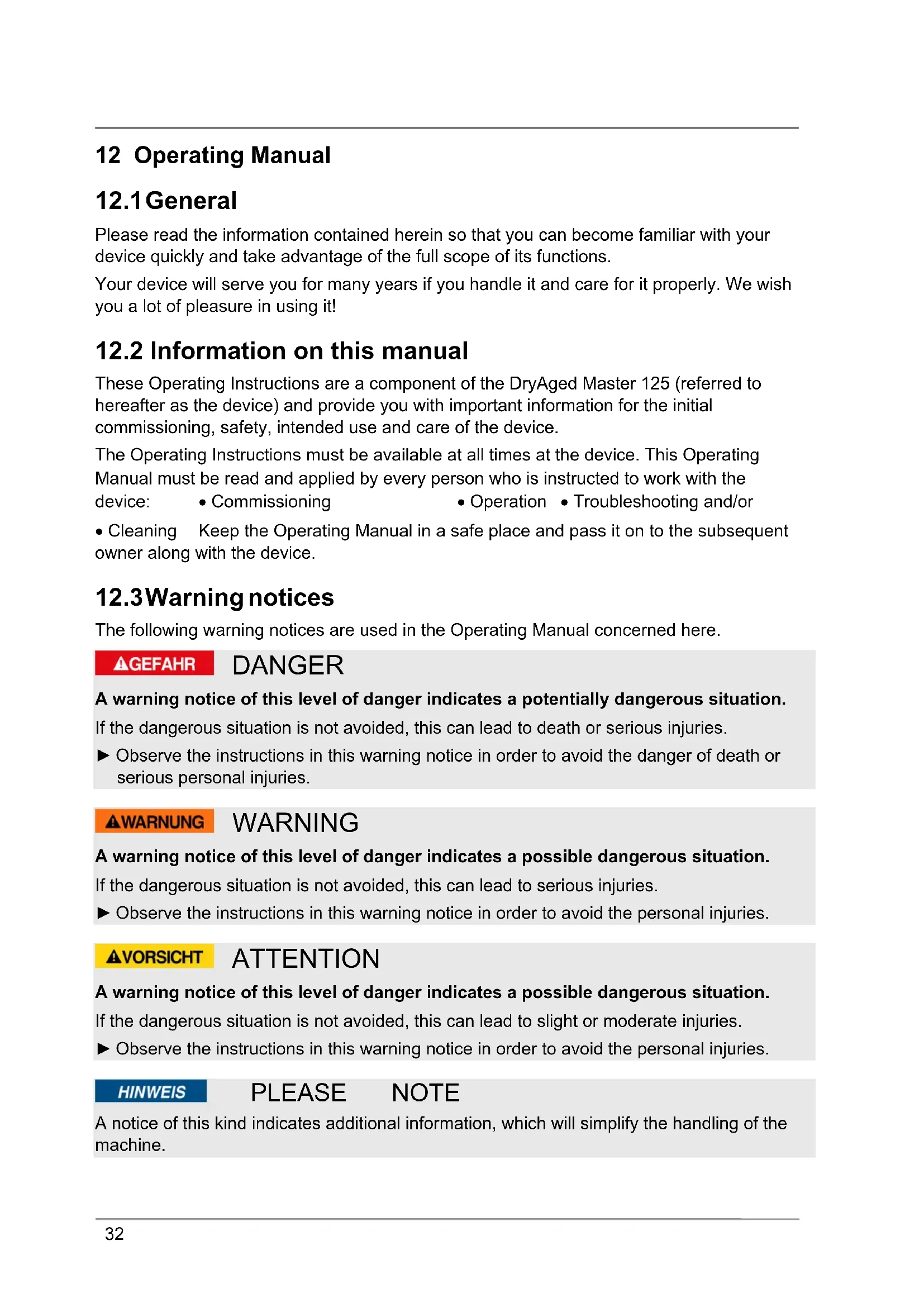

12 Operating Manual

12.1 General

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.

Your device will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

12.2 Information on this manual

These Operating Instructions are a component of the DryAged Master 125 (referred to hereafter as the device) and provide you with important information for the initial commissioning, safety, intended use and care of the device.

The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the

device:

- Commissioning

- Operation

- Troubleshooting and/or

- Cleaning Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

12.3 Warning notices

The following warning notices are used in the Operating Manual concerned here.

⚠️GEFAHR

DANGER

A warning notice of this level of danger indicates a potentially dangerous situation.

If the dangerous situation is not avoided, this can lead to death or serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

⚠️WARNUNG

WARNING

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

▲VORSICHT

ATTENTION

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

HINWEIS

PLEASE

NOTE

A notice of this kind indicates additional information, which will simplify the handling of the machine.

12.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.

No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a

result of the following:

• Non-observance of the manual

• Uses for non-intended purposes
- Improper repairs
• Technical alterations, modifications of the device
- Use of unauthorized spare parts

Modifications of the device are not recommended and are not covered by the guarantee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

12.5 Copyright protection

This document is copyright protected.

CASO GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes.

13 Safety

This chapter provides you with important safety notices when handling the device.

The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

13.1 Intended use

This device is only intended for use in enclosed spaces for the storage and ageing of meat (beef, pork and poultry etc). The equipment is not suitable for fish.

Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

▲WARNUNG WARNING

Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

▶ Use the device exclusively for its intended use.
▶ Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded.

The User bears the sole risk.

13.2 General Safety information

HINWEIS

PLEASE NOTE

Please observe the following general safety notices with regard to the safe handling of the device.

▶ Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard.
This device must not be used by children. The appliance and its connecting cable must be kept away from children.
▶ Children shall not play with the appliance.
▶ Cleaning and user maintenance shall not be made by children.
The appliance may be used by individuals with reduced physical, sensory or mental capabilities or a lack of experience and / or knowledge of their use if they are supervised or have been instructed at to the safe use of the appliance and have understood the resulting hazards. Cleaning and user maintenance shall not be made by children.
▶ Do not leave the device unsupervised when it is in operation.
The equipment is not a refrigerator. Do not use the equipment to store foods other than those mentioned under "Intended use".
▶ The equipment is not suitable for the smoking of meat.
▶ Only customer service departments authorized by the manufacturer may carry out repairs on the device, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. Improperly performed repairs can cause considerable dangers for the user.

HINWEIS

PLEASE NOTE

▶ Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.
The device actively regulates the desired humidity. Do not use salt blocks for regulation of humidity in the device. The device could be damaged. If, nevertheless salt blocks are used, the guarantee of the device expires. The manufacturer asumes no guarantee for damages of device or meat.

13.3 Sources of danger

13.3.1 Risk of fire / flammable materials used. Danger of burns or of explosion

⚠️GEFAHR

DANGER

There is a danger of burns and explosion due to excess pressure that is created in the event the device is not used properly.

Observe the following safety notices to avoid dangers of burns or an an explosion:

Warning: Risk of fire / flammable materials used.

▶ Do not store explosive substances such as aerosol cans with a flammable propellant in this device.
▶ Blowing gas inside the unit is flammable.
▶ Do not damage the cooling circuit of the device.
▶ Do not use electrical devices inside the device.
▶ Do not use mechanical devices to accelerate the defrosting process.
▶ Never use the device to store or dry flammable materials.
▶ Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.

AGEFAHR DANGER

▶ Do not store or use gasoline or any other flammable vapours and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.

13.3.2 Dangers due to electrical power

▲GEFAHR Mortal danger due to electrical power!

Mortal danger exists when coming into contact with live wires or subassemblies!

Observe the following safety notices to avoid dangers due to electrical power:

Before changing the inner light, turn off the appliance first and then unplug the unit from the wall outlet.
Do not operate this device if it has a damaged cable or plug, if it is not working properly or if it has been damaged or dropped. If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard.
▶ Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.

14 Commissioning

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

14.1 Safety information

▲WARNUNG WARNING

▶ Packaging materials may not be used for playing. There is a danger of suffocation.
▶ Transport, unpack and use two persons to set down the device because of the heavy weight of the device.

14.2 Delivery scope and transport inspection

As a rule, the device is delivered with the following components:

- DryAged Master 125

- 4 stainless steel shelves

- 1 H2O-reservoir + 1 replacement reservoir • holder for the reservoirs with drip tray

- collecting tray

• hanging rack including 4 butcher hooks

• 1 activated carbon filter

- operating Instructions with handle and screws

HINWEIS

PLEASE NOTE

▶ Examine the shipment for its completeness and for any visible damages.
▶ Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

14.3 Unpacking

To unpack the device, proceed as follows:

- Remove the device out of the carton and remove the packaging material.

- The device should only be moved in an upright position.

- Clean the interior surface with lukewarm water using a soft cloth.

- After at least 24 hours, plugging the appliance into the wall outlet, than place meat in the appliance.

HINWEIS

PLEASE NOTE

▶ Only remove the blue protective film shortly before setting up the device in the location where it will be used, to prevent scratches and dirt accumulations.

14.4 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled. Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste.

Take any packaging materials that are no longer required to “Green Dot” recycling collection points for disposal.

HINWEIS

PLEASE NOTE

▶ If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

14.5 Setup

14.5.1 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

Place your appliance on a floor that is strong enough to support the appliance when it is fully loaded.

Locate the appliance away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption.

This unit is not designed for use in a garage or any other outside installation.

Do not set up the device in a hot, wet or extremely damp environment or near flammable material.

The device can be built around with other cabinets and sub-mounted. If you install cabinets around the device, leave 12 mm of extra space on the side of the door hinge so you can still open the door.

WARNING! Do not close the ventilation openings in the device housing.

The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.

The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

For energy saving reasons please ensure that the door is closed when the appliance is turned on.

14.5.2 Feet

There are different feet (3 bigger feet and 1 small foot).

To level your device, adjust the small foot at the bottom of the device.

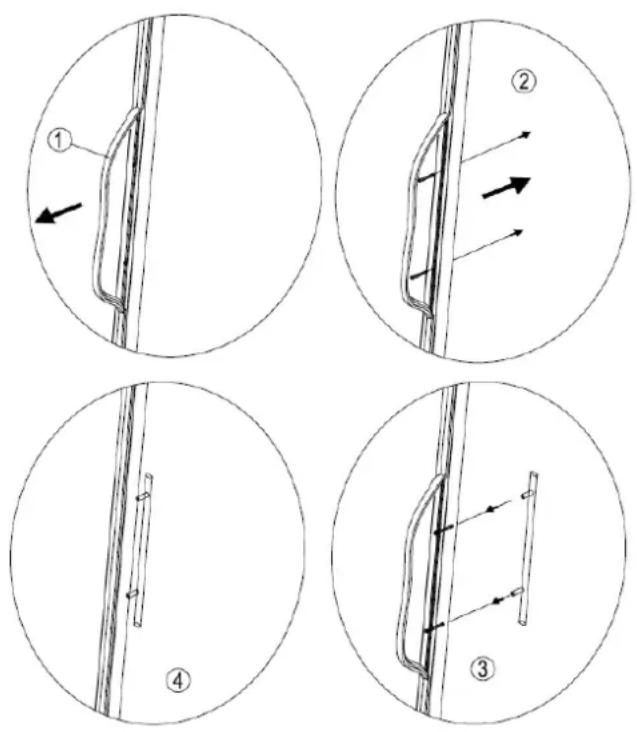

14.5.1 The handle installing

The device comes with one metal stainless steel handle. To install simply screw them to the door with the supplied screws.

To do this, slide the rubber seal on the back of the door to the side to lay open the predrilled holes. Use the included screws to install the handle on the door.

14.6 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

- Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of

your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your qualified electrician.

• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 mm ^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
• Make sure that the power cable is undamaged and has not been installed under or over hot or sharp surfaces.
• This unit is not designed to be installed in an RV or used with an inverter.
• The electrical outlet must be protected by a 16A safety cut-out switch.
• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. If in doubt, have the house installation checked over by a qualified electrician.
  The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

15 Design and Function

This chapter provides you with important safety notices on the design and function of the device.

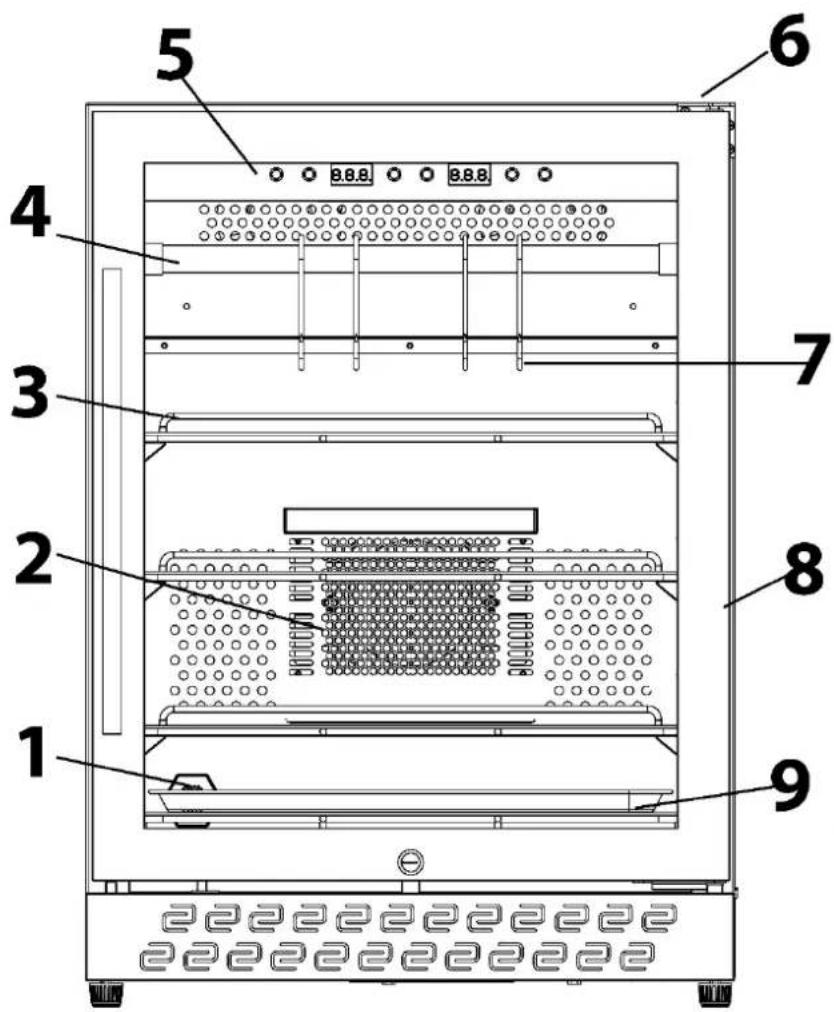

15.1 Complete overview

1 2 3 4 5 6 7 8 9

1 activated carbon filter
2 H2O-reservoir
3 stainless steel shelves (4 pieces)
4 hanging rack
5 touch control panel
6 hinge
7 butcher hooks (4 pieces)
8 door frame (lockable)
9 collecting tray
10 UV lamp (behind the hanging rack)

10

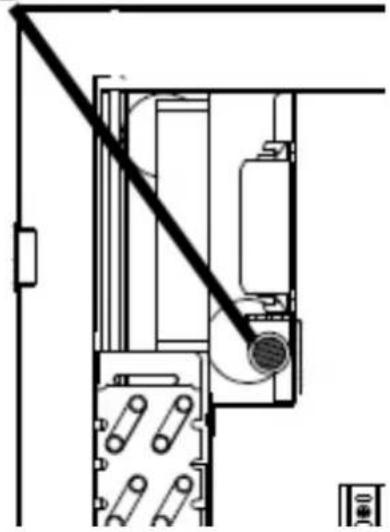

Technical line drawing of a mechanical assembly with no visible text or symbols

15.1.1 Removal of stainless steel shelves

To remove a stainless stell shelf, first remove the meat. Use gloves which are suitable for contact with food. Lift the stainless steel shelf upwards and the gently pull it out

HINWEIS

PLEASE NOTE

▶ Carefully ensure that the stainless steel shelves and/or hanging rack for the butcher hooks is correctly locked into position before you place meat on it or suspend meat from it.

16 Operation and Handing

This chapter provides you with important notices with regard to operating the device.

16.1 Operating elements and displays

Press to switch UV light on.

Change between the temperature and humidity settings

Setting the temperature (2-14 °C) and humidity (50% - 85%)

ON: Press briefly to switch LED light on (is always switched on when the door is open, ECO is shown in the display if the light is switched off, switches off automatically after 4 hours)

OFF: Press and hold to turn off the LED light.

Switch the device on / off

5.2 Operation:

1. Please clean the device before use (see chapter "Cleaning and Maintenance").

1. Press the button to switch the device on.
2. Switch on the UV light for at least 2 hours to sterilize the interior.

To do this, press the button.

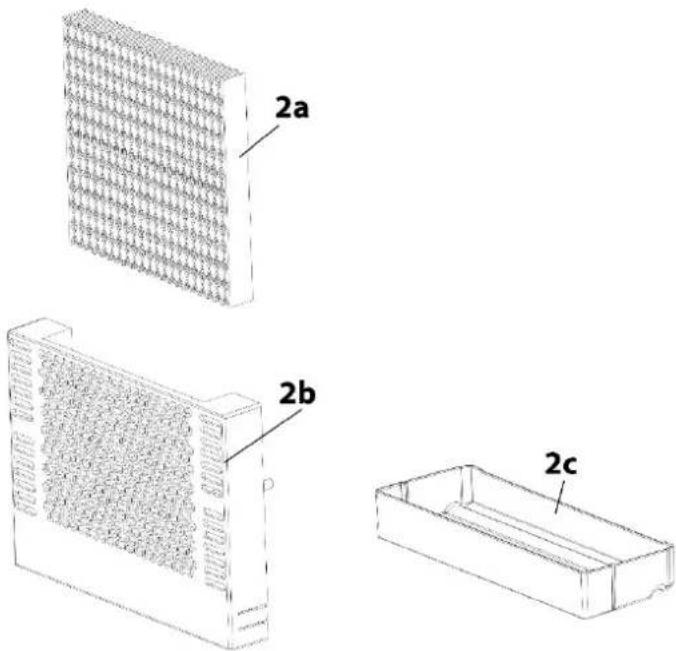

4. H2O reservoir

Fill 300 ml of drinking water into each H2O reservoir before placing meat into the device. Remove the plastic packaging beforehand.

HINWEIS

Please note

▶ If the displayed humidity during the aging process does not match the desired setting, you have to rewet the H2O reservoir if the humidity is too low & or if necessary refill the water.

5. Setting the temperature or humidity:

With you can switch between the setting and display of temperature or humidity.

Press the button once, then the temperature flashes on the display and the temperature can be adjusted from 2-14 °C in 1 °C steps.

Press the button twice, then the humidity indicator flashes on the display and the humidity can be adjusted from 50-85% in 1% steps.

If you do not change the setting within 3 seconds, than the device will return to its previous setting. The device automatically returns to the temperature display.

HINWEIS

▶ Only hang / place the meat in the DryAger when the device has reached the desired temperature.
▶ Tip: For ideal maturity results we recommend the following setting: temperature 3^ C / air humidity 75%.
▶ Tip: You can switch between the temperature display in °C and °F by pressing the

and buttons simultaneously for 3 seconds.

6. LED light and UV light setting

Press, to switch on the LED light, this switches off automatically after 4 hours.

Press to switch the UV light on.

HINWEIS

Please note

The door has a safety switch. When you open the door of the device, the UV light switches off automatically. When you close the door, the UV light will turn on again.
▶ The UV light is used to disinfect the interior before, during and after the aging process.

16.2 Rating plate

The rating plate with the connection and performance data can be founded on the back of the device.

17 Dry ageing

17.1 Safety information

HINWEIS

PLEASE NOTE

It is not important not to open the door much in order to avoid unnecessarily affecting the climate of the equipment/the humidity of the air.
▶ Have a butcher/expert whom you trust inform you about dry ageing.

⚠GEFAHR

Danger

▶ Only use meat which is suitable for refinement.
▶ Wear gloves which are suitable for contact with food if you touch the meat and the metal shelves or meat hooks.
▶ A hazard of dry ageing is "wild fungi". Unlike "good edible fungi", this can spoil the meat and cause toxic and allergic reactions. For this reason, make sure that you maintain impeccable standards of hygiene when handling the meat and the equipment and have a butcher/expert whom you trust provide you with comprehensive information about dry ageing.
▶ If you notice a sourish smell, this may be an indication of “wild fungi”.
▶ Once the ageing process has been completed, dark and dry patches of meat must be generously removed.
▶ Do not consume any food which has been superimposed on the meat, as you could suffer from food poisoning.

17.2 Exemption from liability:

The manufacturer will not assume any liability for damage to refrigerated products, not even in the event of a fault in the equipment during the guarantee period. The manufacturer will also not accept liability for injury to individuals resulting from improperly stored products which are subsequently consumed.

17.3 Information about dry ageing

The dry ageing of beef, pork and poultry is an expensive process and requires time and ideal conditions.

You will be able to store good quality meat on the metal storage shelves or to suspend it on the meat hooks inside the equipment.

Check the meat regularly for the presence of wild fungi.

If the degree of ageing which you desire has not been achieved, remove the meat, divide it into portions as you see fit and prepare it.

Various aromas, depending on the amount of ageing

Depending on the meat used, you will be able to obtain subtle, nutty aromas after around 21 days.

Depending on the meat, you will obtain aromas similar to those of fungi after around 28-35 days.

Depending on the meat used, you will be able to obtain powerful aromas similar to that of blue cheese after around 45 days and longer.

The longer you allow the meat to age, the stronger the aroma will be.

18 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

18.1 Safety information

▲VORSICHT

Attention

Please observe the following safety notices, before you commence with cleaning the device:

▶ Prior to commissioning, clean the appliance thoroughly.
▶ Clean the device thoroughly after each ageing process.
▶ Before cleaning, switch the dry ageing cooler off, remove the plug from the wall socket and remove all the meat.
▶ Do not use any aggressive or abrasive cleaning agents or solvents.
▶ You must use a food-compatible cleaner that is not too aggressive for the surfaces of the device.
▶ Do not scrape off stubborn dirt with hard items.
▶ If you do not use the equipment for a fairly long period of time, you should remove all the metal shelves, the metal suspension system and the meat hooks and you should clean the equipment thoroughly.
▶ If the maturing process has failed and the meat is spoiled or wild fungi has developed, then please contact our customer service to coordinate the further steps.

18.2 Cleaning

2a 2b 2c

2a H2O-reservoir

2b Holder of reservoir

2c drip tray of reservoir

H2O-reservoir

Remove holder of reservoir with drip tray from the device. Remove the H2O-reservoir. Release the drip tray by pressing at the bottom side of the holder and then pull it out. Clean the holder and drip tray with lukewarm water and a little washing-up liquid and then dry them.

Replace the H2O reservoir every 3 months after use.

You can order replacement H2O reservoirs from us, item number 693.

◆ Interior and exterior walls

Clean the interior and exterior walls with lukewarm water and a little washing-up liquid. Never use cleaning or chemical solvents containing sand or acid.

Then wipe the device thoroughly with a soft cloth.

Switch on the UV light for 24 hours after each ripening process.

Housing

Use a glass cleaner to clean the glass surfaces and a commercially available stainless steel cleaner for stainless steel surfaces

Then wipe the device thoroughly with a soft cloth.

◆ Container for condensed water (K)

If there have been major temperature fluctuations in the device or if you want to shut down the device for a longer period of time, we recommend checking of the container for condensed water. Temperature fluctuations can arise, for example, from a power failure, prolonged / frequent opening of the door when the device is switched on, or malfunctions in the device. If necessary remove the condensed water with a sponge from the

Interior view of an electrical enclosure showing wiring, components, and a labeled component 'K' (no readable text or symbols beyond labels)

container for condensed water. The container is located on the back side of the device at the right bottom. Please remove the metal cover and then screw it back on.

◆ Manual defrosting

Defrost the device after each ageing process.

Turn off the power but do not unplug the power plug. Let the device then defrost manually. Pay attention to the container for condensed water(K) and remove the condensed water during the defrosting.

◆ If the device is iced up, proceed as follows:

Remove the meat from the device. Cover it with cling film or, if possible, place it in a foil bag and refrigerate it in a suitable refrigerator. Switch off the device.

Fill the pot with hot tap water but water which is no longer boiling and place the pot on a cloth on the lower metal shelf.

⚠️WARNUNG Warning: Risk of scalding due to the hot pot.

▶ Exercise caution when using the hot pot.

The steam will melt the ice within about an hour.. The melt water will be collected in the interior of the device and possibly in the container for condensed water (K). Remove the pot and the cloth from the device. Wipe the water out of the interior and empty the drip tray (K). Wipe the device dry with a soft cloth. Leave the device open for 1 hour so the device can ventilate.

◆ Stainless steel shelves, hanging rack, collecting tray and butcher hooks

Remove the Stainless steel shelves, hanging rack, collecting tray and butcher hooks from the device and clean them with warm water and detergent for hygiene reasons. Dry the components properly.

◆ Activated carbon filter

• Replace the activated carbon filter once a year. To do this, remove the meat (if necessary), unscrew and replace the filter.
• You can order replacement activated carbon filters from us, item number 692.

Technical diagram showing a rack-mounted device with labeled ports and an inset view of its internal structure.

18.3 Changing the UV lamp

Carefully loosen the screws.

Remove the cover Hold the UV lamp firmly and turn it at a 45° angle then pull it out and replace it 45°

Installation backwards accordingly.

18.4 Moving the appliance

Turn off the appliance first. Remove all content. Shurely tape down all lose items inside your appliance. Tape doors shut. Be sure the device stays in the upright position during transportation.

19 Troubleshooting

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

19.1 Safety notices

▲VORSICHT Attention

▶ Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs on electrical equipment.
▶ Improperly performed repairs can cause considerable dangers for the user and damages to the device.

19.2 Fault indications and rectification of faults

The following table assists in localizing and rectifying minor faults.

Fault Possible Cause
Device is not cold enough.		Check the temperature control setting.External environment may require a higher setting.The door is open too often. The door is not closed completely.The door seal does not seal properly.The device does not have the correct clearance. Defrost the device.
The LED light/ UV light did not work.		Contact customer service.
Vibrations & too much noise & door does not close properly		Check to assure that the device is level. Check the fan.Components are loose. Device touches the wall. The door is reversed and not properly installed.The seal is weak. The shelves are out of position.
The display does not work. Buttons are not functional.		Pull out the mains plug, wait 2 minutes, plug in the mains plug again. If this does not solve the problem, then please contact customer service.
Compressor will not start		Room temperature is lower than desired temperature.
Dew on the surface of cabinet :		The surface of the device especially the glass door appear some frost if item in a damp room. This is due to the moisture in the air coming into contact with the cabinet. Please wipe it away with dry cloth.
Liquid sound 1 The sound of compressor when starts or stops working2 The flowing sound of refrigerant in the refrigeration system3 The evaporating sound of refrigerant in the evaporator
Condensation formed inside the cabinet		Under the environment with high level of humidity or the door of device has been left open for a long period or opened frequently, wipe off the door and walls and leave the door closed as long as possible.
Error code Problem Solution
H1 Door was open too long.		Close the door.
		Contact customer service
H2, H5 Problem with sensor Contact customer		service
H3 Problem with cooling	Contact customer	service
H4 Problem with humidity	Contact customer	service
H6 Problem with defrosting	Defrost the device
E9 Problem with display		Contact customer service

HINWEIS

PLEASE NOTE

▶ If you are unable to solve the problem with the steps shown above, please contact Customer Service.
▶ Clean the metal shelves, collecting tray and the meat hooks with disinfectant and remove the remains of any meat from the equipment before you send the equipment in.

20 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.

HINWEIS

PLEASE NOTE

▶ Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
▶ Ensure that your old device is stored safely away from children until it is taken away: Before you throw away your old refrigerator take off the doors and leave the shelves in place, so that children may not easily climb inside.
▶ Blowing gas inside the unit is flammable. The disposal of this flammable material should be in accordance with national regulations.

21 Guarantee

We provide a 12-month guarantee for defects caused by production or material faults, beginning on the date of purchase. Our guarantee is valid for Germany, Austria and the Netherlands. For all other countries, please contact us.

Your legal guarantee claims as per Art. 437 ff. German Civil Code (BGB) will remain unaffected by this. You may exercise your statutory guarantee rights free of charge. The guarantee does not cover damage caused by improper handling or use of the product or defects which have only a minor impact on the product's functionality or value. In addition to this, the guarantee also excludes parts which are subject to wear and tear; transport damages insofar as we are not responsible for them and damages caused by repairs which were not carried out by us.

This product has been constructed for non-commercial use (domestic use) and its performance is designed to meet the corresponding needs. The guarantee only covers commercial use insofar as it is comparable to domestic use. The product is not intended for any other type of commercial use.

In the case of legitimate complaints we may either repair the defective product or replace it with a defect-free product at our discretion. Obvious defects must be notified to us within 14 days of the product's delivery. Any further claims are excluded.

When making a guarantee claim please contact us before you return the product (always with the purchase receipt!). Our contact details ("Guarantor") are provided at the beginning of this instruction manual.

22 Technical Data

Name DryAged Master 125
Article No. 690
Power 140 W
Connection 220 V - 240 V; 50 Hz
Outside dimensions (W/H/D) 595 x 825 x 640 mm
Weight: 57,40 kg
Climate class ST
Load per shelf 20 kg
Load per hanging rack 57,40 kg

www.caso-design.de

Front view of a CO2O design stainless steel oven with digital display and control panel (no visible text or symbols on the cabinet itself)

- DryAged Master 125

- 4 grilles en acier inoxydable

Interior view of an industrial cooling unit with visible wiring, components, and a warning label (no readable text or symbols beyond labels)

Technical diagram showing a panel with circular elements and a close-up of a server unit, annotated with Chinese text.

Front view of a modern stainless steel appliance with digital display and labeled design (no visible text or symbols on the device itself)

CE HUAO

33 Istruzioni d'uso

33.1 In generale

Interior view of an industrial appliance showing a black box with a coiled electrical component and wiring, no visible text or symbols.

Technical diagram illustrating the assembly of a cylindrical component with directional arrows and labeled parts.

Front view of a stainless steel design appliance with digital display and control panel (no visible text or symbols)

CE

UV *% △ ▽ ①

UV UV Presione para encender la luz ultravioleta

Interior view of an appliance showing a black refrigerator with visible wiring, a yellow warning label, and a labeled component 'K' (no readable text or symbols beyond labels)

Technical line drawing of a server rack with ventilation slots and an inset view of the rack unit (no text or symbols)

Technical diagram illustrating the assembly of a cylindrical component with directional arrows and labeled parts.

Front view of a large stainless steel kitchen appliance with digital display and control panel (no visible text or symbols)

⚠️WARNUNG WAARSCHUWING

Interior view of an appliance showing a black box with internal components and wiring, no visible text or symbols.

◆ Handmatig ontdooien:

Front view of a stainless steel design appliance cabinet with digital display and ventilation grilles (no visible text or symbols)

CE House

Interior view of an appliance showing a black box with internal components and wiring, no visible text or symbols.
