Product Type	Built-in microwave oven with trim kit
Brand	Whirlpool
Model	MK2227AW
Installation	Above a built-in oven or alone in a cabinet
Power supply	120 V, 60 Hz, 15 or 20 A, dedicated circuit recommended
Cutout dimensions (H x W x D)	Height: 43.2 – 43.5 cm; Width and depth: depending on kit 68.6 cm or 76.2 cm
Minimum clearance below appliance	4 cm (alone) / 7.6 cm (above an oven)
Minimum clearance above	5.1 cm
Microwave power	Approximately 1000 W (estimate)
Capacity	Approximately 1.7 cu ft (estimate)
Main functions	Microwave cooking, defrosting, reheating
Control type	Electronic (estimate)
Interior lighting	Yes (estimate)
Turntable	Yes (estimate)
Safety	Child lock, automatic shut-off, mandatory grounding
Exterior material	Stainless steel or painted (estimate)
Cleaning and maintenance	Clean with a damp cloth and mild detergent; do not use abrasive cleaners
Spare parts and repairability	Trim kit included; parts available through Whirlpool after-sales service
Weight	Approximately 30 kg (estimate)

Frequently Asked Questions - MK2227AW WHIRLPOOL

What is the power of this microwave oven?

The power is not specified in the manual, but for a built-in model of this category, it is typically around 1000 W.

Can this microwave oven be installed above a gas range?

Yes, this model can be installed above electric or gas built-in ovens up to 76.2 cm wide, in accordance with the instructions.

What are the exact dimensions for the cutout?

The opening height must be between 43.2 cm and 43.5 cm. The width and depth depend on the trim kit: 68.6 cm or 76.2 cm.

How to electrically connect this appliance?

It must be plugged into a 3-prong grounded outlet with a voltage of 120 V / 60 Hz, on a 15 or 20 amp circuit. The use of an extension cord is prohibited.

Is there a child lock?

Yes, most Whirlpool microwaves have a child lock function to prevent unsupervised use.

How to maintain and clean the microwave oven?

Clean the interior and exterior with a soft damp cloth and mild detergent. Avoid abrasive cleaners. Do not immerse the appliance in water.

Is this model compatible with installation in a cabinet without an oven below?

Yes, it can be installed alone in a cabinet with a minimum height of 91.4 cm from the floor to the bottom of the opening.

What accessories are supplied with the appliance?

The manual mentions a trim kit including a finishing frame, screws, and mounting brackets. Other accessories such as the turntable are generally included.

What to do if the microwave oven no longer heats?

First check the power supply and circuit breaker. If the problem persists, contact Whirlpool after-sales service for diagnosis.

Can metal containers be used in this microwave?

No, metal containers or those with metal parts can cause arcing. Use only microwave-safe dishes.

USER MANUAL MK2227AW WHIRLPOOL

MICROWAVE OVEN BUILT-IN TRIM KIT INSTALLATION INSTRUCTIONS

Built-In Trim Kit Models MK2227 MK2220

UL listed for use over any electric or gas built-in oven, up to 30^ (76.2 cm) wide

INSTRUCTIONS D'INSTALLATION GARNITUDE ENCASTRÉE POUR FOUR À MICRO-ONDES

MICROWAVE OVEN SAFETY 1
INSTALLATION INSTRUCTIONS. 2
Tools and Parts 2
Location Requirements. 2
Required Cutout Dimensions. 2
Trim Kit Frame Dimensions. 2
Electrical Requirements 3
Prepare Microwave Oven. 3
Prepare Cutout/Cabinet Opening. 3
Install the Microwave Oven. 4
Install Trim Kit Frame 5

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

ADANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

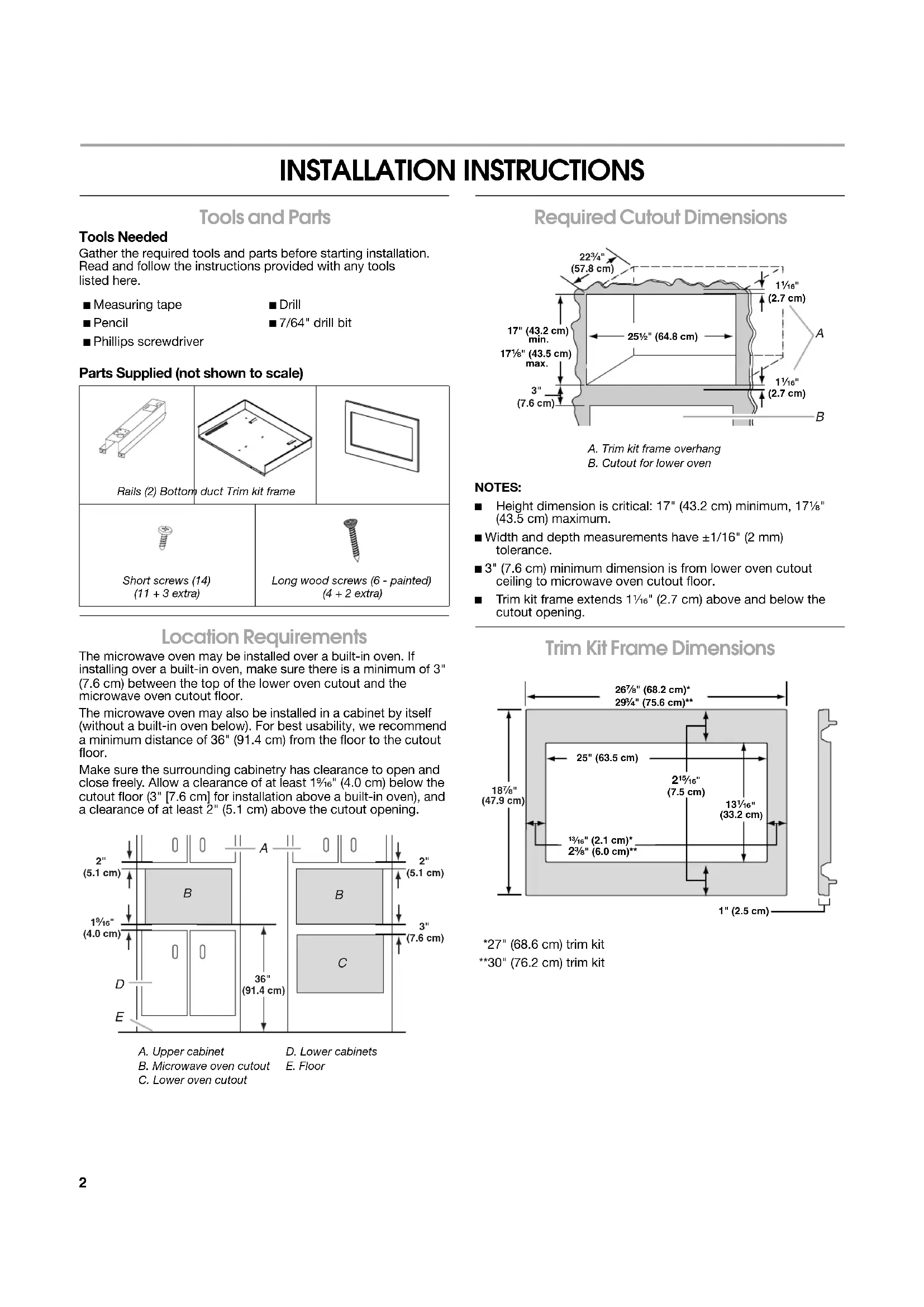

INSTALLATION INSTRUCTIONS

Tools and Parts

Tools Needed

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Measuring tape
■ Drill
Pencil
7/64" drill bit
Phillips screwdriver

Parts Supplied (not shown to scale)

Rails (2) Bottom	duct Trim kit frame
Short screws (14) (11 + 3 extra)	Long wood screws (6 - painted) (4 + 2 extra)

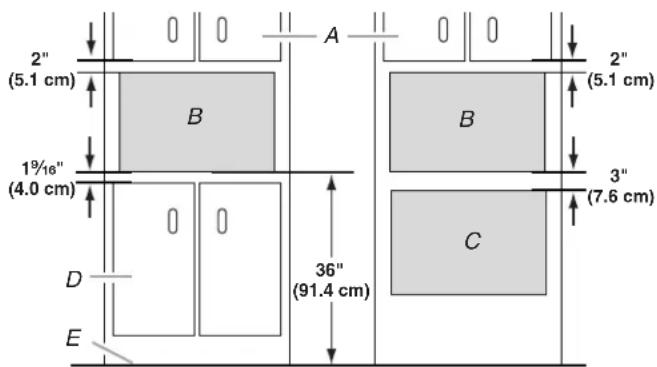

Location Requirements

The microwave oven may be installed over a built-in oven. If installing over a built-in oven, make sure there is a minimum of 3'' (7.6 cm) between the top of the lower oven cutout and the microwave oven cutout floor.

The microwave oven may also be installed in a cabinet by itself (without a built-in oven below). For best usability, we recommend a minimum distance of 36^ (91.4 cm) from the floor to the cutout floor.

Make sure the surrounding cabinetry has clearance to open and close freely. Allow a clearance of at least 1% (4.0 cm) below the cutout floor (3" [7.6 cm] for installation above a built-in oven), and a clearance of at least 2" (5.1 cm) above the cutout opening.

A. Upper cabinet

D. Lower cabinets

B. Microwave oven cutout

E. Floor

C. Lower oven cutout

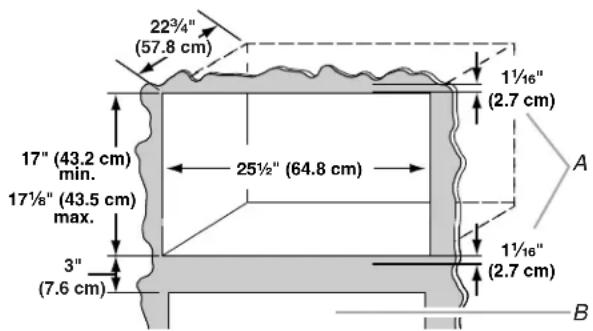

Required Cutout Dimensions

A. Trim kit frame overhang
B. Cutout for lower oven

NOTES:

Height dimension is critical: 17^ (43.2 cm) minimum, 17% (43.5 cm) maximum.
Width and depth measurements have ± 1 / 16'' (2 mm) tolerance.
3'' (7.6 cm) minimum dimension is from lower oven cutout ceiling to microwave oven cutout floor.
- Trim kit frame extends 1^1/16 (2.7 cm) above and below the cutout opening.

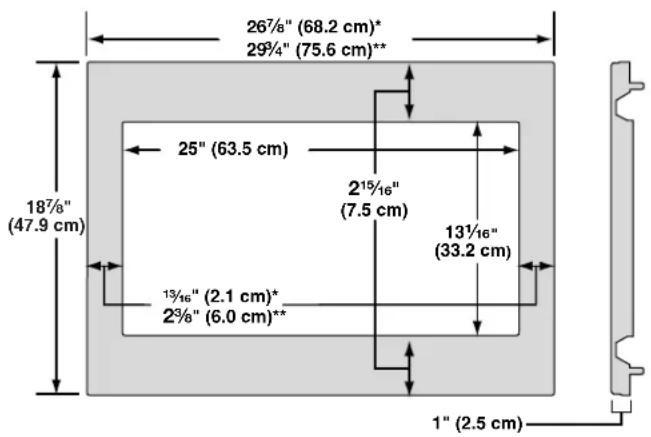

Trim Kit Frame Dimensions

^27^ (68.6 cm) trim kit ^**30'' (76.2 cm) trim kit

Electrical Requirements

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Observe all governing codes and ordinances.

Required:

A 120 volt, 60 Hz, AC only, 15- or 20-amp electrical supply with a fuse or circuit breaker.

Recommended:

A time-delay fuse or time-delay circuit breaker.
A separate circuit serving only this microwave oven.

GROUNDING INSTRUCTIONS

For all cord connected appliances:

The microwave oven must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. The microwave oven is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

WARNING: Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the microwave oven is properly grounded.

Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the microwave oven.

SAVE THESE INSTRUCTIONS

Prepare Microwave Oven

1. Unplug microwave oven before proceeding with installation.
2. Remove any loose items inside microwave oven.
3. Gently turn microwave oven onto its top, with the door facing forward (toward installer).

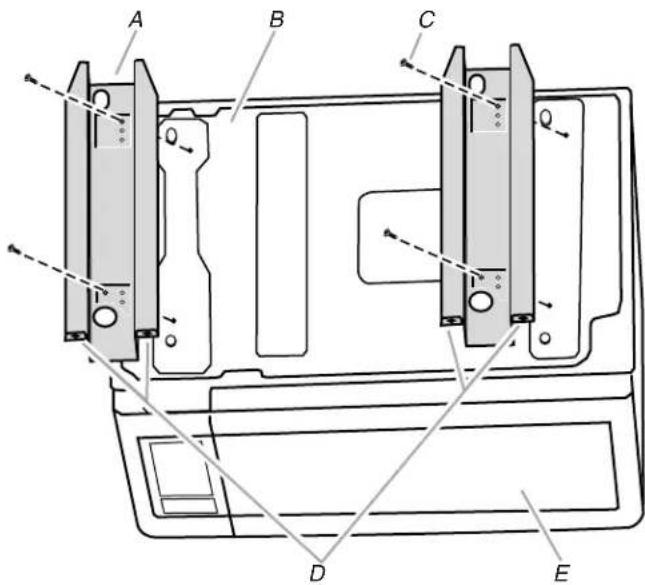

4. Align the #33 holes on the microwave oven bottom with the #33 holes on the rails, as shown, making sure the flanges are forward and pointing up.

A.Rails (2)
D. Flanges
B. Microwave oven bottom
E. Door

C. Short screws (4)

1. Secure the rails to the microwave oven bottom using four short screws through the #33 hole sets.

Prepare Cutout/Cabinet Opening

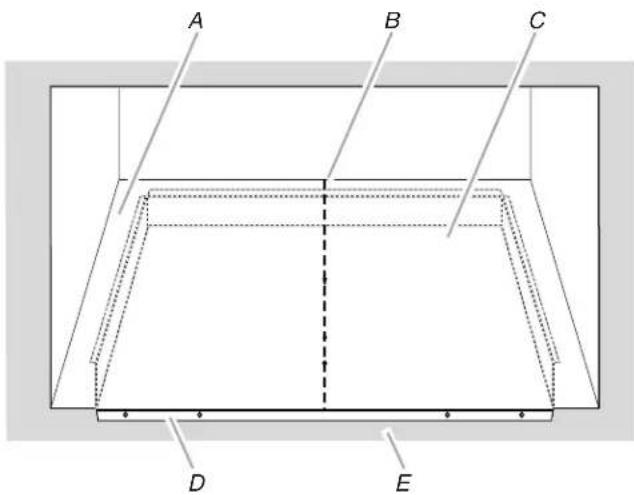

1. On the cutout floor, find and mark the centerline.
2. Place the bottom duct in the opening, with the flange resting against the bottom front facing of the opening.

A. Cutout floor

D. Bottom duct flange

B. Centerline

E. Front facing

C. Bottom duct

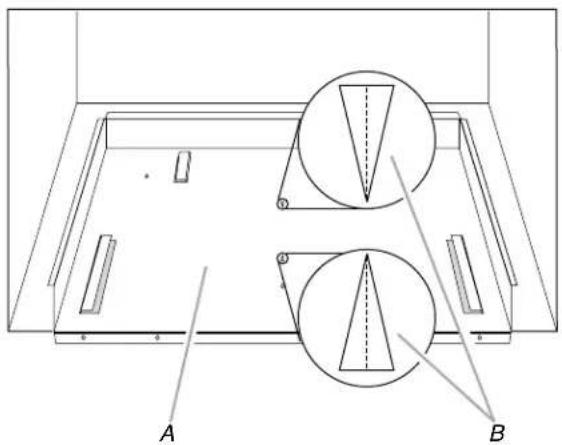

1. Align the center arrows on the bottom duct with the centerline drawn in Step 1 above.

A. Bottom duct
B. Center arrows, aligned with centerline

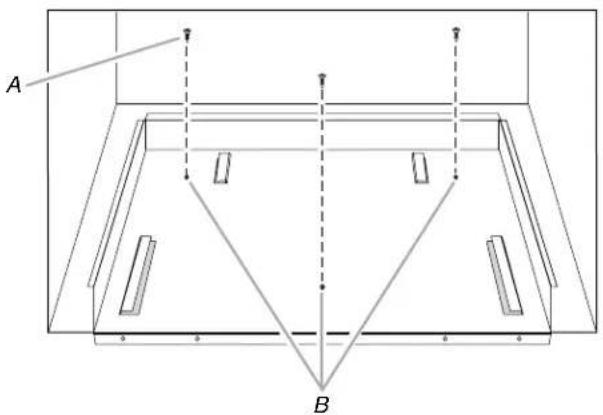

1. Mark the three mounting holes through the bottom duct onto the cutout floor.

A. Short screws (3)
B. Bottom duct mounting holes

1. Using 7/64" drill, drill pilot holes into the three holes marked in Step 4.
2. Realign and install the bottom duct with three short screws.
3. Using 7/64" drill, drill pilot holes through the four mounting holes of the bottom duct flange into the bottom front facing of the cutout/cabinet opening.

A. Bottom duct flange
B. Mounting holes

Install the Microwave Oven

1. Gently return microwave oven to its upright position.
2. Position microwave oven near cutout opening.

AWARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

1. Plug in microwave oven.

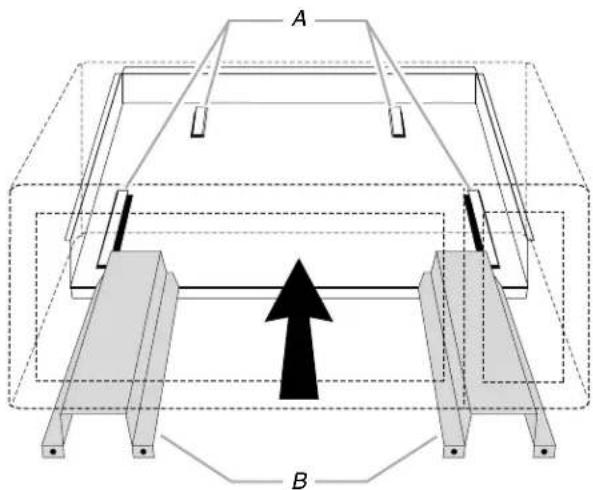

2. Align the rails with the rail guides on the bottom duct.

A. Rail guides
B.Rails

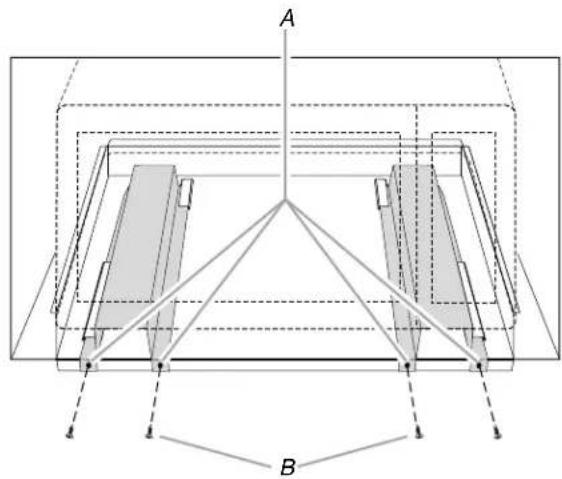

1. Slide the microwave oven back and into place. The mounting holes of the rail flanges and bottom duct flange will align against the bottom front facing of the cutout/cabinet opening.
2. Secure the microwave oven to the cutout/cabinet by installing four short screws into the mounting holes.

A. Mounting holes
B. Short screws (4)

Install Trim Kit Frame

1. Position trim kit frame over the opening so that the lower tabs rest on the cutout floor, as shown.

A. Front of trim kit frame
B. Tabs (upper and lower)
C. Cutout/cabinet floor

1. Holding the trim kit frame in place, use 7/64" drill to drill four pilot holes into the front facing of the cutout/cabinet through the mounting hole guides in the upper and lower corners of the trim kit frame.

NOTES:

The holes will be drilled downward from the top, and upward from the bottom at an angle of about 45^ .
To avoid damage to the trim kit frame, do not overtighten screws.

B. Mounting hole guide

A. Trim kit frame

C. Long wood screw (4 - painted)

1. Secure trim kit frame to cutout/cabinet by installing four long wood screws (painted) into the pilot holes drilled in Step 2 above.

D. Cutout ceiling

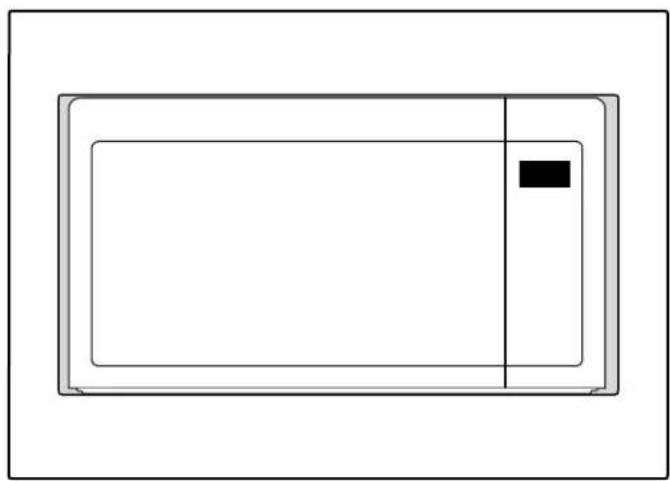

Installation is now complete. Replace any loose items that have been removed from microwave oven cavity.

Save these Installation Instructions for future reference.
