Product Type	Built-in Microwave Oven
Brand	Whirlpool
Model	MKC2150AS
Trim Kit Dimensions	27" (68.6 cm) or 30" (76.2 cm) width
Required Opening Height	17" to 17½" (43.2 to 43.5 cm)
Minimum Opening Depth	20" (50.8 cm) with flush outlet, 22" (55.9 cm) without flush
Minimum Clearance Above Opening	2" (5.1 cm)
Minimum Clearance Below (Above an Oven)	3" (7.6 cm)
Electrical Supply	120 V, 60 Hz AC, 15 or 20 A, single phase
Recommended Electrical Protection	Time-delay fuse or circuit breaker, dedicated circuit
Grounding	Required, 3-prong plug
Power	Not specified (estimated 900-1200 W)
Capacity	Not specified (estimated 1.2 to 1.5 cu ft)
Main Functions	Cooking, defrosting, reheating, timer
Cleaning	Clean with a damp cloth, avoid abrasive products
Safety	Child lock, auto shut-off, grounding
Approximate Weight	About 25 kg
Parts Included	Slides, stop duct, trim kit, screws
Authorized Use	Above a built-in oven or alone in a cabinet
Approval	UL for use above electric or gas ovens up to 30"

Frequently Asked Questions - MKC2150AS WHIRLPOOL

What are the exact dimensions of the microwave oven?

The required opening dimensions are: height 17" to 17½" (43.2-43.5 cm), width adjustable ±1/16", minimum depth 20" (50.8 cm) with flush outlet. The trim kit is available in 27" (68.6 cm) or 30" (76.2 cm) width.

Can I install this microwave above my oven?

Yes, it is UL listed for installation above all built-in electric or gas ovens up to 30" width. A minimum clearance of 3" (7.6 cm) is required between the top of the lower oven and the bottom of the microwave.

What electrical supply is needed?

A 120 V, 60 Hz AC supply, 15 or 20 amps, protected by a fuse or circuit breaker. A dedicated circuit is recommended. The plug must be 3-prong with grounding.

How do I clean the interior of the microwave?

Clean with a damp cloth and mild detergent. Avoid abrasive products and spray cleaners. For odors, place a bowl of water with lemon and heat for a few minutes.

Is the trim kit included?

Yes, the trim kit is included with the appliance. It allows a built-in finish. The manual describes its step-by-step installation.

Can I use an extension cord?

No, using an extension cord is prohibited. If the cord is too short, have a qualified electrician install an outlet nearby.

What is the weight of the microwave oven?

The exact weight is not specified, but a built-in microwave of this size weighs approximately 25 kg.

How do I install the microwave in a cabinet?

Follow the manual instructions: attach the guide rails, insert the microwave aligning the slides, plug in, then install the trim kit. Ensure clearances of 2" (5.1 cm) above and 1½" (4 cm) below.

Is there a child lock?

Yes, most Whirlpool models include a child lock feature to prevent unsupervised use. Consult the user manual to activate it.

Where can I find spare parts?

Contact Whirlpool customer service or an authorized dealer. Parts such as the trim kit, slides, and screws are specific to model MKC2150AS.

USER MANUAL MKC2150AS WHIRLPOOL

MICROWAVE OVEN BUILT-IN TRIM KIT INSTALLATION INSTRUCTIONS

Built-In Trim Kit Models MKC2157, MKC2150

UL listed for use over any electric or gas built-in oven, up to 30^ (76.2 cm) wide

INSTRUCTIONS D'INSTALLATION GARNITUDE ENCASTRÉE POUR FOUR À MICRO-ONDES

Location Requirements. 2

Required Cutout Dimensions. 2

Trim Kit Frame Dimensions 2

Electrical Requirements. 3

Prepare Microwave Oven 3

Prepare Cutout/Cabinet Opening 4

Install the Microwave Oven. 5

Install Trim Kit Frame 6

SECURITE DU FOUR A MICRO-ONDES 7

INSTRUCTIONS D'INSTALLATION 7

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

INSTALLATION INSTRUCTIONS

Tools and Parts

Tools Needed

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Measuring tape
■Drill
Pencil
7/64" drill bit
Phillips screwdriver

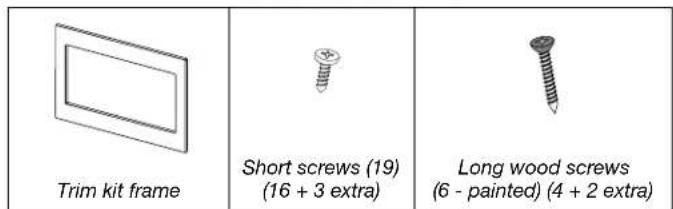

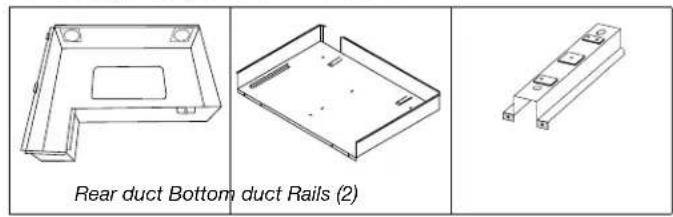

Parts Supplied (not shown to scale

Location Requirements

The microwave oven may be installed over a built-in oven. If installing over a built-in oven, make sure there is a minimum of 3'' (7.6 cm) between the top of the lower oven cutout and the microwave oven cutout floor.

The microwave oven may also be installed in a cabinet by itself (without a built-in oven below). For best usability, we recommend a minimum distance of 36^ (91.4 cm) from the floor to the cutout floor.

Make sure the surrounding cabinetry has clearance to open and close freely. Allow a clearance of at least 1% (4.0 cm) below the cutout floor (3" [7.6 cm] for installation above a built-in oven), and a clearance of at least 2" (5.1 cm) above the cutout opening.

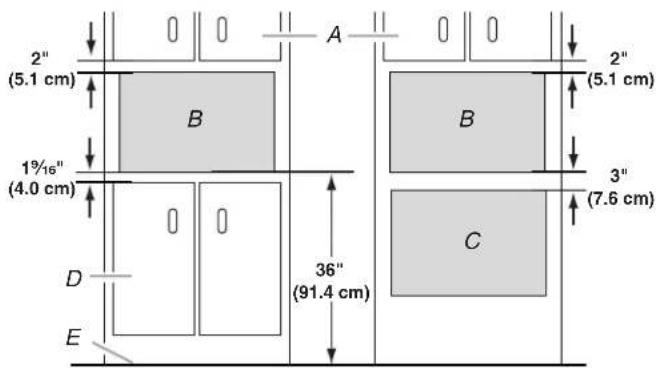

A. Upper cabinet

D. Lower cabinets

B. Microwave oven cutout

E. Floor

C. Lower oven cutout

Required Cutout Dimensions

For minimum depth requirements, see chart.

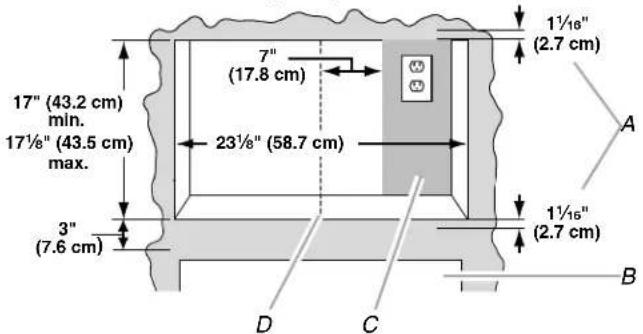

A. Trim kit frame overhang
B. Cutout for lower oven
C. Recommended region for receptacle location (no less than 7^ [17.8 cm] to the right of cutout centerline)
D. Cutout centerline

Receptacle Location Minimum Depth
Within recommended region	20" (50.8 cm) with flush receptacle; 22" (55.9 cm) with non-flush receptacle
Outside recommended region	22" (55.9 cm) with flush receptacle; 24" (61.0 cm) with non-flush receptacle

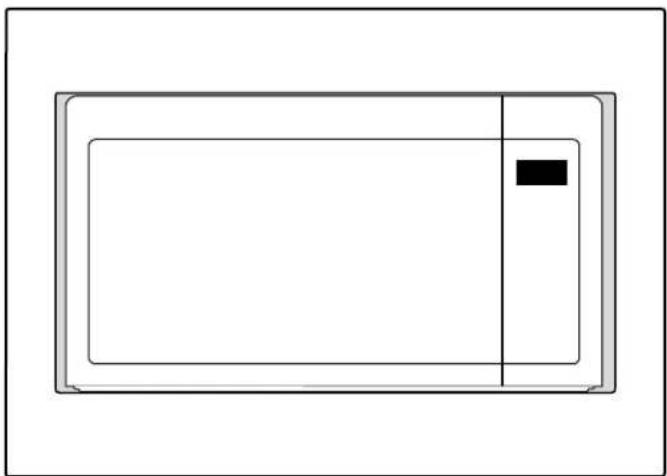

NOTES:

• Depth requirements depend upon receptacle and its location within or outside of recommended region. See illustration and chart above.
  Height dimension is critical: 17'' (43.2 cm) minimum, 17% (43.5 cm) maximum.
  Width measurement has ± 1 / 16 (2 mm) tolerance.
  3" (7.6 cm) minimum dimension is from lower oven cutout ceiling to microwave oven cutout floor.
• Trim kit frame extends 1 116 (2.7 cm) above and below the cutout opening.

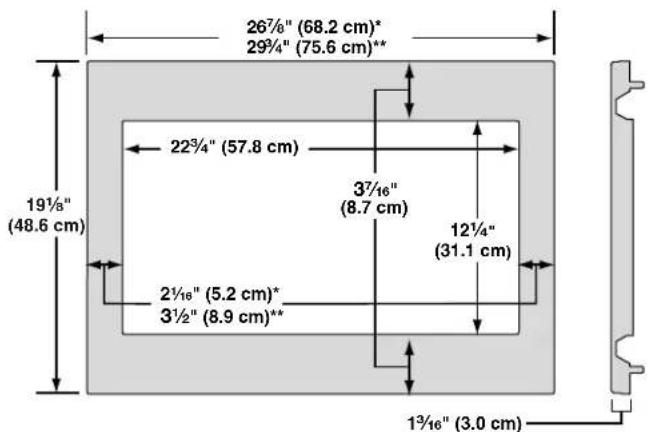

Trim Kit Frame Dimensions

27" (68.6 cm) trim kit *30" (76.2 cm) trim kit

Electrical Requirements

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Observe all governing codes and ordinances.

Required:

A 120 volt, 60Hz AC only, 15- or 20-amp electrical supply with a fuse or circuit breaker.

Recommended:

A time-delay fuse or time-delay circuit breaker.
A separate circuit serving only this microwave oven.

GROUNDING INSTRUCTIONS

For all cord connected appliances:

The microwave oven must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. The microwave oven is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

WARNING: Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the microwave oven is properly grounded.

Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the microwave oven.

SAVE THESE INSTRUCTIONS

Prepare Microwave Oven

Attach Rails

1. Unplug microwave oven before proceeding with installation.
2. Remove any loose items inside microwave oven.
3. Gently turn microwave oven onto its top, with the door facing forward (toward installer).

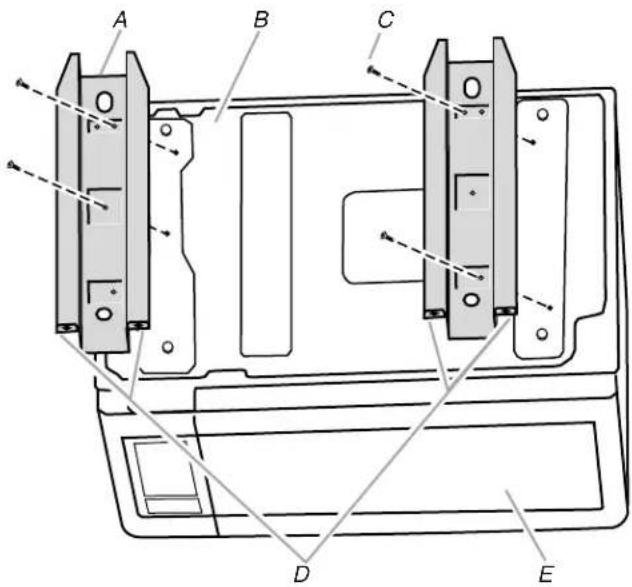

4. Align the two rails on the microwave oven bottom, as shown, making sure the flanges are forward and pointing up.

A.Rails (2)
D. Flanges
B. Microwave oven bottom
E. Door

1. Secure the rails to the microwave oven bottom using four short screws.

Attach Rear Duct

1. Gently return microwave oven to its upright position.

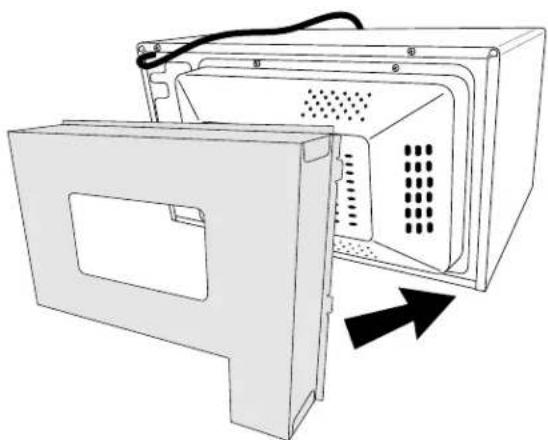

2. Align the rear duct with the back of microwave oven, as shown.

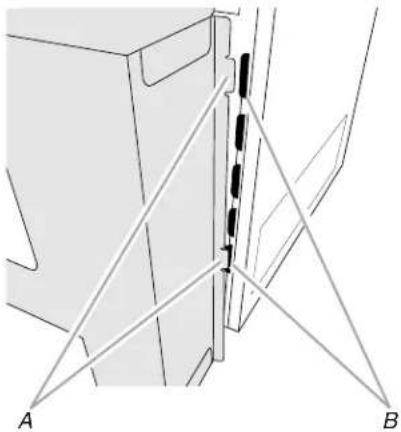

1. Slide two tabs into the slots on the right side of the back of microwave oven.

A. Rear duct tabs
B.Slots

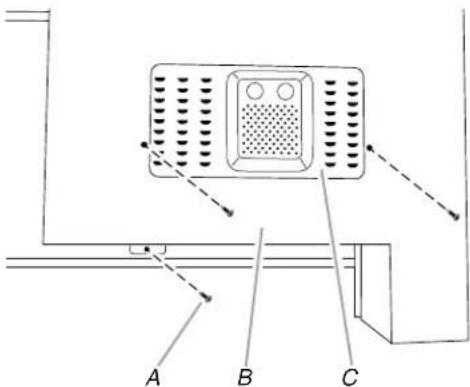

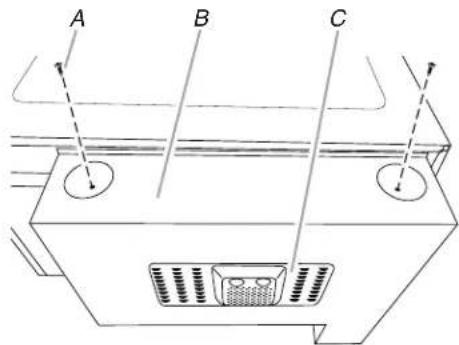

1. Use two short screws to secure top of rear duct to the back of microwave oven, as shown.

A. Short screws (2)
B. Rear duct
C. Back of microwave oven

1. Use three short screws to secure back of rear duct to the back of microwave oven, as shown.

A. Short screws (3)
B. Rear duct
C. Back of microwave oven

Prepare Cutout/Cabinet Opening

1. On the cutout floor, find and mark the centerline.

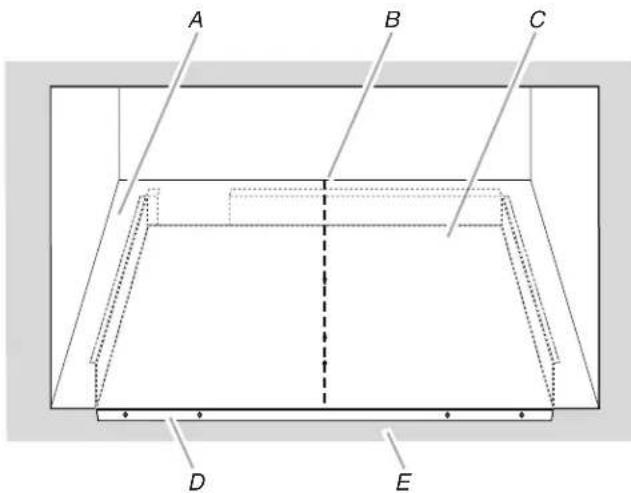

2. Place the bottom duct in the opening, with the flange resting against the bottom front facing of the opening.

A. Cutout floor
B. Centerline
C. Bottom duct

D. Bottom duct flange

E. Front facing

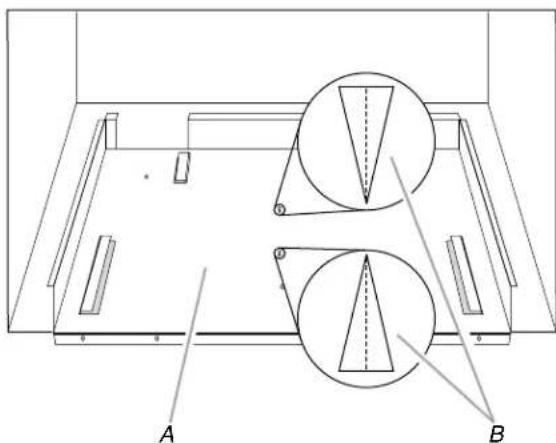

1. Align the center arrows on the bottom duct with the centerline drawn in Step 1 above.

A. Bottom duct
B. Center arrows, aligned with centerline

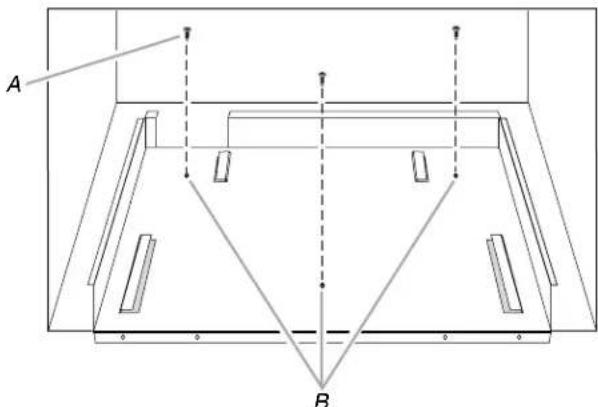

1. Mark the three mounting holes through the bottom duct onto the cutout floor.

A. Short screws (3)
B. Bottom duct mounting holes

1. Using 7/64" drill, drill pilot holes into the three holes marked in Step 4.
2. Realign and install the bottom duct with three short screws.
3. Using 7/64" drill, drill pilot holes through the four mounting holes of the bottom duct flange into the bottom front facing of the cutout/cabinet opening.

A. Bottom duct flange
B. Mounting holes

Install the Microwave Oven

1. Position microwave oven near cutout opening.

1. Plug in microwave oven.

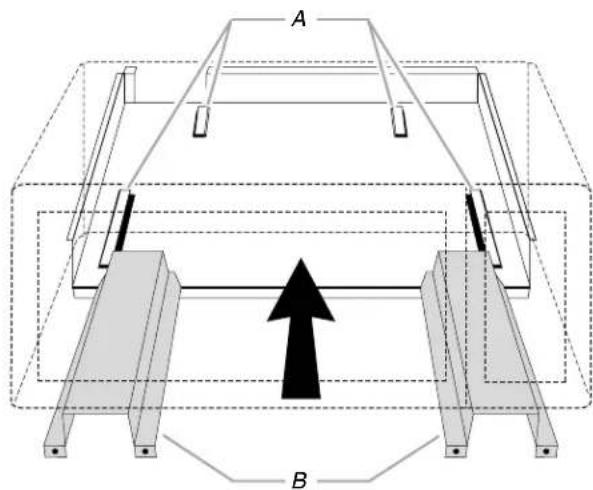

2. Align the rails with the rail guides on the bottom duct.

A. Rail guides
B.Rails

1. Slide the microwave oven back and into place. The mounting holes of the rail flanges and bottom duct flange will align against the bottom front facing of the cutout/cabinet opening.

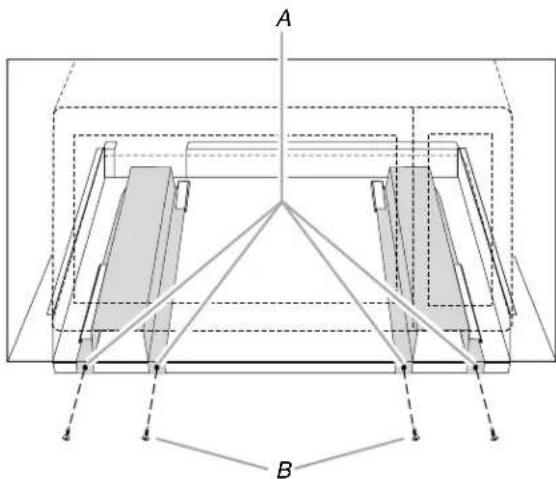

2. Secure the microwave oven to the cutout/cabinet by installing four short screws into the mounting holes.

A. Mounting holes
B. Short screws (4)

Install Trim Kit Frame

1. Position trim kit frame over the opening so that the upper tabs fit inside the rails, as shown.

A. Front of trim kit frame
B. Upper tab
C.Rail
D. Lower tab

1. To vertically center the trim kit frame, slide it upward, against the opening, until the upper tabs catch against the top of the rails.
2. Holding the trim kit frame firmly in place, use 7/64" drill to drill four pilot holes into the front facing of the cutout/cabinet through the mounting hole guides in the upper and lower corners of the trim kit frame.

NOTES:

To ensure vertical centering, drill the lower holes first.
The holes will be drilled upward from the bottom, and downward from the top at an angle of about 45^ .

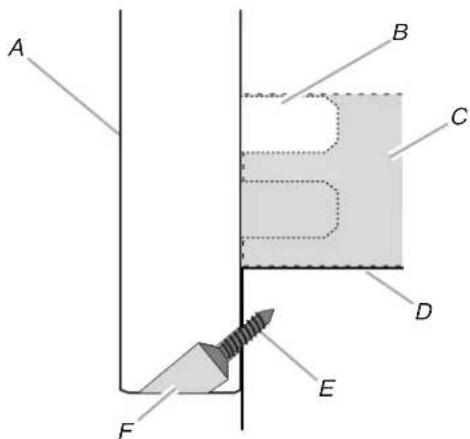

A. Trim kit frame
B. Upper tab
C.Rail

D. Cutout floor

E. Long wood screw (4 - painted)

F. Mounting hole guide

1. Secure trim kit frame to cutout/cabinet by installing four long wood screws (painted) into the pilot holes drilled in Step 3 above.

NOTES:

To ensure vertical centering, install the lower screws first.
To avoid damage to the trim kit frame, do not overtighten screws.

Installation is now complete. Replace any loose items that have been removed from microwave oven cavity.

Save these Installation Instructions for future reference.
