USER MANUAL NTH2017BR MIDEA

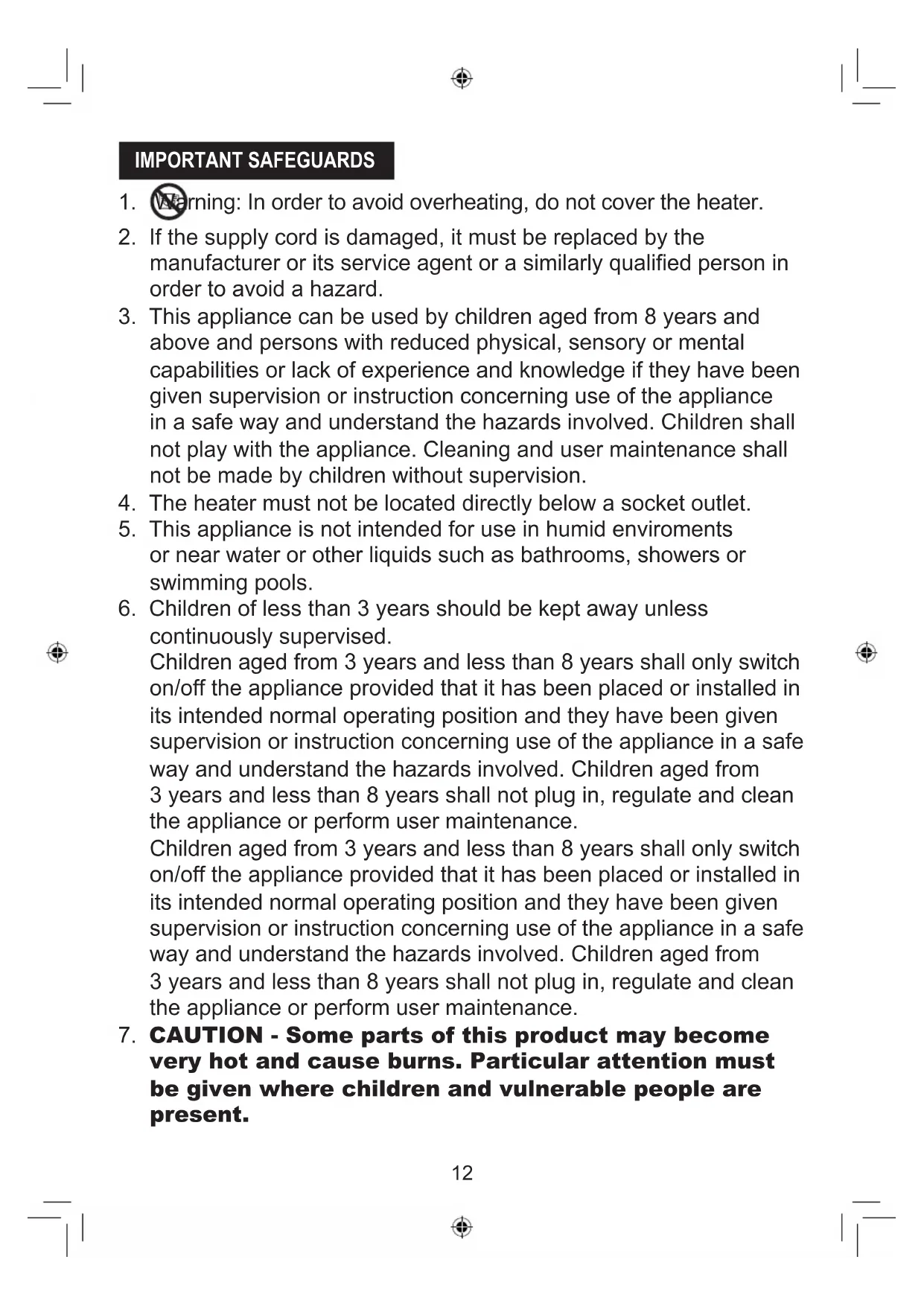

1. Warning: In order to avoid overheating, do not cover the heater.

2. If the supply cord is damaged, it must be replaced by the

manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

3. This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

4. The heater must not be located directly below a socket outlet.

5. This appliance is not intended for use in humid enviroments

or near water or other liquids such as bathrooms, showers or swimming pools.

6. Children of less than 3 years should be kept away unless

continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

7. CAUTION - Some parts of this product may become

very hot and cause burns. Particular attention must be given where children and vulnerable people are present.13

Correct disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product back for environmental safe recycling.

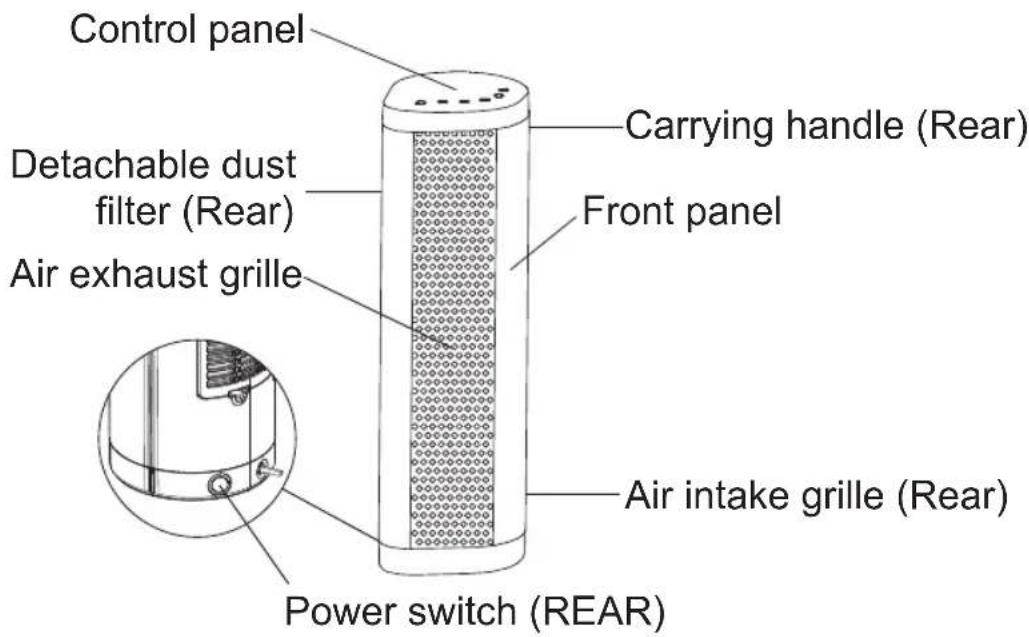

PART FIGURE Control panel Detachable dust filter (Rear) Air exhaust grille Power switch (REAR) Air intake grille (Rear) Front panel Carrying handle (Rear) The remote control works with 2 x 1.5V LR03/AAA batteries (not included) Switching the appliance on/off Selecting the heating mode Programming the timer/a delayed start Increasing the temperature/timer Decreasing the temperature/timer Activating/deactivating oscillation15 OPERATING INSTRUCTIONS Check before turning on the device.

1. Check if the mains cable is in good condition.

2. The product adopts 220-240V AC power supply. Before use, confirm if the rated

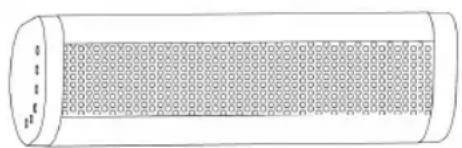

current of the power socket meets the local requirements with safe grounding device; otherwise, replace it with the qualified socket. Installing the appliance Install the appliance on a flat and stable surface. This product can be used vertically (control panel facing upwards) or horizontally (control panel facing left). In the event of a horizontal installation, make sure the air intake and exhaust grilles are completely clear. Vertical position Horizontal position Starting the appliance Turn the power switch to “I” position. Press the ON/OFF button (or the ON/OFF button on the remote control) to start working. The device supplies air at high power after starting and the display will show the temperature setting of 35°C. Function setting Repeatedly press the Mode button for cycling the heater through high - low - fan - ECO mode - high. Fan mode: the appliance does not heat and ventilates ambient air. ECO mode: the appliance is running on economical heating power and automatically adjusts the temperature to keep it constant in the room. Temperature setting During operation, press the + or - button to set the temperature value in the range of 5 - 35°C. When the room temperature reaches the set temperature, the display flashes for 10s and the device stops heating. When in standby mode the temperature is lower than the set temperature, the device starts heating again.16 Timer Off-timer During operation, press the TIMER button to enter the off-timer (0 - 24 hours). Then repeatedly press the + button to increase the off-time by 1 hour each time. Press the - button to decrease the off-time by 1 hour each time. On-timer In standby mode, press the TIMER button to enter the on-timer (0 - 24 hours). Then press the + button to increase the on-time by 1 hour each time. Press the - button to decrease the on-time by 1 hour each time. Oscillation During operation, press the Swing button to enter swing mode. Press this button again to turn off the swing function. In stop mode, the oscillation also stops. Memory function When you turn off the appliance normally, then turn on it again, it will start to work by the setting of last time. If the appliance is power off, it will start to work by the factory default setting when you restart it. Default temperature is 35°C. Auto display off During operation, after 1 minute without pressing any button, the display automatically switches off; only heating logo is lit. Press and hold the + and - buttons for 2 seconds, to turn off the display. Press and hold the buttons again for 2 seconds, to turn the display on again. Temperature sensor short circuit, open circuit protection function In any mode, temperature sensor short circuit protection, room temperature will display E1 or E2 and constantly flash; all buttons are invalid. The buzzer beeps 10 times. Safety protection During start with the room temperature TH above 50°C, all output is closed. The display shows “FF” and flashes 1 time per second for 75 seconds. All buttons are invalid except the ON/OFF button. Remote control Use instructions remote control: the button functions are basically the same as on the operating panel. This heater cannot achieve accurate temperature control of the environment, and thus cannot be used for the storage of items, animals and plants.17

CLEANING AND MAINTENANCE

• Always unplug the power cord from the power socket and allow the appliance to cool down before cleaning or maintaining it.

• Never immerse the appliance in water or any other liquid.

• Never use abrasive cleaning products on this appliance (alcohol, solvent). Basic cleaning

1. Use a slightly damp cloth to wipe the outside of the heater to remove dust and dirt.

2. Use a vacuum cleaner to remove dust from ventilation holes.

3. Make sure the heater is dry before unplugging it.

1. Gently pull the release latches at the bottom of the air intake grille on the back

of the appliance, then remove the grille.

2. Pull out the black filter behind the grille.

3. Soak the filter in clean, clear water for a few minutes, then dry it thoroughly.

4. Clean the filter compartment with a soft, dry cloth.

5. Put the dry filter back behind the grille.

6. Put the air intake grille back on the appliance until it clicks into place.

If the appliance is not going to be used for an extended period If you do not plan to use the appliance for an extended period:

1. Turn off and unplug the appliance.

2. Clean the appliance as described in the section above.

3. Remove the batteries from the remote control and store them with the appliance

Troubleshooting If the product does not operate or does not operate properly, first check according to the following list. If the reason that the product does not operate or does not operate properly is not included in the following list, the product may have failed. In this case it is recommended to send the product to the dealer for repair. Problem Possible Cause Solution After the power is connected the machine does not work. The plug may not be connected properly to mains power. Check whether the plug is properly inserted into the receptacle. The heater suddenly stops heating. The temperature exceeds the threshold of the thermal cut-off. Let the device cool down before use.

READ AND SAVE THESE INSTRUCTIONS19

Table for information requirements for electric local space heaters P Model identifier(s): NTH20-17BR Item Symbol Value Unit Item Unit Heat output Type of heat input, for electric local space heaters only (select one) Nominal heat output Pnom 2,0 kW Manual heat control with room and/or outdoor temperature feedback [no] Minimum heat output (indicative) Pmin N/A kW Manual heat control with room and/or outdoor temperature feedback [no] Maximum continuous heat output Pmax N/A kW Electronic heat control with room and/or outdoor temperature feedback [no] Auxiliary electricity consumption Fan assisted heat output [no] At nominal heat output elmax N/A kW Type of heat output/room temperature control (select one) At minimum heat output elmin N/A kW Single stage heat output and no room temperature control [no] In standby mode elSB 0,29 W Two or more manual stages, no room temperature control [no] With mechanic thermostat room temperature control [no] With electronic room temperature control [no] Electronic room temperature control plus day timer [yes] Electronic room temperature control plus week timer [no] Other control options (multiple selections possible) Room temperature control, with presence detection [no] Room temperature control, with open window detection [no] With distance control option [no] With adaptive start control [no] With working time limitation [no] With black bulb sensor [no] Contact: Midea Europe GmbH Ludwig-Erhard-Strar..e 14, 65760 Eschborn, Germany Remark: For electric local space heaters, the measured seasonal space heating energy efficiency ηS cannot be worse than the declared value at the nominal heat output of the unit. The seasonal space heating energy efficiency of all local space I heaters except commercial local space heaters, f/s (%) η

Warranty policy/service We congratulate you to your new device and are convinced that you will be satisfied and have your joy with this modern appliance. However, if you recognize a reason for a complaint, please contact us: Midea Europe GmbH Ludwig-Erhard-Str. 14 65760 Eschborn Phone: +49 6196-90 20 - 0 Fax: +49 6196-90 20 -120 Email: info-meg@midea.com Homepage: www.midea.com/de In case of service: Phone: +49 6196-90 20 - 0 Fax.: +49 6196-90 20 -120 Email: service-meg@midea.com In case of a technical fault, enter your exact address, telephone number, sales contract number and Device type (from the type plate of the device). A precise fault description saves you time and money. For special questions, please contact the customer service center. Before calling for service: Please check whether there is an operating error or a cause that has nothing to do with the function of your device. Please observe the note in the user manual and check whether: - The power plug is connected - The power plug may be damaged - Electricity is available Warranty terms This device has been manufactured and tested according to the most modern methods. The seller warrants for faultless material and proper manufacture for a period of 36 months from the date of sale to the end user. The unit is not suitable for commercial use. The claim under guarantee lapses in the event of intervention by the Buyer or by a third party. Damage caused as a result of improper handling or operation, incorrect installation or storage, improper connection or installation as well as an act [...] of God or other external factors shall not be covered by this warranty. When claims are submitted, the manufacturer reserves the right to make improvements to defective parts or to replace or exchange the device. Only if it is not possible to achieve the intended use of the device by repairing or replacing the device, the buyer can demand a reduction of the purchase price or the cancellation of the purchase contract within 6 months from the date of purchase. Claims for damages, including consequential damages, are excluded unless they are based on intent or gross negligence. The guarantee claim exists only with submission of the product and the purchase receipt. This warranty is valid within Germany. Importer by: Midea Europe GmbH Ludwig-Erhard-Str. 14 65760 Eschborn Germany21
