TO 21 - Toaster STEBA - Free user manual and instructions

Product type	Toaster
Brand	Steba
Model	TO 21
Power supply	220-240 V ~ 50/60 Hz, 900-1100 W (estimated)
Capacity	2 slices of bread
Functions	Toasting, defrosting, reheating, cancel, roll warming rack
Browning levels	7 levels (1-2 light, 3-5 medium, 6-7 dark)
Accessories	Roll warming rack, removable crumb tray
Housing material	Heat-resistant plastic
Dimensions (L x W x H)	Approx. 30 x 18 x 20 cm (estimated)
Weight	Approx. 1.5 kg (estimated)
Cable length	Approx. 1 m (estimated)
Temperature range	Up to approx. 200 °C (estimated)
Protection class	Class I (grounded)
Maintenance	Removable crumb tray, exterior cleaning with a damp cloth
Safety	Automatic shut-off, hot surface (caution burns), do not immerse
Spare parts	Not specified by the manufacturer
Warranty	Not specified by the manufacturer

Frequently Asked Questions - TO 21 STEBA

How to clean the Steba TO 21 toaster?

Always unplug the appliance and let it cool completely. Remove the crumb tray and empty it. Clean the housing with a damp cloth and a little dish soap. Never immerse the appliance in water and do not use abrasives.

What to do if the bread is over-toasted?

Set the browning level to a lower number (1-2 for light). Browning depends on bread moisture, flour type, and slice thickness.

Can I toast frozen bread?

Yes, press the defrost button after lowering the lever. The cooking time is extended to defrost and toast the bread in one go.

How to use the roll warming rack?

Open the accessory and place it on the toaster. Select browning level 3, lower the lever, then place the rolls (possibly slightly moistened). Turn them halfway through.

What to do if the lever does not lock?

Check that the toaster is properly plugged in. The lifting mechanism only works when the appliance is connected to the mains.

Does the outside of the toaster get very hot?

Yes, the surface becomes hot during operation. There is a risk of burns. Do not touch the appliance while it is running and wait for it to cool before moving it.

Can I toast thick slices of bread?

Yes, but they may get stuck. Use a higher browning setting or toast them a second time. Slices must measure more than 85 mm in length and less than 25 mm in thickness.

How to stop toasting before the end?

Press the cancel button to immediately stop the toasting process. The lever will pop up automatically.

What to do in case of breakdown or malfunction?

Unplug the appliance and contact customer service. Repairs must only be carried out by a qualified electrician. Do not use the appliance if it is damaged.

How to adjust the browning level?

Turn the adjustment knob from 1 to 7: 1-2 for light, 3-5 for medium, 6-7 for dark. Adjust according to bread type (fresh, dry, wholemeal) and slice thickness.

USER MANUAL TO 21 STEBA

220-240 V~; 50/60 Hz; 1180 - 1400 W

Toaster

TO 21

Instructions for use 8

Mode d'emploi 14

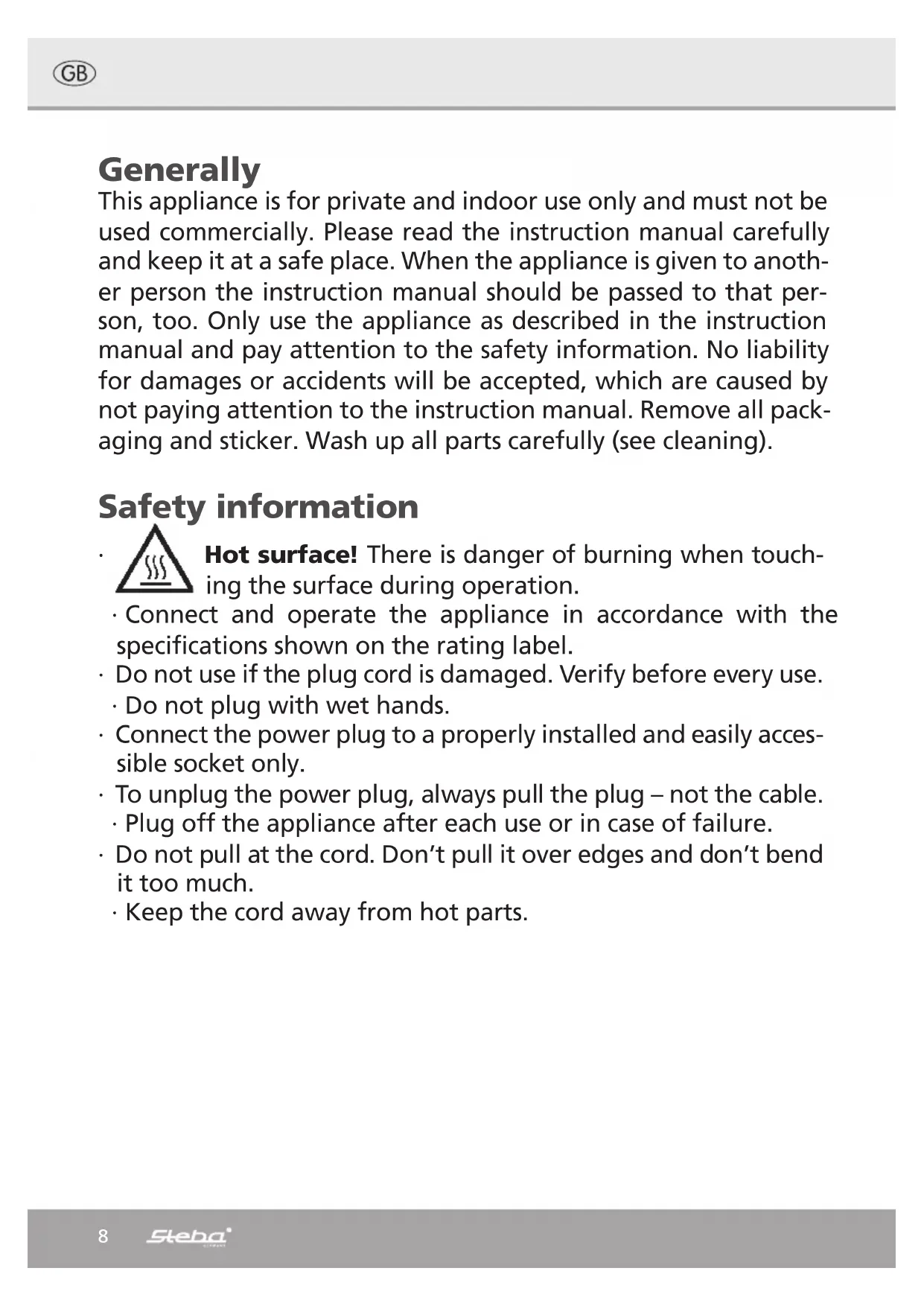

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual. Remove all packaging and sticker. Wash up all parts carefully (see cleaning).

Safety information

Hot surface! There is danger of burning when touching the surface during operation.
- Connect and operate the appliance in accordance with the specifications shown on the rating label.
- Do not use if the plug cord is damaged. Verify before every use.
- Do not plug with wet hands.
- Connect the power plug to a properly installed and easily accessible socket only.
- To unplug the power plug, always pull the plug – not the cable.
- Plug off the appliance after each use or in case of failure.
- Do not pull at the cord. Don't pull it over edges and don't bend it too much.
- Keep the cord away from hot parts.

The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a toy. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised.

• Children under the age of 8 must be kept away from the appliance and the connecting cable.

Children should be supervised to ensure that they do not play with the appliance or packaging material (e.g. Plastic Bags).

• The appliance must not be operated using a timer or a separate remote system!

• Never leave the appliance unattended when in use.

• Do not leave the appliance outdoors or in a damp area.

• Risk of electric shock! Never put metallic objects or your fingers into the heating slot!

• Never immerse the unit in water.

• Never use the device after a malfunction, e.g. if it felt down or has been damaged in any other manner.

• The manufacturer is not liable for damage which is occurring due to the usage of the appliance in a different way as described or a mistake in the handling has been made.

• To prevent injury, repairs such as replacing a damaged cord, should only be carried out by a customer service. Only original spare parts have to be used.

• The device gets hot, only transport if it cooled down. Do not change its place during operation.

• Only use the device as described in this manual.

• You must not put any materials such as paper, cardboard, plastic etc. into the appliance.

• This appliance is intended to be used in household and similar applications such as:

o staff kitchen areas in shops, offices and others working environments
o by clients in hotels, motels and other residential type environments
o bed and breakfast type environments.

• Before initial use: clean all parts carefully and leave to dry. Heat up the device 2 - 3 times without toast to eliminate the smell of newness.

Attention! Device gets hot. Danger of burns!

Touchable surfaces will be hot during operation! Place the device on a flat and insensitive surface with and distance of at least 70cm to burnable materials.

• If an extension cable is used, it has to have a cross-section of 1.5mm^2
• If a GS-tested 16 A multi-pin extension is used, it may not be charged with more than 3680 watts due to fire hazard.
• Make sure that children do not tease the cable or that a trip hazard occurs.
• The device must always be disconnected from the power supply if it is not supervised and before assembling, disassembling or cleaning.
• Hygiene: Please always clean the device to avoid bacteria and mould formation.

Cleaning

• Attention! Pull the plug before cleaning and allow the device to cool down.
• Never immerse the unit into water.
• Crumbs must be removed for hygienic reasons and the danger of fire.
• The crumb tray can be pulled out of the device. After cleaning, the crumb tray must be reinserted into the device.
• Do not use abrasives, oven spray or solvents.
• Clean the housing with a damp cloth with detergent and dry.

Workplace

Important:

Never place this device on or next to hot surfaces (e.g. hot stoves). Only use it on a even, stable and a heat resisting surface. It is important that no inflammable items are near to the device. Do not place the device on the edge of the table so that it cannot be touched by children or fall down when touched.

Getting started

Different types of bread have different degrees of moisture, therefore the same browning level can lead to different results.

To be able to remove bread slices from the toaster, they should be larger than 85mm and not thicker than 25mm .

Danger of fire! Too thick slices can get stuck and burn. Installed smoke detectors can be activated.

• Lightly dry bread needs a low setting.
• Fresh bread / wholemeal bread with an irregular surface needs a high setting.
• Thick slices require a high setting, or need to be toasted twice.
• If only one slice is toasted, a low setting should be made.
• If you toast several times in succession, the bread may become slightly darker than the selected setting.
• To thaw frozen bread, press the corresponding button.
• To heat up buns, use the attached bun warmer.

Toasting

• Unwind the cable from the cable storage on the bottom of the device and plug it in.
• The lifting mechanism only works when the toaster is plugged in.
• Put the slices of toast into the heating slot. Small slices should be put in an upright position so that they can be removed more easily. Too small or too thick slices can block the device and are difficult to remove.
• Set the desired degree of browning with the dial knob:

o 1-2 bright
o 3-5 medium
o 6-7 dark

• The browning depends on the degree of moisture, type of flour, thickness of the slices, etc.

Burnt bread produces acrylamide!

• Press the lever down until it engages.

• Once the desired degree of browning is reached, the lifting mechanism automatically lifts the toast.

• Stop the toasting process: press the

button to cancel the process.

Warm up toast:press the

2 LEDs light up and the toast is warmed.

button immediately after turning on the device.

• Defrosting: press the button immediately after turning on the device. The toasting time will be extended.
• Bun warmer: open the bun warmer and place it onto the toaster. Select the degree of browning 3 and press the lever downwards. Put the buns (maybe lightly moistened) on the warmer and turn after half of the time.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return

your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:
