| Product type | 2-slice toaster |
| Brand | CASO |
| Model | Selection T2 |
| Article number | 2769 |
| Dimensions (W x D x H) | 290 x 190 x 195 mm |
| Dimensions with roll rack | 290 x 245 x 195 mm |
| Net weight | 1.4 kg |
| Power supply | 220-240 V ~ 50/60 Hz |
| Power consumption | 770-920 W |
| Main functions | Toasting, defrosting, reheating |
| Roll rack | Included, for toasting rolls, croissants |
| Adjustable browning level | 7 levels (1-7), rotary control |
| Control panel | Touch (cancel, defrost, reheat) + LED display |
| Automatic shut-off | Yes, bread is ejected at end of cycle |
| Start lever | Mechanical, only engages when plugged in |
| Crumb tray | Removable, lower right side |
| Cleaning | Housing: damp cloth; tray: remove and wash in water; do not immerse |
| Safety | Do not use near flammable materials, hot surfaces, auto shut-off in case of overheating |
| Warranty | 24 months (excluding improper use, wear parts) |
| Included accessories | Roll rack, instruction manual |
| Intended use | Domestic, indoor, toasting and reheating bread |
Frequently Asked Questions - Selection T2 CASO
User questions about Selection T2 CASO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Toaster in PDF format for free! Find your manual Selection T2 - CASO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Selection T2 by CASO.
USER MANUAL Selection T2 CASO

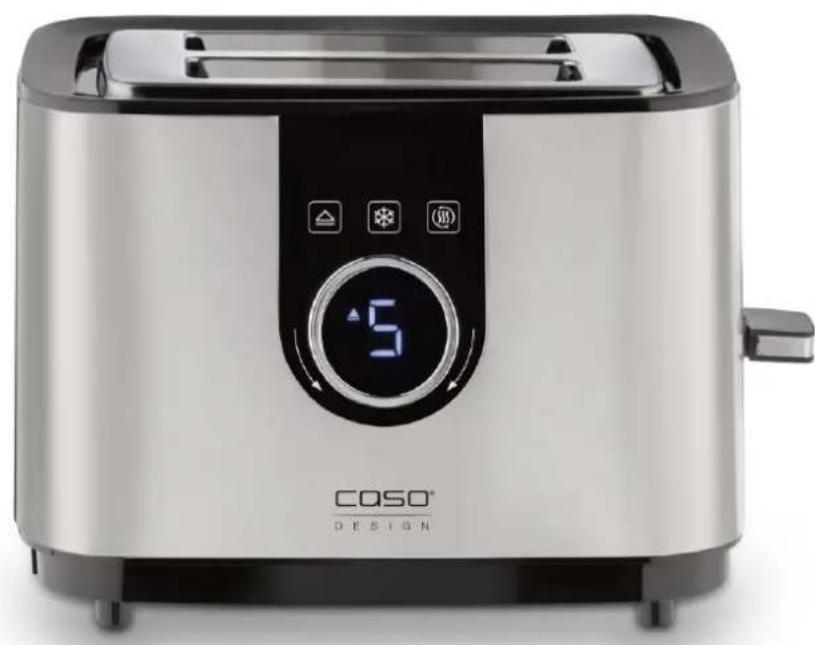

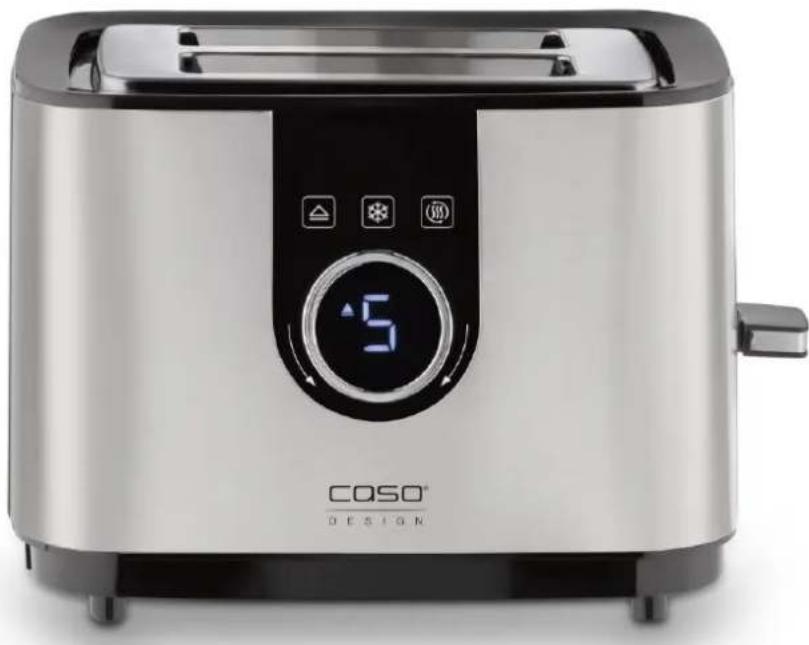

Toaster Selection T 2
Article-NO:2769
Braukmann GmbH
Raiffeisenstraße 9
D-59757 Arnsberg
Tel.: +49 (0) 29 32 / 80 55 4 - 99
Fax: +49 (0) 2932/80554-77
eMail: Kundenservice@caso-design.de

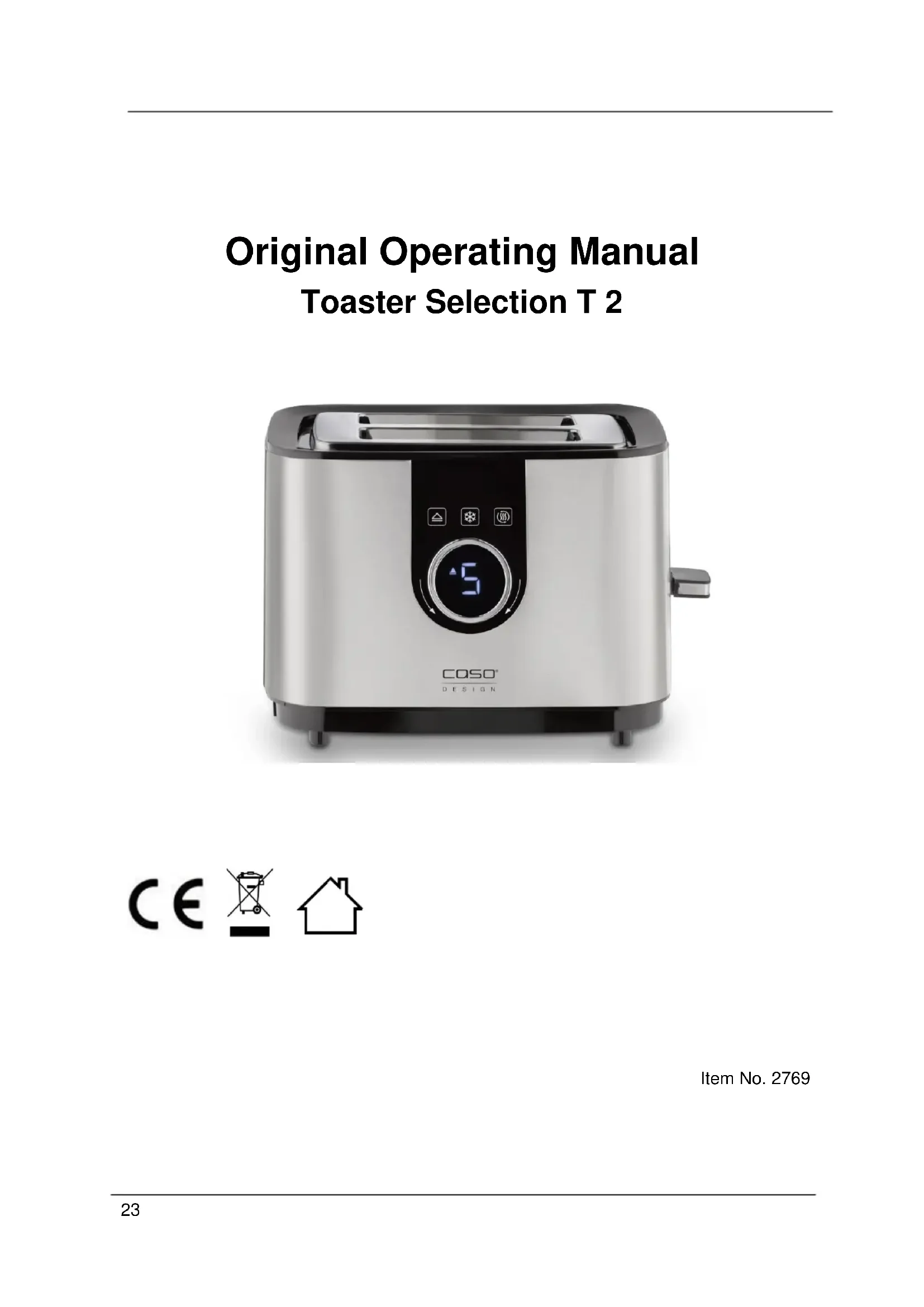

Original Operating Manual Toaster Selection T 2
Item No. 2769
10 Operating Manual
10.1 General
Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.
Your Toaster will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!
10.2 Information on this manual
These Operating Instructions are a component of the Toaster (referred to hereafter as device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:
- Commissioning - Operation - Troubleshooting and/or - Cleaning
Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.
10.3 Warning notices
The following warning notices are used in the Operating Manual concerned here.
AGEFAHR Danger
A warning notice of this level of danger indicates a potentially dangerous situation.
If the dangerous situation is not avoided, this can lead to death or serious injuries.
Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.
▲WARNING Warning
A warning notice of this level of danger indicates a possible dangerous situation.
If the dangerous situation is not avoided, this can lead to serious injuries.
Observe the instructions in this warning notice in order to avoid the personal injuries.
AVORSICHT Attention
A warning notice of this level of danger indicates a possible dangerous situation.
If the dangerous situation is not avoided, this can lead to slight or moderate injuries.
Observe the instructions in this warning notice in order to avoid the personal injuries.
HINWEIS Please note
A notice of this kind indicates additional information, which will simplify the handling of the machine.
10.4 Limitation of liability
All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.
No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following: Non-observation of the manual Improper repairs
Uses for non-intended purposes
- Use of unauthorized spare parts
- Technical alterations, modifications of the device
Modifications of the device are not recommended and are not covered by the guarantee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.
10.5 Copyright protection
This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially.
Subject to content and technical changes.
11 Safety
This chapter provides you with important safety notices when handling the device.
The device corresponds with the required safety regulations. Improper use can result in personal or property damages.
11.1 Intended use
This device is only intended for use in households in enclosed spaces for
- Toasting sandwich bread, bread, bagels, English muffins or the like
- Reheating bread or already toasted bread - as well as defrosting frozen bread
This device is intended for use in the household and for similar applications such as:
- in kitchens for employees in shops, offices, and other commercial areas; - in B&Bs,
- in agricultural estates;
- by customers in hotels, motels and other residential establishments.
Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.
WARNING Warning
Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.
- Use the device exclusively for its intended use.
Observe the procedural methods described in this Operating Manual.
Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.
11.2 General Safety information
HINWEIS
Please note
Please observe the following general safety notices with regard to the safe handling of the device.
Read all instructions before using.
To protect against electrocution do not immerse any part of the unit in liquid.
This device may be used by children aged 8 and above, if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
- Cleaning and maintenance by the user must not be performed by children unless they are at least 8 years old and are supervised.
Children are not allowed to play with the device.
The device and its connecting cable must be kept away from children who are less than 8 years old.
The device may be used by individuals with reduced physical, sensory or mental capabilities or a lack of experience and / or knowledge of their use if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
Do not use accessory attachments that have not been recommended by the manufacturer.
Do not use outdoors.
- Do not allow cord to touch hot surfaces or hang over sharp edges such as those on countertops.
This device is equipped with a short power supply cord as a safety precaution to prevent personal injury or property damage resulting from pulling, tripping or becoming entangled with a longer cord.
The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.
HINWEIS
Please note
The device is not intended to be operated by means of an external timer or separate remote-control system.
SAVE THESE INSTRUCTIONS.
11.3 Sources of danger
11.3.1 Danger of burns
WARNING
Warning
The food prepared in the device, the device and the surfaces of the device can become very hot.
Please observe the following safety notices in order not to burn or scald yourself or others
Do not touch hot surfaces.
The temperature of the accessible surface can become very hot when the device is operating.
Do not touch the heating elements. Danger of burns!
The upper side of the device is during and after use very hot. Do not store any items on the device.
Do not move or change the position of the device during use. Danger of burns!
Be careful when handling hot food.
Let the device cool down before assembling/deassembling of parts and before cleaning.
- Keep children away from the device, since the surfaces of the device become hot during use and remain hot for some time.
- Do not removed jammed slices of bread when the device is in operation. Remove the plug and let it cool down first.
11.3.2 Danger of Fire
▲WARNUNG
Warning
There is a risk of fire if the device is used incorrectly.
Adhere to the following safety instructions in order to prevent a danger of fire.
A fire may occur if the toaster is covered or touching flammable material, including curtains, draperies, walls etc. when in operation.
The bread may burn, therefore do not use the toaster near or below combustible material, such as curtains.
11.3.3 Dangers due to electrical power
▲GEFAHR
Danger
Mortal danger due to electrical power!
Mortal danger exists when coming into contact with live wires or subassemblies!
Observe the following safety notices to avoid dangers due to electrical power:
- Do not operate this device if it has a damaged cable or plug, if it is not working properly or if it has been damaged or dropped. If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard.
- Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.
- Do not dip the cable, device or plug into water or other liquid to prevent an electric shock.
Oversized foods or metal utensils must not be inserted in a toaster, as they may create a fire or risk of electric shock.
GEFAHR
Danger
- Do not attempt to dislodge food when toaster is plugged in. Never use metal utensils to free food from toaster slots.
- Do not modify the plug in any way. If an extension cord is used, it should be a grounding 3-wire cord.
Unplug the device before cleaning, in the event of malfunctions and when it is not in use.
12 Commissioning
This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:
12.1 Safety information
WARNING
Warning
Packaging materials may not be used for playing. There is a danger of suffocation.
12.2 Delivery scope and transport inspection
As a rule, the toaster is delivered with the following components:
- Toaster - Bun warmer - Operation Manual
HINWEIS
Please note
Examine the shipment for its completeness and for any visible damages.
- Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.
12.3 Unpacking
To unpack the device, proceed as follows:
Remove the device out of the carton and remove the packaging material.
Disposal of the packaging
The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled.
Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste.
Take any packaging materials that are no longer required to "Green Dot" recycling collection points for disposal.
12.4 Setup location requirements:
In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:
- The device must be placed on a flat, stable and heat-resistant surface.
- Do not use the device outdoors.
- Do not operate the device near hot surfaces (e.g.hot plate), an open gas flame or in a hot oven.
- Choose the setup location in such a way that children cannot reach the device.
- The device is not intended to be installed in a wall or a built-in cupboard.
- Do not set up the device in a hot, wet or extremely damp environment or near flammable material.
12.5 Electrical connection
In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:
- Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your qualified electrician.
- The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5mm^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
- Make sure that the power cable is undamaged and has not been installed under the ice maker or over hot or sharp surfaces.
- The electrical outlet must be protected by a 16A safety cut-out switch.
The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. If in doubt, have the house installation checked over by a qualified electrician.
The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.
13 Design and Function
In this chapter, you'll find important information on the design and function of the device.
13.1 Overview
1 crumb tray
2 knob with LED dsplay for the setting of browning degree
3 touch control panel
4 toast slots
5 bun warmer
6 lever - starts the roasting process

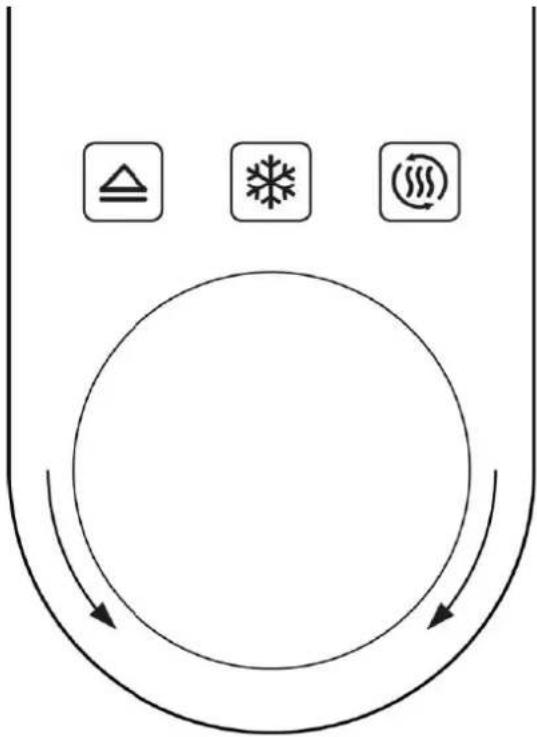

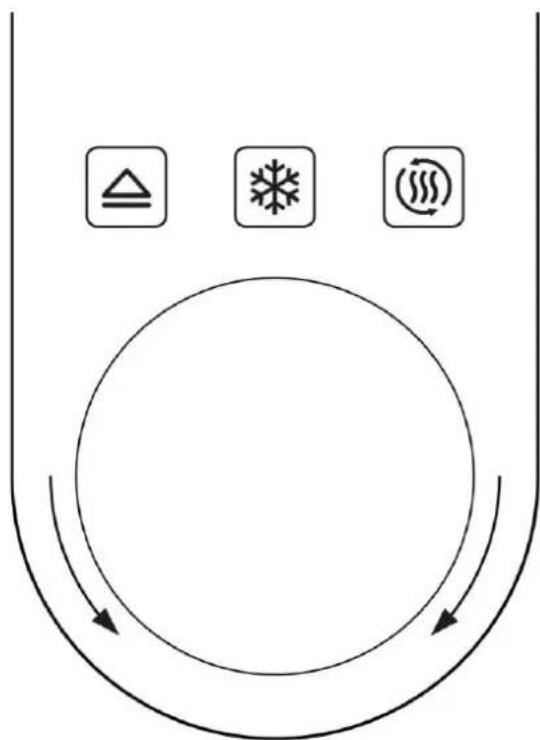

13.1 Control panel
Cancel button
Defrost button
Reheat button
Knob - for the setting of browning degree LED Display shows the selected browning degree
13.2 Rating plate
The rating plate with the connection and performance data can be found beneath the device.
14 Operation and Handling
This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages.
▲WARNING Warning
Do not leave the device unsupervised during operation.
- Never use metal utensils to remove food that may be stuck! For example, you can use a blunt wooden stick, such as a brush handle. Do not touch the heating elements!
Do not use bread slices that are too thick or too large, as these can easily jam and then burn.
14.1 Before first use
- Remove all packaging material. In particular, make sure that the packaging material inside the bread slots is removed.
- Use the device without food.
HINWEIS Please note
- When using the device for the first time, there may be a slight odor and a little smoke. Therefore, at first, operate the device at least 4 times without food, at the highest level in a well-ventilated room.
14.2 Preparations
- Check that the crumb tray is placed.
- Completely unwind the power cord and insert the plug into socket.
14.3 Operation
- Place the toast or bread slice into the toast slots.
- Push the lever down until it clicks into place.
HINWEIS Please note
The lever only latches when the plug is inserted into socket.
- Change the roasting degree setting with the knob. (The standard setting for the degree of browning is 3.)
-
When the toasting process is complete, the toast or bread slices are automatically moved up again.
-
You can cancel the process at any time with the cancel button.
14.4 Defrost function
With this funcion you can defrost frozen toast/bread slices.
- Finish the preparations.
-
Place the toast or bread slice into the toast slots and pus the lever down until it latches.
-
Press the defrost button. The standard setting for the defrosting is browning degree 3. With the knob you can change the intensivit as your desire (level 1-7).
-
When the defrosting process is complete, the toast or bread slices are automatically moved up again.
-
You can cancel the process at any time with the cancel button.
14.5 Reheat function
With this function you can reheat already roasted toast /bread slices.
- Finish the preparations.
- Place the toast or bread slice into the toast slots and push the lever down until it
latches. Press the
-
When the reheating process is complete, the toast or bread slices are automatically moved up again.
-
You can cancel the process at any time with the cancel button.
HINWEIS Please note
Do not use bread / toast with butter etc.
14.6 Bun warmer
With the function you can roast buns, croissants etc. from the previous day again as fresh from the oven / crispy. For this you need the bun warmer.
- Finish the preparations.
- Place the bun warmer on the toaster.
- Place (e.g.) buns on the bun warmer and push the lever down until it latches. We recommend to change the degree of browning to 2. Depending on your preference, the roasting intensity can be set higher or lower.
- When the roasting process is complete, the LED display switches off and the lever switches to the starting position.
- If necessary, turn the food over and repeat the process.
HINWEIS Please note
- Never place the buns directly on the toast slots.
Do not toast toast/bread slices while using the bun warmer.
15 Cleaning and Maintenance
This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.
15.1 Safety information
A VORSICHT Attention
Please observe the safety instructions, before cleaning your device:
- Unplug the device before cleaning, in the event of malfunctions and when it is not in use.
- Never immerse the unit, cord or plug in water or other liquids and do not place in the dishwasher.
Do not use iron brush, aberrant, kitchen cleaner, or sharp cleaning tool for cleaning.
Let the device cool down before cleaning it.
15.2 Cleaning
Crumb tray
- The Slide-Out Crumb Tray is located at the bottom right side of the Toaster.
- For ease in cleaning, grasp the Crumb Tray Handle and pull crumb tray all the way out of the toaster. Brush crumbs from the tray and, if necessary, wipe with a clean, damp cloth.
- ALWAYS dry the tray thoroughly before replacing in toaster.
- Slide the crumb tray back into the toaster. Make sure that it is fully inserted.
Exterior
- Wipe outer surfaces of unplugged and cooled toaster with a slightly dampened soft cloth or sponge and dry with a cloth or paper towel.
- DO NOT use strong or abrasive cleaners, as they may scratch the surface, and NEVER spray cleaners directly onto toaster.
- Any other servicing should be performed by a qualified service technician.
16 Disposal of the Old Device
Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety.
If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment.
Therefore, do not put your old device into the non-recyclable waste under any circumstances.
HINWEIS Please note
- Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
Ensure that your old device is stored safely away from children until it is taken away.
17 Guarantee
We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults.
Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this. The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements.
This device is designed for use in domestic situations and has the appropriate performance levels. Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use.
In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device. Any pending faults must be reported within 14 days of delivery. All further claims are excluded. To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).
18 Technical Data
| Device | Toaster Selection T 2 |
| Item No.: | 2769 |
| Mains data | 220-240V, 50/60Hz |
| Power consumption | 770-920W |
| External measurements (W x H x D): | 290 x 190 x195 mm With bun warmer: 290 x 245 x 195 mm |
| Net weight | 1,4 kg |
Con这对于 you to be a good day.
47.3 IcToHnKn OnaCHOCTn
47.3.1 Onachoctb oxorob
▲WARNUNG Празупжденье
PpOdyKtbl, pIpyroTOBJIeHHbIe B npI6ope, npI6Op I erO NOBepxHocTn CINbHO HArpeBaIOTcR BO BpeMpa60TbI.
Bo n36eXaHne noIyuEHHa OxOroB, noXaIyIcTa, co6JIouaTe cJeDuOuIe npabnla TexnKn 6e3OpacHOCTn.
He npitparinBaITeCb K ropaym NOBepxHocTAm.
Bo Bpempa6oTbI np6opaeo doctynhie NOBepxHocn cnIbHo HarpeBaHTcra.
He doTpaRnBaITeCb Do HarpeBaTeJIbHbIX 3JIeMeHTOB np6opa. OnachocTb oXora!
BepxHra Yactb npnbopa BO BpeMn nocJe erO mNoJIb3OBaHn cTaHOBNTcOueHb rOpaye. He xpaHnte KaKHe-JIb6o PpeMeTbI Ha yCTpO'CTBe.
He nepeBnraTe npi6op n He MeHnTe erO MeCTOnoIooKHe BO BpeM erO nCNoJIb3OBaHnA. OnacNoctb oKora!
Bydte akkypaTHbI npn o6paueHn c ropyey nIe.
Перед ouистков, сборков илп ра3борков пибopa obязателно давайтеш Emy OCTыть.
Depeknte npnbop BHe Doocraemocn DeTeB BO BpeM erO paobtI Kacoe-TO BpeM nocNe, Noka NobepxHocTn npnbopa OCTaIOTCr ropaymN.
▲WARNUNG Πренихдени
He ydaTne 3aTbIe IOMTuKxJe6a Bo BpeMpa6oTbI np6opa.CnepBa OTKnUoyTe np6Op oT ceTu n daTe emy OCTbITb.
47.3.2 Onachoctb noxapa
▲WARNUNG Πредупждениe
CyuaceCTByeT onaCHocTb NOXapa BCJeDcTBne He npabHOro nCNoJb3OBaHn yctpoiCTBa.
Bo n36eXaHne onaChocTn noXapa cIeDyIte HIXKePnPBeDeHHbIM yKa3aHnYm IO 6e3oNaChocTn.
Пи рабote пьбopa суессът onacnoctb BO3нковеня пожараВ TOM слчаe, ecn пьбор накрыт Или касаетс Лergковocпаменяюхся MaTeрnaIOB,В TOMЧисleшTOP,занавecOK,CTehиТ.Д.
Xne6 MoKeT ropeTb, No3Tomy He nCnOJIb3yIe TocTepeB6n3n nn PoD rOpUoymM MaTePnaJamaN, TaKIMn KaK,Ha npImep, WTOpbI.
47.3.3 Onachoctb ot əJIeKtpnueckoro Toka
GEFAHR Onachoctb
Khonka Pa3Mop03ka (Defrost)
KhoPka PoidorpeB (Reheat)
IobopoTHbI peryJrTop -ДЯ yCTaHOBKn HxKHOI CTeneHn npoxapkn.
LCD-dncnne noka3bBaet Bb6paHnyo cTeNeHb npoxapkn.
49.3 3aBODsKa Ta6nUka
3aBoDcKa Ta6JnUka CnapaMeTpamn
IOdkIIOueHn I MOuHOCr HaxOHTcB HIXKHe
yactn np6opa.
50 3Kcnpnyataunn n yHKnOHpOBaHne
B daHno rnaBe npBedeHb BaxHbIe 3aMeaHnNo 3KcPnyTaunn np6opa.
Co6nloaTe cneIyUOuIe HNCTpyKuIN, YTO6bI n36ExKaTb ONaCHoCTe N NOBpeKJeHIn:
▲WARNUNG Празупжденье
He octablaIte pa6oTaUoI np6Op 6e3 npncMoTpa.
He nCnoJb3yIte MeTaNnueckne np6opbl Jnra TOrO, YTO6bl BbITaunTb 3acptBwUo Niuy n3 np6opa. NcNoJb3yIte Tynyo DepeBAAHHyo naOnky, HAnpImep, pyKu KInTochn. He npitparnBaItecb K HarpeBaIOUMc dTeAIAm np6opa!
He nCnoJb3yIte cNlshKOM TOJIcTbie n cNlshKOM 6oJIbUne JOMTNKe XJIe6a. OHN MOryt 3AmrTbcRA B npIbope n IOTOM CROPeTb.
He nCnoB3yIe ToCTbI u XnE6 CO CnIBOuHbIM MaclOM I T.D.
