| Brand | CASO |
| Model | Classico T4 |
| Product type | 4-slice toaster |
| Number of slots | 2 wide slots (capacity 4 slices) |
| Browning adjustment | 5 levels (rotary control) |
| Functions | Toasting, defrost (Defrost), reheating (Reheat), bun warmer |
| Electrical supply | 220-240 V ~ 50/60 Hz |
| Power | 1180-1400 W |
| Dimensions (W x D x H) | 395 x 185 x 160 mm (without rack) / 395 x 235 x 160 mm (with rack) |
| Net weight | 1.80 kg |
| Housing material | Stainless steel and plastic |
| Cable length | Approximately 85 cm (not specified precisely, estimate) |
| Included accessories | Bun warmer, removable crumb tray |
| Care and cleaning | Removable crumb tray hand washable; wipe housing with damp cloth; do not immerse |
| Safety | Automatic shut-off at end of cycle, hot surfaces, overheating protection (not specified but implicit) |
| Warranty | 24 months |
| Repairability | Repairs by authorized service only; original spare parts |
Frequently Asked Questions - Classico T4 CASO
User questions about Classico T4 CASO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Toaster in PDF format for free! Find your manual Classico T4 - CASO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Classico T4 by CASO.
USER MANUAL Classico T4 CASO


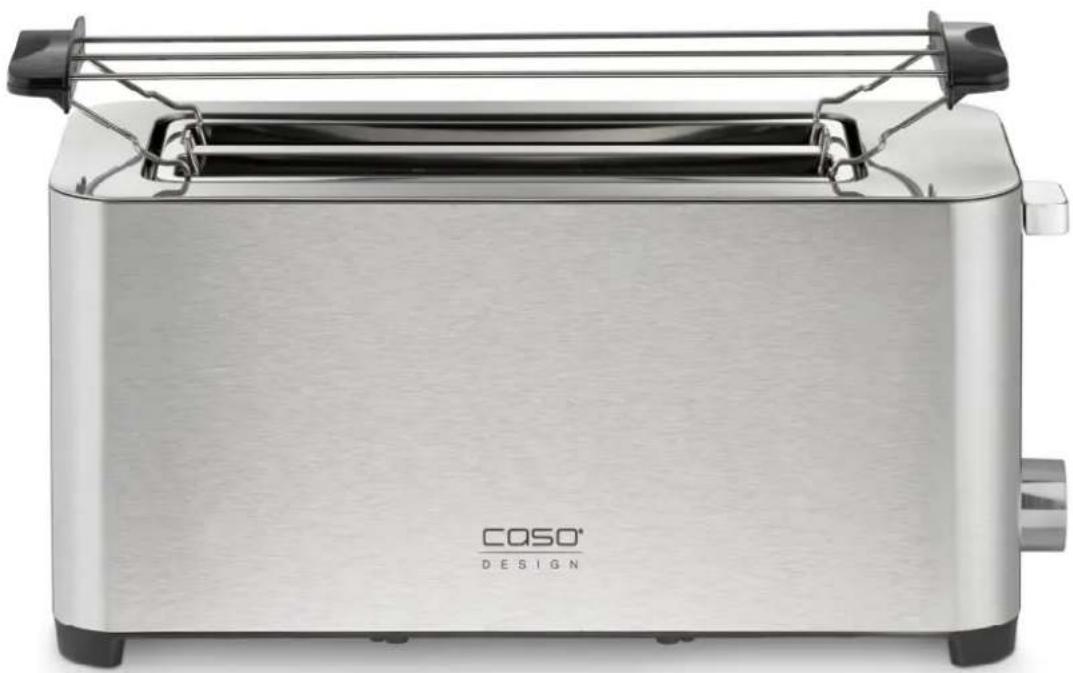

Exterior view of a COSO Design white toaster with black handlebars (no text or symbols on device body)CE
Artikel-Nr.: 1926
(Garantiegeber)
Braukmann GmbH
Raiffeisenstraße 9
D-59757 Arnsberg
Tel.: +49 (0) 29 32 / 80 55 4 - 99
Fax: +49 (0) 29 32 / 80 55 4 - 77
eMail: kundenservice@caso-design.de
10 Operating Manual....25
10.1 General 25
10.2 Information on this manual....25
10.3 Warning notices....25
10.4 Limitation of liability 26
10.5 Copyright protection 26
11 Safety 26
11.1 Intended use....26
11.2 General Safety information 27
11.3 Sources of danger 28
11.3.1 Danger of burns 28
11.3.2 Danger of Fire 29
11.3.3 Dangers due to electrical power....29
12 Commissioning....30
12.1 Safety information ....30
12.2 Delivery scope and transport inspection....30
12.3 Unpacking....30
12.4 Disposal of the packaging....30
12.5 Setup location requirements: 31
12.6 Electrical connection....31
13 Design and Function 31
13.1 Overview....32
13.2 Rating plate 33
14 Operation and Handling 33
14.1 Before first use....33
14.2 Preparations....33
14.3 Operation....33
14.4 Defrost function 34
14.5 Warm up function 34
14.6 Bun warmer 34
15 Cleaning and Maintenance....35
15.1 Safety information 35
15.2 Cleaning....35
15.3 Storage 35
16 Disposal of the Old Device....36
17 Guarantee ....36
18 Technical Data....37
2 Toastschlitze
Item No. 1926

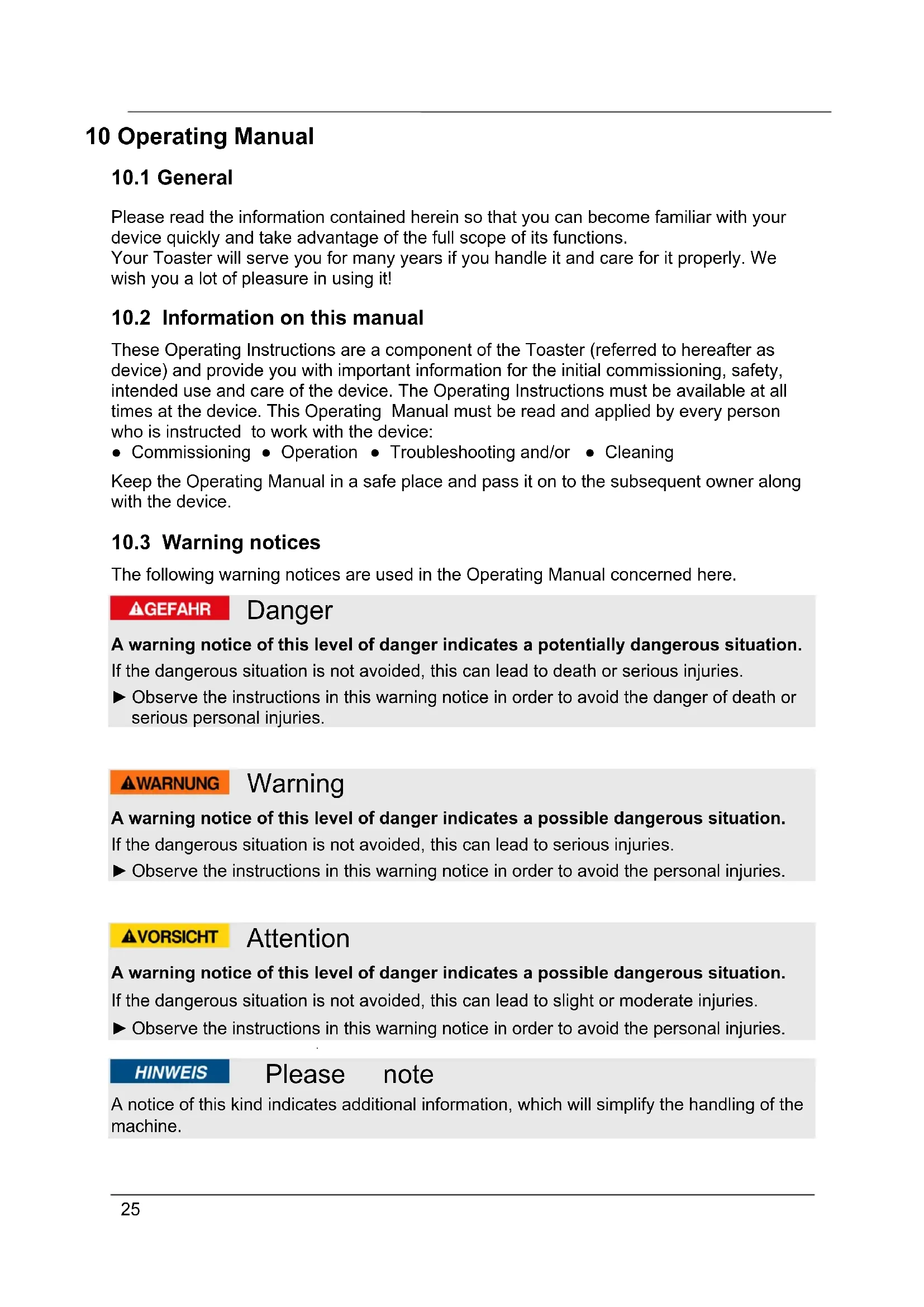

10 Operating Manual
10.1 General
Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.
Your Toaster will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!
10.2 Information on this manual
These Operating Instructions are a component of the Toaster (referred to hereafter as device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:
- Commissioning - Operation - Troubleshooting and/or - Cleaning
Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.
10.3 Warning notices
The following warning notices are used in the Operating Manual concerned here.
⚠️GEFAHR
Danger
A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries.
▶ Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.
⚠️WARNUNG
Warning
A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries.
▶ Observe the instructions in this warning notice in order to avoid the personal injuries.
▲VORSICHT
Attention
A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries.
▶ Observe the instructions in this warning notice in order to avoid the personal injuries.
HINWEIS
Please note
A notice of this kind indicates additional information, which will simplify the handling of the machine.
10.4 Limitation of liability
All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.
No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following: • Non-observance of the manual • Improper repairs
• Uses for non-intended purposes
- Use of unauthorized spare parts
- Technical alterations, modifications of the device
Modifications of the device are not recommended and are not covered by the guarantee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.
10.5 Copyright protection
This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially.
Subject to content and technical changes.
11 Safety
This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.
11.1 Intended use
This device is only intended for use in households in enclosed spaces for
- Toasting sandwich bread, bread, bagels, English muffins or the like
- Warming up of bread or already toasted bread
- as well as defrosting frozen bread
This device is intended for use in the household and for similar applications such as:
- in kitchens for employees in shops, offices, and other commercial areas; • in B&Bs,
• in agricultural estates; - by customers in hotels, motels and other residential establishments.
Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.
⚠️WARNUNG
Warning
Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.
▶ Use the device exclusively for its intended use.
▶ Observe the procedural methods described in this Operating Manual.
Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.
11.2 General Safety information
HINWEIS
Please note
Please observe the following general safety notices with regard to the safe handling of the device.
▶ Read all instructions before using.
▶ To protect against electrocution do not immerse any part of the unit in liquid.
This device may be used by children aged 8 and above, if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
▶ Cleaning and maintenance by the user must not be performed by children unless they are at least 8 years old and are supervised.
▶ Children are not allowed to play with the device.
▶ The device and its connecting cable must be kept away from children who are less than 8 years old.
The device may be used by individuals with reduced physical, sensory or mental capabilities or a lack of experience and / or knowledge of their use if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
▶ Do not use accessory attachments that have not been recommended by the manufacturer.
▶ Do not use outdoors.
▶ Only customer service departments authorized by the manufacturer may carry out repairs on the device, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. Improperly performed repairs can cause considerable dangers for the user.
▶ Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.
HINWEIS
Please note
▶ Do not allow cord to touch hot surfaces or hang over sharp edges such as those on countertops.
▶ The cable should be arrangend in a way so that it does not hang over the edge of the table.
▶ The device is not intended to be operated by means of an external timer or separate remote-control system.
▶ SAVE THESE INSTRUCTIONS.
11.3 Sources of danger
11.3.1 Danger of burns
⚠️WARNUNG
Warning
The food prepared in the device, the device and the surfaces of the device can become very hot.
Please observe the following safety notices in order not to burn yourself or others
▶ Do not touch hot surfaces.
▶ The temperature of the accessible surface can become very hot when the device is operating.
▶ Do not touch the heating elements. Danger of burns!
▶ The upper side of the device is during and after use very hot. Do not store any items on the device.
▶ Do not move or change the position of the device during use. Danger of burns!
▶ Be careful when handling hot food.
▶ Let the device cool down before assembling/deassembling of parts and before cleaning.
▶ Keep children away from the device, as the surfaces of the device become hot during use and remain hot for some time.
▶ Do not removed jammed slices of bread when the device is in operation. Remove the plug and let it cool down first.
11.3.2 Danger of Fire
⚠️WARNUNG
Warning
There is a risk of fire if the device is used incorrectly.
Adhere to the following safety instructions in order to prevent a danger of fire.
▶ A fire may occur if the toaster is covered or touching flammable material, including curtains, draperies, walls etc. when in operation.
▶ The food may burn, therefore do not use the toaster near or below combustible material, such as curtains.
11.3.3 Dangers due to electrical power
⚠GEFAHR
Danger
Mortal danger due to electrical power!
Mortal danger exists when coming into contact with live wires or subassemblies!
Observe the following safety notices to avoid dangers due to electrical power:
▶ To protect against electric shock, do not immerse the device, its power cord or plug in water or other liquids.
▶ Do not operate this device if it has a damaged cable or plug, if it is not working properly or if it has been damaged or dropped. If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard.
▶ Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.
▶ Oversized foods or metal utensils must not be inserted in a toaster, as they may create a fire or risk of electric shock.
⚠GEFAHR
Danger
▶ Do not attempt to dislodge food when toaster is plugged in. Never use metal utensils to free food from toaster slots.
▶ Do not modify the plug in any way. If an extension cord is used, it should be a grounding 3-wire cord.
▶ Unplug the device before cleaning, in the event of malfunctions and when it is not in use.
12 Commissioning
This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:
12.1 Safety information
⚠️WARNUNG
Warning
▶ Packaging materials may not be used for playing. There is a danger of suffocation.
12.2 Delivery scope and transport inspection
As a rule, the toaster is delivered with the following components:
- Toaster
- Bun warmer
- Crumb tray
- Operation Manual
HINWEIS
Please note
▶ Examine the shipment for its completeness and for any visible damages.
▶ Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.
12.3 Unpacking
To unpack the device, proceed as follows:
Remove the device out of the carton and remove the packaging material.
12.4 Disposal of the packaging
The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled.
Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste.
Take any packaging materials that are no longer required to "Green Dot" recycling collection points for disposal.
12.5 Setup location requirements:
In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:
- The device must be placed on a flat, stable and heat-resistant surface.
- Do not use the device outdoors.
- Do not operate the device near hot surfaces (e.g. hot plate), an open gas flame or in a hot oven.
- The device and the power cord must not come into contact with hot surfaces. The device could be damaged.
- Do not place the device on a metal surface.
- Choose the setup location in such a way that children cannot reach the hot surfaces of the device.
- The device is not intended to be installed in a wall or a built-in cupboard.
- Do not set up the device in a hot, wet or extremely damp environment or near flammable material.
- The device requires sufficient airflow to function properly. Leave a 10 cm free space around the device.
- Do not cover any openings on the device or block them.
- The socket outlet must be easily accessible so that the connecting cable can be easily disconnected in an emergency.
12.6 Electrical connection
In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:
- Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your qualified electrician.
- The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 mm ^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
- Make sure that the power cable is undamaged and has not been installed under the ice maker or over hot or sharp surfaces.
- The electrical outlet must be protected by a 16A safety cut-out switch.
The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. If in doubt, have the house installation checked over by a qualified electrician.
The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.
13 Design and Function
In this chapter, you'll find important information on the design and function of the device.
13.1 Overview


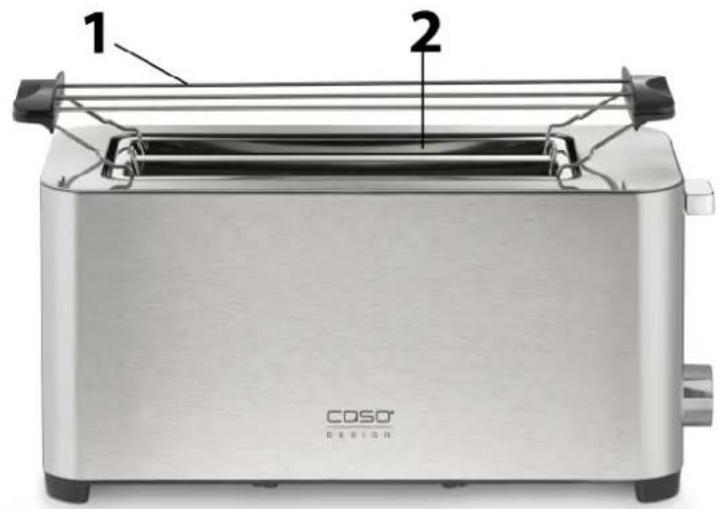

1 2 COSO® DESIGN1 Bun warmer
2 Toast slots


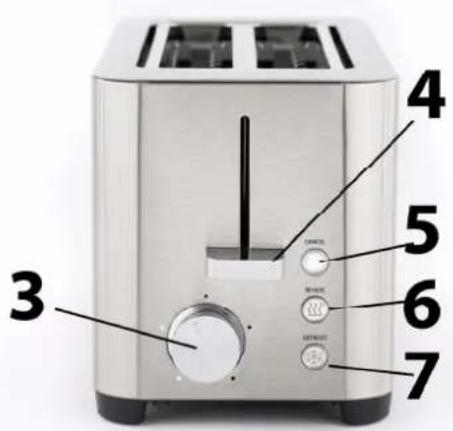

3 4 5 6 7
4 Lever Starts the roasting process
5 Cancel Cancel button
6 Warm up Warm up button
7 Defrost Defrost button

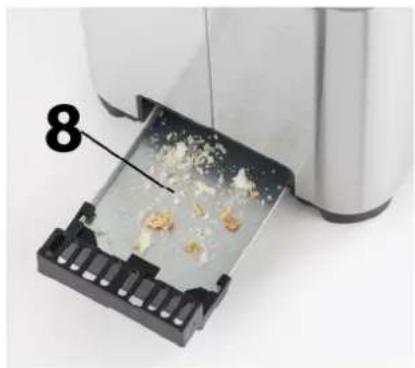

8 Crumb tray
HINWEIS
Please note
The crumb tray must always be placed at the bottom of the device. It is also an additional heat protection for the surface on which the device is placed.
13.2 Rating plate
The rating plate with the connection and performance data can be found beneath the device.
14 Operation and Handling
This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages.
⚠️WARNUNG Warning
▶ Do not leave the device unsupervised during operation.
▶ Never use metal utensils to remove food that may be stuck! For example, you can use a blunt wooden stick, such as a brush handle. Do not touch the heating elements!
▶ Do not use bread slices that are too thick or too large, as these can easily jam and then burn.
14.1 Before first use
- Remove all packaging material. In particular, make sure that the packaging material inside the bread slots is removed.
- Clean the device with a damp cloth.
- Use the device without food.
HINWEIS Please note
▶ When using the device for the first time, there may be a slight odor and a little smoke. Therefore, at first, operate the device at least 3 times without food, at the highest level in a well-ventilated room.
14.2 Preparations
- Check that the crumb tray is placed.
- Completely unwind the power cord and insert the plug into socket.
14.3 Operation
-
Place the toast or bread slice into the toast slots.
-
Change the setting the degree of roasting with the rotary knob. You can set the degrees from left (light) to right (dark) in 5 levels.
- Push the lever down until it clicks into place. The cancel button is illuminated and the toasting operation starts.
HINWEIS Please note
▶ The lever only latches when the plug is inserted into socket.
-
When the toasting process is complete, the toast or bread slices are automatically moved up again.
-
You can cancel the process at any time with the cancel button.
14.4 Defrost function
With this function you can defrost frozen toast / bread slices.
- Finish the preparations.
- Place the toast or bread slice into the toast slots and pus the lever down until it latches.
- 5 levels.
-
When the defrosting process is complete, the toast or bread slices are automatically moved up again.
-
You can cancel the process at any time with the △cancel button.
14.5 Warm up function
With this function you can reheat already roasted toast / bread slices.
- Finish the preparations.
- Place the toast or bread slice into the toast slots and push the lever down until it
latches. Press the ·s button
-
When the reheating process is complete, the toast or bread slices are automatically moved up again.
-
You can cancel the process at any time with the △cancel button.
HINWEIS
Please note
▶ Do not use bread / toast with butter etc.
14.6 Bun warmer
With the function you can roast buns, croissants etc. from the previous day again as fresh from the oven / crispy. For this you need the bun warmer.
- Finish the preparations.
- Place the bun warmer on the toaster.
-
Place (e.g.) buns on the bun warmer and push the lever down until it latches. We recommend to change the degree of browning to middle degree. Depending on your preference, the roasting intensity can be set higher or lower.
-
When the roasting process is complete, the LED display switches off and the lever switches to the starting position.
- If necessary, turn the food over and repeat the process.
HINWEIS
Please note
▶ Never place the buns directly on the toast slots.
▶ Do not toast toast / bread slices while using the bun warmer.
15 Cleaning and Maintenance
This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.
15.1 Safety information
▲VORSICHT
Attention
Please observe the safety instructions, before cleaning your device:
▶ Unplug the device before cleaning, in the event of malfunctions and when it is not in use.
▶ Never immerse the device, cord or plug in water or other liquids and do not place in the dishwasher.
▶ Do not use iron brush, abradant, kitchen cleaner, or sharp cleaning tool for cleaning.
▶ Let the device cool down before cleaning it.
15.2 Cleaning
Crumb tray
- The slide-out crumb tray is located at the bottom of the toaster opposite the lever.
- For ease in cleaning, grasp the Crumb Tray Handle and pull crumb tray all the way out of the toaster. Brush crumbs from the tray and, if necessary, wipe with a clean, damp cloth.
- ALWAYS dry the tray thoroughly before replacing in toaster.
- Slide the crumb tray back into the toaster. Make sure that it is fully inserted.
Exterior
- Wipe outer surfaces of unplugged and cooled toaster with a slightly dampened soft cloth or sponge and dry with a cloth or paper towel.
- DO NOT use strong or abrasive cleaners, as they may scratch the surface, and NEVER spray cleaners directly onto toaster.
- Any other servicing should be performed by a qualified service technician.
15.3 Storage
Never wrap the cable around the device.
Wrap the cable properly around the cable storage on the bottom of the device.
Unplug the device when not in use and keep it in a dry and safe place out of the reach of children.
16 Disposal of the Old Device
Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety.
If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment.
Therefore, do not put your old device into the non-recyclable waste under any circumstances.
HINWEIS
Please note
▶ Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
▶ Ensure that your old device is stored safely away from children until it is taken away.
17 Guarantee
We provide a 24-month guarantee for defects caused by production or material faults, beginning on the date of purchase. Our guarantee is valid for Germany, Austria and the Netherlands. For all other countries, please contact us.
Your legal guarantee claims as per Art. 437 ff. German Civil Code (BGB) will remain unaffected by this. You may exercise your statutory guarantee rights free of charge. The guarantee does not cover damage caused by improper handling or use of the product or defects which have only a minor impact on the product's functionality or value. In addition to this, the guarantee also excludes parts which are subject to wear and tear; transport damages insofar as we are not responsible for them and damages caused by repairs which were not carried out by us.
This product has been constructed for non-commercial use (domestic use) and its performance is designed to meet the corresponding needs. The guarantee only covers commercial use insofar as it is comparable to domestic use. The product is not intended for any other type of commercial use.
In the case of legitimate complaints we may either repair the defective product or replace it with a defect-free product at our discretion. Obvious defects must be notified to us within 14 days of the product's delivery. Any further claims are excluded.
When making a guarantee claim please contact us before you return the product (always with the purchase receipt!). Our contact details ("Guarantor") are provided at the beginning of this instruction manual.
18 Technical Data
| Device Toaster Classico T 4 | |
| Item No.: 1926 | |
| Mains data 220 V - 240 V; 50 Hz / 60 Hz | |
| Power consumption 1180 W – 1400 W | |
| External measurements (W x H x D): 395 x 185 x 160 mmWith bun warmer: 395 x 235 x 160 mm | |
| Net weight 1,80 kg |
N° d'article 1926
19 Mode d'emploi
19.1 Généralités
Labeled diagram of a toaster with numbered parts including control knobs and food item processing stepsnatural_image
Exterior view of a COSO Design stainless steel toaster with black handlebars (no text or symbols on device body)
N° d'article 1926
28 Istruzione d'uso
28.1 In generale
Close-up of a toaster grater with food being placed on its tray, labeled with number 8 (no text or symbols on the grater itself)natural_image
Exterior view of a Coso Design white microwave grater with black handlebars (no text or symbols on the device itself)CE
Artikel-Nr.: 1926
Close-up of a kitchen grater with food being cut, labeled with number 8 (no text or symbols on the grater itself)natural_image
Exterior view of a CASO® Design white microwave oven (no signage or text on body)
Labeled photo of a modern toaster with numbered parts and control buttonsnatural_image
Close-up of a kitchen grater with food being placed on its tray (no visible text or symbols)natural_image
Exterior view of a COSO Design white microwave grater with black handlebars (no text or symbols on device body)
Artikel-Nr.: 1926
