USER MANUAL RDFM1110SI NEDIS

with analogue tuning

RDFM1110SI

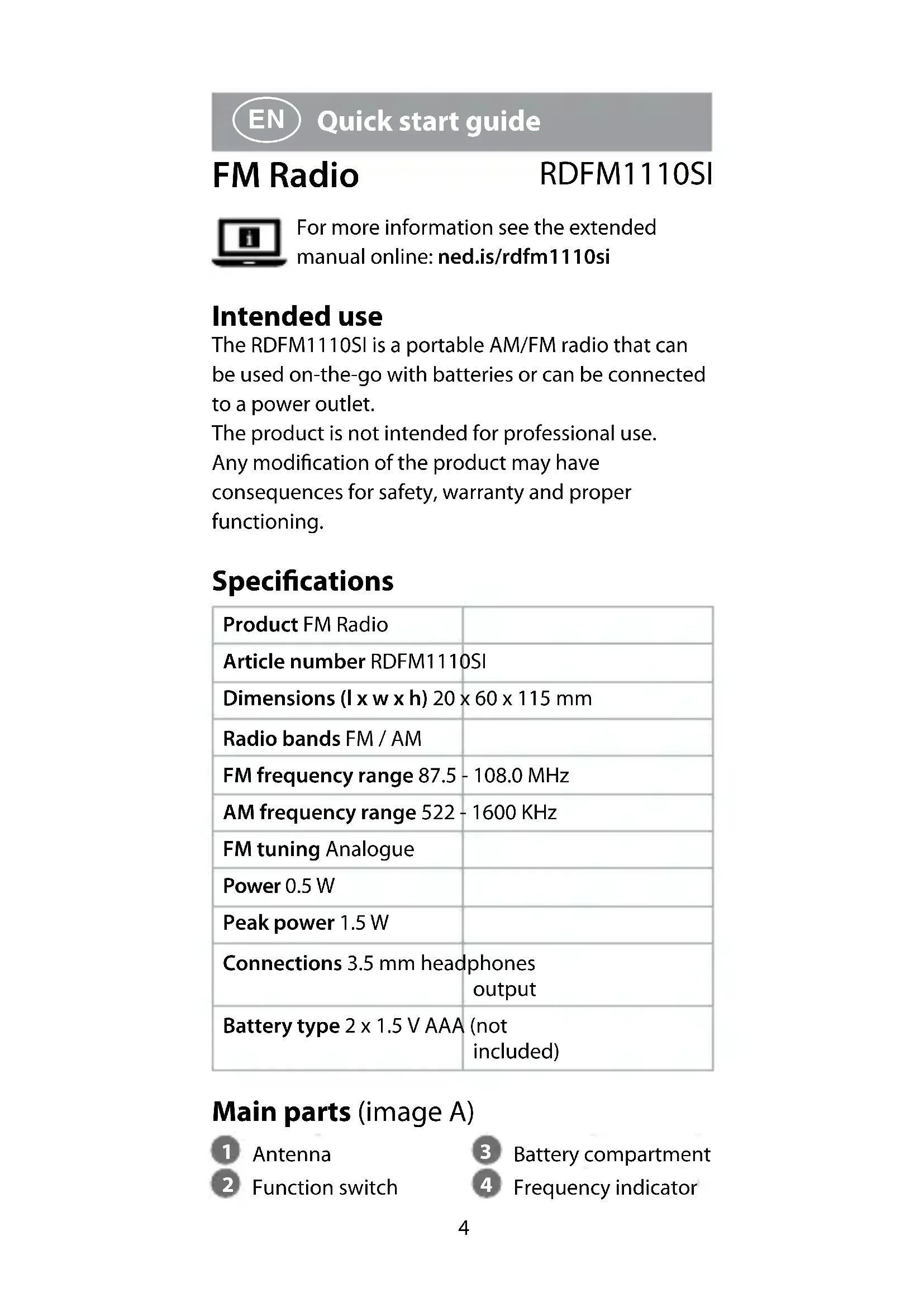

EN Quick start guide 4
DE Kurzanleitung 8
FR Guide de démarrage rapide 13
NL Snelstartgids 17
IT Guida rapida all'avvio 22
ES Guia de inicio=rápido 26
PT Guia de iniciação<rapida 30
SV Snabbstartsguide 35
FI Pika-aloitusopas 39
NO Hurtiguide 43
DA Vejledning til hurtig start 47
HU Gyors beüzemelési utmutató 52
PL Przewodnik Szybki start 56
EL O8nyoc yrhoynopnc EKKivnoon61
SK Rychly námod 66
CS Rychlý námod 70
RO Ghid rapid de initiere 74

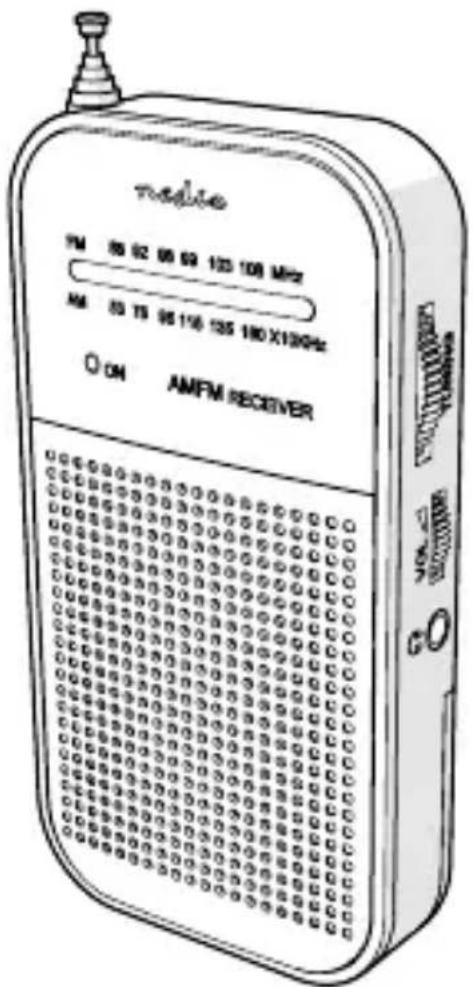

A

FM Radio

RDFM1110SI

For more information see the extended manual online:ned.is/rdfm1110si

Intended use

The RDFM1110SI is a portable AM/FM radio that can be used on-the-go with batteries or can be connected to a power outlet.

The product is not intended for professional use.

Any modification of the product may have consequences for safety, warranty and proper functioning.

Specifications

Product FM Radio
Article number RDFM1110SI
Dimensions (l x w x h) 20 x 60 x 115 mm
Radio bands FM / AM
FM frequency range 87.5 - 108.0 MHz
AM frequency range 522 - 1600 KHz
FM tuning Analogue
Power 0.5 W
Peak power 1.5 W
Connections 3.5 mm headphones output
Battery type 2 x 1.5 V AAA (not included)

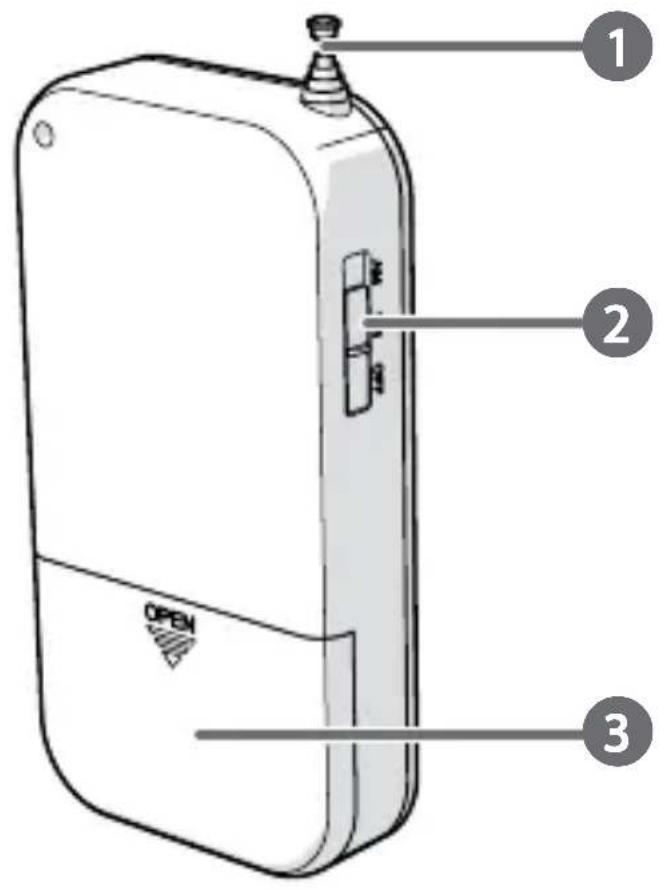

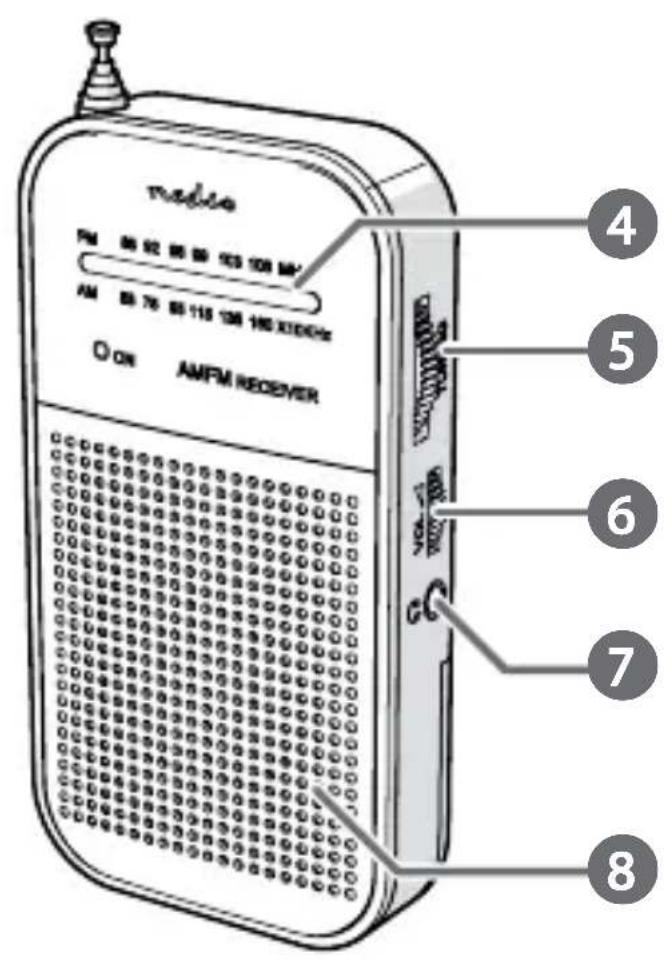

Main parts (image A)

1 Antenna

3 Battery compartment

2 Function switch

4 Frequency indicator

5 Tuning wheel
Volume wheel

7 3.5 mm headphones output
8 Speaker

Safety instructions

WARNING

To prevent possible hearing damage, do not listen at high volume levels for long periods.

• Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep this document for future reference.
• Only use the product as described in this manual.
• Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.
• Do not drop the product and avoid bumping.
• This product may only be serviced by a qualified technician for maintenance to reduce the risk of electric shock.
• Disconnect the product from the power source and other equipment if problems occur.
• Do not expose the product to water or moisture.
• Do not recharge non-rechargeable batteries.
• Do not dismantle, open or shred secondary cells or batteries.
• Do not expose cells or batteries to heat or fire. Avoid storage in direct sunlight.
• Do not short-circuit a cell or a battery.

• Do not store cells or batteries haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by other metal objects.

• Do not remove a cell or battery from its original packaging until required for use.

• Do not subject cells or batteries to mechanical shock.
• In the event of a cell leaking, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
• Observe the plus (+) and minus (-) marks on the cell, battery and equipment and ensure correct use.
• Do not use any cell or battery that is not designed for use with the product.
• Seek medical advice immediately if a cell or a battery has been swallowed.
• Keep cells and batteries clean and dry.
• Wipe the cell or battery terminals with a clean dry cloth if they become dirty.
• Use only the cell or battery in the application for which it was intended.
• Battery usage by children should be supervised.
• Do not mix cells of different manufacture, capacity, size or type within a product.
• Properly dispose of the empty battery.
• When possible, remove the battery from the product when not in use.
• Some wireless products may interfere with implantable medical devices and other medical equipment, such as pacemakers, cochlear implants and hearing aids. Consult the manufacturer of your medical equipment for more information.
• Do not use the product at locations where the use of wireless devices is prohibited due to potential interference with other electronic devices, which may cause safety hazards.

Inserting the batteries

1. Open the battery compartment A ③.
2. Insert 2 type AAA batteries.

Make sure to match the (+) and (-) polarity markings.

1. Close A ③.

Switching on the product

1. Set the function switch A (2) to AM or FM.

Controlling the volume

1. Rotate the volume wheel A 6 to adjust the volume to the desired sound level.

Tuning in to a radio station

1. Rotate the tuning wheel A 5 to select an available radio station.

The frequency indicator A 4 shows the current frequency value.

Pull out the antenna A ① to improve reception in FM mode.

Declaration of Conformity

We, Nedis B.V. declare as manufacturer that the product RDFM1110SI from our brand Nedis, produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation.

The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via:

nedis.com/rdfm1110si#support

For additional information regarding the compliance, contact the customer service:

Web: www.nedis.com

E-mail: [e-mail]

Nedis B.V., de Tweeling 28

5215 MC's-Hertogenbosch, the Netherlands
