USER MANUAL DA 5525 Orbegozo

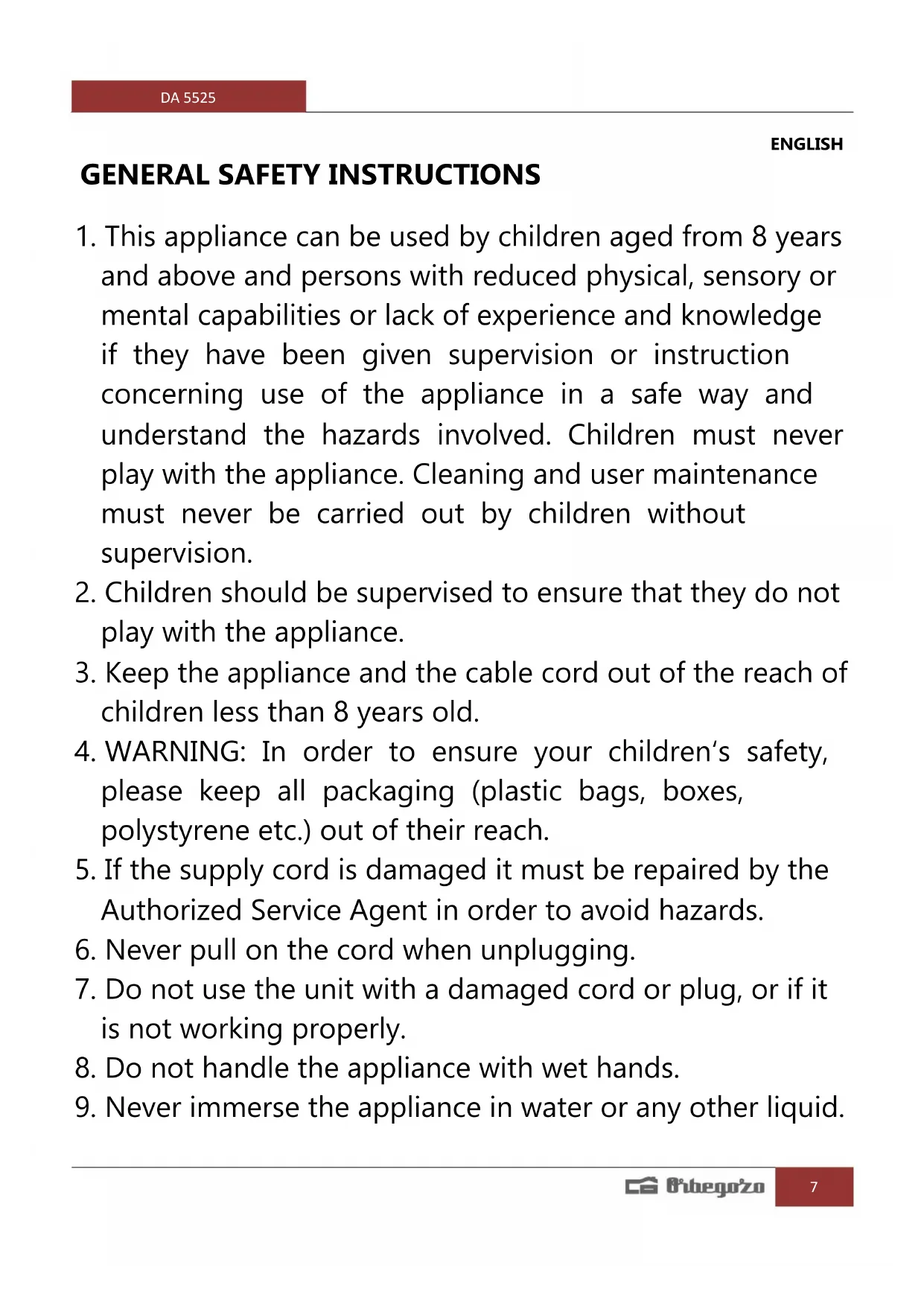

1. This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not

play with the appliance.

3. Keep the appliance and the cable cord out of the reach of

children less than 8 years old.

4. WARNING: In order to ensure your children‘s safety,

please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

5. If the supply cord is damaged it must be repaired by the

Authorized Service Agent in order to avoid hazards.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it

is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.DA 5525

10. Make sure the appliance has been unplugged before

11. This appliance must be installed following the national

regulations for electrical installations.

12. This appliance is intended for household use only

13. In case that you need a copy of the instruction manual,

you can find it in www.orbegozo.com.

14. WARNING: In case of misuse, there is a risk of possible

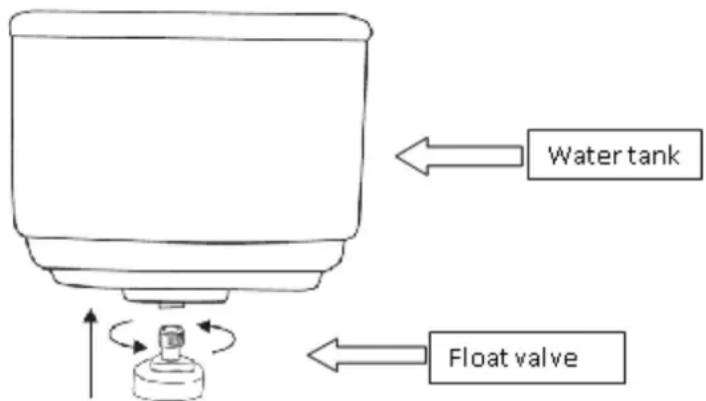

Do not immerse the motor unit in water nor rinse it under the tap. Always place the appliance on a flat, stable surface. Before using your water dispenser, please flush the inside water system with fresh water to avoid any taste. The suitable surrounding temperature is 10ºC to 38ºC. Please do not use the water dispenser when the ambient temperature is below 10ºC, otherwise ice-jam may be happened. OPERATION Fix the float valve into the water tank (counterclockwise to fix and clockwise to remove) and then put the water tank onto the top of the water dispenser with turning it slightly clockwise. The water dispenser is only with chilling water function. Before connecting water dispenser to the electrical source, please fill the cold water tank inside with water.DA 5525

Air must be bled out of the cold water tank by depressing the cold side (blue) faucet to fill the cold water tank with water. (The tank is full when water is free of air bubbles and flows from the cold faucet). Every unit is equipped with an On/Off switch which located on the rear of the water dispenser to control the chilling. The “COLD” LED will switch it on automatically once the water gets cold, the “Standby” LED will switch it on automatically once it needs work to cool the water

BASIC OPERATIONAL GUIDELINES

Always unplug the water dispenser from the wall outlet when out of water. Locate the water dispenser cooled by semiconductor in a well-ventilated area making sure there is at least 2"（about 5 cm) of clearance around the back of it for proper airflow. Do not incline the water dispenser when using, otherwise water-leak may be happened. To help prevent algae growth, do not place water dispenser in direct sunlight or in front of heating vents. Before plugging in, check the power label on the rear of the unit to ensure the power supply is Correct. Serious damage could result if the incorrect supply is used. Never rest cigarettes on water dispenser top. Do not use it as a shelf for plants or storage of other objects. Keep area around water dispenser free of dust and dirt. If water accidentally splashes inside the water dispenser, unplug the unit, remove excess water and dry out before putting back into service. Do not locate water dispenser in area where the temperature may fall below freezing. If ice-jam happened, let water dispenser stand for a few minutes to allow any ice in the reservoir to melt. Add hot water to speed up this process, and at the same time, remain the power off for a longer period of time when no one is using it, and this saves energy and prolongs the lifetime of the semiconductor. Never place the water dispenser out of doors, and it is not suitable. Please do not use it in water-spraying condition; the water dispenser also cannot be sanitized by way of water-spraying. Silent motor. HOW TO CLEAN AND SANITIZE YOUR WATER DISPENSER Regular cleaning and sanitizing is advised to ensure continued quality of water consumed. Please follow the below operation when you sanitize the water dispenser:

1. Unplug the water dispenser from the electrical outlet.

2. Shut off the water supply.

3. Drain off any water left in the reservoir and cold tank through the faucets and drain plug.

4. Fill reservoir 3/4 full of fresh clean water and add 1/2 tablespoon of liquid bleach to water. Do not use a

stronger sanitizing solution!

5. Allow water to stand for 5 to 7 minutes.

6. Drain sanitizing solution out of the reservoir through the faucets and drain plugs. Remove the cap on the

base to finish emptying the inner container.

7. Flush thoroughly with clean water.

8. If a taste problem develops, place 1 tablespoon of baking soda into water tank and add fresh water.

Allow this solution to stand for 5 minutes, then drain. Note: besides, the machine cannot be allow to dip in any solution.DA 5525

Use a solution of distilled vinegar and water, and scrub reservoir with sponge or cloth. Do not use steel wool to clean reservoir. This will leave small metal filings in the reservoir and it will eventually damage it. CLEANING OF PLASTIC PARTS AND EXTERIOR PLASTIC Periodic cleaning of drip tray, water guard, and reservior is required. To clean, use liquid soap and warm water. Avoid using abrasive cleaners which can scratch surfaces. Drip tray should not be used to dispose of unwanted beverages. Do not use formulated cleaner or similar products on plastic parts. These products contain chemicals that can cause the plastics to become brittle. Model: ................................................................................................................... DA 5525 Power supply:.............................................................................. 220-240 V - 50 Hz / 65W

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU. GUARANTEE This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/ For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/ Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.DA 5525
