JR 3025 - Water dispenser Orbegozo - Free user manual and instructions

Product type	Water filtration dispenser (filtering pitcher)
Brand	Orbegozo
Model	JR 3025
Pitcher capacity	2.5 liters
Filtration capacity per filter	160 liters
Filter lifespan	30 days (or 160 liters)
Filter type	Activated carbon filter cartridge
Pitcher material	BPA-free plastic
Dimensions (L x W x H)	17 x 16 x 26 cm
Weight	0.6 kg
Usage	Tap water filtration
Recommended water temperature	Cold or room temperature water
Filter change indicator	Programmable rotating dial
Maintenance	Hand wash (do not put in dishwasher)
Dishwasher	No
Included accessories	1 replacement filter
Warranty	2 years
Spare parts available	Replacement filter (Orbegozo model)
Main functions	Reduction of chlorine, particles, improvement of taste and odor
Safety	Do not use to filter non-potable water; in case of a boil advisory, boil before or after filtration
Recommendations	Store the pitcher in the refrigerator; replace the filter regularly

Frequently Asked Questions - JR 3025 Orbegozo

How to install the filter in the pitcher?

Remove the filter from its packaging, let it soak in cold water for 10 minutes, then rinse it under running water for 10 seconds. Then insert it into the funnel, making sure it is properly in place, and secure the lid.

Why do I need to discard the first three filtered waters?

During first uses, carbon dust may appear. It is normal to discard the first three batches of filtered water to obtain perfectly clear water.

When should the filter be changed?

The filter must be changed every 30 days or after filtering 160 liters of water, whichever comes first. An indicator on the lid helps you track the date.

Can I wash the pitcher in the dishwasher?

No. The pitcher, lid, and funnel must be washed by hand with fresh water and a mild detergent. Do not use abrasives or chlorine products.

What if the filter has dried out?

If the filter has not been in contact with water for two days, soak it again in cold water for 10 minutes before placing it back.

Can I filter hot water?

No. Only use cold or room temperature water. Hot water could damage the filter and the pitcher.

How to program the filter change indicator?

Use the rotating dials on the lid to indicate the date of the next change. Set it to the month following the installation of the new filter.

What if the pitcher is cracked or broken?

If the pitcher or reservoir is damaged, you must replace the entire product. If only the filter is damaged, you can replace it individually.

Does this filter remove bacteria and viruses?

No. This filtration system reduces chlorine, particles and improves taste, but it does not make non-potable water safe. If water needs to be boiled for sanitary reasons, do so before or after filtration.

Where to place the pitcher for optimal use?

Place the pitcher in the refrigerator or in a cool place. If filtered water has been stored for several days, discard it and refill.

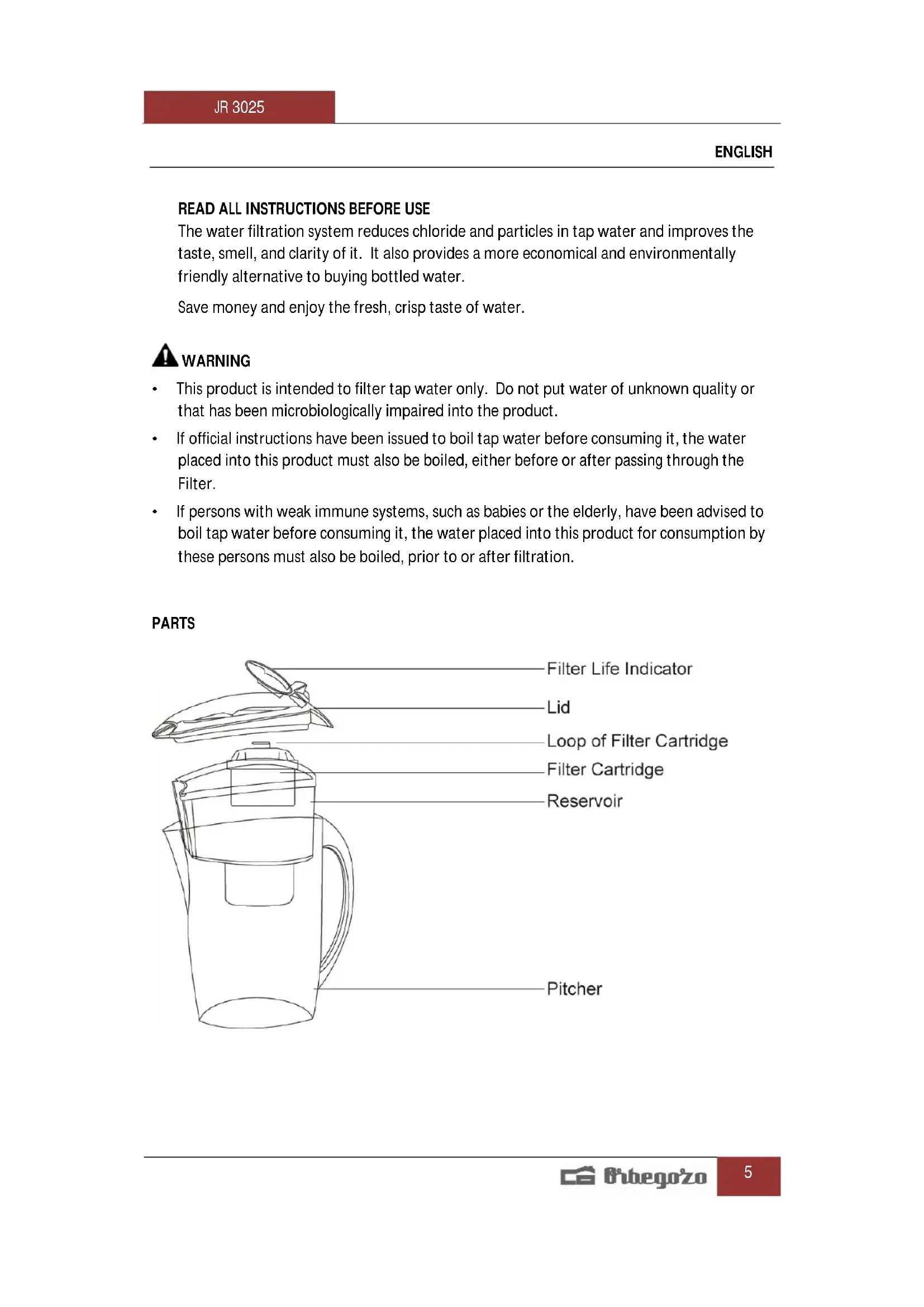

USER MANUAL JR 3025 Orbegozo

CARAFE FILTRANTE - MANUEL D'INSTRUCTIONS

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

The water filtration system reduces chloride and particles in tap water and improves the taste, smell, and clarity of it. It also provides a more economical and environmentally friendly alternative to buying bottled water.

Save money and enjoy the fresh, crisp taste of water.

WARNING

• This product is intended to filter tap water only. Do not put water of unknown quality or that has been microbiologically impaired into the product.
  If official instructions have been issued to boil tap water before consuming it, the water placed into this product must also be boiled, either before or after passing through the Filter.
  If persons with weak immune systems, such as babies or the elderly, have been advised to boil tap water before consuming it, the water placed into this product for consumption by these persons must also be boiled, prior to or after filtration.

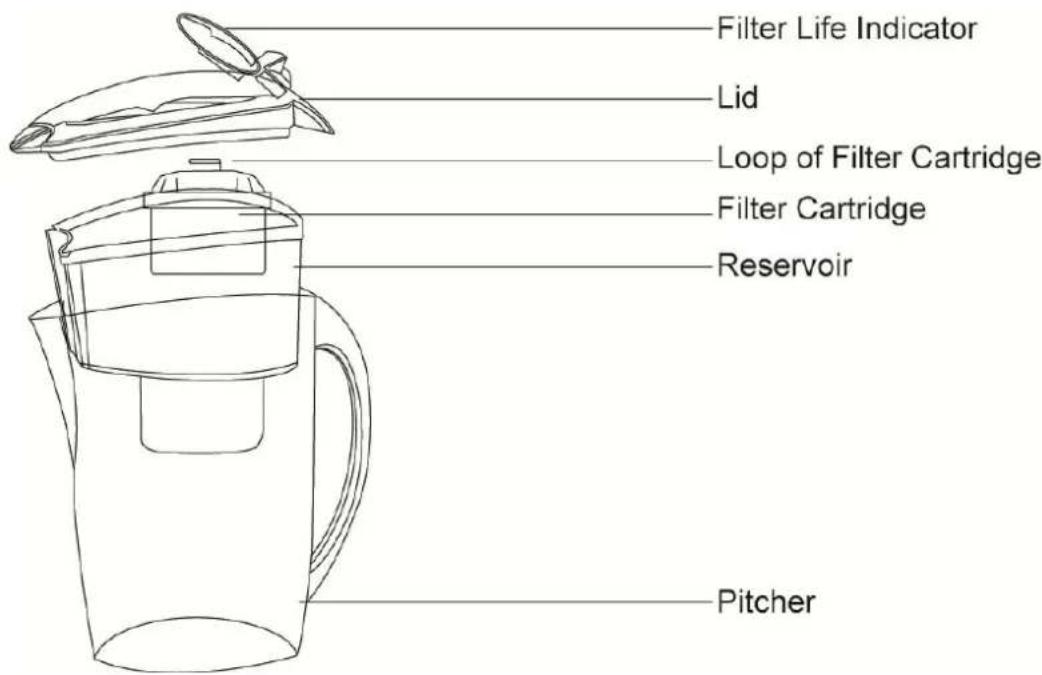

PARTS

INSTRUCTIONS OF USE

I. Please open the packaging, take out pitcher and replacement filter.
II. Wash the pitcher, cover and funnel (Note: Do not wash using dishwashing machine)

III. Remove the cartridge from its packing, introduce it in the jar and soak filter in water for 10 minutes. Rinse the filter under running water for 10 seconds. Insert the cartridge into funnel. Make sure it is tightly inserted Attach the lid.

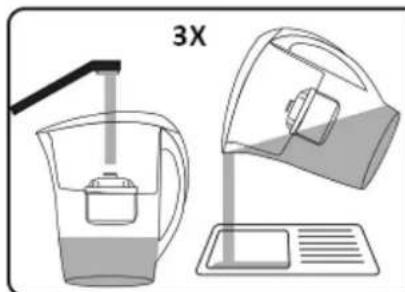

IV. Manually remove the smaller cover and attach the tap to begin water filtration. Discard the first three rounds of filtered water. It is natural for carbon dust to appear in the first two pitchers of water.

V. The pitcher can now be used.

SET THE FILTER LIFE INDICATOR

Use the dials to select a date. The date selected should be one month after changing the filter.

FOR BEST RESULTS

• Keep enough water in the pitcher to maintain the bottom of the filter in the water. This will prevent the filter from drying out. If the filter has not been in contact with water for two days, re-soak it for 10 minutes and then reinstall it.
• Store the pitcher in the refrigerator or in a cool location. If the water has been sitting for several days, discard it and refill the pitcher with fresh water.

MAINTENANCE

• Place only cold or room temperature water into the product for filtering.
• Do not apply concentrated cleaning agents such as heavy oxidants, bleach, chlorinated solvents, or the like to any part of this product. Do not use abrasive pads on the product.
  This product is not fit for the dishwasher.
• If the pitcher or reservoir is broken or cracked, replace the whole product. If the filter is damaged, replace only the filter.

REPLACING THE FILTER

Replace the Filter every 30 days or every 160 litres. Pull it out of the Pitcher by its Loop.

LISEZ LE MODE D'EMPLOI AVANT LA PREMIÈRE UTILISATION
