Product type	Pressure sprayer
Brand	Parkside
Model	HG05659
Tank capacity	5 liters
Maximum operating pressure	2.5 bar
Tank dimensions (dia x h)	170 x 389 mm
Weight empty	1.14 kg
Lance length	500 mm
Flow rate (wide spray at 2.5 bar)	23 l/h
Flow rate (concentrated spray at 2.5 bar)	48 l/h
Operating temperature	0 to 40 °C
Power supply	Manual (hand pump)
Main functions	Wide and concentrated spraying, trigger stop
Adjustable nozzle	Yes, from mist to solid stream
Safety valve	Yes, to release pressure
Pressure gauge	Yes, to monitor pressure
Approved liquids	Water, mild pH-neutral cleaner
Prohibited liquids	Solvents, oils, acids, disinfectants, herbicides, plant protection products
Maintenance and cleaning	Clean after each use, unclog nozzle with a needle, rinse pipes
Storage	In a dry and dust-free place, protected from frost, between 0 and 40 °C
Delivery contents	Sprayer, lance, strap, instruction manual

Frequently Asked Questions - HG05659 PARKSIDE

Which liquids can I use with the Parkside HG05659 sprayer?

You can use water and mild pH-neutral cleaners. Never use solvents, oils, acids, disinfectants, herbicides, or plant protection products, as they can damage the device or pose a risk.

How do I fill the sprayer tank?

Before filling, release any residual pressure by pulling the safety valve. Press down the pump handle and turn it counterclockwise to remove the pump. Fill the tank with a maximum of 5 liters of liquid, then reattach the pump and tighten.

How do I generate operating pressure?

Operate the pump handle until the pressure gauge indicates a maximum of 2.5 bar. If the pressure exceeds this, the safety valve automatically releases the excess. Never exceed 2.5 bar.

How do I adjust the spray nozzle?

Turn the nozzle tip clockwise for a wide spray (mist), and counterclockwise a quarter turn for a concentrated spray.

What should I do if the sprayer does not spray?

First check the pressure: pump if necessary. Then clean the nozzle with a fine needle if it is clogged. Ensure there is liquid in the tank and that the filter is not blocked.

How do I clean the sprayer after use?

Empty the tank, unscrew the nozzle and clean it under running water. To unclog, use a needle. Rinse the pipes with water. Wipe the exterior with a damp cloth. Also clean the filter of the suction hose.

What are important safety precautions?

Wear gloves and a mask when spraying. Do not spray towards people, animals, open flames or electrical devices. Do not expose the device to direct sunlight. Always release residual pressure before opening the tank.

How do I transport the sprayer under pressure?

During use, carry it over the shoulder with the strap in an upright position. After use, release the pressure by pulling the safety valve, then carry it by the handle or strap, without dragging it on the ground.

Where can I find spare parts?

The manual does not mention specific spare parts. For any repairs, contact the Parkside after-sales service (0800 904 879 in France) or visit the manufacturer's website.

How do I store the sprayer in winter?

Empty and clean the device thoroughly, let it dry. Store it in a dry place, protected from frost and dust, between 0 and 40 °C.

USER MANUAL HG05659 PARKSIDE

PDF ONLINE www.lidl-service.com

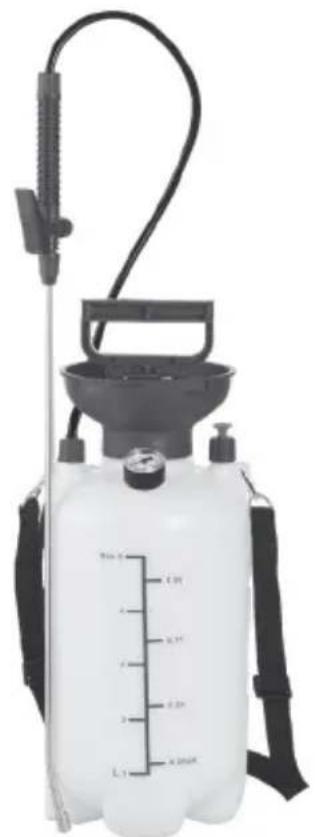

Sprayered spray bottle with attached hose and control lever (no visible text or symbols)

GARDEN PRESSURE SPRAYER

GB IE NI

GARDEN PRESSURE SPRAYER

Operation and safety notes

FR BE

Description of parts and features....Page 6

Technical data......Page 6

Included items ......Page 7

Safety advice......Page 7

General safety advice ......Page 7

Before use......Page 8

Bringing into use......Page 9

Attaching the spray tube....Page 9

Filling the pressure sprayer tank....Page 9

Building up the operating pressure....Page 9

Spraying....Page 9

Setting the spray nozzle....Page 10

Transport of the pressure sprayer......Page 10

Cleaning and care......Page 10

Clean the pressure sprayer ......Page 10

Clean the suction hose....Page 10

Store the pressure sprayer......Page 11

Troubleshooting Page 11

Disposal Page 11

Service Page 11

Garden pressure sprayer

- Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Proper use

The product is used for spraying liquids in the home, garden and greenhouses. The spraying of solvents or solvent-containing liquids or oil is a particular example of improper use of the product. This product is intended for private use only.

The pressure spraying device is used only for spraying the following fluids in the house, garden or in greenhouses.

• Water,
• Mild, PH-neutral cleaning agents

The sprayed agent may only be sprayed in the concentration specified by the manufacturer of the agent. If in doubt, consult the manufacturer of the agent. The pressure spraying device is designed for private use only.

Incorrect use includes, in particular, the spraying of the following:

• Pesticides

• Weed sprays

• Disinfectants

• Fertilisers
• Solvents or liquids containing solvents
• Oil
• Easily flammable fluids
• Corrosive fluids such as acids or lye.

• Description of parts and features

1 Pump handle
2 Pump
3 Safety valve
4 Pressure gauge
5 Container
6 Carrying strap
7 Spray nozzle
8 Spray tube
9 Union nut (Suction hose)
10 Union nut (sprayer handle)
11 Spray tube handle
12 Suction hose
13 Trigger
14 Filter

- Technical data

Container

dimensions (ø x H): approx. 170 x 389 mm

Overall weight,

empty: approx. 1.14 kg

Length of spray

tube: approx. 500 mm

Capacity: approx. 51

Permissible

operating pressure: approx. 2.5 bar

Operating

temperature: 0–40 °C

Carrying method: At the operator's side, using the carrying strap

Volume flow (at 2.5 bar) of wide spray function: approx. 23 l/h Volume flow (at 2.5 bar) of concentrated jet: approx. 48 l/h

Included items

1 Garden pressure sprayer
1 Spray tube
1 Carrying strap
1 Operating instructions

Safety advice

- General safety advice

KEEP ALL THE SAFETY ADVICE AND INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE!

Children or persons who lack the knowledge or experience to use the device or whose physical, sensory or intellectual capacities are limited must never be allowed to use the device without supervision or instruction by a person responsible for their safety. Children must never be allowed to play with the device.

WARNING! RISK OF INJURY!

There is a risk of injury to the skin resulting from contact with the spray product. Always wear suitable protective clothing, gloves and breathing protection when spraying.

WARNING! Do not carry out any

repairs or modifications to the pressure sprayer. Do not change or repair any components.

■ Wash your hands and face after each spraying session.

CAUTION! RISK OF

EXPLOSION! Do not place the device (empty or full) in direct sunlight!

■ Always read and observe the information provided by the chemical manufacturer when working with or mixing spray solutions.
■ Release the residual pressure in the container by pulling the safety valve upwards before you open the container (Fig. C).
■ Never spray into wind, water, or drinking water source.
■ Release the residual pressure after each use.
Do not unscrew or remove the safety valve.
The sprayer may not be used if the operator is tired or ill or under influence of alcohol, drugs or medication.
If necessary, request the safety data sheets for chemical substances and their preparations from the manufacturer of the spray agent.

Explanation of the symbols used:

5-I pressure sprayer

Max. filled capacity: Approx. 5 litres or 8.8 pints

Permissible operating pressure: Max. approx. 2.5 bar

Not for use with corrosive substances!

Do not spray on electrical devices, electrical cables or wires.

Do not spray into open flames or onto heating sources.

Do not spray on people!

Do not spray on animals!

Spray on plants only!

Do not use the product for drinks!

Do not leave the pressure spraying device standing in the sun. There is a risk of explosion!

Keep away from naked flames and heat sources. Seal containers securely. Store in a fireproof way! Do not use easily flammable fluids!

Protect from frost and store away from frost.

Adjustable from mist spray to solid jet.

Store at 0 °C-40 °C in a dry, dust-free location.

When pumping, always watch the manometer to check the operating pressure.

Wear suitable protective coating, glove or mask.

Before using for the first time, pls read the instruction carefully.

- Before use

CAUTION! Check that the device is functioning properly! Check the pressure sprayer before each use to ensure that it is free of visible damage and is functioning safely. To do this, carry out the following tests and inspections:

☐ Check the container for the suction hose 12 and the carry strap 6 for visible damage.

☐ Check that the hose connections are fitted tightly.

☐ Check that the pipe connections are fitted tightly.

☐ Pump the empty pressure sprayer to approx. 1 bar.

The pressure must not fall more than approx. 0.5 bar in a space of 30 minutes.

☐ Pump the pressure sprayer to approx. 2 bar.
☐ Pull the safety valve up to the stop. You must be able to hear the pressure escaping.

- Bringing into use

- Attaching the spray tube (Fig. B)

☐ Turn the union nut 10 anticlockwise to release it from the handle 11. Put the union nut 10 on the spray tube 8 and then push the spray tube 8 into the handle 11 as far as it will go.

☐ Tighten the union n ^u0 by turning it clockwise.

- Filling the pressure sprayer tank (Fig. D)

Note: Before using the product, check to see that it is in good condition and free of defects.

Press the pump handle downwards and turn it anticlockwise.

Note: Before you open the tank, pull the safety valve 3 upwards to release any residual pressure still present in the container 5.

□ row the pump 2 out of the container 5. □ Now fill the tank.

Note: Fill the tank with only the amount of liquid that you actually need for that particular spraying session (not more than 5 l).

Place the pump back into the container 5 and turn the pump handle 1 clockwise as far as it will go.

• Building up the operating pressure

☐ Push the pump handle 1 slightly downwards and release it by turning it out of the recesses.
Move the pump handle up and down until the pressure sprayer has been pumped up to a pressure not exceeding the maximum permissible operating pressure of 2.5 bar. To ensure this value is not exceeded, monitor the pressure gauge 4 during the pumping process.

Note: If the pressure of the air in the container 5 exceeds 2.5 bar, the pressure is automatically released through the safety valve 3.

Press the pump handle downwards into the recesses.
Now take the spray tube out of the holder.

Spraying

☐ Hang the pressure sprayer over your shoulder by the carrying strap 6

Note: Ensure that the pressure sprayer is always kept upright. Only when held in this orientation will the sprayer work properly.

Hold the spray tube firmly by the handle 11 and direct the adjustable spray nozzle 7 e.g. at a plant.

Press the trigger to start the spraying process.

☐ Release the triggered to stop the spraying process.

Note: When the pressure in the container 5 is no longer sufficient to spray, pump the container 5 to increase the pressure again up to but not exceeding the maximum permissible operating pressure of 2.5 bar. You can check the operating pressure using the pressure gauge 4 (see "Building up the operating pressure").

☐ Pull the safety valve upwards as far as it will go to release the residual pressure in the container 5.

- Setting the spray nozzle

To adjust the spray nozzle 7 proceed as follow:

To generate a wider spray zone, turn the tip of the spray nozzle 7 clockwise as far as it will go.

To create a concentrated jet, turn the tip of the spray nozzle 7 a quarter turn anti-clockwise.

● Transport of the pressure sprayer

Transport the pressure sprayer as follow:

Transport during use

Hang the pressure sprayer with the carrying strap 6 over your shoulder.

Note: Make sure that the pressure sprayer is always in an upright position. Only then can the pressure sprayer function properly.

Transport after use

Press the pump handle down and turn it clockwise.
☐ Pull the safety valve up as far as it will go to reduce the residual pressure in the container 5.
Carry the pressure sprayer by the pump handle 1 or using the carrying strap 6

Note: To avoid damage to the container 5 during transport, always lift the pressure sprayer and do not drag it across the ground.

- Cleaning and care

If the nozzle seems to be blocked, do not try to blow it free with your mouth.

Note: Clean the pressure sprayer after each use! Empty the bottle after each use.

- Clean the pressure sprayer

□ Unscrew the spray nozzle.
□ Clean the spray nozzle under running water.
If the spray nozzle is clogged, clean it by pushing a needle through it.
☐ Flush through the pressure sprayer, pipes and tubes with water.
□ Clean the surfaces of the product with a moist cloth.

- Clean the suction hose

Clean the suction hose 12 as follows:

☐ Loosen the union nut of the suction hose 9 on the container 5
☐ Pull the suction hose out of the container 5.

☐ Remove the filter 14, clean the filter 14 and suction hose 12 under running water.
□ After cleaning, plug in the filter 14 and insert the suction hose 12 back in its opening on the container 5.
Tighten the union nut hand-tight.

- Store the pressure sprayer

■ Release any residual pressure still present in the container after use. To do this, pull the safety valve button upwards until you can no longer hear the hiss of escaping air.
■ Thoroughly clean the device and allow it to dry before you put it away for the winter. This will avoid frost damage.
☐ Clean the pressure sprayer before storing it away.
☐ Remove any leftover spray product from the tank and the pipes.
Store the pressure sprayer in a dry, dust-free place.

- Troubleshooting

If the measures listed below are not successful, contact the manufacturer.

● = Fault

● = Potential causes

O = Remedies

● No pressure is established in the tank.

The pump is not firmly screwed into place.
○ Screw the pump firmly into place.
The sealing ring of the pump has not been greased.
○ Grease the sealing ring of the pump.

● Spray nozzle does not spray.
No pressure present.
○ Generate pressure using the pump.
The spray nozzle is blocked.
○ Clean the spray nozzle.
- No spray in the tank.
○ Fill with spray.
- Filter is blocked.
○ Clean the filter.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

- Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail: [e-mail]

NI Service Northern Ireland

Tel.:[phone]

E-Mail: [e-mail]
