USER MANUAL EXACT Configurator BOSCH

You are still connected to a screw driver, do you really want to exit?

OK

Cancel

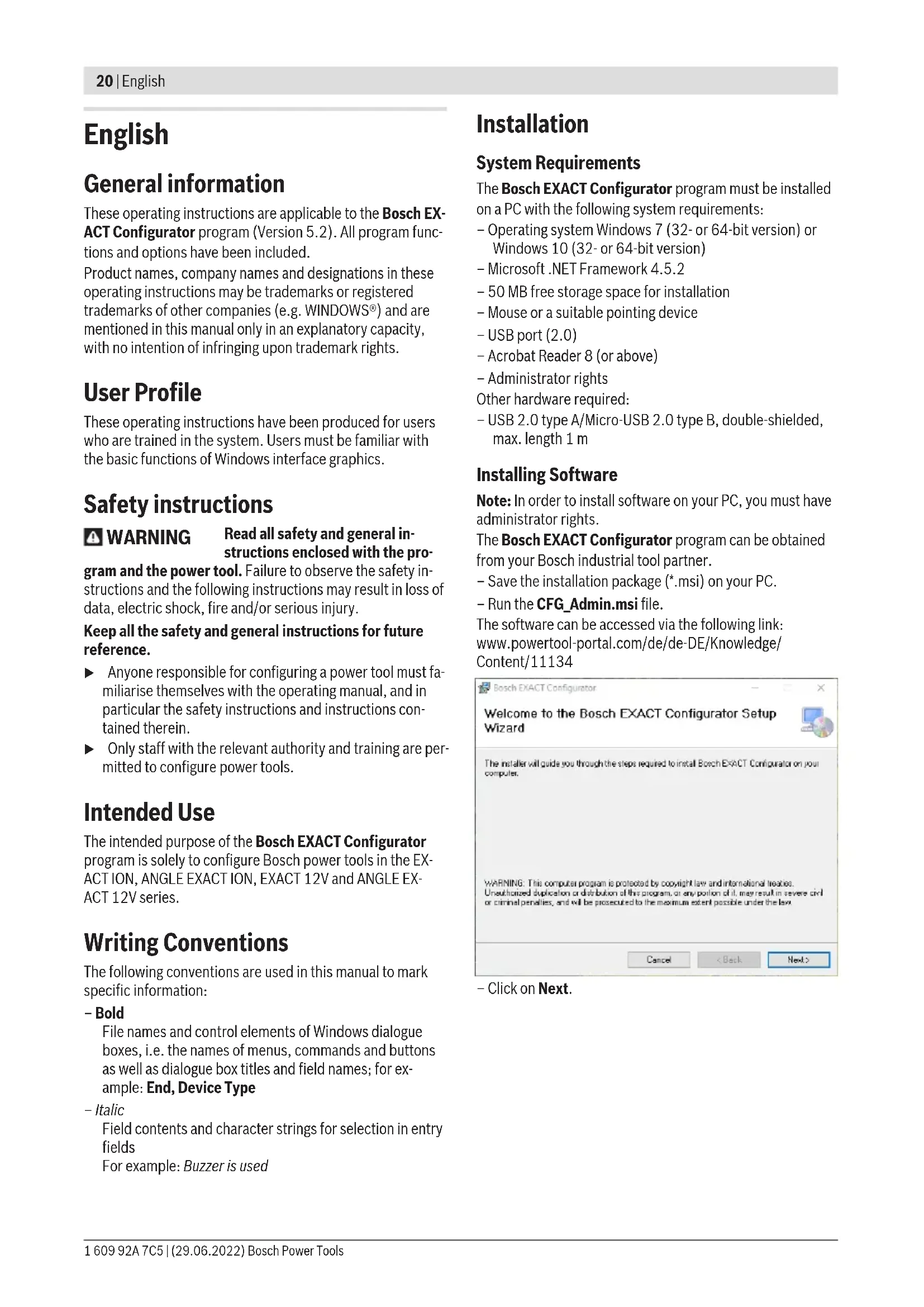

These operating instructions are applicable to the Bosch EX-ACT Configurator program (Version 5.2). All program functions and options have been included.

Product names, company names and designations in these operating instructions may be trademarks or registered trademarks of other companies (e.g. WINOWS®) and are mentioned in this manual only in an explanatory capacity, with no intention of infringing upon trademark rights.

User Profile

These operating instructions have been produced for users who are trained in the system. Users must be familiar with the basic functions of Windows interface graphics.

Safety instructions

WARNING

Read all safety and general instructions enclosed with the pro

gram and the power tool. Failure to observe the safety instructions and the following instructions may result in loss of data, electric shock, fire and/or serious injury.

Keep all the safety and general instructions for future reference.

Anyone responsible for configuring a power tool must familiarise themselves with the operating manual, and in particular the safety instructions and instructions contained therein.
Only staff with the relevant authority and training are permitted to configure power tools.

Intended Use

The intended purpose of the Bosch EXACT Configurator program is solely to configure Bosch power tools in the EX-ACTION, ANGLE EXACTION, EXACT 12V and ANGLE EX- ACT 12V series.

Writing Conventions

The following conventions are used in this manual to mark specific information:

- Bold

File names and control elements of Windows dialogue boxes, i.e. the names of menus, commands and buttons as well as dialogue box titles and field names; for example: End, Device Type

-Italic

Field contents and character strings for selection in entry fields

For example: Buzzer is used

Installation

System Requirements

The Bosch EXACT Configurator program must be installed on a PC with the following system requirements:

• Operating system Windows 7 (32- or 64-bit version) or Windows 10 (32- or 64-bit version)

• Microsoft .NET Framework 4.5.2

• 50 MB free storage space for installation

• Mouse or a suitable pointing device

• USB port (2.0)

• Acrobat Reader 8 (or above)

• Administrator rights

Other hardware required:

• USB 2.0 type A/Micro-USB 2.0 type B, double-shielded, max. length 1 m

Installing Software

Note: In order to install software on your PC, you must have administrator rights.

The Bosch EXACT Configurator program can be obtained from your Bosch industrial tool partner.

• Save the installation package (.msi) on your PC.

• Run the CFG_Admin.msi file.

The software can be accessed via the following link: www.powertool-portal.com/de/de-DE/Knowledge/Content/11134

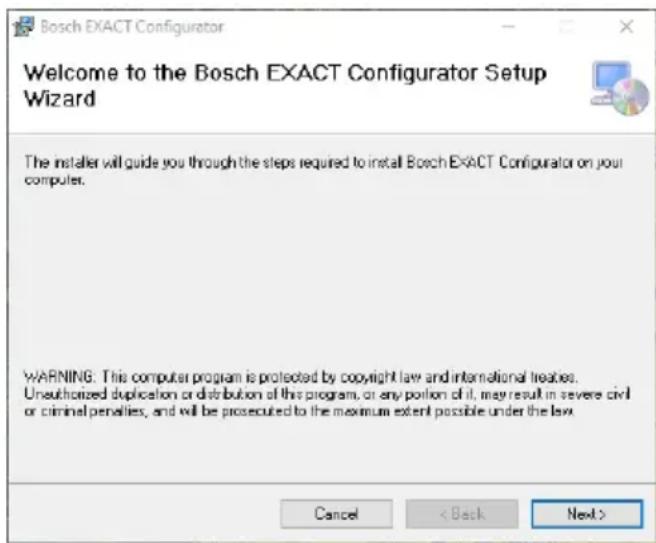

- Click on Next.

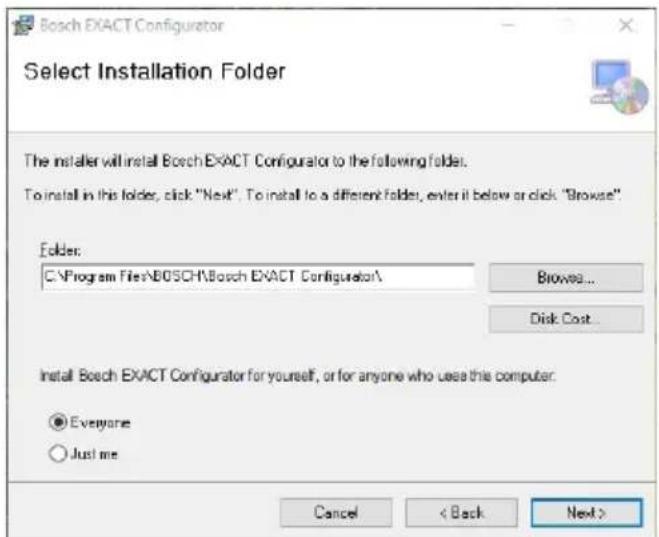

Folder	Installation path
Browse	Sets a different installation path
Disk Cost	Storage requirements for Bosch EXACT Configurator
Everyone Just me	Sets the user access to Bosch EX-ACT Configurator

• Select the required settings and click on Next.

The Confirm installation dialogue box is displayed. The installation program is ready to commence installation.

• Click on Next to begin installation.

The Bosch EXACT Configurator program is installed on the PC. Links to launch the program can then be found in the Start menu and on the desktop.

The required driver will be installed.

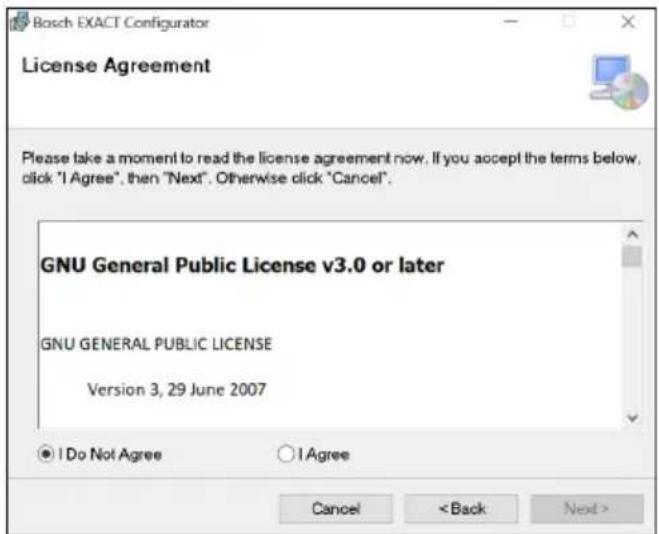

• Accept the license agreements to begin installation.

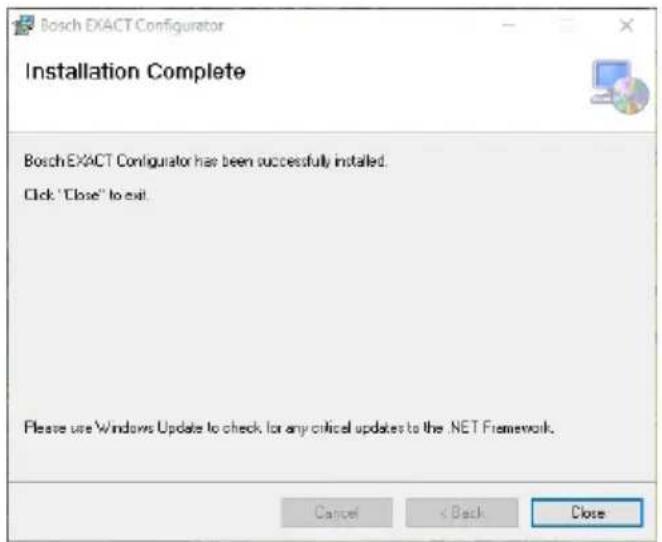

• Click on Close to complete the installation.

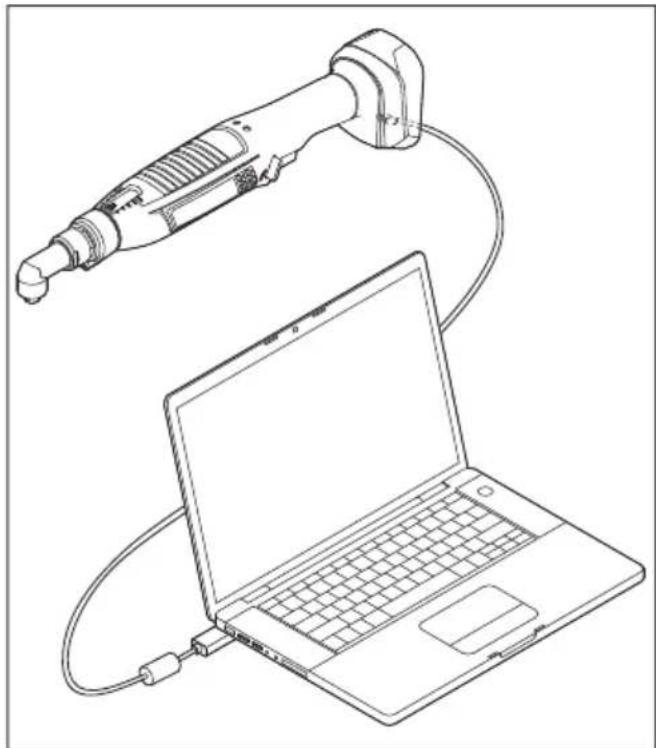

Connecting the Screwdriver with the PC

If Bosch EXACT Configurator is already open when connecting a (new) screwdriver, Windows will attempt to install the relevant drivers. If this is the case, wait until the installation is complete. There is no need to restart the PC in this instance.

• Connect the screwdriver using the Micro-USB connector of the USB cable (see "System Requirements", page 20). For the EXACT 12V, the USB port is located under the cover. You will therefore need to unscrew the cover.
• Connect the PC (e.g. laptop) using the USB connector on the USB cable (see "System Requirements", page 20).

Note: Depending on the operating system, a request to restart the computer may be displayed once the USB cable is connected to the PC. However, this is not necessary for the process to continue.

Description of the Operating Controls

Overview

Main menu/toolbar

(4) Trwsamnt Content [viv47-53.418] Message: NusErrorMessageRequest (SID: SoftwareUpdateRequest, SID: SoftwareUpdateRrrnMessage) [59.47-53.418] Message: NusUpdatedMessageReques (SID: SoftwareUpdateRequest, SID: SoftwareUpdateDrrnme

Menu Command/submenu Button Description
File New	Open	Opens a new, empty parameter set (even without screwdriver con- nected).
	Open Opens the Windows-standard Open dialogue box to select a previ- ously saved parameter set.
	Note: Only xml files can be read.
	Save Opens the Windows-standard Save As dialogue box to save the parameter set currently displayed.
	Note: Only xml files can be saved.
	Exit Ends the Bosch EXACT Configurator program.
Device	Connect	Opens the Select Device dialogue box. Once the required screw- driver is selected, a connection to the screwdriver is established.
	Disconnect	Disconnects the currently selected screwdriver.
	Read Parameter	Reads the current parameter set and displays it in the parameter window.
	Save Parameter	Applies and saves the displayed parameter set to the connected screwdriver.
	Restore to Factory Set- tings	Reset the connected screwdriver to factory settings.
Options Change Language Option to select the language for the user interface (e.g. German or English). The selection is not activated until the program is restarted.
Settings		Opens the Settings window with the Logging tab to configure the log window.
Change User Password		Enables you to set and change a password.
Help Manual 4.1 UNI		Opens the operating instructions for the EXACT ION 18V series as a PDF file. You will need Adobe Acrobat Reader to view this.
Manual 5.2 UNI		Opens the operating instructions for the EXACT 12V series as a PDF file. You will need Adobe Acrobat Reader to view this.

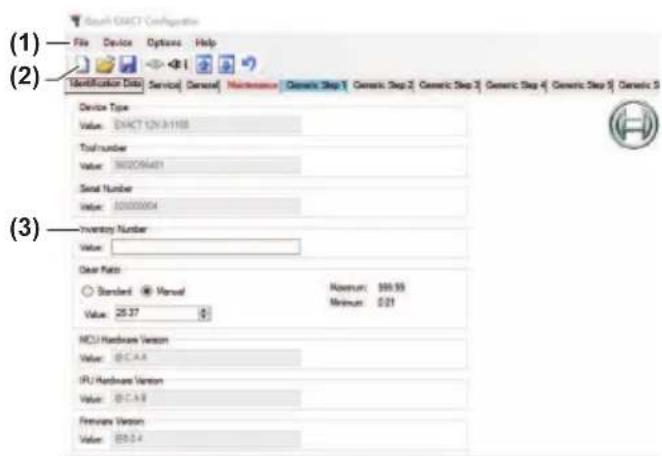

Structure of the User Interface

(1) Main menu
(2) Toolbar with buttons
(3) Parameter window
(4) Protocol window

Menu Command/submenu Button Description
License-Info	Displays the license information.
About Bosch EXACT Con-figurator	Displays the software version.

Parameter Window

All of the screwdriver's parameters are displayed in the parameter window. The parameters are outlined in 11 tabs.

Non-configurable parameters or values are displayed as inactive (greyed out).

Tab Description See		page
Identification Data	Parameter to help clearly identify the screwdriver (e.g. serial number)	27
Service	Parameter/data for service 28
General	General parameter for general operating components of the screwdriver (e.g. worklight)	29

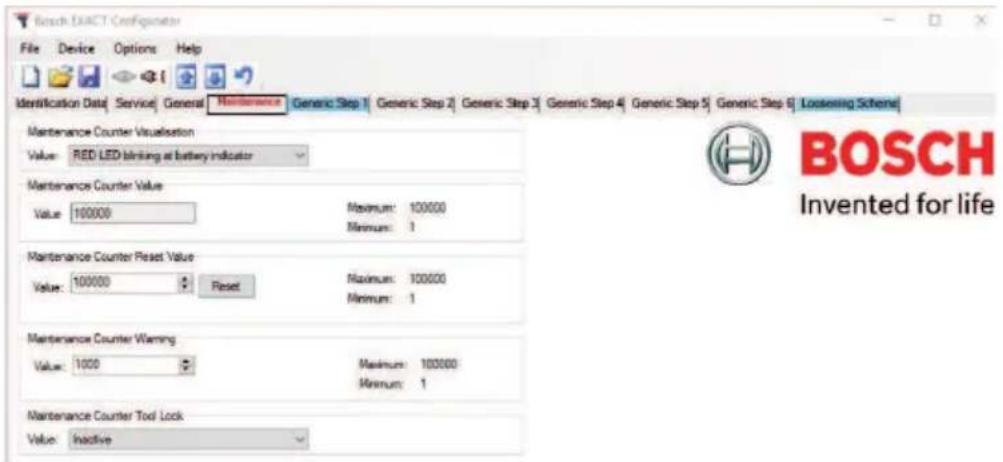

Maintenance (For EXACT 12V series only)	Parameter/data for maintenance	31
Generic Step 1	Parameter for the first screw phase	32
Generic Step 2	Parameter for the second screw phase	32
Generic Step 3	Parameter for the third screw phase	32
Generic Step 4	Parameter for the fourth screw phase	32
Generic Step 5	Parameter for the fifth screw phase	32
Generic Step 6	Parameter for the sixth screw phase	32

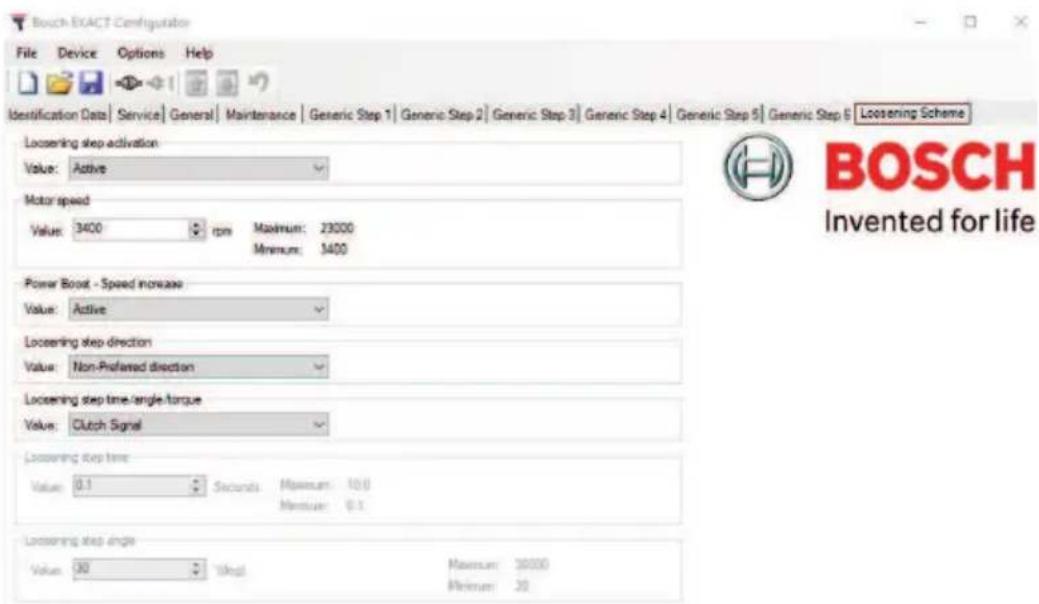

Loosening Scheme	Parameter for the loosen setting	32

Protocol Window

Description
Time	Time
Content	Log of executed and ongoing processes

Information is displayed in black, error messages are displayed in red.

The context menu (right click) can be used to delete the content of the protocol window (select Empty) or to save the protocol window as a *.log file (select Save).

Configuration Process

Starting the Program

• Double-click the program icon on the desktop.

or

• Open Bosch EXACT Configurator via the start menu.
• Select the User access level once the program is launched.

Changing the language of the user interface

• From the Options | Change Language menu, select the command for the new language (German/English/Spanish/French/Chinese).
• Confirm you are terminating the program.
• The program restarts automatically.

The user interface is then displayed in the new selected language.

Connecting with a Screwdriver

Connecting once the program is launched

• Connect the screwdriver to the PC (see "Connecting the Screwdriver with the PC", page 22).
  The parameter set of the selected screwdriver is read and displayed.

If a parameter set has already been loaded before the connection is established, this is overwritten by the new parameter set.

Connection information and the process status are both displayed in the log window.

Connecting the Screwdriver Manually

If a screwdriver is already connected to the PC before the program is launched, the connection, if required, must be established manually.

• Open the Device menu and select Connect or click on the button.
  The Select Device dialogue box is displayed.
• Select the required screwdriver and click on OK.

Preconfigured Screwdriver

Definition: Screwdriver with a unique serial number

Opening Saved Parameter Set

In addition to the option of loading a parameter set from a connected screwdriver, a parameter set can also be loaded from a saved file.

• Open the File menu, select Open or click on the button.
  The Windows-standard Open dialogue box is displayed.
• Select the required parameter set and click Open.
  Existing connection with a screwdriver:

The parameter set displayed is overwritten in the user interface by the new parameter set. The new parameter set can then be edited or applied to the screwdriver.
No connection with a screwdriver:

The new parameter set is displayed, but cannot be applied to a screwdriver. The operating controls required to create a parameter set are deactivated. The new parameter set can, however, be edited and then saved again.

Note: In the case of parameters that the user cannot change within a screwdriver, it is also not possible to edit these parameters in a file opened from the hard drive.

Saving a Parameter Set to the Hard Drive

The displayed parameter set can be saved as an *.xml file.

-In the File menu, select Save or click on the button.

The Windows-standard Save As dialogue box is displayed.
- Enter a file name for the parameter set you want to save and click on Save.

Reading a Parameter Set from a Screwdriver

The parameter set for a connected screwdriver can be viewed.

• Open the Device menu and select Load Parameters or click on the button.

The parameter set displayed is overwritten in the user interface by the parameter set of the connected screwdriver.

Information on the process status is displayed in the log window. Once the final parameter has been read, all non-readable parameters are displayed both in the log window and in a dialogue box.

If another read or write function is launched during the reading process, that function will not be completed. An error message will be displayed in the log window accordingly.

If the program receives an invalid parameter value, a corresponding error message will be shown in the log window and the default value for that parameter will be entered.

Saving a Parameter Set in the Screwdriver Memory

The parameter set on display can be saved to the memory of the connected screwdriver.

• Open the Device menu and select Save Parameters on click on the button.

The parameter set displayed then overwrites the parameter set of the connected screwdriver.

Information on the process status is displayed in the log window. Once the final parameter has been read, all non-readable parameters are displayed both in the log window and in a dialogue box.

If another read or write function is launched during the saving process, that function will not be completed. An error message will be displayed in the log window accordingly.

Resetting to Factory Settings

A predefined parameter set or the factory settings can be saved to the memory of the connected screwdriver.

• Open the Device menu and select Restore to Factory Settings or click on the button.

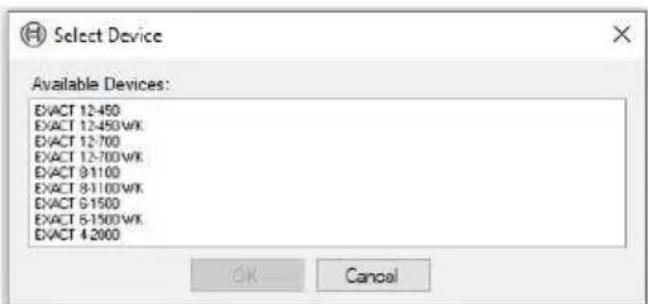

The Select Device dialogue box is displayed.

• Select the required configuration (factory settings for the relevant screwdriver) and click on OK.
• Confirm your decision by clicking Yes on the Reset Parameters message.
  Any parameters that are writeable and that are not greyed out are set to their default value. All model-specific parameters remain unchanged. The model-specific identification data is set based on the device type selected.
  All writeable parameter values are then applied to the screwdriver.

Parameter Description

General Information

If it is possible to adjust the numerical value of a parameter, then the Maximum and Minimum permitted values will be displayed next to the unit in the parameter field.

You can either type the new value straight into the field within the set limits or increase/decrease the existing value using the arrow buttons.

Activated screw phases are highlighted in blue. Adjustments that have not yet been applied to the screwdriver are displayed in red font.

If the direction of rotation is set to the "non-preferred direction", the tab appears with an orange background.

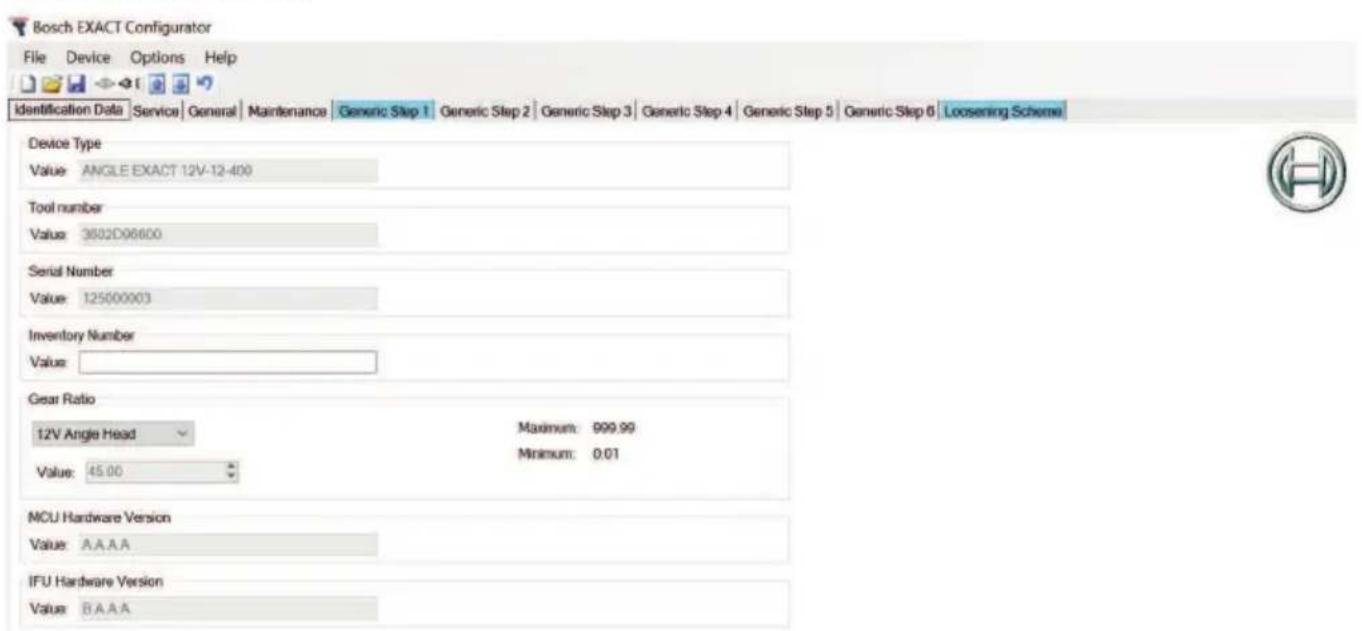

Identification Data Tab

Parameter Description Value
Device Type	Screwdriver trade name	Cannot be changed
	The trade name is also displayed on the screwdriver type plate.
Tool Number	Screwdriver article number	Cannot be changed
	The article number is displayed on the screwdriver type plate.
Serial Number	Screwdriver serial number	Cannot be changed
	The serial number is also displayed on the screwdriver type plate.
Inventory Number	Screwdriver's unique inventory number Maximum 25 characters
Gear Ratio Standard option	Screwdriver's total gear ratio; on the ANGLE EXACT ION, this always includes the ratio of the angle head	Cannot be changed
	Manual option Value for a different output (e.g. geared offset head or auxiliary transmission)	Adjustable within the set limits
Gear Ratio Angle head	Gear ratio of the selected angle head 12V Angle Head	180W Angle Head
		or
		adjustable within the set limits
MCU Hardware Version (For the EXACT 12V series only)	Hardware version of the power electronics Cannot be changed

Parameter Description Value

IFU Hardware Version Hardware version of the display electronics Cannot be changed

(For the EXACT 12V series only)

Firmware Version

(For the EXACT 12V series only)

Firmware version Cannot be changed

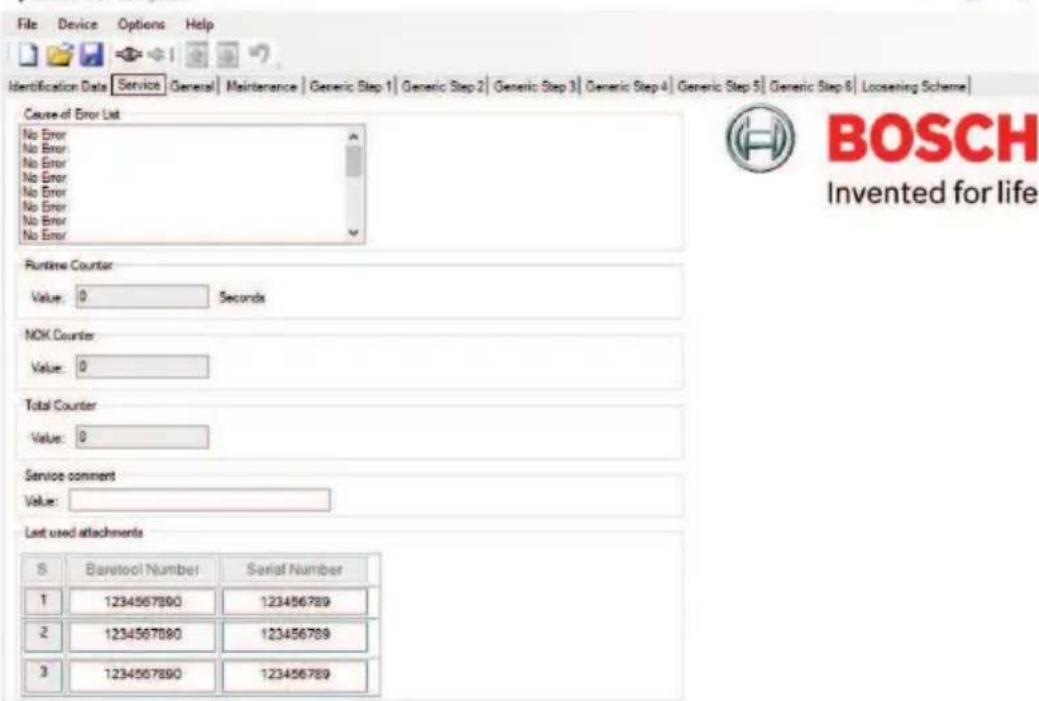

Service Tab

B Bosch EXACT Configurator

Parameter Description Value

Cause of Error List	This list displays the previous 20 causes for an NOK screwdriving application.	Read-only
Runtime Counter	Internal counter for the screwdriver motor runtime.	Read-only
NOK Counter	Internal counter for all NOK screwdriving applications.	Read-only
Total Counter	Internal counter for all screwdriver startups. Read-only
Service comment	Screwdriver service history Maximum 20 characters The service history is overwritten with each entry.
Last used attachments	History of the last used additional modules / attachments	Read-only

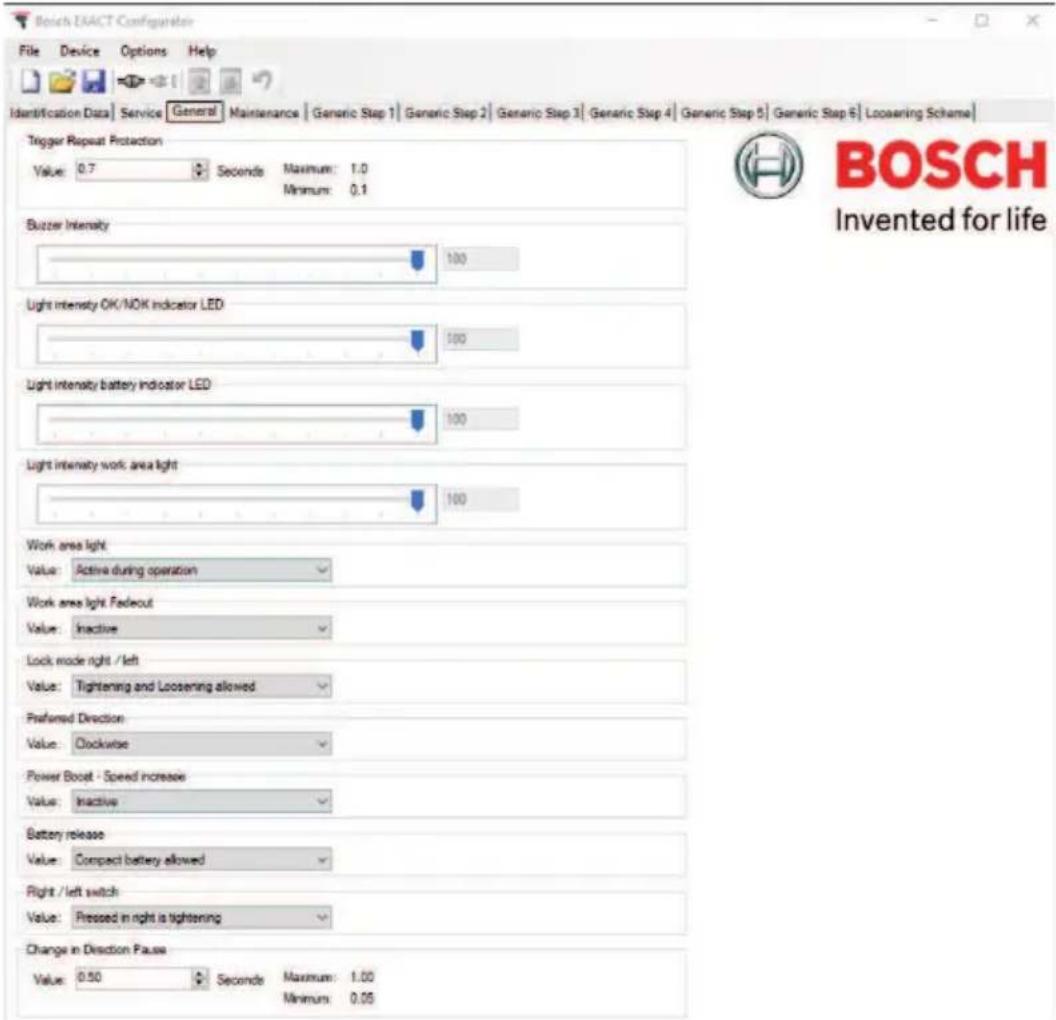

General Tab

Parameter Description Value
Trigger Repeat Protection	The trigger repeat protection prevents the tool from restarting within a specific time frame after the on/off switch is released. This is designed to help prevent double hits that might break the screws.	Adjustable within the set limits
Buzzer Intensity (For EXACT 12V series only)	The volume of the buzzer can be adjusted. 100 % can be adjusted between 0 % and 100 % in 10 % increments
Light intensity OK/NOK indicator LED (For EXACT 12V series only)	The light intensity of the OK/NOK indicator LED can be adjusted.	100 % can be adjusted between 0 % and 100 % in 10 % increments
Light intensity battery indicator LED (For EXACT 12V series only)	The light intensity of the battery indicator can be adjusted.	100 % can be adjusted between 0 % and 100 % in 10 % increments
Light intensity work area light (For EXACT 12V series only)	The light intensity of the work area light can be adjusted.	100 % can be adjusted between 0 % and 100 % in 10 % increments
Work area Light	The illuminating LED, or worklight, is designed to light up the screw location, making it easier to find the screw head.	Active during operation LED comes on when the on/off switch is pressed lightly.
	The parameter can be set to suit the working requirements.	Not active
		Active and afterglow LED stays on for approx. 1 minute after use.
Work area light Fadeout (For EXACT 12V series only)	The worklight fades out slowly. On	Worklight fades out slowly
		Off
		Worklight fades out quickly
Battery release	The "Bosch Flexible Power System" enables the use of different battery packs. As well as the premium battery pack, the smaller and lighter compact battery pack is permitted for use.	Compact battery pack allowed
		Compact battery pack not allowed
	Note: Changing this parameter can affect the maximum torque of the screwdriver.
Lock mode right / left	This parameter restricts the rotational directions of the screwdriver.	Right and left allowed
		Default setting
	Note: This setting is dependent on the preferred rotational direction (see next parameter).	Allow tightening program only The screwdriver can only be used to tighten screws
		Allow loosening program only The screwdriver can only be used to loosen screws
Preferred Direction	This parameter determines the default rota-tional direction of the screwdriver. The default rotational direction is always the rotational direction of the screwdriver in its final tightening phase. Only in this direction can an OK evaluation of the assembly be confirmed.	Clockwise for right-hand threads
		Anticlockwise for left-hand threads
Power Boost - Speed increase (For EXACT 12V series only)	Function for increasing the no-load speed of the power tool by approx. 35%. This means that there is not constancy of speed over the battery discharge curve.	Inactive
		Function is not in use Active
	The increased speed may affect the accuracy and shut-off behaviour. The clutch may be released. The machine capability must be checked with the relevant setting.	Function is in use User-defined configuration Can be individually enabled at each setting
Right / left switch	This parameter adjusts the logic of the rota-tional direction switch.	Pressed in right is tightening Default setting
		Pressed in right is loosening e.g. when using an auxiliary transmis-sion, which reverses the rotational direction
Change in Direction Pause	This parameter determines the downtime when a change in rotational direction occurs within the process.	Adjustable within the set limits

Maintenance tab (for EXACT 12V series only)

Parameter Description Value
Maintenance Counter Visualisation	Activates the maintenance counter Off	Maintenance counter visualisation switched off
		Red LED on the battery indicator flashes
		Maintenance counter visualisation switched on
		Work area light flashes
		Maintenance counter visualisation switched on
Maintenance Counter Value The Maintenance Counter Value indicates the current status of the counter.		Read-only, can be reset to the set maintenance counter reset value by pressing the reset button
Maintenance Counter Reset Value	The reset value can be set. The maintenance counter reset value can be set from 1 to 100,000.
	Reset button	The reset button transmits the value to the maintenance counter. This value is transmitted when writing the parameters to the screwdriver.
Maintenance Counter Warning	The warning ensures that users are informed in good time that the screwdriver should be maintained within the set value.	The warning can be set from 1 to 100,000.
Maintenance Counter Tool Lock	Locks the screwdriver when it reaches the set value.	Off
		Maintenance counter tool lock switched off
		On
		Maintenance counter tool lock switched on

Tabs for steps 1 to 6 and loosening scheme

The sequence of the screwdriving program can be freely defined in a maximum of six steps and the loosening scheme.

Example:

• Generic Step 1 (threading phase): The threading phase is the first phase in the screwing process. Here, it is important that the screwdriver bit, screw head and screw threads all interlock.

For this, a low speed should be set. When finding the thread, it can also be helpful to use a fourth step direction that is the opposite to the screw-in direction.

• Generic Step 2 (screwing in quickly): Once the first thread is screwed in, a speed higher than that used during the threading phase can be set to screw in the remaining threads. This saves process time.
• Generic Step 3 (final tightening): In the interest of accuracy and to minimise settling conditions, the lowest speed possible should be set for the final tightening.
• Generic Step 4 (loosening phase): The loosening phase enables the thread assembly to be loosened slightly in order to make adjustments to the component, e.g. after the defined tightening of the component. This method can also be used to automatically cut blind hole threads.

Loosening Scheme Tab

The loosening scheme determines the function during the loosening phase (not preferred rotational direction).

Parameter Description Value

Activation	This parameter activates the corresponding step.	Inactive Phase switched off
	The tab for the activated step is highlighted blue.	Active Phase activated
Output speed	This parameter sets the speed required at output.	Adjustable within the set limits
	This setting is dependent on the gear ratio in the Identification Data tab.
	This can only be set between 10 % and 100 % of the maximum speed on the EXACT ION and between 20 % and 100 % of the maximum speed on the EXACT 12V (see type plate). A speed setting is subject to tolerances and must be checked again outside of the program.
	Note: The reduction in speed (especially below 50 %) can lower the maximum torque. Machine capability tests are usually done at 600 rpm in accordance with VDI 2647. Changes to the speed and/or torque may affect the accuracy.
Parameter Description Value
	The machine capability must be checked with the relevant setting.
Power Boost - Speed increase	Function for increasing the no-load speed of the power tool by approx. 35%. This means that there is not constancy of speed over the battery discharge curve.The increased speed may affect the accuracy and shut-off behaviour. The clutch may be released. The machine capability must be checked with the relevant setting.	InactiveFunction is not in useActiveFunction is in use
Rotation Direction	This parameter sets the rotational direction required. This setting is dependent on the preferred rotational direction specified in the Gen-eral tab.	Preferred rotational directionNon-preferred rotational direction
Phase Length Unit	The transition to the next step can be controlled either by rotation angle or by time or on the basis of the clutch signal.Depending on the setting, the following parameter is activated.	Rotation angleTransition is controlled by the rota-tion angleThe Rotation Angle at output para-meter is activatedTimeTransition is controlled by timeThe Runtime parameter is activatedClutch signalTransition is completed after a switch-off signal is emitted by the shut-off clutch
Runtime	This parameter determines the time after which the process transitions to the next step.Note: If the set torque on the clutch is already reached during the threading phase, the screw-driver still switches off and signals an incorrect thread assembly.	Adjustable within the set limits
Rotation Angle at output	This parameter determines the angle at which the process transitions to the next step. This setting is dependent on the gear ratio in the Identification Data tab.A rotational angle setting is subject to tolerances and must be checked again outside of the program.Note: If the set torque on the clutch is already reached during the threading phase, the screw-driver still switches off and signals an incorrect thread assembly.	Adjustable within the set limits

Messages

This table shows all the error messages that might appear when working with Bosch EXACT Configurator. Example:

Question

You are still connected to a screw driver, do you really want to exit?

OK

Cancel

Depending on the content of the message, confirm the notifications, questions or warnings with a Yes or No.

Title Message text Meaning
Question	You are still connected to a screwdriver, do you really want to exit?	Confirmation is required to end the program when a screwdriver is still connected.
Unwritten Changes	Not all changes were transferred to the device. Should they be written now?	When disconnecting the screwdriver, there are still unwritten parameter changes.
Reset Parameters	Do you really want to reset the current settings?	Confirmation is required to reset to the default data sets.
Unread Parameters	The following parameters could not be read:	Bosch EXACT Configurator operating program and the screwdriver firmware are not compatible.
		Screwdriver is faulty.
Unwritten Parameters	The following parameters could not be written:	Bosch EXACT Configurator operating program and the screwdriver firmware are not compatible.
		Screwdriver is faulty.
Invalid Checksum	Received a message with invalid checksum value.	Communication error
		Screwdriver is faulty.
Retry Counter Reached	The retry counter of the service has been reached, device will be disconnected.	Communication error
		Screwdriver is faulty.
Unknown Message Received	Received an unknown message.	Bosch EXACT Configurator operating program and the screwdriver firmware are not compatible.
		Screwdriver is faulty.
Changed GearRatio manually	The gear ratio and thereby the output speeds have been changed.
Motor Speed Parameter Not Optimal	The device isn't used with the optimal efficiency factor. Thus the overtemperature protection will be activated earlier. In case of problems with this settings please configure an output speed greater than 50% or reduce the maximum used torque.
Select an Access Level First before writing password	Please select an access level first.
Remaining Attempts to login	Attempts remaining
Password	The password confirmation does not match the new password.
	The old password does not match.
Password specification	Password should contain at least one lower case letter.
	Password should contain at least one numeric value.

Title Message text Meaning

	Password should contain at least one special case characters.
	Password should contain at least one upper case letter.
	Your password has been successfully changed.
	Password should be greater than 10 characters.
	Password should not be empty.
	Password length must be 10 or more with combination of alphanumeric, capital small and special characters
PowerBoost Active	Speed constancy over the discharge curve of the battery pack is no longer available.
ShutOffNotClutchSignal	Shut-off and OK signal will not be done from a clutch signal!
StillConnectedWantToExit	You are still connected to a screwdriver, do you really want to exit?
Warning If ScrewProgram is Active and NoStep is Active	The lock mode is currently configured to Active, but all steps are configured as inactive.
CFG Version More than Firmware Version	Configurator tool version greater than tool version. Contact service for firmware upgrade of tool version. Click on OK to continue with old tool version.
Firmware Version is More than CFG Version	Update configurator to new version. Contact service for configurator software update. Click on OK to continue with old tool version.
MCU Update Failed Instruction	MCU update failed, follow these instructions:1. Disconnect the USB from PC2. Remove and reconnect the battery3. Close the configurator4. Start the MCU update again
MCU Software Corrupted	MCU software is corrupted! Please do firmware update.
Select BinFile	Please select bin file.
Select ProperBinFile	Please select proper bin file.
WarningDo not remove USB while writing parameters	Writing parameters in progress, do not remove USB
Parameters Not Read Successfully	Parameters not read successfully!
Parameters Not Written Successfully	Parameters not written successfully!
Parameters Read Successfully	Parameters read successfully!
Parameters Written Successfully	Parameters written successfully!

Français

Informations generales

The instaler will guide you through the steps required to install Bosch EXACT Configurator on your computer.

WARNING: This computer program is protected by copyright law and international treaties. Unauthorized duplication or distribution of this program, or any portion of it, may result in severe civil or criminal penalties, and will be prosecuted to the maximum extent possible under the law.

Cancel

<Back

Next>

You are still connected to a screw driver, do you really want to exit?

OK

Cancel

Open Source Software Attributions for Bosch EXACT Configurator

This document is provided as part of the fulfillment of OSS license conditions and does not require users to take any action before or while using the product.

1 List of used Open Source Components.

This document contains a list of open source software (OSS) components used within the product under the terms of the respective licenses. The source code corresponding to the open source components is also provided along with the product wherever mandated by the respective OSS license

SI no. Name of OSS/Commercial Component	Version of OSS Component	Name and Version of License (License text can be found in Appendix below)	More Information
1 Device Framework Up-grade	1.0 Code Project Open License 1.02		Copyright 2013 by Mark McLean
2 Hex2dfu 1.0 MIT License Copyright © 2014 Krzysztof Rutecki
3 NetFDULib 3.0.6 MIT License Copyright © 2015 Kauai Labs, Inc
4 SRecord - srecord-win32	1.57.D001 GNU General Public License v3.0 or later		The source code for Open source compliance can be found in the installation folder under the folder "OSS_Bundle"
5 Xp table 1.2.0 BSD 2-Clause "Simplified" Li-		License	Copyright © 2005, Mathew Hall All rights reserved Copyright © 2005 Danny Blanchard scrabbcakes Copyright © 2004, Daniel Turini
6 Microchip 3.4.3 Commercial License © 2020 Microchip Technology Inc.			and its subsidiaries

2 Appendix - License Text

2.1 BSD 2-Clause "Simplified" License

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND COLNTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR COLNTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCEDURE OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTER-RUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (IN-CLUDING NEGLIGENCE OR OTHERWISE) ASING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

2.2 Code Project Open License 1.02

The Code Project Open License (CPOL) 1.02

Preamble

This License governs Your use of the Work. This License is intended to allow developers to use the Source Code and Executable Files provided as part of the Work in any application in any form.

The main points subject to the terms of the License are:

a) Source Code and Executable Files can be used in commercial applications;

b) Source Code and Executable Files can be redistributed; and
c) Source Code can be modified to create derivative works.
d) No claim of suitability, guarantee, or any warranty whatsoever is provided. The software is provided "as-is".
e) The Article accompanying the Work may not be distributed or republished without the Author's consent

This License is entered between You, the individual or other entity reading or otherwise making use of the Work licensed pursuant to this License and the individual or other entity which offers the Work under the terms of this License ("Author").

License

THE WORK (AS DEFINED BELOW) IS PROVIDED UNDER THE TERMS OF THIS CODE PROJECT OPEN LICENSE ("LICENSE"). THE WORK IS PROTECTED BY COPYRIGHT AND/OR OTHER APPLICABLE LAW. ANY USE OF THE WORK OTHER THAN AS AUTHORIZED UNDER THIS LICENSE OR COPYRIGHT LAW IS PROHIBITED. BY EXERCISING ANY RIGHTS TO THE WORK PROVIDED HEREIN, YOU ACCEPT AND AGREE TO BE BOUND BY THE TERMS OF THIS LICENSE. THE AUTHOR GRANTS YOU THE RIGHTS CONTAINED HEREIN IN CONSIDERATION OF YOUR ACCEPTANCE OF SUCH TERMS AND CONDITIONS. IF YOU DO NOT AGREE TO ACCEPT AND BE BOUND BY THE TERMS OF THIS LICENSE, YOU CAN NOT MAKE ANY USE OF THE WORK.

1) Definitions.

"Articles" means, collectively, all articles written by Author which describes how the Source Code and Executable Files for the Work may be used by a user.

"Author" means the individual or entity that offers the Work under the terms of this License.

"Derivative Work" means a work based upon the Work or upon the Work and other pre-existing works.

"Executable Files" refer to the executables, binary files, configuration and any required data files included in the Work.

"Publisher" means the provider of the website, magazine, CD-ROM, DVD or other medium from or by which the Work is obtained by You.

"Source Code" refers to the collection of source code and configuration files used to create the Executable Files.

"Standard Version" refers to such a Work if it has not been modified, or has been modified in accordance with the consent of the Author, such consent being in the full discretion of the Author.

"Work" refers to the collection of files distributed by the Publisher, including the Source Code, Executable Files, binaries, data files, documentation, whitepapers and the Articles.

"You" is you, an individual or entity wishing to use the Work and exercise your rights under this License.

2) Fair Use/Fair Use Rights. Nothing in this License is intended to reduce, limit, or restrict any rights arising from fair use, fair dealing, first sale or other limitations on the exclusive rights of the copyright owner under copyright law or other applicable laws.

3) License Grant. Subject to the terms and conditions of this License, the Author hereby grants You a worldwide, royalty-free, non-exclusive, perpetual (for the duration of the applicable copyright) license to exercise the rights in the Work as stated below:

You may use the standard version of the Source Code or Executable Files in Your own applications.

You may apply bug fixes, portability fixes and other modifications obtained from the Public Domain or from the Author. A Work modified in such a way shall still be considered the standard version and will be subject to this License.

You may otherwise modify Your copy of this Work (excluding the Articles) in any way to create a Derivative Work, provided that You insert a prominent notice in each changed file stating how, when and where You changed that file.

You may distribute the standard version of the Executable Files and Source Code or Derivative Work in aggregate with other (possibly commercial) programs as part of a larger (possibly commercial) software distribution.

The Articles discussing the Work published in any form by the author may not be distributed or republished without the Author's consent. The author retains copyright to any such Articles. You may use the Executable Files and Source Code pursuant to this License but you may not repost or republish or otherwise distribute or make available the Articles, without the prior written consent of the Author.

Any subroutines or modules supplied by You and linked into the Source Code or Executable Files this Work shall not be considered part of this Work and will not be subject to the terms of this License.

4) Patent License. Subject to the terms and conditions of this License, each Author hereby grants to You a perpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable (except as stated in this section) patent license to make, have made, use, import, and otherwise transfer the Work.

5) Restrictions. The license granted in Section 3 above is expressly made subject to and limited by the following restrictions: You agree not to remove any of the original copyright, patent, trademark, and attribution notices and associated disclaimers that may appear in the Source Code or Executable Files.

You agree not to advertise or in any way imply that this Work is a product of Your own.

The name of the Author may not be used to endorse or promote products derived from the Work without the prior written consent of the Author.

You agree not to sell, lease, or rent any part of the Work. This does not restrict you from including the Work or any part of the Work inside a larger software distribution that itself is being sold. The Work by itself, though, cannot be sold, leased or rented.

You may distribute the Executable Files and Source Code only under the terms of this License, and You must include a copy of, or the Uniform Resource Identifier for, this License with every copy of the Executable Files or Source Code You distribute and ensure that anyone receiving such Executable Files and Source Code agrees that the terms of this License apply to such Executable Files and/or Source Code. You may not offer or impose any terms on the Work that alter or restrict the terms of this License or the recipients' exercise of the rights granted hereunder. You may not sublicense the Work. You must keep intact all notices that refer to this License and to the disclaimer of warranties. You may not distribute the Executable Files or Source Code with any technological measures that control access or use of the Work in a manner inconsistent with the terms of this License.

You agree not to use the Work for illegal, immoral or improper purposes, or on pages containing illegal, immoral or improper material. The Work is subject to applicable export laws. You agree to comply with all such laws and regulations that may apply to the Work after Your receipt of the Work.

6) Representations, Warranties and Disclaimer. THIS WORK IS PROVIDED "AS IS", "WHERE IS" AND "AS AVAILABLE", WITHOUT ANY EXPRESS OR IMPLIED WARRANTY OR CONDITIONS OR GUARANTEES. YOU, THE USER, ASSUME ALL RISK IN ITS USE, INCLUDING COPYRIGHT INFRINGEMENT, PATENT INFRINGEMENT, SUITABILITY, ETC. AUTHOR EXPRESSLY DISCLAIMS ALL EXPRESS, IMPLIED OR STATUTORY WARRANTY OR CONDITIONS, INCLUDING WITHOUT LIMITATION, WARRANTY OR CONDITIONS OF MERCHANTIBILITY, MERCHANTABLE QUALITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ANY WARRANTY OF TITLE OR NON-INFRINGEMENT, OR THAT THE WORK (OR ANY PORTION THEREOF) IS CORRECT, USEFUL, BUG-FREE OR FREE OF VIRUSES. YOU MUST PASS THIS DISCLAIMER ON WHENEVER YOU DISTRIBUTE THE WORK OR DERIVATIVE WORKS.

7) Indemnity. You agree to defend, indemnify and hold harmless the Author and the Publisher from and against any claims, suits, losses, damages, liabilities, costs, and expenses (including reasonable legal or attorneys' fees) resulting from or relating to any use of the Work by You.

8) Limitation on Liability. EXCEPT TO THE EXTENT REQUIRED BY APPLICABLE LAW, IN NO EVENT WILL THE AUTHOR OR THE PUBLISHER BE LIABLE TO YOU ON ANY LEGAL THEORY FOR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR EX-EMPLARY DAMAGES ARISING OUT OF THIS LICENSE OR THE USE OF THE WORK OR OTHERWISE, EVEN IF THE AUTHOR OR THE PUBLISHER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

9) Termination.

This License and the rights granted hereunder will terminate automatically upon any breach by You of any term of this License. Individuals or entities who have received Derivative Works from You under this License, however, will not have their licenses terminated provided such individuals or entities remain in full compliance with those licenses. Sections 1, 2, 6, 7, 8, 9, 10 and 11 will survive any termination of this License.

If You bring a copyright, trademark, patent or any other infringement claim against any contributor over infringements You claim are made by the Work, your License from such contributor to the Work ends automatically.

Subject to the above terms and conditions, this License is perpetual (for the duration of the applicable copyright in the Work). Notwithstanding the above, the Author reserves the right to release the Work under different license terms or to stop distributing the Work at any time; provided, however that any such election will not serve to withdraw this License (or any other licen

se that has been, or is required to be, granted under the terms of this License), and this License will continue in full force and effect unless terminated as stated above.

10) Publisher. The parties hereby confirm that the Publisher shall not, under any circumstances, be responsible for and shall not have any liability in respect of the subject matter of this License. The Publisher makes no warranty whatsoever whatsoever in connection with the Work and shall not be liable to You or any party on any legal theory for any damages whatsoever, including without limitation any general, special, incidental or consequential damages arising in connection to this license. The Publisher reserves the right to cease making the Work available to You at any time without notice.

11) Miscellaneous

This License shall be governed by the laws of the location of the head office of the Author or if the Author is an individual, the laws of location of the principal place of residence of the Author.

If any provision of this License is invalid or unenforceable under applicable law, it shall not affect the validity or enforceability of the remainder of the terms of this License, and without further action by the parties to this License, such provision shall be reformed to the minimum extent necessary to make such provision valid and enforceable.

No term or provision of this License shall be deemed waived and no breach consented to unless such waiver or consent shall be in writing and signed by the party to be charged with such waiver or consent.

This License constitutes the entire agreement between the parties with respect to the Work licensed herein. There are no understandings, agreements or representations with respect to the Work not specified herein. The Author shall not be bound by any additional provisions that may appear in any communication from You. This License may not be modified without the mutual written agreement of the Author and You.

2.3 GNU General Public License v3.0 or later

GNU GENERAL PUBLIC LICENSE

Version 3, 29 June 2007

Copyright © 2007 Free Software Foundation, Inc. https://fsf.org/

Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

Preamble

The GNU General Public License is a free, copyleft license for software and other kinds of works.

The licenses for most software and other practical works are designed to take away your freedom to share and change the works. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change all versions of a program--to make sure it remains free software for all its users. We, the Free Software Foundation, use the GNU General Public License for most of our software; it applies also to any other work released this way by its authors. You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for them if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs, and that you know you can do these things.

To protect your rights, we need to prevent others from denying you these rights or asking you to surrender the rights. Therefore, you have certain responsibilities if you distribute copies of the software, or if you modify it: responsibilities to respect the freedom of others.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must pass on to the recipients the same freedoms that you received. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.

Developers that use the GNU GPL protect your rights with two steps: (1) assert copyright on the software, and (2) offer you this License giving you legal permission to copy, distribute and/or modify it.

For the developers' and authors' protection, the GPL clearly explains that there is no warranty for this free software. For both users' and authors' sake, the GPL requires that modified versions be marked as changed, so that their problems will not be attributed erroneously to authors of previous versions.

Some devices are designed to deny users access to install or run modified versions of the software inside them, although the manufacturer can do so. This is fundamentally incompatible with the aim of protecting users' freedom to change the software. The systematic pattern of such abuse occurs in the area of products for individuals to use, which is precisely where it is most

unacceptable. Therefore, we have designed this version of the GPL to prohibit the practice for those products. If such problems arise substantially in other domains, we stand ready to extend this provision to those domains in future versions of the GPL, as needed to protect the freedom of users.

Finally, every program is threatened constantly by software patents. States should not allow patents to restrict development and use of software on general-purpose computers, but in those that do, we wish to avoid the special danger that patents applied to a free program could make it effectively proprietary. To prevent this, the GPL assures that patents cannot be used to render the program non-free.

The precise terms and conditions for copying, distribution and modification follow.

TERMS AND CONDITIONS

1. Definitions.

"This License" refers to version 3 of the GNU General Public License.

"Copyright" also means copyright-like laws that apply to other kinds of works, such as semiconductor masks.

"The Program" refers to any copyrightable work licensed under this License. Each licensee is addressed as "you". "Licensees" and "recipients" may be individuals or organizations.

To "modify" a work means to copy from or adapt all or part of the work in a fashion requiring copyright permission, other than the making of an exact copy. The resulting work is called a "modified version" of the earlier work or a work "based on" the earlier work.

A "covered work" means either the unmodified Program or a work based on the Program.

To "propagate" a work means to do anything with it that, without permission, would make you directly or secondarily liable for infringement under applicable copyright law, except executing it on a computer or modifying a private copy. Propagation includes copying, distribution (with or without modification), making available to the public, and in some countries other activities as well.

To "convey" a work means any kind of propagation that enables other parties to make or receive copies. Mere interaction with a user through a computer network, with no transfer of a copy, is not conveying.

An interactive user interface displays "Appropriate Legal Notices" to the extent that it includes a convenient and prominently visible feature that (1) displays an appropriate copyright notice, and (2) tells the user that there is no warranty for the work (except to the extent that warranties are provided), that licensees may convey the work under this License, and how to view a copy of this License. If the interface presents a list of user commands or options, such as a menu, a prominent item in the list meets this criterion.

1. Source Code.

The "source code" for a work means the preferred form of the work for making modifications to it. "Object code" means any non-source form of a work.

A "Standard Interface" means an interface that either is an official standard defined by a recognized standards body, or, in the case of interfaces specified for a particular programming language, one that is widely used among developers working in that language.

The "System Libraries" of an executable work include anything, other than the work as a whole, that (a) is included in the normal form of packaging a Major Component, but which is not part of that Major Component, and (b) serves only to enable use of the work with that Major Component, or to implement a Standard Interface for which an implementation is available to the public in source code form. A "Major Component", in this context, means a major essential component (kernel, window system, and so on) of the specific operating system (if any) on which the executable work runs, or a compiler used to produce the work, or an object code interpreter used to run it.

The "Corresponding Source" for a work in object code form means all the source code needed to generate, install, and (for an executable work) run the object code and to modify the work, including scripts to control those activities. However, it does not include the work's System Libraries, or general-purpose tools or generally available free programs which are used unmodified in performing those activities but which are not part of the work. For example, Corresponding Source includes interface definition files associated with source files for the work, and the source code for shared libraries and dynamically linked subprograms that the work is specifically designed to require, such as by intimate data communication or control flow between those subprograms and other parts of the work.

The Corresponding Source need not include anything that users can regenerate automatically from other parts of the Corresponding Source.

The Corresponding Source for a work in source code form is that same work.

2. Basic Permissions.

All rights granted under this License are granted for the term of copyright on the Program, and are irrevocable provided the stated conditions are met. This License explicitly affirms your unlimited permission to run the unmodified Program. The output from running a covered work is covered by this License only if the output, given its content, constitutes a covered work. This License acknowledges your rights of fair use or other equivalent, as provided by copyright law.

You may make, run and propagate covered works that you do not convey, without conditions so long as your license otherwise remains in force. You may convey covered works to others for the sole purpose of having them make modifications exclusively for you, or provide you with facilities for running those works, provided that you comply with the terms of this License in conveying all material for which you do not control copyright. Those thus making or running the covered works for you must do so exclusively on your behalf, under your direction and control, on terms that prohibit them from making any copies of your copyrighted material outside their relationship with you.

Conveying under any other circumstances is permitted solely under the conditions stated below. Sublicensing is not allowed; section 10 makes it unnecessary.

3. Protecting Users' Legal Rights From Anti-Circumvention Law.

No covered work shall be deemed part of an effective technological measure under any applicable law fulfilling obligations under article 11 of the WIPO copyright treaty adopted on 20 December 1996, or similar laws prohibiting or restricting circumvention of such measures.

When you convey a covered work, you waive any legal power to forbid circumvention of technological measures to the extent such circumvention is effected by exercising rights under this License with respect to the covered work, and you disclaim any intention to limit operation or modification of the work as a means of enforcing, against the work's users, your or third parties' legal rights to forbid circumvention of technological measures.

4. Conveying Verbatim Copies.

You may convey verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice; keep intact all notices stating that this License and any non-permissive terms added in accord with section 7 apply to the code; keep intact all notices of the absence of any warranty; and give all recipients a copy of this License along with the Program.

You may charge any price or no price for each copy that you convey, and you may offer support or warranty protection for a fee.

5. Conveying Modified Source Versions.

You may convey a work based on the Program, or the modifications to produce it from the Program, in the form of source code under the terms of section 4, provided that you also meet all of these conditions:

a) The work must carry prominent notices stating that you modified it, and giving a relevant date.
b) The work must carry prominent notices stating that it is released under this License and any conditions added under section 7. This requirement modifies the requirement in section 4 to "keep intact all notices".
c) You must license the entire work, as a whole, under this License to anyone who comes into possession of a copy. This License will therefore apply, along with any applicable section 7 additional terms, to the whole of the work, and all its parts, regardless of how they are packaged. This License gives no permission to license the work in any other way, but it does not invalidate such permission if you have separately received it.
d) If the work has interactive user interfaces, each must display Appropriate Legal Notices; however, if the Program has interactive interfaces that do not display Appropriate Legal Notices, your work need not make them do so.

A compilation of a covered work with other separate and independent works, which are not by their nature extensions of the covered work, and which are not combined with it such as to form a larger program, in or on a volume of a storage or distribution medium, is called an "aggregate" if the compilation and its resulting copyright are not used to limit the access or legal rights of the compilation's users beyond what the individual works permit. Inclusion of a covered work in an aggregate does not cause this License to apply to the other parts of the aggregate.

6. Conveying Non-Source Forms.

You may convey a covered work in object code form under the terms of sections 4 and 5, provided that you also convey the machine-readable Corresponding Source under the terms of this License, in one of these ways:

a) Convey the object code in, or embodied in, a physical product (including a physical distribution medium), accompanied by the Corresponding Source fixed on a durable physical medium customarily used for software interchange.
b) Convey the object code in, or embodied in, a physical product (including a physical distribution medium), accompanied by a written offer, valid for at least three years and valid for as long as you offer spare parts or customer support for that product model, to give anyone who possesses the object code either (1) a copy of the Corresponding Source for all the software in the product that is covered by this License, on a durable physical medium customarily used for software interchange, for a price no more than your reasonable cost of physically performing this conveying of source, or (2) access to copy the Corresponding Source from a network server at no charge.
c) Convey individual copies of the object code with a copy of the written offer to provide the Corresponding Source. This alternative is allowed only occasionally and noncommercially, and only if you received the object code with such an offer, in accord with subsection 6b.
d) Convey the object code by offering access from a designated place (bonus or for a charge), and offer equivalent access to the Corresponding Source in the same way through the same place at no further charge. You need not require recipients to copy the Corresponding Source along with the object code. If the place to copy the object code is a network server, the Corresponding Source may be on a different server (operated by you or a third party) that supports equivalent copying facilities, provided you maintain clear directions next to the object code saying where to find the Corresponding Source. Regardless of what server hosts the Corresponding Source, you remain obligated to ensure that it is available for as long as needed to satisfy these requirements.
e) Convey the object code using peer-to-peer transmission, provided you inform other peers where the object code and Corresponding Source of the work are being offered to the general public at no charge under subsection 6d.

A separable portion of the object code, whose source code is excluded from the Corresponding Source as a System Library, need not be included in conveying the object code work.

A "User Product" is either (1) a "consumer product", which means any tangible personal property which is normally used for personal, family, or household purposes, or (2) anything designed or sold for incorporation into a dwelling. In determining whether a product is a consumer product, doubtful cases shall be resolved in favor of coverage. For a particular product received by a particular user, "normally used" refers to a typical or common use of that class of product, regardless of the status of the particular user or of the way in which the particular user actually uses, or expects or is expected to use, the product. A product is a consumer product regardless of whether the product has substantial commercial, industrial or non-consumer uses, unless such uses represent the only significant mode of use of the product.

"Installation Information" for a User Product means any methods, procedures, authorization keys, or other information required to install and execute modified versions of a covered work in that User Product from a modified version of its Corresponding Source. The information must suffice to ensure that the continued functioning of the modified object code is in no case prevented or interfered with solely because modification has been made.

If you convey an object code work under this section in, or with, or specifically for use in, a User Product, and the conveying occurs as part of a transaction in which the right of possession and use of the User Product is transferred to the recipient in perpetuity or for a fixed term (regardless of how the transaction is characterized), the Corresponding Source conveyed under this section must be accompanied by the Installation Information. But this requirement does not apply if neither you nor any third party retains the ability to install modified object code on the User Product (for example, the work has been installed in ROM).

The requirement to provide Installation Information does not include a requirement to continue to provide support service, warranty, or updates for a work that has been modified or installed by the recipient, or for the User Product in which it has been modified or installed. Access to a network may be denied when the modification itself materially and adversely affects the operation of the network or violates the rules and protocols for communication across the network.

Corresponding Source conveyed, and Installation Information provided, in accord with this section must be in a format that is publicly documented (and with an implementation available to the public in source code form), and must require no special password or key for unpacking, reading or copying.

7. Additional Terms.

"Additional permissions" are terms that supplement the terms of this License by making exceptions from one or more of its conditions. Additional permissions that are applicable to the entire Program shall be treated as though they were included in this License, to the extent that they are valid under applicable law. If additional permissions apply only to part of the Program, that part may be used separately under those permissions, but the entire Program remains governed by this License without regard to the additional permissions.

When you convey a copy of a covered work, you may at your option remove any additional permissions from that copy, or from any part of it. (Additional permissions may be written to require their own removal in certain cases when you modify the work.)

You may place additional permissions on material, added by you to a covered work, for which you have or can give appropriate copyright permission.

Notwithstanding any other provision of this License, for material you add to a covered work, you may (if authorized by the copyright holders of that material) supplement the terms of this License with terms:

a) Disclaiming warranty or limiting liability differently from the terms of sections 15 and 16 of this License; or
b) Requiring preservation of specified reasonable legal notices or author attributions in that material or in the Appropriate Legal Notices displayed by works containing it; or
c) Prohibiting misrepresentation of the origin of that material, or requiring that modified versions of such material be marked in reasonable ways as different from the original version; or
d) Limiting the use for publicity purposes of names of licensors or authors of the material; or
e) Declining to grant rights under trademark law for use of some trade names, trademarks, or service marks; or
f) Requiring indemnification of licensors and authors of that material by anyone who conveys the material (or modified versions of it) with contractual assumptions of liability to the recipient, for any liability that these contractual assumptions directly impose on those licensors and authors.

All other non-permissive additional terms are considered "further restrictions" within the meaning of section 10. If the Program as you received it, or any part of it, contains a notice stating that it is governed by this License along with a term that is a further restriction, you may remove that term. If a license document contains a further restriction but permits relicensing or conveying under this License, you may add to a covered work material governed by the terms of that license document, provided that the further restriction does not survive such relicensing or conveying.

If you add terms to a covered work in accord with this section, you must place, in the relevant source files, a statement of the additional terms that apply to those files, or a notice indicating where to find the applicable terms.

Additional terms, permissive or non-permissive, may be stated in the form of a separately written license, or stated as exceptions; the above requirements apply either way.

8. Termination.

You may not propagate or modify a covered work except as expressly provided under this License. Any attempt otherwise to propagate or modify it is void, and will automatically terminate your rights under this License (including any patent licenses granted under the third paragraph of section 11).

However, if you cease all violation of this License, then your license from a particular copyright holder is reinstated (a) provisionally, unless and until the copyright holder explicitly and finally terminates your license, and (b) permanently, if the copyright holder fails to notify you of the violation by some reasonable means prior to 60 days after the cessation.

Moreover, your license from a particular copyright holder is reinstated permanently if the copyright holder notifies you of the violation by some reasonable means, this is the first time you have received notice of violation of this License (for any work) from that copyright holder, and you cure the violation prior to 30 days after your receipt of the notice.

Termination of your rights under this section does not terminate the licenses of parties who have received copies or rights from you under this License. If your rights have been terminated and not permanently reinstated, you do not qualify to receive new licenses for the same material under section 10.

9. Acceptance Not Required for Having Copies.

You are not required to accept this License in order to receive or run a copy of the Program. Ancillary propagation of a covered work occurring solely as a consequence of using peer-to-peer transmission to receive a copy likewise does not require acceptance. However, nothing other than this License grants you permission to propagate or modify any covered work. These actions infringe copyright if you do not accept this License. Therefore, by modifying or propagating a covered work, you indicate your acceptance of this License to do so.

10. Automatic Licensing of Downstream Recipients.

Each time you convey a covered work, the recipient automatically receives a license from the original licensors, to run, modify and propagate that work, subject to this License. You are not responsible for enforcing compliance by third parties with this License.

An "entity transaction" is a transaction transferring control of an organization, or substantially all assets of one, or subdividing an organization, or merging organizations. If propagation of a covered work results from an entity transaction, each party to that transaction who receives a copy of the work also receives whatever licenses to the work the party's predecessor in inte

rest had or could give under the previous paragraph, plus a right to possession of the Corresponding Source of the work from the predecessor in interest, if the predecessor has it or can get it with reasonable efforts.

You may not impose any further restrictions on the exercise of the rights granted or affirmed under this License. For example, you may not impose a license fee, royalty, or other charge for exercise of rights granted under this License, and you may not initiate litigation (including a cross-claim or counterclaim in a lawsuit) alleging that any patent claim is infringed by making, using, selling, offering for sale, or importing the Program or any portion of it.

11. Patents.

A "contributor" is a copyright holder who authorizes use under this License of the Program or a work on which the Program is based. The work thus licensed is called the contributor's "contributor version".

A contributor's "essential patent claims" are all patent claims owned or controlled by the contributor, whether already acquired or hereafter acquired, that would be infringed by some manner, permitted by this License, of making, using, or selling its contributor version, but do not include claims that would be infringed only as a consequence of further modification of the contributor version. For purposes of this definition, "control" includes the right to grant patent sub licenses in a manner consistent with the requirements of this License.

Each contributor grants you a non-exclusive, worldwide, royalty-free patent license under the contributor's essential patent claims, to make, use, sell, offer for sale, import and otherwise run, modify and propagate the contents of its contributor version.

In the following three paragraphs, a "patent license" is any express agreement or commitment, however denominated, not to enforce a patent (such as an express permission to practice a patent or covenant not to sue for patent infringement). To "grant" such a patent license to a party means to make such an agreement or commitment not to enforce a patent against the party.

If you convey a covered work, knowingly relying on a patent license, and the Corresponding Source of the work is not available for anyone to copy, free of charge and under the terms of this License, through a publicly available network server or other readily accessible means, then you must either (1) cause the Corresponding Source to be so available, or (2) arrange to deprive yourself of the benefit of the patent license for this particular work, or (3) arrange, in a manner consistent with the requirements of this License, to extend the patent license to downstream recipients. "Knowingly relying" means you have actual knowledge that, but for the patent license, your conveying the covered work in a country, or your recipient's use of the covered work in a country, would infringe one or more identifiable patents in that country that you have reason to believe are valid.

If, pursuant to or in connection with a single transaction or arrangement, you convey, or propagate by procuring conveyance of, a covered work, and grant a patent license to some of the parties receiving the covered work authorizing them to use, propagate, modify or convey a specific copy of the covered work, then the patent license you grant is automatically extended to all recipients of the covered work and works based on it.

A patent license is "discriminatory" if it does not include within the scope of its coverage, prohibits the exercise of, or is conditioned on the non-exercise of one or more of the rights that are specifically granted under this License. You may not convey a covered work if you are a party to an arrangement with a third party that is in the business of distributing software, under which you make payment to the third party based on the extent of your activity of conveying the work, and under which the third party grants, to any of the parties who would receive the covered work from you, a discriminatory patent license (a) in connection with copies of the covered work conveyed by you (or copies made from those copies), or (b) primarily for and in connection with specific products or compilations that contain the covered work, unless you entered into that arrangement, or that patent license was granted, prior to 28 March 2007.

Nothing in this License shall be construed as excluding or limiting any implied license or other defenses to infringement that may otherwise be available to you under applicable patent law.

12. No Surrender of Others' Freedom.

If conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot convey a covered work so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not convey it at all. For example, if you agree to terms that obligate you to collect a royalty for further conveying from those to whom you convey the Program, the only way you could satisfy both those terms and this License would be to refrain entirely from conveying the Program.

13. Use with the GNU Affero General Public License.

Notwithstanding any other provision of this License, you have permission to link or combine any covered work with a work licensed under version 3 of the GNU Affero General Public License into a single combined work, and to convey the resulting work. The terms of this License will continue to apply to the part which is the covered work, but the special requirements of the GNU Affero General Public License, section 13, concerning interaction through a network will apply to the combination as such.

14. Revised Versions of this License.

The Free Software Foundation may publish revised and/or new versions of the GNU General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Program specifies that a certain numbered version of the GNU General Public License "or any later version" applies to it, you have the option of following the terms and conditions either of that numbered version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of the GNU General Public License, you may choose any version ever published by the Free Software Foundation.

If the Program specifies that a proxy can decide which future versions of the GNU General Public License can be used, that proxy's public statement of acceptance of a version permanently authorizes you to choose that version for the Program.

Later license versions may give you additional or different permissions. However, no additional obligations are imposed on any author or copyright holder as a result of your choosing to follow a later version.

15. Disclaimer of Warranty.

THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NecessARY SERVICING, REPAIR OR CORRECTION.

16. Limitation of Liability.

IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MODIFIES AND/OR CONVEYS THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

17. Interpretation of Sections 15 and 16.

If the disclaimer of warranty and limitation of liability provided above cannot be given local legal effect according to their terms, reviewing courts shall apply local law that most closely approximates an absolute waiver of all civil liability in connection with the Program, unless a warranty or assumption of liability accompanies a copy of the Program in return for a fee.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Programs

If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to achieve this is to make it free software which everyone can redistribute and change under these terms.

To do so, attach the following notices to the program. It is safest to attach them to the start of each source file to most effectively state the exclusion of warranty; and each file should have at least the "copyright" line and a pointer to where the full notice is found.

Copyright (C)

This program is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with this program. If not, see https:// www.gnu.org/licenses/.

Also add information on how to contact you by electronic and paper mail.

If the program does terminal interaction, make it output a short notice like this when it starts in an interactive mode:

Copyright (C)

This program comes with ABSOLUTELY NO WARRANTY; for details type `show w'.

This is free software, and you are welcome to redistribute it under certain conditions; type `show c' for details.

The hypothetical commands show w' andshow c' should show the appropriate parts of the General Public License. Of course, your program's commands might be different; for a GUI interface, you would use an "about box".

You should also get your employer (if you work as a programmer) or school, if any, to sign a "copyright disclaimer" for the program, if necessary. For more information on this, and how to apply and follow the GNU GPL, see https://www.gnu.org/licenses/.

The GNU General Public License does not permit incorporating your program into proprietary programs. If your program is a subroutine library, you may consider it more useful to permit linking proprietary applications with the library. If this is what you want to do, use the GNU Lesser General Public License instead of this License. But first, please read https://www.gnu.org/licenses/why-not-lgpl.html.

2.4 License: MIT License

Copyright © 2014 Krzysztof Rutecki

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

2.5 License: MIT License

Copyright © 2015 Kauai Labs, Inc

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

2.6 Microchip Flip software disclaimer

© 2020 Microchip Technology Inc. and its subsidiaries

Subject to your compliance with these terms, you may use this Microchip software and any derivatives exclusively with Microchip products. You are responsible for complying with third party license terms applicable to your use of third party software (including open source software) that may accompany this Microchip software.

SOFTWARE IS "AS IS." NO WARRANTY, WHETHER EXPRESS, IMPLIED OR STATUTORY, APPLY TO THIS SOFTWARE, INCLUDING ANY IMPLIED WARRANTY OF NON-INFRINGEMENT, MERCHANTABILITY, OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL MICROCHIP BE LIABLE FOR ANY INDIRECT, SPECIAL, PUNITIVE, INCIDENTAL OR CONSEQUENTIAL LOSS, DAMAGE, COST OR EXPENSE OF ANY KIND WHATSOVER RELATED TO THE SOFTWARE, HOWEVER CAUSED, EVEN IF MI

CROCHIP HAS BEEN ADVISED OF THE POSSIBILITY OR THE DAMAGES ARE FORESEEABLE. TO THE FULLEST EXTENT ALLOWED BY LAW, MICROCHIP'S TOTAL LIABILITY ON ALL CLAIMS RELATED TO THE SOFTWARE WILL NOT EXCEED AMOUNT OF FEES,IF ANY,YOU PAID DIRECTLY TO MICROCHIP FOR THIS SOFTWARE.ADOITIONALLY,MICROCHIP OFFERS NO SUPPORT FOR THE SOFTWARE.YOU MAY CONTACT YOUR LOCAL MICROCHIP FIELD SALES SUPPORT REPRESENTATIVE TO INQUIRE ABOUT SUPPORT SERVICES AND APPLICABLE FEES,IF ANY. THESE TERMS OVERTIDE ANY OTHER PRIOR OR SUBSEQUENT TERMS OR CONDITIONS THAT MIGHT APPLY TO THIS SOFTWARE AND BY USING THE SOFTWARE,YOU AGREE TO THESE TERMS.

3 Appendix - Source Code Path

The source code for Open source compliance can be found in the installation folder under the folder "OSS_Bundle" e.g if default installation folder is selected then 'OSS_Bundle' can be found in the following folder.
