USER MANUAL Explore 7 E7TB18SSM ELECTROLUX

Modern kitchen blender with blueberries in a bowl beside it, no visible text or symbols on the device itself.

Technical diagram of a blender with labeled parts including kettle, blender, and control panel

Illustration of various kitchen appliances including a blender, keyboard, sink, and washing machine (no text or symbols)

Illustration of a digital kettle with a glass handle and blue liquid inside, no text or symbols present.

Illustration of a kettle with a power button and switch, showing a close-up of the button (no text or symbols present)

Illustration of a kettlebell with a hand placed on it, accompanied by a prohibition symbol (no text or labels present)

8 1 2 3 PULSE 1 2 3 PULSE

11

Illustration of a blender with a handle and lid, showing two states of packaging (no text or symbols)

Illustration of a water tap with a glass container containing a submerged object, no text or symbols present

Illustration of a portable electric stove with a bandage and a no-smoking symbol (no text or labels)

Illustration of various household appliances and tools including a kettle, refrigerator, lamp, and handbag (no text or symbols)

CONTENTS

ENGLISH	6	فلوسي	51	ROMÂNĂ	96
FRANÇAIS	11	SUOMI	56	РУССКИЙ 101
عربي	16	HRVATSKI	61	SVENSKA	106
БЪЛГАРСКИ 21		MAGYAR	66	SLOVENŠČINA	111
ČEŠTINA	26	ITALIANO	71	SLOVENČINA	116
DEUTSCH	31	LIETUVIŠKAI	75	SRPSKI	121
DANSK	36	LATVIEŠU	81	TŸRKÇE 126
EESTI	41	NORSK	86	УКРАЇНСЬКА 131
ESPAÑOL	46	POLSKI	90

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be assured that you will get great results every time

Welcome to Electrolux.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information: www.electrolux.com

Register your product for better service: www.electrolux.com/productregistration

Buy accessories and consumables for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

When contacting Service, ensure that you have the following data available:

• Model number
• PNC number
• Serial number

The information can be found on the rating plate.

3483 E E7TB1-XXX 02 02 0518

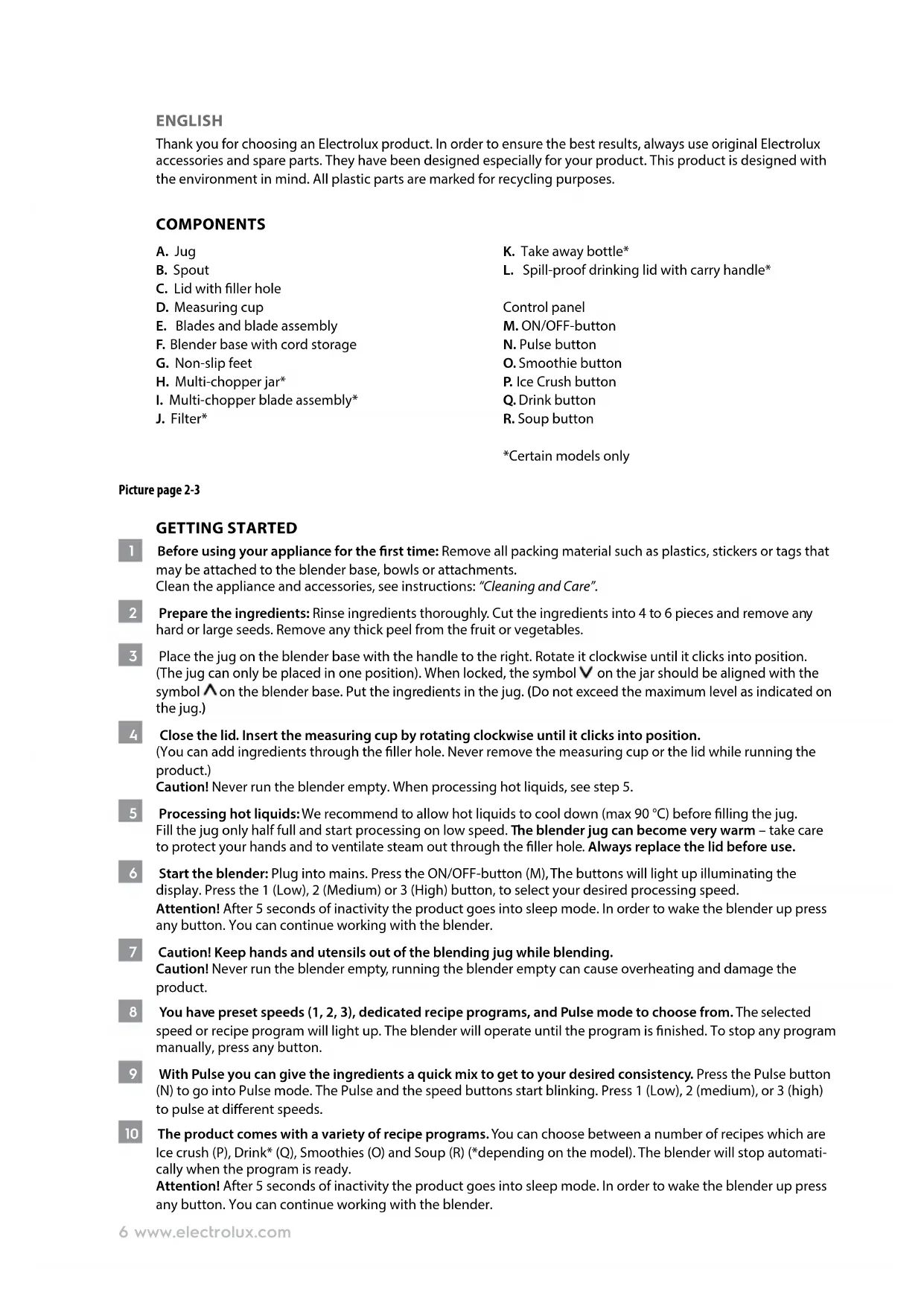

ENGLISH

Thank you for choosing an Electrolux product. In order to ensure the best results, always use original Electrolux accessories and spare parts. They have been designed especially for your product. This product is designed with the environment in mind. All plastic parts are marked for recycling purposes.

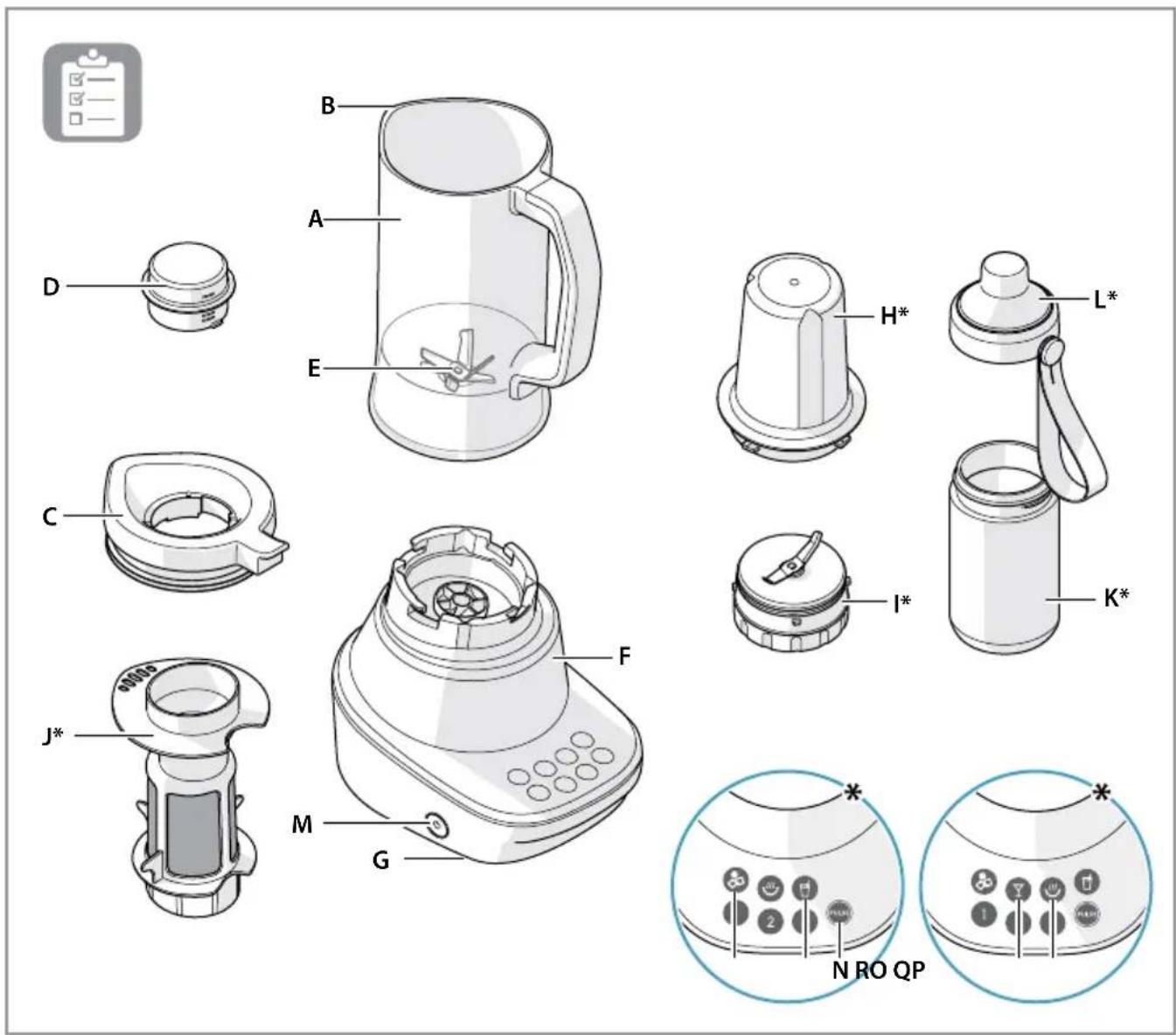

COMPONENTS

A. Jug

B. Spout

C. Lid with filler hole

D. Measuring cup

E. Blades and blade assembly

F. Blender base with cord storage

G. Non-slip feet

H. Multi-chopper jar*

I. Multi-chopper blade assembly*

J. Filter*

K. Take away bottle*

L. Spill-proof drinking lid with carry handle*

Control panel

M. ON/OFF-button

N. Pulse button

O. Smoothie button

P. Ice Crush button

Q. Drink button

R. Soup button

*Certain models only

Picture page 2-3

GETTING STARTED

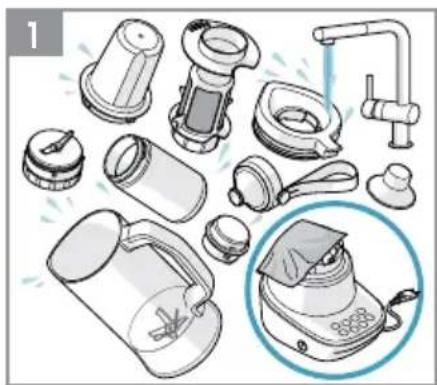

Before using your appliance for the first time: Remove all packing material such as plastics, stickers or tags that may be attached to the blender base, bowls or attachments.

Clean the appliance and accessories, see instructions: "Cleaning and Care".

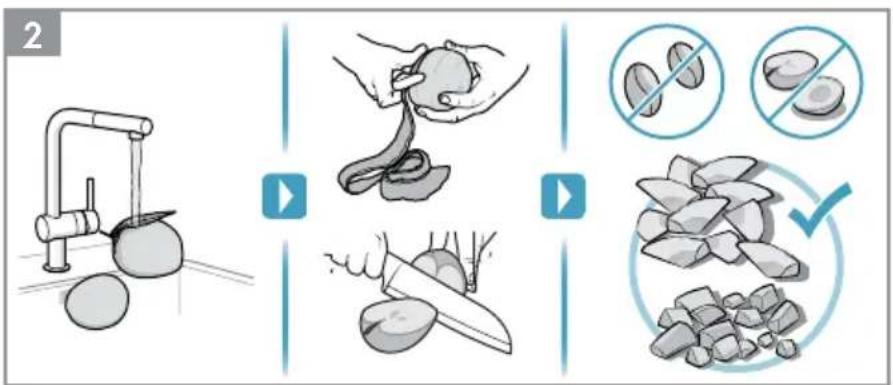

2 Prepare the ingredients: Rinse ingredients thoroughly. Cut the ingredients into 4 to 6 pieces and remove any hard or large seeds. Remove any thick peel from the fruit or vegetables.

3 Place the jug on the blender base with the handle to the right. Rotate it clockwise until it clicks into position. (The jug can only be placed in one position). When locked, the symbol ∨ on the jar should be aligned with the symbol ∧ on the blender base. Put the ingredients in the jug. (Do not exceed the maximum level as indicated on the jug.)

4 Close the lid. Insert the measuring cup by rotating clockwise until it clicks into position.

(You can add ingredients through the filler hole. Never remove the measuring cup or the lid while running the product.)

Caution! Never run the blender empty. When processing hot liquids, see step 5.

5 Processing hot liquids: We recommend to allow hot liquids to cool down (max 90 °C) before filling the jug. Fill the jug only half full and start processing on low speed. The blender jug can become very warm – take care to protect your hands and to ventilate steam out through the filler hole. Always replace the lid before use.

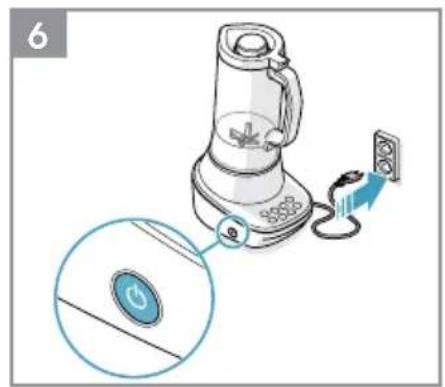

6 Start the blender: Plug into mains. Press the ON/OFF-button (M), The buttons will light up illuminating the display. Press the 1 (Low), 2 (Medium) or 3 (High) button, to select your desired processing speed.

Attention! After 5 seconds of inactivity the product goes into sleep mode. In order to wake the blender up press any button. You can continue working with the blender.

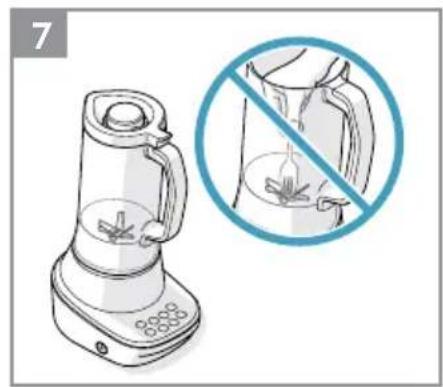

7 Caution! Keep hands and utensils out of the blending jug while blending.

Caution! Never run the blender empty, running the blender empty can cause overheating and damage the product.

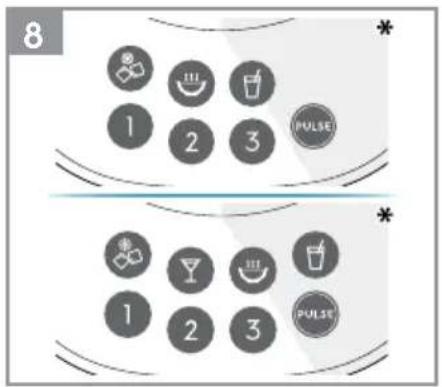

8 You have preset speeds (1, 2, 3), dedicated recipe programs, and Pulse mode to choose from. The selected speed or recipe program will light up. The blender will operate until the program is finished. To stop any program manually, press any button.

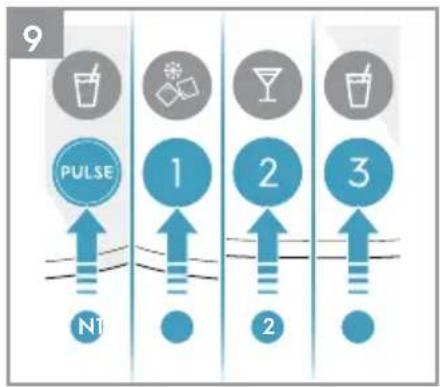

9 With Pulse you can give the ingredients a quick mix to get to your desired consistency. Press the Pulse button (N) to go into Pulse mode. The Pulse and the speed buttons start blinking. Press 1 (Low), 2 (medium), or 3 (high) to pulse at different speeds.

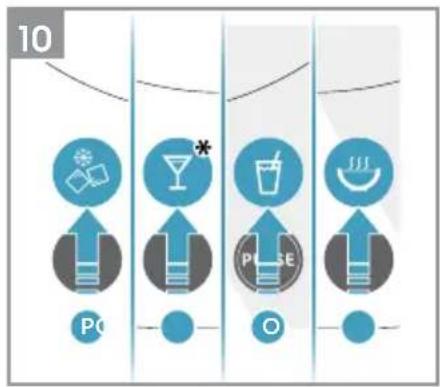

10 The product comes with a variety of recipe programs. You can choose between a number of recipes which are Ice crush (P), Drink* (Q), Smoothies (O) and Soup (R) (*depending on the model). The blender will stop automatically when the program is ready.

Attention! After 5 seconds of inactivity the product goes into sleep mode. In order to wake the blender up press any button. You can continue working with the blender.

USING THE MULTI-CHOPPER\* (\* CERTAIN MODELS ONLY)

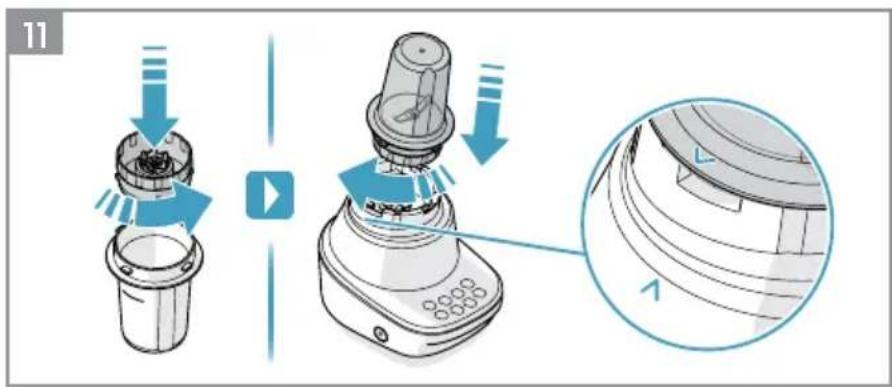

11 Fill the ingredients in the multi-chopper jar (H). Fasten the multi-chopper blade assembly (I) on the open end of the bottle by turning it counter-clockwise.

Turn the multi-chopper jar upside down. Push down the multi-chopper jar into the blender base (F) and rotate it clockwise to lock.

Note: When locked, the symbol √ on the grinder blade assembly should be aligned with the symbol ∧ on the blender base.

Caution! The blades are very sharp!

USING THE FILTER\* (\* CERTAIN MODELS ONLY)

12 To make juice: Insert the filter (J) into the jug. Place the filter in the jug with the wide part facing up. Align the ridge inside the blender jar with the cutout at the bottom of the filter to fit the filter correctly. Add fruits in the filter (do not use the blender to mash large seeds such as those in plums or avocados). Fasten the lid with the measuring cup and start juicing.

CLEANING AND CARE

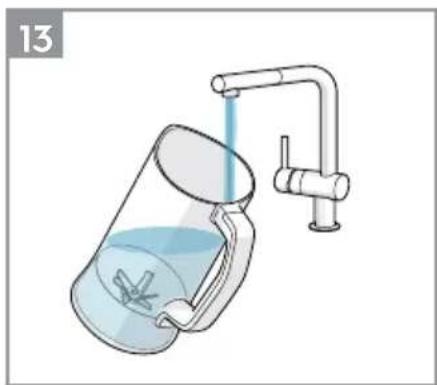

13 Quick cleaning: Pour warm water into the jug, add a few drops of detergent.

Mix water and detergent by pressing the Pulse button then 3 a couple of times.

Finally, rinse the jug under running water.

Note: To avoid crazing of the jar, always rinse the jar with clean water directly after using in order to prevent the plastic material being impacted by acids or essential oils. Always rinse the jar clean even before placing it into the dishwasher.

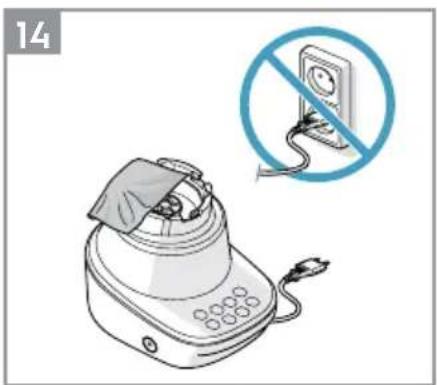

14 Thorough cleaning of the blender base and interface: Turn the blender off and unplug the power cord. Wipe the blender base with a damp cloth.

Warning! Never immerse the housing, plug, or cord in water or any other fluid.

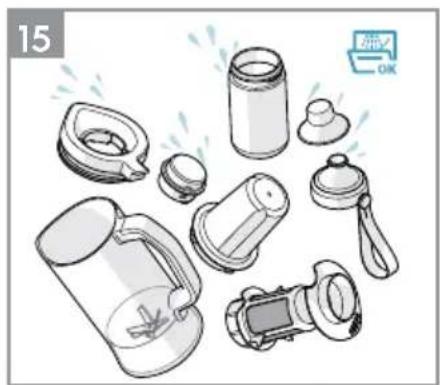

15 Thorough cleaning of the jug: Note! The Blade assembly is not removable. Remove the lid and measuring cup. Rinse the blade assembly in water and detergent. Caution! Handle carefully, the blades are very sharp!

All parts, except for the blender base are dishwasher safe.

Enjoy your new Electrolux product!

SAFETY ADVICE

Read the following instruction carefully before using the appliance for the first time.

- This appliance shall not be used by children. Keep the appliance and its cord out of reach of children. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision.

- The appliance may only be connected to a power supply whose voltage and frequency comply with the specifications on the rating plate!

- Never use or pick up the appliance if – the supply cord is damaged, – the housing is damaged.

- If the appliance or the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person, in order to avoid hazard.

• Always place the appliance on a flat, level surface.

- Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

- Never touch the blades or inserts with your hand or any tools while the appliance is plugged in.

- The blades and inserts are very sharp! Danger of injury!

- Do not immerse the appliance in water or any other liquid.

- Do not exceed the maximum filling volume as indicated on the appliances.

- Never process boiling liquids (max 90 °C).

- Do not use this appliance to stir paint. Danger, could result in an explosion!

- Never operate appliance without lid.

- Do not let the power cord touch hot surfaces or hang over edge of table or counter.

- Never use accessories or parts made by other manufactures not recommended or sold; may cause a risk of injury to persons.

- Do not grind hard or dry substances in the jug.

- Keep hands and utensils out of the blender during operation to reduce the risk of severe injury to persons or damage to the blender.

- Ensure that the blender is switched off before removing it from the stand.

- Do not attempt to remove the blade assembly.

- Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.

- Be careful if hot liquid is poured into the appliance as it can be ejected out of the appliance due to a sudden steaming.

- Switch off the appliance and disconnect from supply before approaching parts that move in use.

• If the product is left on without using any speed or programs, it will automatically turn off after 5 minutes.
• This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use.
• CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
  • DO NOT OPERATE WITHOUT THE COVER IN PLACE.

RECIPES

When using the multi-chopper to chop ingredients like onions and shallots, cut the ingredients into cubes no bigger than 2.5 cm to get the best result. Ingredients with tough textures such as carrot and celery are not recommended for chopping.

MAXIMUM PROCESSING TIME MAXIMUM CAPACITY
7 min 1500 ml

RECOMMENDED BLENDING SPEED
Recipe Ingredients Quantity Time Speed
Pineapple-apricots Smoothie	Pineapple in slices 250 g			≤ 120 s	Setting3 (Max speed)
	Dried Apricots 40 g
	Yoghurt 300 g
Soup (Certification recipe)	Carrots	600 g		≤ 60 s	Setting3 (Max speed)
	Water	900 ml
Raspberries Smoothie	Frozen raspberries 250 g			Program set	Smoothie
	Banana ( 12 pcs)	50 g
	Water	50 g
	Yoghurt 300 g

MULTI-CHOPPER FUNCTION
Maximum volume for multi-chopper cup: 400 ml		Maximum dry grinding time: 30 s
Ingredients	Maximum Quantity	Time	Speed
Coffee	60 g	20 seconds	Setting 3
Dry shrimp	50 g	10 seconds ON + 3 seconds OFF (2 times)	Setting 3
Dry chili	50 g	10 seconds ON + 3 seconds OFF (2 times)	Setting 3
Fresh chili	50 g	10 seconds ON + 3 seconds OFF (2 times)	Setting 3
Pepper corn	120 g	10 seconds ON + 3 seconds OFF (2 times)	Setting 3
Dry anchovy	50 g	10 seconds ON + 3 seconds OFF (2 times)	Setting 3
Raw rice	120 g	10 seconds On+ 3 seconds OFF (2 times)	Setting 3
Five spice	50 g	10 seconds ON + 3 seconds OFF (2 times)	Setting 3
Garlic	60 g	5 seconds ON + 3 seconds OFF (2 times)	Setting 3
Nuts	100 g	10 seconds	Setting 2
Almonds	100 g	10 seconds	Setting 2
Onions	150 g	5 seconds ON + 3 seconds OFF (until ready)	Setting 2

MULTI-CHOPPER FUNCTION

Maximum volume for multi-chopper cup: 400 ml Maximum dry grinding time: 30 s

Beef 100 g 20 seconds Setting 3

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
The blender does not switch on.	Jug/base are not fixed properly. Check if all the	components are in correct position. Note! the jug can only be placed on the base with handle towards the user interface.
	The ON/OFF-button is not pressed. Make sure the display is illuminated. If not, press the ON/OFF-button to turn the blender on.
	The motor has overheated. The display is blinking.	Wait until the product has cooled down and all the buttons are lit.
	The plug is not properly connected to the power outlet.	Check the connection of the plug to the outlet or try another outlet.
	Power outage. Wait until power outage is over.
	Functional problem. Contact authorized service.
The motor stalls during operation		If the motor stalls, turn the blender off immediately, unplug the appliance and let it cool for at least 10 minutes.
	Ingredients are too large. Cut all firm fruits and vegetables into pieces no larger than 1.8 cm^2 to 2.5 cm^2 .
	Wrong ingredients. The appliance intended use is production of beverages. Add fruits, vegetables or similar. Never mix ingredients such as dough, mashed potatoes, meat or similar.

DISPOSAL

This symbol on the product indicates that this product contains a battery which shall not be disposed with normal household waste.

This symbol on the product or on its packaging indicates that the product may not be treated as household waste. To recycle your product, please take it to an official collection point or to an Electrolux service center that can remove and recycle the battery and electric parts in a safe and professional way. Follow your country's rules for the separate collection of electrical products and rechargeable batteries.

Electrolux reserves the right to change products, information and specifications without notice.
